Model Whirlpool B38HN-5TVW ELECTRIC RANGE – Common Parts & Diagrams

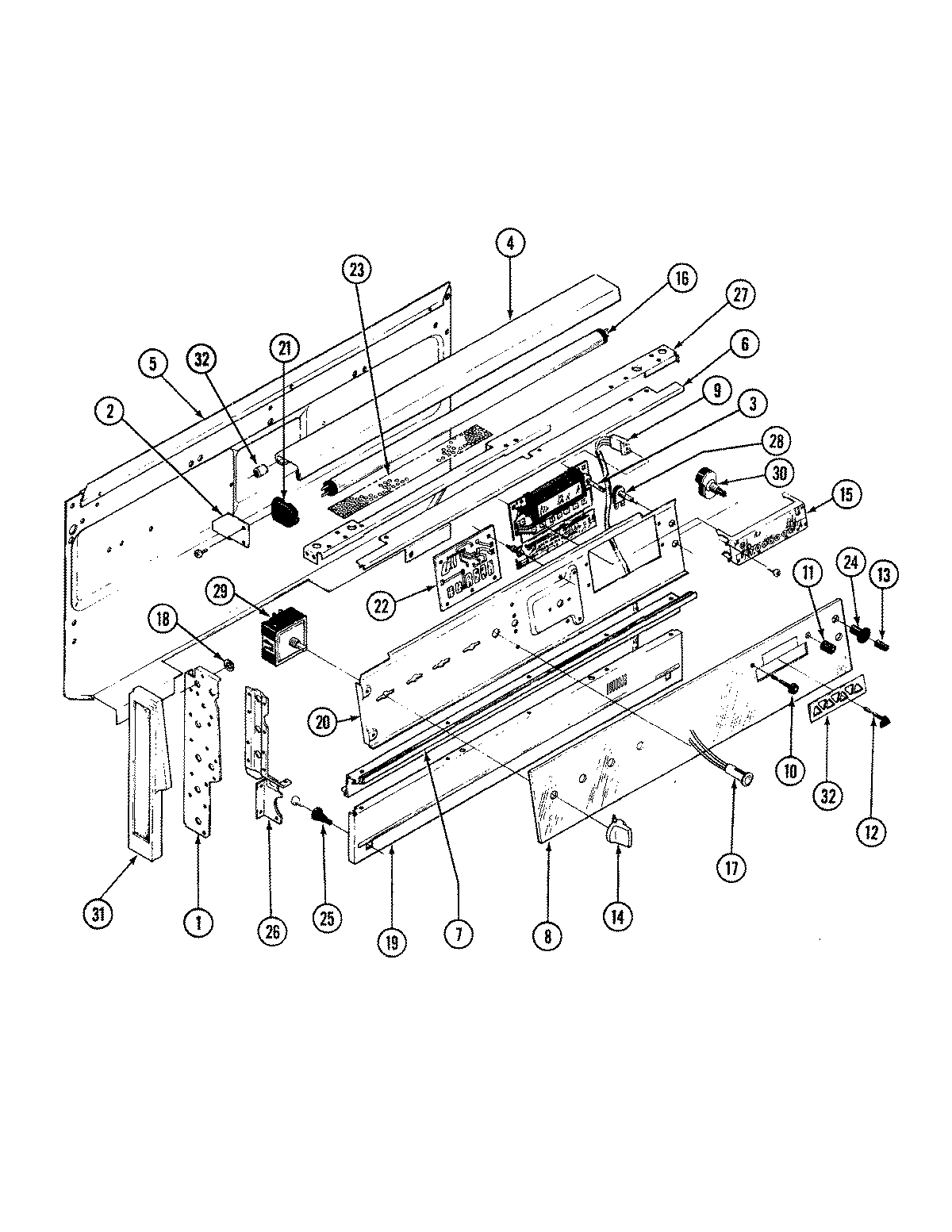

01 - BACKGUARD

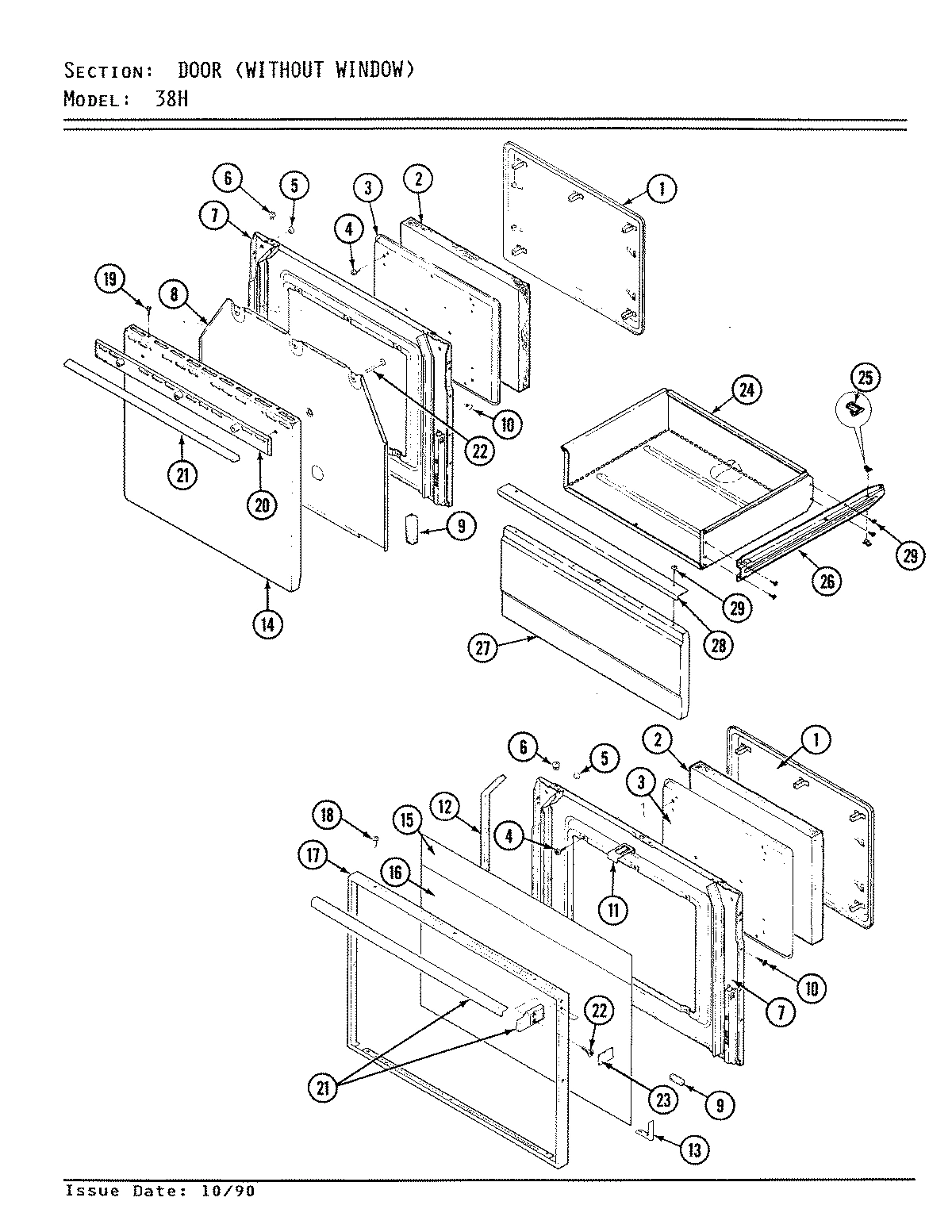

02 - DOOR/DRAWER
Common parts from model Whirlpool B38HN-5TVW ELECTRIC RANGE
1
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
1
PLATE WPL 3605F00880 Contact Us For Availability
1
BALLAST WPL 7412P00560 Contact Us For Availability
1
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
1
PAD, DOOR WPL 2410W04115 Contact Us For Availability
1
PAD, DOOR WPL 2410W04119 Contact Us For Availability
2
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
2
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
2
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
3
CLOCK WPL 7601P12160 Contact Us For Availability
3
CLOCK, ELECTRONIC WPL 7601P18060 Contact Us For Availability
3
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
4
COVER, LAMP WPL 7724P01060 Contact Us For Availability
4
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
4
PAD, INNER WPL 2410F01651 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F19123 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
5
GASKET, COVER WPL 4005F29651 Contact Us For Availability
5
COVER, WIRE (CANADA) WPL 4005S30680 Contact Us For Availability
5
SCREW WPL 7101P06160 Contact Us For Availability
6
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
EXTRUSION, TRIM WPL 7706P10960 Contact Us For Availability
7
NUT, SNAP WPL 7103P11460 Contact Us For Availability
8
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
8
GLASS, BACKGUARD WPL 7910P05360 Contact Us For Availability
8
GLASS BKGD WPL 7910P06560 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
9
HARNESS, OVEN SENSOR WPL 5170P06560 Contact Us For Availability
9
HARNESS, OVEN SENSOR WPL 5170P08860 Contact Us For Availability
9
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
9
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
10
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
10
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
10
LINING WPL 2402W17315 Contact Us For Availability
10
LINING WPL 2402W17319 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
BUTTON, SET WPL 7711P33560 Contact Us For Availability
12
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
13
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
14
KNOB WPL 7737P02160 Contact Us For Availability
14
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
15
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
15
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
17
LIGHT, INDICATOR WPL 7407P06060 Contact Us For Availability
18
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
19
PANEL, BKGD LOWER WPL 2620W04190 Contact Us For Availability
20
PLATE, SWITCH MOUNTING WPL 3605F13480 Contact Us For Availability
20
PLATE SWITCH MTG WPL 3605F17180 Contact Us For Availability
20
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
22
WIRE HARNESS, RELAY WPL 5170P06860 Contact Us For Availability
22
SHIELD WPL 7003P02160 Contact Us For Availability
22
SEAL, COVER WPL 7212P03260 Contact Us For Availability
22
RELAY, BOARD ASSY. WPL 7428P00760 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00360 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
22
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
23
WPL 3604F07980 WPL 3604F07980 Contact Us For Availability
24
WPL 7214P00160 WPL 7214P00160 Contact Us For Availability
24
WPL 7214P00760 WPL 7214P00760 Contact Us For Availability
25
WPL 7105P00560 WPL 7105P00560 Contact Us For Availability
25
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
26
WPL 3807F01080 WPL 3807F01080 Contact Us For Availability
26
WPL 3807F01280 WPL 3807F01280 Contact Us For Availability
27
WPL 3807F21580 WPL 3807F21580 Contact Us For Availability
27
WPL 3807F39180 WPL 3807F39180 Contact Us For Availability
27
WPL 8004P02060 WPL 8004P02060 Contact Us For Availability
27
+ PANEL, STORAGE, DOOR WPL 5715A00371K Contact Us For Availability
28
WPL 7403P00960 WPL 7403P00960 Contact Us For Availability
28
WPL 7403P17460 WPL 7403P17460 Contact Us For Availability
28
WPL 7403P17960 WPL 7403P17960 Contact Us For Availability
28
WPL 7403P19660 WPL 7403P19660 Contact Us For Availability
28
HANDLE DOOR WHT WPL 2411F00171 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
WPL 7403P10160 WPL 7403P10160 Contact Us For Availability
29
WPL 7403P18260 WPL 7403P18260 Contact Us For Availability
29
WPL 7403P26660 WPL 7403P26660 Contact Us For Availability
30
WPL 7403P01960 WPL 7403P01960 Contact Us For Availability
30
WPL 7403P10460 WPL 7403P10460 Contact Us For Availability
31
WPL 7716P01060 WPL 7716P01060 Contact Us For Availability
31
WPL 7716P01160 WPL 7716P01160 Contact Us For Availability
31
WPL 7726P00760 WPL 7726P00760 Contact Us For Availability
31
WPL 7726P01860 WPL 7726P01860 Contact Us For Availability
32
WPL 7728P01860 WPL 7728P01860 Contact Us For Availability
32
WPL 7201P04560 WPL 7201P04560 Contact Us For Availability
32
WPL 7728P04260 WPL 7728P04260 Contact Us For Availability
32
WPL 7740P01060 WPL 7740P01060 Contact Us For Availability
32
WPL 7740P01660 WPL 7740P01660 Contact Us For Availability
NI
WPL 8007P01360 WPL 8007P01360 Contact Us For Availability
NI
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
NI
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
NI
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
NI
GLASS, INNER WPL 7902P09760 Contact Us For Availability
NI
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
NI
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
× ![]()
