Model Maytag B136CAL3 REFRIGERATOR – Common Parts & Diagrams
01 - CONTROL ASSY
02 - DOOR ASSEMBLIES

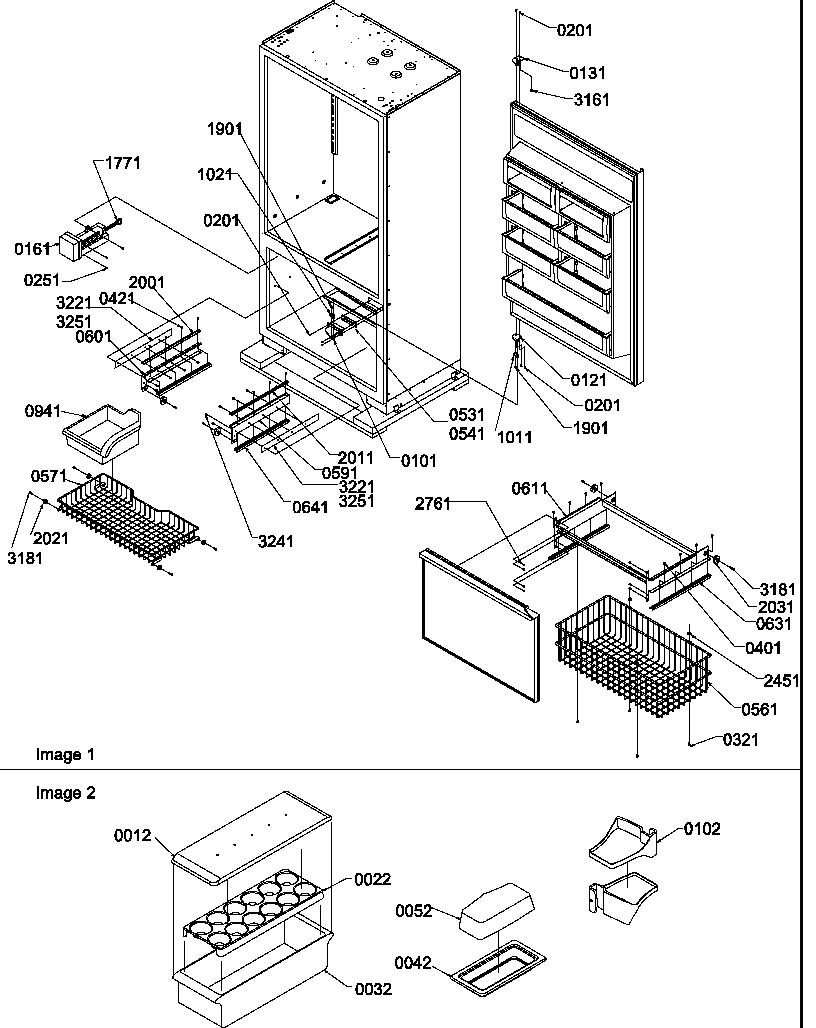

03 - DRAWER, HINGES & ACCESSORIES

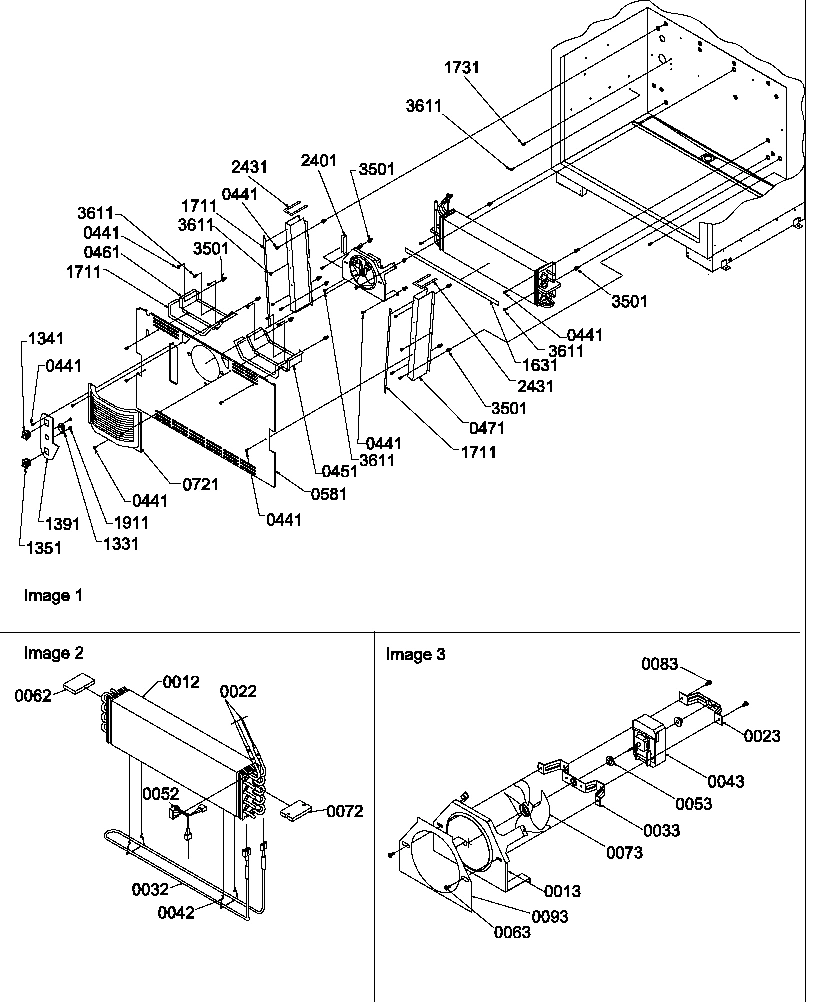

04 - EVAP AREA

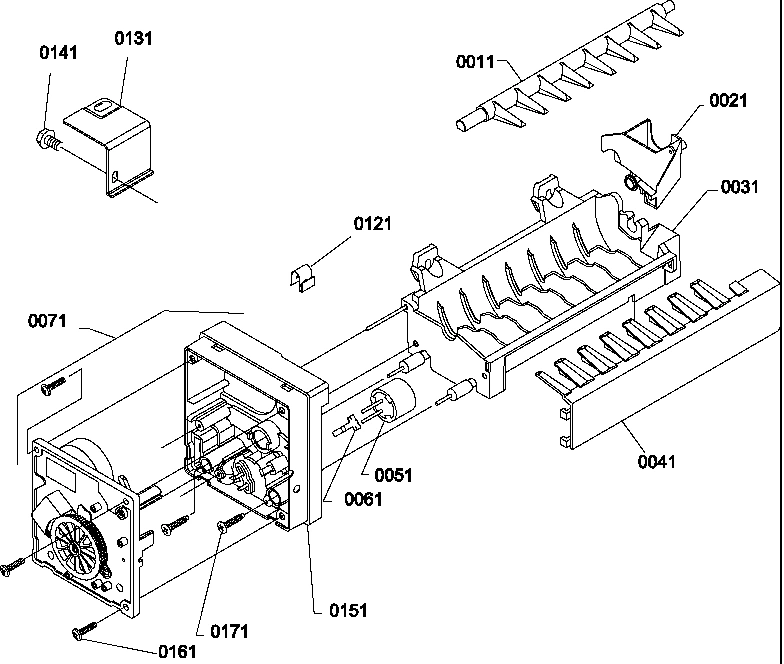

05 - ICE MAKER ASSY PARTS

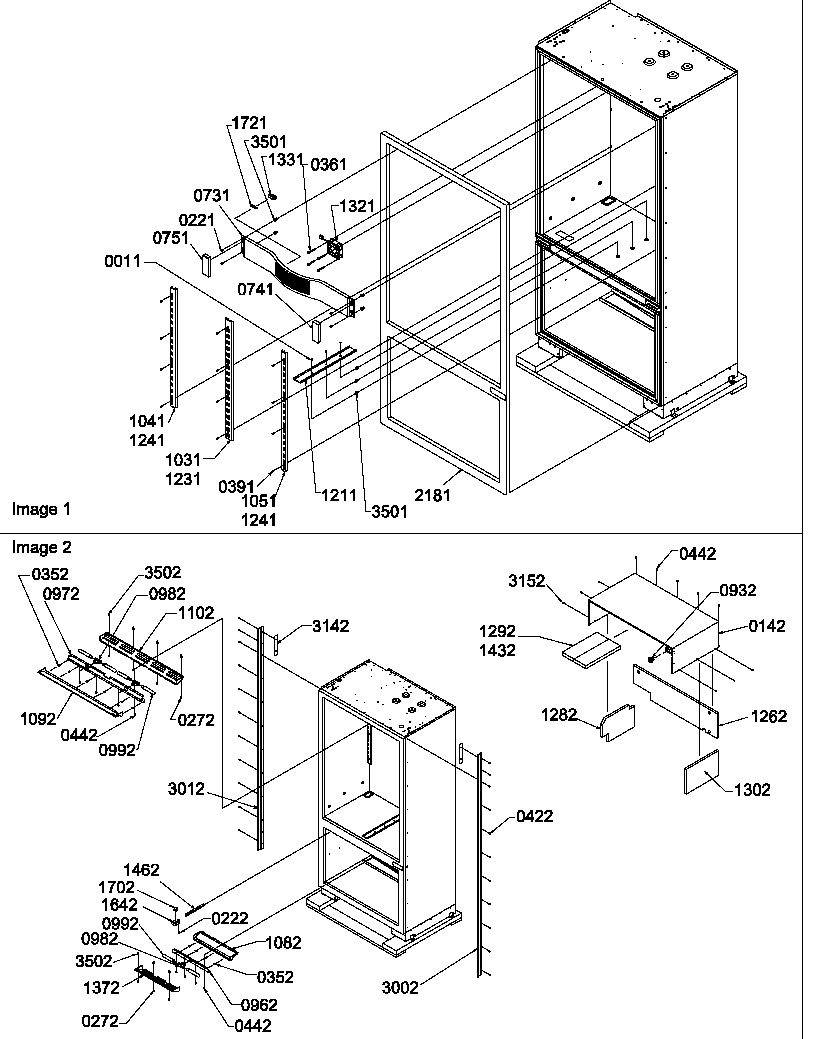

06 - LADDERS & LIGHT SHIELDS

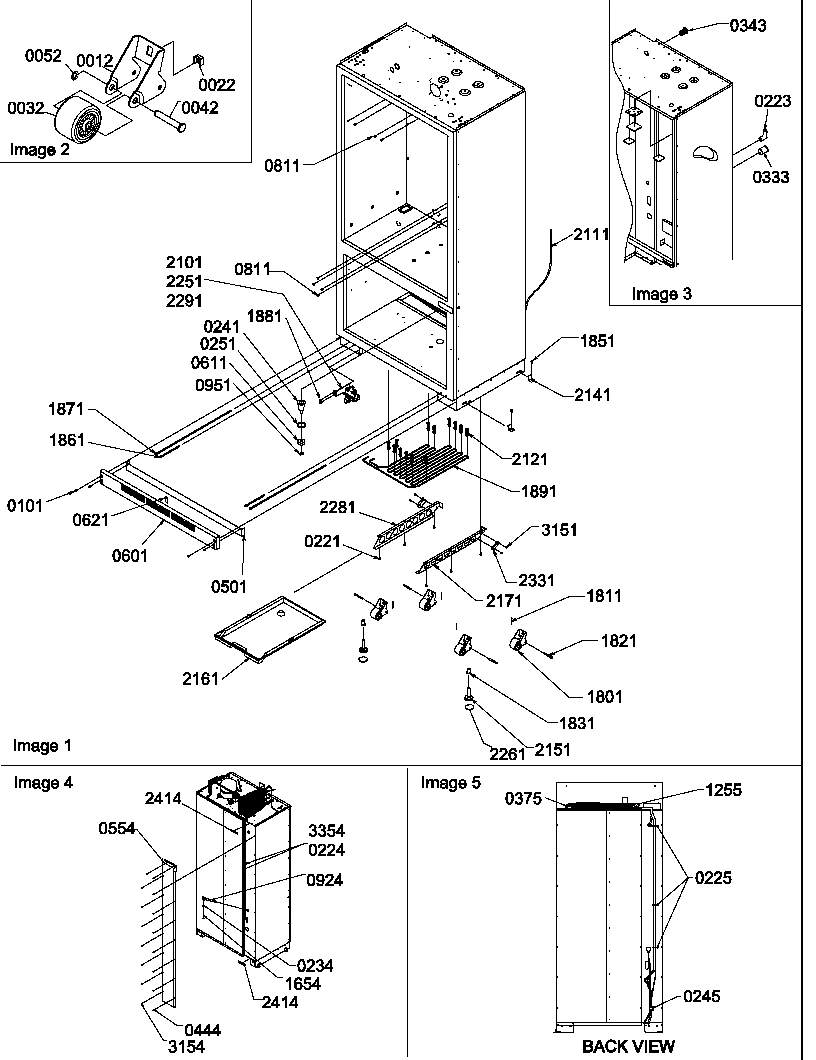

07 - ROLLER ASSY & BACK UNIT

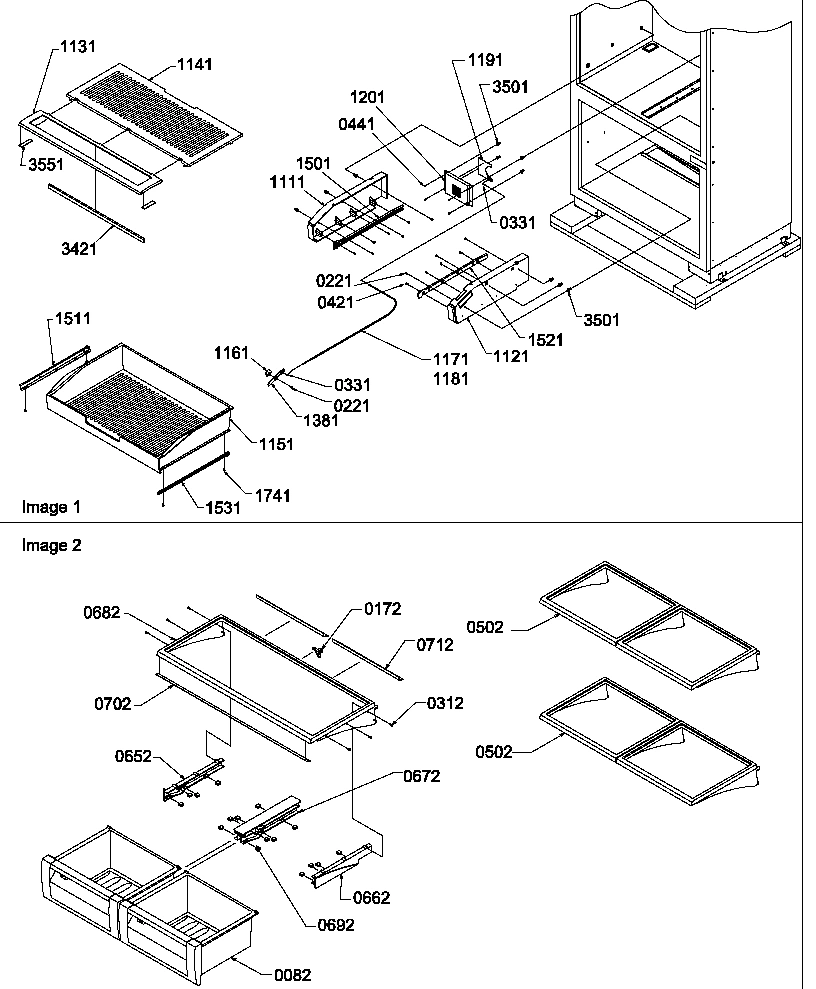

08 - SHELVING

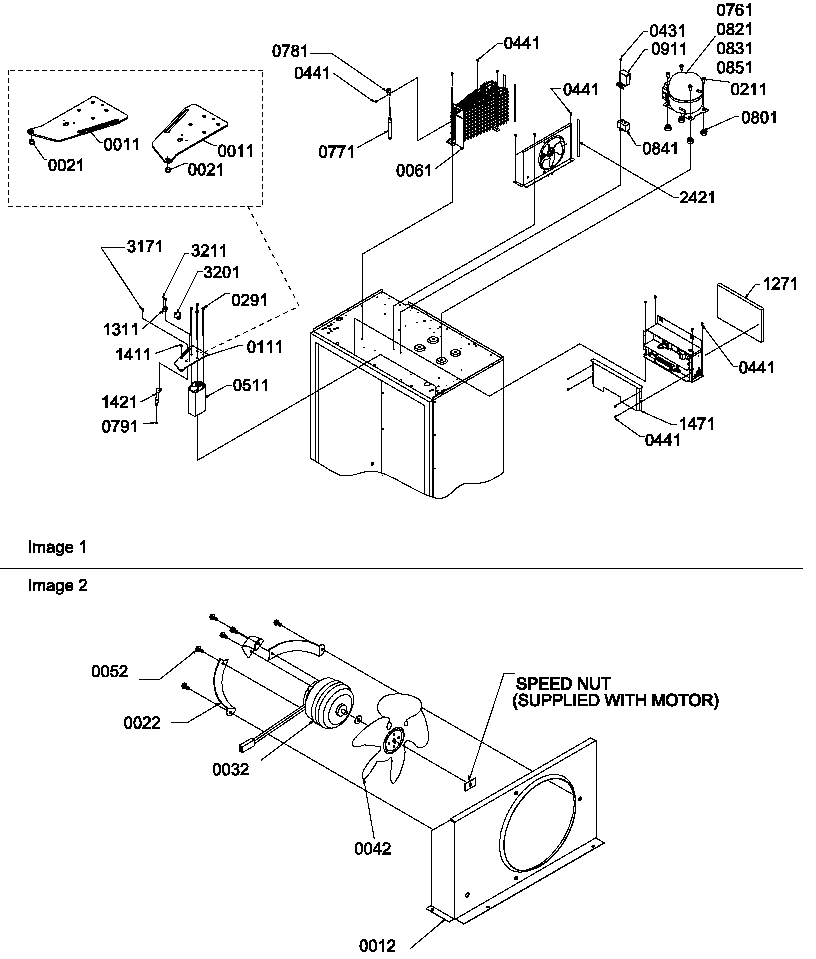

09 - TOP HINGE, CONDENSER & COMPRESSOR AREA

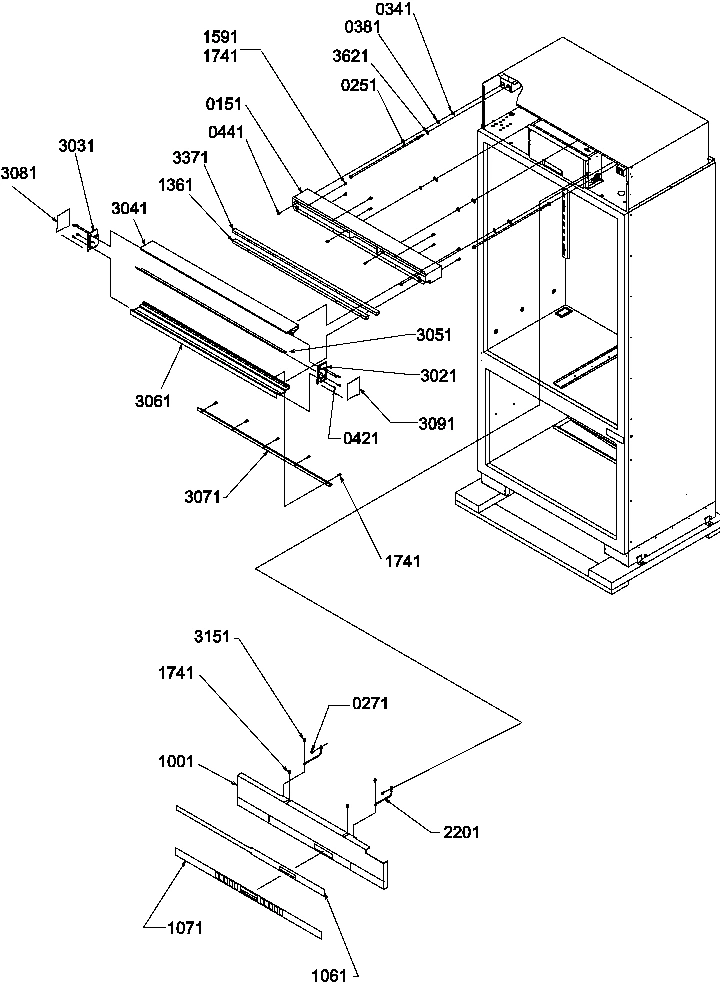

10 - UPPER GRILLE & KEYBOARD
Common parts from model Maytag B136CAL3 REFRIGERATOR
11
MAY R0183119 MAY R0183119 Contact Us For Availability
11
MAY 12068001 MAY 12068001 Contact Us For Availability
12
MAY 10436404 MAY 10436404 Contact Us For Availability
12
MAY Y12179801 MAY Y12179801 Contact Us For Availability
12
MAY 12033501 MAY 12033501 Contact Us For Availability
12
MAY 12090701 MAY 12090701 Contact Us For Availability
13
MAY 12067603 MAY 12067603 Contact Us For Availability
21
MAY 12282101 MAY 12282101 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY 12042902 MAY 12042902 Contact Us For Availability
22
MAY 10436505 MAY 10436505 Contact Us For Availability
22
MAY 12061701 MAY 12061701 Contact Us For Availability
22
MAY M0286708 MAY M0286708 Contact Us For Availability
22
MAY 10582501 MAY 10582501 Contact Us For Availability
23
MAY 12062601 MAY 12062601 Contact Us For Availability
23
MAY 10656001 MAY 10656001 Contact Us For Availability
31
MAY R0156669 MAY R0156669 Contact Us For Availability
32
MAY 12282201 MAY 12282201 Contact Us For Availability
32
MAY 10423128 MAY 10423128 Contact Us For Availability
32
MAY 10428409 MAY 10428409 Contact Us For Availability
32
MAY 12034201 MAY 12034201 Contact Us For Availability
32
MAY 10522103 MAY 10522103 Contact Us For Availability
33
MAY 10656101 MAY 10656101 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
42
MAY 12052701 MAY 12052701 Contact Us For Availability
42
MAY M1252901 MAY M1252901 Contact Us For Availability
42
MAY B5742603 MAY B5742603 Contact Us For Availability
43
MAY 10654207 MAY 10654207 Contact Us For Availability
51
MAY 12067101 MAY 12067101 Contact Us For Availability
51
MAY R0161060 MAY R0161060 Contact Us For Availability
52
MAY M0223803 MAY M0223803 Contact Us For Availability
52
MAY 12070901 MAY 12070901 Contact Us For Availability
52
MAY 10442407 MAY 10442407 Contact Us For Availability
52
MAY M0273801 MAY M0273801 Contact Us For Availability
53
MAY A1017202 MAY A1017202 Contact Us For Availability
61
MAY 12106801 MAY 12106801 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 12061902 MAY 12061902 Contact Us For Availability
62
MAY 12067201 MAY 12067201 Contact Us For Availability
63
MAY 12177201 MAY 12177201 Contact Us For Availability
63
MAY M0253543 MAY M0253543 Contact Us For Availability
71
MAY 10544502 MAY 10544502 Contact Us For Availability
71
MAY R0167203 MAY R0167203 Contact Us For Availability
72
MAY 12067301 MAY 12067301 Contact Us For Availability
73
MAY 12059901 MAY 12059901 Contact Us For Availability
81
MAY 12065101 MAY 12065101 Contact Us For Availability
82
MAY 12056901 MAY 12056901 Contact Us For Availability
83
MAY M0224416 MAY M0224416 Contact Us For Availability
91
MAY 12065201 MAY 12065201 Contact Us For Availability
93
MAY 12116401 MAY 12116401 Contact Us For Availability
93
MAY 12102401 MAY 12102401 Contact Us For Availability
101
MAY 12119401 MAY 12119401 Contact Us For Availability
101
MAY M0223729 MAY M0223729 Contact Us For Availability
102
MAY 12076402 MAY 12076402 Contact Us For Availability
102
MAY 12104901 MAY 12104901 Contact Us For Availability
111
MAY M0585504 MAY M0585504 Contact Us For Availability
111
MAY 12067801 MAY 12067801 Contact Us For Availability
121
MAY M0585506 MAY M0585506 Contact Us For Availability
121
MAY 12119502 MAY 12119502 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
122
MAY 12063502 MAY 12063502 Contact Us For Availability
131
MAY M0217204 MAY M0217204 Contact Us For Availability
131
MAY 12063402 MAY 12063402 Contact Us For Availability
131
MAY 12043404 MAY 12043404 Contact Us For Availability
131
MAY B8391802 MAY B8391802 Contact Us For Availability
132
MAY 12063602 MAY 12063602 Contact Us For Availability
141
MAY A4554817 MAY A4554817 Contact Us For Availability
141
MAY 12063501 MAY 12063501 Contact Us For Availability
141
MAY M0211017 MAY M0211017 Contact Us For Availability
142
MAY 12070301 MAY 12070301 Contact Us For Availability
151
MAY 12063503 MAY 12063503 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY 10942502 MAY 10942502 Contact Us For Availability
152
MAY 12063702 MAY 12063702 Contact Us For Availability
161
MAY 12063701 MAY 12063701 Contact Us For Availability
161
MAY 10563707 MAY 10563707 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
171
MAY 12063703 MAY 12063703 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
172
MAY 10933002 MAY 10933002 Contact Us For Availability
172
MAY 12046701 MAY 12046701 Contact Us For Availability
181
MAY M0215704 MAY M0215704 Contact Us For Availability
191
MAY 12039701 MAY 12039701 Contact Us For Availability
201
MAY 12055401 MAY 12055401 Contact Us For Availability
201
MAY M0226233 MAY M0226233 Contact Us For Availability
211
MAY 12097401 MAY 12097401 Contact Us For Availability
211
MAY M0221523 MAY M0221523 Contact Us For Availability
221
MAY M0211018 MAY M0211018 Contact Us For Availability
222
MAY 12063705 MAY 12063705 Contact Us For Availability
223
MAY C8971903 MAY C8971903 Contact Us For Availability
234
MAY 12115101 MAY 12115101 Contact Us For Availability
241
MAY 12034002 MAY 12034002 Contact Us For Availability
245
MAY M0104105 MAY M0104105 Contact Us For Availability
251
MAY 12034401 MAY 12034401 Contact Us For Availability
251
MAY M0223603 MAY M0223603 Contact Us For Availability
261
MAY 10933001 MAY 10933001 Contact Us For Availability
271
MAY M0238846 MAY M0238846 Contact Us For Availability
291
MAY M0206313 MAY M0206313 Contact Us For Availability
302
MAY M0215709 MAY M0215709 Contact Us For Availability
321
MAY M0253942 MAY M0253942 Contact Us For Availability
331
MAY M0213105 MAY M0213105 Contact Us For Availability
333
MAY 12114601 MAY 12114601 Contact Us For Availability
341
MAY M0288120 MAY M0288120 Contact Us For Availability
343
MAY A3187703 MAY A3187703 Contact Us For Availability
351
MAY 12128001 MAY 12128001 Contact Us For Availability
352
MAY M0108201 MAY M0108201 Contact Us For Availability
361
MAY M0218137 MAY M0218137 Contact Us For Availability
375
MAY A4554806 MAY A4554806 Contact Us For Availability
381
MAY M0273902 MAY M0273902 Contact Us For Availability
391
MAY M0238531 MAY M0238531 Contact Us For Availability
401
MAY M0230028 MAY M0230028 Contact Us For Availability
421
MAY M0215318 MAY M0215318 Contact Us For Availability
431
MAY M0238921 MAY M0238921 Contact Us For Availability
441
MAY M0238616 MAY M0238616 Contact Us For Availability
451
MAY 12065605 MAY 12065605 Contact Us For Availability
461
MAY 12065606 MAY 12065606 Contact Us For Availability
471
MAY 12088801 MAY 12088801 Contact Us For Availability
501
MAY 12064402 MAY 12064402 Contact Us For Availability
502
MAY 12021301 MAY 12021301 Contact Us For Availability
511
MAY 12067901 MAY 12067901 Contact Us For Availability
531
MAY 12068402 MAY 12068402 Contact Us For Availability
541
MAY 12068403 MAY 12068403 Contact Us For Availability
554
MAY 12187701 MAY 12187701 Contact Us For Availability
561
MAY 12196401 MAY 12196401 Contact Us For Availability
571
MAY 12234601 MAY 12234601 Contact Us For Availability
581
MAY 12068102 MAY 12068102 Contact Us For Availability
591
MAY 12183003 MAY 12183003 Contact Us For Availability
601
MAY 12183004 MAY 12183004 Contact Us For Availability
601
MAY 12064302 MAY 12064302 Contact Us For Availability
611
MAY 12087901 MAY 12087901 Contact Us For Availability
611
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
621
MAY B5720304 MAY B5720304 Contact Us For Availability
631
MAY 12189101 MAY 12189101 Contact Us For Availability
641
MAY 12189201 MAY 12189201 Contact Us For Availability
652
MAY 12064501 MAY 12064501 Contact Us For Availability
662
MAY 12064502 MAY 12064502 Contact Us For Availability
672
MAY 12064601 MAY 12064601 Contact Us For Availability
682
MAY 12021401 MAY 12021401 Contact Us For Availability
692
MAY 12064701 MAY 12064701 Contact Us For Availability
702
MAY 12070001 MAY 12070001 Contact Us For Availability
712
MAY 12070101 MAY 12070101 Contact Us For Availability
721
MAY 12063301 MAY 12063301 Contact Us For Availability
731
MAY 12067401 MAY 12067401 Contact Us For Availability
741
MAY 12070201 MAY 12070201 Contact Us For Availability
751
MAY 12070202 MAY 12070202 Contact Us For Availability
761
MAY 12049702 MAY 12049702 Contact Us For Availability
771
DRIER MAY B2150504 Contact Us For Availability
781
MAY 10547001 MAY 10547001 Contact Us For Availability
791
MAY 40370P01 MAY 40370P01 Contact Us For Availability
801
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
811
MAY M0211019 MAY M0211019 Contact Us For Availability
821
MAY 10377015 MAY 10377015 Contact Us For Availability
831
MAY 10097202 MAY 10097202 Contact Us For Availability
841
MAY C8931604 MAY C8931604 Contact Us For Availability
851
MAY 10757301 MAY 10757301 Contact Us For Availability
911
MAY 10266402 MAY 10266402 Contact Us For Availability
924
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
932
MAY 12074801 MAY 12074801 Contact Us For Availability
941
MAY 12193401 MAY 12193401 Contact Us For Availability
951
MAY M0273301 MAY M0273301 Contact Us For Availability
962
MAY 12055701 MAY 12055701 Contact Us For Availability
972
MAY 12055801 MAY 12055801 Contact Us For Availability
982
MAY 12096901 MAY 12096901 Contact Us For Availability
992
MAY A3079001 MAY A3079001 Contact Us For Availability
1001
MAY 10942002 MAY 10942002 Contact Us For Availability
1011
MAY 12055602 MAY 12055602 Contact Us For Availability
1021
MAY 12055601 MAY 12055601 Contact Us For Availability
1031
MAY 12071501 MAY 12071501 Contact Us For Availability
1041
MAY 12071601 MAY 12071601 Contact Us For Availability
1051
MAY 12071701 MAY 12071701 Contact Us For Availability
1061
MAY 12071801 MAY 12071801 Contact Us For Availability
1071
MAY 12071901 MAY 12071901 Contact Us For Availability
1082
MAY 12074501 MAY 12074501 Contact Us For Availability
1092
MAY 12072001 MAY 12072001 Contact Us For Availability
1102
MAY 12072801 MAY 12072801 Contact Us For Availability
1111
MAY 12202601 MAY 12202601 Contact Us For Availability
1121
MAY 12073001 MAY 12073001 Contact Us For Availability
1131
MAY 12223201 MAY 12223201 Contact Us For Availability
1141
MAY 12223301 MAY 12223301 Contact Us For Availability
1151
MAY 12073301 MAY 12073301 Contact Us For Availability
1161
MAY 12073401 MAY 12073401 Contact Us For Availability
1171
MAY 12073501 MAY 12073501 Contact Us For Availability
1181
MAY 12073502 MAY 12073502 Contact Us For Availability
1191
MAY 12073601 MAY 12073601 Contact Us For Availability
1201
MAY 12073701 MAY 12073701 Contact Us For Availability
1211
MAY 12118901 MAY 12118901 Contact Us For Availability
1231
MAY 12074001 MAY 12074001 Contact Us For Availability
1241
MAY 12074002 MAY 12074002 Contact Us For Availability
1255
MAY 10916507 MAY 10916507 Contact Us For Availability
1262
MAY 12074401 MAY 12074401 Contact Us For Availability
1271
MAY 12074703 MAY 12074703 Contact Us For Availability
1282
MAY 12074601 MAY 12074601 Contact Us For Availability
1292
MAY 12074701 MAY 12074701 Contact Us For Availability
1302
MAY 12074702 MAY 12074702 Contact Us For Availability
1311
MAY 12074902 MAY 12074902 Contact Us For Availability
1321
MAY 12075002 MAY 12075002 Contact Us For Availability
1331
MAY C8983701 MAY C8983701 Contact Us For Availability
1341
MAY C3680306 MAY C3680306 Contact Us For Availability
1351
MAY C3680307 MAY C3680307 Contact Us For Availability
1361
MAY 12043501 MAY 12043501 Contact Us For Availability
1372
MAY 12034901 MAY 12034901 Contact Us For Availability
1381
MAY 12070501 MAY 12070501 Contact Us For Availability
1391
MAY 12089102 MAY 12089102 Contact Us For Availability
1411
MAY 12090101 MAY 12090101 Contact Us For Availability
1421
MAY 12140602 MAY 12140602 Contact Us For Availability
1432
MAY 12074704 MAY 12074704 Contact Us For Availability
1462
MAY 10250003 MAY 10250003 Contact Us For Availability
1471
MAY 12091001 MAY 12091001 Contact Us For Availability
1501
MAY 12073901 MAY 12073901 Contact Us For Availability
1511
MAY 12073902 MAY 12073902 Contact Us For Availability
1521
MAY 12073903 MAY 12073903 Contact Us For Availability
1531
MAY 12073904 MAY 12073904 Contact Us For Availability
1591
MAY M0213147 MAY M0213147 Contact Us For Availability
1631
MAY A3189348 MAY A3189348 Contact Us For Availability
1642
MAY 12106101 MAY 12106101 Contact Us For Availability
1654
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
1702
MAY A4554818 MAY A4554818 Contact Us For Availability
1711
MAY A3030335 MAY A3030335 Contact Us For Availability
1721
MAY 12090301 MAY 12090301 Contact Us For Availability
1731
MAY M0232903 MAY M0232903 Contact Us For Availability
1741
MAY M0224128 MAY M0224128 Contact Us For Availability
1771
MAY M0321202 MAY M0321202 Contact Us For Availability
1801
MAY 12062101 MAY 12062101 Contact Us For Availability
1811
MAY M1200006 MAY M1200006 Contact Us For Availability
1821
MAY M1200203 MAY M1200203 Contact Us For Availability
1831
MAY M0295308 MAY M0295308 Contact Us For Availability
1851
MAY M0223501 MAY M0223501 Contact Us For Availability
1861
MAY M0204339 MAY M0204339 Contact Us For Availability
1871
MAY 10093305 MAY 10093305 Contact Us For Availability
1881
MAY M0220418 MAY M0220418 Contact Us For Availability
1891
MAY 12131801 MAY 12131801 Contact Us For Availability
1911
MAY M0211014 MAY M0211014 Contact Us For Availability
2001
MAY 12128301 MAY 12128301 Contact Us For Availability
2011
MAY 12128302 MAY 12128302 Contact Us For Availability
2021
MAY 12088001 MAY 12088001 Contact Us For Availability
2031
MAY 12088101 MAY 12088101 Contact Us For Availability
2101
MAY 12070801 MAY 12070801 Contact Us For Availability
2111
MAY B5705323 MAY B5705323 Contact Us For Availability
2121
MAY 12071201 MAY 12071201 Contact Us For Availability
2141
MAY 12071101 MAY 12071101 Contact Us For Availability
2151
MAY 12150601 MAY 12150601 Contact Us For Availability
2161
MAY 12071301 MAY 12071301 Contact Us For Availability
2171
MAY 12143901 MAY 12143901 Contact Us For Availability
2181
MAY 12033402 MAY 12033402 Contact Us For Availability
2201
MAY 12064001 MAY 12064001 Contact Us For Availability
2251
NUT, SLEEVE MAY M0753001 Contact Us For Availability
2261
MAY 12113103 MAY 12113103 Contact Us For Availability
2281
MAY 12143902 MAY 12143902 Contact Us For Availability
2291
MAY A1055101 MAY A1055101 Contact Us For Availability
2331
MAY 12143801 MAY 12143801 Contact Us For Availability
2401
MAY A3189368 MAY A3189368 Contact Us For Availability
2414
MAY A3189369 MAY A3189369 Contact Us For Availability
2421
MAY A3189370 MAY A3189370 Contact Us For Availability
2431
MAY A3030302 MAY A3030302 Contact Us For Availability
2451
MAY M0274067 MAY M0274067 Contact Us For Availability
2761
MAY M0238731 MAY M0238731 Contact Us For Availability
3002
MAY 12118601 MAY 12118601 Contact Us For Availability
3012
MAY 12118602 MAY 12118602 Contact Us For Availability
3021
MAY 12173401 MAY 12173401 Contact Us For Availability
3031
MAY 12173402 MAY 12173402 Contact Us For Availability
3041
MAY 12127701 MAY 12127701 Contact Us For Availability
3051
MAY 12127801 MAY 12127801 Contact Us For Availability
3061
MAY 12173302 MAY 12173302 Contact Us For Availability
3071
MAY 12128102 MAY 12128102 Contact Us For Availability
3081
MAY 12119801 MAY 12119801 Contact Us For Availability
3091
MAY 12119802 MAY 12119802 Contact Us For Availability
3142
MAY 12135401 MAY 12135401 Contact Us For Availability
3151
MAY A4539601 MAY A4539601 Contact Us For Availability
3161
MAY M0220928 MAY M0220928 Contact Us For Availability
3171
MAY M0220942 MAY M0220942 Contact Us For Availability
3181
MAY M0220957 MAY M0220957 Contact Us For Availability
3201
MAY 12140701 MAY 12140701 Contact Us For Availability
3211
MAY M0234005 MAY M0234005 Contact Us For Availability
3221
MAY 12131902 MAY 12131902 Contact Us For Availability
3241
MAY M0253258 MAY M0253258 Contact Us For Availability
3251
MAY 12131901 MAY 12131901 Contact Us For Availability
3354
MAY M0102303 MAY M0102303 Contact Us For Availability
3371
MAY 12043502 MAY 12043502 Contact Us For Availability
3421
MAY 12116901 MAY 12116901 Contact Us For Availability
3501
MAY M0581001 MAY M0581001 Contact Us For Availability
3551
MAY 12113101 MAY 12113101 Contact Us For Availability
3621
MAY M0270510 MAY M0270510 Contact Us For Availability
NI
MAY M0275193 MAY M0275193 Contact Us For Availability
NI
MAY 12098001 MAY 12098001 Contact Us For Availability
NI
MAY 12098002 MAY 12098002 Contact Us For Availability
NI
MAY 12098003 MAY 12098003 Contact Us For Availability
NI
MAY 12098006 MAY 12098006 Contact Us For Availability
NI
MAY 12119601 MAY 12119601 Contact Us For Availability
NI
MAY 12119602 MAY 12119602 Contact Us For Availability
NI
MAY 12119603 MAY 12119603 Contact Us For Availability
NI
MAY 12119606 MAY 12119606 Contact Us For Availability
NI
MAY M0213828 MAY M0213828 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY M0103904 MAY M0103904 Contact Us For Availability
NI
MAY M0322204 MAY M0322204 Contact Us For Availability
× ![]()
