Model LG B-VMC18SB – Common Parts & Diagrams

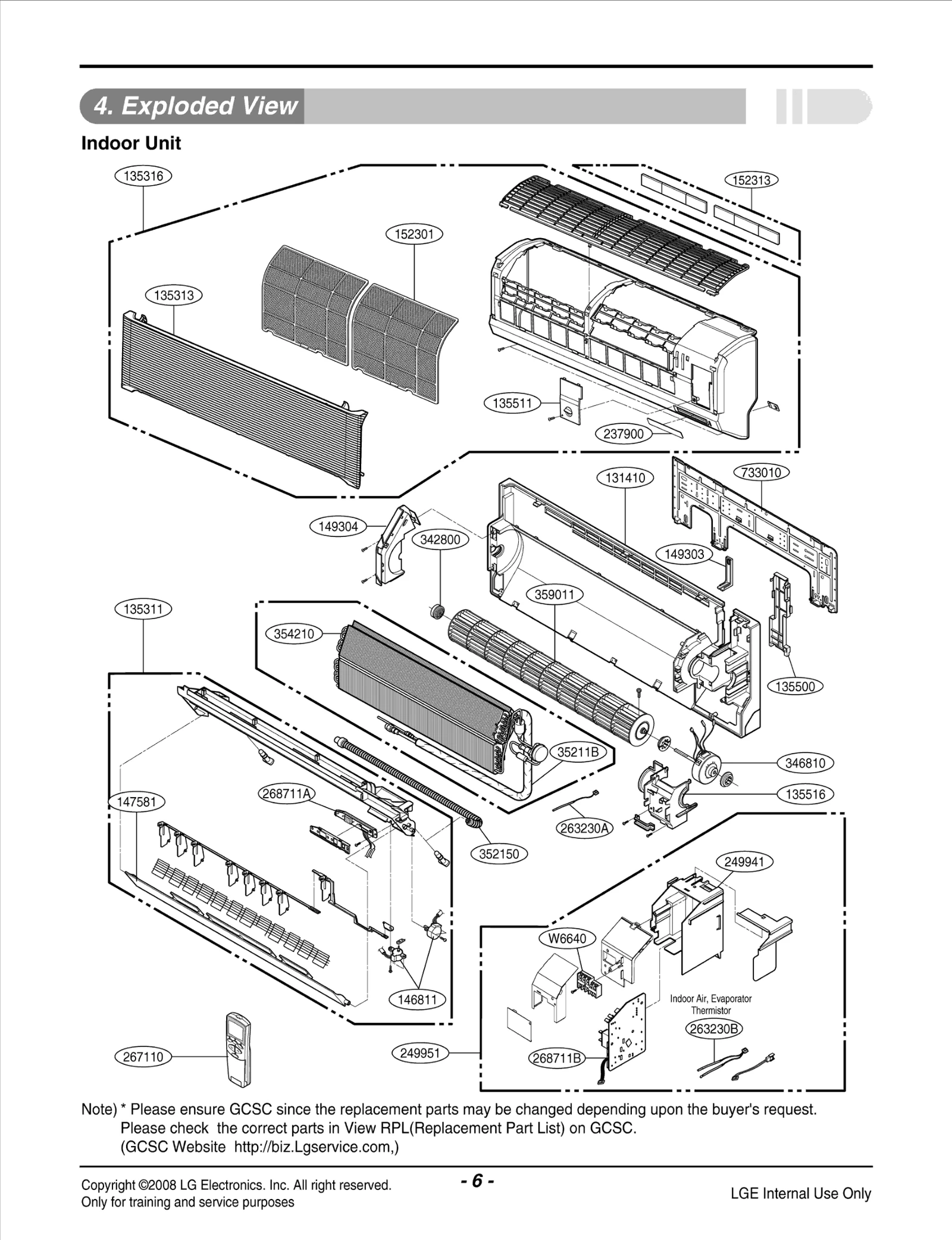

Diagram 0
Common parts from model LG B-VMC18SB
135313
Grille Assembly,Inlet LGE AEB32239206 Contact Us For Availability
135316
Grille Assembly,Front(Indoor) LGE AEB36906007 Contact Us For Availability
135500
Cover LGE 3550A20316D Contact Us For Availability
135511
Cover Assembly,Control(Indoor) LGE 3551A20155V Contact Us For Availability
135516
Cover Assembly,Motor LGE 3551A20154E Contact Us For Availability
146811
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
146811
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
147581
Louver,Horizontal LGE 5990A20071B Contact Us For Availability
152301
Filter,Deodorizing LGE 5230A20052B Contact Us For Availability
152313
Filter Assembly,Deodorizer LGE 5231A20040B Contact Us For Availability
152313
Filter Assembly,Deodorizer LGE 5231A20040V Contact Us For Availability
237900
Window,Display LGE 3790A20130A Contact Us For Availability
249941
Case,Control(Indoor) LGE 4994A20096H Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ36904611 Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20128V Contact Us For Availability
268711A
PCB Assembly,Display LGE 6871A20681F Contact Us For Availability
268711B
PCB Assembly,Main LGE EBR44169613 Contact Us For Availability
346810
Motor Assembly,DC LGE 4681A20091J Contact Us For Availability
× ![]()
