Model Maytag AZM12X17DW00 FREEZER – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

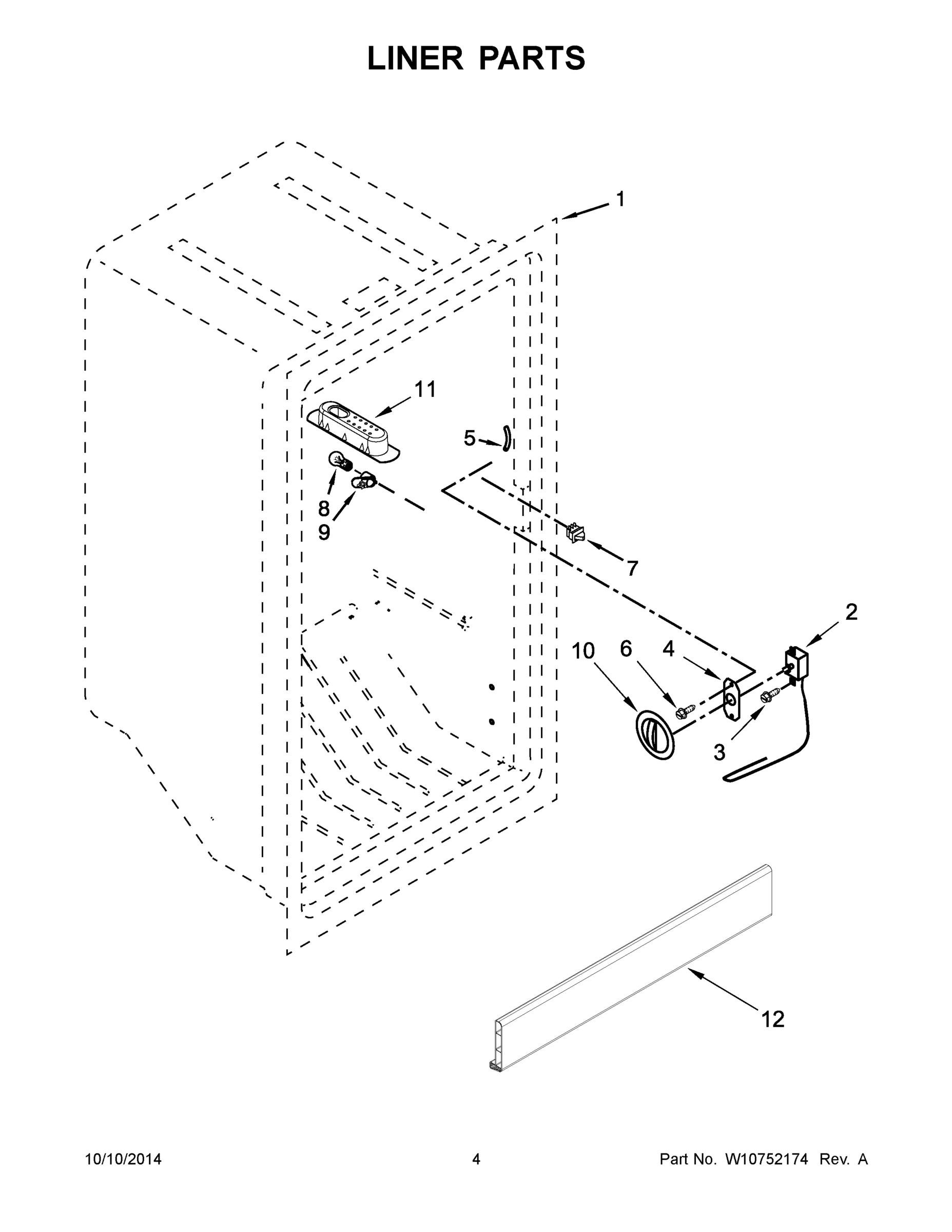

03 - LINER PARTS
04 - DOOR PARTS
05 - UNIT PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AZM12X17DW00 FREEZER
1
MAY W10668409 MAY W10668409 Contact Us For Availability
1
MAY 2314293 MAY 2314293 Contact Us For Availability
1
MAY W10574278 MAY W10574278 Contact Us For Availability
1A
MAY W10574665 MAY W10574665 Contact Us For Availability
1B
MAY W10653922 MAY W10653922 Contact Us For Availability
2
MAY 3-80675-105 MAY 3-80675-105 Contact Us For Availability
2
MAY W10574645 MAY W10574645 Contact Us For Availability
2
MAY 65450-001 MAY 65450-001 Contact Us For Availability
2
MAY W10709968 MAY W10709968 Contact Us For Availability
3
MAY W10574323 MAY W10574323 Contact Us For Availability
3
MAY 3-80732-014 MAY 3-80732-014 Contact Us For Availability
3
MAY W10628869 MAY W10628869 Contact Us For Availability
3
MAY W10574470 MAY W10574470 Contact Us For Availability
4
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
4
MAY 1-81154 MAY 1-81154 Contact Us For Availability
4
HANDLE, DOOR (WHITE) MAY W10352523 Contact Us For Availability
4
MAY W10682881 MAY W10682881 Contact Us For Availability
5
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
5
MAY W10389334 MAY W10389334 Contact Us For Availability
5
MAY W10574474 MAY W10574474 Contact Us For Availability
5
MAY 489473 MAY 489473 Contact Us For Availability
6
MAY W10574264 MAY W10574264 Contact Us For Availability
6
MAY 1-80283-110 MAY 1-80283-110 Contact Us For Availability
6
MAY W10574709 MAY W10574709 Contact Us For Availability
6
GROMMET MAY 2183042 Contact Us For Availability
7
PLUG, HOLE (WHITE) MAY W10520304 Contact Us For Availability
7
MAY 2-32164-001 MAY 2-32164-001 Contact Us For Availability
7
MAY W10200425 MAY W10200425 Contact Us For Availability
7
MAY W10634057 MAY W10634057 Contact Us For Availability
8
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
8
MAY 1-24397-001 MAY 1-24397-001 Contact Us For Availability
8
PLUG, HOLE (WHITE) MAY 2212648 Contact Us For Availability
8
DEVICE, START MAY W10448874 Contact Us For Availability
8A
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
9
MAY 3400113 MAY 3400113 Contact Us For Availability
9
MAY W10191429 MAY W10191429 Contact Us For Availability
9
MAY W10350564 MAY W10350564 Contact Us For Availability
10
MAY 1-80860 MAY 1-80860 Contact Us For Availability
10
MAY W10718106 MAY W10718106 Contact Us For Availability
10
MAY W10574642 MAY W10574642 Contact Us For Availability
11
MAY 12991302 MAY 12991302 Contact Us For Availability
11
MAY 3-25693-001 MAY 3-25693-001 Contact Us For Availability
11
MAY W10574641 MAY W10574641 Contact Us For Availability
12
MAY W10469910 MAY W10469910 Contact Us For Availability
12
MAY W10574640 MAY W10574640 Contact Us For Availability
13
MAY W10574325 MAY W10574325 Contact Us For Availability
13
MAY W10574639 MAY W10574639 Contact Us For Availability
14
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
14
MAY 3-80681-133 MAY 3-80681-133 Contact Us For Availability
15
GRILL, FRONT (WHITE) MAY W10534166 Contact Us For Availability
15
MAY 3-24004-109 MAY 3-24004-109 Contact Us For Availability
16
ROLLER MAY 2150304 Contact Us For Availability
16
MAY W10661497 MAY W10661497 Contact Us For Availability
17
AXLE, RIVET MAY 2179826 Contact Us For Availability
17
MAY W10574450 MAY W10574450 Contact Us For Availability
18
MAY W10574537 MAY W10574537 Contact Us For Availability
18
MAY 1-80308-101 MAY 1-80308-101 Contact Us For Availability
19
MAY W10574659 MAY W10574659 Contact Us For Availability
20
MAY W10622169 MAY W10622169 Contact Us For Availability
21
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.6 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BRUSH TOUCH-UP KIT GR MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY (BOTTLE)) MAY W10134625 Contact Us For Availability
× ![]()
