GE AZHS07DRXXAW1 Zoneline | Part Advantage

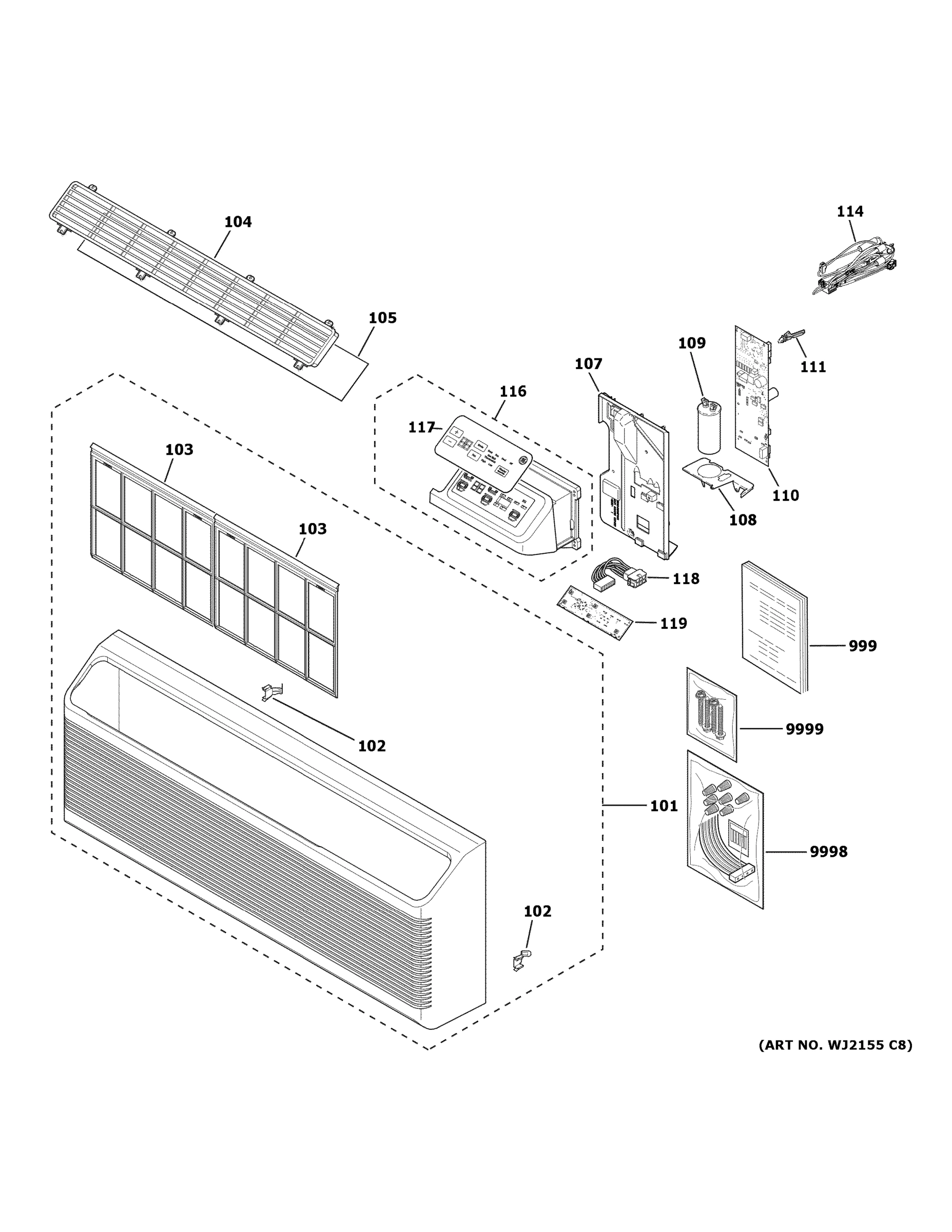

101

ASM ROOM FRONT Backorder GEN WP71X34335 $41.18

View on Model

102

WP65X20848 GE Front Room Clip Backorder GEN WP65X20848 $5.20

View on Model

103

WP85X34349 GE Filter Asm Air Backorder GEN WP85X34349 $6.95

View on Model

104

LOUVER AIR OUTLET Backorder GEN WP71X34611 $14.09

View on Model

105

WP71X20976 GE Welded Wire Grid Backorder GEN WP71X20976 $15.37

View on Model

107

COVER MAIN BOARD GEN WP76X34342 Contact Us For Availability

View on Model

108

WP65X24991 GE Bracket Capacitor Backorder GEN WP65X24991 $4.58

View on Model

109

WP20X20844 GE Capacitor Backorder GEN WP20X20844 $12.11

View on Model

110

MAIN BOARD ZL PTAC Backorder GEN WP26X34736 $104.44

View on Model

111

WP01X24997 GE Support Clip Board Backorder GEN WP01X24997 $5.20

View on Model

114

HARNESS MAIN 230V-PTAC-S GEN WP35X34317 Contact Us For Availability

View on Model

116

HOUSING ASM UI Backorder GEN WP76X34343 $16.65

View on Model

117

OVERLAY DISPLAY GEN WP71X34693 Contact Us For Availability

View on Model

118

HARNESS UI JUMPER-PTAC GEN WP35X34318 Contact Us For Availability

View on Model

119

UI BOARD ZL PTAC Backorder GEN WP26X34301 $37.33

View on Model

120

JUMPER THERMISTOR PTAC-SS GEN WP26X34609 Contact Us For Availability

View on Model

200

FOAM WIRE COVER GEN WP43X34613 Contact Us For Availability

View on Model

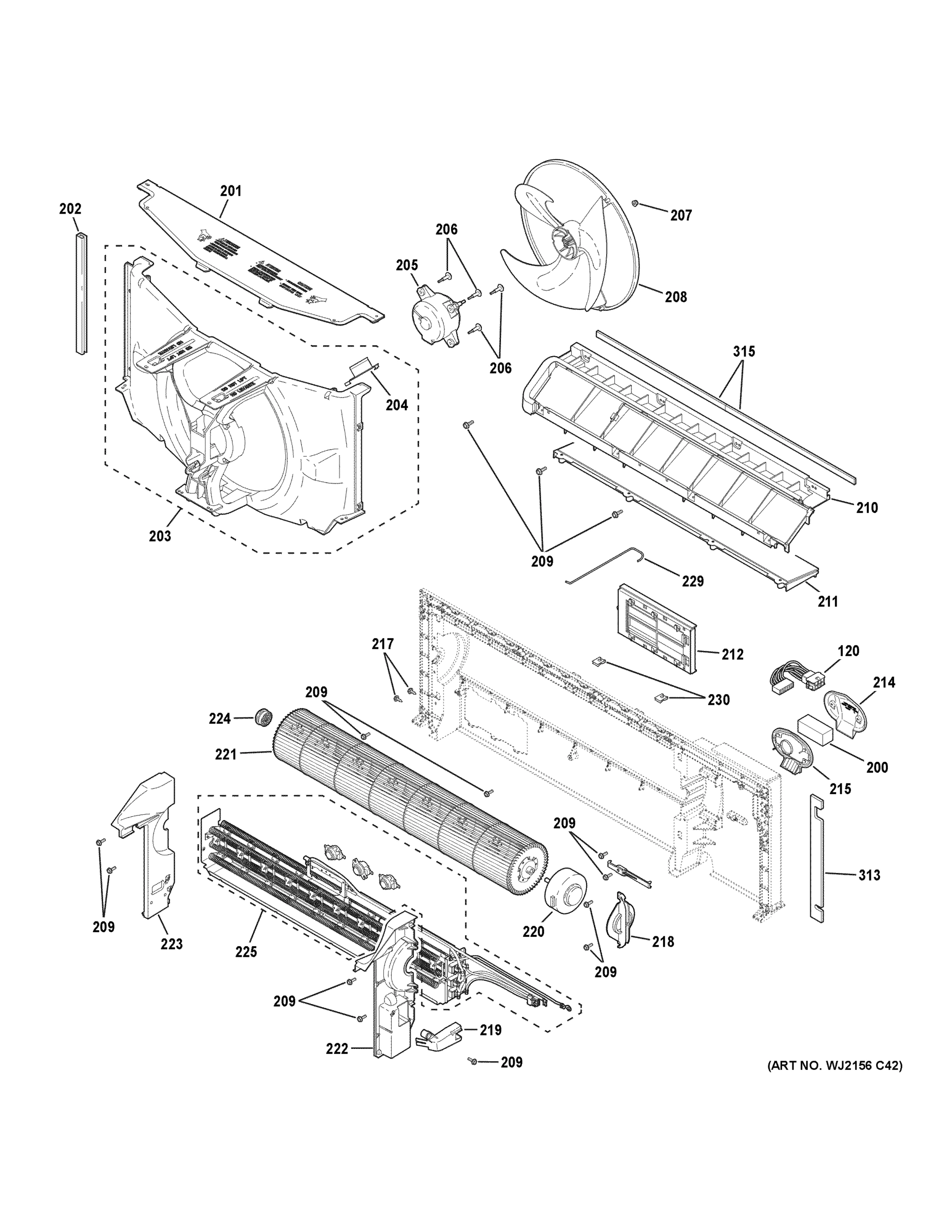

201

COVER SHROUD ASM GEN WP76X34607 Contact Us For Availability

View on Model

202

WP65X20981 GE Coupler Shroud Backorder GEN WP65X20981 $5.20

View on Model

203

SHROUD OUTDOOR GEN WP76X34339 Contact Us For Availability

View on Model

204

WP01X20965 GE Fan Shroud Clip Backorder GEN WP01X20965 $5.20

View on Model

205

WP94X24985 GE Air Conditioner DC Fan Motor In Stock GEN WP94X24985 $91.42

View on Model

206

WP01X20878 GE Screw 5/16" B Shoulder Hi-Lo Backorder GEN WP01X20878 $5.20

View on Model

207

WP01X20872 GE Nut Hex 10-32 Backorder GEN WP01X20872 $5.20

View on Model

208

WP94X20856 GE Air Conditioner Outdoor Fan Bla Backorder GEN WP94X20856 $22.16

View on Model

209

WP01X20877 GE Screws 10-18 Hi/Lo Hxw 1/2 Backorder GEN WP01X20877 $5.86

View on Model

210

WP71X34336 GE Air Outlet Deflector Backorder GEN WP71X34336 $24.52

View on Model

211

WP71X20968 GE Cutoff Assembly Backorder GEN WP71X20968 $23.06

View on Model

212

WP76X20853 GE Door Vent Assembly Backorder GEN WP76X20853 $18.83

View on Model

214

WP76X24996 GE Bulkhead Wire Cover Backorder GEN WP76X24996 $5.03

View on Model

215

GASKET WIRE COVER GEN WP43X34614 Contact Us For Availability

View on Model

217

WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber Backorder GEN WP01X20879 $5.42

View on Model

218

WP65X24990 GE Motor Mount Assembly Backorder GEN WP65X24990 $5.20

View on Model

219

WP76X24994 GE Right Wire Cover Backorder GEN WP76X24994 $4.58

View on Model

220

MOTOR ID DC FAN GEN WP94X34347 Contact Us For Availability

View on Model

221

WP73X32153 GE Air Conditioner Indoor Fan In Stock GEN WP73X32153 $112.28

View on Model

222

WP76X24992 GE Right End Cap Backorder GEN WP76X24992 $7.28

View on Model

223

WP76X24993 GE Left End Cap Backorder GEN WP76X24993 $6.92

View on Model

224

WP01X21826 GE Air Conditioner Fan Bushing Ass Backorder GEN WP01X21826 $5.27

View on Model

225

WP27X24982 GE Air Conditioner Heater Assembly Backorder GEN WP27X24982 $106.91

View on Model

229

WP65X21680 GE Vent Rod Door Backorder GEN WP65X21680 $4.58

View on Model

230

U-NUT 10-16 HI/LO GEN WP01X34610 Contact Us For Availability

View on Model

300

NUT TERMINAL COVER COMP Backorder GEN WP01X20873 $4.58

View on Model

301

WP88X25580 GE Indoor Coil Assembly In Stock GEN WP88X25580 $116.41

View on Model

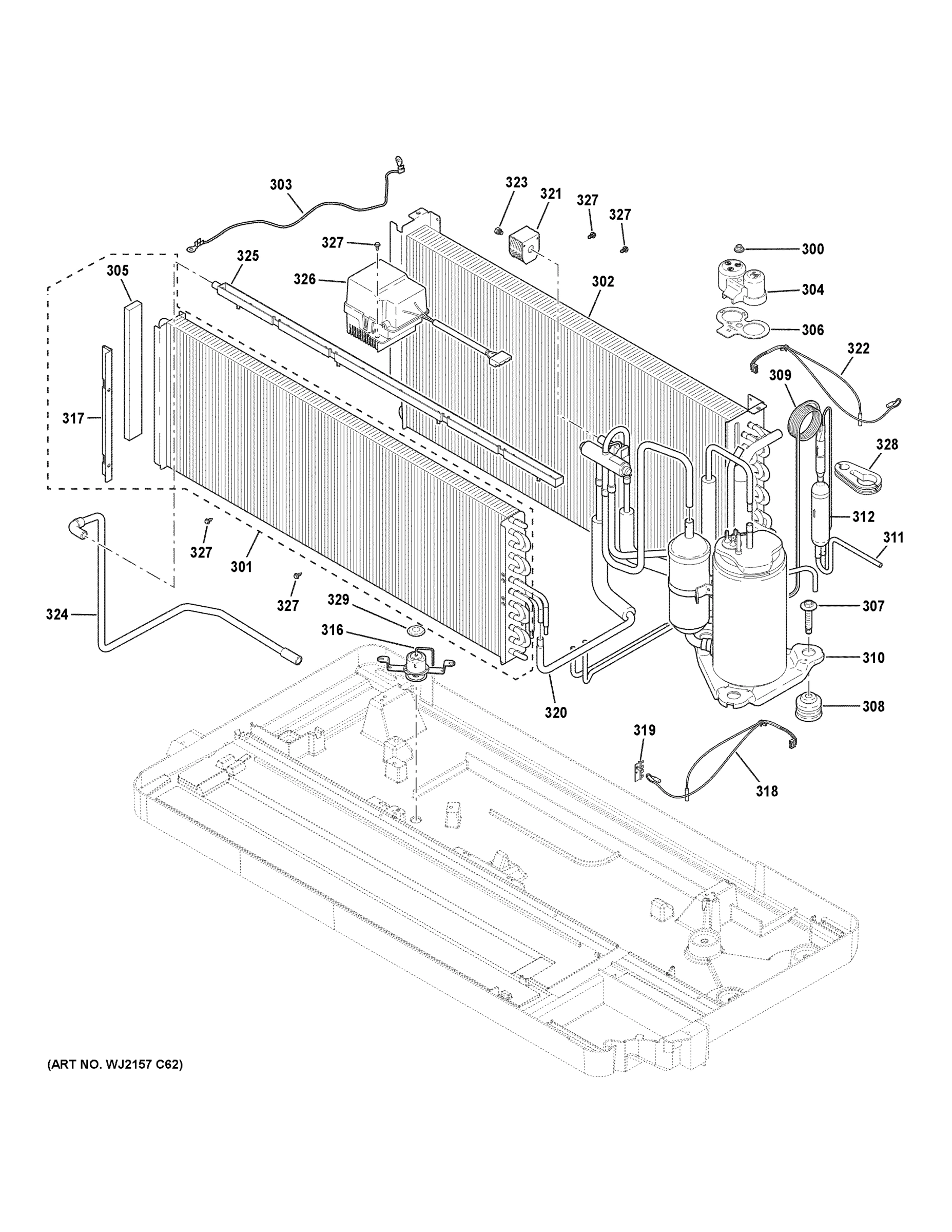

302

WP87X25582 GE Outdoor Coil Assembly Backorder GEN WP87X25582 $331.99

View on Model

303

GROUND JUMPER GEN WP35X34612 Contact Us For Availability

View on Model

304

COVER TERMINAL COMP GEN WP76X34344 Contact Us For Availability

View on Model

305

WP60X20971 GE Foam Insulation Coil Side Backorder GEN WP60X20971 $5.20

View on Model

306

GASKET COMPRESSOR COVER Backorder GEN WP43X34303 $4.63

View on Model

307

WP01X21031 GE Screw M8-125 B Shoulder 46 mm Backorder GEN WP01X21031 $5.20

View on Model

308

WP01X27593 GE Compressor Grommet Backorder GEN WP01X27593 $5.20

View on Model

309

CAP TUBE ASM GEN WP53X34773 Contact Us For Availability

View on Model

310

COMPRESSOR ASM 7K 230V GEN WP98X34695 Contact Us For Availability

View on Model

311

WP56X20988 GE Process Condenser Tube Backorder GEN WP56X20988 $7.69

View on Model

312

WP56X22820 GE Dryer Backorder GEN WP56X22820 $10.98

View on Model

313

GASKET WALL SLEEVE TOP/BTM GEN WP00X22203 Contact Us For Availability

View on Model

315

WP60X20973 GE Side Wall Sleeve Gasket Backorder GEN WP60X20973 $4.58

View on Model

316

WP26X21581 GE Thermostatic Drain Valve Backorder GEN WP26X21581 $28.84

View on Model

317

WP01X23065 GE Coil Clip Left Backorder GEN WP01X23065 $4.81

View on Model

318

WP26X20982 GE Air Conditioner Thermistor Backorder GEN WP26X20982 $11.35

View on Model

319

WP65X25533 GE Thermistor Holder Backorder GEN WP65X25533 $5.20

View on Model

320

REVERSING VALVE ASM SERV 7K PTAC GEN WP53X34522 Contact Us For Availability

View on Model

321

SOLENOID VALVE REVERSING GEN WP26X34605 Contact Us For Availability

View on Model

322

WP26X24986 GE Thermistor Assembly Backorder GEN WP26X24986 $13.45

View on Model

323

WP01X21861 GE Solenoid Screw Backorder GEN WP01X21861 $6.37

View on Model

324

TUBE PEX ASM GEN WP53X21521 Contact Us For Availability

View on Model

325

WP76X21520 GE Wick Reservoir Backorder GEN WP76X21520 $5.97

View on Model

326

WP94X34348 GE Ice Pump Assembly Backorder GEN WP94X34348 $61.36

View on Model

327

WP01X21546 GE Screw 10-32 AB HXW 7/16 S Backorder GEN WP01X21546 $4.58

View on Model

328

WP60X20972 GE Foam Tube Isolator Backorder GEN WP60X20972 $4.58

View on Model

329

WP01X20980 GE Base Pan Plug Backorder GEN WP01X20980 $5.20

View on Model

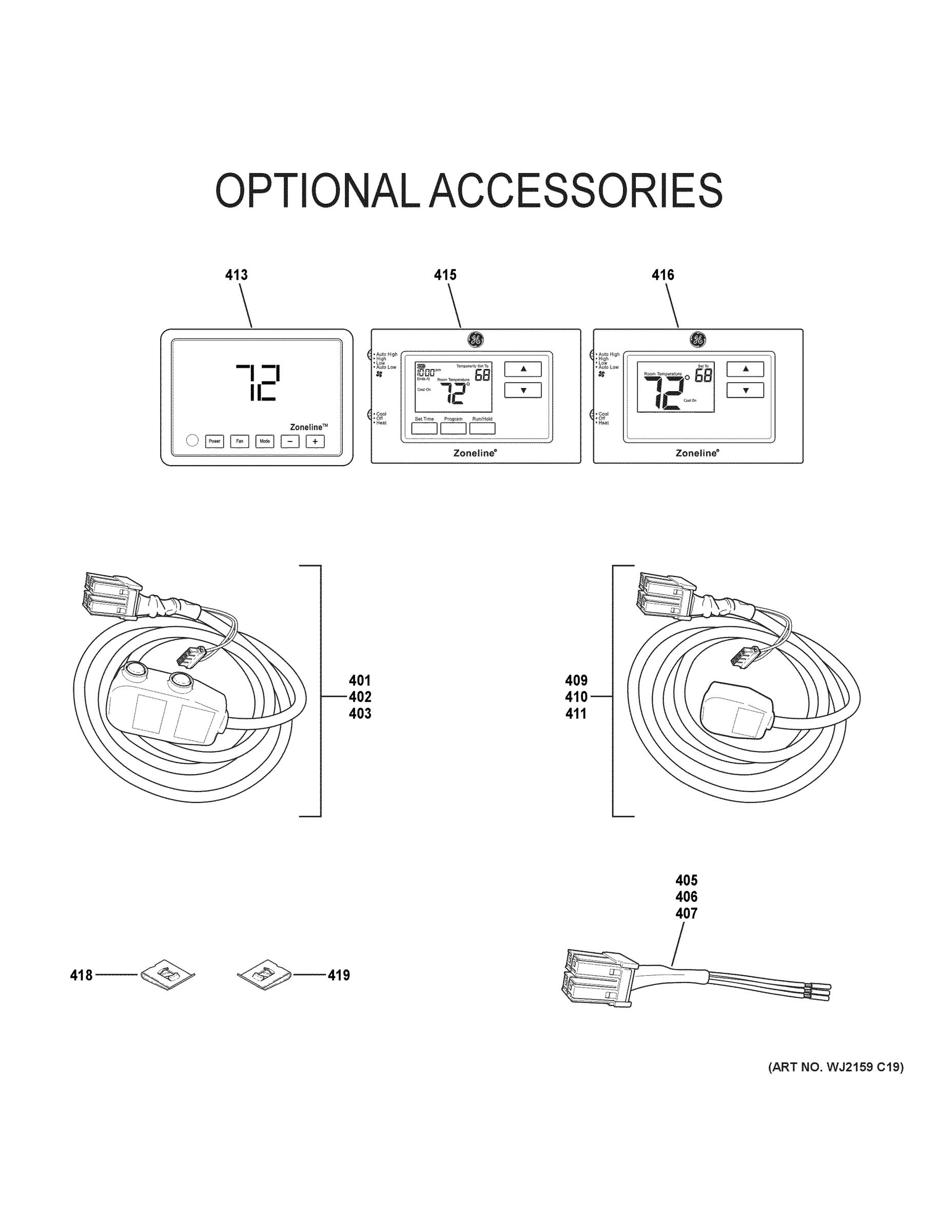

401

RAK315P GE Air Conditioner LCDI Cord 15A Backorder GEN RAK315P $53.07

View on Model

402

RAK320P GE Air Conditioner 20A LCDI Cord Backorder GEN RAK320P $56.11

View on Model

403

RAK330P GE Air Conditioner 30A LCDI Cord Backorder GEN RAK330P $68.78

View on Model

407

RAK330D GE Air Conditioner 30A Direct Connect Backorder GEN RAK330D $29.28

View on Model

410

RAK320SP GE Air Conditioner 20A Non-LCDI Cord Backorder GEN RAK320SP $40.26

View on Model

416

RAK149F2A GE Thermostat Non-Programmable 2 Backorder GEN RAK149F2A $77.83

View on Model

418

WP01X28793 GE J-Clip for Polymer Wall Sleeve Backorder GEN WP01X28793 $51.50

View on Model

419

WP01X28794 GE J-Clip for Steel Wall Sleeves Backorder GEN WP01X28794 $51.50

View on Model

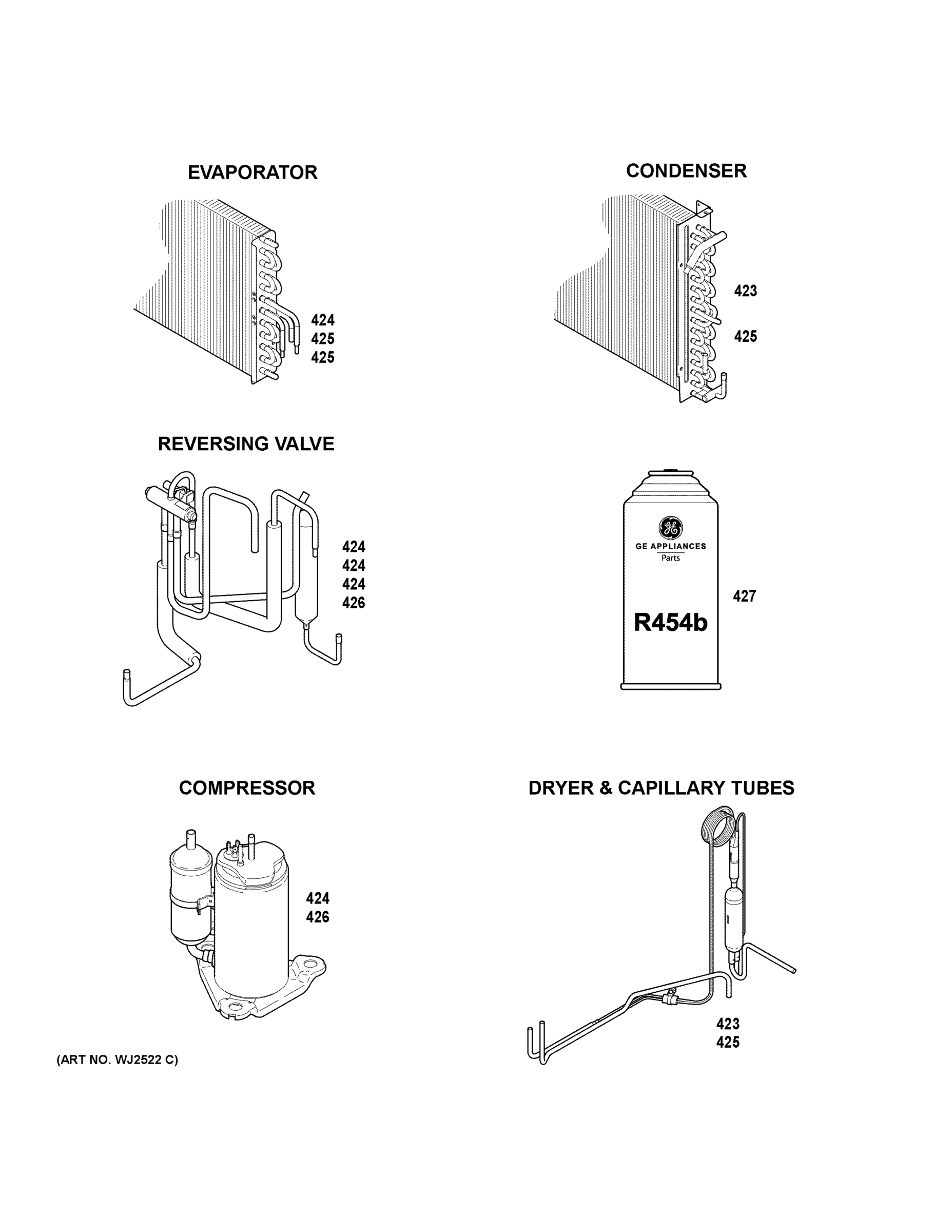

423

1/2 in X 1/2 CLASS 50 LOKRING GEN WP97X35073 Contact Us For Availability

View on Model

424

3/8 in X 3/8 CLASS 50 LOKRING GEN WP97X35074 Contact Us For Availability

View on Model

425

1/4 IN X 1/4 CLASS 50 LOKRING Backorder GEN WP97X35076 $36.97

View on Model

426

5/16 in X 5/16 CLASS 50 LOKRING GEN WP97X35133 Contact Us For Availability

View on Model

427

R454B 20LB REFRIGERANT CAN Backorder GEN WP98X34474 $1,148.40

View on Model

999

PRINTED AND ONLINEMINI MANUAL AND WIRING GEN 315000944 Contact Us For Availability

View on Model

999

PRINTED AND ONLINEOWNERS AND INSTALL GEN 495000929 Contact Us For Availability

View on Model

9998

THERMOSTAT KIT Backorder GEN WJ26X35153 $24.16

View on Model

9999

WP01X20865 GE Zoneline Installation Screws 4 Backorder GEN WP01X20865 $4.81

View on Model
