Model Maytag AZC31T22DW01 FREEZER, CHEST – Common Parts & Diagrams

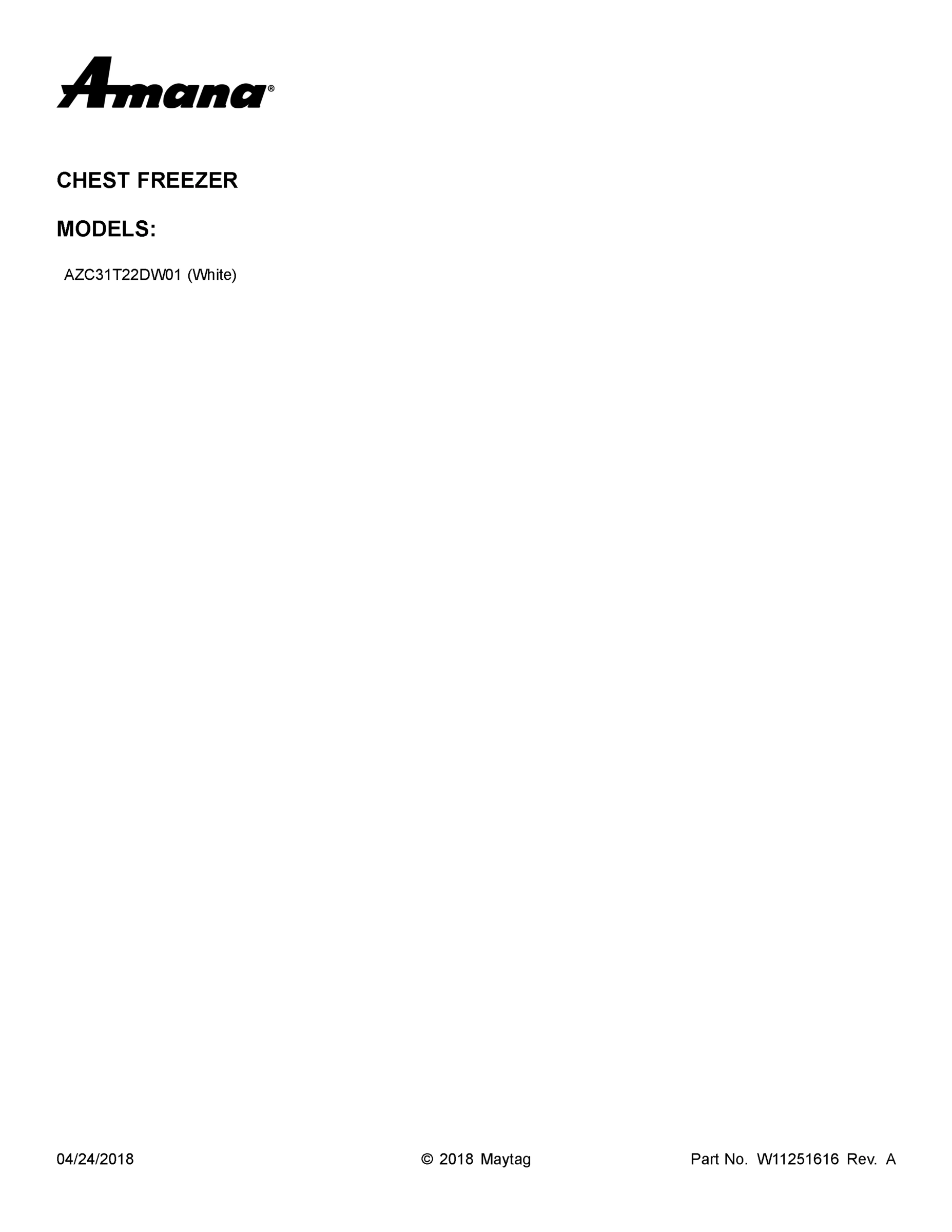

01 - COVER SHEET

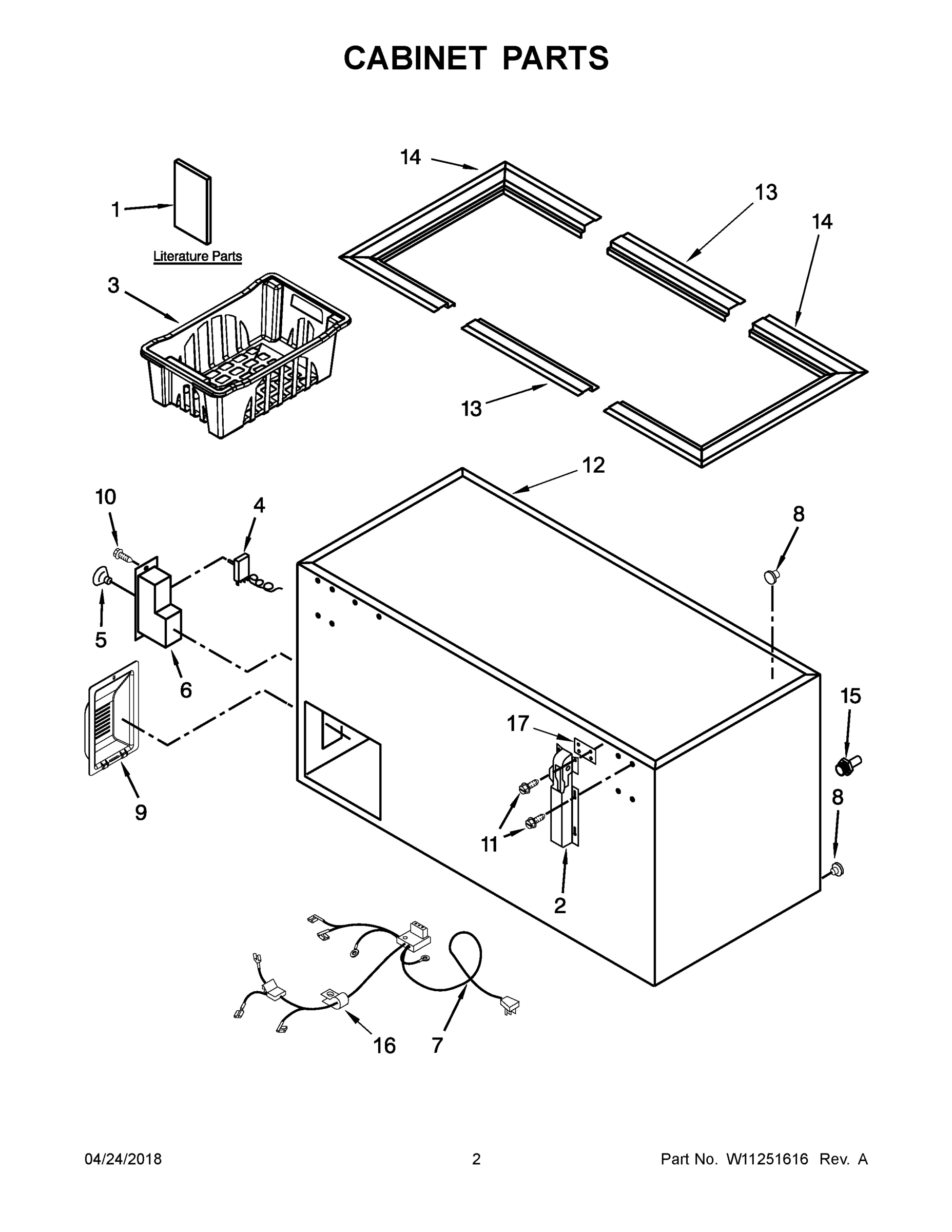

02 - CABINET PARTS

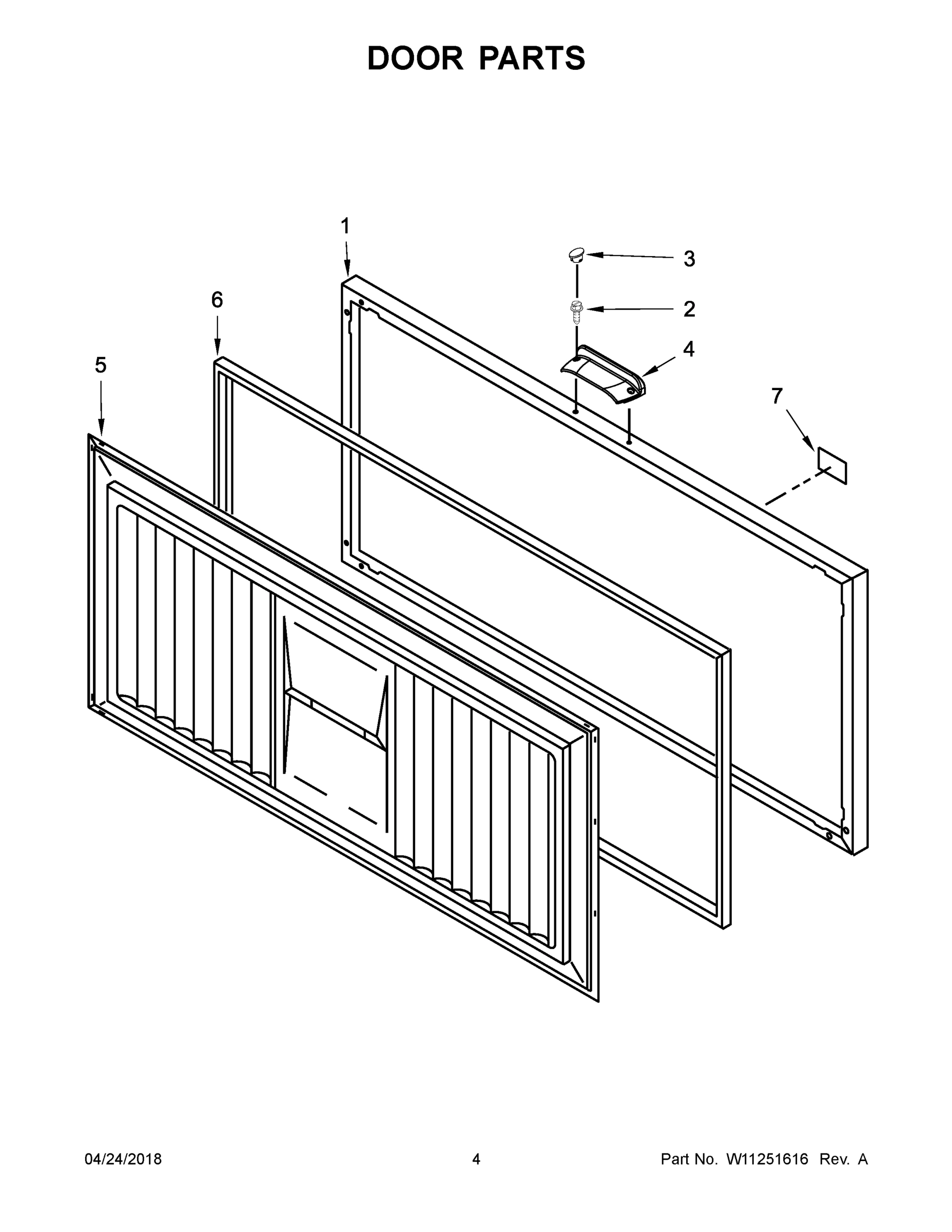

03 - DOOR PARTS

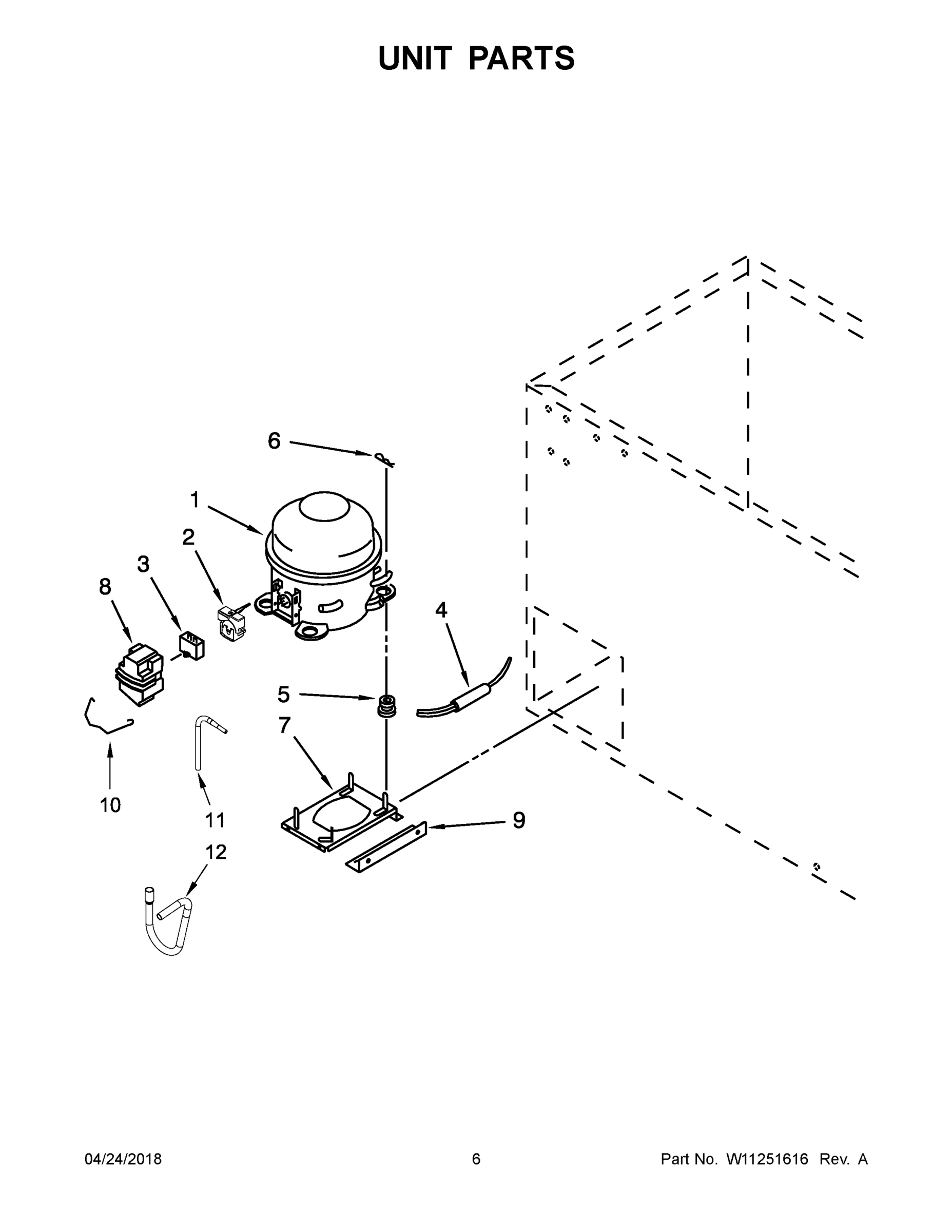

04 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AZC31T22DW01 FREEZER, CHEST
1
USE & CARE GUIDE MAY W10668408 Contact Us For Availability
1
LID (INCLUDES INSULATION) MAY W10574520 Contact Us For Availability
1
COMPRESSOR MAY W11189854 Contact Us For Availability
1A
MAY W11115934 MAY W11115934 Contact Us For Availability
1B
TECH SHEET MAY W10723826 Contact Us For Availability
2
HINGE ASSEMBLY MAY W11043771 Contact Us For Availability
2
SCREW MAY 3-80732-007 Contact Us For Availability
2
DEVICE, START MAY W10796752 Contact Us For Availability
3
BASKET MAY W10812047 Contact Us For Availability
3
COVER, SCREW HANDLE MAY W10712378 Contact Us For Availability
3
CAPACITOR MAY W10350564 Contact Us For Availability
4
THERMOSTAT MAY 4-35940-001 Contact Us For Availability
4
HANDLE, DOOR (WHITE) MAY W10711161 Contact Us For Availability
4
DRIER MAY W10709968 Contact Us For Availability
5
KNOB, THERMOSTAT MAY W10738934 Contact Us For Availability
5
LINER, DOOR MAY W10673928 Contact Us For Availability
5
GROMMET MAY 2183042 Contact Us For Availability
6
BOX, CONTROL MAY W10727745 Contact Us For Availability
6
GASKET, DOOR (WHITE) MAY 4-35260-006 Contact Us For Availability
6
CLIP, COMPRESSOR MAY W10563930 Contact Us For Availability
7
HARNESS, WIRING MAY W10631221 Contact Us For Availability
7
BADGE (WHITE) MAY W11046244 Contact Us For Availability
7
BASE, COMPRESSOR MAY W10574602 Contact Us For Availability
8
PLUG, DRAIN MAY 3-33211-001 Contact Us For Availability
8
SHIELD, CAPACITOR MAY W10574450 Contact Us For Availability
9
PANEL, ACCESS MAY W10574468 Contact Us For Availability
9
BRACE MAY 3-81556-001 Contact Us For Availability
10
SCREW MAY 3-24004-049 Contact Us For Availability
10
STRAP, BALE MAY W10574470 Contact Us For Availability
11
SCREW MAY 7101P356-60 Contact Us For Availability
11
DISCHARGE TUBE MAY W10721471 Contact Us For Availability
12
SUCTION TUBE MAY W10721470 Contact Us For Availability
13
STRIP, REAR BREAKER MAY W10763609 Contact Us For Availability
14
STRIP, END BREAKER MAY W10803246 Contact Us For Availability
15
ADAPTER, DRAIN MAY 1-33178 Contact Us For Availability
16
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
17
SPACER, HINGE MAY 1-17548-006 Contact Us For Availability
NI
REFRIGERANT CHARGE 6.35 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 MAY W10917540 Contact Us For Availability
× ![]()
