Model Maytag AZC31T15DW00 FREEZER – Common Parts & Diagrams

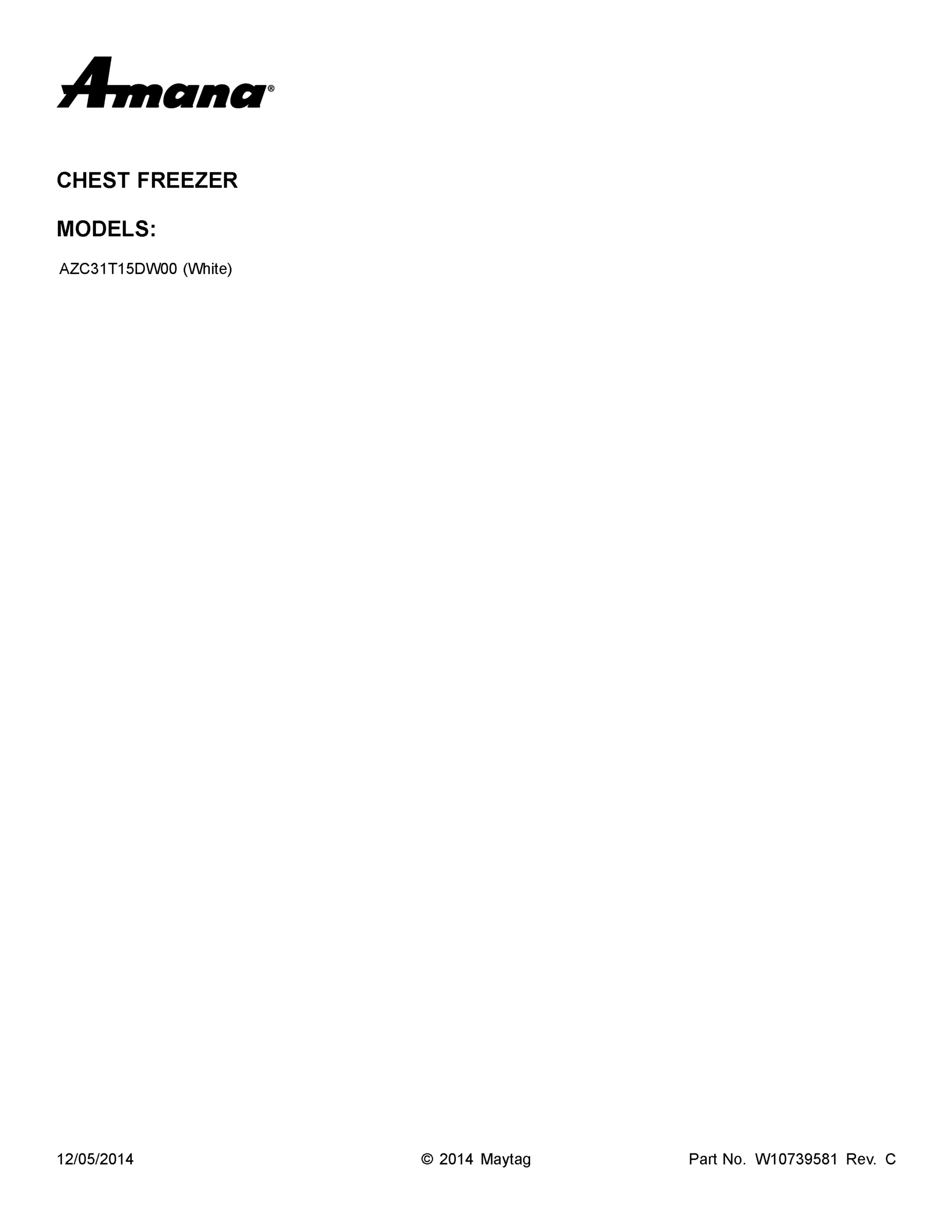

01 - COVER SHEET

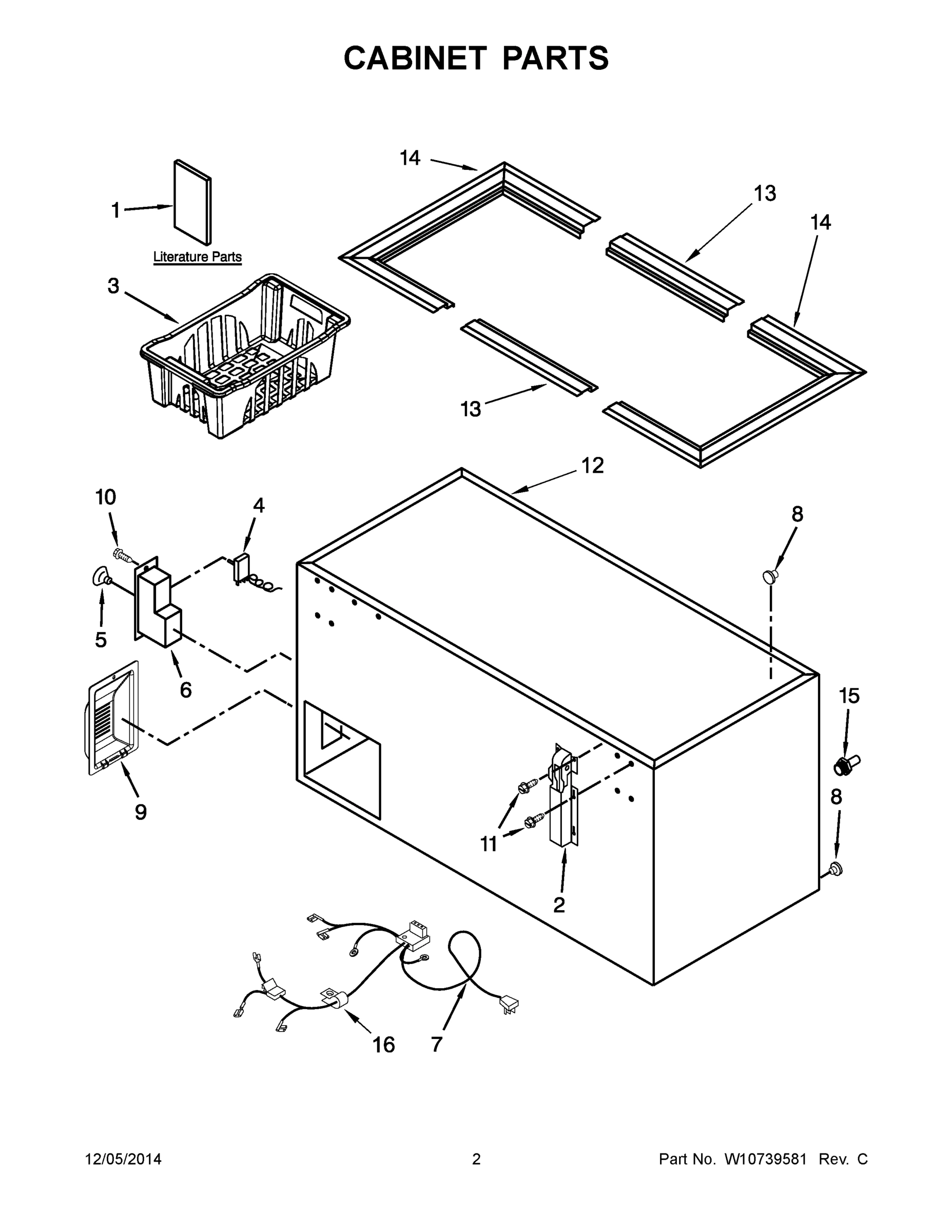

02 - CABINET PARTS

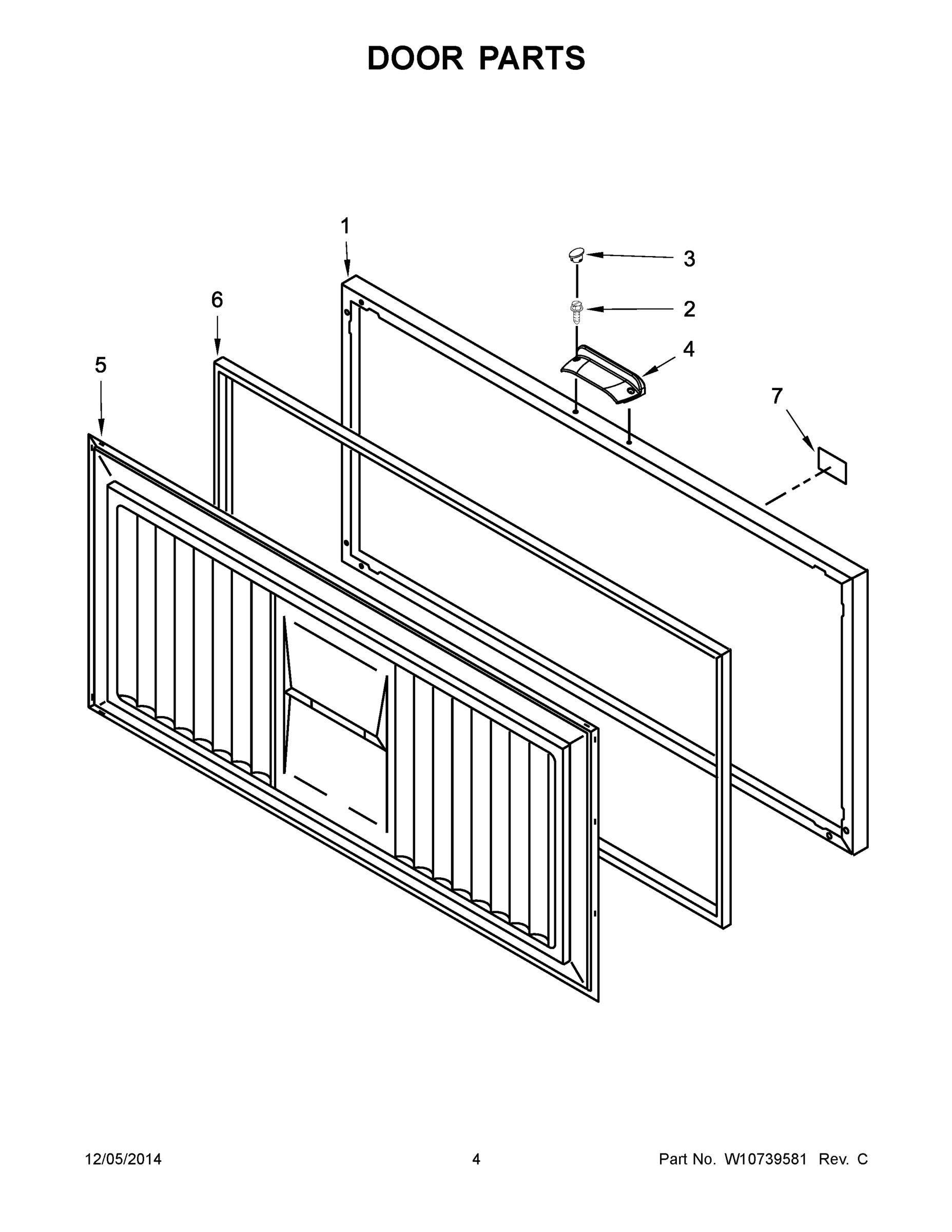

03 - DOOR PARTS

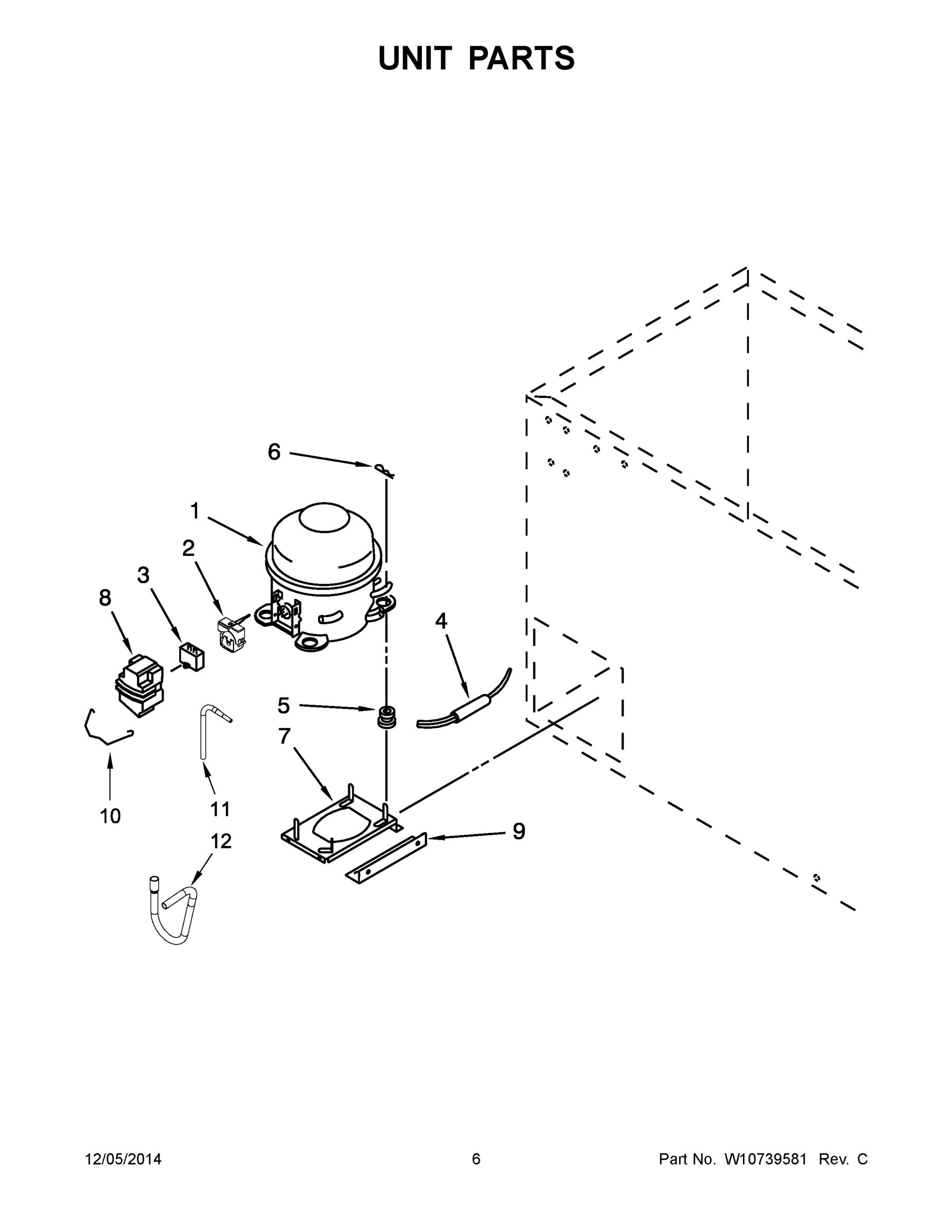

04 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AZC31T15DW00 FREEZER
1
MAY W10668408 MAY W10668408 Contact Us For Availability
1
MAY W10717196 MAY W10717196 Contact Us For Availability
1
MAY W10634057 MAY W10634057 Contact Us For Availability
1A
MAY W10642202 MAY W10642202 Contact Us For Availability
1B
MAY W10723826 MAY W10723826 Contact Us For Availability
2
MAY W10682910 MAY W10682910 Contact Us For Availability
2
MAY 3-80732-007 MAY 3-80732-007 Contact Us For Availability
2
DEVICE, START MAY W10448874 Contact Us For Availability
3
MAY 4-36033-001 MAY 4-36033-001 Contact Us For Availability
3
MAY W10712378 MAY W10712378 Contact Us For Availability
3
MAY W10350564 MAY W10350564 Contact Us For Availability
4
MAY 4-35940-001 MAY 4-35940-001 Contact Us For Availability
4
MAY W10711161 MAY W10711161 Contact Us For Availability
4
MAY W10709968 MAY W10709968 Contact Us For Availability
5
MAY W10738934 MAY W10738934 Contact Us For Availability
5
MAY W10673929 MAY W10673929 Contact Us For Availability
5
GROMMET MAY 2183042 Contact Us For Availability
6
MAY W10727745 MAY W10727745 Contact Us For Availability
6
GASKET, DOOR (WHITE) MAY 4-35260-005 Contact Us For Availability
6
MAY W10563930 MAY W10563930 Contact Us For Availability
7
MAY W10631221 MAY W10631221 Contact Us For Availability
7
MAY W10200425 MAY W10200425 Contact Us For Availability
7
MAY W10574602 MAY W10574602 Contact Us For Availability
8
PLUG, DRAIN MAY 3-33211-001 Contact Us For Availability
8
MAY W10574450 MAY W10574450 Contact Us For Availability
9
MAY W10574468 MAY W10574468 Contact Us For Availability
9
MAY 3-81556-001 MAY 3-81556-001 Contact Us For Availability
10
MAY 3-24004-049 MAY 3-24004-049 Contact Us For Availability
10
MAY W10574470 MAY W10574470 Contact Us For Availability
11
MAY 3-24004-005 MAY 3-24004-005 Contact Us For Availability
11
MAY W10721471 MAY W10721471 Contact Us For Availability
12
MAY W10721470 MAY W10721470 Contact Us For Availability
13
STRIP, REAR BREAKER MAY 4-35010-004 Contact Us For Availability
14
STRIP, END BREAKER MAY 4-35009-003 Contact Us For Availability
15
MAY 1-33178 MAY 1-33178 Contact Us For Availability
16
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.75 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
