Model Maytag AZB33X20DW00 FREEZER – Common Parts & Diagrams

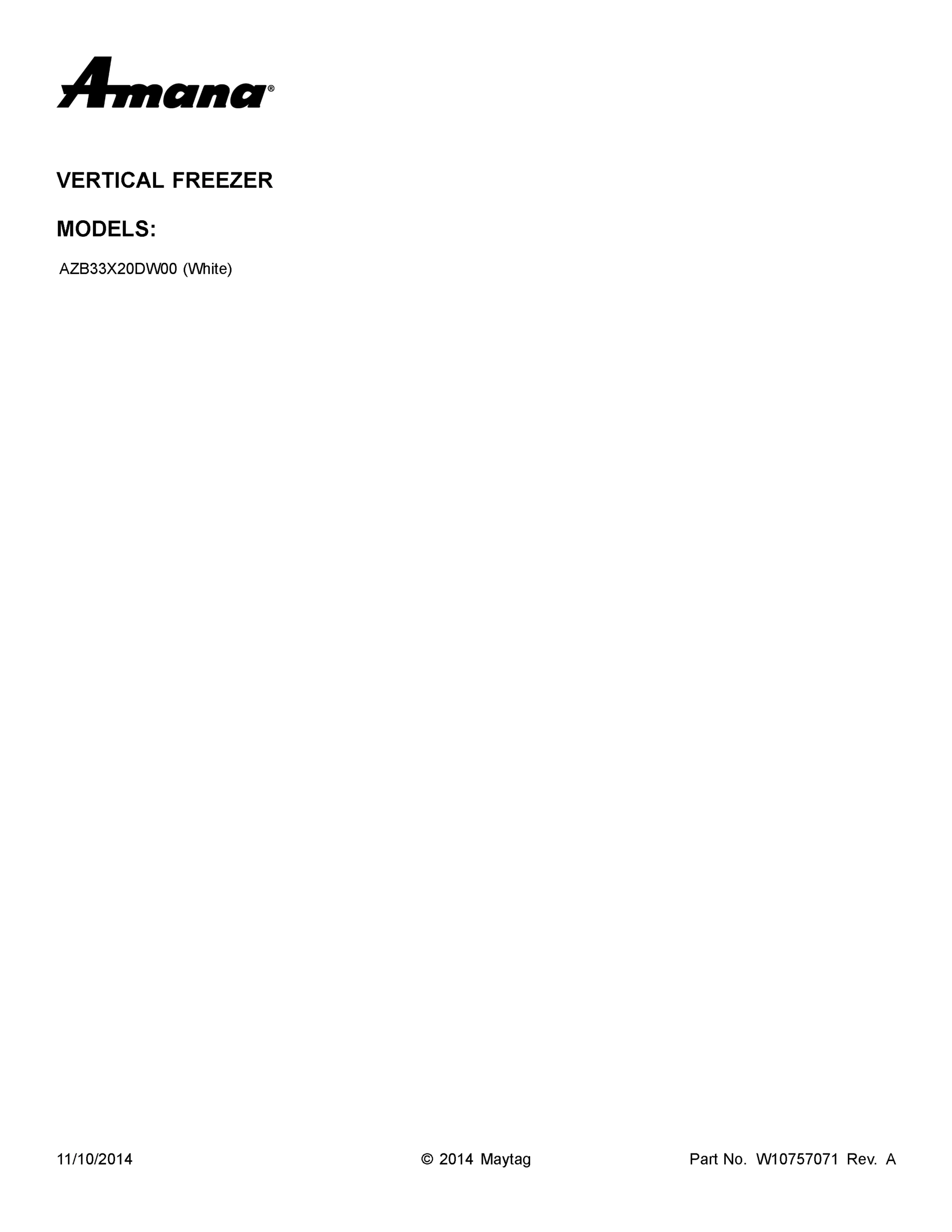

01 - COVER SHEET

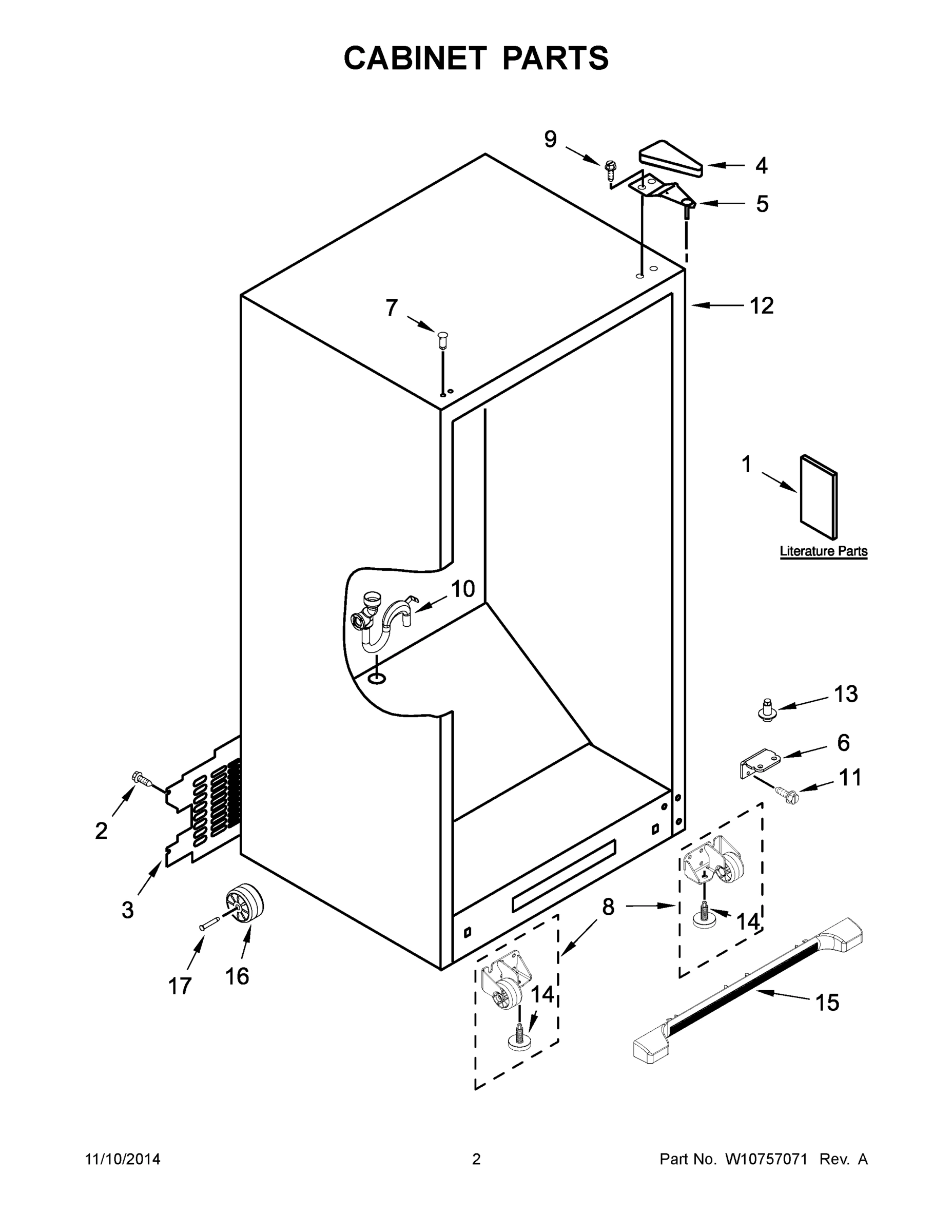

02 - CABINET PARTS

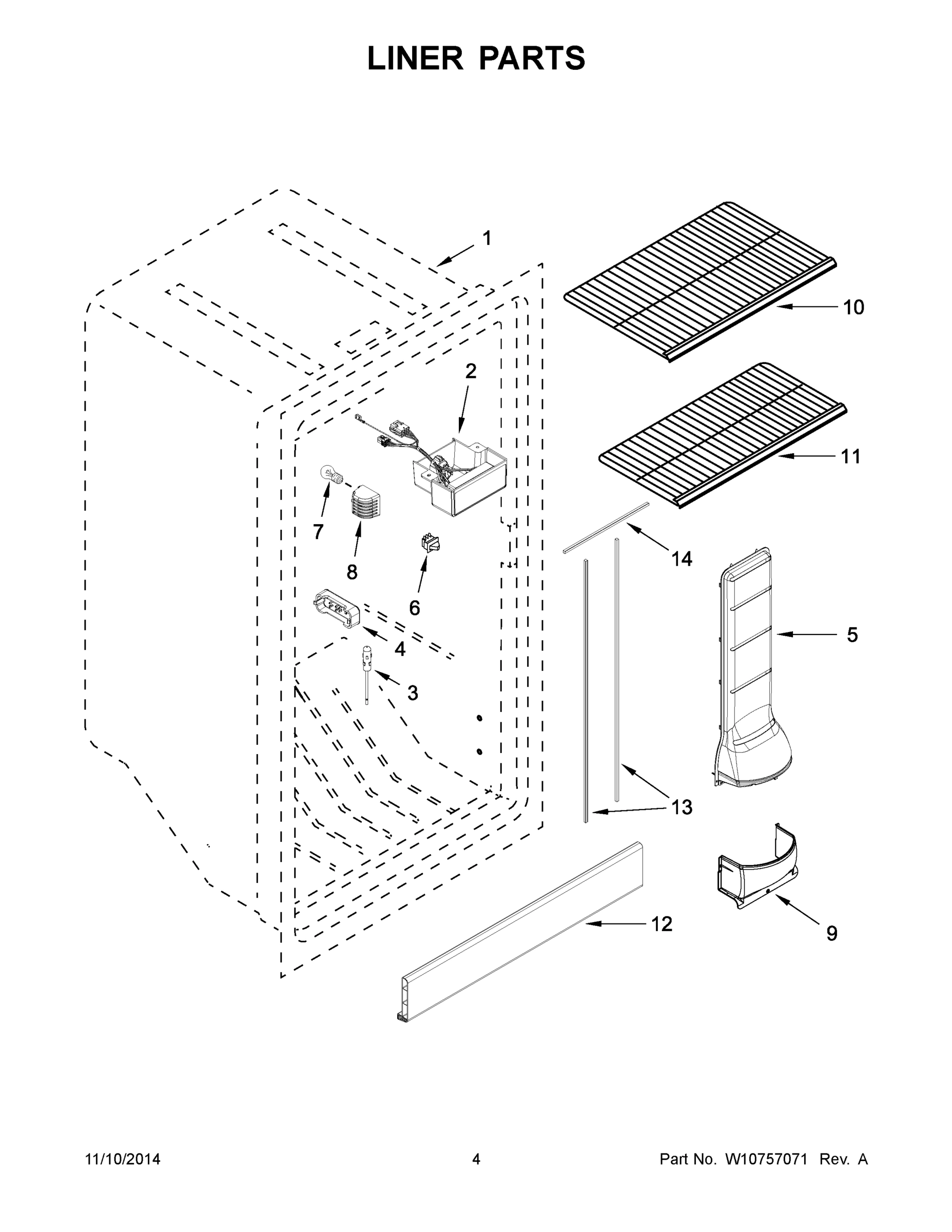

03 - LINER PARTS

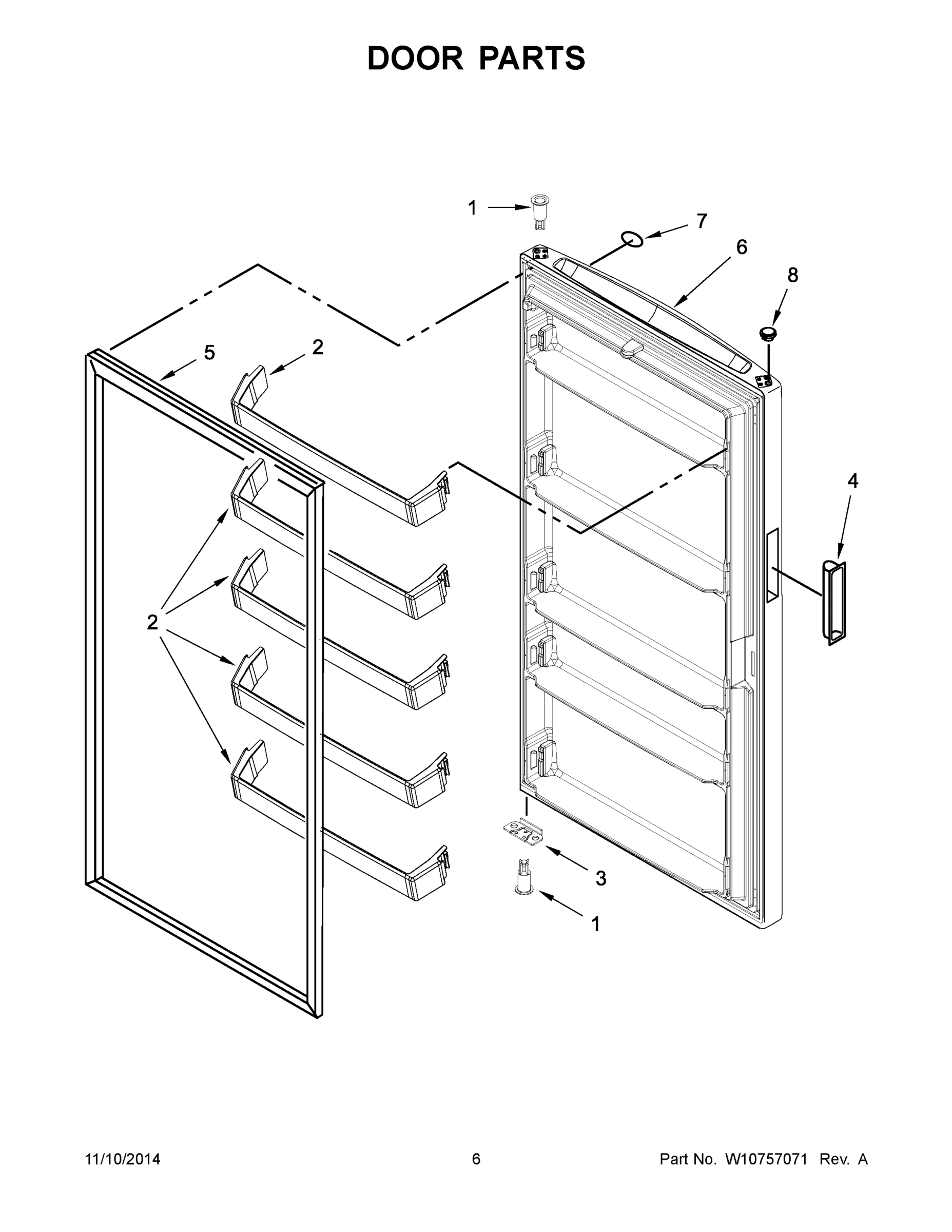

04 - DOOR PARTS

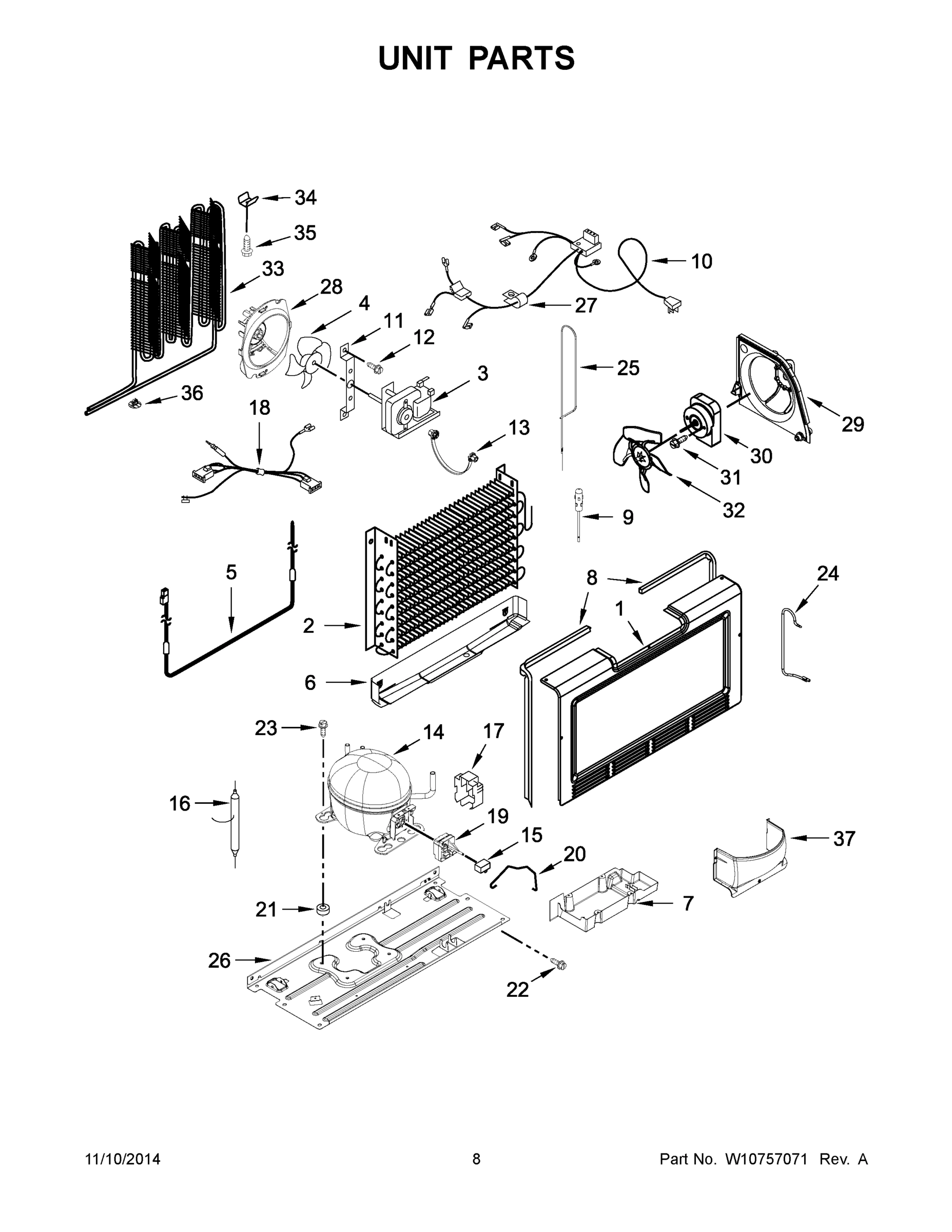

05 - UNIT PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AZB33X20DW00 FREEZER
1
MAY W10668409 MAY W10668409 Contact Us For Availability
1
MAY 2314293 MAY 2314293 Contact Us For Availability
1
MAY W10574307 MAY W10574307 Contact Us For Availability
1A
MAY W10574505 MAY W10574505 Contact Us For Availability
1B
MAY W10653921 MAY W10653921 Contact Us For Availability
2
MAY 3-80675-105 MAY 3-80675-105 Contact Us For Availability
2
MAY W10717835 MAY W10717835 Contact Us For Availability
2
MAY 4-65451-001 MAY 4-65451-001 Contact Us For Availability
2
MAY W10574283 MAY W10574283 Contact Us For Availability
3
MAY W10574494 MAY W10574494 Contact Us For Availability
3
THERMISTOR, REFRIGERATOR COMPARTMENT MAY W10384183 Contact Us For Availability
3
MAY W10628869 MAY W10628869 Contact Us For Availability
3
MAY W10574477 MAY W10574477 Contact Us For Availability
4
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
4
MAY W10608692 MAY W10608692 Contact Us For Availability
4
HANDLE, DOOR (WHITE) MAY W10352523 Contact Us For Availability
4
MAY 2169142 MAY 2169142 Contact Us For Availability
5
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
5
MAY W10574583 MAY W10574583 Contact Us For Availability
5
MAY W10574475 MAY W10574475 Contact Us For Availability
5
MAY W10316428 MAY W10316428 Contact Us For Availability
6
MAY W10574264 MAY W10574264 Contact Us For Availability
6
MAY 2-32164-001 MAY 2-32164-001 Contact Us For Availability
6
MAY W10574713 MAY W10574713 Contact Us For Availability
6
MAY W10314195 MAY W10314195 Contact Us For Availability
7
PLUG, HOLE (WHITE) MAY W10520304 Contact Us For Availability
7
BULB, LIGHT MAY W10311505 Contact Us For Availability
7
MAY W10200425 MAY W10200425 Contact Us For Availability
7
MAY W10574291 MAY W10574291 Contact Us For Availability
8
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
8
MAY W10569269 MAY W10569269 Contact Us For Availability
8
PLUG, HOLE (WHITE) MAY 2212648 Contact Us For Availability
8
MAY W10574305 MAY W10574305 Contact Us For Availability
8A
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
9
MAY 3400113 MAY 3400113 Contact Us For Availability
9
MAY W10383615 MAY W10383615 Contact Us For Availability
10
MAY W10717194 MAY W10717194 Contact Us For Availability
10
MAY W10569282 MAY W10569282 Contact Us For Availability
10
MAY W10572629 MAY W10572629 Contact Us For Availability
11
MAY 12991302 MAY 12991302 Contact Us For Availability
11
MAY W10569283 MAY W10569283 Contact Us For Availability
11
MAY 13058002 MAY 13058002 Contact Us For Availability
12
MAY W10581590 MAY W10581590 Contact Us For Availability
12
MAY 3-80732-014 MAY 3-80732-014 Contact Us For Availability
13
MAY W10574325 MAY W10574325 Contact Us For Availability
13
MAY W10574368 MAY W10574368 Contact Us For Availability
13
MAY W10150583 MAY W10150583 Contact Us For Availability
14
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
14
MAY W10574564 MAY W10574564 Contact Us For Availability
14
MAY W10591687 MAY W10591687 Contact Us For Availability
15
GRILL, FRONT (WHITE) MAY W10534161 Contact Us For Availability
15
MAY W10350564 MAY W10350564 Contact Us For Availability
16
ROLLER MAY 2150304 Contact Us For Availability
16
DRIER MAY W10177049 Contact Us For Availability
17
AXLE, RIVET MAY 2179826 Contact Us For Availability
17
MAY W10574450 MAY W10574450 Contact Us For Availability
18
MAY W10695434 MAY W10695434 Contact Us For Availability
19
MAY W10512742 MAY W10512742 Contact Us For Availability
20
MAY W10574470 MAY W10574470 Contact Us For Availability
21
GROMMET MAY 2183042 Contact Us For Availability
22
MAY W10142287 MAY W10142287 Contact Us For Availability
23
MAY 489473 MAY 489473 Contact Us For Availability
24
MAY W10574571 MAY W10574571 Contact Us For Availability
26
MAY W10574497 MAY W10574497 Contact Us For Availability
27
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
MAY W10574469 MAY W10574469 Contact Us For Availability
29
BRACKET, CONDENSER FAN MAY 2315541 Contact Us For Availability
30
MAY 2188875 MAY 2188875 Contact Us For Availability
31
MAY 8533961 MAY 8533961 Contact Us For Availability
32
MAY W10139483 MAY W10139483 Contact Us For Availability
33
MAY W10574289 MAY W10574289 Contact Us For Availability
34
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
35
MAY W10142294 MAY W10142294 Contact Us For Availability
36
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
37
MAY W10574581 MAY W10574581 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.75 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
× ![]()
