Model GE AZ91H09D3CW1 Zoneline – Common Parts & Diagrams

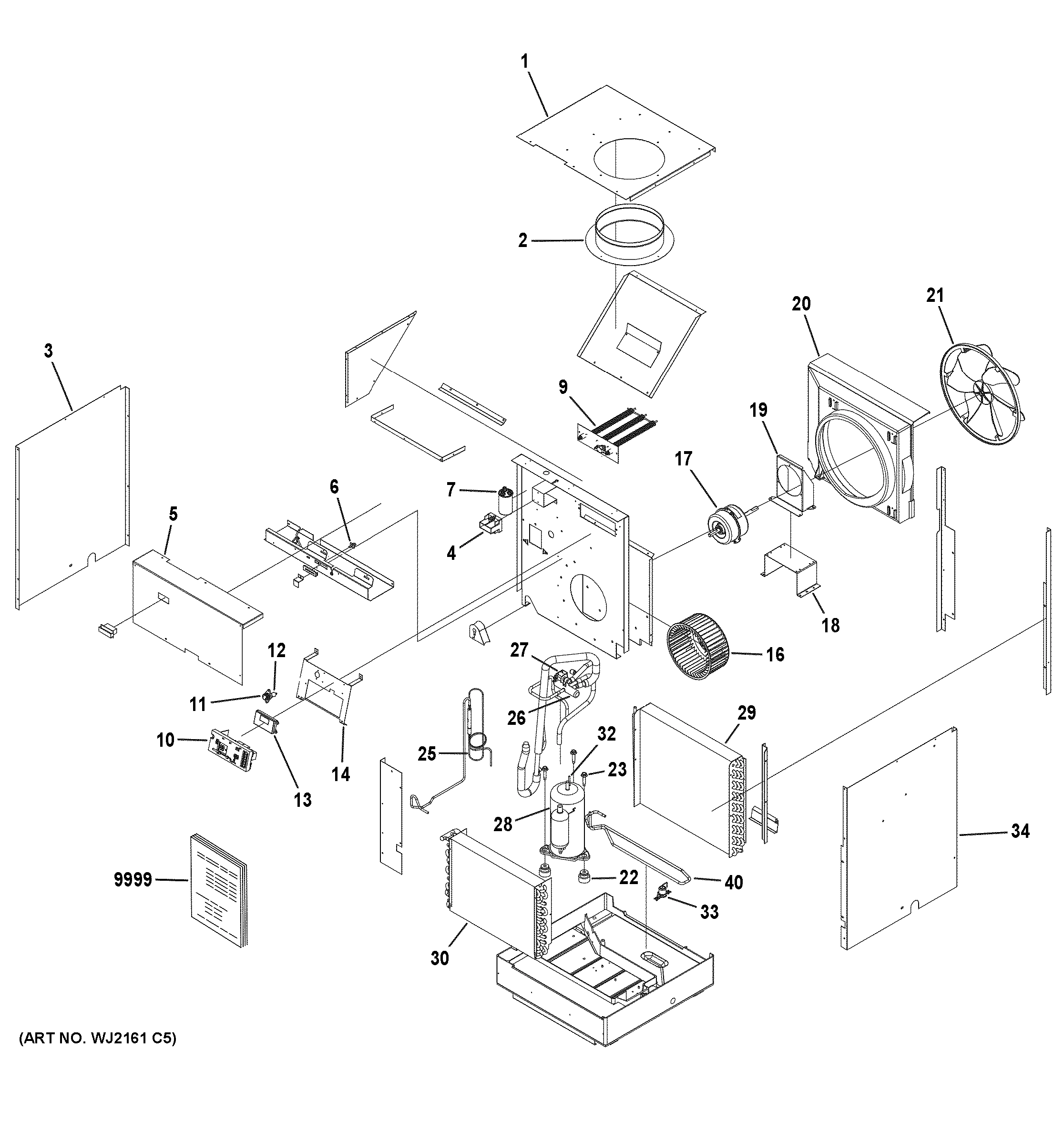

Common parts from model GE AZ91H09D3CW1 Zoneline

VERTICAL ZONELINE

Print

• This Diagram
• All Diagrams

1

TOP COVER AND INSULATION GEN WP43X21960 Contact Us For Availability

View on Model

2

COLLAR GEN WP43X21937 Contact Us For Availability

View on Model

3

LEFT SIDE PANEL AND INSULATION GEN WP43X21950 Contact Us For Availability

View on Model

4

WP35X21958 GE Power Disconnect Backorder GEN WP35X21958 View Details $84.20

View on Model

5

CONTROL PANEL COVER GEN WP76X21941 Contact Us For Availability

View on Model

6

WP71X21961 GE Vent Slide Assembly Backorder GEN WP71X21961 View Details $8.60

View on Model

7

WP20X21935 GE Capacitor Backorder GEN WP20X21935 View Details $54.55

View on Model

9

WP27X21962 GE Heater Assembly Backorder GEN WP27X21962 View Details $114.95

View on Model

10

WP26X21993 GE Air Conditioner Main Control Bo Backorder GEN WP26X21993 View Details $342.37

View on Model

11

WP20X22460 GE Air Conditioner 20A Fuse Backorder GEN WP20X22460 View Details $100.47

View on Model

12

FUSE HOLDER GEN WP01X21945 Contact Us For Availability

View on Model

13

DISPLAY BOARD AND JUMPER GEN WP26X21942 Contact Us For Availability

View on Model

14

WP65X21940 GE Control Bracket Backorder GEN WP65X21940 View Details $30.56

View on Model

16

WP73X22880 GE Indoor Fan Blade Backorder GEN WP73X22880 View Details $41.89

View on Model

17

WP94X21943 GE Fan Motor Backorder GEN WP94X21943 View Details $136.63

View on Model

18

MOTOR RISER GEN WP01X21953 Contact Us For Availability

View on Model

19

MOTOR MOUNT GEN WP01X21952 Contact Us For Availability

View on Model

20

WP73X21956 GE Outdoor Fan Shroud Backorder GEN WP73X21956 View Details $50.14

View on Model

21

WP73X22881 GE Outdoor Fan Blade Backorder GEN WP73X22881 View Details $59.68

View on Model

22

GROMMET GEN WP01X21946 Contact Us For Availability

View on Model

23

WP01X21934 GE Bolt Backorder GEN WP01X21934 View Details $6.77

View on Model

25

WP53X24848 GE Cap Tube Assembly Backorder GEN WP53X24848 View Details $89.41

View on Model

26

WP58X21994 GE Valve Assembly Reversing Backorder GEN WP58X21994 View Details $131.20

View on Model

27

WP20X21995 GE Reversing Solenoid Valve Backorder GEN WP20X21995 View Details $46.32

View on Model

28

WP98X21938 GE Compressor and Electrical Compo Backorder GEN WP98X21938 View Details $552.76

View on Model

29

WP87X21954 GE Outdoor Coil Backorder GEN WP87X21954 View Details $647.91

View on Model

30

WP88X21948 GE Air Conditioner Indoor Coil Backorder GEN WP88X21948 View Details $323.03

View on Model

32

WP20X21957 GE Overload Device Backorder GEN WP20X21957 View Details $29.21

View on Model

33

WP53X21939 GE Condensate Drain Valve Backorder GEN WP53X21939 View Details $56.83

View on Model

34

RIGHT SIDE PANEL AND INSULATION GEN WP45X21959 Contact Us For Availability

View on Model

40

WP53X24843 GE Sump Tube Backorder GEN WP53X24843 View Details $49.96

View on Model

9999

PM MINI MANUAL GEN 3130850 Contact Us For Availability

View on Model

9999

PM OWNERS MANUAL GEN 497769 Contact Us For Availability

View on Model

×
