Model GE AZ85W18DACM2 Zoneline – Common Parts & Diagrams
CHASSIS PARTS
MOTOR, HEATER & BASE PAN PARTS

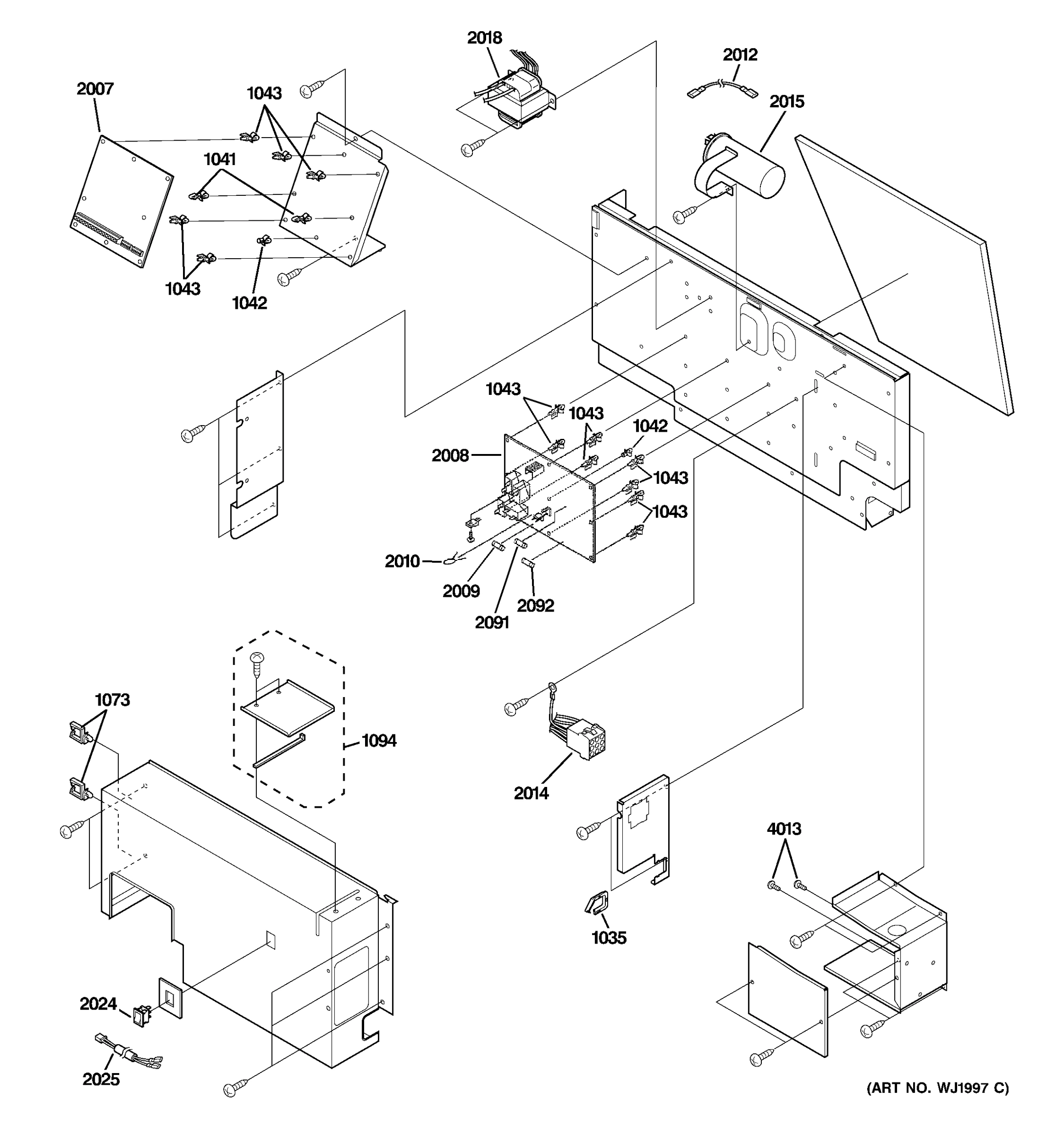

CONTROL PARTS

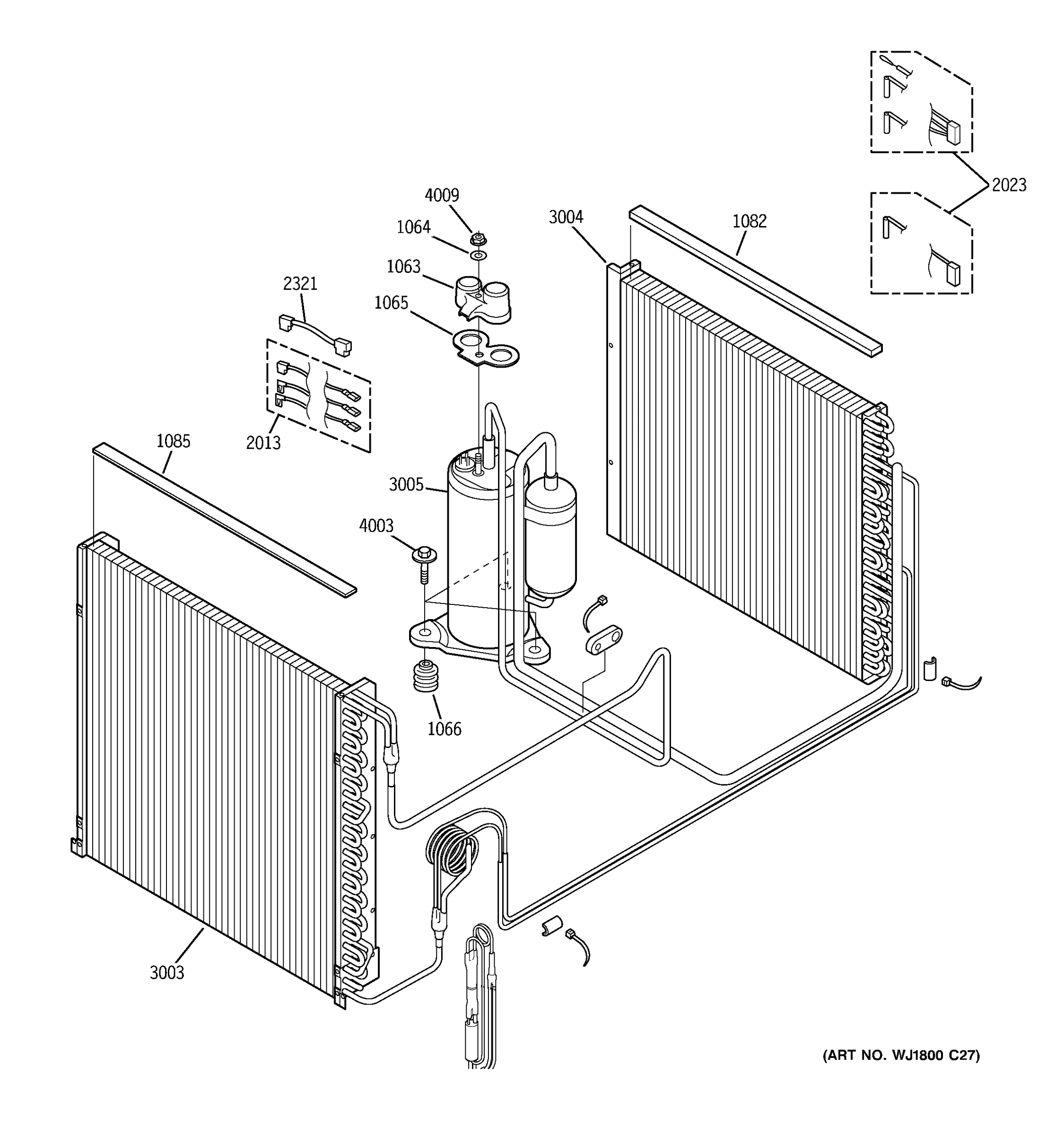

UNIT PARTS
CAPILLARY TUBES
Common parts from model GE AZ85W18DACM2 Zoneline
1001
BOTTOM ANGLE ASS'Y GEN WJ82X10031 Contact Us For Availability
1006
AJUSTER GEN WP01X10040 Contact Us For Availability
1008
CABINET SIDE PLATE L GEN WJ82X10036 Contact Us For Availability
1010
WIRE HOLDER GEN WJ03X10007 Contact Us For Availability
1013
DRAIN TRAY GEN WJ89X10058 Contact Us For Availability
1027
MOTOR ANGLE GEN WP65X10017 Contact Us For Availability
1028
PROPELLER FAN GEN WJ73X10060 Contact Us For Availability
1029
CONDENSER SHROUD GEN WJ76X10107 Contact Us For Availability
1032
DAMPER LEVER GEN WJ14X10031 Contact Us For Availability
1035
WIRE HOLDER GEN WJ03X10033 Contact Us For Availability
1041
SPACER GEN WJ01X10043 Contact Us For Availability
1042
SPACER GEN WP01X10010 Contact Us For Availability
1043
SPACER GEN WJ01X10155 Contact Us For Availability
1044
DIVIDER L ASM GEN WP82X10315 Contact Us For Availability
1045
DIVIDER R ASM GEN WP81X10001 Contact Us For Availability
1046
DAMPER ASM GEN WP14X10040 Contact Us For Availability
1047
DAMPER FRAME GEN WJ70X10036 Contact Us For Availability
1048
ID MOTOR MOUNT GEN WP65X10015 Contact Us For Availability
1049
MOTOR CUSHION GEN WP01X10027 Contact Us For Availability
1050
CLAMP GEN WJ01X10159 Contact Us For Availability
1054
INSULATOR GEN WJ45X10024 Contact Us For Availability
1057
MOTOR RUBBER GEN WP01X10042 Contact Us For Availability
1058
FAN HOUSING GEN WJ76X10108 Contact Us For Availability
1059
FAN HOUSING B GEN WJ76X10109 Contact Us For Availability
1060
FAN HOUSING C GEN WJ76X10110 Contact Us For Availability
1061
BASE PAN ASM GEN WP89X10001 Contact Us For Availability
1063
TERMINAL COVER GEN WJ79X10080 Contact Us For Availability
1064
GASKET WAS HER GEN WJ01X10003 Contact Us For Availability
1065
TERMINAL GASKET GEN WJ43X10025 Contact Us For Availability
1066
COMPRESSOR CUSHION N GEN WJ01X10046 Contact Us For Availability
1067
CORNER CAP GEN WJ01X10171 Contact Us For Availability
1068
FRONT PANEL GEN WJ71X10268 Contact Us For Availability
1070
FILTER GUIDE R GEN WJ05X10030 Contact Us For Availability
1071
BRACE GEN WP65X10016 Contact Us For Availability
1073
CORD HOLDER L GEN WP01X10009 Contact Us For Availability
1082
EVAPORATOR INSULATOR GEN WJ45X10025 Contact Us For Availability
1083
BULKHEAD INSULATOR GEN WJ40X10014 Contact Us For Availability
1084
BULKHEAD INSULATOR GEN WJ40X10015 Contact Us For Availability
1085
CONDENSER INSULATOR GEN WJ45X10026 Contact Us For Availability
1090
DRAIN TRAY GEN WJ70X10037 Contact Us For Availability
1091
DRAINING VALVE GEN WJ58X10043 Contact Us For Availability
1092
DAMPER WIRE GEN WJ37X10029 Contact Us For Availability
1094
PLATE ASS'Y GEN WJ11X10008 Contact Us For Availability
1095
TOP PLATE SEAL 2 GEN WJ11X10007 Contact Us For Availability
1096
TOP PLATE SEAL 1 GEN WJ60X10002 Contact Us For Availability
1099
CABINET SIDE PLATE R GEN WJ82X10037 Contact Us For Availability
1100
FRONT PANEL ASS'Y GEN WJ82X10038 Contact Us For Availability
1102
BASE PAN SEAL GEN WJ60X10005 Contact Us For Availability
1102
BASE PAN SEAL GEN WJ60X10011 Contact Us For Availability
1103
FAN HOUSING SEAL A GEN WJ60X10008 Contact Us For Availability
1104
FAN HOUSING SEAL B GEN WJ60X10007 Contact Us For Availability
1105
FAN HOUSING SEAL C GEN WJ60X10006 Contact Us For Availability
1106
DUCT SEAL R GEN WJ60X10010 Contact Us For Availability
1107
DUCT SEAL L GEN WJ60X10009 Contact Us For Availability
1111
BASEPAN CAP GEN WJ01X10319 Contact Us For Availability
2001
FAN MOTOR DC GEN WP94X10314 Contact Us For Availability
2007
MAIN CONTROL BOARD GEN WP29X10047 Contact Us For Availability
2008
DRIVE BOARD ASM GEN WP29X10037 Contact Us For Availability
2009
FUSE GEN WP23X10003 Contact Us For Availability
2010
VARISTOR GEN WP28X10019 Contact Us For Availability
2012
R-CAPA LEAD WIRE GEN WP37X10001 Contact Us For Availability
2013
COMP. WIRING-RECHI GEN WP01X10044 Contact Us For Availability
2014
LEAD WIRE GEN WP01X10050 Contact Us For Availability
2015
RUNNING CAPACITOR GEN WP20X10030 Contact Us For Availability
2018
TRANSFORMER GEN WP27X10075 Contact Us For Availability
2019
FAN MOTOR DC GEN WP94X10315 Contact Us For Availability
2023
THERMISTOR GEN WP27X10073 Contact Us For Availability
2024
POWER SW GEN WP24X10001 Contact Us For Availability
2025
LEAD WIRE GEN WP01X10046 Contact Us For Availability
2091
FUSE GEN WP23X10026 Contact Us For Availability
2092
FUSE GEN WP23X10032 Contact Us For Availability
2321
LEAD WIRE GEN WJ27X10001 Contact Us For Availability
3003
CONDENSER ASM GEN WP88X10098 Contact Us For Availability
3004
EVAPORATOR ASM GEN WP87X10051 Contact Us For Availability
3005
COMPRESSOR GEN WP98X10046 Contact Us For Availability
4001
ADJUSTABLE BOLT GEN WP01X10051 Contact Us For Availability
4002
ADJUSTABLE NUT GEN WP01X10054 Contact Us For Availability
4003
STUD BOLT GEN WJ01X10031 Contact Us For Availability
4004
SPECIAL SCREW GEN WJ01X10037 Contact Us For Availability
4006
SPECIAL SCREW W GEN WJ01X10056 Contact Us For Availability
4007
SPECIAL SCREW GEN WP01X10041 Contact Us For Availability
4010
SPECIAL SCREW GEN WP01X10052 Contact Us For Availability
4011
SCREW GEN WB01X10409 Contact Us For Availability
4012
SPECIAL SCREW GEN WJ01X10177 Contact Us For Availability
4013
SPECIAL SCREW GEN WP01X10053 Contact Us For Availability
5001
CAPILLARY TUBE GEN WP56X10040 Contact Us For Availability
5002
CAPILLARY TUBE GEN WP56X10041 Contact Us For Availability
5003
CAPILLARY TUBE GEN WP56X10042 Contact Us For Availability
5004
CAPILLARY TUBE GEN WP56X10043 Contact Us For Availability
5017
LEAD TUBE GEN WP56X10056 Contact Us For Availability
5020
CAPILLARY TUBE GEN WP56X10058 Contact Us For Availability
5021
CAPILLARY TUBE GEN WP56X10059 Contact Us For Availability
5022
CAPILLARY TUBE GEN WP56X10060 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 497639 Contact Us For Availability
9999
U&C/IIS ZONELINE RAC GEN 4976391 Contact Us For Availability
× ![]()
