Model GE AZ85E18EACM2 – Common Parts & Diagrams

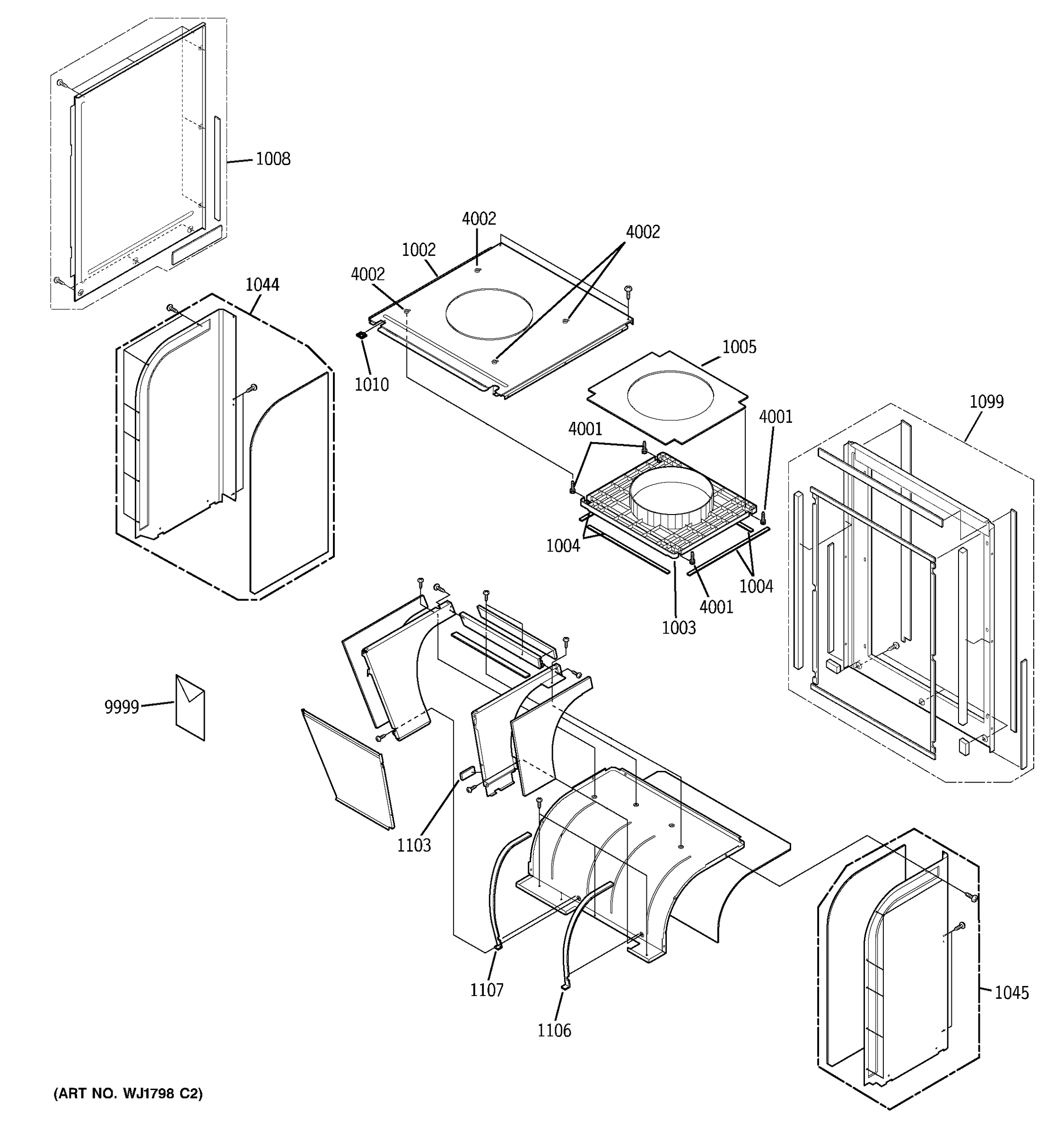

CHASSIS PARTS

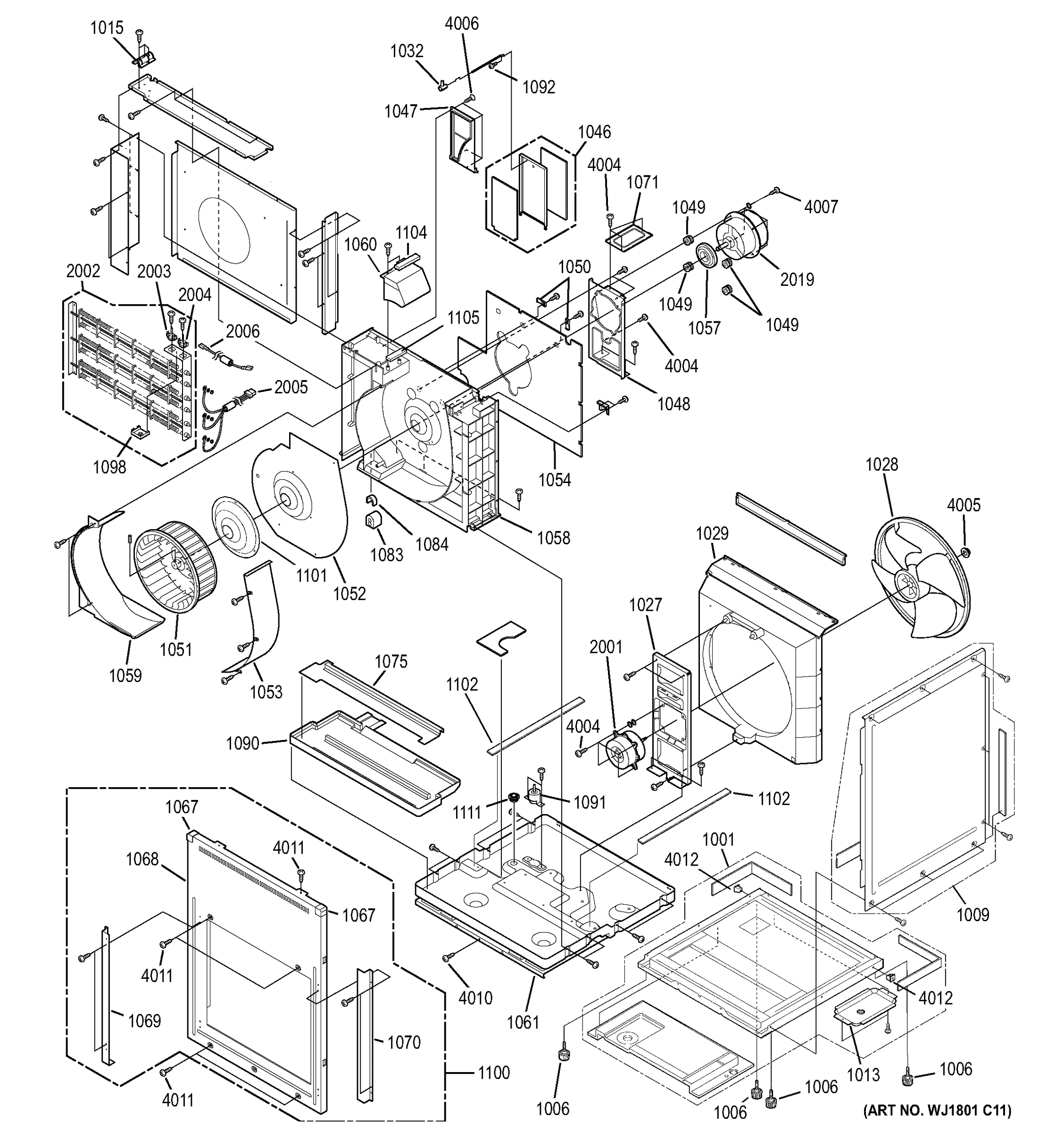

MOTOR, HEATER & BASE PAN PARTS
CONTROL PARTS
UNIT PARTS
CAPILLARY TUBES
Common parts from model GE AZ85E18EACM2
1001
BOTTOM ANGLE ASS'Y GEN WJ82X10031 Contact Us For Availability
1009
CABINET SIDE PLATE R GEN WJ82X10037 Contact Us For Availability
1013
DRAIN TRAY GEN WJ89X10058 Contact Us For Availability
1028
PROPELLER FAN GEN WJ73X10060 Contact Us For Availability
1029
CONDENSER SHROUD GEN WJ76X10107 Contact Us For Availability
1032
DAMPER LEVER GEN WJ14X10031 Contact Us For Availability
1035
WIRE HOLDER GEN WJ03X10033 Contact Us For Availability
1041
SPACER GEN WJ01X10043 Contact Us For Availability
1043
SPACER GEN WJ01X10155 Contact Us For Availability
1047
DAMPER FRAME GEN WJ70X10036 Contact Us For Availability
1048
ID MOTOR MOUNT GEN WP65X10015 Contact Us For Availability
1050
CLAMP GEN WJ01X10159 Contact Us For Availability
1052
HOUSING COVER A GEN WJ79X10079 Contact Us For Availability
1053
HOUSING COVER B GEN WJ79X10075 Contact Us For Availability
1054
INSULATOR GEN WJ45X10024 Contact Us For Availability
1057
MOTOR RUBBER GEN WP01X10042 Contact Us For Availability
1058
FAN HOUSING GEN WJ76X10108 Contact Us For Availability
1059
FAN HOUSING B GEN WJ76X10109 Contact Us For Availability
1060
FAN HOUSING C GEN WJ76X10110 Contact Us For Availability
1061
BASE PAN ASM GEN WP89X10001 Contact Us For Availability
1063
TERMINAL COVER GEN WJ79X10080 Contact Us For Availability
1064
GASKET WAS HER GEN WJ01X10003 Contact Us For Availability
1065
TERMINAL GASKET GEN WJ43X10025 Contact Us For Availability
1066
COMPRESSOR CUSHION N GEN WJ01X10046 Contact Us For Availability
1067
CORNER CAP GEN WJ01X10171 Contact Us For Availability
1068
FRONT PANEL GEN WJ71X10268 Contact Us For Availability
1070
FILTER GUIDE R GEN WJ05X10030 Contact Us For Availability
1075
DRAIN COVER GEN WJ79X10076 Contact Us For Availability
1082
EVAPORATOR INSULATOR GEN WJ45X10025 Contact Us For Availability
1083
BULKHEAD INSULATOR GEN WJ40X10014 Contact Us For Availability
1085
CONDENSER INSULATOR GEN WJ45X10026 Contact Us For Availability
1090
DRAIN TRAY GEN WJ70X10037 Contact Us For Availability
1092
DAMPER WIRE GEN WJ37X10029 Contact Us For Availability
1098
PROTECTOR HOLDER GEN WJ03X10032 Contact Us For Availability
1099
CABINET BACK ASS'Y GEN WJ90X10043 Contact Us For Availability
1100
FRONT PANEL ASS'Y GEN WJ82X10038 Contact Us For Availability
1101
HOUSING COVER GEN WJ79X10078 Contact Us For Availability
1102
BASE PAN SEAL GEN WJ60X10005 Contact Us For Availability
1102
BASE PAN SEAL GEN WJ60X10011 Contact Us For Availability
1103
FAN HOUSING SEAL A GEN WJ60X10008 Contact Us For Availability
1104
FAN HOUSING SEAL B GEN WJ60X10007 Contact Us For Availability
1105
FAN HOUSING SEAL C GEN WJ60X10006 Contact Us For Availability
1106
DUCT SEAL R GEN WJ60X10010 Contact Us For Availability
1107
DUCT SEAL L GEN WJ60X10009 Contact Us For Availability
1111
BASEPAN CAP GEN WJ01X10319 Contact Us For Availability
2001
FAN MOTOR DC GEN WP94X10314 Contact Us For Availability
2002
HEATER DK GEN WJ70X10042 Contact Us For Availability
2005
HEATER CONNECTOR GEN WJ37X10030 Contact Us For Availability
2006
HEATER WIRE GEN WP01X10043 Contact Us For Availability
2007
MAIN CONTROL BOARD GEN WP29X10047 Contact Us For Availability
2010
VARISTOR GEN WP28X10019 Contact Us For Availability
2014
LEAD WIRE GEN WP01X10045 Contact Us For Availability
2022
PROTECTOR GEN WP28X10022 Contact Us For Availability
2023
THERMISTOR GEN WP27X10073 Contact Us For Availability
2321
LEAD WIRE GEN WJ27X10001 Contact Us For Availability
3003
CONDENSER ASM GEN WP88X10098 Contact Us For Availability
4001
ADJUSTABLE BOLT GEN WP01X10051 Contact Us For Availability
4003
STUD BOLT GEN WJ01X10031 Contact Us For Availability
4004
SPECIAL SCREW GEN WJ01X10037 Contact Us For Availability
4006
SPECIAL SCREW W GEN WJ01X10056 Contact Us For Availability
4011
SCREW GEN WB01X10409 Contact Us For Availability
4012
SPECIAL SCREW GEN WJ01X10177 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 497639 Contact Us For Availability
× ![]()
