Model GE AZ52H12EADM1 – Common Parts & Diagrams

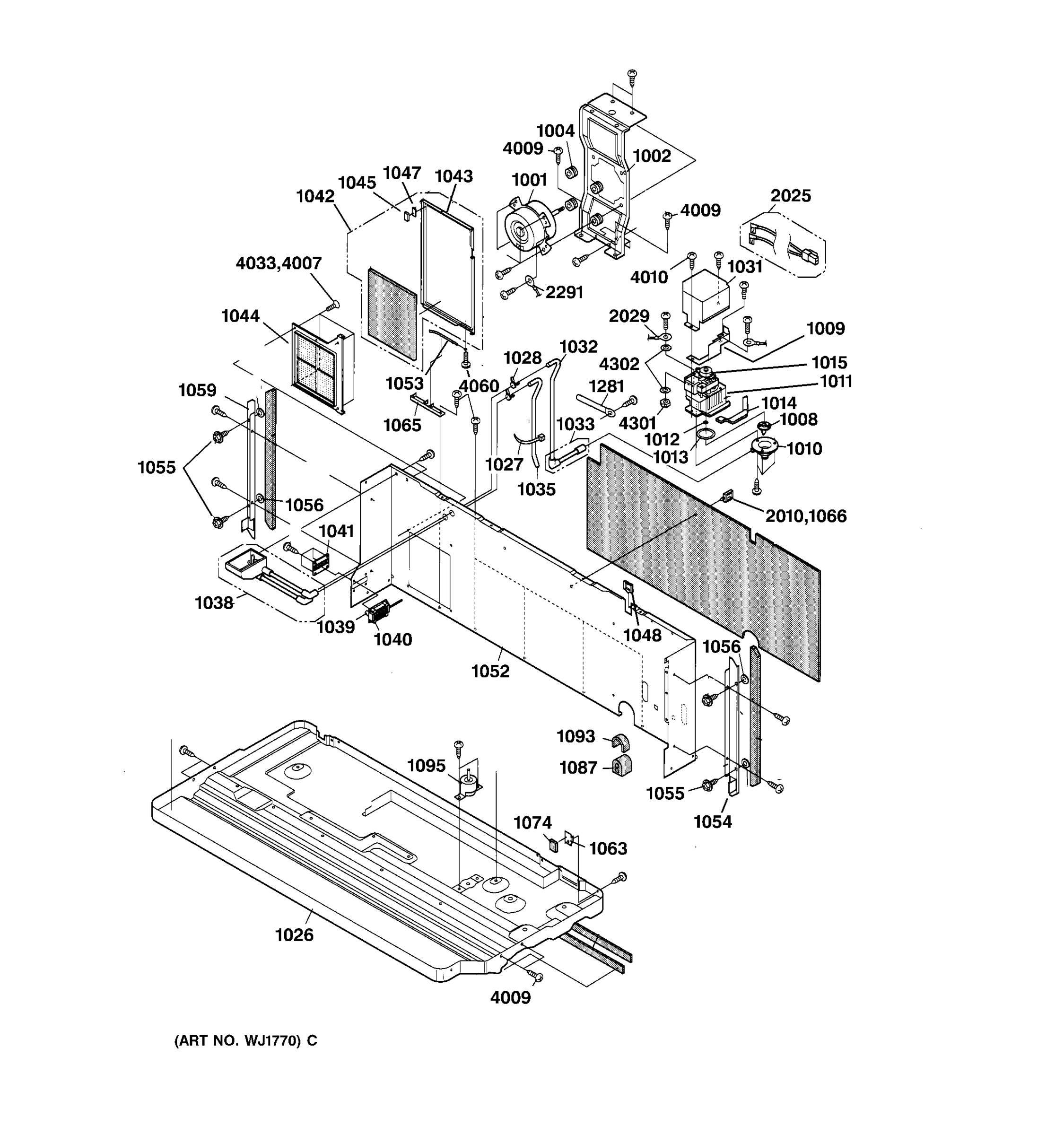

CHASSIS ASSEMBLY

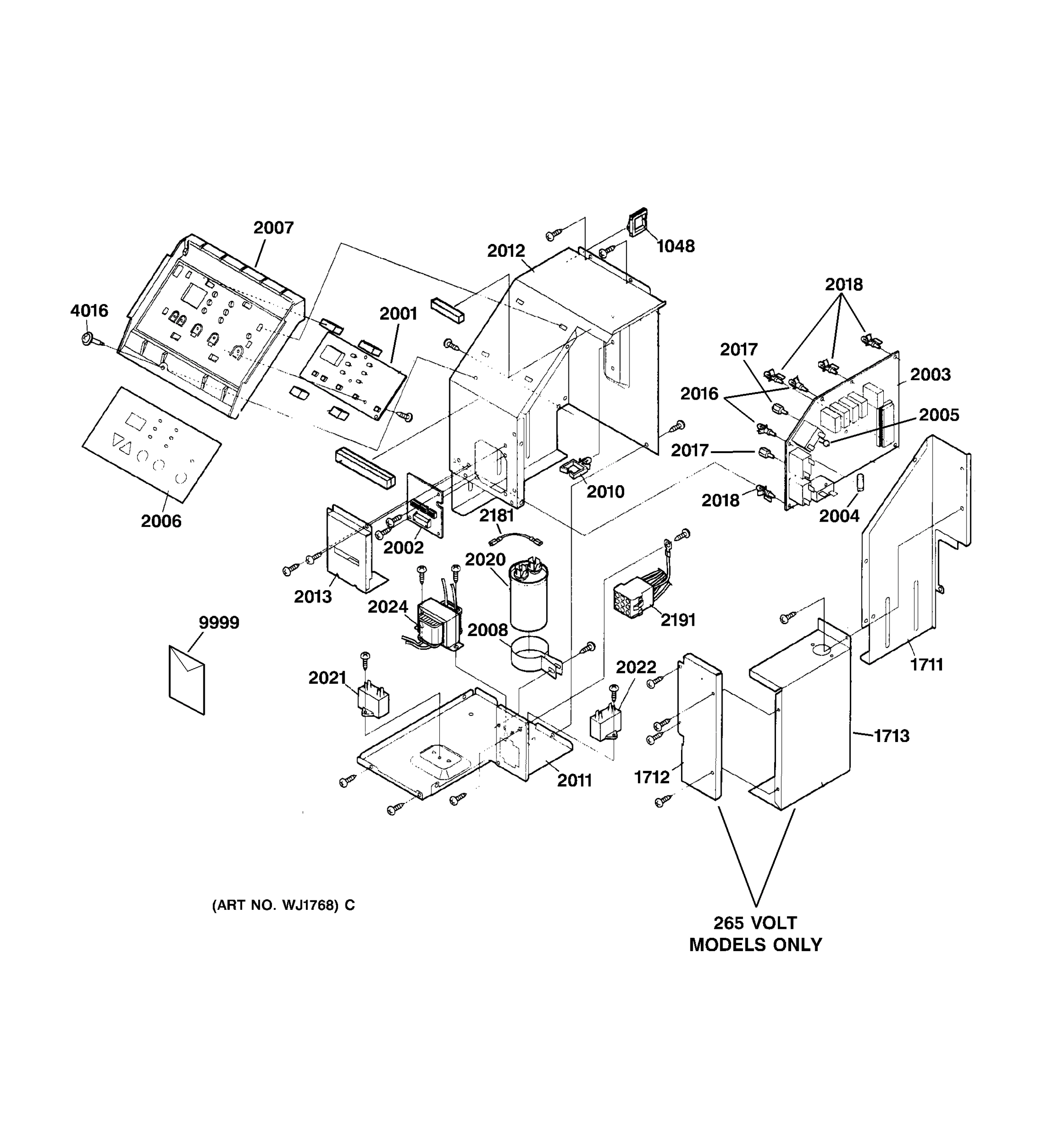

CONTROL ASSEMBLY
GRILLE & AIR MOVING PARTS
UNIT PARTS
Common parts from model GE AZ52H12EADM1
1004
GEN WJ01X10034 GEN WJ01X10034 Contact Us For Availability
1007
GEN WP76X10001 GEN WP76X10001 Contact Us For Availability
1017
FRONT PANEL ASS'Y GEN WP71X10001 Contact Us For Availability
1018
GEN WP71X10002 GEN WP71X10002 Contact Us For Availability
1019
GEN WP71X10003 GEN WP71X10003 Contact Us For Availability
1020
GEN WP71X10004 GEN WP71X10004 Contact Us For Availability
1021
GEN WP85X10001 GEN WP85X10001 Contact Us For Availability
1022
GEN WP85X10002 GEN WP85X10002 Contact Us For Availability
1023
GEN WJ05X10013 GEN WJ05X10013 Contact Us For Availability
1027
WIRE FIXING BAND GEN WJ03X10012 Contact Us For Availability
1029
GEN WJ05X10017 GEN WJ05X10017 Contact Us For Availability
1034
GEN WJ57X10003 GEN WJ57X10003 Contact Us For Availability
1035
GEN WJ40X10009 GEN WJ40X10009 Contact Us For Availability
1036
GEN WJ05X10018 GEN WJ05X10018 Contact Us For Availability
1037
GEN WJ05X10019 GEN WJ05X10019 Contact Us For Availability
1038
GEN WJ46X10001 GEN WJ46X10001 Contact Us For Availability
1039
GEN WJ14X10008 GEN WJ14X10008 Contact Us For Availability
1040
GEN WJ05X10014 GEN WJ05X10014 Contact Us For Availability
1041
GEN WJ80X10002 GEN WJ80X10002 Contact Us For Availability
1042
GEN WP70X10013 GEN WP70X10013 Contact Us For Availability
1043
GEN WP70X10014 GEN WP70X10014 Contact Us For Availability
1044
GEN WP76X10002 GEN WP76X10002 Contact Us For Availability
1045
GEN WP01X10001 GEN WP01X10001 Contact Us For Availability
1047
MAGNET SEA L GEN WP01X10002 Contact Us For Availability
1048
GEN WJ03X10007 GEN WJ03X10007 Contact Us For Availability
1052
GEN WP76X10003 GEN WP76X10003 Contact Us For Availability
1053
GEN WP01X10003 GEN WP01X10003 Contact Us For Availability
1054
GEN WJ82X10002 GEN WJ82X10002 Contact Us For Availability
1055
GEN WP01X10004 GEN WP01X10004 Contact Us For Availability
1058
GEN WP65X10001 GEN WP65X10001 Contact Us For Availability
1059
GEN WJ82X10003 GEN WJ82X10003 Contact Us For Availability
1063
GEN WP01X10006 GEN WP01X10006 Contact Us For Availability
1064
GEN WJ82X10004 GEN WJ82X10004 Contact Us For Availability
1065
GEN WJ82X10005 GEN WJ82X10005 Contact Us For Availability
1066
GEN WJ03X10008 GEN WJ03X10008 Contact Us For Availability
1069
GEN WJ03X10011 GEN WJ03X10011 Contact Us For Availability
1070
GEN WP79X10001 GEN WP79X10001 Contact Us For Availability
1071
GEN WP79X10002 GEN WP79X10002 Contact Us For Availability
1077
GEN WP94X10002 GEN WP94X10002 Contact Us For Availability
1077
GEN WP94X10018 GEN WP94X10018 Contact Us For Availability
1077
GEN WP94X10031 GEN WP94X10031 Contact Us For Availability
1077
GEN WP94X10033 GEN WP94X10033 Contact Us For Availability
1078
IN MOTOR ANG. ASS AY GEN WJ82X10006 Contact Us For Availability
1081
GEN WP73X10001 GEN WP73X10001 Contact Us For Availability
1082
GEN WP01X10008 GEN WP01X10008 Contact Us For Availability
1083
GEN WP76X10004 GEN WP76X10004 Contact Us For Availability
1084
GEN WJ11X10005 GEN WJ11X10005 Contact Us For Availability
1085
GEN WP71X10005 GEN WP71X10005 Contact Us For Availability
1087
BULKHEAD INSULA TOR GEN WJ40X10006 Contact Us For Availability
1093
BULKHEAD INSULA TOR GEN WJ40X10007 Contact Us For Availability
1094
GEN WP70X10015 GEN WP70X10015 Contact Us For Availability
1095
GEN WJ58X10004 GEN WJ58X10004 Contact Us For Availability
1096
GEN WJ82X10007 GEN WJ82X10007 Contact Us For Availability
1281
GEN WP03X10003 GEN WP03X10003 Contact Us For Availability
1291
GEN WP60X10001 GEN WP60X10001 Contact Us For Availability
1531
GEN WP71X10006 GEN WP71X10006 Contact Us For Availability
1701
GEN WP79X10003 GEN WP79X10003 Contact Us For Availability
1711
GEN WP76X10005 GEN WP76X10005 Contact Us For Availability
1712
GEN WP79X10007 GEN WP79X10007 Contact Us For Availability
1713
GEN WP76X10011 GEN WP76X10011 Contact Us For Availability
2001
GEN WP26X10002 GEN WP26X10002 Contact Us For Availability
2002
GEN WP26X10003 GEN WP26X10003 Contact Us For Availability
2003
GEN WP26X10001 GEN WP26X10001 Contact Us For Availability
2003
GEN WP26X10012 GEN WP26X10012 Contact Us For Availability
2004
GEN WP23X10003 GEN WP23X10003 Contact Us For Availability
2004
GEN WP23X10009 GEN WP23X10009 Contact Us For Availability
2005
GEN WP27X10002 GEN WP27X10002 Contact Us For Availability
2005
GEN WP27X10015 GEN WP27X10015 Contact Us For Availability
2006
GEN WP07X10001 GEN WP07X10001 Contact Us For Availability
2007
GEN WP07X10002 GEN WP07X10002 Contact Us For Availability
2008
GEN WP03X10001 GEN WP03X10001 Contact Us For Availability
2011
GEN WP76X10007 GEN WP76X10007 Contact Us For Availability
2012
GEN WP76X10008 GEN WP76X10008 Contact Us For Availability
2013
GEN WP79X10004 GEN WP79X10004 Contact Us For Availability
2016
GEN WJ01X10043 GEN WJ01X10043 Contact Us For Availability
2017
GEN WJ01X10044 GEN WJ01X10044 Contact Us For Availability
2019
COMP. WIRI NG GEN WJ36X10001 Contact Us For Availability
2020
RUNNING CAPA CITOR GEN WJ20X0748 Contact Us For Availability
2020
GEN WP20X10009 GEN WP20X10009 Contact Us For Availability
2020
RUNNING CAPA CITOR GEN WP20X10015 Contact Us For Availability
2020
RUUNNING CAP ACITOR GEN WP20X10016 Contact Us For Availability
2021
FAN MOTOR CAP ACITOR GEN WP20X10005 Contact Us For Availability
2021
FAN MOTOR CAPACITOR GEN WJ20X10017 Contact Us For Availability
2021
FAN MOTOR CAP ACITOR GEN WP20X10014 Contact Us For Availability
2021
FAN MOTOR CAP ACITOR GEN WP20X10017 Contact Us For Availability
2022
FAN MOTOR CAPA CITOR GEN WP20X10003 Contact Us For Availability
2022
GEN WP20X10010 GEN WP20X10010 Contact Us For Availability
2022
FAN MOTOR CAPA CITOR GEN WP20X10013 Contact Us For Availability
2023
GEN WP27X10007 GEN WP27X10007 Contact Us For Availability
2024
GEN WP27X10006 GEN WP27X10006 Contact Us For Availability
2024
GEN WP27X10016 GEN WP27X10016 Contact Us For Availability
2025
GEN WJ37X10005 GEN WJ37X10005 Contact Us For Availability
2026
GEN WP70X10006 GEN WP70X10006 Contact Us For Availability
2026
GEN WP70X10008 GEN WP70X10008 Contact Us For Availability
2027
GEN WP23X10014 GEN WP23X10014 Contact Us For Availability
2029
GEN WJ37X10001 GEN WJ37X10001 Contact Us For Availability
2032
GEN WP23X10008 GEN WP23X10008 Contact Us For Availability
2032
PROTECTOR GEN WP23X10005 Contact Us For Availability
2032
GEN WP23X10012 GEN WP23X10012 Contact Us For Availability
2032
GEN WP23X10013 GEN WP23X10013 Contact Us For Availability
2181
GEN WJ37X10006 GEN WJ37X10006 Contact Us For Availability
2191
CONNECTOR A SS'Y GEN WP27X10018 Contact Us For Availability
2191
CONNECTOR A SS'Y GEN WP27X10019 Contact Us For Availability
2291
GEN WJ37X10004 GEN WJ37X10004 Contact Us For Availability
2321
GEN WJ27X10001 GEN WJ27X10001 Contact Us For Availability
3000
CAPILLARY (.046 ID) GEN WJ53X0128 Contact Us For Availability
3000
GEN WJ53X0138 GEN WJ53X0138 Contact Us For Availability
3000
CAPILLARY (.063 ID) GEN WJ53X0188 Contact Us For Availability
3003
GEN WP88X10001 GEN WP88X10001 Contact Us For Availability
3003
GEN WP88X10007 GEN WP88X10007 Contact Us For Availability
3003
CONDENSER ASS'Y GEN WP88X10008 Contact Us For Availability
3005
GEN WP87X10002 GEN WP87X10002 Contact Us For Availability
3007
GEN WJ98X10023 GEN WJ98X10023 Contact Us For Availability
3007
GEN WJ98X10006 GEN WJ98X10006 Contact Us For Availability
3007
GEN WJ98X10027 GEN WJ98X10027 Contact Us For Availability
3007
GEN WJ98X10028 GEN WJ98X10028 Contact Us For Availability
3008
GEN WJ79X10003 GEN WJ79X10003 Contact Us For Availability
3008
GEN WJ79X10013 GEN WJ79X10013 Contact Us For Availability
3009
GEN WJ01X10003 GEN WJ01X10003 Contact Us For Availability
3010
GEN WJ43X10001 GEN WJ43X10001 Contact Us For Availability
3010
GEN WJ43X10003 GEN WJ43X10003 Contact Us For Availability
3011
GEN WJ01X10021 GEN WJ01X10021 Contact Us For Availability
3011
COMPRESSOR CUSHIO N GEN WJ01X10046 Contact Us For Availability
3072
GEN WJ02X10001 GEN WJ02X10001 Contact Us For Availability
3101
GEN WJ58X10025 GEN WJ58X10025 Contact Us For Availability
3101
GEN WJ58X10026 GEN WJ58X10026 Contact Us For Availability
4001
GEN WJ01X10031 GEN WJ01X10031 Contact Us For Availability
4002
GEN WJ01X10035 GEN WJ01X10035 Contact Us For Availability
4004
GEN WJ01X10010 GEN WJ01X10010 Contact Us For Availability
4005
TAPPING SCRE W GEN WJ01X10038 Contact Us For Availability
4007
GEN WJ01X10057 GEN WJ01X10057 Contact Us For Availability
4009
GEN WJ01X10037 GEN WJ01X10037 Contact Us For Availability
4010
GEN WJ01X10012 GEN WJ01X10012 Contact Us For Availability
4014
GEN WJ01X10058 GEN WJ01X10058 Contact Us For Availability
4016
GEN WJ01X10059 GEN WJ01X10059 Contact Us For Availability
9999
GEN 31-60278 GEN 31-60278 Contact Us For Availability
9999
GEN 31-60501 GEN 31-60501 Contact Us For Availability
9999
GEN 31-60503 GEN 31-60503 Contact Us For Availability
9999
GEN 31-60505 GEN 31-60505 Contact Us For Availability
9999
GEN 49-7360 GEN 49-7360 Contact Us For Availability
9999
GEN 49-7367 GEN 49-7367 Contact Us For Availability
× ![]()
