Model GE AZ45E09EACW2 – Common Parts & Diagrams

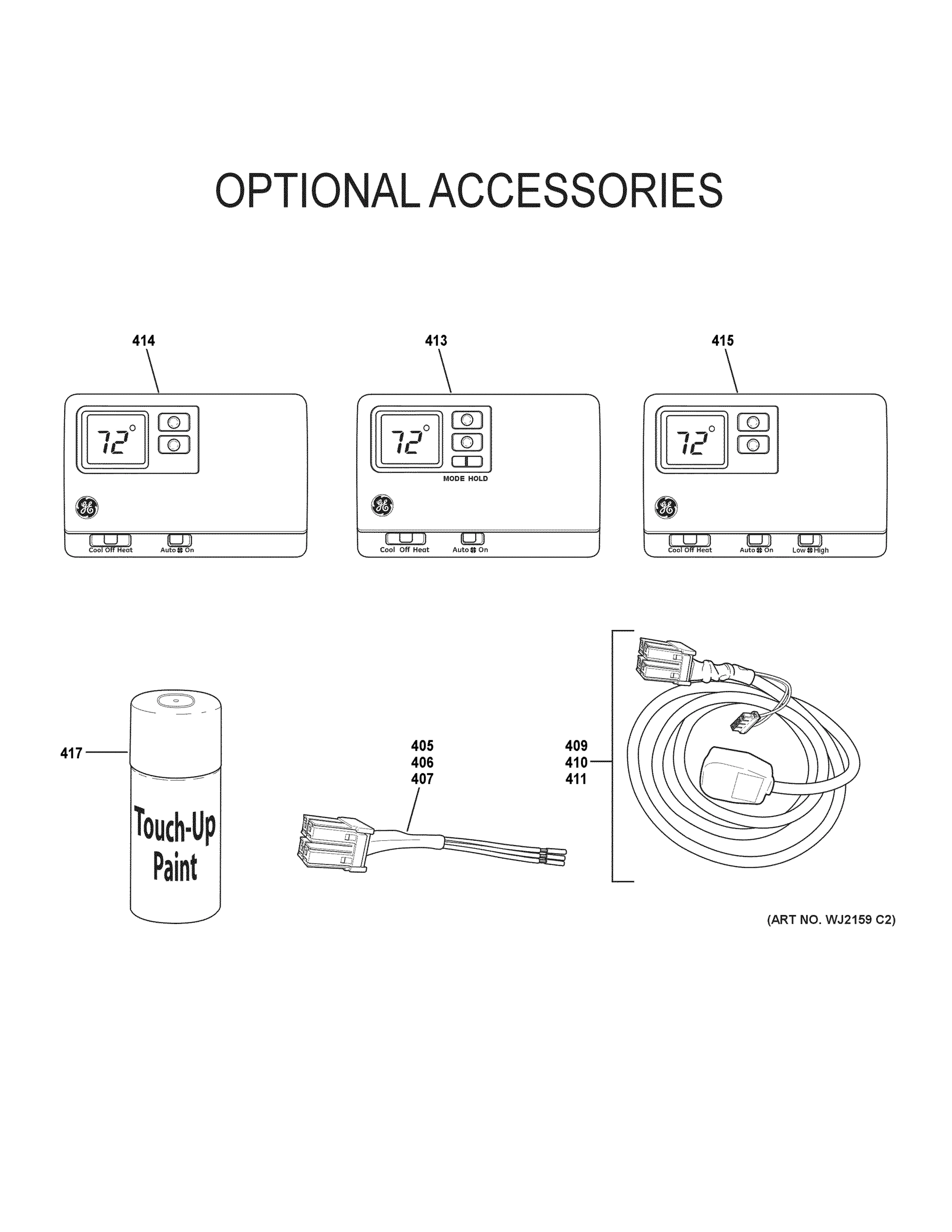

OPTIONAL ACCESSORIES

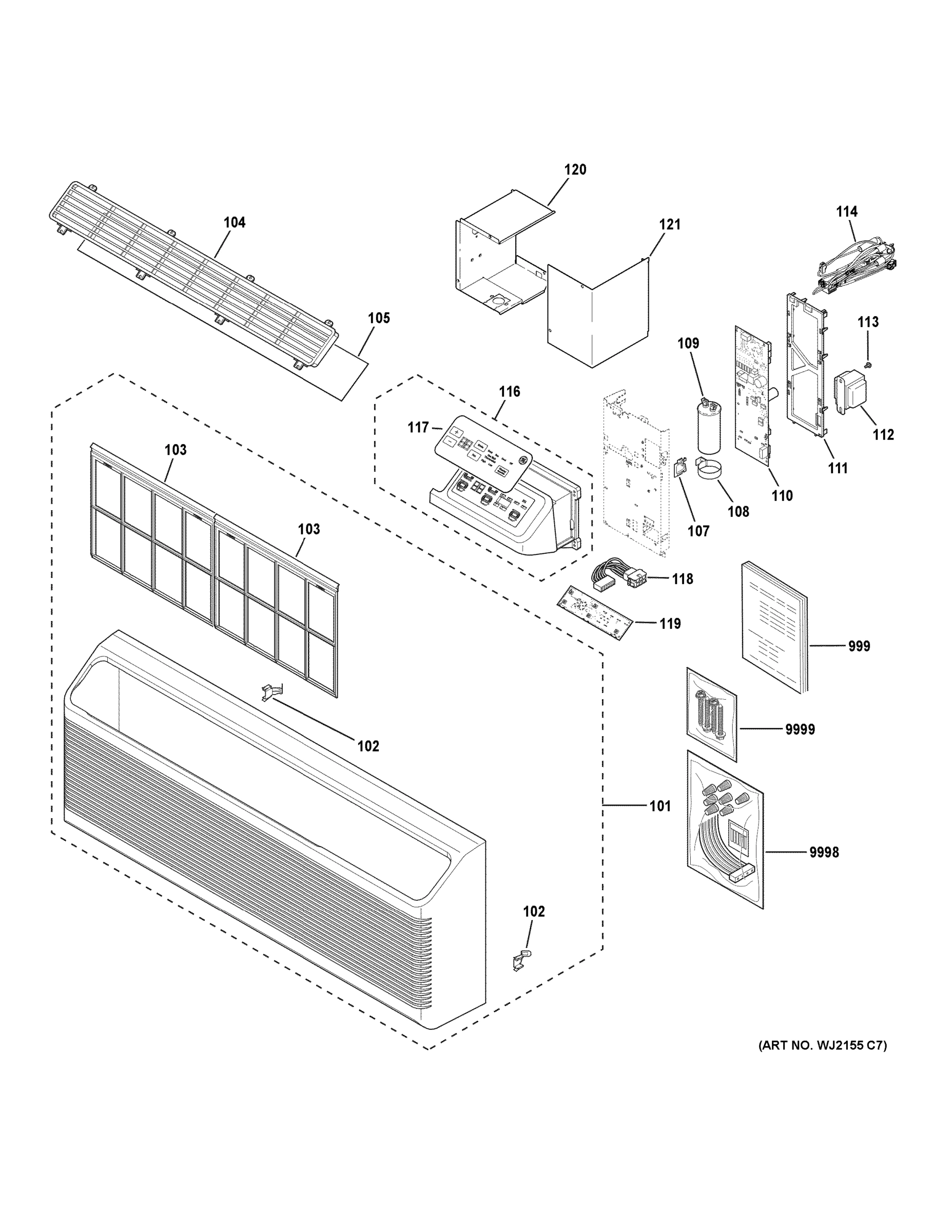

GRILLE & CONTROL PARTS
MOTOR & CHASSIS PARTS
SEALED SYSTEM
Common parts from model GE AZ45E09EACW2
102
CLIP ROOM FRONT GEN WP65X20848 Contact Us For Availability
105
GRID WELD WIRE GEN WP71X20976 Contact Us For Availability
107
CLIP WIRE GEN WP65X20849 Contact Us For Availability
108
BRACKET CAPACITOR GEN WP65X20842 Contact Us For Availability
111
FRAME MB ZONELINE GEN WP76X20860 Contact Us For Availability
112
TRANSFORMER GEN WP20X20900 Contact Us For Availability
113
8-18 B IHXW 3/8 S NBS GEN WP01X20840 Contact Us For Availability
114
MAIN HARNESS 265 GEN WP37X24096 Contact Us For Availability
120
BASE JUNCTION BOX GEN WP76X21001 Contact Us For Availability
121
COVER JUNCTION BOX GEN WP76X21003 Contact Us For Availability
201
COVER SHROUD ASM GEN WP76X20850 Contact Us For Availability
202
SHROUD COUPLER GEN WP65X20981 Contact Us For Availability
204
CLIP OD FAN SHROUD GEN WP01X20965 Contact Us For Availability
206
SCR 5/16 B SHLDR HI-LO GEN WP01X20878 Contact Us For Availability
207
NUT 10-32 HEXW L S GEN WP01X20872 Contact Us For Availability
209
SCR 10-18 HI/LO HXW 1/2 GEN WP01X20877 Contact Us For Availability
211
CUTOFF ASM GEN WP71X20968 Contact Us For Availability
212
DOOR ASM VENT GEN WP76X20853 Contact Us For Availability
213
U-NUT 10-16 HI/LO GEN WP01X20888 Contact Us For Availability
214
COVER BULKHEAD WIRE GEN WP71X20967 Contact Us For Availability
215
GROMMET GEN WP01X20978 Contact Us For Availability
216
OUTLET THERMISTOR GEN WP26X21547 Contact Us For Availability
217
SCR 8-18 AB HXW 3/8 S NB GEN WP01X20879 Contact Us For Availability
219
COVER WIRE RIGHT GEN WP01X21023 Contact Us For Availability
222
END CAP RH GEN WP76X20855 Contact Us For Availability
223
END CAP LH GEN WP76X20854 Contact Us For Availability
228
CLIP THERMISTOR GEN WP26X22042 Contact Us For Availability
229
ROD VENT DOOR GEN WP65X21680 Contact Us For Availability
302
COIL OUTDOOR ASM GEN WP87X20741 Contact Us For Availability
303
GROUND HARNESS GEN WP37X20862 Contact Us For Availability
307
SCR M8-125 B SHLDR 41MM GEN WP01X21031 Contact Us For Availability
309
CAP TUBE SUB ASM GEN WP56X21369 Contact Us For Availability
310
OVERLOAD COMPRESSOR GEN WP20X21009 Contact Us For Availability
313
GASKET WALL SLEEVE GEN WP60X20973 Contact Us For Availability
315
GASKET WALL SLEEVE TOP/B GEN WP60X20975 Contact Us For Availability
318
THERMISTOR ID GEN WP26X21501 Contact Us For Availability
999
PM MINI MANUAL GEN 3130807 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 315000215 Contact Us For Availability
999
USE AND CARE GEN 497756 Contact Us For Availability
9999
KIT HARDWARE INSTALLATIO GEN WP01X20865 Contact Us For Availability
× ![]()
