Model GE AZ31H15D3DV1 – Common Parts & Diagrams

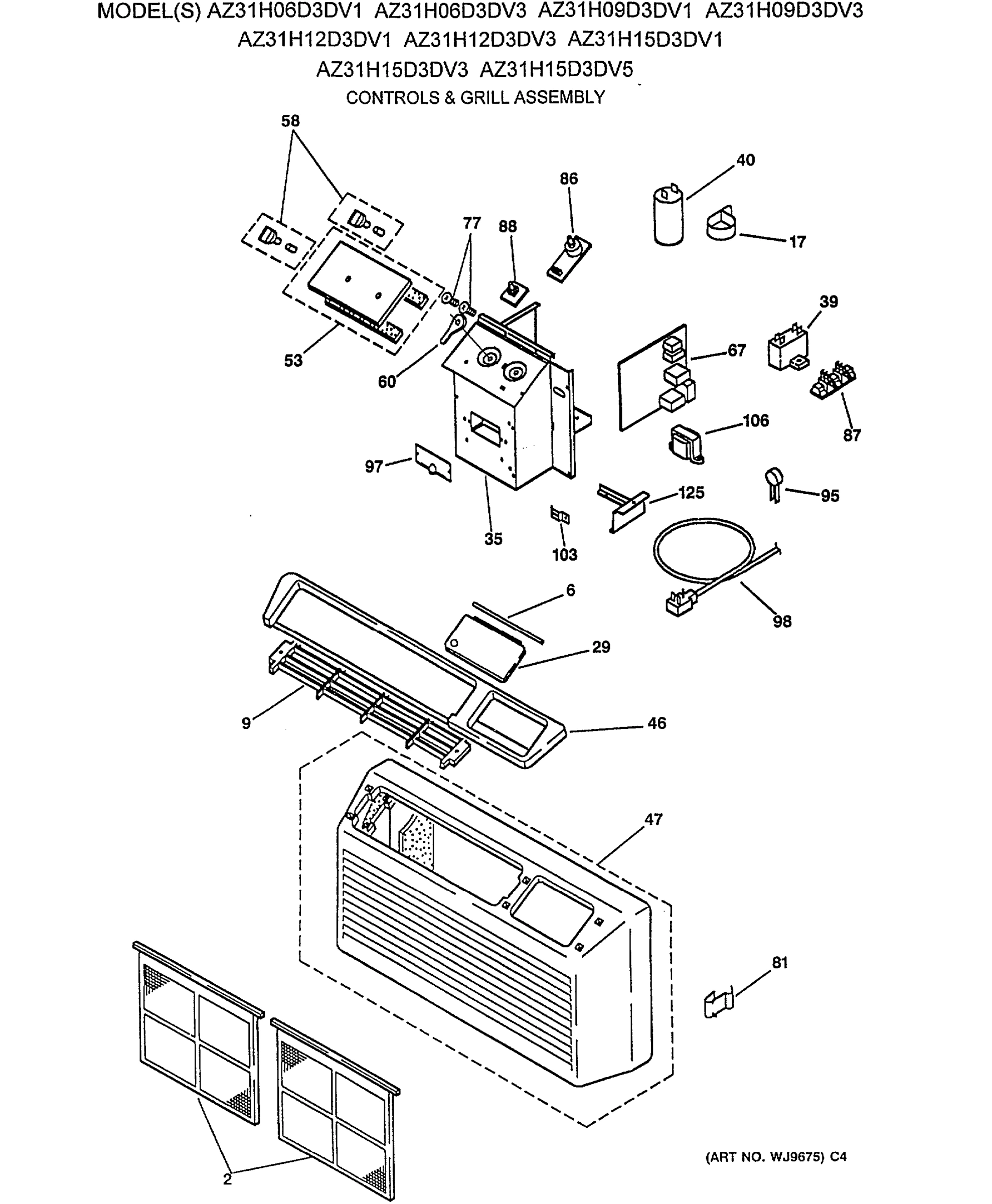

CONTROLS & GRILL ASSEMBLY

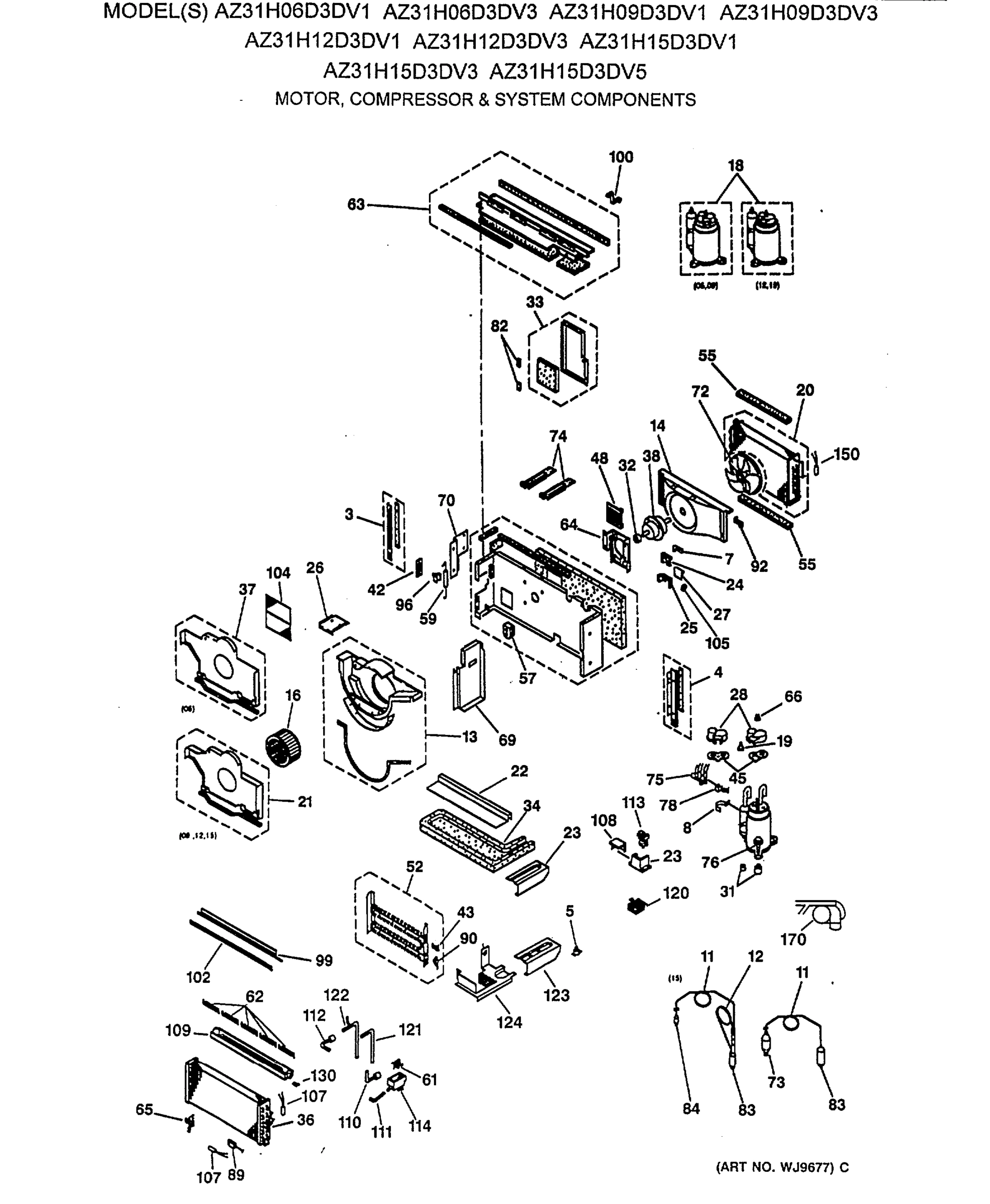

MOTOR, COMPRESSOR & SYSTEM COMPONENTS
Common parts from model GE AZ31H15D3DV1
2
GEN WP85X0015 GEN WP85X0015 Contact Us For Availability
3
PANEL ASM LEFT GEN WP82X0018 Contact Us For Availability
4
PANEL ASM RIGHT GEN WP82X0019 Contact Us For Availability
5
GEN WJ58X0054 GEN WJ58X0054 Contact Us For Availability
6
GEN WP04X0004 GEN WP04X0004 Contact Us For Availability
7
GEN WP04X0005 GEN WP04X0005 Contact Us For Availability
8
GEN WJ02X0504 GEN WJ02X0504 Contact Us For Availability
9
GEN WP71X0046 GEN WP71X0046 Contact Us For Availability
11
CAPILLARY(.054 ID) GEN WJ53X0130 Contact Us For Availability
12
CAPILLARY(.063 ID) GEN WJ53X0188 Contact Us For Availability
13
GEN WP71X0042 GEN WP71X0042 Contact Us For Availability
14
GEN WP76X0020 GEN WP76X0020 Contact Us For Availability
16
GEN WP74X0004 GEN WP74X0004 Contact Us For Availability
17
GEN WP03X0013 GEN WP03X0013 Contact Us For Availability
18
GEN WJ98X1057 GEN WJ98X1057 Contact Us For Availability
19
GEN WP23X0063 GEN WP23X0063 Contact Us For Availability
20
GEN WP88X0044 GEN WP88X0044 Contact Us For Availability
21
GEN WJ79X0602 GEN WJ79X0602 Contact Us For Availability
22
SHIELD,DRIP TRAY GEN WP79X0063 Contact Us For Availability
23
GEN WP79X0073 GEN WP79X0073 Contact Us For Availability
24
GEN WP01X0025 GEN WP01X0025 Contact Us For Availability
25
GEN WP01X0026 GEN WP01X0026 Contact Us For Availability
26
GEN WP79X0061 GEN WP79X0061 Contact Us For Availability
27
GEN WP01X0027 GEN WP01X0027 Contact Us For Availability
28
GEN WJ79X0529 GEN WJ79X0529 Contact Us For Availability
29
GEN WP71X0044 GEN WP71X0044 Contact Us For Availability
31
GROMMET GEN WJ01X0883 Contact Us For Availability
32
GEN WJ43X0411 GEN WJ43X0411 Contact Us For Availability
33
DOOR ASSEMBLY GEN WP71X0047 Contact Us For Availability
34
GEN WP70X0107 GEN WP70X0107 Contact Us For Availability
35
GEN WP79X0075 GEN WP79X0075 Contact Us For Availability
36
GEN WP87X0041 GEN WP87X0041 Contact Us For Availability
38
GEN WP94X0123 GEN WP94X0123 Contact Us For Availability
39
GEN WP20X0038 GEN WP20X0038 Contact Us For Availability
40
GEN WP20X0041 GEN WP20X0041 Contact Us For Availability
42
GEN WJ66X0485 GEN WJ66X0485 Contact Us For Availability
43
GEN WP23X0088 GEN WP23X0088 Contact Us For Availability
45
GASKET TERMINAL GEN WJ43X0453 Contact Us For Availability
46
GRILLE,DISCHARGE GEN WP71X0045 Contact Us For Availability
47
GEN WP70X0137 GEN WP70X0137 Contact Us For Availability
48
GEN WP85X0016 GEN WP85X0016 Contact Us For Availability
52
GEN WP70X0128 GEN WP70X0128 Contact Us For Availability
53
GEN WP07X0069 GEN WP07X0069 Contact Us For Availability
55
GEN WP43X0034 GEN WP43X0034 Contact Us For Availability
57
GEN WP43X0033 GEN WP43X0033 Contact Us For Availability
58
GEN WP12X0014 GEN WP12X0014 Contact Us For Availability
59
GEN WP14X0007 GEN WP14X0007 Contact Us For Availability
60
GEN WP01X0043 GEN WP01X0043 Contact Us For Availability
61
GEN WP01X0046 GEN WP01X0046 Contact Us For Availability
62
GEN WP01X0047 GEN WP01X0047 Contact Us For Availability
63
GEN WP79X0067 GEN WP79X0067 Contact Us For Availability
64
GEN WP65X0012 GEN WP65X0012 Contact Us For Availability
65
GEN WP03X0020 GEN WP03X0020 Contact Us For Availability
66
GEN WJ01X0884 GEN WJ01X0884 Contact Us For Availability
67
GEN WP29X0057 GEN WP29X0057 Contact Us For Availability
69
GEN WP65X0010 GEN WP65X0010 Contact Us For Availability
70
GEN WP65X0011 GEN WP65X0011 Contact Us For Availability
72
GEN WP73X0006 GEN WP73X0006 Contact Us For Availability
74
GEN WP66X0044 GEN WP66X0044 Contact Us For Availability
75
GEN WP58X0024 GEN WP58X0024 Contact Us For Availability
76
GEN WP01X0034 GEN WP01X0034 Contact Us For Availability
77
GEN WP01X0024 GEN WP01X0024 Contact Us For Availability
78
GEN WP59X0009 GEN WP59X0009 Contact Us For Availability
81
GEN WP02X0036 GEN WP02X0036 Contact Us For Availability
82
GEN WP02X0037 GEN WP02X0037 Contact Us For Availability
83
GEN WP56X0012 GEN WP56X0012 Contact Us For Availability
84
STRAINER ASM GEN WJ56X0086 Contact Us For Availability
87
GEN WP03X0011 GEN WP03X0011 Contact Us For Availability
88
GEN WP26X0042 GEN WP26X0042 Contact Us For Availability
89
GEN WP28X0049 GEN WP28X0049 Contact Us For Availability
90
GEN WP28X0055 GEN WP28X0055 Contact Us For Availability
92
GEN WP65X0020 GEN WP65X0020 Contact Us For Availability
95
GEN WP27X0041 GEN WP27X0041 Contact Us For Availability
96
GEN WJ14X0163 GEN WJ14X0163 Contact Us For Availability
97
GEN WP79X0074 GEN WP79X0074 Contact Us For Availability
98
GEN WJ35X0210 GEN WJ35X0210 Contact Us For Availability
99
GEN WP01X0045 GEN WP01X0045 Contact Us For Availability
100
GEN WP65X0022 GEN WP65X0022 Contact Us For Availability
102
GEN WP01X0035 GEN WP01X0035 Contact Us For Availability
103
GEN WJ03X0340 GEN WJ03X0340 Contact Us For Availability
105
GEN WJ01X0950 GEN WJ01X0950 Contact Us For Availability
106
GEN WP27X0043 GEN WP27X0043 Contact Us For Availability
107
GEN WP27X0046 GEN WP27X0046 Contact Us For Availability
108
GEN WP01X0039 GEN WP01X0039 Contact Us For Availability
109
GEN WP70X0121 GEN WP70X0121 Contact Us For Availability
110
GEN WP40X0001 GEN WP40X0001 Contact Us For Availability
111
GEN WP40X0004 GEN WP40X0004 Contact Us For Availability
112
GEN WP40X0005 GEN WP40X0005 Contact Us For Availability
113
GEN WP95X0005 GEN WP95X0005 Contact Us For Availability
114
GEN WP62X0005 GEN WP62X0005 Contact Us For Availability
120
SCREEN DRAIN PUMP GEN WP85X0011 Contact Us For Availability
121
GEN WP40X0006 GEN WP40X0006 Contact Us For Availability
122
GEN WP40X0007 GEN WP40X0007 Contact Us For Availability
123
GEN WP01X0041 GEN WP01X0041 Contact Us For Availability
124
GEN WP01X0040 GEN WP01X0040 Contact Us For Availability
125
GEN WP01X0042 GEN WP01X0042 Contact Us For Availability
130
GEN WP79X0076 GEN WP79X0076 Contact Us For Availability
150
GEN WP27X0053 GEN WP27X0053 Contact Us For Availability
160
GEN WP01X0049 GEN WP01X0049 Contact Us For Availability
9999
GEN 31-8839 GEN 31-8839 Contact Us For Availability
9999
GEN 49-7283 GEN 49-7283 Contact Us For Availability
× ![]()
