Model GE AZ31H09D2CV3 – Common Parts & Diagrams

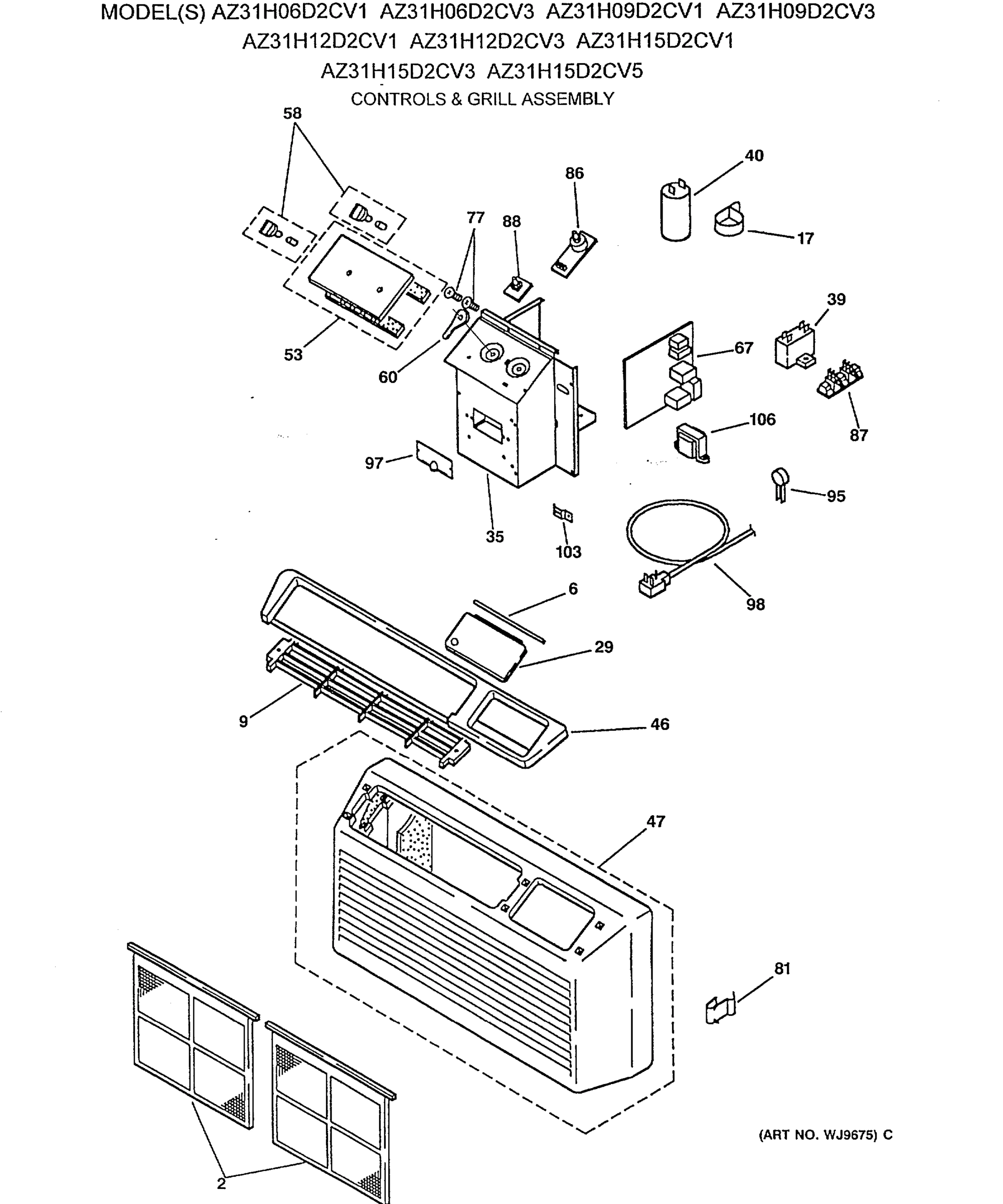

CONTROLS & GRILL ASSEMBLY

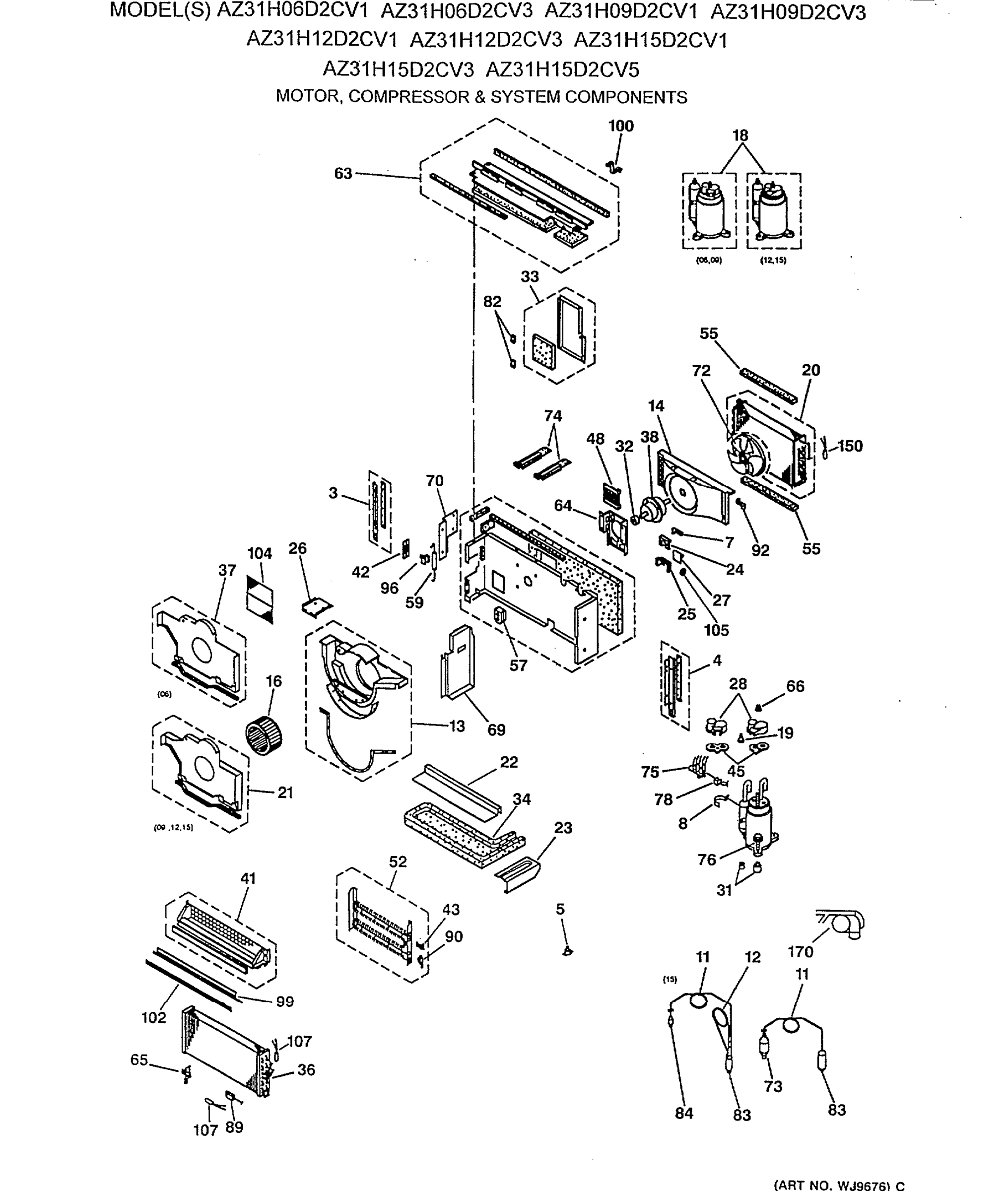

MOTOR, COMPRESSOR & SYSTEM COMPONENTS
Common parts from model GE AZ31H09D2CV3
2
GEN WP85X0015 GEN WP85X0015 Contact Us For Availability
3
PANEL ASM LEFT GEN WP82X0018 Contact Us For Availability
4
PANEL ASM RIGHT GEN WP82X0019 Contact Us For Availability
5
GEN WJ58X0054 GEN WJ58X0054 Contact Us For Availability
6
GEN WP04X0004 GEN WP04X0004 Contact Us For Availability
7
GEN WP04X0005 GEN WP04X0005 Contact Us For Availability
8
GEN WP02X0046 GEN WP02X0046 Contact Us For Availability
9
GEN WP71X0046 GEN WP71X0046 Contact Us For Availability
11
GEN WJ53X0128 GEN WJ53X0128 Contact Us For Availability
13
GEN WP71X0042 GEN WP71X0042 Contact Us For Availability
14
GEN WP76X0020 GEN WP76X0020 Contact Us For Availability
16
GEN WP74X0006 GEN WP74X0006 Contact Us For Availability
17
GEN WP03X0013 GEN WP03X0013 Contact Us For Availability
18
COMPRESSOR REPL.KIT GEN WJ98X1061 Contact Us For Availability
19
GEN WP23X0064 GEN WP23X0064 Contact Us For Availability
20
GEN WP88X0042 GEN WP88X0042 Contact Us For Availability
21
GEN WJ79X0602 GEN WJ79X0602 Contact Us For Availability
22
SHIELD,DRIP TRAY GEN WP79X0063 Contact Us For Availability
23
SHIELD,DRIP TRAY DRAIN GEN WP79X0064 Contact Us For Availability
24
GEN WP01X0025 GEN WP01X0025 Contact Us For Availability
25
GEN WP01X0026 GEN WP01X0026 Contact Us For Availability
26
GEN WP79X0061 GEN WP79X0061 Contact Us For Availability
27
GEN WP01X0027 GEN WP01X0027 Contact Us For Availability
28
GEN WJ79X0528 GEN WJ79X0528 Contact Us For Availability
29
GEN WP71X0044 GEN WP71X0044 Contact Us For Availability
31
GROMMET GEN WJ01X0762 Contact Us For Availability
32
GEN WJ43X0411 GEN WJ43X0411 Contact Us For Availability
33
DOOR ASSEMBLY GEN WP71X0047 Contact Us For Availability
34
GEN WP70X0107 GEN WP70X0107 Contact Us For Availability
35
GEN WP79X0075 GEN WP79X0075 Contact Us For Availability
36
GEN WP87X0043 GEN WP87X0043 Contact Us For Availability
38
GEN WP94X0124 GEN WP94X0124 Contact Us For Availability
39
GEN WP20X0037 GEN WP20X0037 Contact Us For Availability
40
GEN WP20X0041 GEN WP20X0041 Contact Us For Availability
41
GEN WP70X0135 GEN WP70X0135 Contact Us For Availability
42
GEN WJ66X0485 GEN WJ66X0485 Contact Us For Availability
43
GEN WP23X0088 GEN WP23X0088 Contact Us For Availability
45
GEN WJ43X0454 GEN WJ43X0454 Contact Us For Availability
46
GRILLE,DISCHARGE GEN WP71X0045 Contact Us For Availability
47
GEN WP70X0137 GEN WP70X0137 Contact Us For Availability
48
GEN WP85X0016 GEN WP85X0016 Contact Us For Availability
52
GEN WP70X0127 GEN WP70X0127 Contact Us For Availability
53
GEN WP07X0069 GEN WP07X0069 Contact Us For Availability
55
GEN WP43X0034 GEN WP43X0034 Contact Us For Availability
57
GEN WP43X0033 GEN WP43X0033 Contact Us For Availability
58
GEN WP12X0014 GEN WP12X0014 Contact Us For Availability
59
GEN WP14X0007 GEN WP14X0007 Contact Us For Availability
60
GEN WP01X0043 GEN WP01X0043 Contact Us For Availability
63
GEN WP79X0067 GEN WP79X0067 Contact Us For Availability
64
GEN WP65X0012 GEN WP65X0012 Contact Us For Availability
65
GEN WP03X0018 GEN WP03X0018 Contact Us For Availability
66
GEN WJ01X0884 GEN WJ01X0884 Contact Us For Availability
67
GEN WP29X0062 GEN WP29X0062 Contact Us For Availability
69
GEN WP65X0010 GEN WP65X0010 Contact Us For Availability
70
GEN WP65X0011 GEN WP65X0011 Contact Us For Availability
72
GEN WP73X0006 GEN WP73X0006 Contact Us For Availability
73
GEN WP56X0011 GEN WP56X0011 Contact Us For Availability
74
GEN WP66X0044 GEN WP66X0044 Contact Us For Availability
75
GEN WJ58X0053 GEN WJ58X0053 Contact Us For Availability
76
GEN WP01X0032 GEN WP01X0032 Contact Us For Availability
77
GEN WP01X0024 GEN WP01X0024 Contact Us For Availability
78
GEN WP59X0009 GEN WP59X0009 Contact Us For Availability
81
GEN WP02X0036 GEN WP02X0036 Contact Us For Availability
82
GEN WP02X0037 GEN WP02X0037 Contact Us For Availability
83
GEN WP56X0007 GEN WP56X0007 Contact Us For Availability
87
GEN WP03X0011 GEN WP03X0011 Contact Us For Availability
88
GEN WP26X0042 GEN WP26X0042 Contact Us For Availability
90
GEN WP28X0055 GEN WP28X0055 Contact Us For Availability
92
GEN WP65X0019 GEN WP65X0019 Contact Us For Availability
95
GEN WP27X0041 GEN WP27X0041 Contact Us For Availability
96
GEN WJ14X0163 GEN WJ14X0163 Contact Us For Availability
97
GEN WP79X0074 GEN WP79X0074 Contact Us For Availability
98
GEN WJ35X0209 GEN WJ35X0209 Contact Us For Availability
99
GEN WP01X0044 GEN WP01X0044 Contact Us For Availability
100
GEN WP65X0021 GEN WP65X0021 Contact Us For Availability
102
GEN WP01X0035 GEN WP01X0035 Contact Us For Availability
103
GEN WJ03X0340 GEN WJ03X0340 Contact Us For Availability
105
GEN WJ01X0950 GEN WJ01X0950 Contact Us For Availability
106
GEN WP27X0043 GEN WP27X0043 Contact Us For Availability
107
GEN WP27X0046 GEN WP27X0046 Contact Us For Availability
150
GEN WP27X0053 GEN WP27X0053 Contact Us For Availability
160
GEN WP01X0048 GEN WP01X0048 Contact Us For Availability
9999
GEN 31-8896 GEN 31-8896 Contact Us For Availability
9999
GEN 49-7283 GEN 49-7283 Contact Us For Availability
× ![]()
