Model Electrolux AWP330G1D WASHER – Common Parts & Diagrams
02 - CABINET PARTS
03 - CONSOLE AND CONTROL

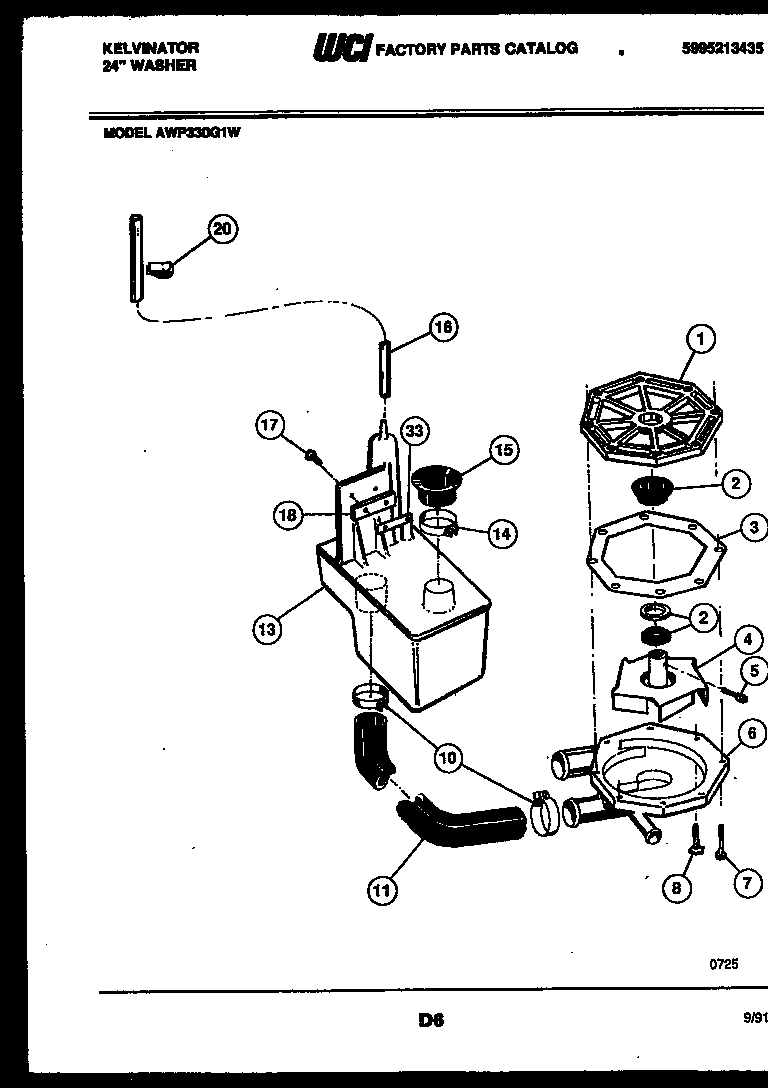

04 - PUMP, WATER VALVE, WATER INLET

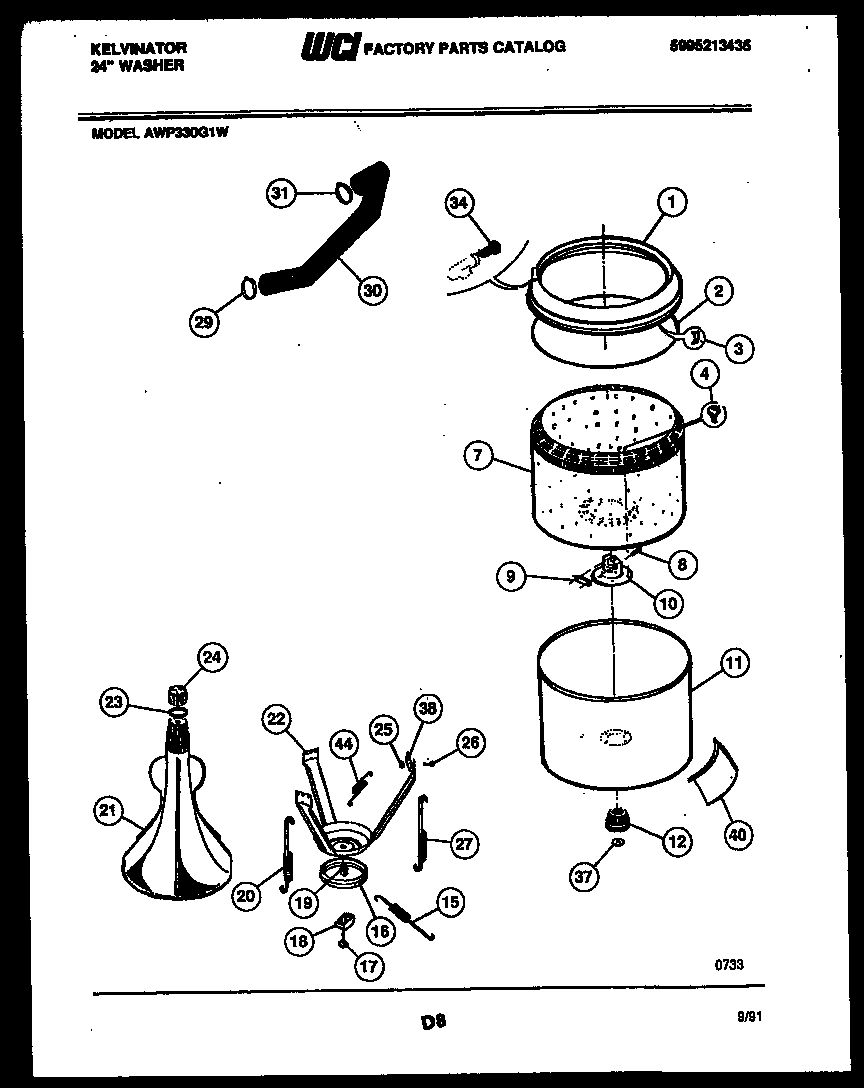

05 - TUB DETAIL

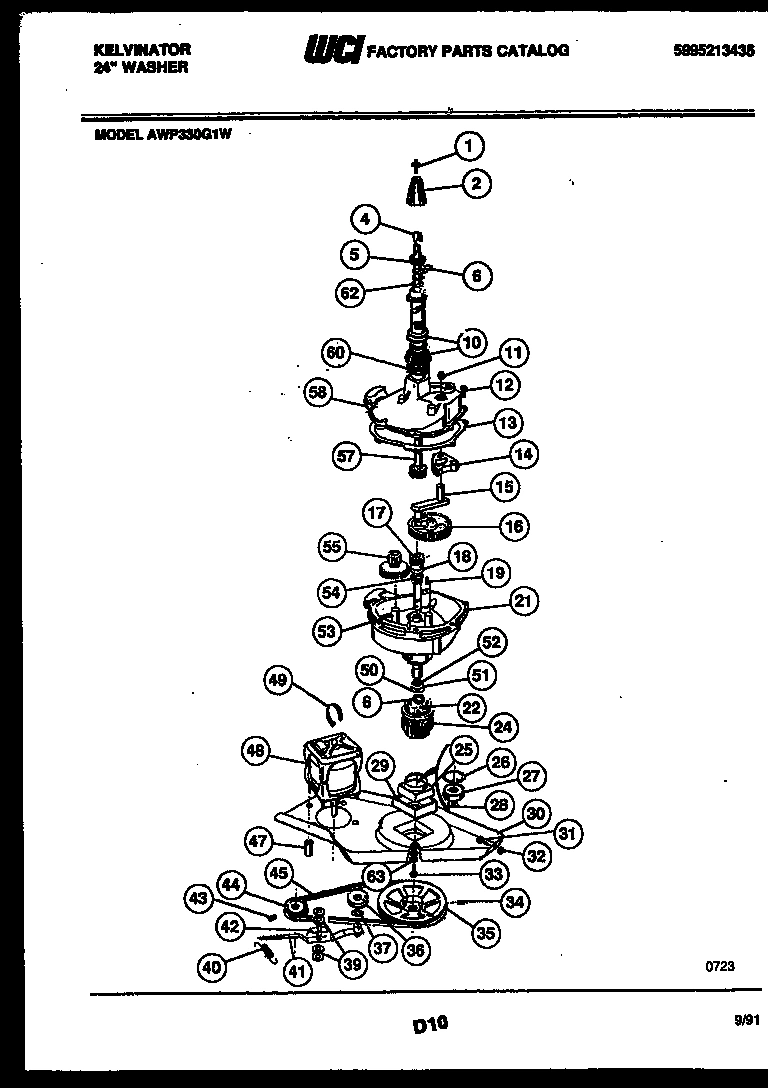

06 - TRANSMISSION PARTS

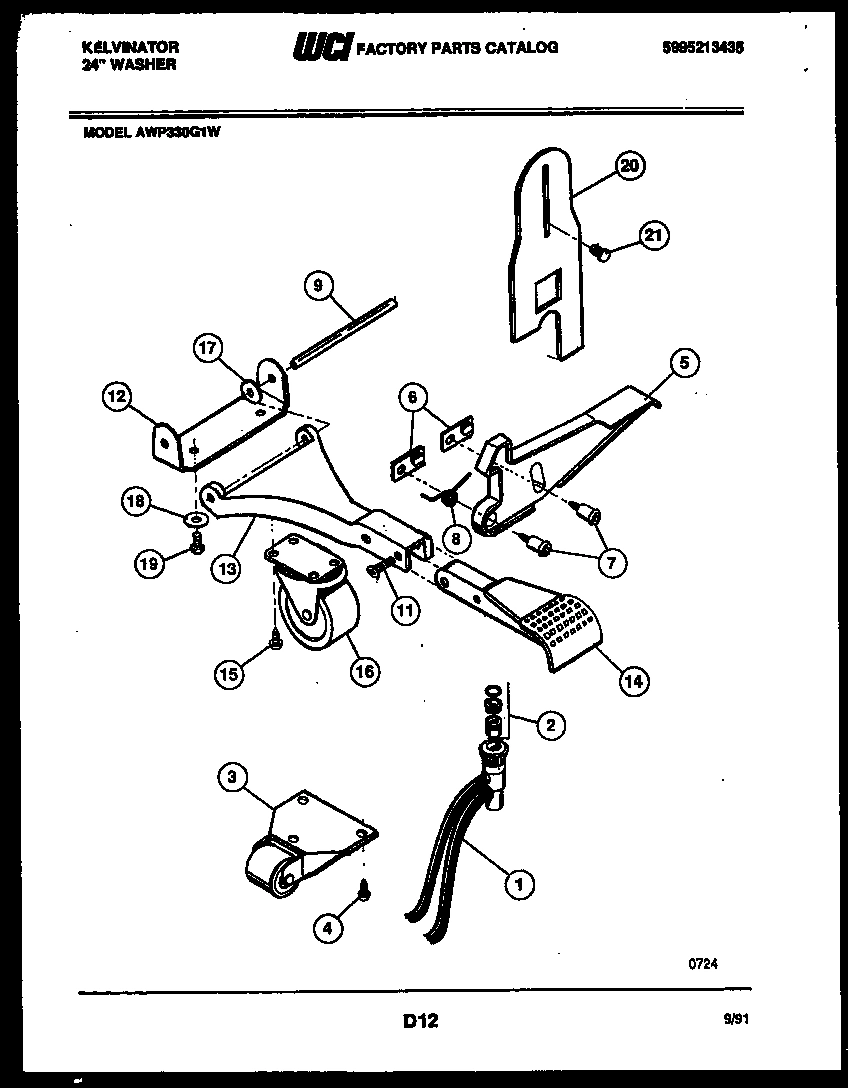

07 - PORTABLE WASHER COMPONENTS
Common parts from model Electrolux AWP330G1D WASHER
*22224
WCI 08027572 WCI 08027572 Contact Us For Availability
*22225
WCI 08011251 WCI 08011251 Contact Us For Availability
*22225
WCI 3205934 WCI 3205934 Contact Us For Availability
*22225
WCI 3205935 WCI 3205935 Contact Us For Availability
*22225
WCI 5303269886 WCI 5303269886 Contact Us For Availability
*22229
COMPLETE PUMP ASSEMBLY WCI 5303912510 No Longer Available
*22243
WCI 5303208459 WCI 5303208459 Contact Us For Availability
1
WCI 3205929 WCI 3205929 Contact Us For Availability
1
WCI 5308011301 WCI 5308011301 Contact Us For Availability
1
WCI 5303207010 WCI 5303207010 Contact Us For Availability
1
STUD BOLT WCI 5303161221 Contact Us For Availability
1
WCI 3204664 WCI 3204664 Contact Us For Availability
1A
CLAMP-HOSE ASSEMBLY/TUB (NON-ILLUSTRATED) WCI 08004052 Contact Us For Availability
1A
CLAMP-HOSE ASSEMBLY/TUB (NON-ILLUSTRATED) WCI 3018542 Contact Us For Availability
1B
SCREW-CLAMPS/TUB (2) (NON-ILLUSTRATED) WCI 08015500 Contact Us For Availability
1C
WCI 08002355 WCI 08002355 Contact Us For Availability
2
SEAL WCI 5303161121 Contact Us For Availability
2
DRIVE LUG WCI 5303280324 Contact Us For Availability
2
WCI F132503-200 WCI F132503-200 Contact Us For Availability
3
SPEED CLIP (8) WCI 5303161199 Contact Us For Availability
3
WCI 5308002396 WCI 5308002396 Contact Us For Availability
3
WCI 08027586 WCI 08027586 Contact Us For Availability
4
WCI 3205931 WCI 3205931 Contact Us For Availability
4
IMPELLER KIT-(CONSISTS OF SEAL ASSEMBLY-GASKE WCI 5379428000 Contact Us For Availability
4
SCREW (5) WCI 5308027519 Contact Us For Availability
4
WCI 5303280325 WCI 5303280325 Contact Us For Availability
4
WCI 08001617 WCI 08001617 Contact Us For Availability
5
WCI 5303015649 WCI 5303015649 Contact Us For Availability
5
WCI 5303161217 WCI 5303161217 Contact Us For Availability
5
WCI 08027587 WCI 08027587 Contact Us For Availability
6
SNAP RING (2) WCI 5303161223 Contact Us For Availability
6
HARNESS WCI 3205932 Contact Us For Availability
6
WCI 5303161489 WCI 5303161489 Contact Us For Availability
6
WCI 08027588 WCI 08027588 Contact Us For Availability
7
WCI 08008458 WCI 08008458 Contact Us For Availability
7
WCI 5303161486 WCI 5303161486 Contact Us For Availability
7
WCI Q000199049 WCI Q000199049 Contact Us For Availability
8
WCI 5308002390 WCI 5308002390 Contact Us For Availability
8
WCI 08027590 WCI 08027590 Contact Us For Availability
9
SCREW (2) WCI 3161188 Contact Us For Availability
9
WCI Q000199051 WCI Q000199051 Contact Us For Availability
10
SEAL KIT WCI 5308950197 No Longer Available
10
CLAMP-HOSE (4) WCI 3004826 Contact Us For Availability
10
WCI 5308014908 WCI 5308014908 Contact Us For Availability
11
TRIMPLATE ASSEMBLY WCI F140555-000 Contact Us For Availability
11
WCI 5308008997 WCI 5308008997 Contact Us For Availability
11
WCI 5303161127 WCI 5303161127 Contact Us For Availability
11
WCI 5303161224 WCI 5303161224 Contact Us For Availability
11
WCI 08027592 WCI 08027592 Contact Us For Availability
12
SPACER - TIMER WCI 5308015493 Contact Us For Availability
12
TUB BEARING ASSEMBLY-(CONSISTS OF TUB BEARING WCI 5308027536 Contact Us For Availability
12
SCREW (6) WCI 08002804 Contact Us For Availability
12
WCI Q000199053 WCI Q000199053 Contact Us For Availability
13
GASKET WCI 5308015778 Contact Us For Availability
13
POINTER-TIMER WCI 5308015529 Contact Us For Availability
13
WCI 5303206795 WCI 5303206795 Contact Us For Availability
13
WCI 08027594 WCI 08027594 Contact Us For Availability
14
WCI 5303207073 WCI 5303207073 Contact Us For Availability
14
WCI 5308002367 WCI 5308002367 Contact Us For Availability
14
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
14
WCI 08027595 WCI 08027595 Contact Us For Availability
15
WCI 5303161286 WCI 5303161286 Contact Us For Availability
15
WCI 5308006573 WCI 5308006573 Contact Us For Availability
15
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
15
WCI 5303209448 WCI 5303209448 Contact Us For Availability
15A
ADHESIVE-10Z (NON-ILLUSTRATED) WCI 5308006576 Contact Us For Availability
16
SNUBBER RING WCI 5308002385 Contact Us For Availability
16
LEVELING LEG PACKAGE (2)-(CONSISTS OF LEVELIN WCI 5303937004 Contact Us For Availability
16
KNOB-ROTARY (2) WCI 5308008462 Contact Us For Availability
16
GEAR-CRANK WCI 5308015496 Contact Us For Availability
16
WCI 08027597 WCI 08027597 Contact Us For Availability
17
SCREW (2) WCI 3161274 Contact Us For Availability
17
SCREW-SHIPPING WCI 5303161284 Contact Us For Availability
17
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
18
WCI 3161285 WCI 3161285 Contact Us For Availability
18
WCI 5303161202 WCI 5303161202 Contact Us For Availability
18
WASHER (2) WCI 5308002468 Contact Us For Availability
19
SWITCH-WATER TEMP WCI 5308014346 Contact Us For Availability
19
NUT-EXPANSION WCI 3161203 Contact Us For Availability
19
DOWEL PIN (2) WCI 5303161227 Contact Us For Availability
19
WCI 5308001638 WCI 5308001638 Contact Us For Availability
19A
WCI 3018800 WCI 3018800 Contact Us For Availability
20
SPEED-CLIP (2) WCI 08008454 Contact Us For Availability
20
WCI 5303209227 WCI 5303209227 Contact Us For Availability
20
SPRING-SHORT VERTICAL WCI 5303161131 Contact Us For Availability
20
WCI Q000199058 WCI Q000199058 Contact Us For Availability
21
WCI 5303161485 WCI 5303161485 Contact Us For Availability
21
HOUSING ASSEMBLY-LOWER WCI 5303912535 Contact Us For Availability
21
WCI 08027599 WCI 08027599 Contact Us For Availability
22
SEMS SCREW (2) WCI 5303206864 Contact Us For Availability
22
WCI 5303161132 WCI 5303161132 Contact Us For Availability
23
WCI 08008447 WCI 08008447 Contact Us For Availability
23
WCI 5303209725 WCI 5303209725 Contact Us For Availability
23
GASKET WCI 5373565000 Contact Us For Availability
24
AGITATOR CAP WCI 5303161122 Contact Us For Availability
24
WCI 3205924 WCI 3205924 Contact Us For Availability
24
SEMS SCREW (2) WCI 5303010202 Contact Us For Availability
24
WCI 5303161182 WCI 5303161182 Contact Us For Availability
25
WCI 3205926 WCI 3205926 Contact Us For Availability
25
WCI 5303912509 WCI 5303912509 Contact Us For Availability
25
KEPS NUT (6) WCI 3161204 Contact Us For Availability
25A
WCI 08008466 WCI 08008466 Contact Us For Availability
25B
WCI 5376138011 WCI 5376138011 Contact Us For Availability
26
WCI 5303161252 WCI 5303161252 Contact Us For Availability
26
SCREW (6) WCI 3161205 Contact Us For Availability
27
WCI 5308014903 WCI 5308014903 Contact Us For Availability
27
SPRING-LONG VERTICAL (2) WCI 5303161133 Contact Us For Availability
27
BEARING HOUSING PACKAGE-(CONSISTS OF REF NO 2 WCI 5308950058 Contact Us For Availability
28
SNAP RING WCI 5308015536 Contact Us For Availability
29
CLAMP-HOSE WCI 5303012110 Contact Us For Availability
29
WCI 5377009100 WCI 5377009100 Contact Us For Availability
30
WCI 3205937 WCI 3205937 Contact Us For Availability
30
WCI 08002472 WCI 08002472 Contact Us For Availability
31
SCREW (2) WCI 3161259 Contact Us For Availability
31
WCI 5303161206 WCI 5303161206 Contact Us For Availability
31
SCREW (3) WCI 3161211 Contact Us For Availability
32
WCI 3205928 WCI 3205928 Contact Us For Availability
32
WCI 08004657 WCI 08004657 Contact Us For Availability
32
WCI 3161212 WCI 3161212 Contact Us For Availability
33
SCREW-LID LOCK (2) WCI 3161240 Contact Us For Availability
33
WCI 5303161283 WCI 5303161283 Contact Us For Availability
33
SCREW (2) WCI 5308027582 Contact Us For Availability
33A
SCREW-BRACKET/SIDE PANEL (2) WCI 08004660 Contact Us For Availability
34
WCI 5303270023 WCI 5303270023 Contact Us For Availability
34
BRACKET-LID LOCK & SW ASSEMBLY WCI 3018393 Contact Us For Availability
34
CHECK VALVE WCI 5308027515 Contact Us For Availability
35
WCI 5303937080 WCI 5303937080 Contact Us For Availability
37
SPRING WASHER WCI 5303161306 Contact Us For Availability
38
WCI 5303280322 WCI 5303280322 Contact Us For Availability
39
BUSHING (2) WCI 08027535 Contact Us For Availability
40
WCI 5303280323 WCI 5303280323 Contact Us For Availability
40
WCI 5308004079 WCI 5308004079 Contact Us For Availability
41
IDLER ARM & SHAFT ASSEMBLY WCI 5303937001 Contact Us For Availability
43
WCI 5303206869 WCI 5303206869 Contact Us For Availability
44
SPRING-HORIZONTAL-(FABRICATE LOCALLY) WCI 5303212125 Contact Us For Availability
44
WCI 5308006686 WCI 5308006686 Contact Us For Availability
47
SPACER (3) WCI 5303161303 Contact Us For Availability
48
MOTOR WCI 5308015502 Contact Us For Availability
48A
WCI 5308014888 WCI 5308014888 Contact Us For Availability
50
WCI 5308002475 WCI 5308002475 Contact Us For Availability
51
WCI 5303161226 WCI 5303161226 Contact Us For Availability
53
TRANSMISSION OIL (1 QT) WCI 5303208460 Contact Us For Availability
54
LGS SPRING-SMALL WCI 5303161174 Contact Us For Availability
55
GEAR-IDLER WCI 5303161175 Contact Us For Availability
58
HOUSING ASSEMBLY-UPPER WCI 5303937039 Contact Us For Availability
60
SLINGER WCI 5303272073 Contact Us For Availability
62
THRUST WASHER WCI 5303161232 Contact Us For Availability
63
RUBBER SPACER WCI 5303207426 Contact Us For Availability
× ![]()
