Model Maytag AWO6317SFS01 WALL OVEN, ELECTRIC, SINGLE – Common Parts & Diagrams

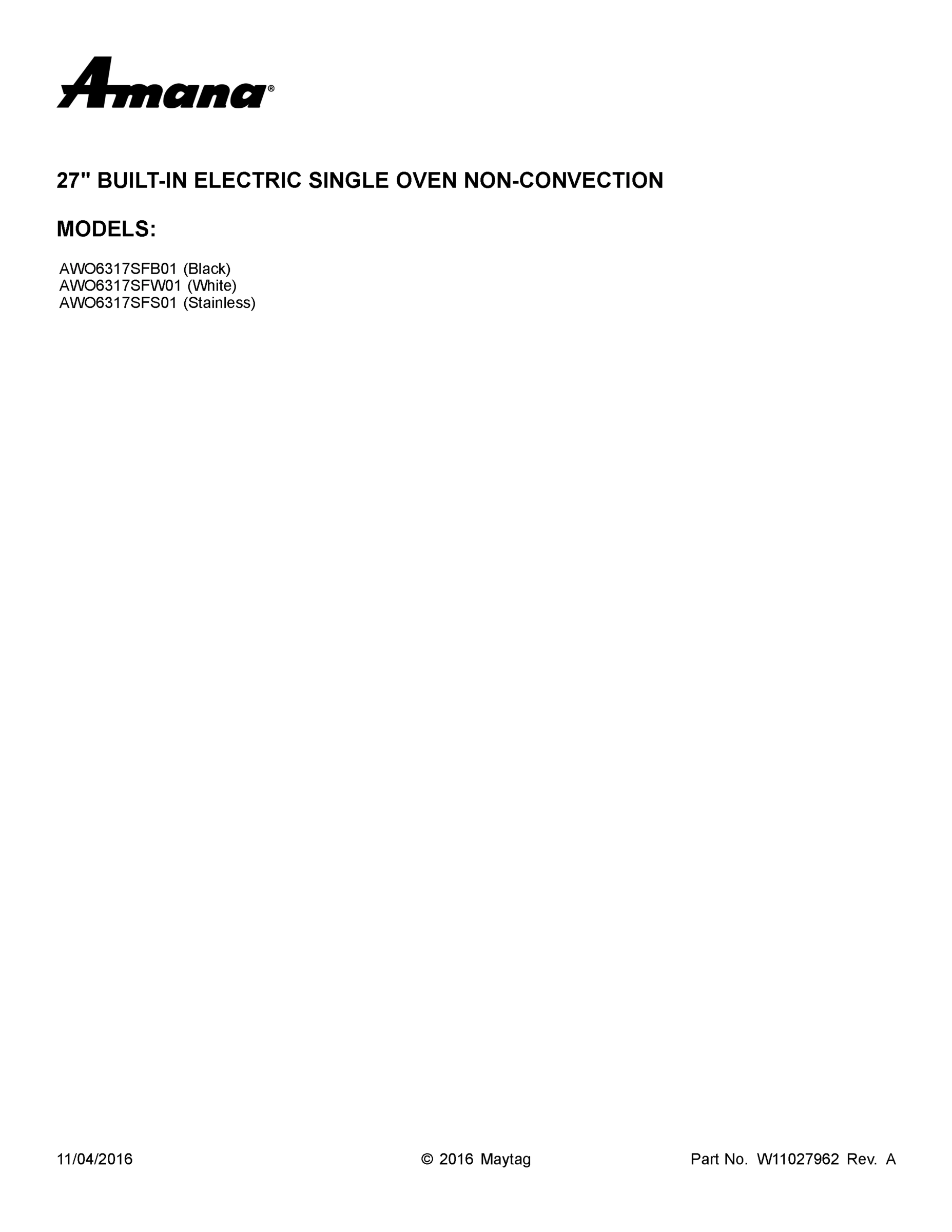

01 - COVER SHEET

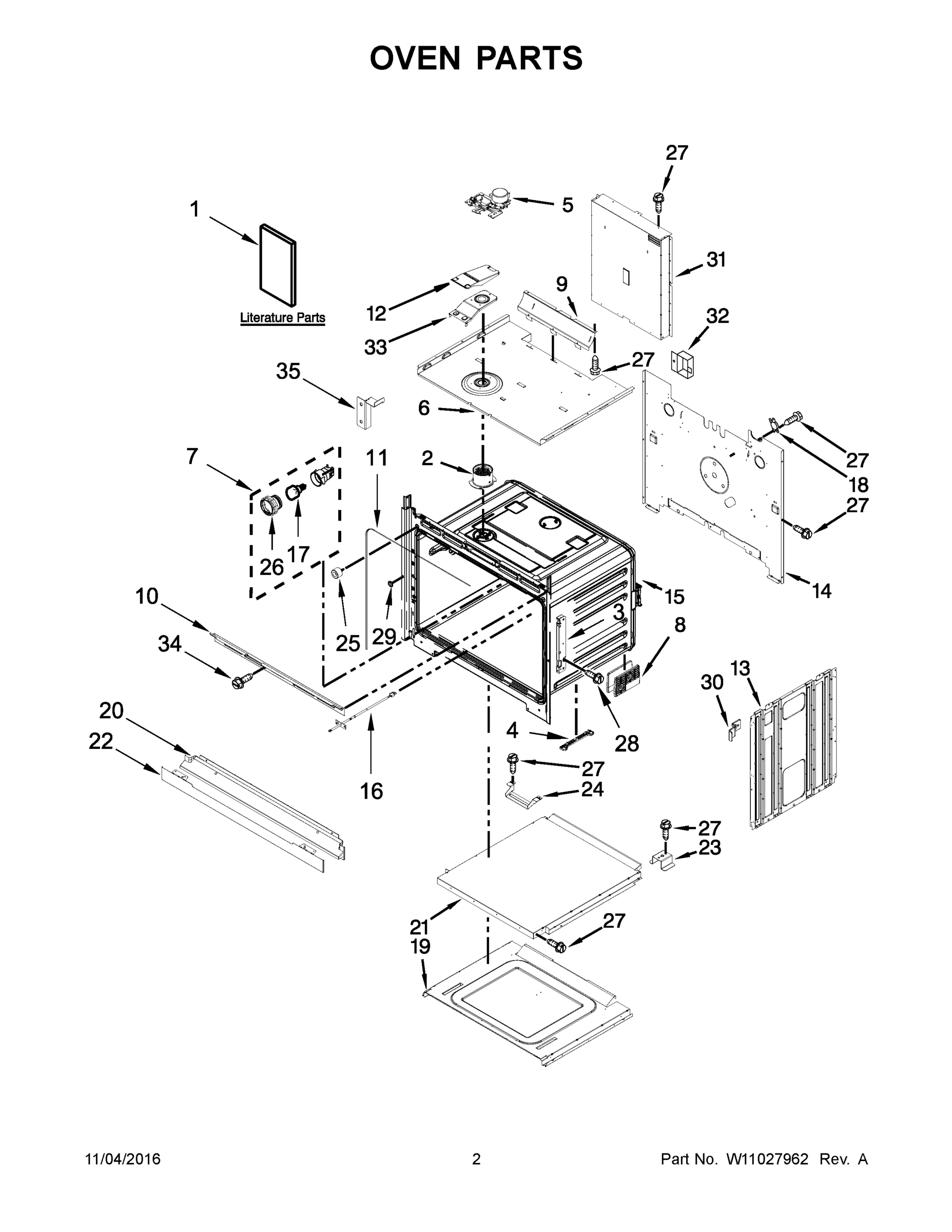

02 - OVEN PARTS

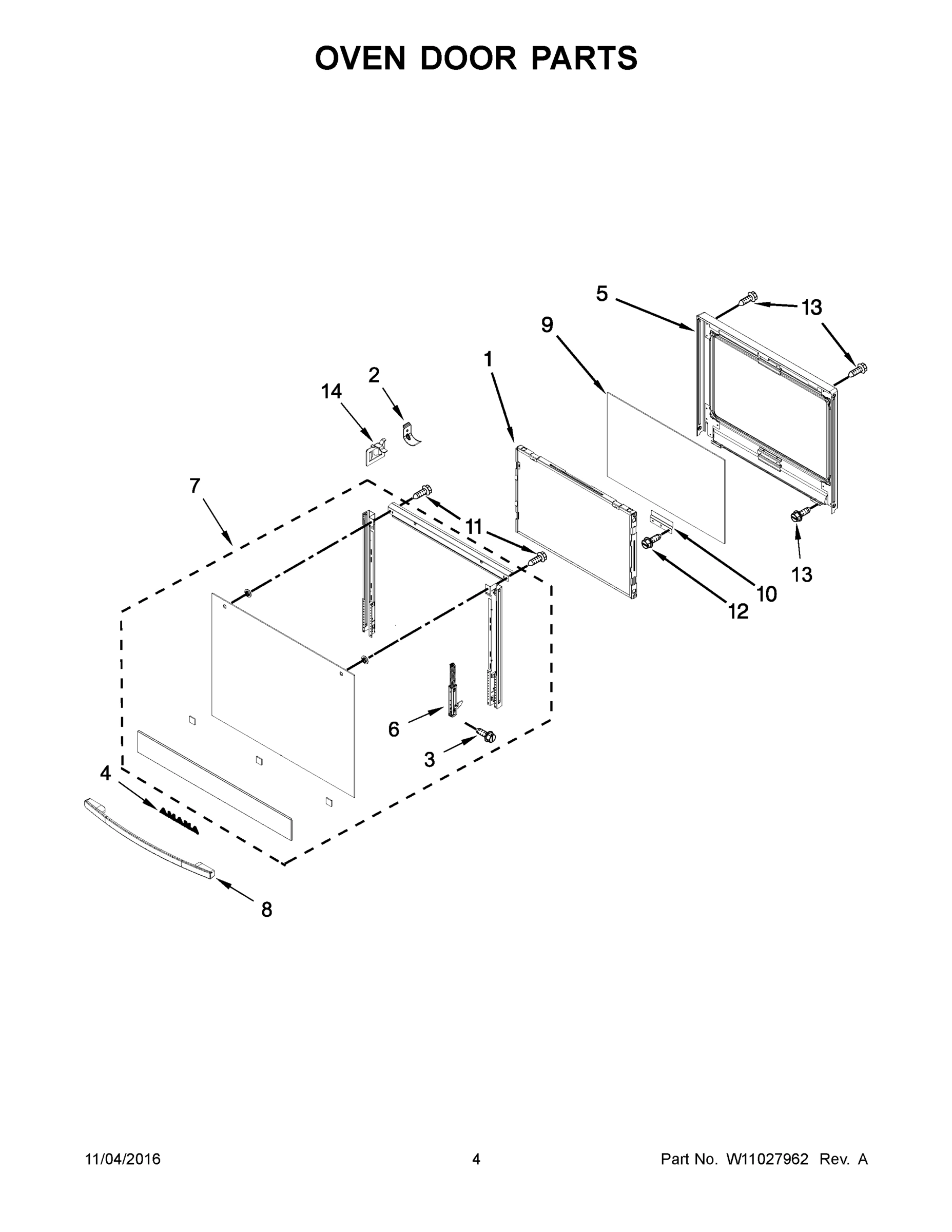

03 - OVEN DOOR PARTS

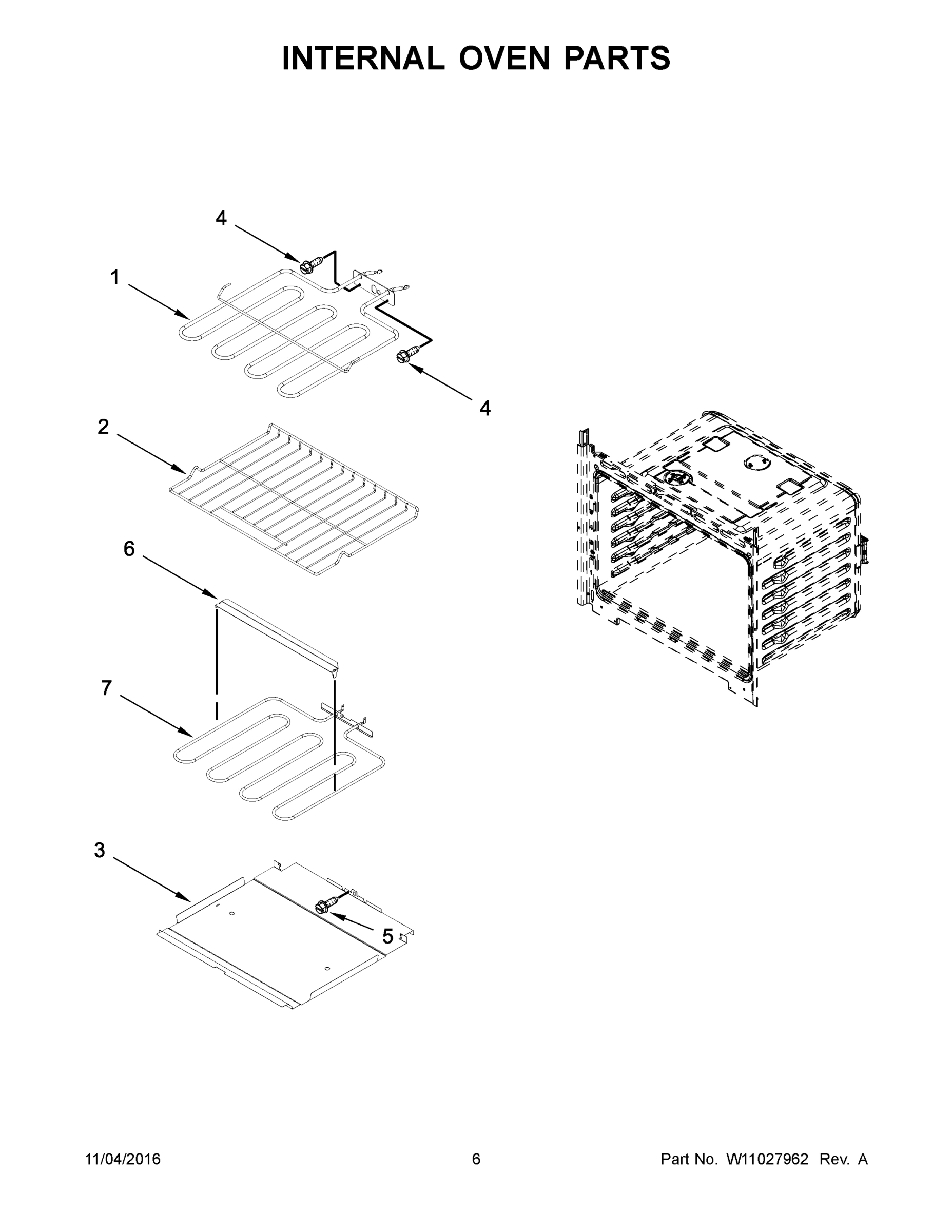

04 - INTERNAL OVEN PARTS

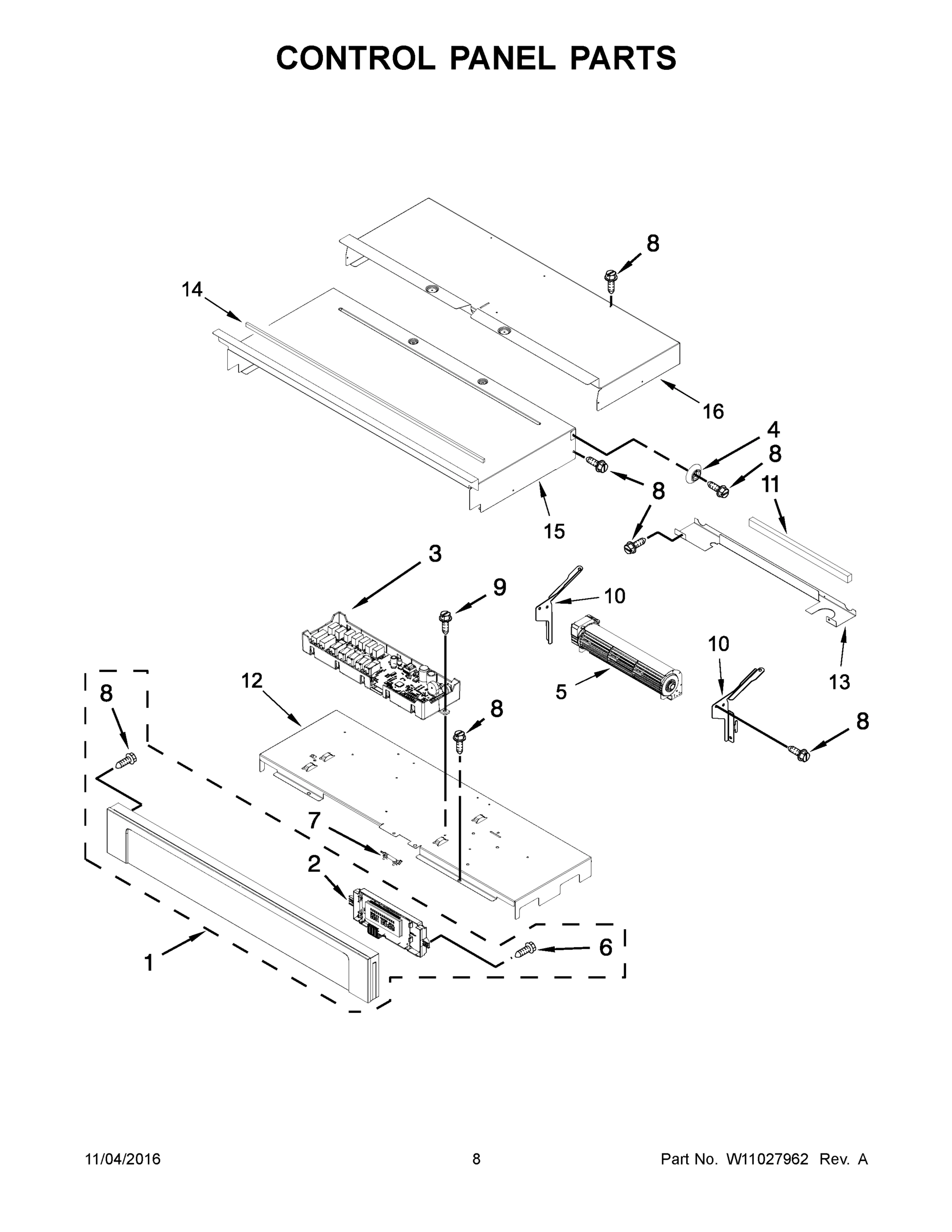

05 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag AWO6317SFS01 WALL OVEN, ELECTRIC, SINGLE
1
INSTRUCTIONS, INSTALLATION MAY W10351242 Contact Us For Availability
1
MAY W10347597 MAY W10347597 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1
MAY W10830873 MAY W10830873 Contact Us For Availability
1A
MAY W10351318 MAY W10351318 Contact Us For Availability
1A
MAY W10830872 MAY W10830872 Contact Us For Availability
1B
MAY W10785116 MAY W10785116 Contact Us For Availability
1B
MAY W10830874 MAY W10830874 Contact Us For Availability
1C
MAY W10796080 MAY W10796080 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10317431 MAY W10317431 Contact Us For Availability
2
INTERFACE (MAXWELL), USER BOARD MAY W10752315 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
3
ASSEMBLY, MAXWELL CONTROL MAY W10759207 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
MAY W10846751 MAY W10846751 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4A
MAY W10849465 MAY W10849465 Contact Us For Availability
4B
MAY W10846752 MAY W10846752 Contact Us For Availability
5
MAY W10618131 MAY W10618131 Contact Us For Availability
5
MAY W10320793 MAY W10320793 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
6
MAY W10813744 MAY W10813744 Contact Us For Availability
6
MAY W10639070 MAY W10639070 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
7
MAY W10734063 MAY W10734063 Contact Us For Availability
7
MAY W10832255 MAY W10832255 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
7
MAY W10545255 MAY W10545255 Contact Us For Availability
7A
MAY W10832256 MAY W10832256 Contact Us For Availability
7B
MAY W10832254 MAY W10832254 Contact Us For Availability
8
MAY W10618101 MAY W10618101 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
MAY W10825488 MAY W10825488 Contact Us For Availability
8A
MAY W10825487 MAY W10825487 Contact Us For Availability
8B
MAY W10825489 MAY W10825489 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
MAY W10678525 MAY W10678525 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
10
VENT, TOP 27" MAY W10283037 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY W10282961 MAY W10282961 Contact Us For Availability
11
MAY W10163951 MAY W10163951 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10283005 MAY W10283005 Contact Us For Availability
13
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
MAY W10655465 MAY W10655465 Contact Us For Availability
14
MAY W10813734 MAY W10813734 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY W10657548 MAY W10657548 Contact Us For Availability
15
CHASSIS, COVER TOP FRONT 27" MAY W10318193 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
16
CHASSIS, COVER TOP BACK 27" MAY W10694466 Contact Us For Availability
17
MAY W10412711 MAY W10412711 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282901 MAY W10282901 Contact Us For Availability
20
MAY W10327375 MAY W10327375 Contact Us For Availability
20A
MAY W10351280 MAY W10351280 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10351237 MAY W10351237 Contact Us For Availability
22A
MAY W10327378 MAY W10327378 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY W10254050 MAY W10254050 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
MAY W10318196 MAY W10318196 Contact Us For Availability
32
MAY 8285593 MAY 8285593 Contact Us For Availability
33
MAY W10616809 MAY W10616809 Contact Us For Availability
34
MAY W10607120 MAY W10607120 Contact Us For Availability
35
MAY W10863234 MAY W10863234 Contact Us For Availability
35A
MAY W10863233 MAY W10863233 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
CONDUIT, SINGLE MAY 4450952 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
MAY W10487999 MAY W10487999 Contact Us For Availability
NI
MAY W10520716 MAY W10520716 Contact Us For Availability
NI
MAY W10655464 MAY W10655464 Contact Us For Availability
NI
MAY W10775068 MAY W10775068 Contact Us For Availability
NI
MAY W10883019 MAY W10883019 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY, (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY, (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY, (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
× ![]()
