Model GE AWN63RSN115CW14 General Electric Model AWN63RSN115CW14 – Common Parts & Diagrams

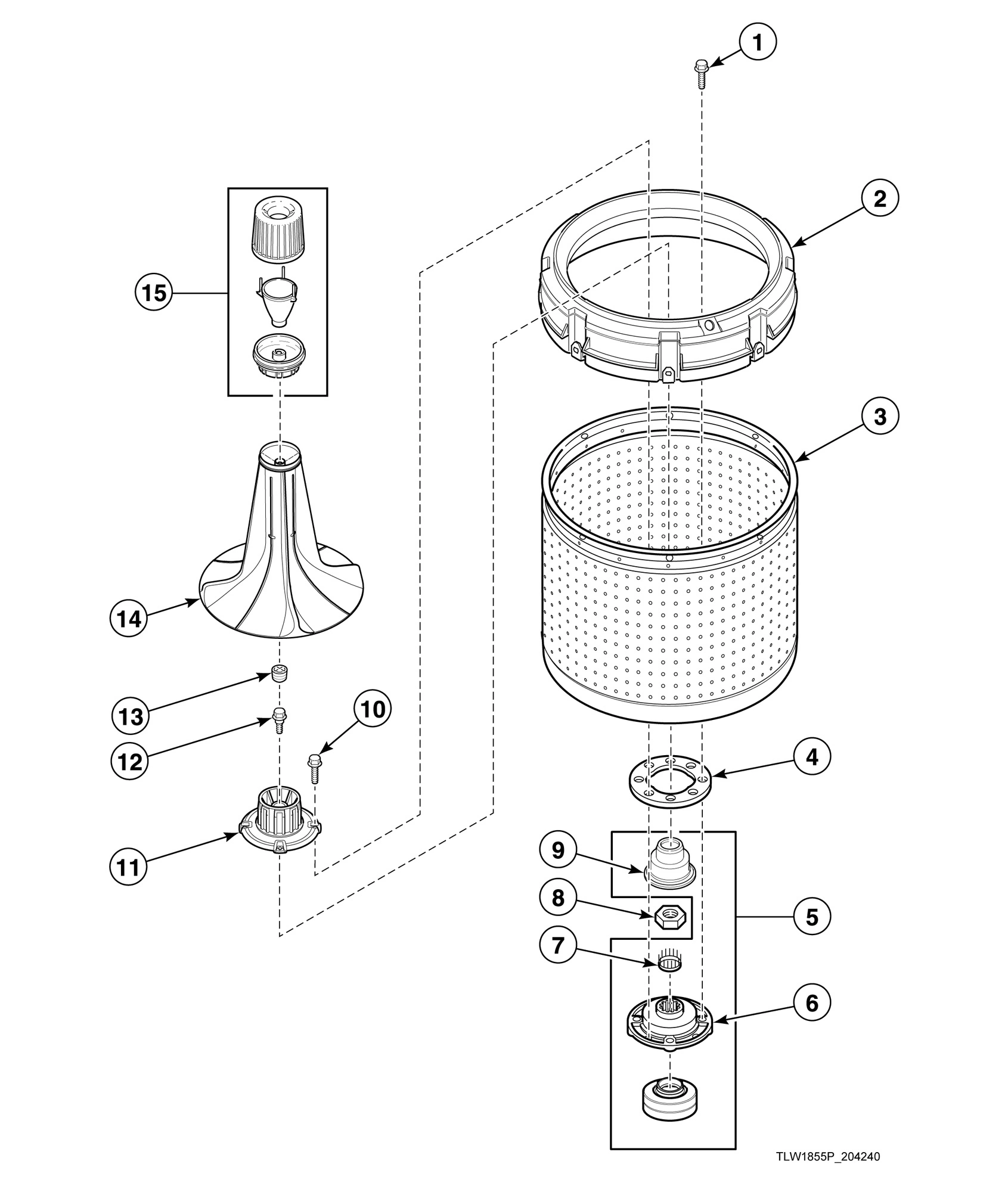

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub

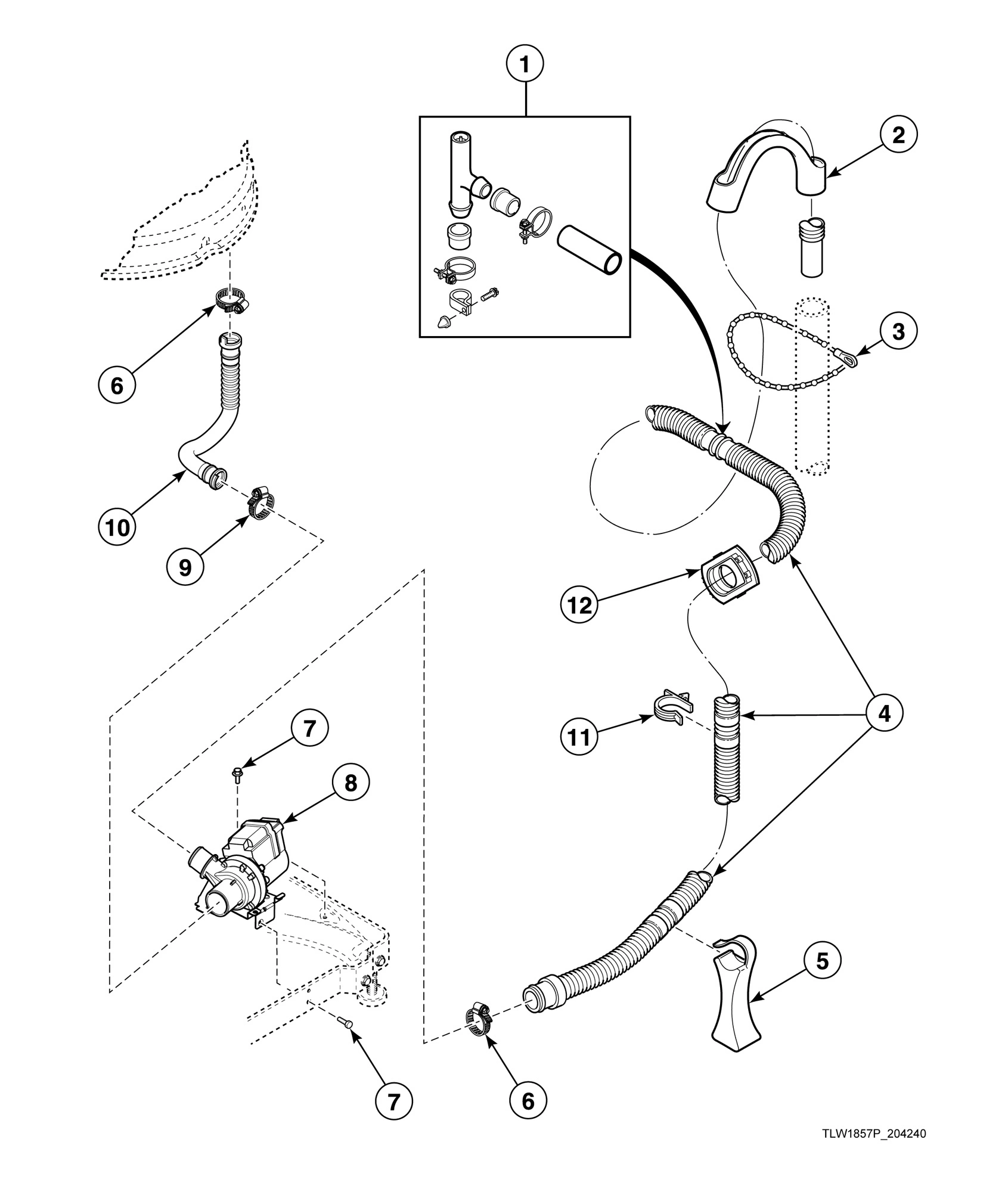

Drain Pump, Drain Hose and Siphon Break Kit

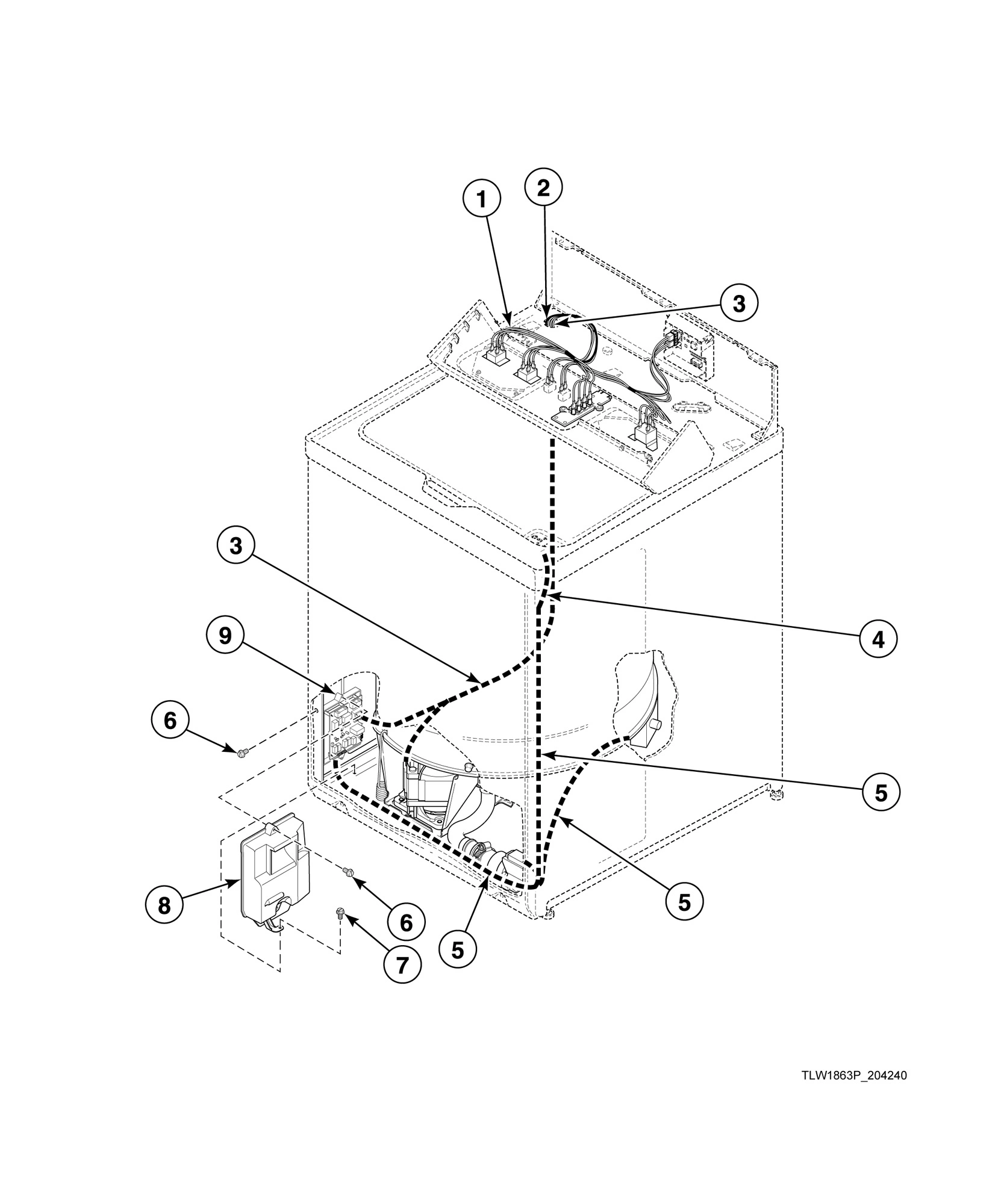

Drive Control, Wire Harnesses and Wires

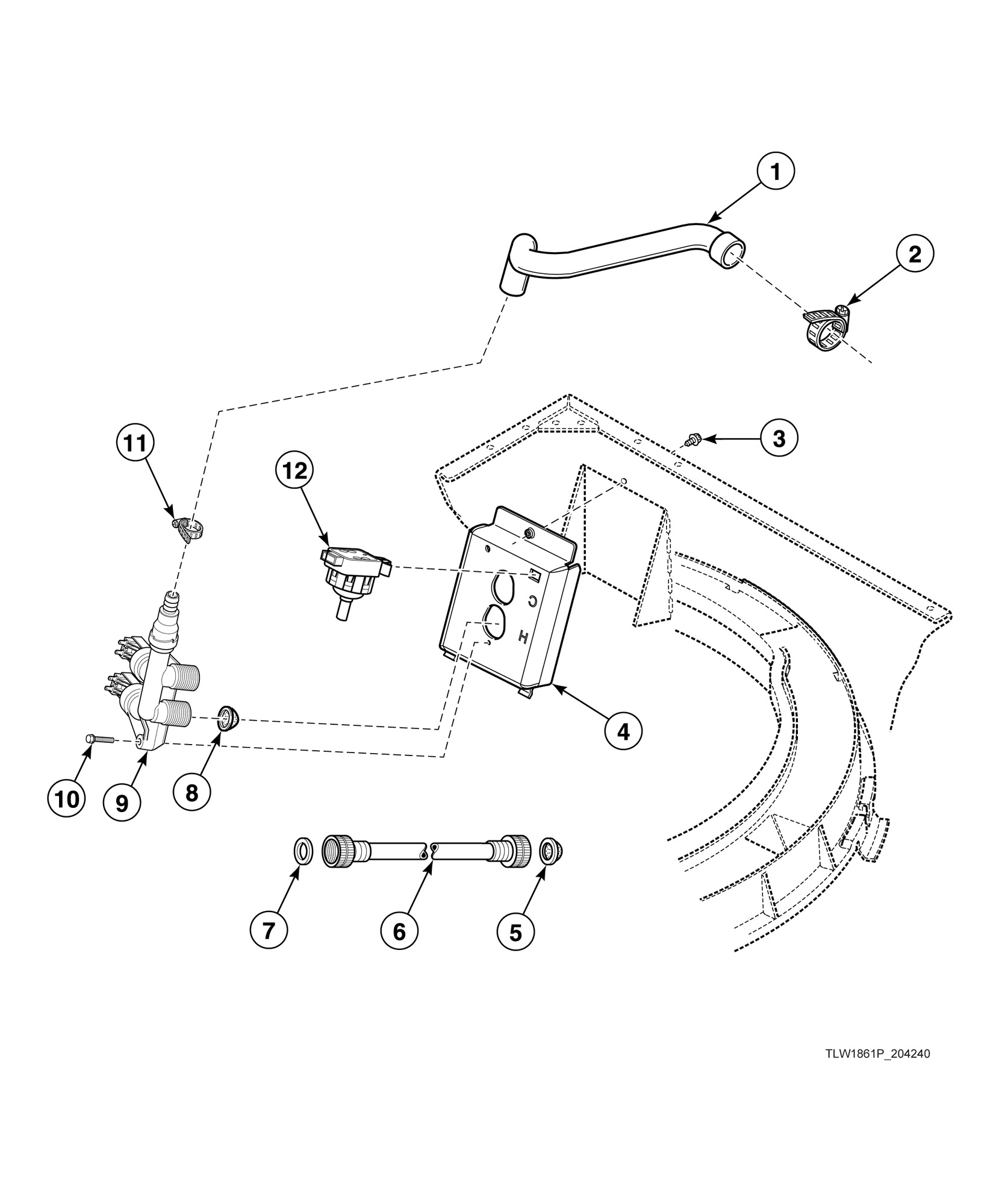

Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Bracket

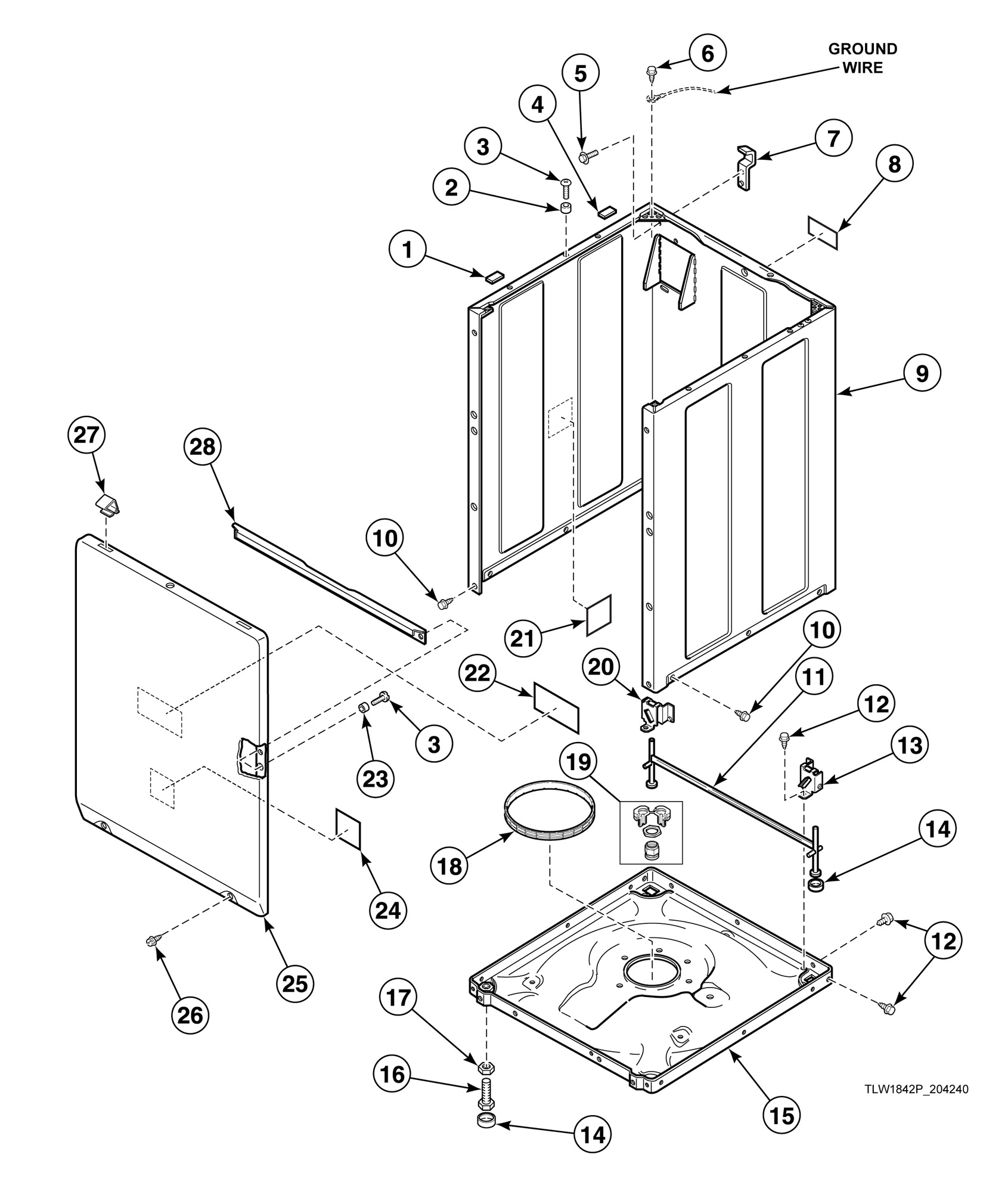

Front Panel, Base Assembly and Cabinet Kit

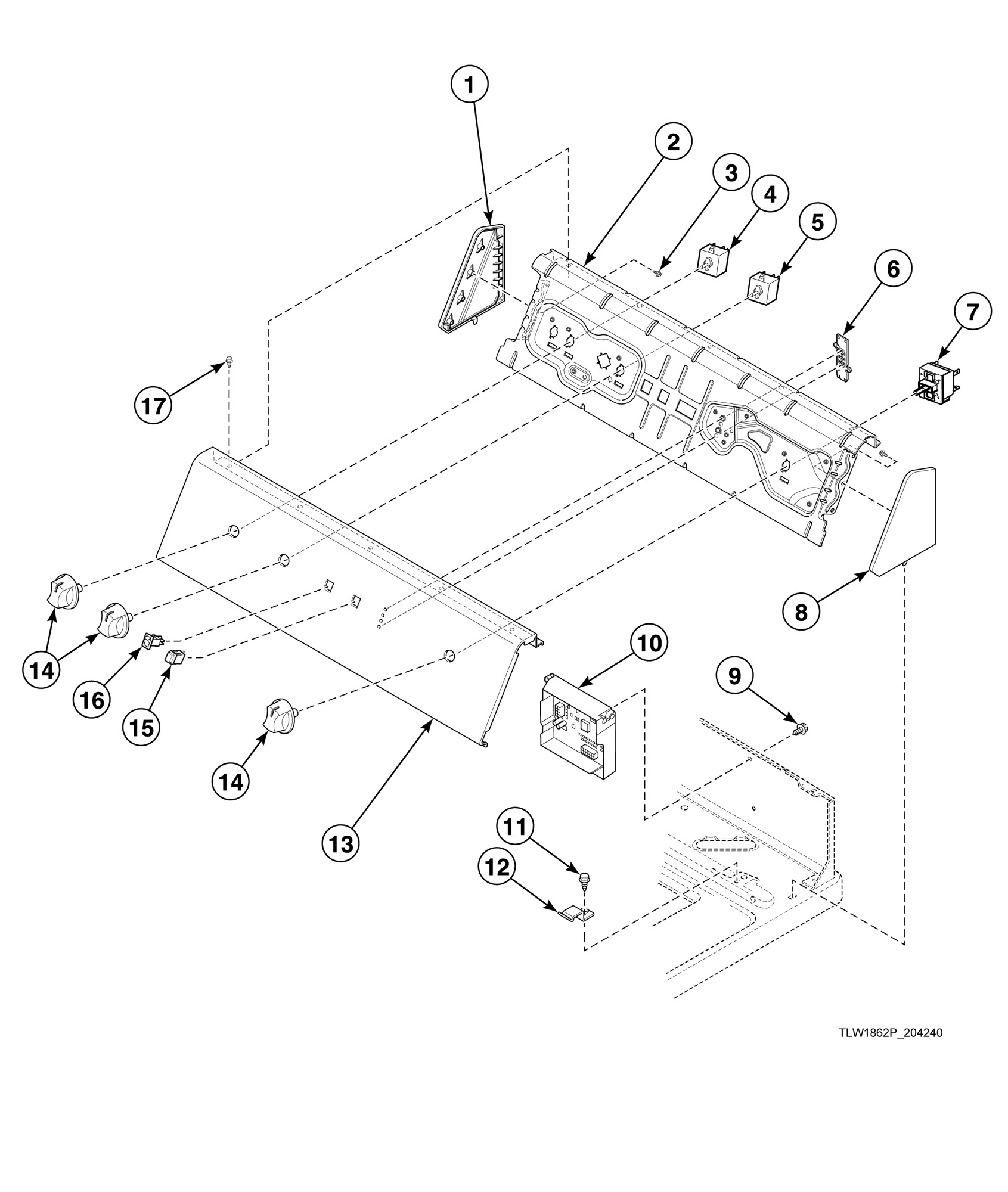

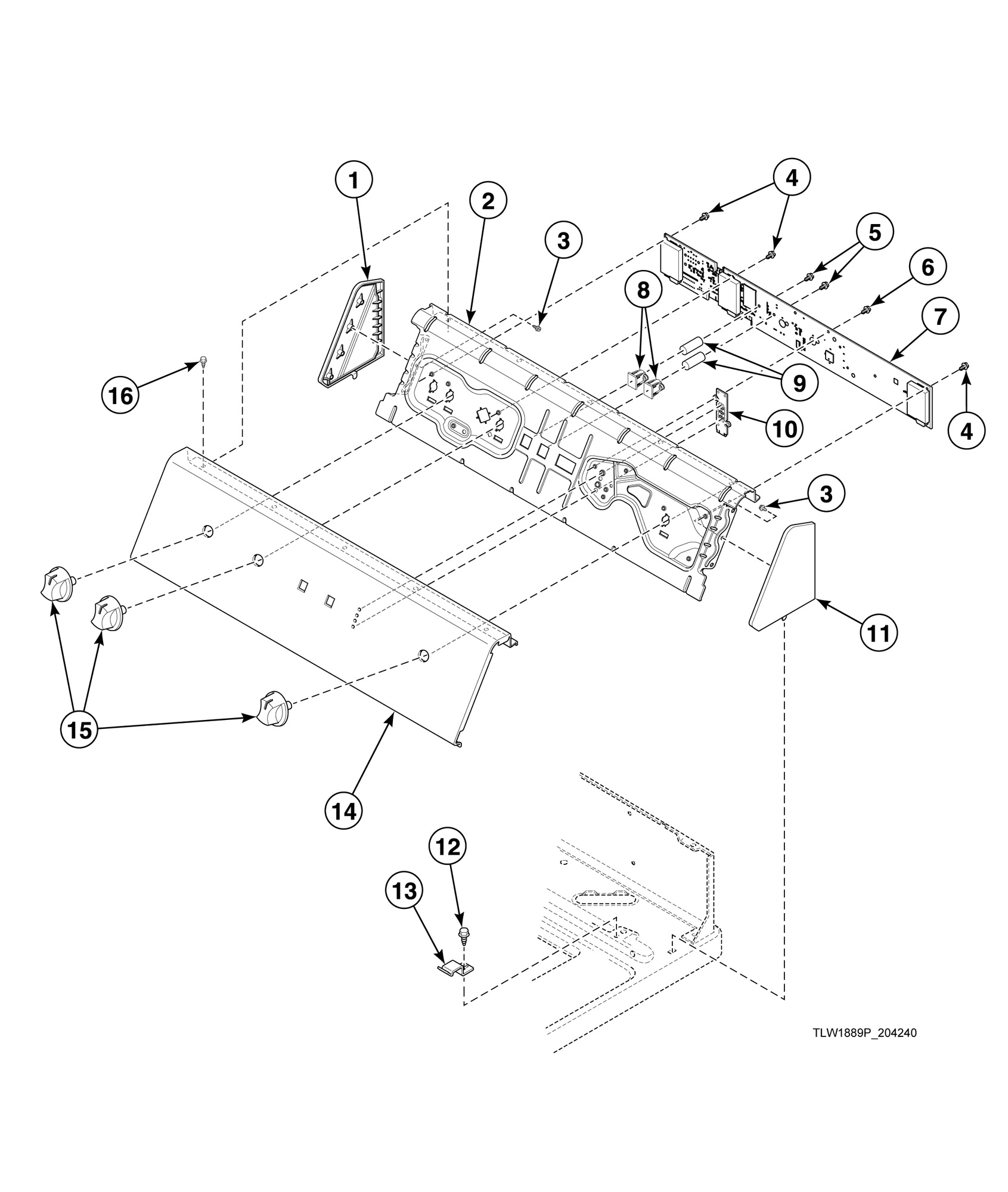

Graphic Panel, Control Support Panel and Controls Starting Serial No. 1810000001
Graphic Panel, Control Support Panel and Controls Through Serial Nos. Beginning 1809

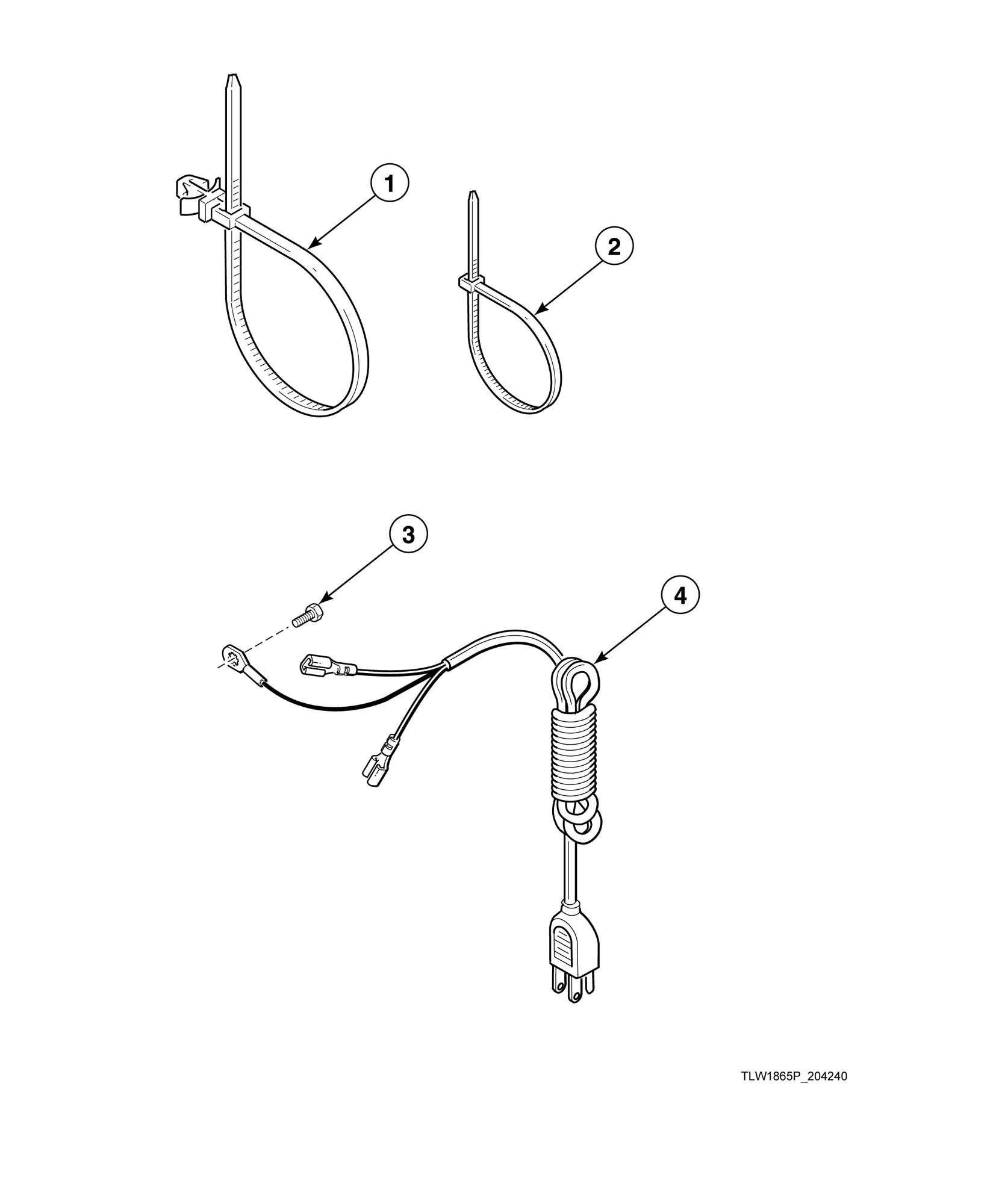

Lead-In Cord and Cable Ties

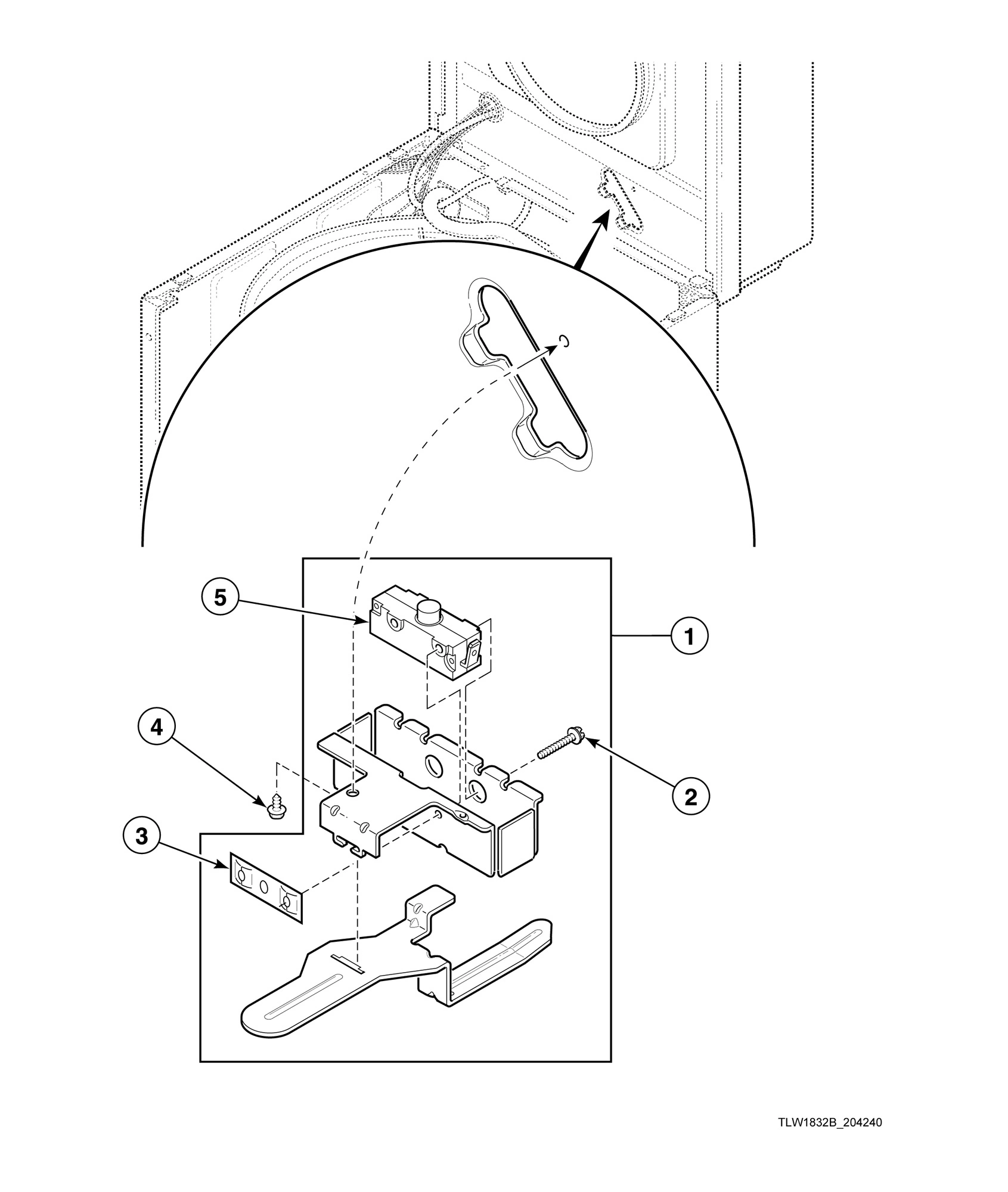

Lid Switch Assembly

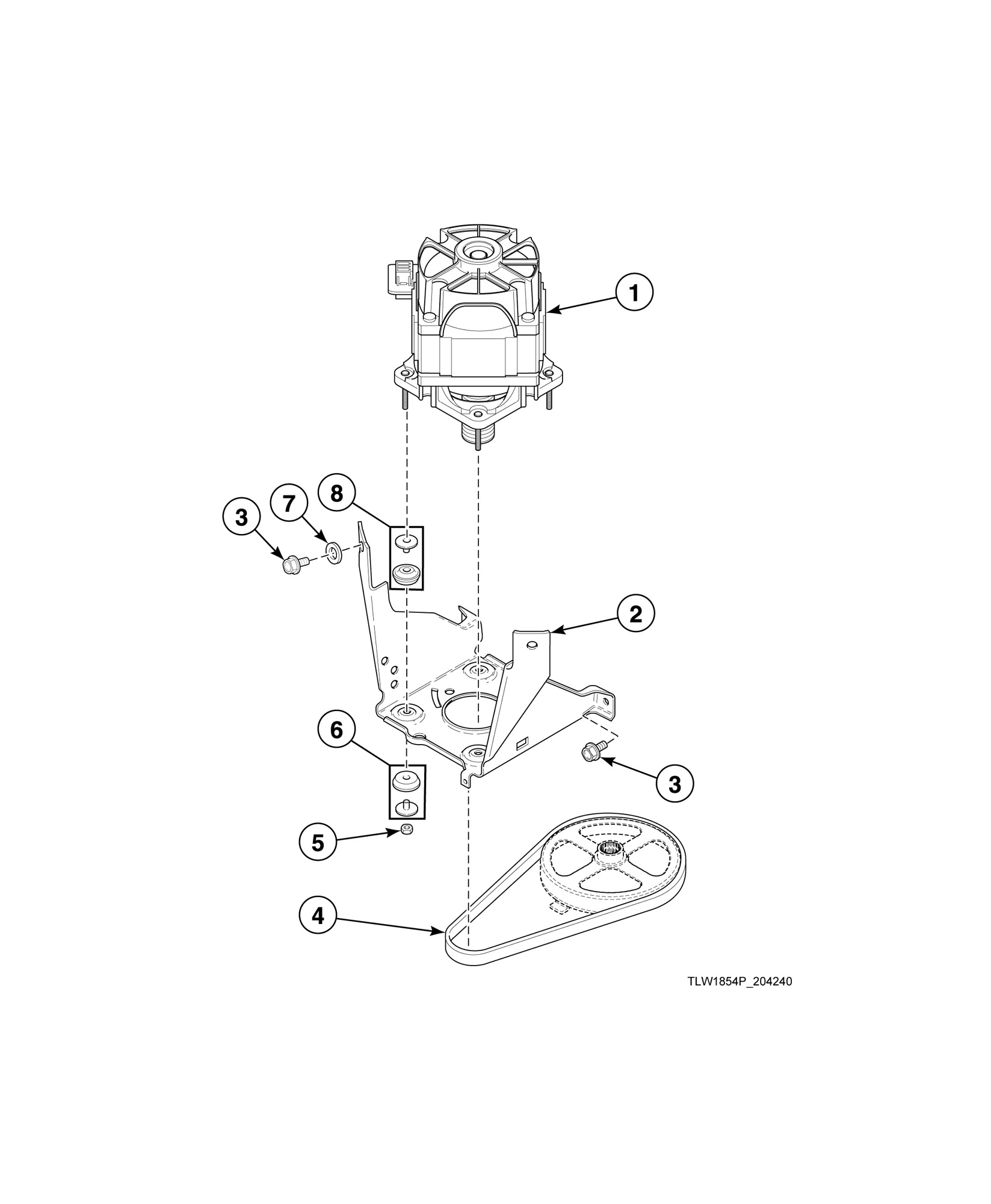

Motor, Mounting Bracket and Belt

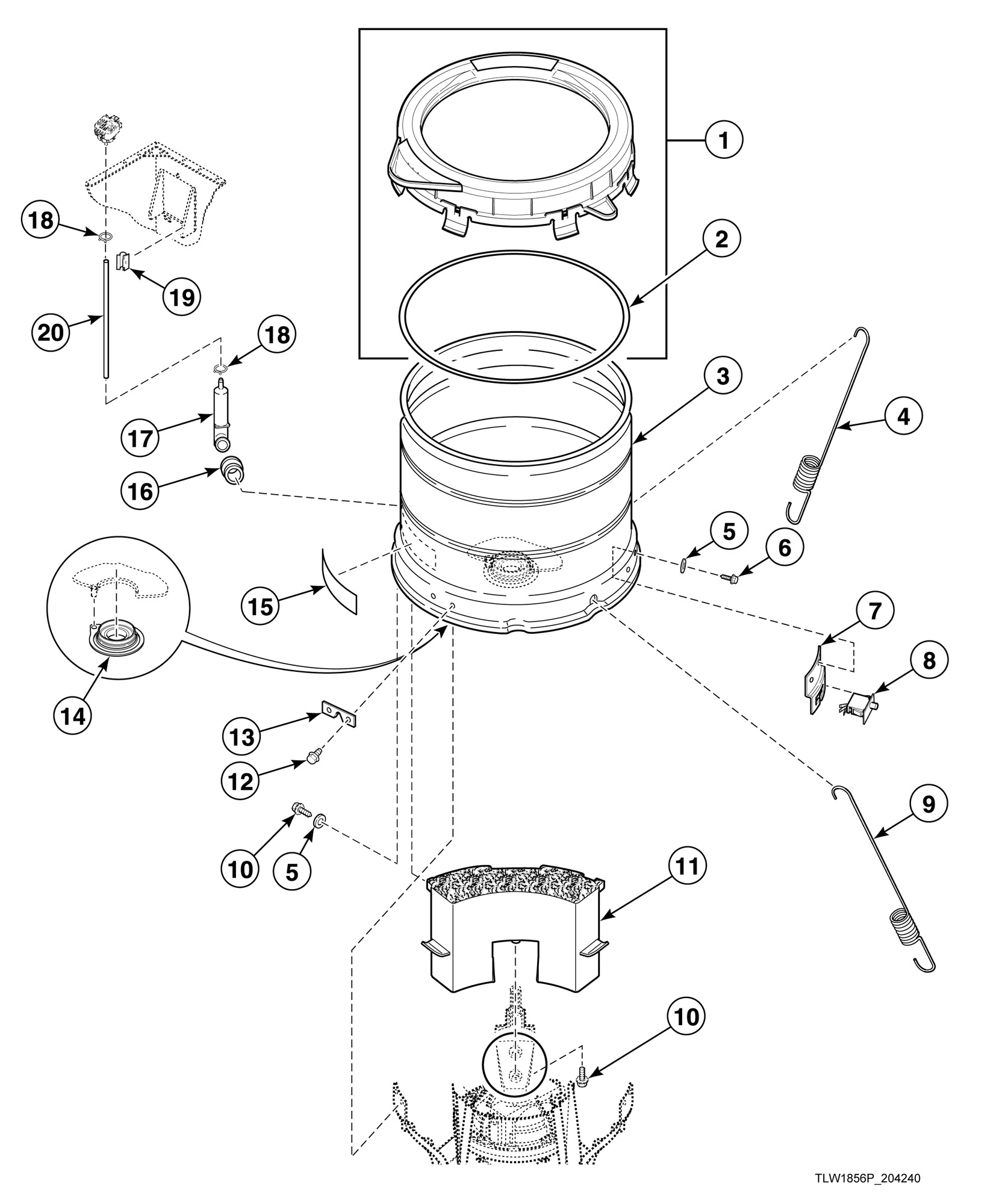

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

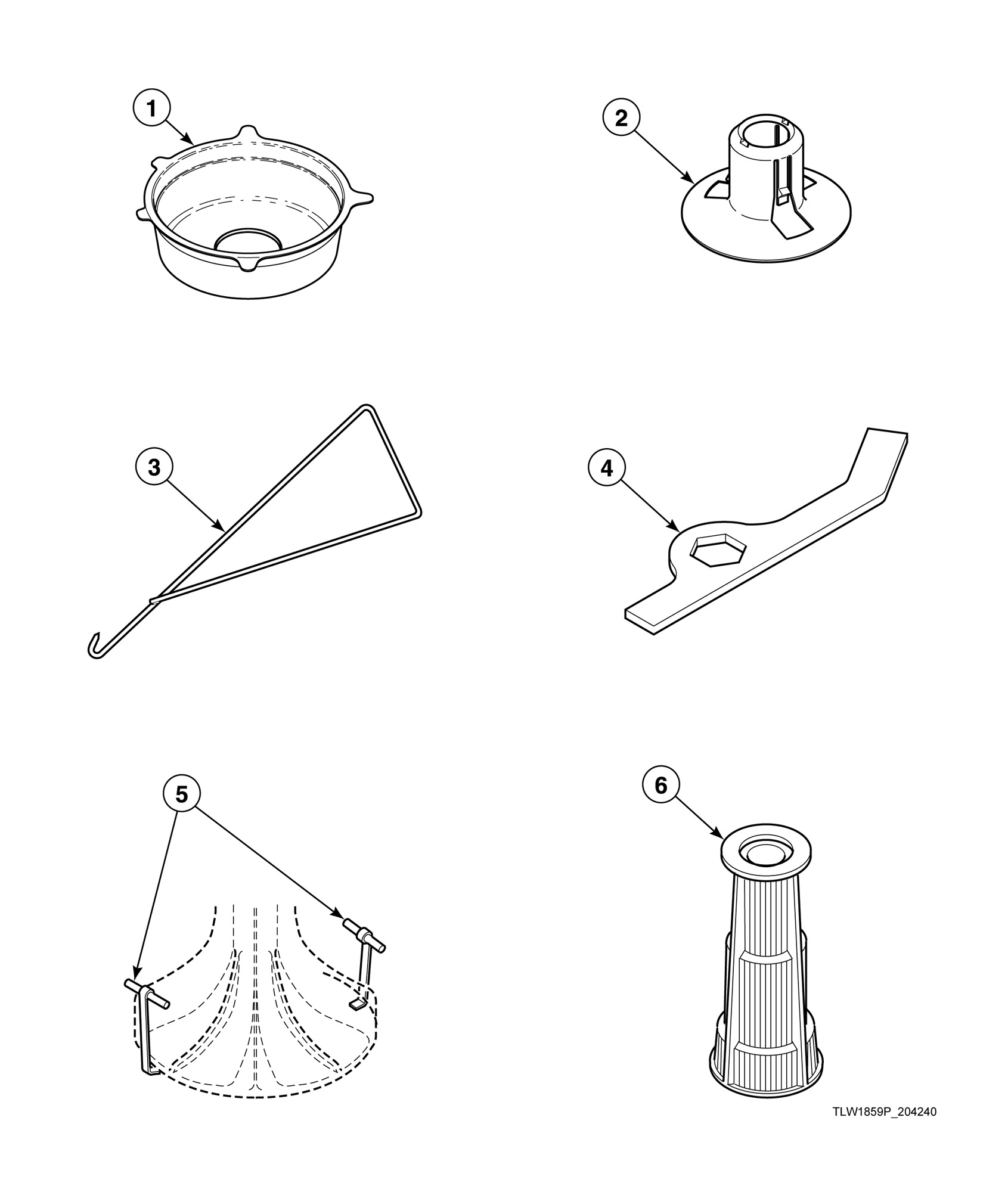

Shipping Brace, Plug and Special Tools

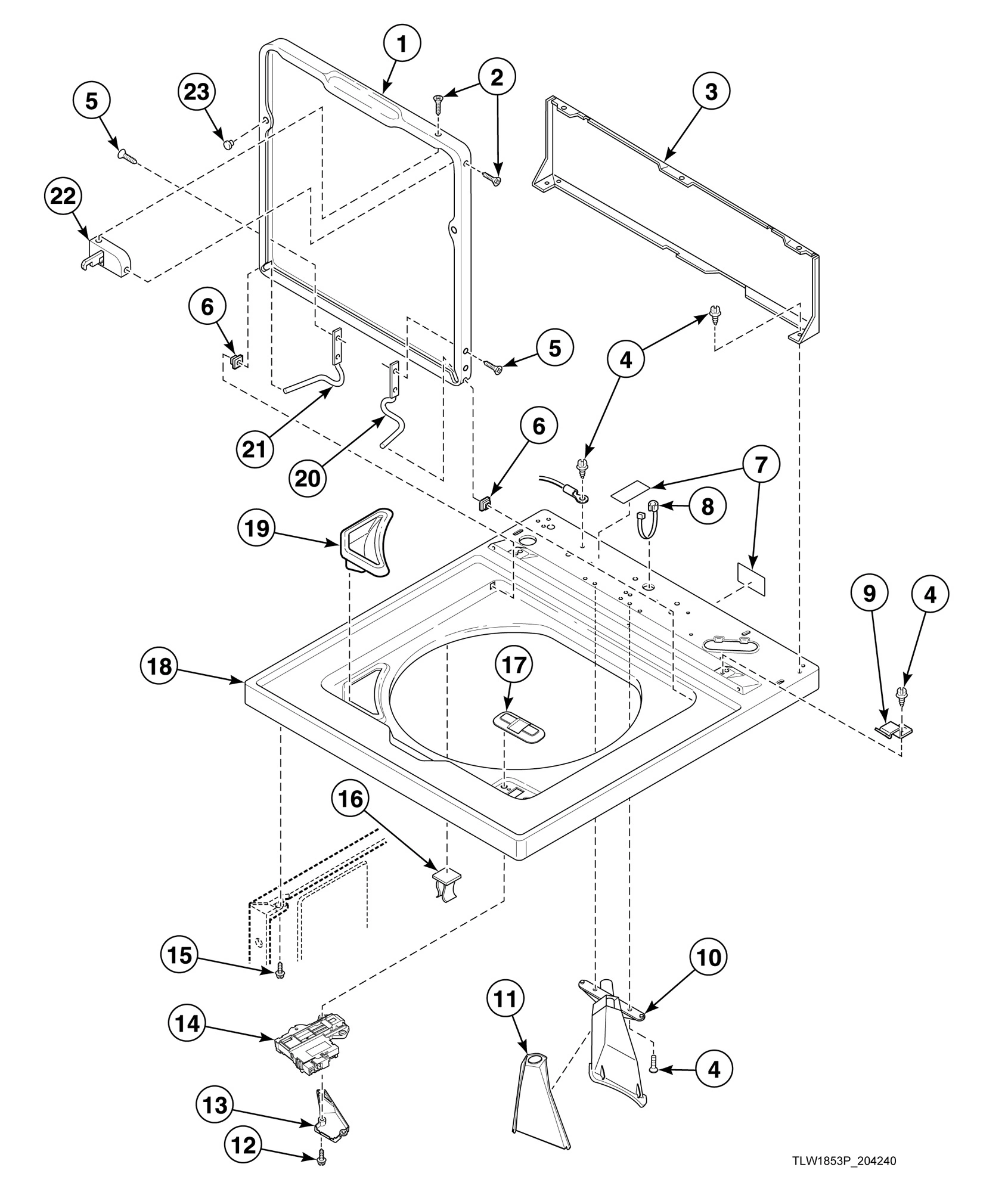

Top, Lid and Hood Back Panel

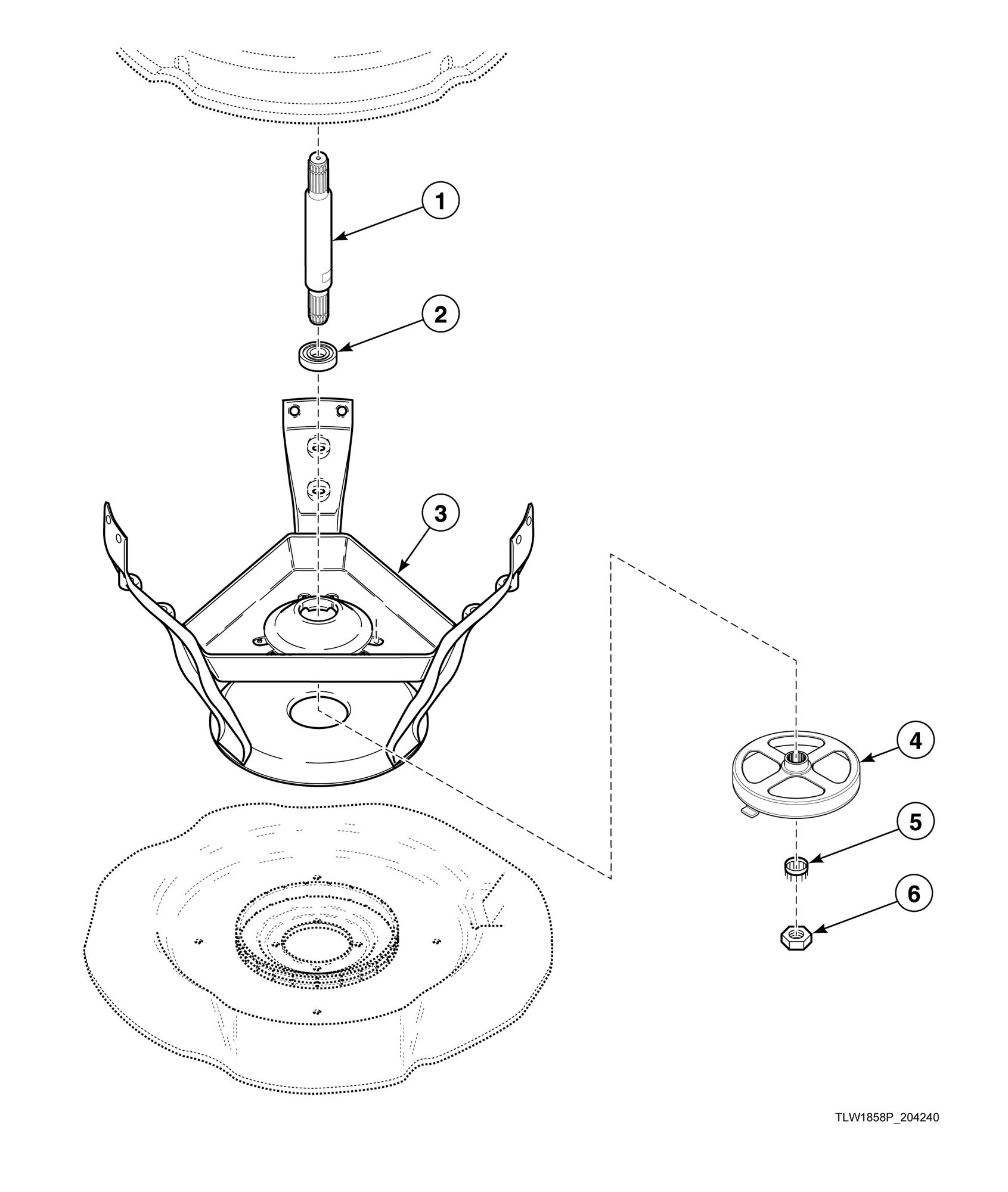

Weldment and Bearing Assembly, Drive Shaft and Pulley
Common parts from model GE AWN63RSN115CW14 General Electric Model AWN63RSN115CW14
1
Screw GEN 27202 Contact Us For Availability
1
Siphon Break Kit (Comment: Siphon break kit M GEN 562P3 Contact Us For Availability
1
Hood Harness GEN 203808 Contact Us For Availability
1
Valve to Inlet Hose (Comment: Through Serial GEN 202884 Contact Us For Availability
1
Valve to Inlet Hose (Comment: Starting Serial GEN 204400 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
End Cap (Comment: Left) GEN 203730W Contact Us For Availability
1
Cable Tie (Comment: 6 inches: Push mount) GEN 804724 Contact Us For Availability
1
Lid Switch Assembly GEN 37631 Contact Us For Availability
1
Motor GEN 204011P Contact Us For Availability
1
Tub Cover Assembly (Comment: Includes item 2) GEN 203968 Contact Us For Availability
1
Shipping Brace (Comment: Install whenever mov GEN 200553 Contact Us For Availability
1
Lid GEN 203575W Contact Us For Availability
1
Drive Shaft GEN 203394 Contact Us For Availability
2
Balance Ring Assembly GEN 39837 Contact Us For Availability
2
Drain Hose Sleeve GEN 33615 Contact Us For Availability
2
Pressure Sensor Harness (Comment: Through Ser GEN 204054 Contact Us For Availability
2
Pressure Sensor Harness (Comment: Starting Se GEN 204113 Contact Us For Availability
2
Hose Clamp GEN 800803 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Control Support Panel GEN 203840 Contact Us For Availability
2
Cable Tie (Comment: 6 inches) GEN F140605 Contact Us For Availability
2
Screw GEN M402574 Contact Us For Availability
2
Motor Mount Bracket GEN 200941 Contact Us For Availability
2
Tub Cover Gasket GEN 38359 Contact Us For Availability
2
Shipping Plug (Comment: Install before moving GEN 38149 Contact Us For Availability
2
Screw GEN 203755 Contact Us For Availability
2
Lower Bearing GEN 28944RP Contact Us For Availability
3
Washtub Kit (Comment: Stainless steel) GEN 719P3 Contact Us For Availability
3
Standpipe Strap GEN 33489 Contact Us For Availability
3
Control Drive Harness GEN 203659 Contact Us For Availability
3
Screw GEN 203799 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Screw GEN D503688 Contact Us For Availability
3
Nut GEN M400981 Contact Us For Availability
3
Outer Tub Assembly GEN 203603P Contact Us For Availability
3
Outer Tub Kit (Comment: Includes item 14 inst GEN 204383 Contact Us For Availability
3
Spring Hook Tool (Comment: For removal of mod GEN 321P4 Contact Us For Availability
3
Hood Back Panel (Comment: starting Serial No. GEN 203733 Contact Us For Availability
3
Hood Back Panel (Comment: through Serial Nos. GEN 203915 Contact Us For Availability
3
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
4
Washtub Gasket GEN 39122 Contact Us For Availability
4
Drain Hose GEN 203588 Contact Us For Availability
4
Lid Lock Harness GEN 203664 Contact Us For Availability
4
Mixing Valve Mounting Bracket (Comment: Start GEN 203558 Contact Us For Availability
4
Mixing Valve Mounting Bracket (Comment: Throu GEN 204117 Contact Us For Availability
4
Bumper Pad GEN 36226 Contact Us For Availability
4
Screw GEN 204342 Contact Us For Availability
4
Screw GEN 23962 Contact Us For Availability
4
NOT ON YOUR MODEL GEN - Contact Us For Availability
4
Lead-In Cord GEN 202777 Contact Us For Availability
4
Belt GEN 204008 Contact Us For Availability
4
Leg Spring (Comment: Marked with blue paint, GEN 37575 Contact Us For Availability
4
Hex Wrench Tool (Comment: For removal of lock GEN 306P4 Contact Us For Availability
4
Drive Pulley GEN 203531 Contact Us For Availability
5
Spline Insert GEN 29728 Contact Us For Availability
5
Hose Stand GEN 38732 Contact Us For Availability
5
Drain Pump Harness GEN 203661 Contact Us For Availability
5
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
5
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
5
Screw GEN 51780 Contact Us For Availability
5
Temperature Switch (Comment: For load size kn GEN 36335 Contact Us For Availability
5
Switch GEN 33445 Contact Us For Availability
5
Nut GEN 35423 Contact Us For Availability
5
Washer GEN 39249 Contact Us For Availability
5
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
5
Screw GEN 34337 Contact Us For Availability
6
Washtub Hub GEN 203510 Contact Us For Availability
6
Nut GEN 29220 Contact Us For Availability
6
Hose Clamp GEN F200204 Contact Us For Availability
6
Fill Hose (Comment: 4 feet, Marked red for ho GEN 203719 Contact Us For Availability
6
Fill Hose (Comment: 4 feet, Marked blue for c GEN 203720 Contact Us For Availability
6
Screw GEN 35148 Contact Us For Availability
6
Screw GEN 204503 Contact Us For Availability
6
LED Display Assembly GEN 204396 Contact Us For Availability
6
Isolator Assembly (Comment: Lower) GEN 204062 Contact Us For Availability
6
Drive Bell Seal Tool (Comment: For installati GEN 293P4 Contact Us For Availability
6
Bushing GEN 33446 Contact Us For Availability
7
Screw GEN 31645 Contact Us For Availability
7
Washer GEN 20290 Contact Us For Availability
7
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
7
Control Assembly GEN 204065 Contact Us For Availability
7
Cycle Selector Switch GEN 203976 Contact Us For Availability
7
Washer GEN 37772 Contact Us For Availability
7
Bracket GEN 203599 Contact Us For Availability
7
Warning Label GEN D500316 Contact Us For Availability
8
Pump and Bracket GEN 203885 Contact Us For Availability
8
Drive Cover GEN 203612 Contact Us For Availability
8
Mixing Valve Screen GEN 24122 Contact Us For Availability
8
Warning Label GEN 803260 Contact Us For Availability
8
Capacitive Touch Switch GEN 204266 Contact Us For Availability
8
End Cap (Comment: Right) GEN 203729W Contact Us For Availability
8
Isolator Assembly (Comment: Upper) GEN 204063 Contact Us For Availability
8
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
8
Strain Relief GEN 38384 Contact Us For Availability
9
Bell and Transmission Tube Seal GEN 36425 Contact Us For Availability
9
Hose Clamp GEN 90554 Contact Us For Availability
9
Drive Control Assembly GEN 203657P Contact Us For Availability
9
Mixing Valve (Comment: Through Serial No. 181 GEN 202395P Contact Us For Availability
9
Mixing Valve (Comment: Starting Serial No. 18 GEN 203741 Contact Us For Availability
9
Service Cabinet Kit GEN 38612WP Contact Us For Availability
9
Foam GEN 204365 Contact Us For Availability
9
Hold-Down Clip GEN 35358 Contact Us For Availability
9
Screw GEN 804608 Contact Us For Availability
9
Leg Spring (Comment: Marked with green paint, GEN 201521 Contact Us For Availability
10
Screw GEN 203792 Contact Us For Availability
10
Tub-to-Pump Hose GEN 203560 Contact Us For Availability
10
Screw GEN 39397 Contact Us For Availability
10
Screw GEN 27196 Contact Us For Availability
10
LED Display Assembly GEN 204488 Contact Us For Availability
10
Control Assembly GEN 204163 Contact Us For Availability
10
Screw GEN 39566 Contact Us For Availability
10
Inlet Deflector GEN 202900 Contact Us For Availability
11
Drive Bell GEN 203851 Contact Us For Availability
11
Retainer Clip GEN 36014 Contact Us For Availability
11
Hose Clamp GEN 36801 Contact Us For Availability
11
Leg and Stabilizer Assembly GEN 34443 Contact Us For Availability
11
Counterweight Assembly GEN 38769 Contact Us For Availability
11
Inlet Cover GEN 202894 Contact Us For Availability
12
Screw GEN 39432 Contact Us For Availability
12
Strain Relief GEN 32219 Contact Us For Availability
12
Pressure Sensor GEN 203843 Contact Us For Availability
12
Screw GEN 800548 Contact Us For Availability
12
Screw GEN 35369 Contact Us For Availability
13
Bell Plug GEN 36511 Contact Us For Availability
13
Bracket (Comment: Right) GEN 36036 Contact Us For Availability
13
Graphic Panel GEN 204009 Contact Us For Availability
13
Leg Plate GEN 27926 Contact Us For Availability
13
Drip Tray GEN 204038 Contact Us For Availability
14
Sealant (Comment: Use with hub and lip seal k GEN 200996P Contact Us For Availability
14
Hub and Lip Seal Kit GEN 766P3A Contact Us For Availability
14
Straight Agitator GEN 203852 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Graphic Panel GEN 204609 Contact Us For Availability
14
Knob Assembly GEN 806597 Contact Us For Availability
14
Lid Lock GEN 203504 Contact Us For Availability
15
Fabric Softener Dispenser Assembly GEN 36542 Contact Us For Availability
15
Screw GEN 33562 Contact Us For Availability
15
Base Assembly GEN 39788 Contact Us For Availability
15
Push Button Switch GEN 203935 Contact Us For Availability
15
Warning Label GEN D500314 Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Screw GEN 807075 Contact Us For Availability
16
Rocker Switch GEN 203934 Contact Us For Availability
16
Grommet GEN 29175 Contact Us For Availability
16
Hinge Stop Clip GEN 36519 Contact Us For Availability
17
Screw GEN D501086 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Pressure Bulb GEN 30907 Contact Us For Availability
17
Lid Lock Bezel GEN 203643 Contact Us For Availability
18
Friction Ring GEN 37937 Contact Us For Availability
18
Hose Clamp GEN 39282 Contact Us For Availability
18
Top Panel GEN 203632W Contact Us For Availability
19
Adjustable Leg Extension Kit GEN 566P3 Contact Us For Availability
19
Cable Clip GEN 21036 Contact Us For Availability
19
Bleach Dispenser GEN 202996 Contact Us For Availability
20
Bracket (Comment: Left) GEN 36037 Contact Us For Availability
20
Tubing GEN 203802 Contact Us For Availability
20
Lid Hinge (Comment: Right) GEN 36437 Contact Us For Availability
21
Foam Pad GEN 39480 Contact Us For Availability
21
Lid Hinge (Comment: Left) GEN 36513 Contact Us For Availability
22
Front Panel Pad GEN 36204 Contact Us For Availability
22
Lid Lock Catch GEN 203573 Contact Us For Availability
23
Panel Locator GEN 28102 Contact Us For Availability
23
Bumper GEN 21685 Contact Us For Availability
24
Foam Pad GEN 203484 Contact Us For Availability
25
Front Panel GEN 38335WP Contact Us For Availability
26
Screw GEN 38272 Contact Us For Availability
27
Hold-Down Clip GEN 35865 Contact Us For Availability
28
Front Panel Brace GEN 35097 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
Foam Shipping Brace (Comment: Install before GEN 202890 Contact Us For Availability
× ![]()
