Model GE AWN552SN301NW29 General Electric Model AWN552SN301NW29 – Common Parts & Diagrams

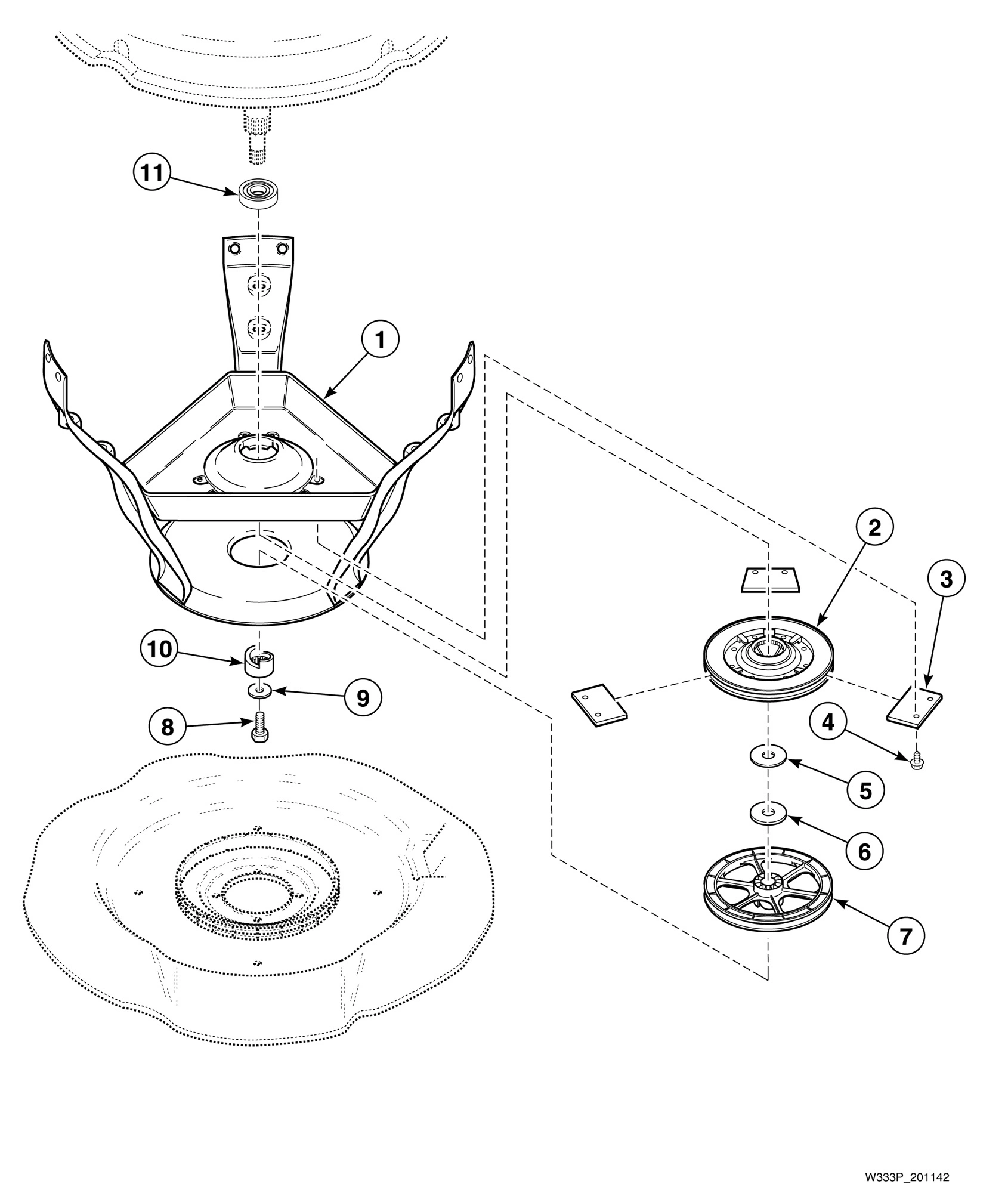

Weldment and Bearing Assembly, Brake and Pulley

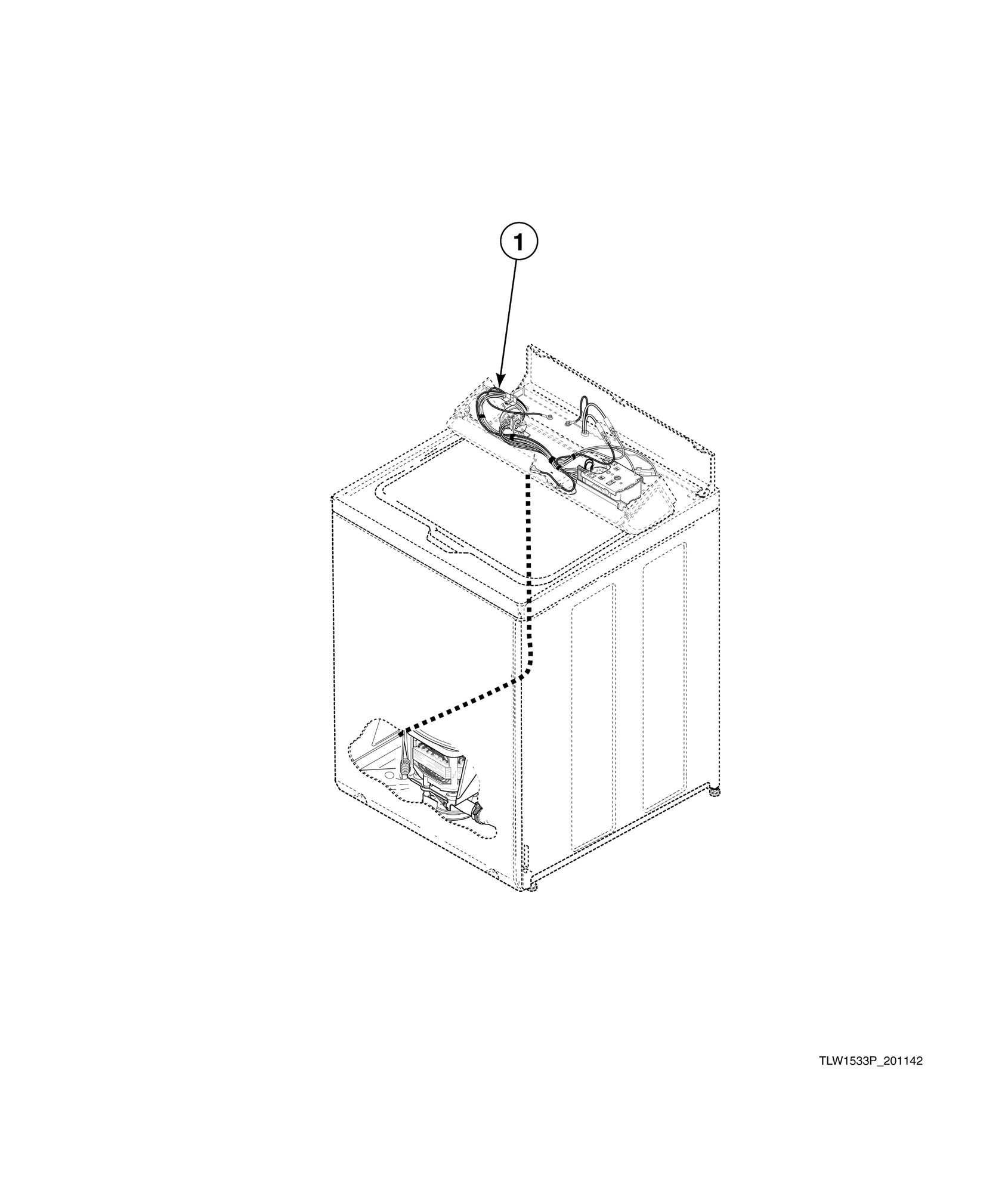

Wire Harnesses and Wires (Drawing 1 of 3)
Wire Harnesses and Wires (Drawing 2 of 3)
Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model GE AWN552SN301NW29 General Electric Model AWN552SN301NW29
1
Hood Wire Harness Assembly GEN 202291 Contact Us For Availability
1
Base Wire Harness Assembly GEN 201465P Contact Us For Availability
1
NOT ON YOUR MODEL GEN - Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads and 6 GEN 735P3 Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Washer (Comment: Thin) GEN 35535 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Pulley GEN 202795 Contact Us For Availability
8
Screw GEN 27220 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
11
Lower Bearing GEN 28944RP Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
