Model GE AWN552SN301NW22 General Electric Model AWN552SN301NW22 – Common Parts & Diagrams
Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub (Drawing 1 of 2)
Belt, Pump and Idler Assembly (Drawing 2 of 4)
Belt, Pump and Idler Assembly (Drawing 3 of 4)

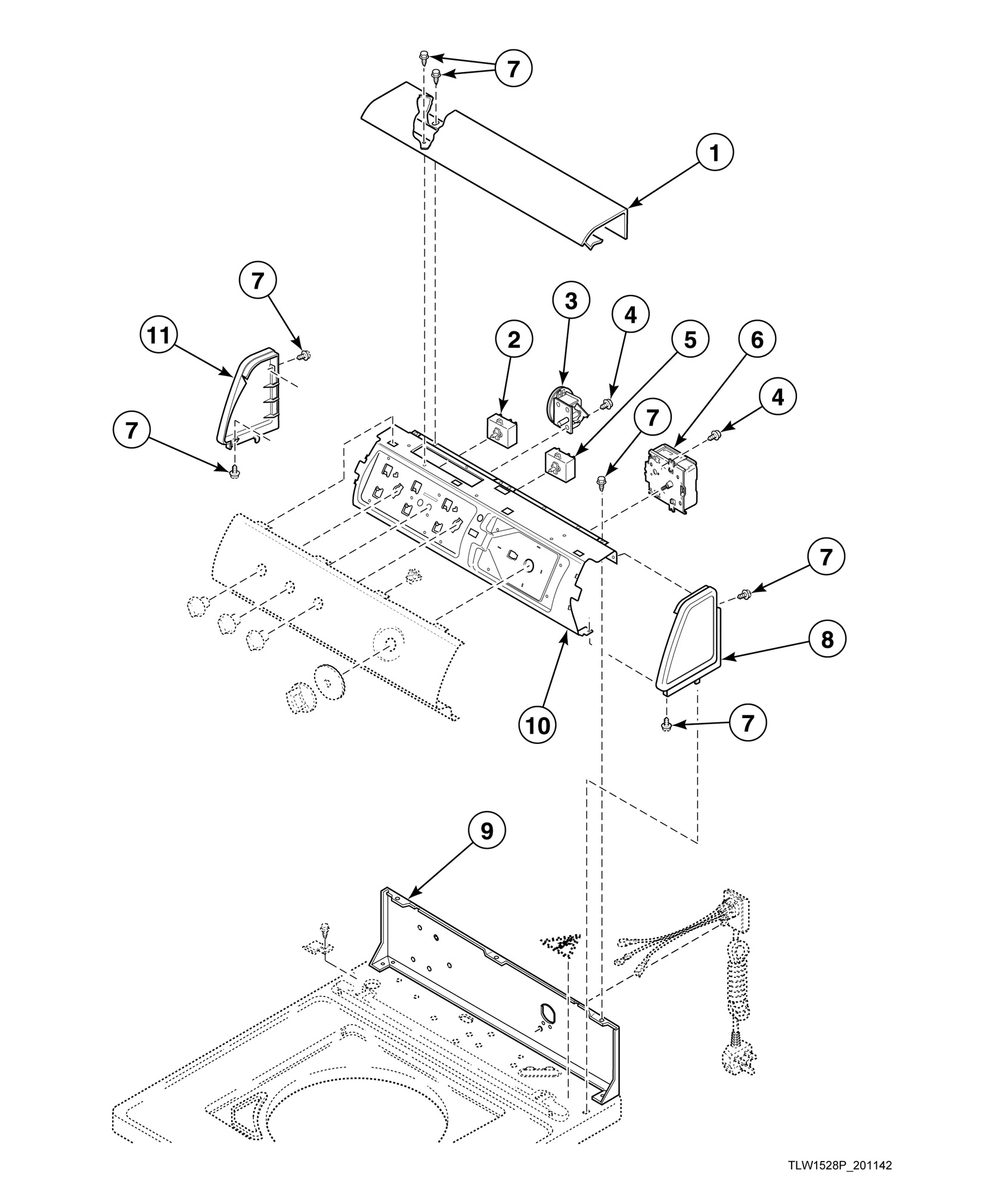

Control Support Panel and Controls (Drawing 1 of 2)

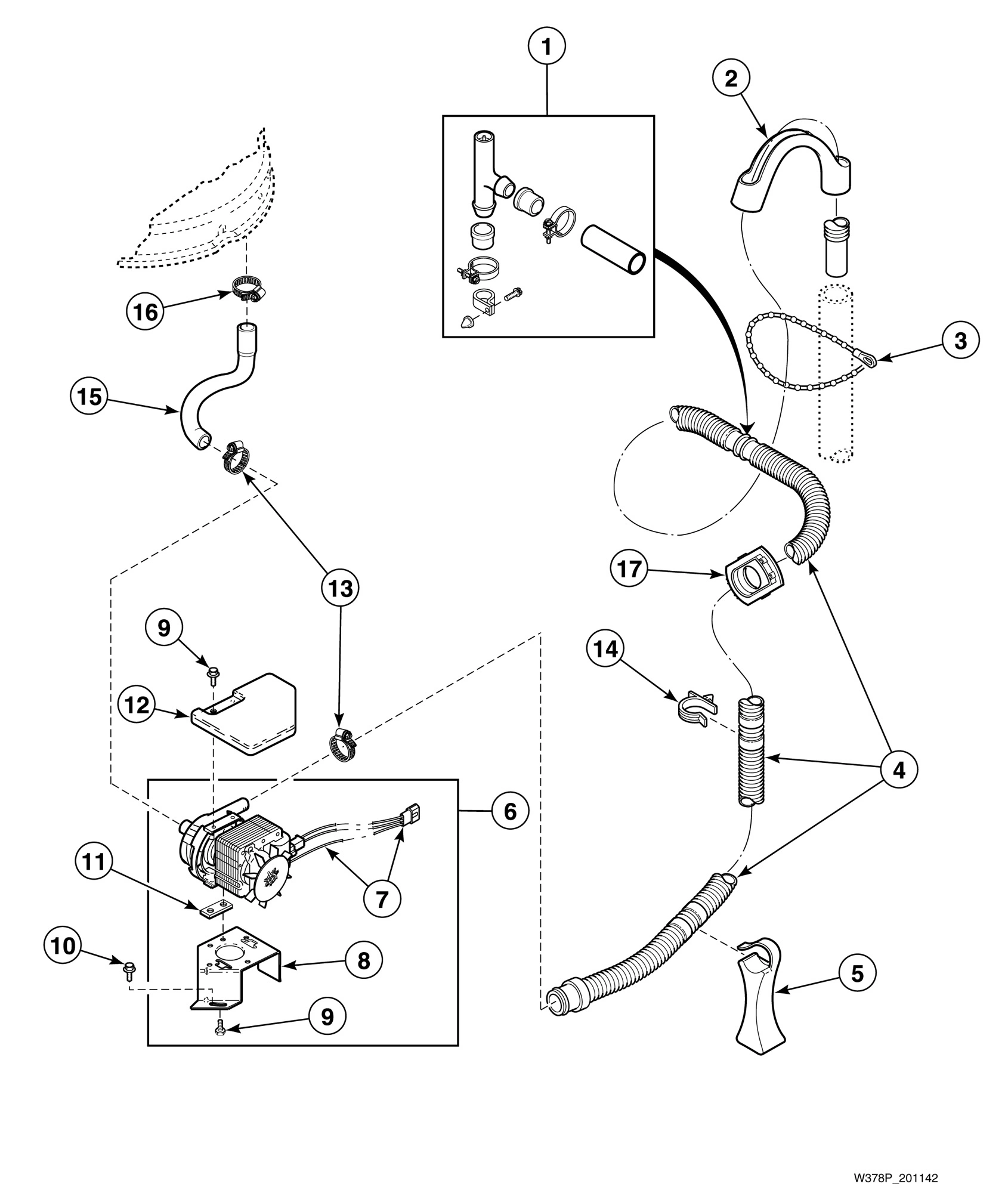

Electric Drain Pump with Plastic Drain Hose and Siphon Break Kit

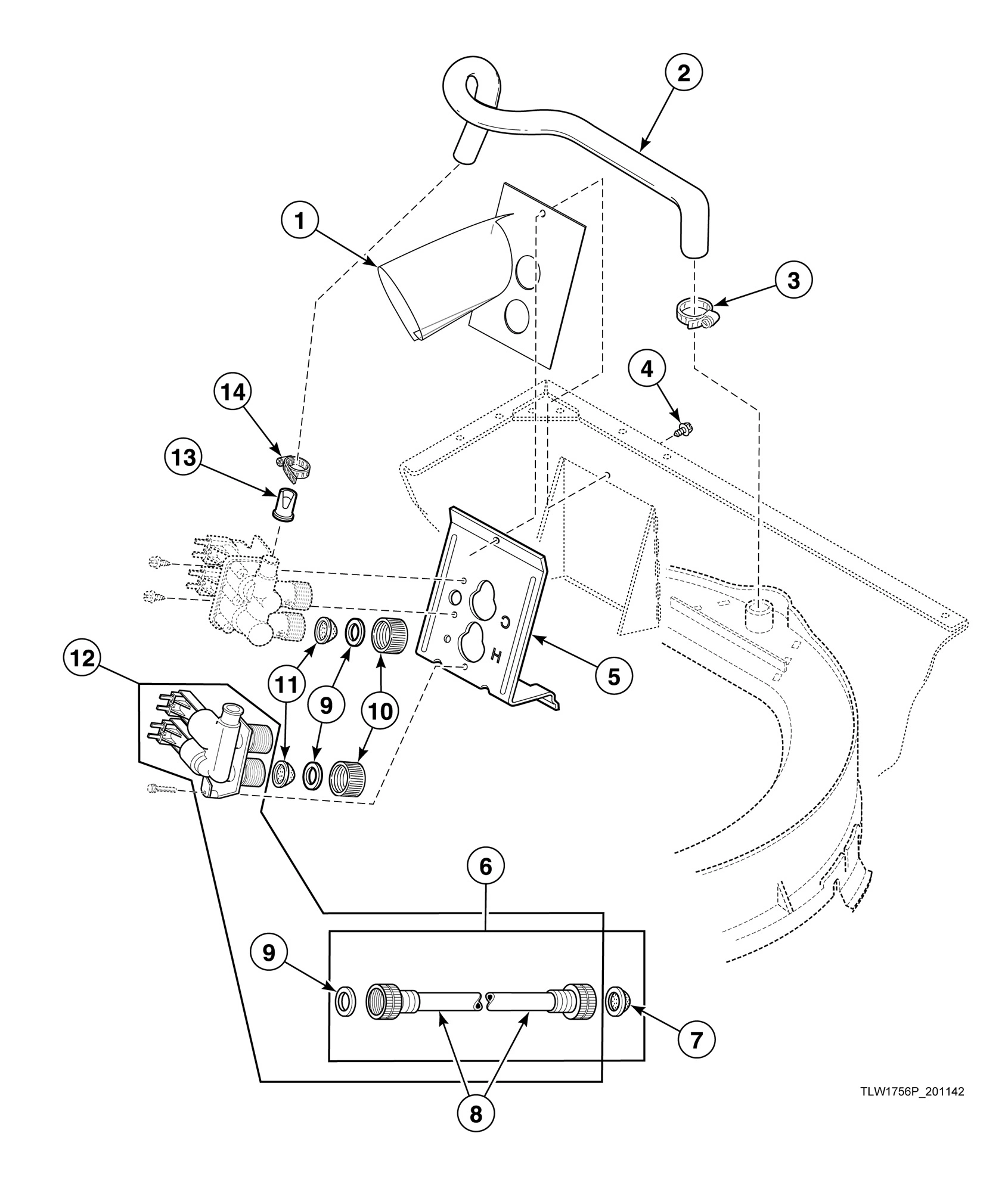

Fill Hose and Mixing Valve-to-Tub Cover Hose - All Models Except AWZ53N*-1102 and AWNA62SN301AW01

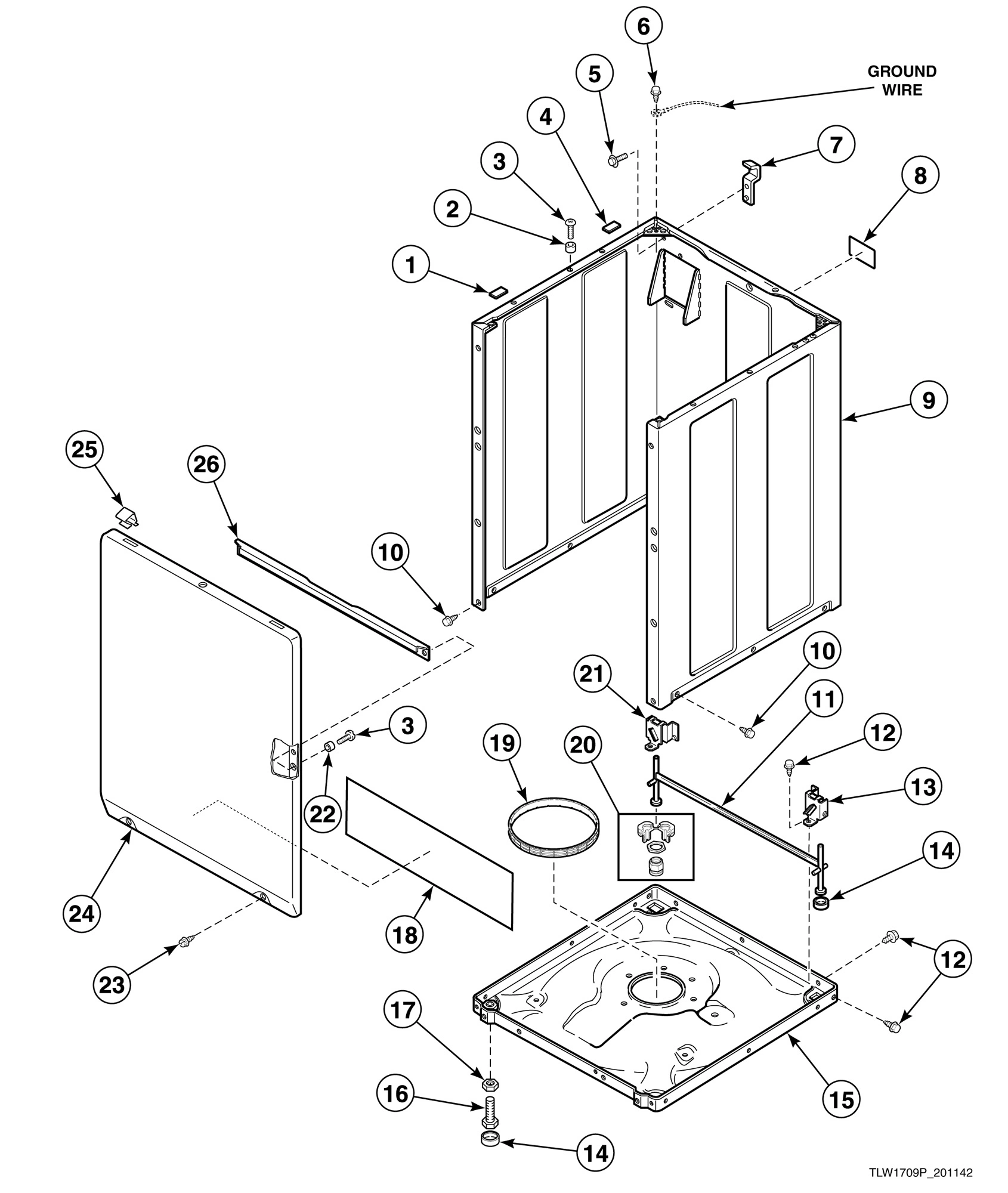

Front Panel, Base Assembly and Cabinet Kit

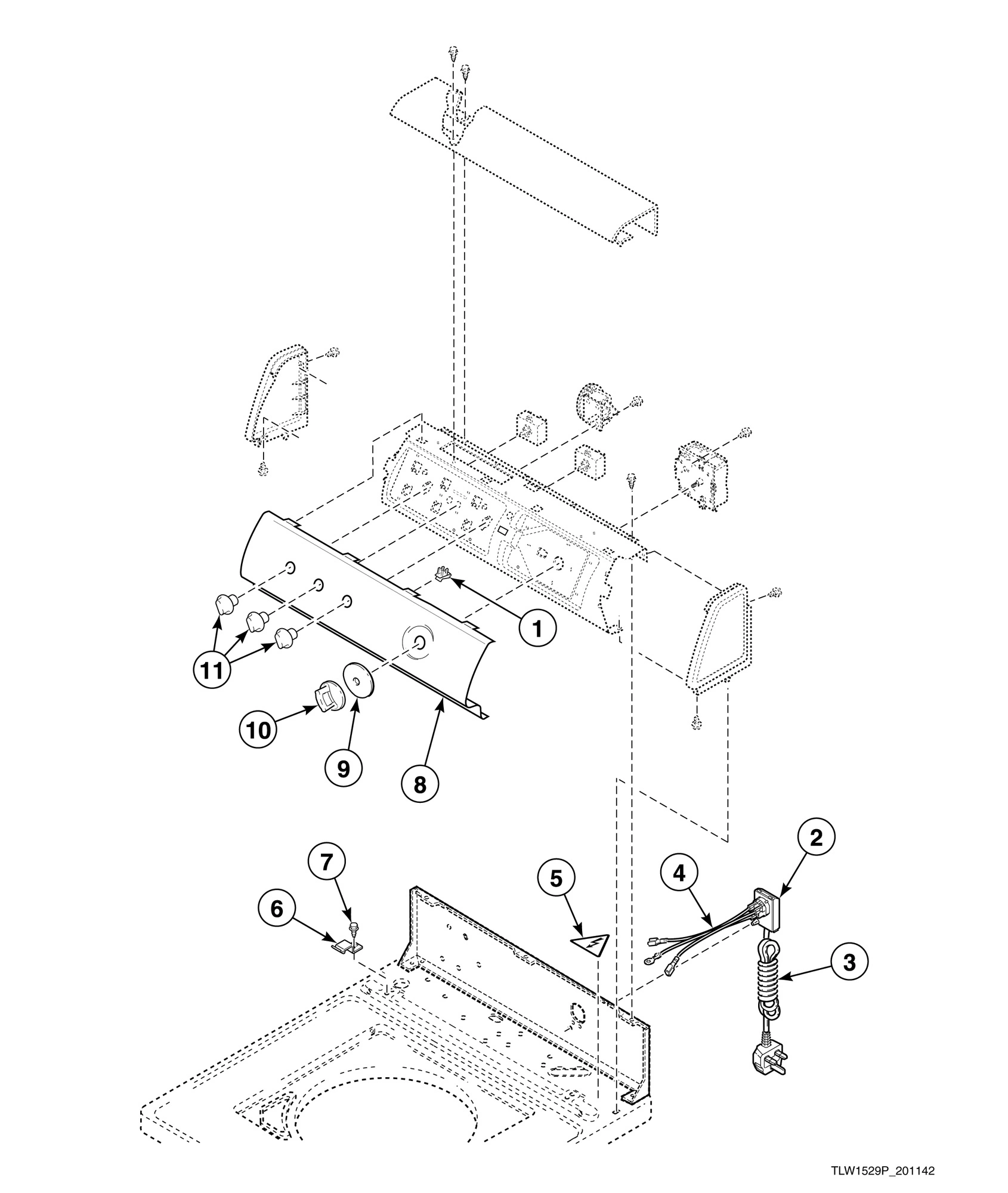

Graphic Panel and Control Knobs (Drawing 1 of 2)

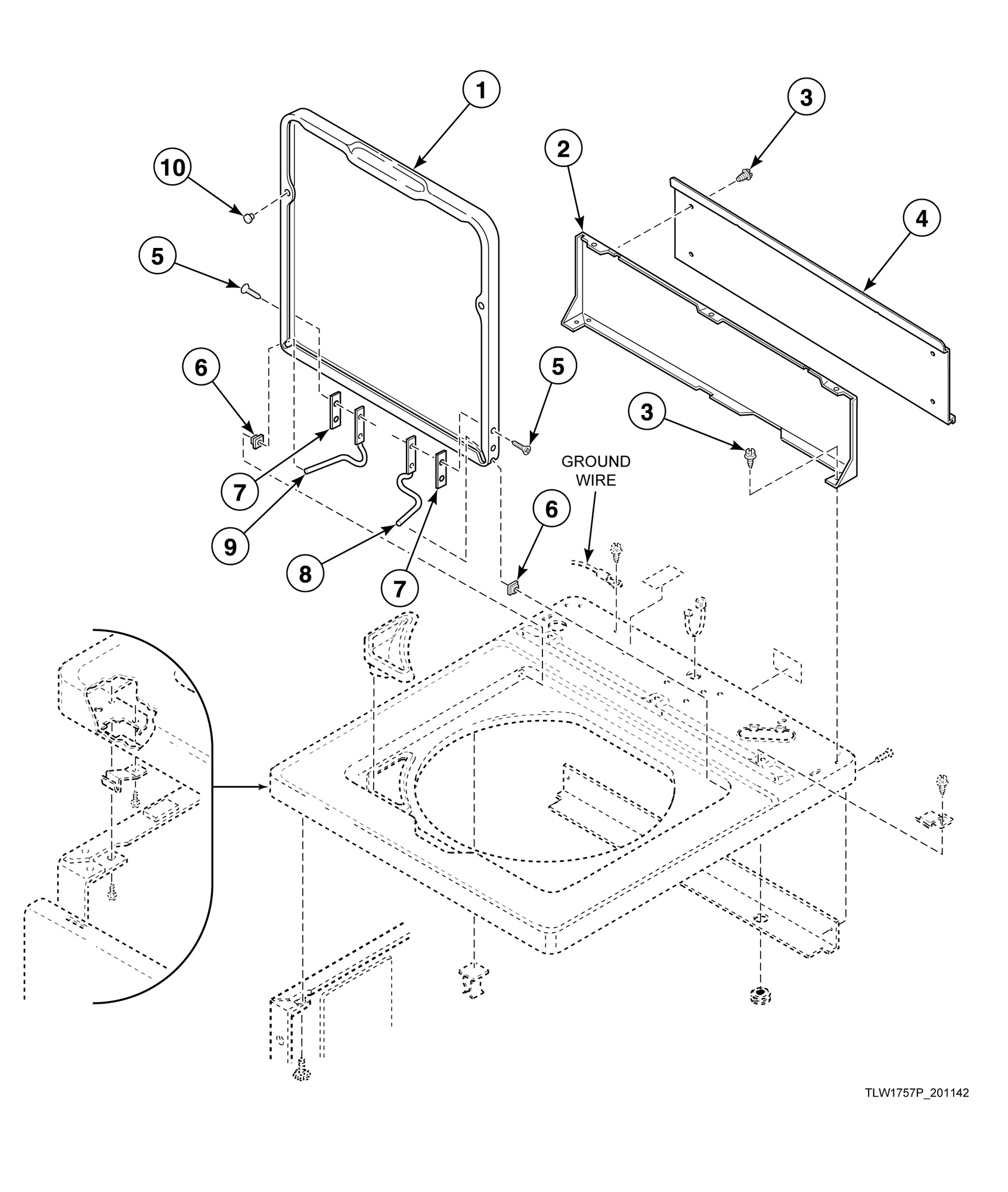

Lid and Hood Back Panel

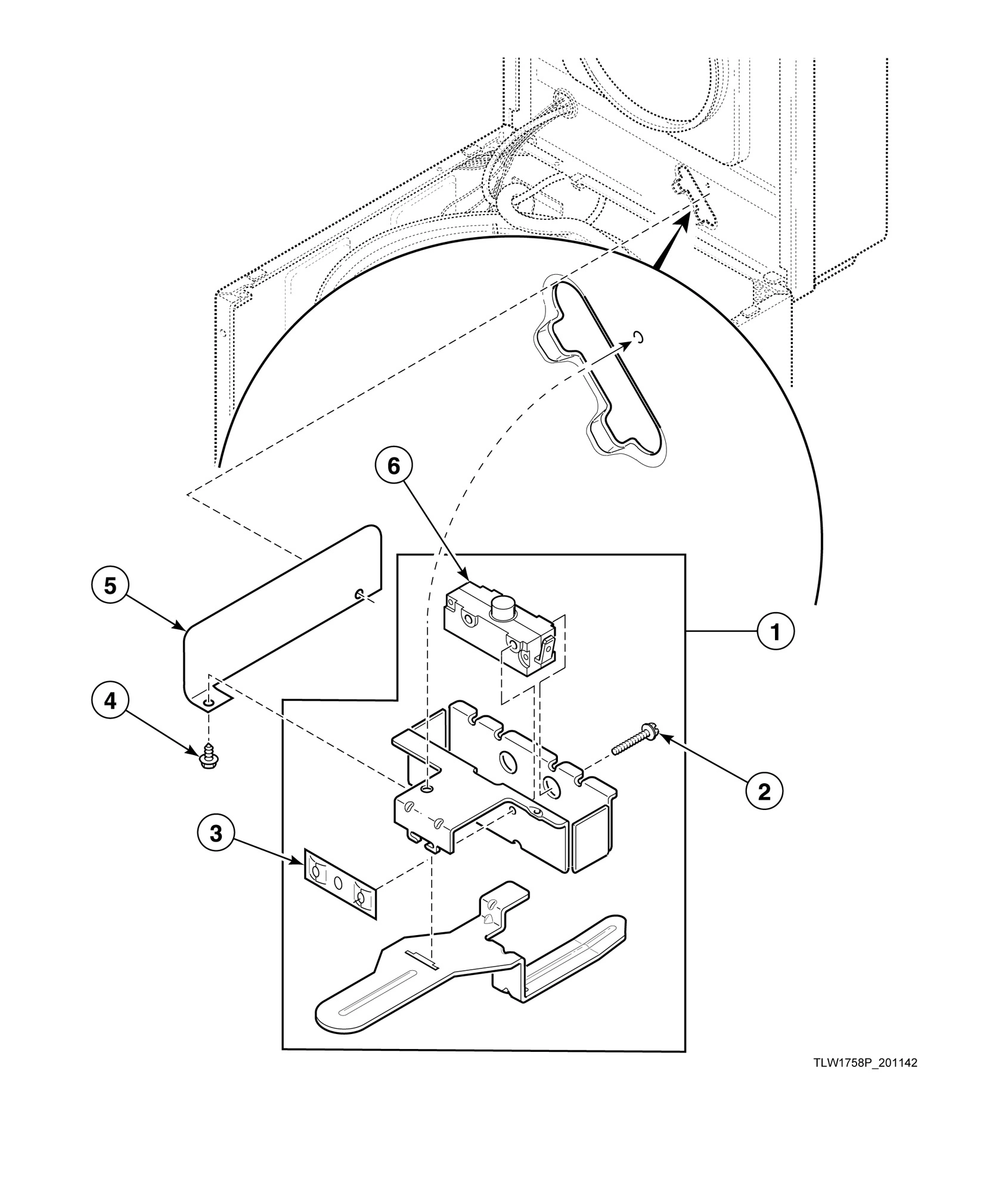

Lid Switch Assembly

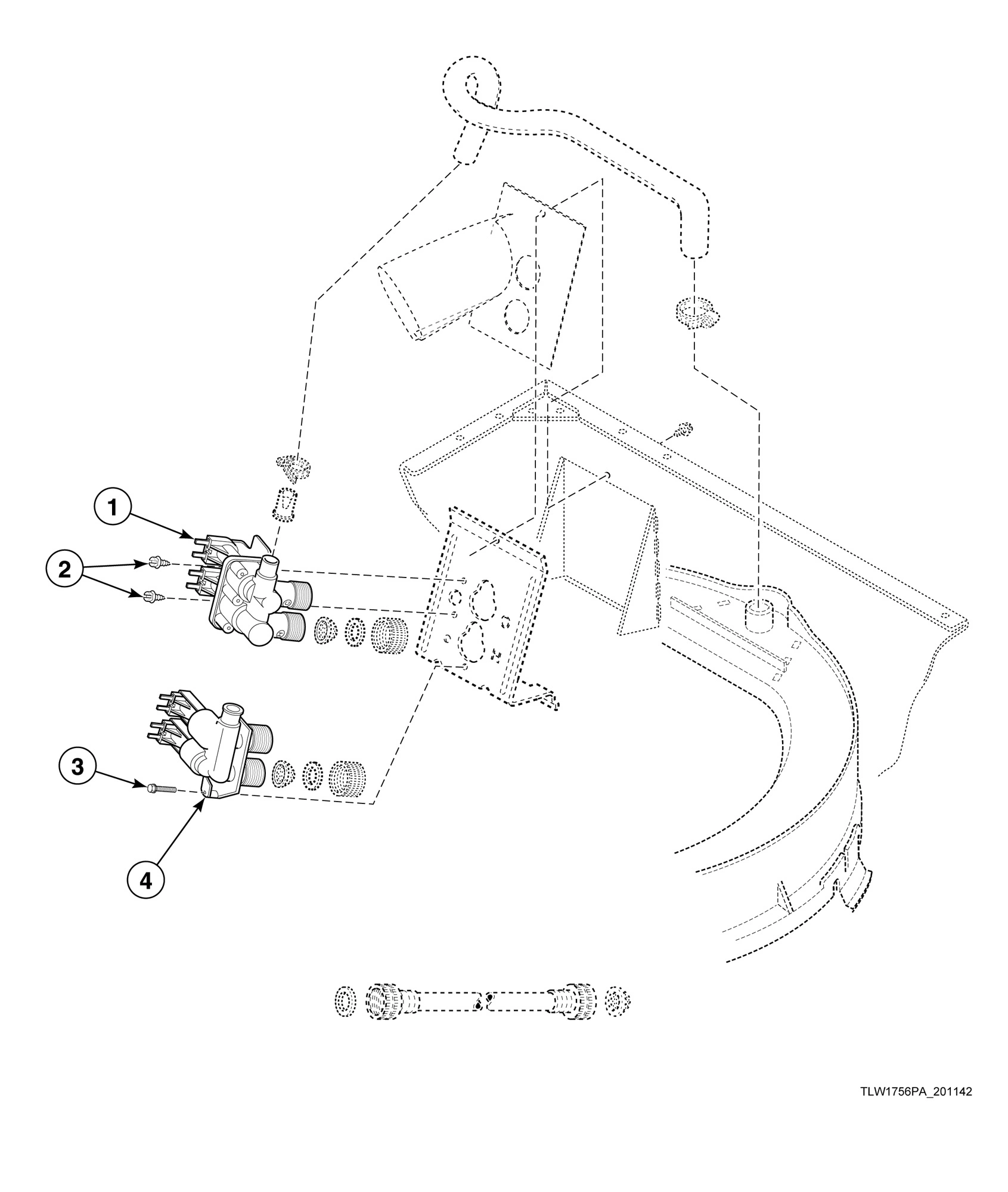

Mixing Valve - All Models Except AWZ53N*-1102 and AWNA62SN301AW01

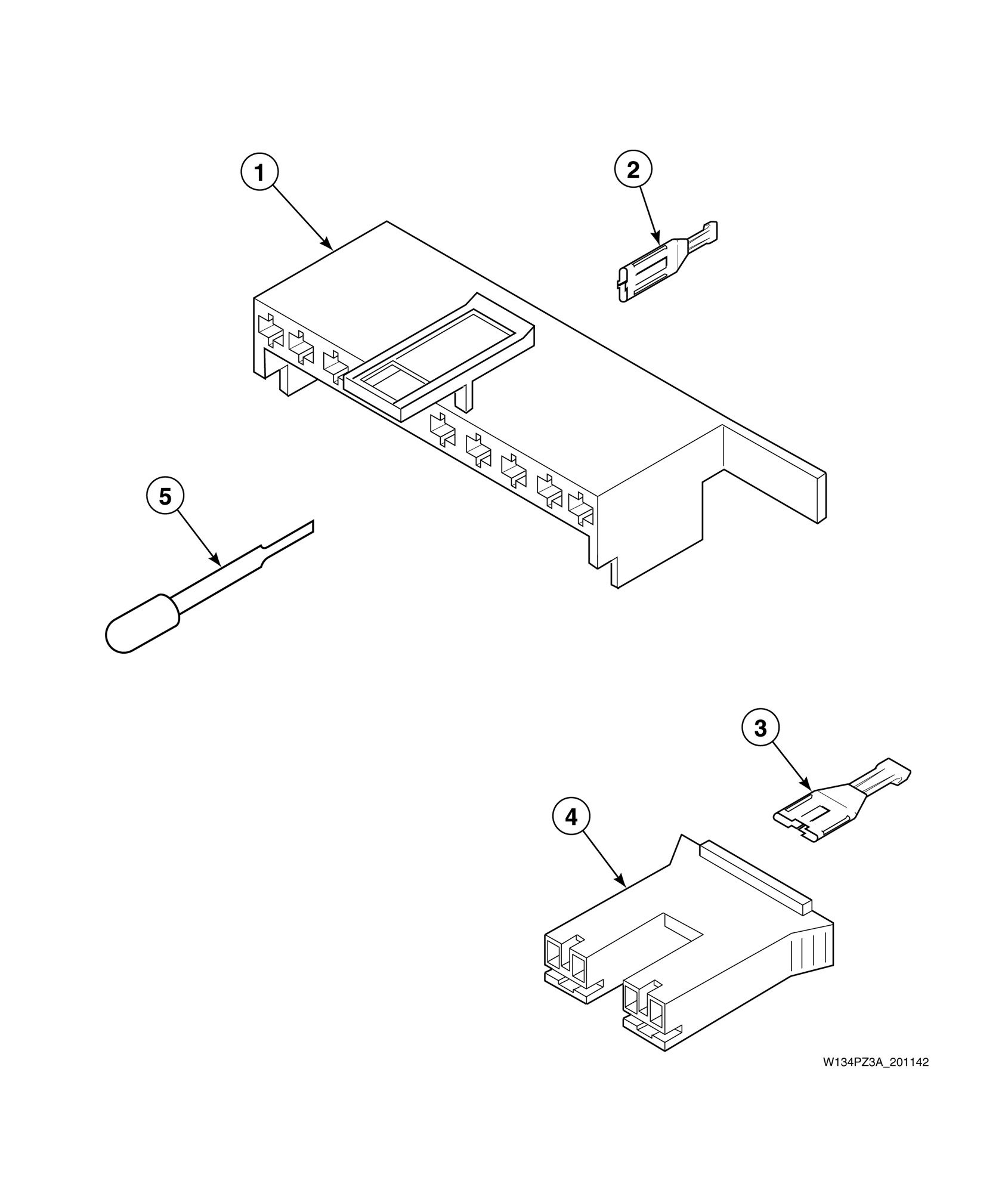

Mixing Valve and Motor Connection Blocks, Terminals and Extractor Tool

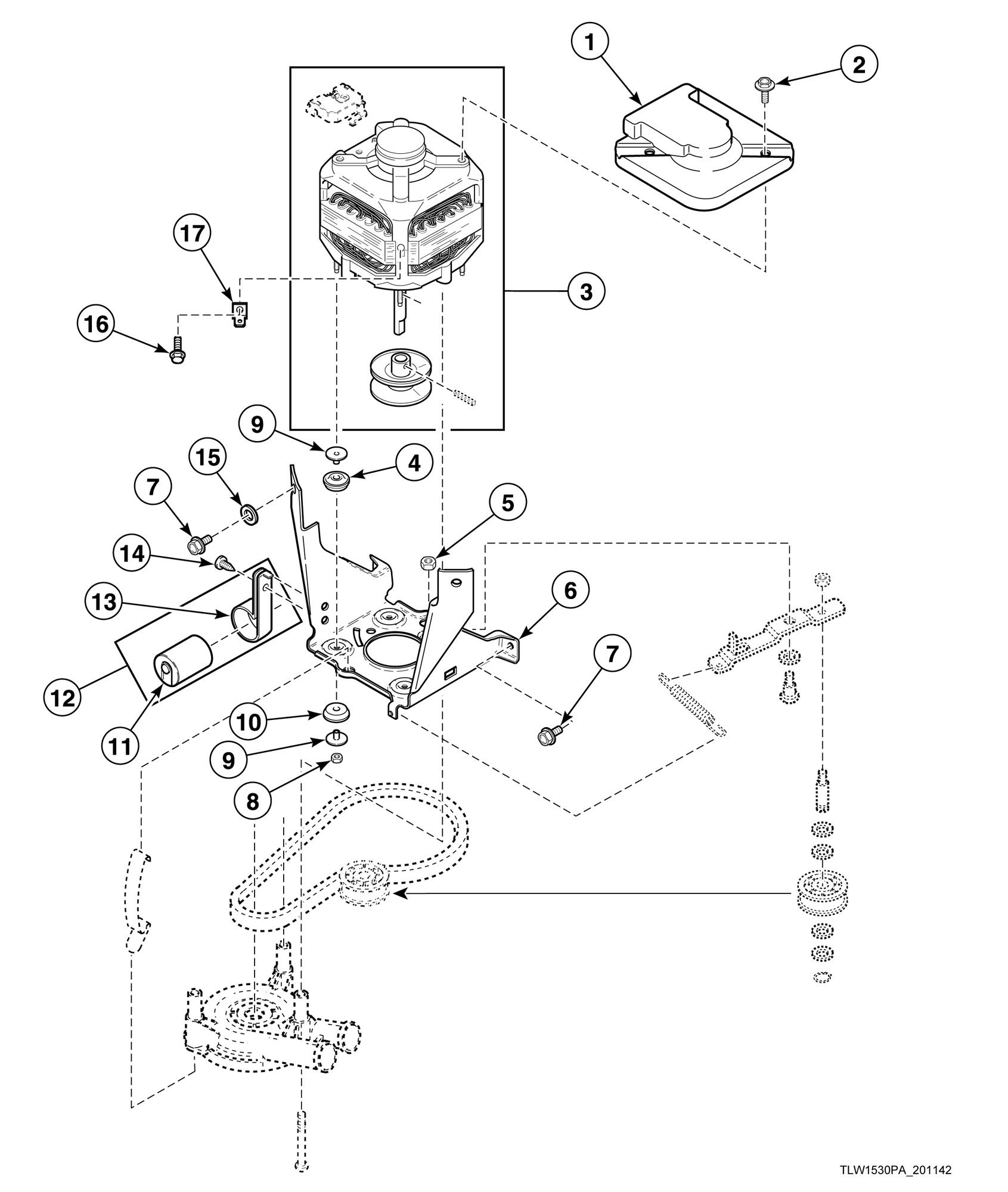

Motor and Mounting Bracket (Drawing 2 of 3)

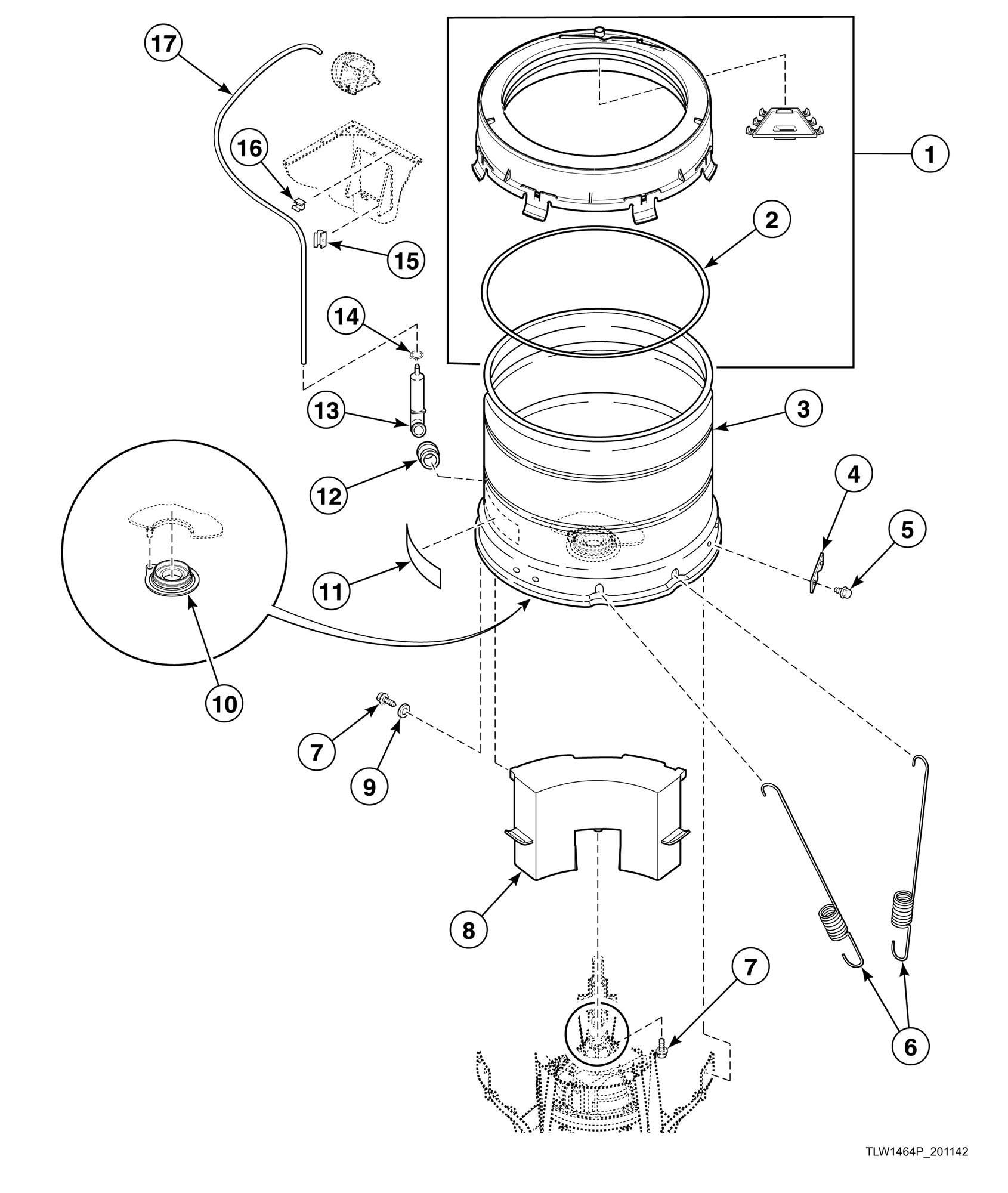

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

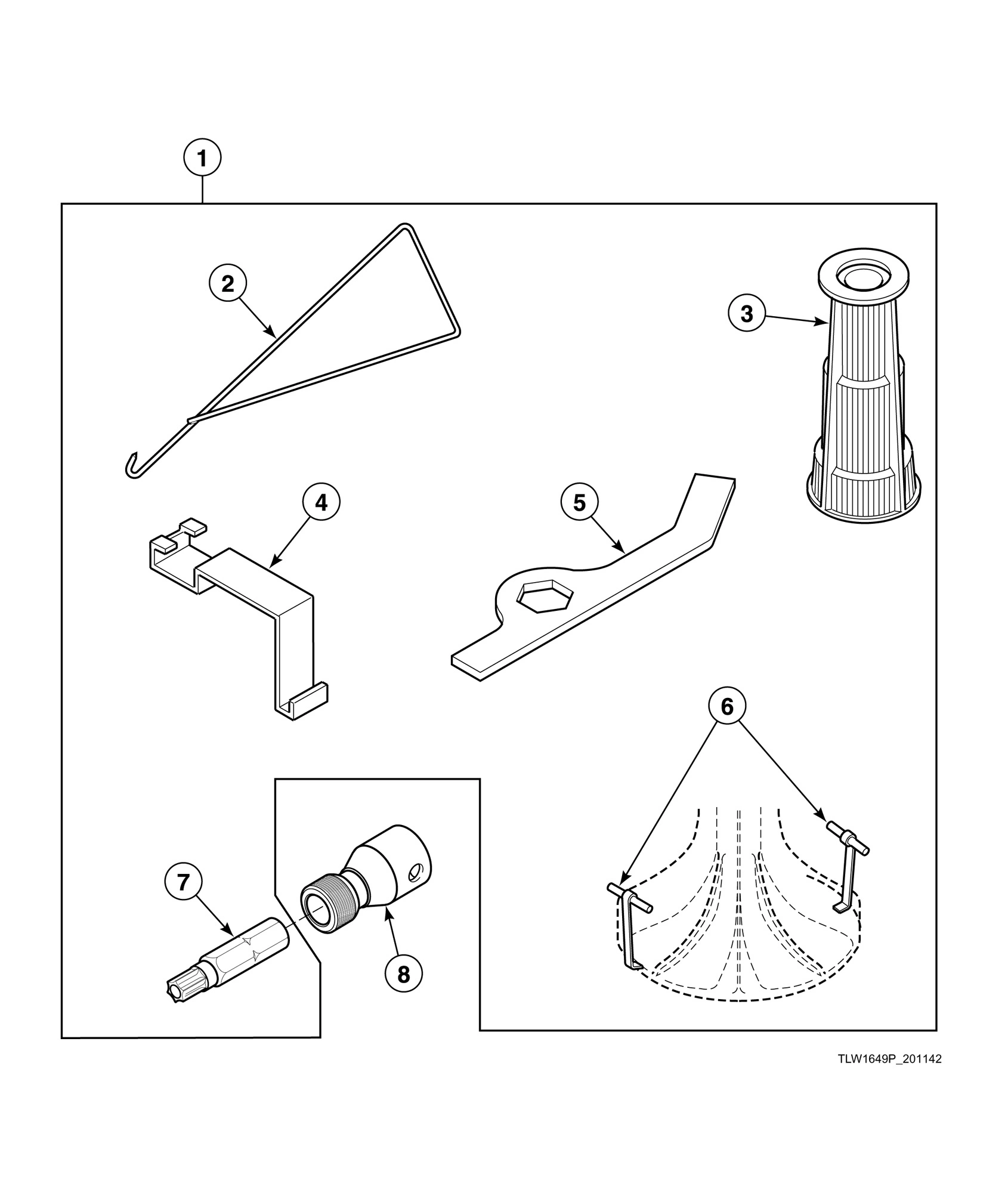

Special Tools

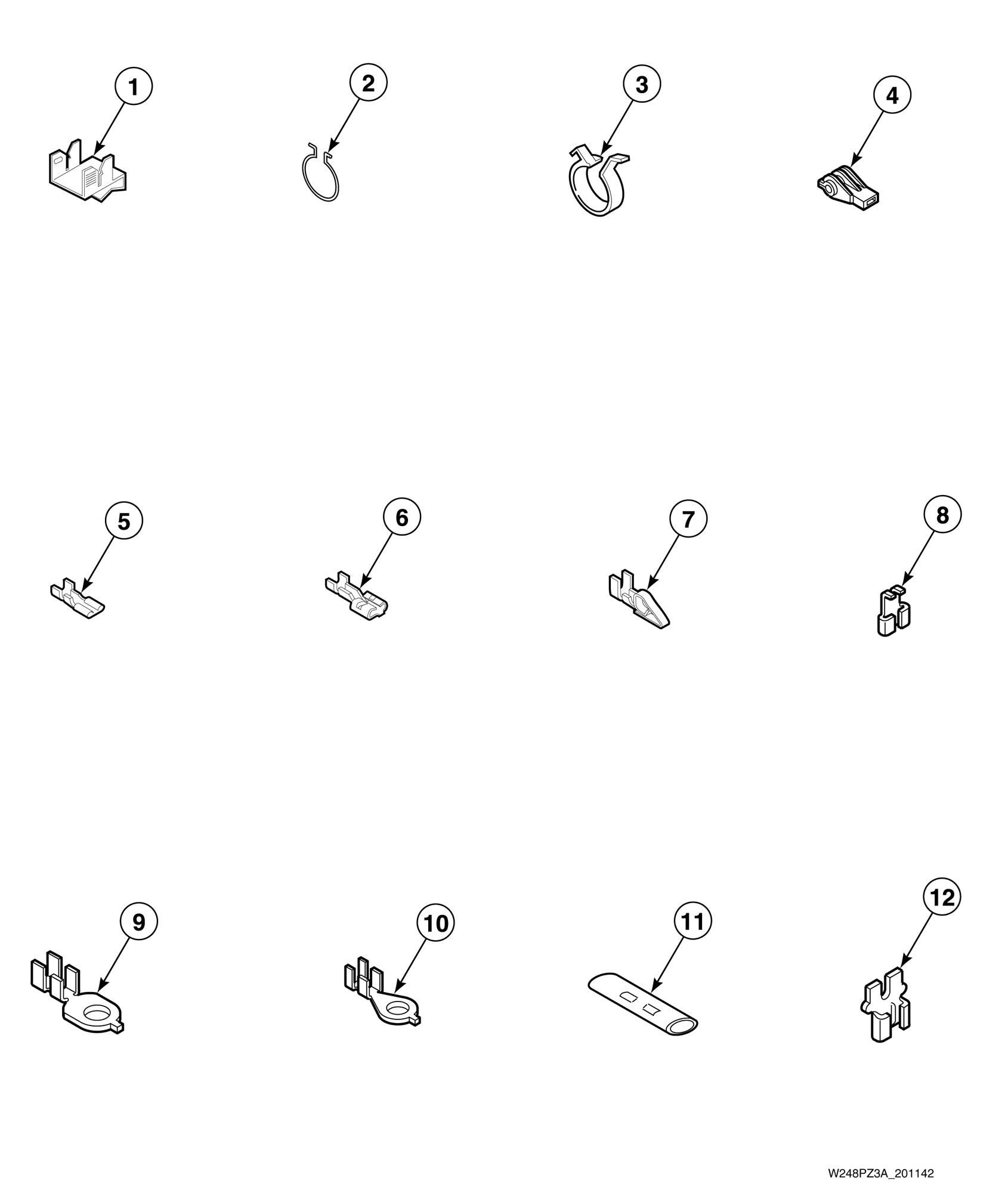

Terminals

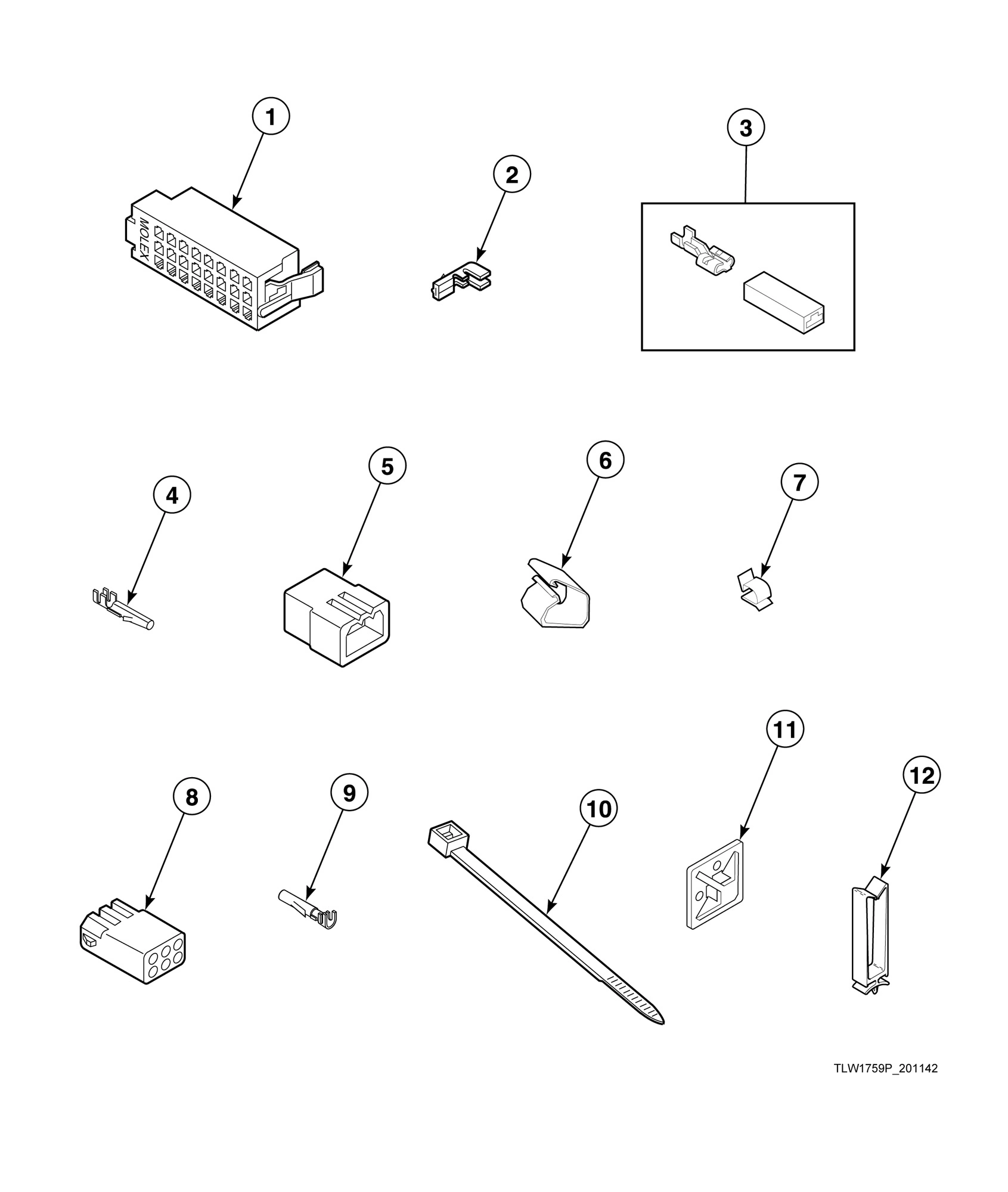

Terminals and Clips

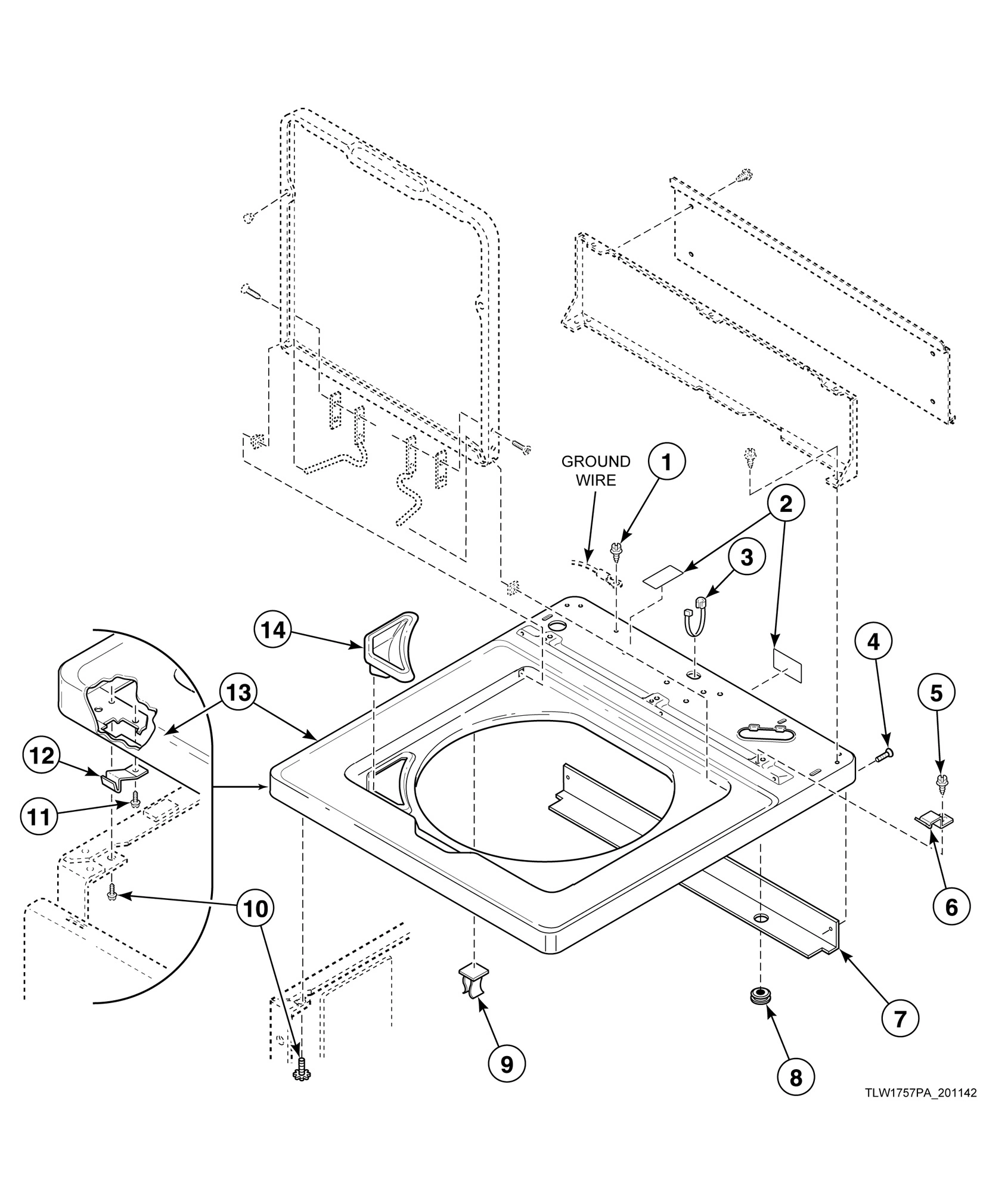

Top

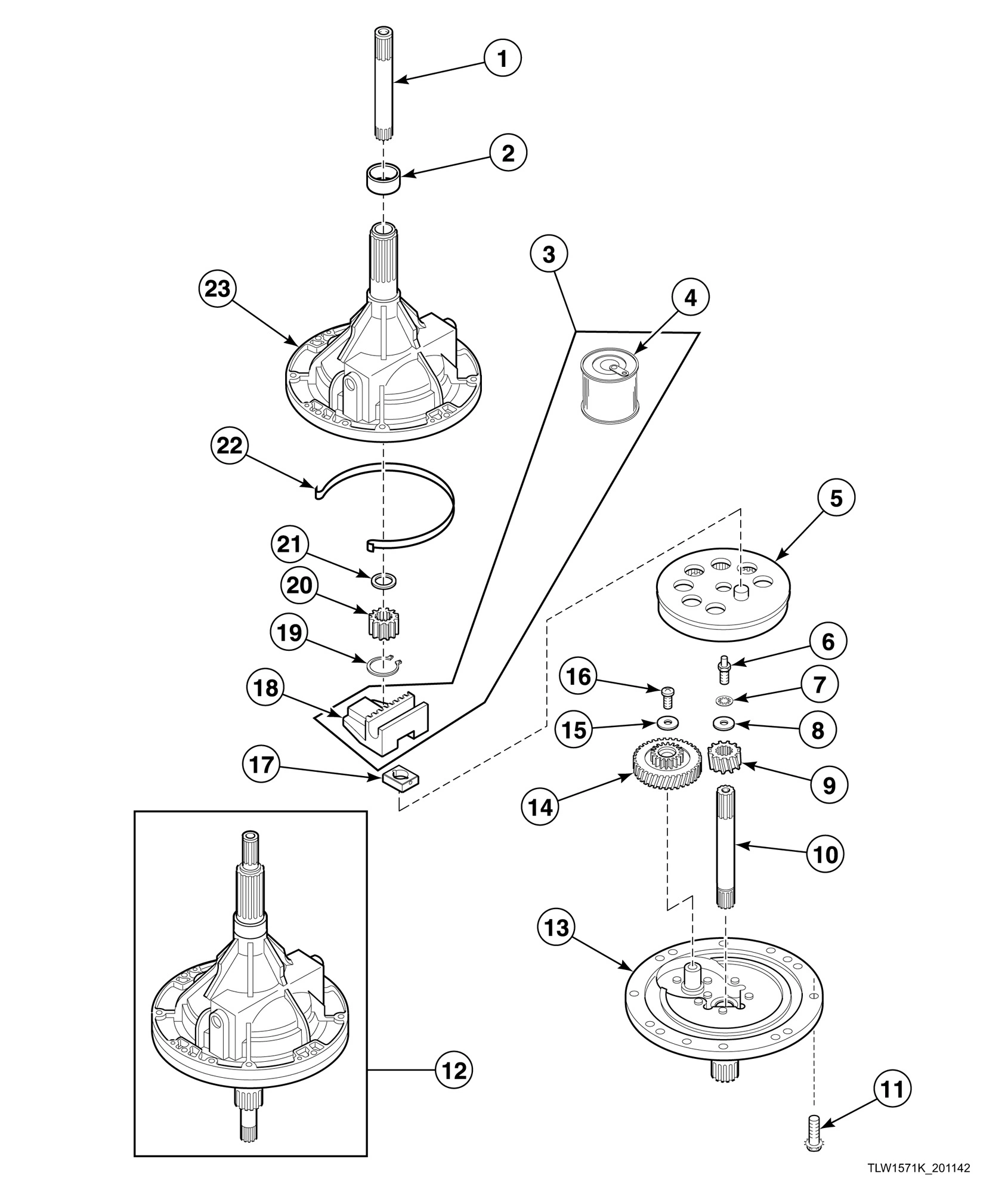

Transmission Assembly (Drawing 1 of 2)
Weldment and Bearing Assembly, Brake and Pulley

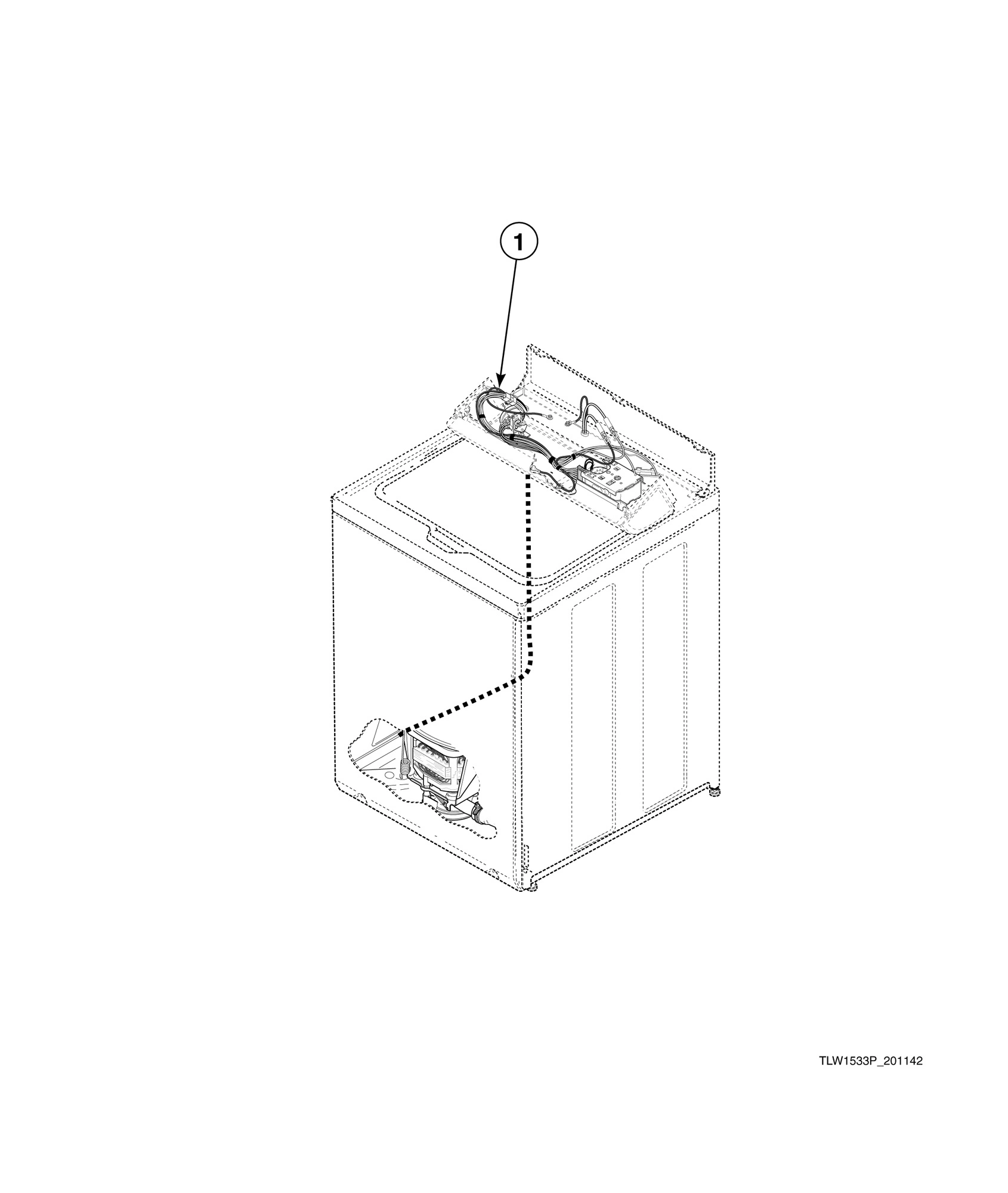

Wire Harnesses and Wires (Drawing 1 of 3)
Wire Harnesses and Wires (Drawing 2 of 3)

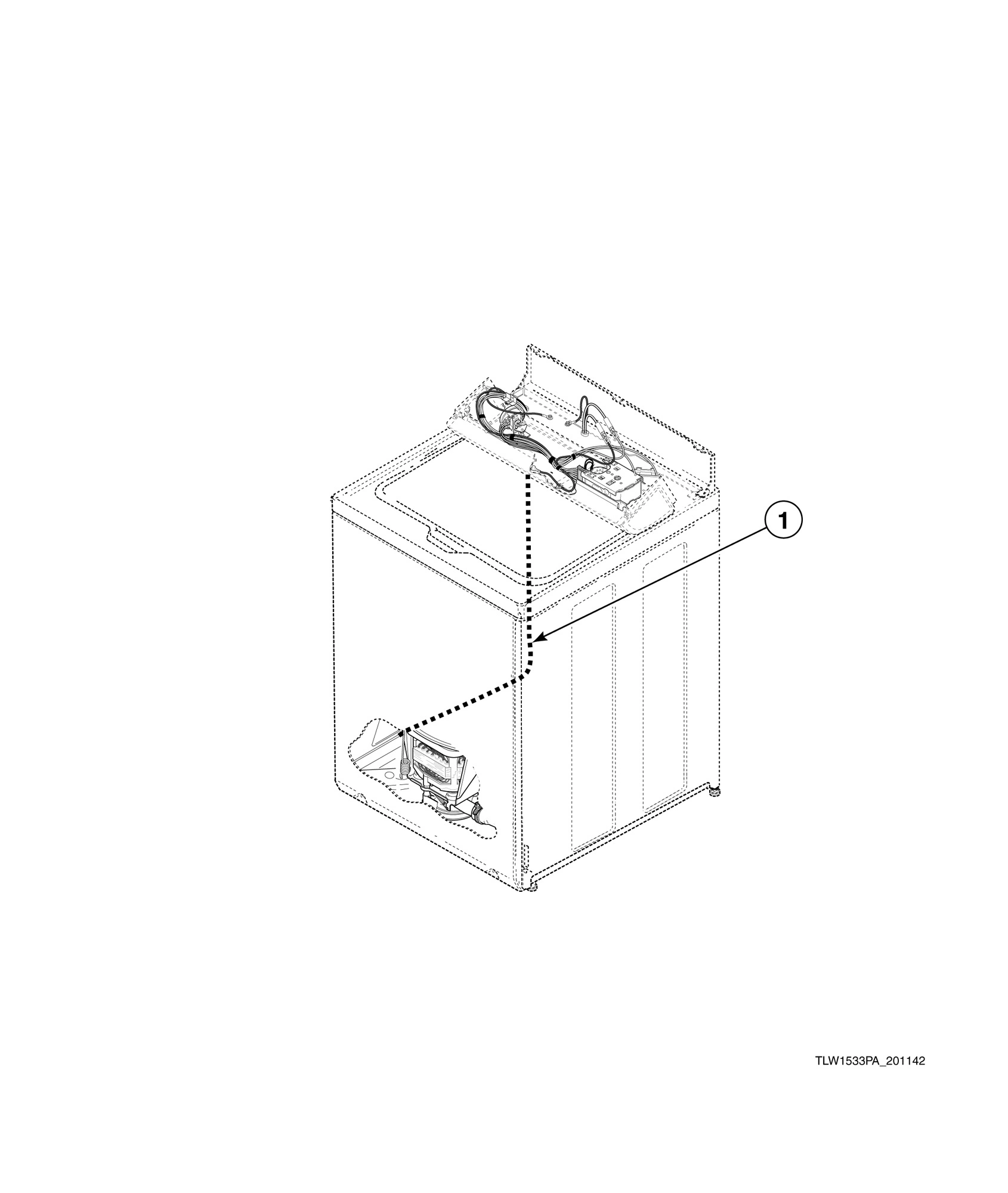

Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model GE AWN552SN301NW22 General Electric Model AWN552SN301NW22
1
Screw GEN 27202 Contact Us For Availability
1
NOT ON YOUR MODEL GEN - Contact Us For Availability
1
Idler Lever Spring GEN 202032 Contact Us For Availability
1
Top Cover (Comment: Bisque) GEN 39905Q Contact Us For Availability
1
Top Cover (Comment: White) GEN 39905W Contact Us For Availability
1
Siphon Break Kit (Comment: Siphon break kit M GEN 562P3 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Screw GEN 52909 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Lid (Comment: Bisque) GEN 201502QP Contact Us For Availability
1
Lid (Comment: White) GEN 201502WP Contact Us For Availability
1
Lid Switch Assembly GEN 37631 Contact Us For Availability
1
Mixing Valve (Comment: 120 Volt, Models throu GEN 38495P Contact Us For Availability
1
Mixing Valve (Comment: 240 Volt) GEN 38918P Contact Us For Availability
1
10 Circuit Plug (Comment: Motor) GEN 34677 Contact Us For Availability
1
Motor Shield GEN 34754 Contact Us For Availability
1
Tub Cover Assembly (Comment: Includes item 2) GEN 39169 Contact Us For Availability
1
24 Position Housing (Comment: Right, Black) GEN 32746 Contact Us For Availability
1
24 Position Housing (Comment: Left, White) GEN 34123 Contact Us For Availability
1
Output Shaft GEN 36570P Contact Us For Availability
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
1
Hood Wire Harness Assembly GEN 202291 Contact Us For Availability
1
Base Wire Harness Assembly GEN 201465P Contact Us For Availability
2
Washer (Comment: Rubber, Use with porcelain w GEN 28094 Contact Us For Availability
2
Nut GEN 28803 Contact Us For Availability
2
Temperature Switch (Comment: 5 position) GEN 35117 Contact Us For Availability
2
Hood Back Panel GEN 39921 Contact Us For Availability
2
Drain Hose Sleeve GEN 33615 Contact Us For Availability
2
Mixing Valve-to-Tub Cover Hose GEN 38155 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Cable Connection Box GEN 39922 Contact Us For Availability
2
Screw GEN M402574 Contact Us For Availability
2
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
2
Screw GEN 36639 Contact Us For Availability
2
Tub Cover Gasket GEN 38359 Contact Us For Availability
2
Wire Clip GEN 51291 Contact Us For Availability
2
Warning Label GEN 39251 Contact Us For Availability
2
Hub Spacer (Comment: Included in 766P3A Hub a GEN 201212 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Balance Ring Assembly GEN 39837 Contact Us For Availability
3
Idler Lever GEN 38011 Contact Us For Availability
3
Pressure Switch GEN 201927P Contact Us For Availability
3
Standpipe Strap GEN 33489 Contact Us For Availability
3
Hose Clamp GEN 800803 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Power Cord Assembly (Comment: starting Serial GEN 39931 Contact Us For Availability
3
Nut GEN M400981 Contact Us For Availability
3
Screw (Comment: Use with item 4) GEN 39397 Contact Us For Availability
3
Female Spade Terminal (Comment: 1/4 inch) GEN 00121 Contact Us For Availability
3
Motor Kit (Comment: 2 speed, 240 Volt/50 Hert GEN 201433P Contact Us For Availability
3
Outer Tub Assembly GEN 200511P Contact Us For Availability
3
Wire Clip GEN 687500 Contact Us For Availability
3
Insulated Female Spade Terminal GEN 00359 Contact Us For Availability
3
Transmission Rebuild Kit (Comment: Includes i GEN RB150004 Contact Us For Availability
3
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads and 6 GEN 735P3 Contact Us For Availability
4
Washtub Kit (Comment: Stainless steel) GEN 719P3 Contact Us For Availability
4
Washer GEN 81392 Contact Us For Availability
4
Drain Hose GEN 39864 Contact Us For Availability
4
Bumper Pad GEN 36226 Contact Us For Availability
4
Lead-In Wire Harness Assembly GEN 39923 Contact Us For Availability
4
Mixing Valve (Comment: 120 Volt, All other Al GEN 201402P Contact Us For Availability
4
Mixing Valve Plug (Comment: Natural) GEN 34675 Contact Us For Availability
4
Mixing Valve Plug (Comment: Red) GEN 34676 Contact Us For Availability
4
Motor Mount GEN 38395 Contact Us For Availability
4
Leg Plate GEN 27926 Contact Us For Availability
4
Insulator GEN 70210 Contact Us For Availability
4
Male Pin Terminal GEN 00116 Contact Us For Availability
4
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Washtub Gasket GEN 39122 Contact Us For Availability
5
Screw GEN 27229 Contact Us For Availability
5
Screw GEN 23962 Contact Us For Availability
5
Option Switch GEN 36951 Contact Us For Availability
5
Hose Stand GEN 38732 Contact Us For Availability
5
Mixing Valve Mounting Bracket GEN 39407 Contact Us For Availability
5
Screw GEN 51780 Contact Us For Availability
5
Electrical Shock Label GEN D502511 Contact Us For Availability
5
Screw GEN 34337 Contact Us For Availability
5
Terminal Extractor Tool GEN 283P4 Contact Us For Availability
5
Nut GEN 52566 Contact Us For Availability
5
Screw GEN 35369 Contact Us For Availability
5
Female Spade Terminal (Comment: Small spade) GEN 00112 Contact Us For Availability
5
9 Circuit Plug GEN 23033 Contact Us For Availability
5
6 Circuit Plug GEN 23041 Contact Us For Availability
5
1 Circuit Plug GEN 26302 Contact Us For Availability
5
Gear and Stud Assembly GEN 26577 Contact Us For Availability
5
Washer (Comment: Thin) GEN 35535 Contact Us For Availability
6
Idler Shaft (Comment: Models starting Serial GEN 210186 Contact Us For Availability
6
Shaft (Comment: Models through Serial No. 010 GEN 56461P Contact Us For Availability
6
Harness Clip GEN N/A Contact Us For Availability
6
Timer GEN 37004P Contact Us For Availability
6
Drain Pump GEN 39255P Contact Us For Availability
6
Fill Hose Kit (Comment: 5 feet, Includes 2 of GEN 38349P Contact Us For Availability
6
Water Hose (Comment: 5 feet, Includes items 7 GEN F200116 Contact Us For Availability
6
Hold-Down Clip GEN 35358 Contact Us For Availability
6
Bushing GEN 33446 Contact Us For Availability
6
Switch GEN 33445 Contact Us For Availability
6
Motor Mount Bracket GEN 200941 Contact Us For Availability
6
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
6
Screw GEN 201773 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Spline Insert GEN 29728 Contact Us For Availability
7
Washer (Comment: Models starting Serial No. 0 GEN D504082 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
7
Cable Clip GEN 21036 Contact Us For Availability
7
Torx Bit (Comment: T25, For removal and insta GEN 282P4 Contact Us For Availability
7
Washer (Comment: Models through Serial No. 97 GEN 21456 Contact Us For Availability
7
Pulley GEN 202795 Contact Us For Availability
8
Nut GEN 29220 Contact Us For Availability
8
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
8
End Panel (Comment: Almond, Right) GEN D504008L Contact Us For Availability
8
End Panel (Comment: Bisque, Right) GEN D504008QP Contact Us For Availability
8
End Panel (Comment: White, Right) GEN D504008WP Contact Us For Availability
8
Pump Bracket GEN 38789 Contact Us For Availability
8
Fill Hose (Comment: 8 feet, 2 U.S. standard t GEN 20617 Contact Us For Availability
8
Fill Hose (Comment: 10 feet, 2 U.S. standard GEN 20618 Contact Us For Availability
8
Fill Hose (Comment: 8 feet, 1 U.S. standard t GEN 37380 Contact Us For Availability
8
Fill Hose (Comment: 10 feet, 1 U.S. standard GEN 37381 Contact Us For Availability
8
Warning Label GEN 803260 Contact Us For Availability
8
Graphic Panel GEN 202168W Contact Us For Availability
8
Lid Hinge (Comment: Right) GEN 36437 Contact Us For Availability
8
Nut GEN 35423 Contact Us For Availability
8
Female Flag Terminal GEN 00120 Contact Us For Availability
8
9 Circuit Receptacle GEN 26163 Contact Us For Availability
8
1 Circuit Receptacle GEN 26301 Contact Us For Availability
8
6 Circuit Receptacle GEN 26708 Contact Us For Availability
8
Screw GEN 27220 Contact Us For Availability
9
Bell and Transmission Tube Seal GEN 36425 Contact Us For Availability
9
Retaining Ring GEN 23748 Contact Us For Availability
9
Screw (Comment: Metric) GEN 38096 Contact Us For Availability
9
Washer GEN 20290 Contact Us For Availability
9
Service Cabinet Kit (Comment: Almond) GEN 38612LP Contact Us For Availability
9
Service Cabinet Kit (Comment: Bisque) GEN 38612QP Contact Us For Availability
9
Service Cabinet Kit (Comment: White) GEN 38612WP Contact Us For Availability
9
Timer Skirt Assembly GEN 803116 Contact Us For Availability
9
Lid Hinge (Comment: Left) GEN 36513 Contact Us For Availability
9
Isolator Post GEN 38325 Contact Us For Availability
9
Female Pin Terminal GEN 00117 Contact Us For Availability
9
Hinge Stop Clip GEN 36519 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
9
Drive Pinion (Comment: Use with 38165P Transm GEN 37405 Contact Us For Availability
9
Drive Pinion (Comment: Use with 38826P Transm GEN 37406P Contact Us For Availability
10
Sealant (Comment: Use with hub and lip seal k GEN 200996P Contact Us For Availability
10
Hub and Lip Seal Kit (Comment: Do NOT use any GEN 766P3A Contact Us For Availability
10
Lint Filter GEN 39371 Contact Us For Availability
10
Idler Lever and Belt Kit GEN 202972 Contact Us For Availability
10
Control Support Panel GEN 38171 Contact Us For Availability
10
Screw GEN D503661 Contact Us For Availability
10
Screw GEN 33562 Contact Us For Availability
10
Cap (Comment: Use to cap off hot water side o GEN 24145 Contact Us For Availability
10
Screw GEN 27196 Contact Us For Availability
10
Timer Knob Assembly GEN 202133 Contact Us For Availability
10
Bumper GEN 21685 Contact Us For Availability
10
Motor Mount GEN 38396 Contact Us For Availability
10
Ring Terminal (Comment: Small shank) GEN 00110 Contact Us For Availability
10
Harness Strap GEN 55881 Contact Us For Availability
10
Input Shaft GEN 38268P Contact Us For Availability
10
Helix GEN 38008 Contact Us For Availability
11
Drive Bell and Seal Kit (Comment: Includes it GEN 39508P Contact Us For Availability
11
Idler Pulley GEN 38225P Contact Us For Availability
11
Screw GEN D501086 Contact Us For Availability
11
End Panel (Comment: Bisque, Left) GEN D504009QP Contact Us For Availability
11
End Panel (Comment: White, Left) GEN D504009WP Contact Us For Availability
11
Pump Isolator GEN 38095 Contact Us For Availability
11
Mixing Valve Screen GEN 24122 Contact Us For Availability
11
Leg and Stabilizer Assembly GEN 34443 Contact Us For Availability
11
Control Knob Assembly GEN 803119P Contact Us For Availability
11
Warning Label GEN D500049 Contact Us For Availability
11
Connector (Comment: (2) 1/4 inch male spades) GEN 21091 Contact Us For Availability
11
Screw GEN 32814 Contact Us For Availability
11
Lower Bearing GEN 28944RP Contact Us For Availability
12
Screw GEN 39432 Contact Us For Availability
12
Screw (Comment: Models through Serial No. 020 GEN 34565 Contact Us For Availability
12
Agitate and Spin Belt GEN 200923 Contact Us For Availability
12
Pump Shield GEN 38768 Contact Us For Availability
12
Mixing Valve Kit (Comment: Includes 201402 Mi GEN RB150001 Contact Us For Availability
12
Screw GEN 35148 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Connector GEN F140562 Contact Us For Availability
12
Wire Clip (Comment: 0.93 inch wide) GEN 70366201 Contact Us For Availability
12
Hold-Down Clip (Comment: Use for older style GEN 38271 Contact Us For Availability
12
Transmission Assembly (Comment: 710 RPM, High GEN 38165P Contact Us For Availability
13
Bell Plug GEN 36511 Contact Us For Availability
13
Spring Clip (Comment: Models starting Serial GEN 210202 Contact Us For Availability
13
Hose Clamp GEN 20391 Contact Us For Availability
13
Backflow Preventer GEN 34500 Contact Us For Availability
13
Bracket (Comment: Right) GEN 36036 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
13
Top (Comment: Almond) GEN 37992LP Contact Us For Availability
13
Top (Comment: Bisque) GEN 37992QP Contact Us For Availability
13
Top (Comment: White) GEN 37992WP Contact Us For Availability
13
Transmission Cover Assembly GEN 37471 Contact Us For Availability
14
Flex Vane Agitator (Comment: Flex vane) GEN 36507 Contact Us For Availability
14
Retainer Clip GEN 36014 Contact Us For Availability
14
Hose Clamp GEN 36801 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Hose Clamp GEN 39282 Contact Us For Availability
14
Bleach Dispenser GEN 34776 Contact Us For Availability
14
Reduction Gear (Comment: Use with 38826P Tran GEN 37403P Contact Us For Availability
14
Reduction Gear (Comment: Use with 38165P Tran GEN 37404P Contact Us For Availability
15
Fabric Softener Dispenser Assembly GEN 36542 Contact Us For Availability
15
Tub-to-Pump Hose GEN 38759 Contact Us For Availability
15
Base Assembly GEN 39788 Contact Us For Availability
15
Washer GEN 37772 Contact Us For Availability
15
Hose Clip GEN 36985 Contact Us For Availability
15
Washer GEN 29260 Contact Us For Availability
16
Roll Pin (Comment: Models through Serial No. GEN 10416 Contact Us For Availability
16
Hose Clamp GEN F200204 Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Screw GEN 20530 Contact Us For Availability
16
Screw GEN 29273 Contact Us For Availability
17
Strain Relief GEN 32219 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Male Tab Terminal GEN 00177 Contact Us For Availability
17
Tubing GEN 202700 Contact Us For Availability
17
Slide GEN 26493 Contact Us For Availability
18
Rack GEN 201664 Contact Us For Availability
19
Friction Ring GEN 37937 Contact Us For Availability
19
Retaining Ring GEN 27197 Contact Us For Availability
20
Adjustable Leg Extension Kit GEN 566P3 Contact Us For Availability
20
Agitator Pinion GEN 27003 Contact Us For Availability
21
Bracket (Comment: Left) GEN 36037 Contact Us For Availability
21
Washer GEN 35092 Contact Us For Availability
22
Panel Locator GEN 28102 Contact Us For Availability
22
Gear Sleeve GEN 38864 Contact Us For Availability
23
Screw GEN 38272 Contact Us For Availability
23
Transmission Case Assembly GEN 33223P Contact Us For Availability
24
Front Panel (Comment: Almond) GEN 38335LP Contact Us For Availability
24
Front Panel (Comment: Bisque) GEN 38335QP Contact Us For Availability
24
Front Panel (Comment: White) GEN 38335WP Contact Us For Availability
25
Hold-Down Clip (Comment: New style panel atta GEN 35865 Contact Us For Availability
26
Front Panel Brace GEN 35097 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Almond) GEN 215P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Bisque) GEN 370P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
NA
Transmission Sealant (Comment: Use GEN 37577P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
