Model GE AWN542SP111TWAH General Electric Model AWN542SP111TWAH – Common Parts & Diagrams

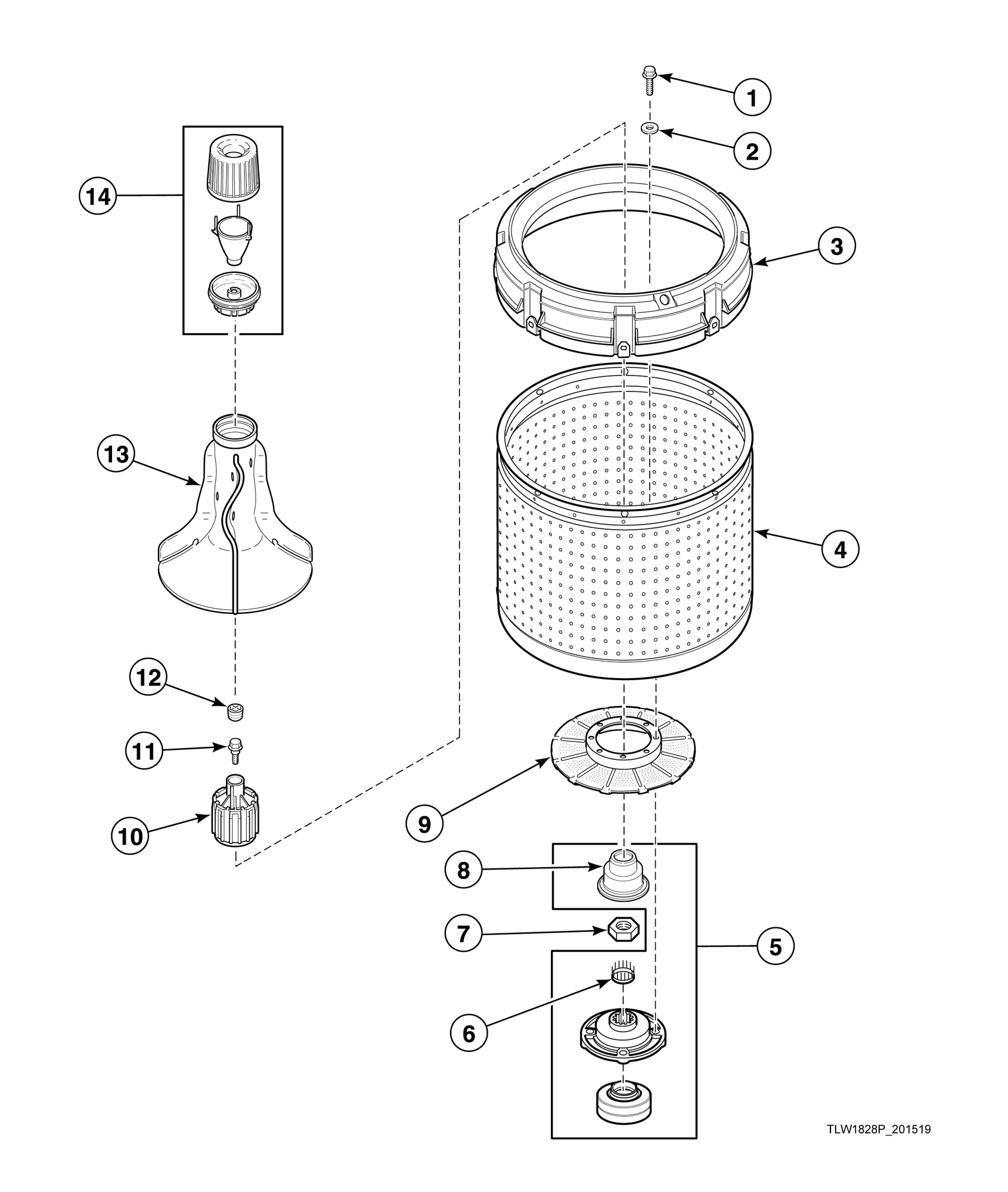

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub

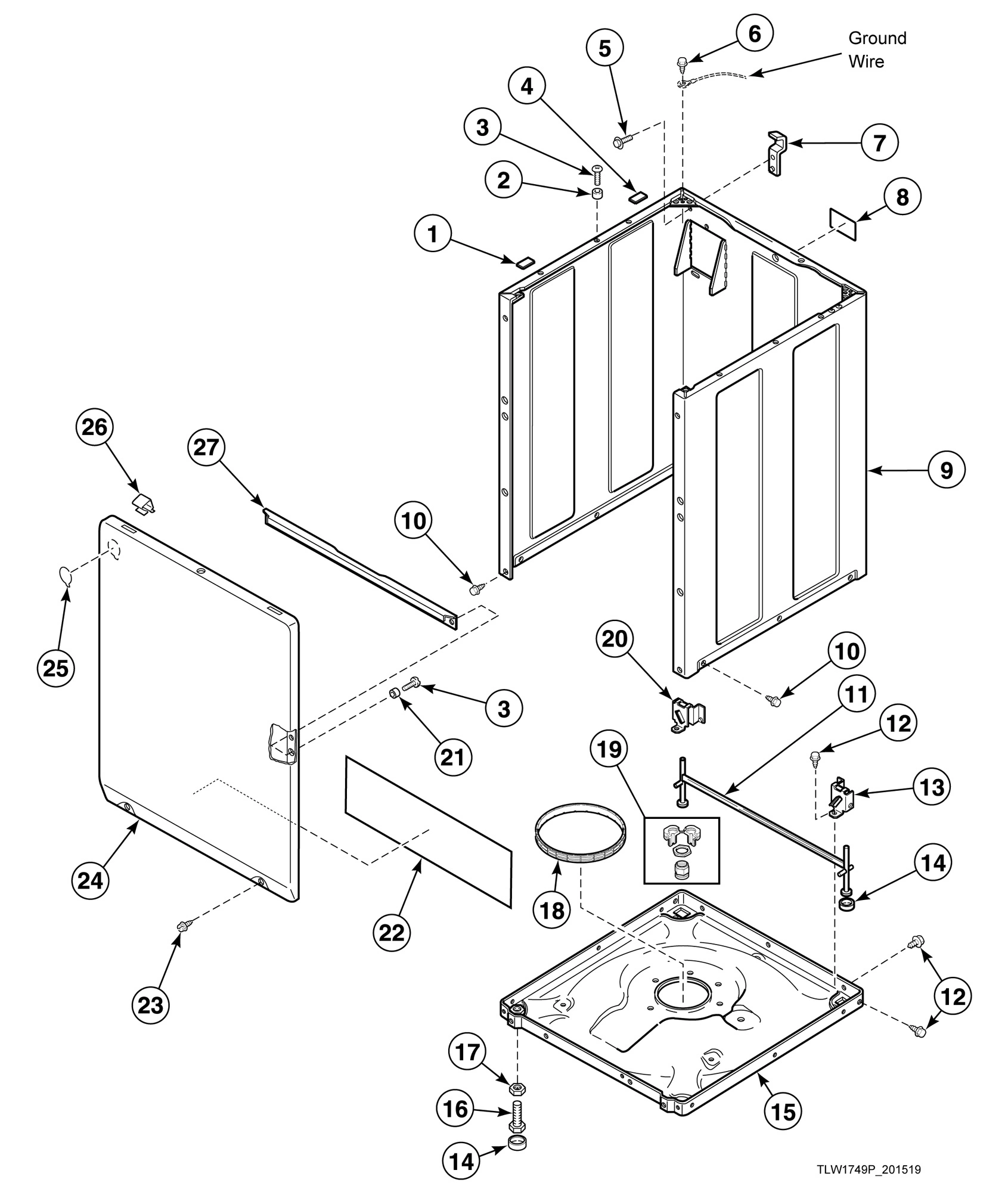

Front Panel, Base Assembly and Cabinet Kit

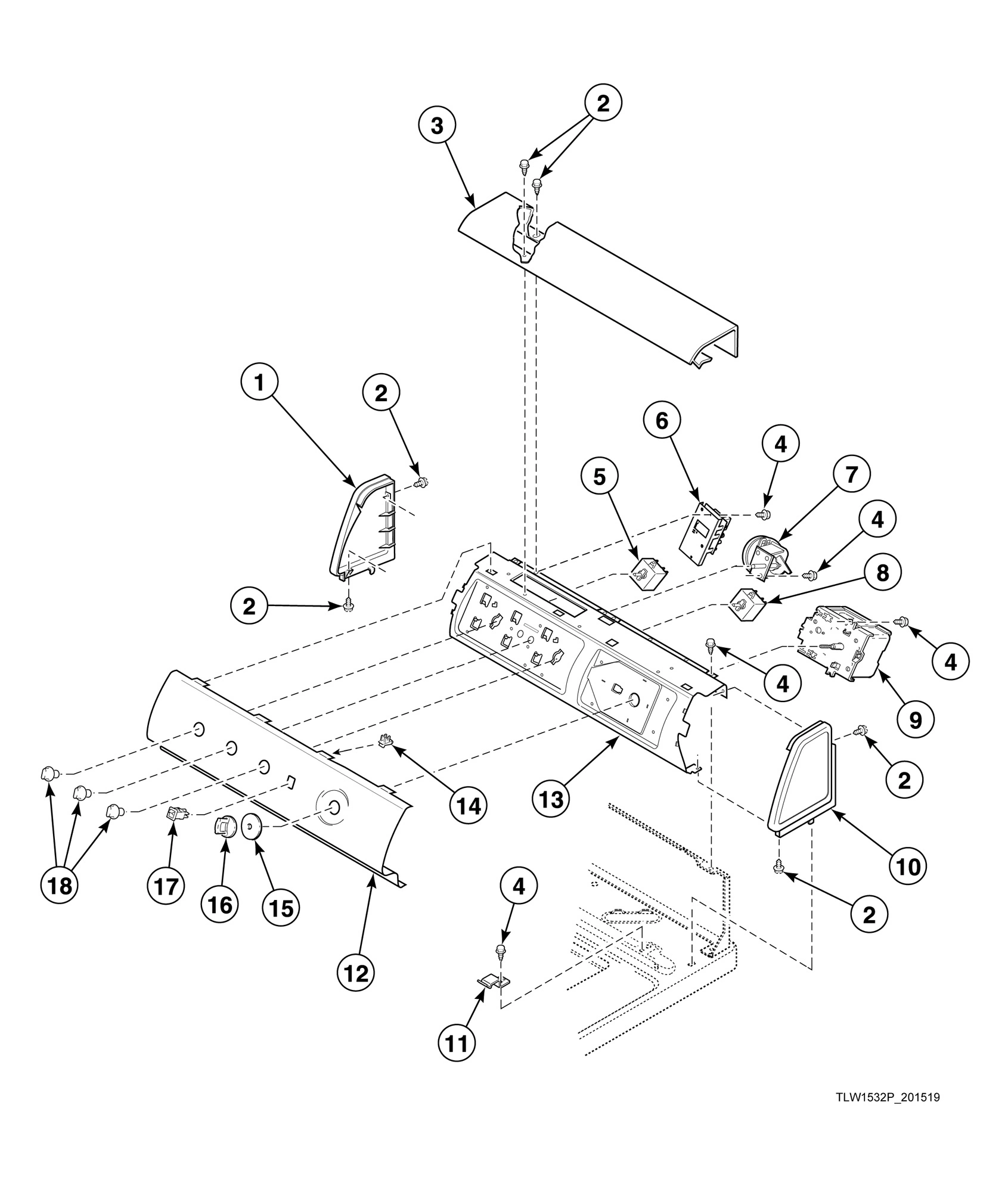

Graphic Panel, Control Support Panel and Controls

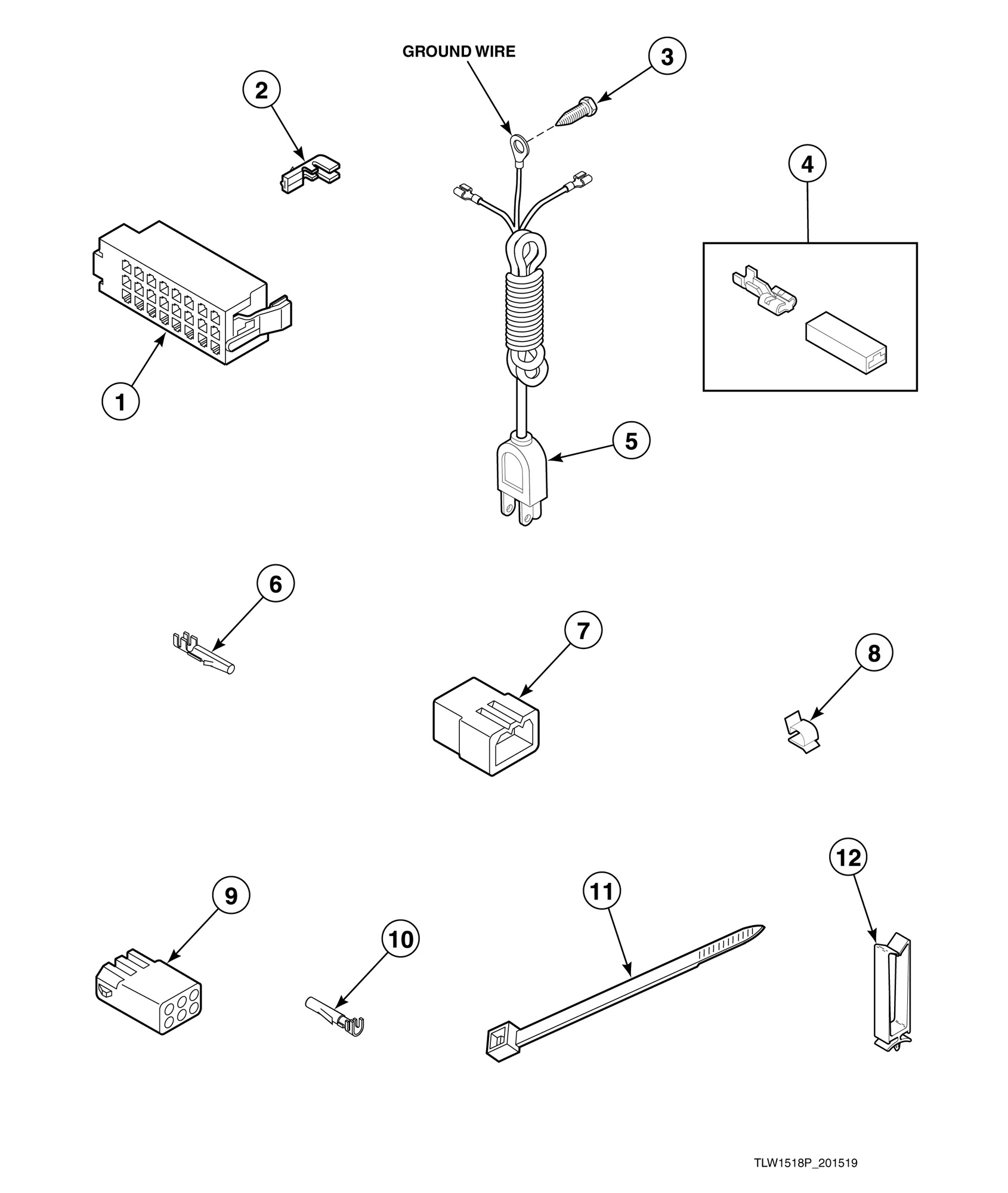

Lead-In Cord and Terminals

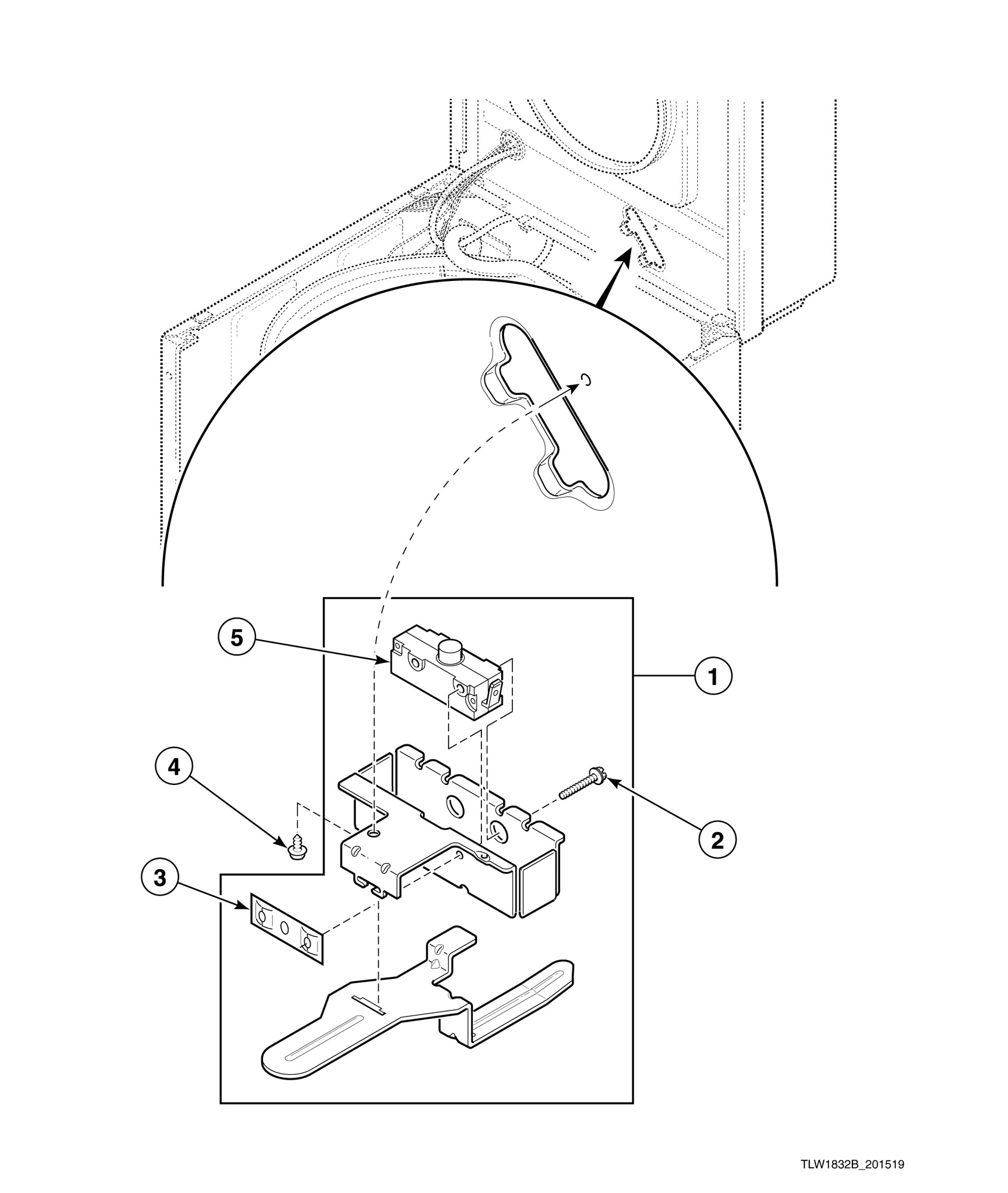

Lid Switch Assembly

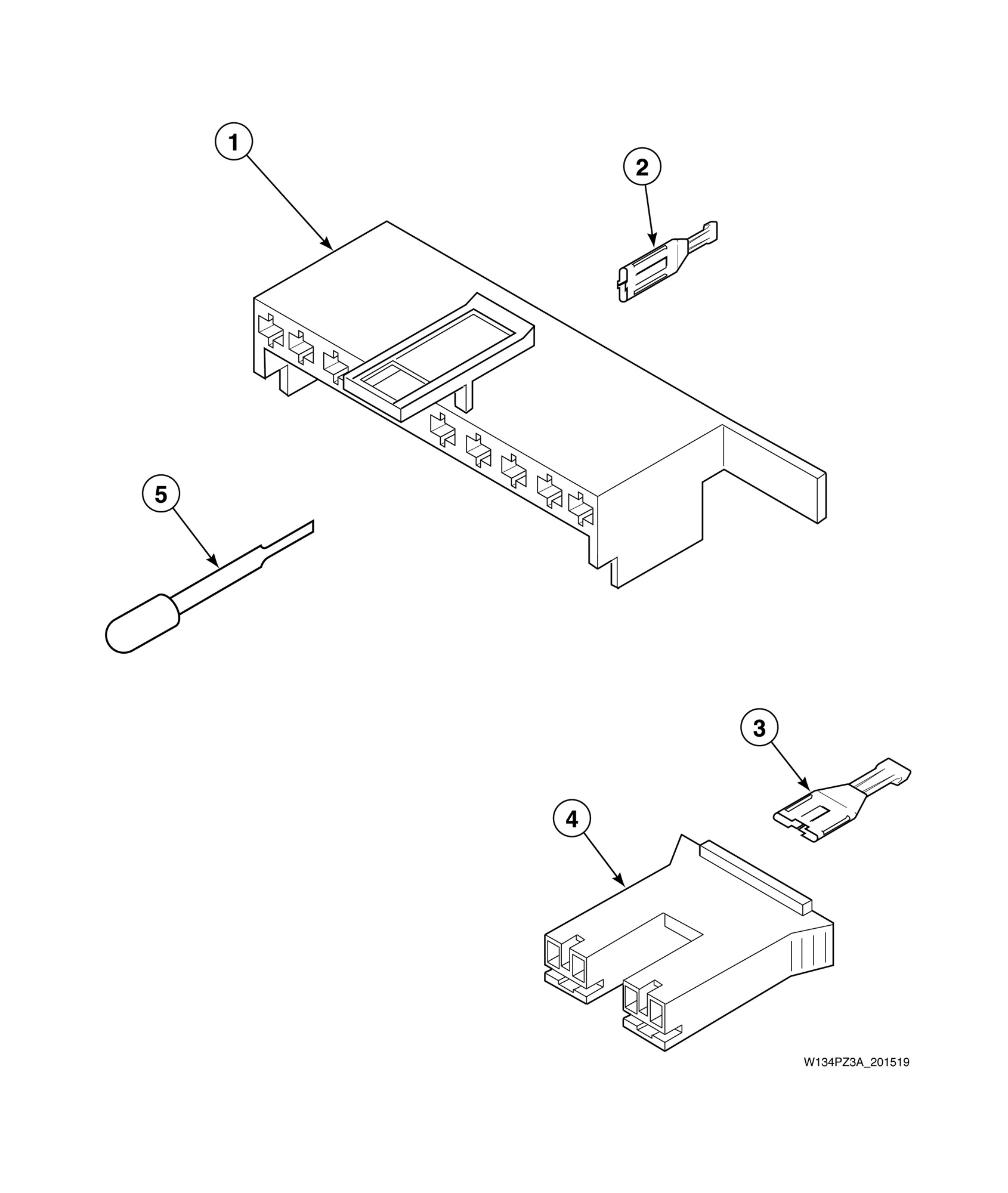

Mixing Valve and Motor Connection Blocks, Terminals and Extractor Tool

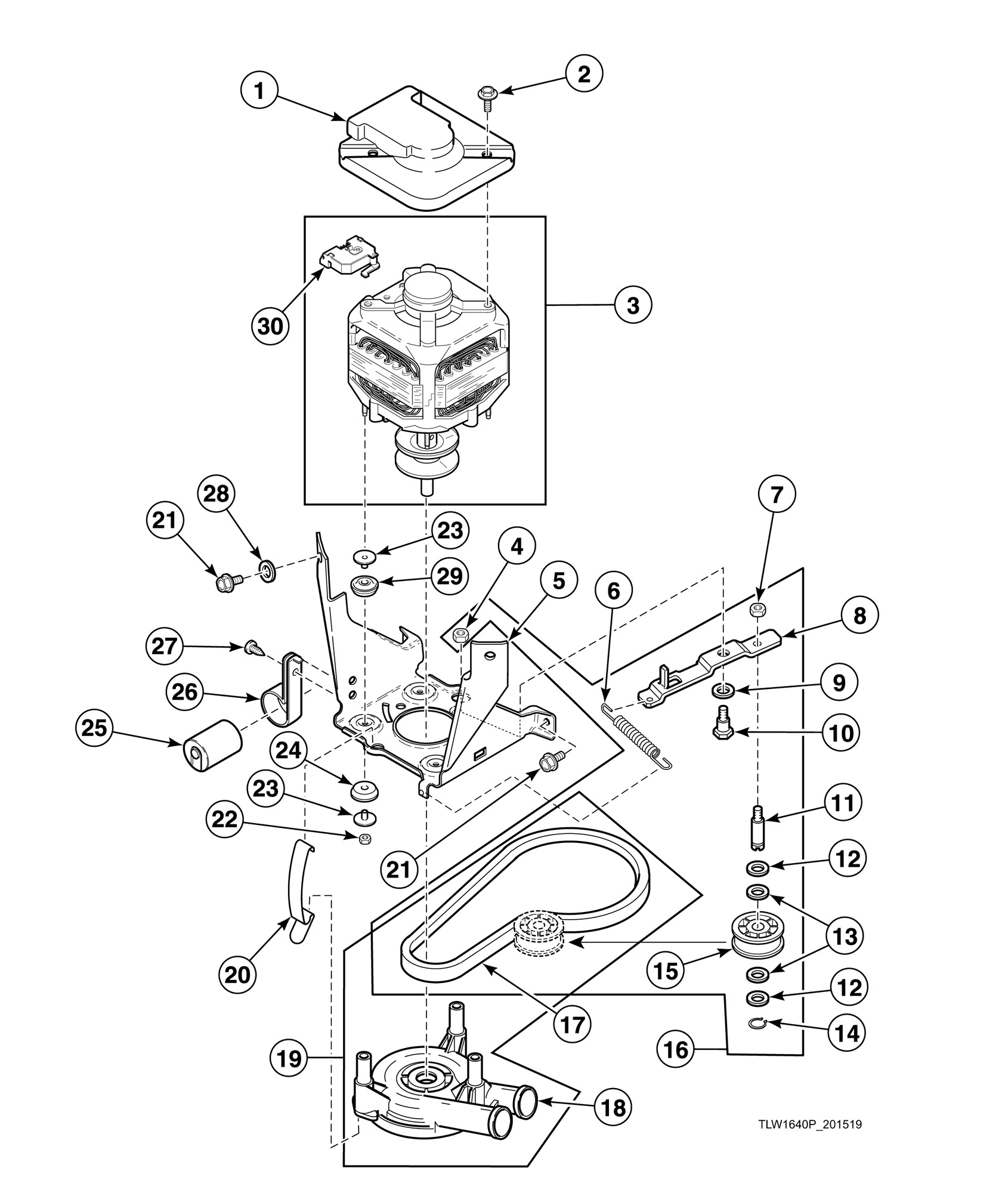

Motor, Mounting Bracket, Belt, Pump and Idler Assembly

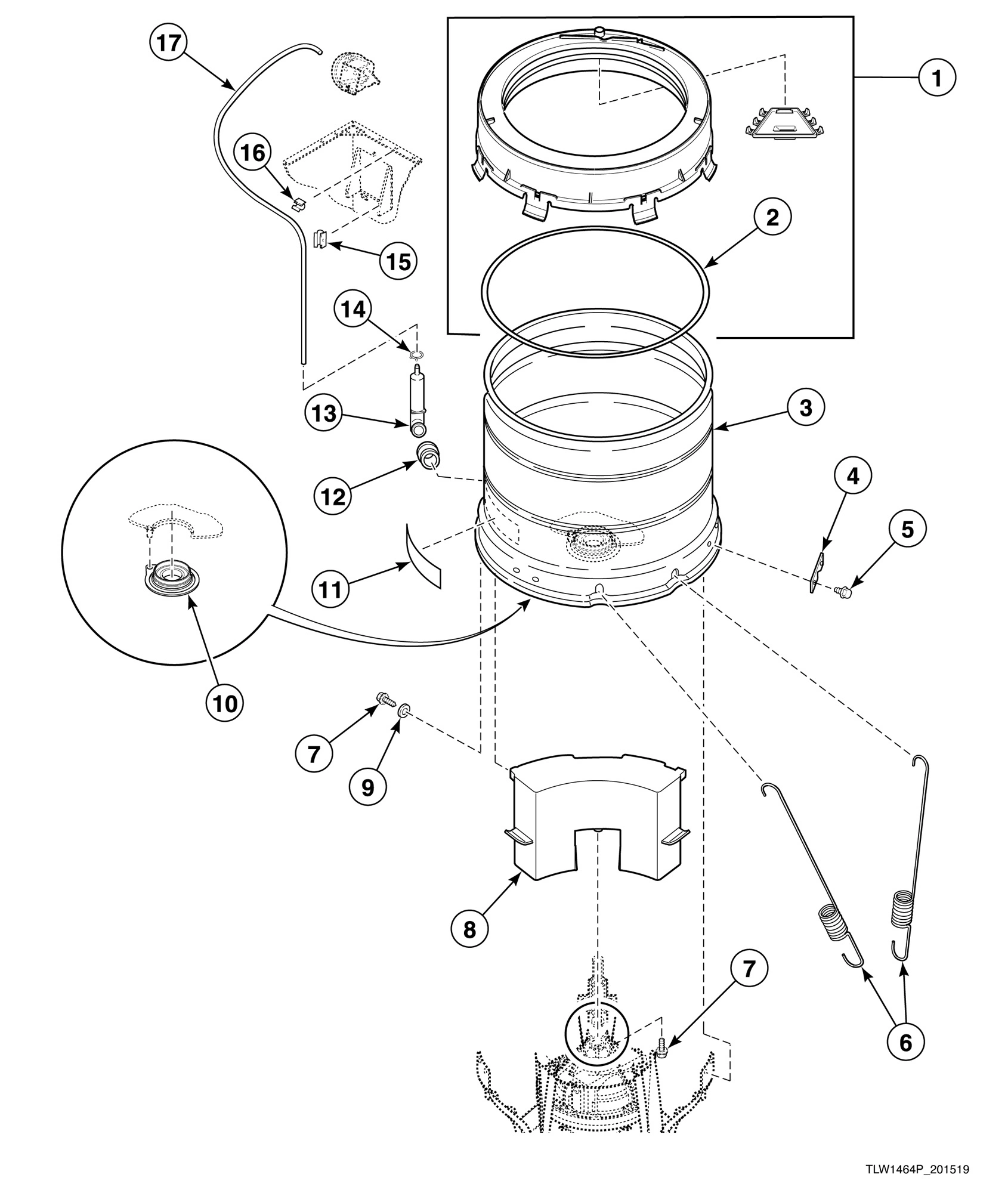

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

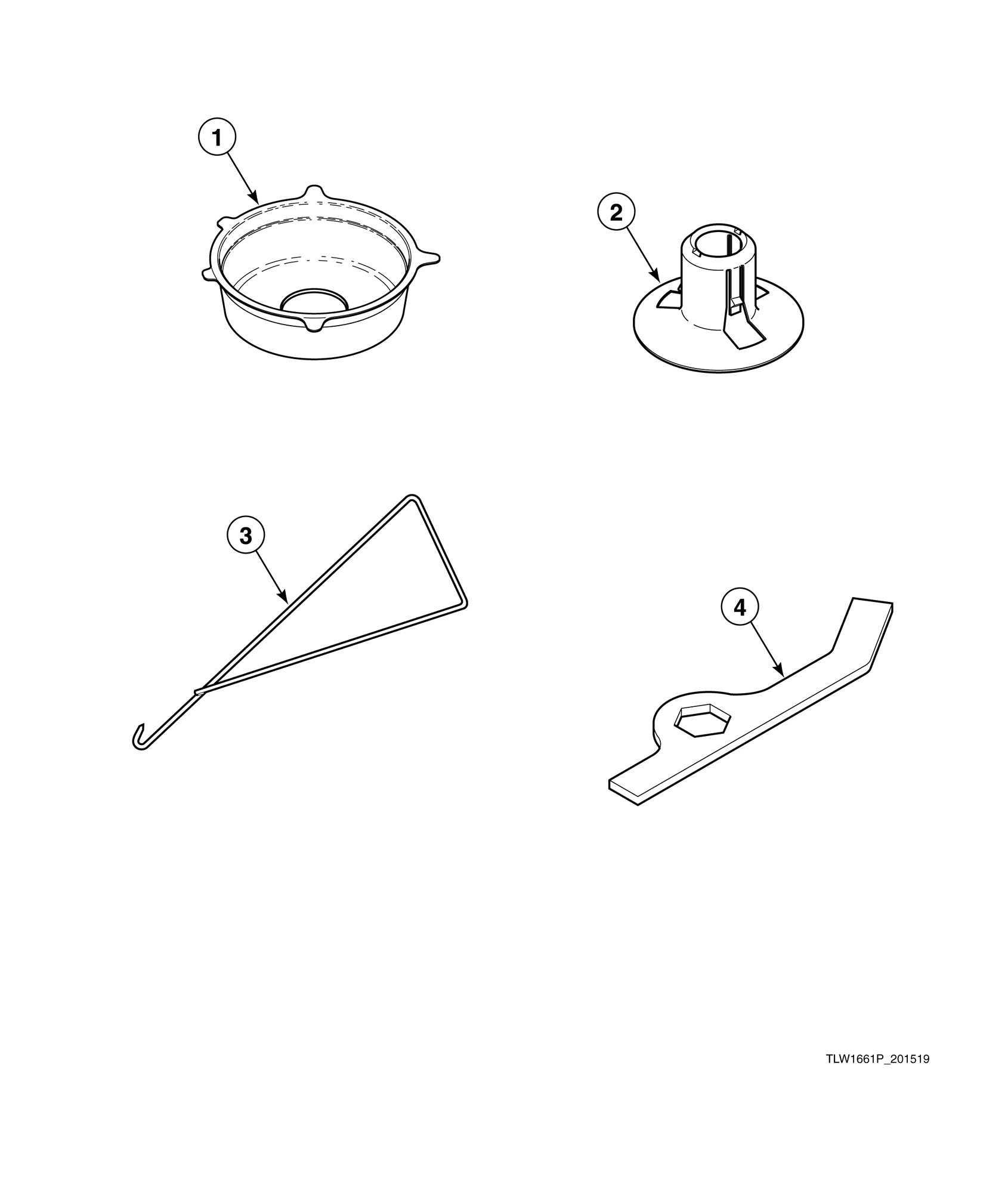

Shipping Brace, Plug and Special Tools

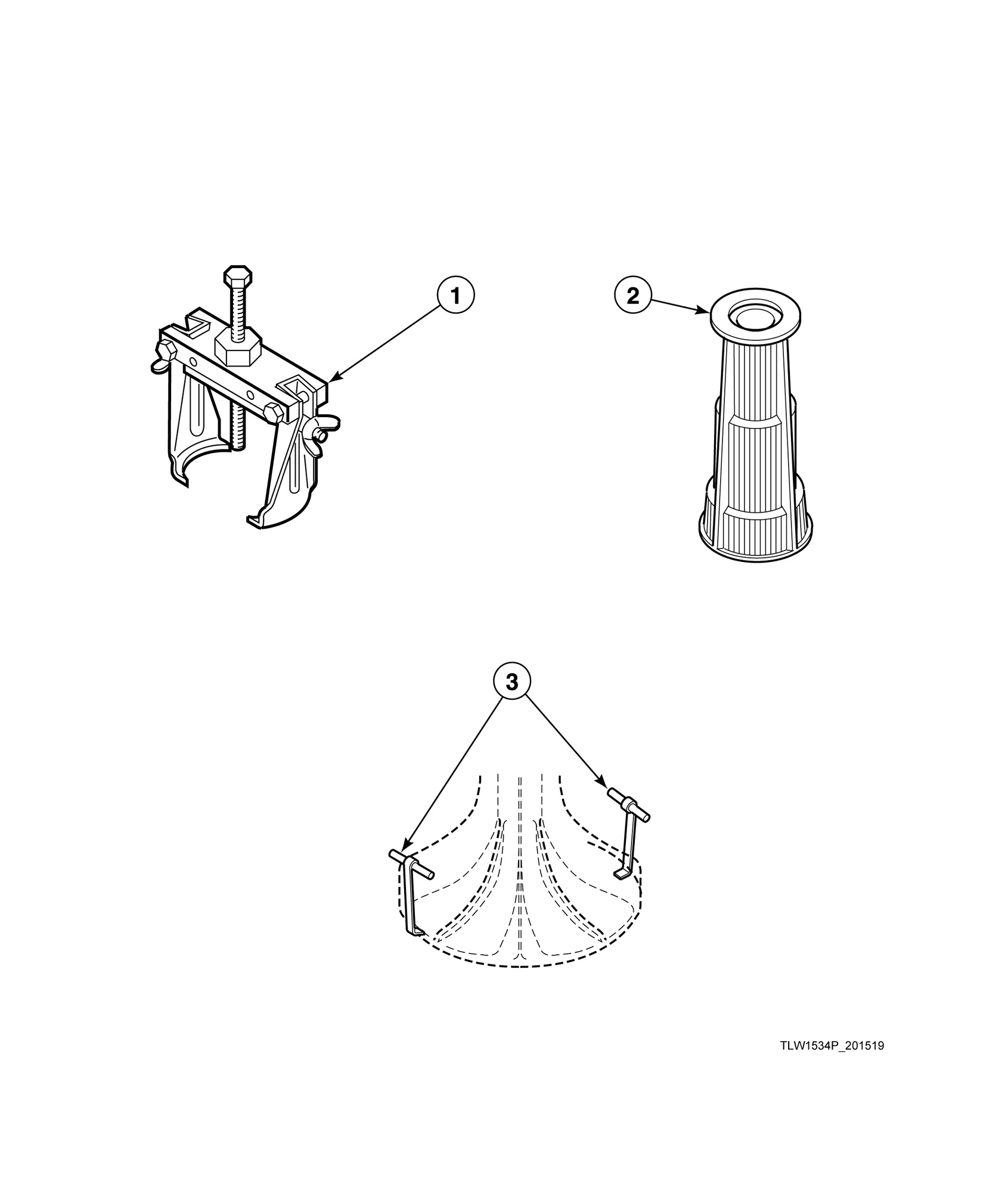

Special Tools

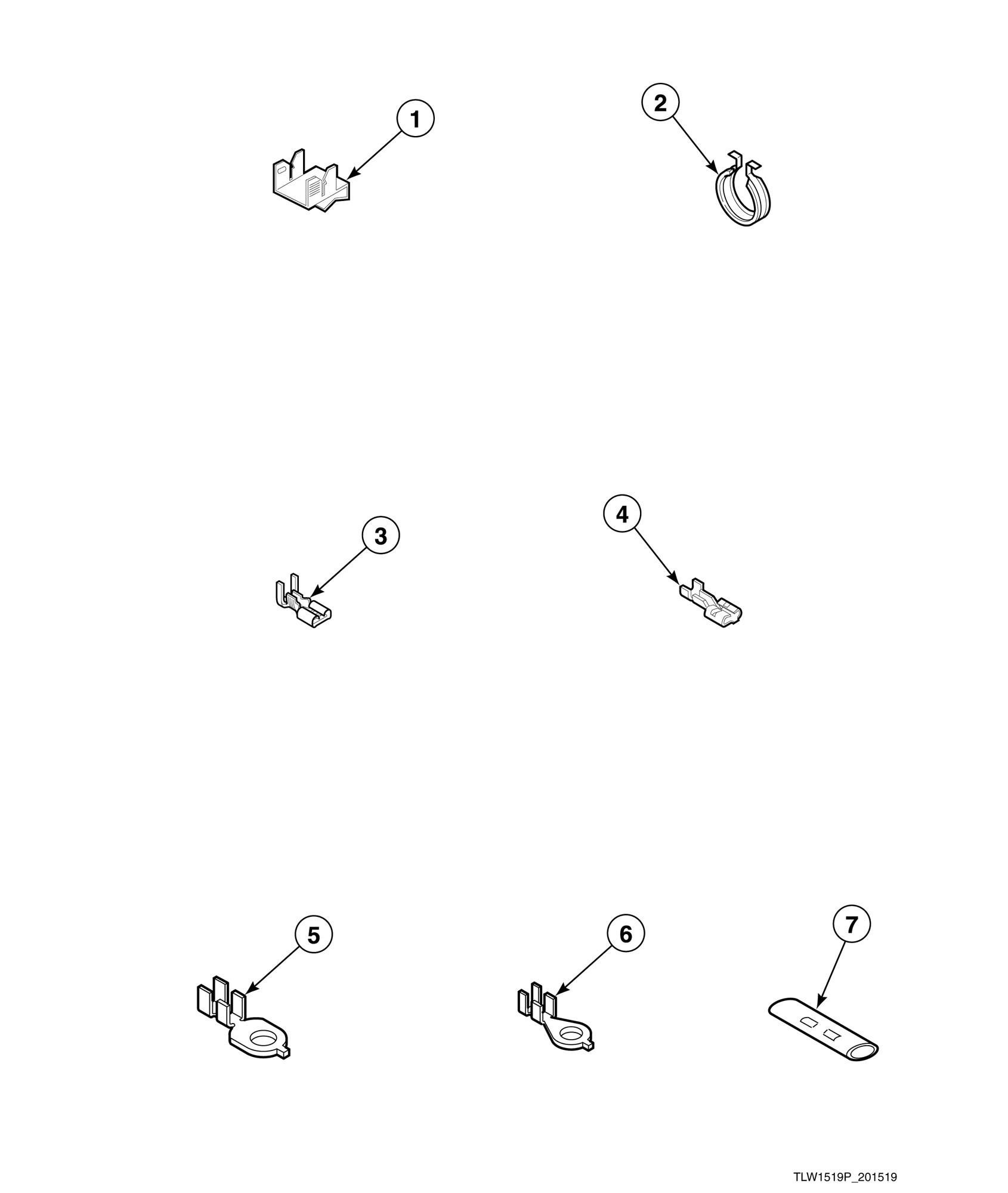

Terminals

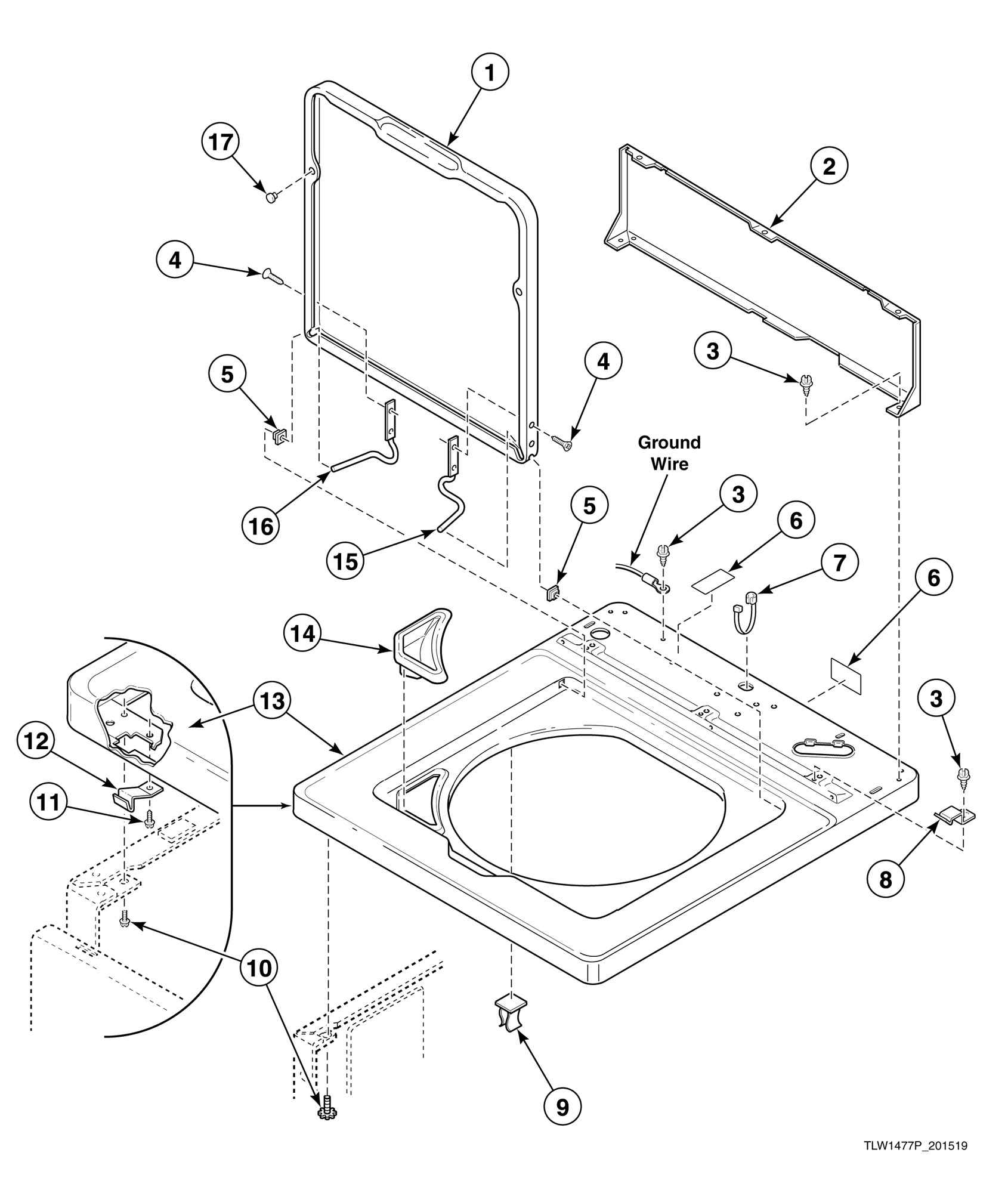

Top, Lid and Hood Back Panel

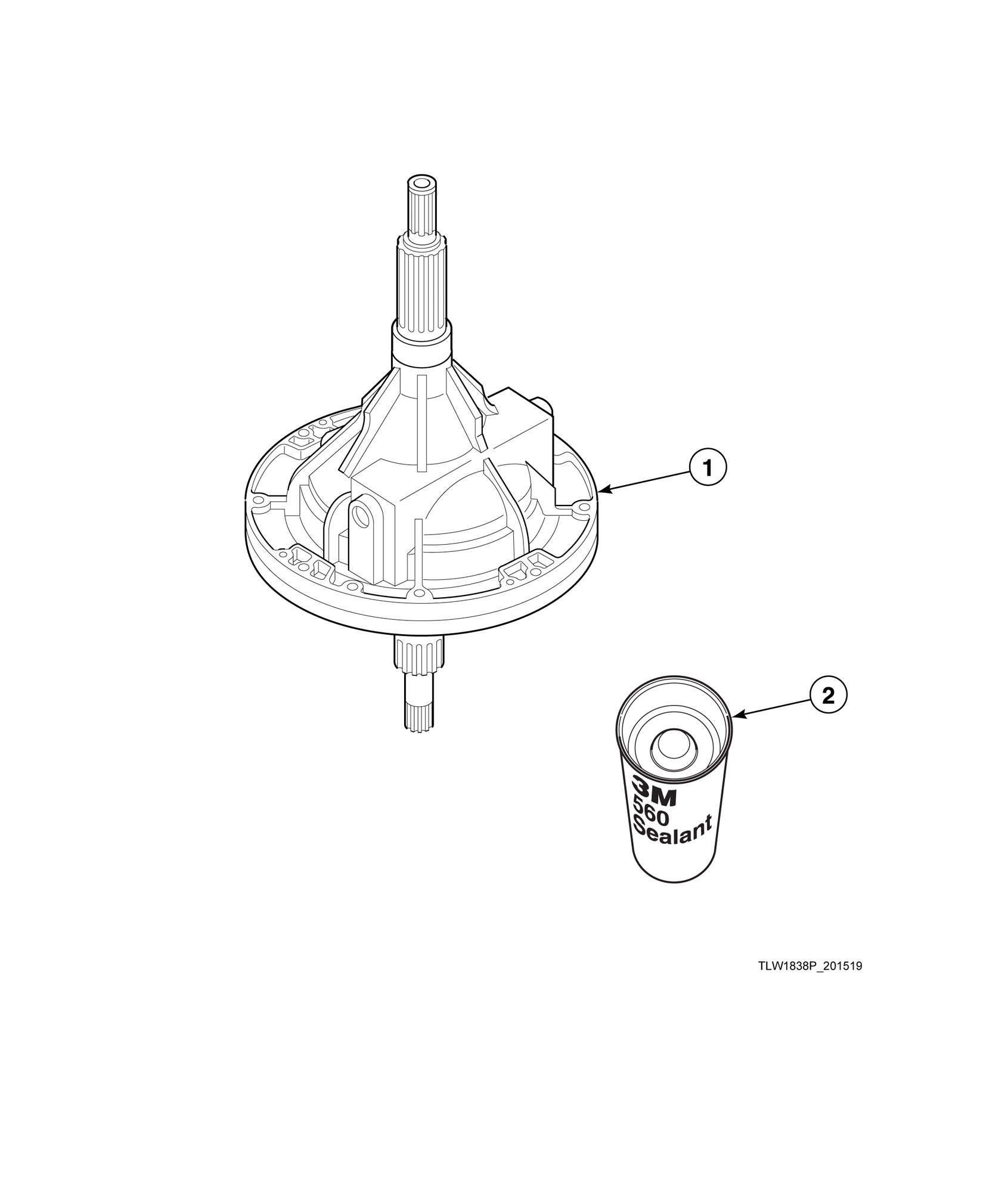

Transmission Assembly

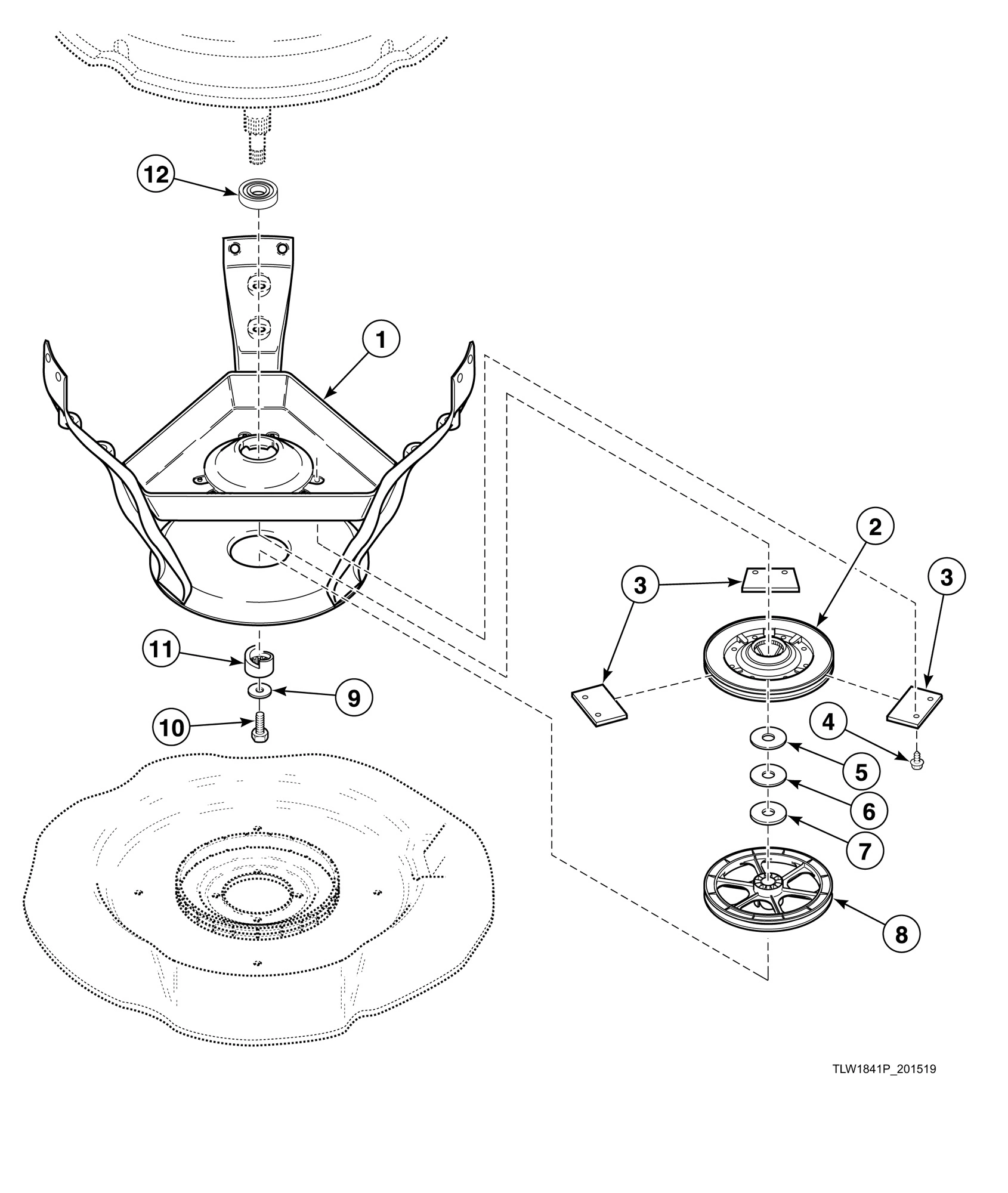

Weldment and Bearing Assembly, Brake and Pulley

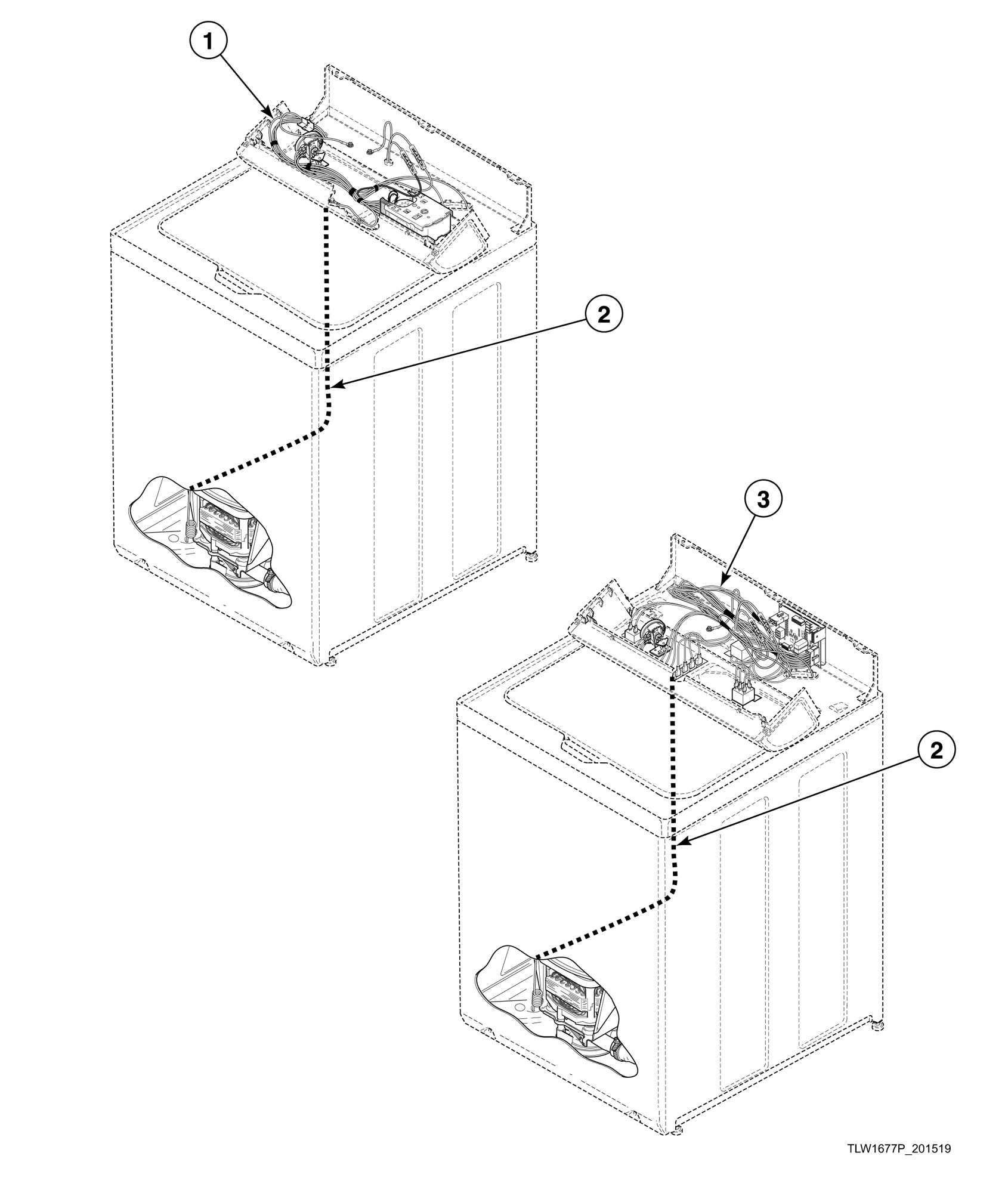

Wire Harnesses and Wires
Common parts from model GE AWN542SP111TWAH General Electric Model AWN542SP111TWAH
1
Screw GEN 27202 Contact Us For Availability
1
End Panel (Comment: Left) GEN D504009WP Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
24 Position Housing (Comment: Right, Black) GEN 32746 Contact Us For Availability
1
Lid Switch Assembly GEN 37631 Contact Us For Availability
1
10 Circuit Plug (Comment: Motor) GEN 34677 Contact Us For Availability
1
Motor Shield GEN 34754 Contact Us For Availability
1
Tub Cover Assembly (Comment: Includes item 2) GEN 39169 Contact Us For Availability
1
Shipping Brace (Comment: Install whenever mov GEN 200553 Contact Us For Availability
1
Agitator Drive Bell Puller (Comment: For remo GEN 294P4 Contact Us For Availability
1
Lid GEN 201502WP Contact Us For Availability
1
Transmission Assembly (Comment: Includes item GEN 203768 Contact Us For Availability
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
1
Hood Wire Harness Assembly GEN 201853 Contact Us For Availability
2
Washer (Comment: Rubber, Use with porcelain w GEN 28094 Contact Us For Availability
2
Sealant GEN 200996P Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
2
Screw GEN M402574 Contact Us For Availability
2
Screw GEN 36639 Contact Us For Availability
2
Tub Cover Gasket GEN 38359 Contact Us For Availability
2
Shipping Plug (Comment: Install before moving GEN 38149 Contact Us For Availability
2
Drive Bell Seal Tool (Comment: For installati GEN 293P4 Contact Us For Availability
2
Wire Clip GEN D504034 Contact Us For Availability
2
Hood Back Panel GEN 37782 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Balance Ring Assembly GEN 39837 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Top Cover GEN 39905W Contact Us For Availability
3
Screw GEN 23962 Contact Us For Availability
3
Screw GEN D503688 Contact Us For Availability
3
Nut GEN M400981 Contact Us For Availability
3
Female Spade Terminal (Comment: 1/4 inch) GEN 00121 Contact Us For Availability
3
Motor Kit (Comment: 2 speed, 120 Volt/60 Hert GEN 38034P Contact Us For Availability
3
Outer Tub Assembly GEN 203603P Contact Us For Availability
3
Spring Hook Tool (Comment: For removal of mod GEN 321P4 Contact Us For Availability
3
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads) GEN 735P3 Contact Us For Availability
4
Washtub Kit (Comment: Stainless steel) GEN 719P3 Contact Us For Availability
4
Bumper Pad GEN 36226 Contact Us For Availability
4
Insulated Female Spade Terminal GEN 00359 Contact Us For Availability
4
Mixing Valve Plug (Comment: Natural) GEN 34675 Contact Us For Availability
4
Mixing Valve Plug (Comment: Red) GEN 34676 Contact Us For Availability
4
Nut GEN 52566 Contact Us For Availability
4
Leg Plate GEN 27926 Contact Us For Availability
4
Hex Wrench Tool (Comment: For removal of lock GEN 306P4 Contact Us For Availability
4
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
4
Screw GEN 34337 Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Screw GEN 51780 Contact Us For Availability
5
Temperature Switch (Comment: 3 position) GEN 35115 Contact Us For Availability
5
Lead-In Cord GEN 34458 Contact Us For Availability
5
Switch GEN 33445 Contact Us For Availability
5
Terminal Extractor Tool GEN 283P4 Contact Us For Availability
5
Motor Mount Bracket GEN 200941 Contact Us For Availability
5
Screw GEN 35369 Contact Us For Availability
5
Ring Terminal (Comment: 1/4 inch) GEN N/A Contact Us For Availability
5
Bushing GEN 33446 Contact Us For Availability
6
Spline Insert GEN 29728 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Idler Lever Spring (Comment: Use on units exp GEN 202032 Contact Us For Availability
6
Idler Lever Spring (Comment: Models through S GEN 39666 Contact Us For Availability
6
Leg Spring GEN 37575 Contact Us For Availability
6
Ring Terminal (Comment: Small shank) GEN 00110 Contact Us For Availability
6
Warning Label GEN 39251 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Nut GEN 29220 Contact Us For Availability
7
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
7
Pressure Switch GEN 201609P Contact Us For Availability
7
9 Circuit Plug GEN 23033 Contact Us For Availability
7
Nut GEN 28803 Contact Us For Availability
7
Screw GEN 39566 Contact Us For Availability
7
Connector (Comment: (2) 1/4 inch male spades) GEN 21091 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
7
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
7
Washer (Comment: For machines experiencing sq GEN 35535 Contact Us For Availability
8
Warning Label GEN 803260 Contact Us For Availability
8
Speed Switch GEN 35118 Contact Us For Availability
8
Hold-Down Clip GEN 35358 Contact Us For Availability
8
Idler Lever GEN 38011 Contact Us For Availability
8
Counterweight Assembly GEN 38769 Contact Us For Availability
8
Pulley GEN 202795 Contact Us For Availability
9
Service Cabinet Kit GEN 38612WP Contact Us For Availability
9
Timer GEN 37922P Contact Us For Availability
9
9 Circuit Receptacle GEN 26163 Contact Us For Availability
9
Washer GEN 81392 Contact Us For Availability
9
Washer GEN 39249 Contact Us For Availability
9
Hinge Stop Clip GEN 36519 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
10
Hub and Lip Seal Kit GEN 766P3A Contact Us For Availability
10
Drive Bell and Seal Kit (Comment: Includes it GEN 39508P Contact Us For Availability
10
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
10
Female Pin Terminal GEN 00117 Contact Us For Availability
10
Screw GEN 27229 Contact Us For Availability
10
Screw GEN 33562 Contact Us For Availability
10
Screw GEN 27220 Contact Us For Availability
11
Screw GEN 39432 Contact Us For Availability
11
Screw GEN D501086 Contact Us For Availability
11
Leg and Stabilizer Assembly GEN 34443 Contact Us For Availability
11
Harness Strap GEN 55881 Contact Us For Availability
11
Idler Shaft GEN 210186 Contact Us For Availability
11
Warning Label GEN D500049 Contact Us For Availability
11
Helix GEN 38008 Contact Us For Availability
12
Bell Plug GEN 36511 Contact Us For Availability
12
Screw GEN 35148 Contact Us For Availability
12
Control Panel GEN 202848W Contact Us For Availability
12
Wire Clip GEN 70366201 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Hold-Down Clip (Comment: Use for older style GEN 38271 Contact Us For Availability
12
Lower Bearing GEN 28944RP Contact Us For Availability
13
Flex Vane Agitator GEN 36507 Contact Us For Availability
13
Bracket (Comment: Right) GEN 36036 Contact Us For Availability
13
Control Support Panel GEN 201654 Contact Us For Availability
13
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
13
Top GEN 37992WP Contact Us For Availability
14
Fabric Softener Dispenser Assembly GEN 36542 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Retaining Ring GEN 23748 Contact Us For Availability
14
Hose Clamp GEN 39282 Contact Us For Availability
14
Bleach Dispenser GEN 38382 Contact Us For Availability
15
Base Assembly GEN 39788 Contact Us For Availability
15
Timer Skirt Assembly GEN 803116 Contact Us For Availability
15
Idler Pulley GEN 38225P Contact Us For Availability
15
Hose Clip GEN 36985 Contact Us For Availability
15
Lid Hinge (Comment: Right) GEN 36437 Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Timer Knob Assembly GEN 202883 Contact Us For Availability
16
Cable Clip GEN 21036 Contact Us For Availability
16
Idler Lever Kit (Comment: Includes items 4, 7 GEN 959P3 Contact Us For Availability
16
Lid Hinge (Comment: Left) GEN 36513 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Rocker Switch GEN 38424W Contact Us For Availability
17
Agitate and Spin Belt GEN 38174 Contact Us For Availability
17
Tubing GEN 202700 Contact Us For Availability
17
Bumper GEN 21685 Contact Us For Availability
18
Friction Ring GEN 37937 Contact Us For Availability
18
Control Knob Assembly GEN 804719 Contact Us For Availability
18
Pump GEN 201566P Contact Us For Availability
19
Adjustable Leg Extension Kit GEN 566P3 Contact Us For Availability
19
Belt and Pump Kit (Comment: Includes item 17 GEN RB150003 Contact Us For Availability
20
Bracket (Comment: Left) GEN 36037 Contact Us For Availability
20
Spring Clip GEN 210202 Contact Us For Availability
21
Panel Locator GEN 28102 Contact Us For Availability
22
Front Panel Pad GEN 36204 Contact Us For Availability
22
Nut GEN 685846 Contact Us For Availability
23
Screw GEN 38272 Contact Us For Availability
23
Isolator Post GEN 38325 Contact Us For Availability
24
Front Panel GEN 38335WP Contact Us For Availability
24
Isolator Assembly GEN 204062 Contact Us For Availability
25
Capacitor GEN 37377 Contact Us For Availability
26
Hold-Down Clip (Comment: New style panel atta GEN 35865 Contact Us For Availability
26
Capacitor Clamp GEN 37535 Contact Us For Availability
27
Front Panel Brace GEN 35097 Contact Us For Availability
27
Screw GEN 52909 Contact Us For Availability
28
Washer GEN 37772 Contact Us For Availability
29
Motor Mount GEN 38395 Contact Us For Availability
30
Motor Switch GEN 35632P Contact Us For Availability
NA
Porcelain Touch-Up Paint GEN 122P4P Contact Us For Availability
NA
Tool Kit (Comment: Includes items 4, 5, sprin GEN 725P3 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
