Model Electrolux AW400C2T WASHER – Common Parts & Diagrams

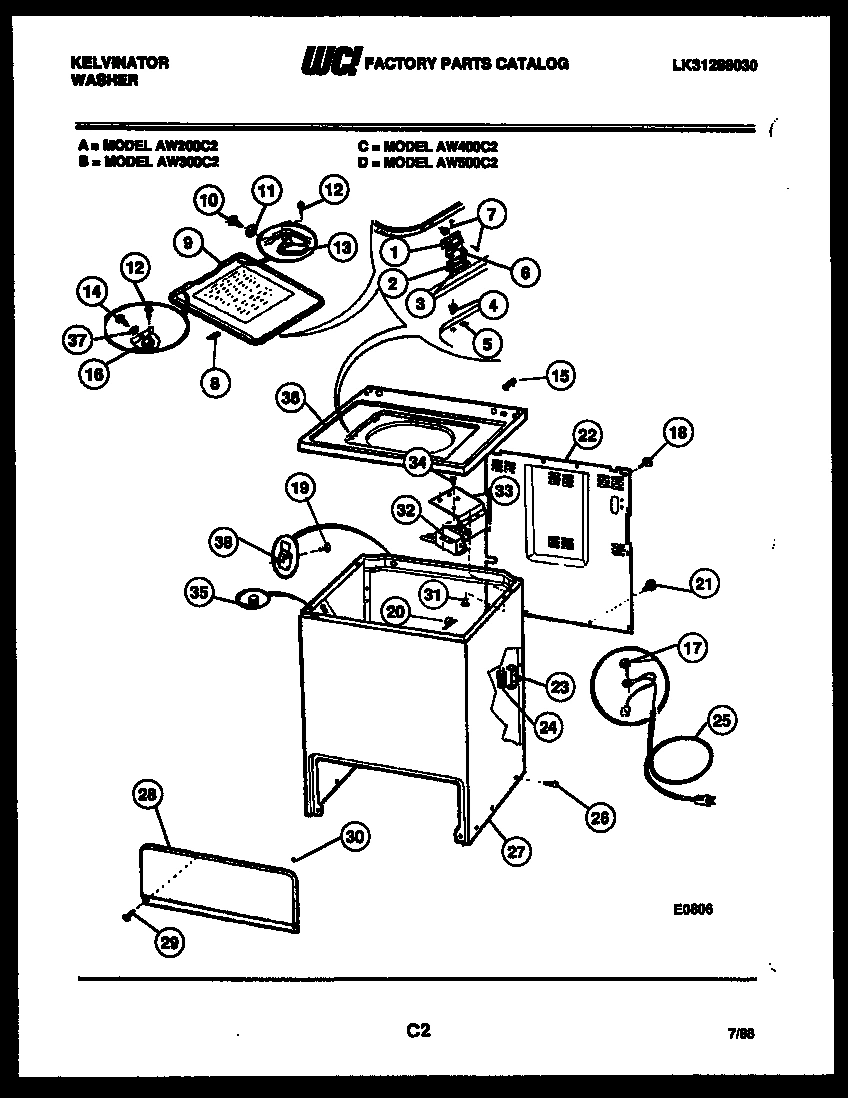

02 - CABINET PARTS

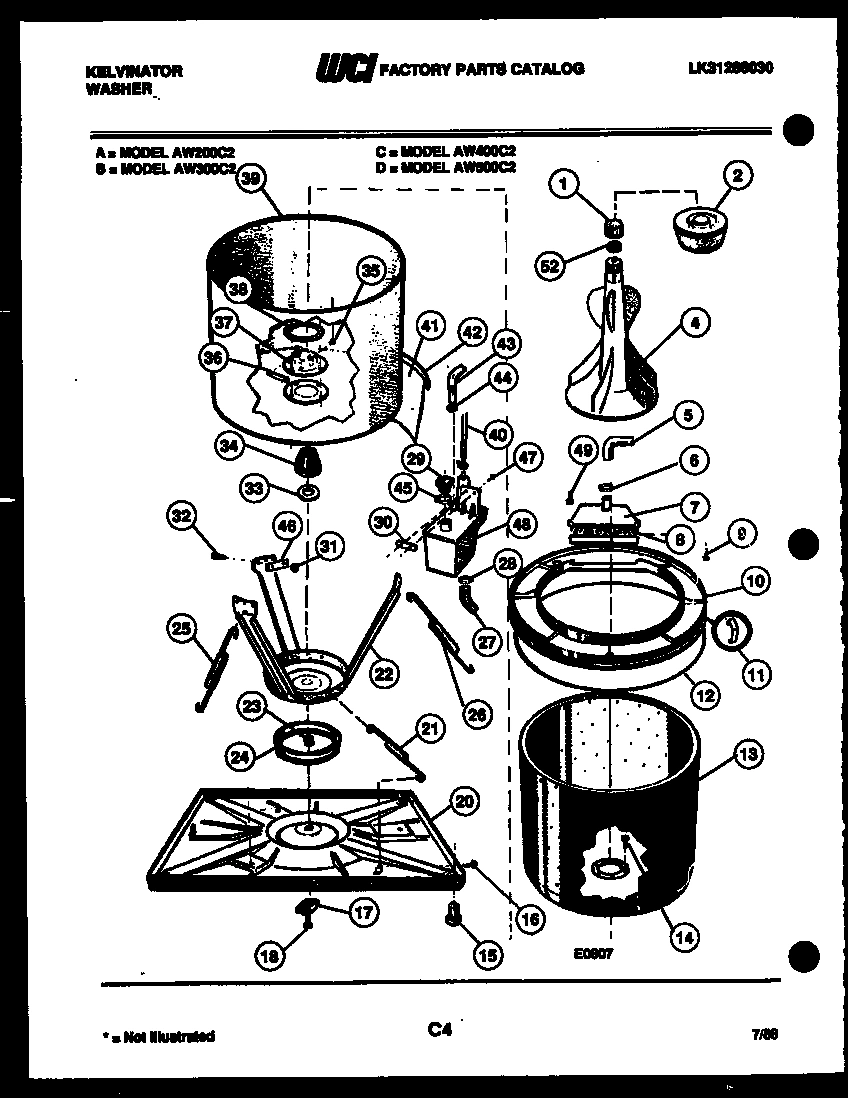

03 - TUB DETAIL

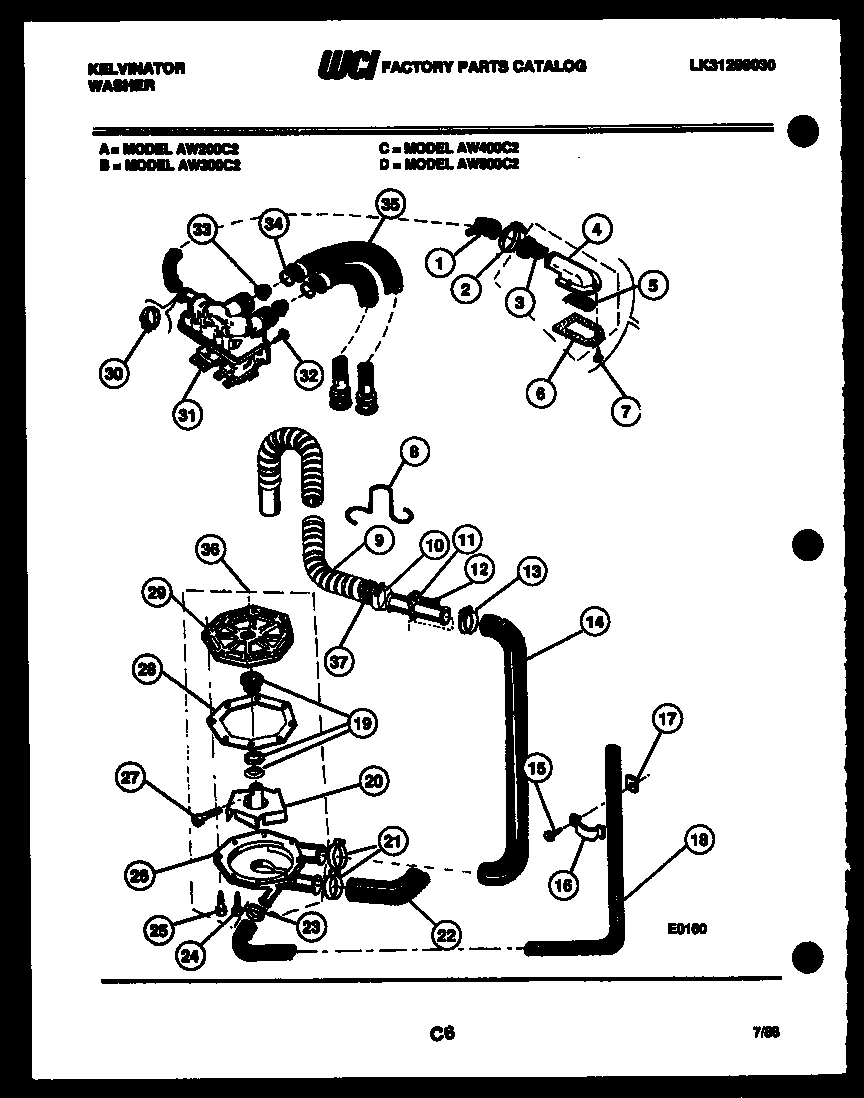

04 - DRAIN, RECIRCULATE PARTS

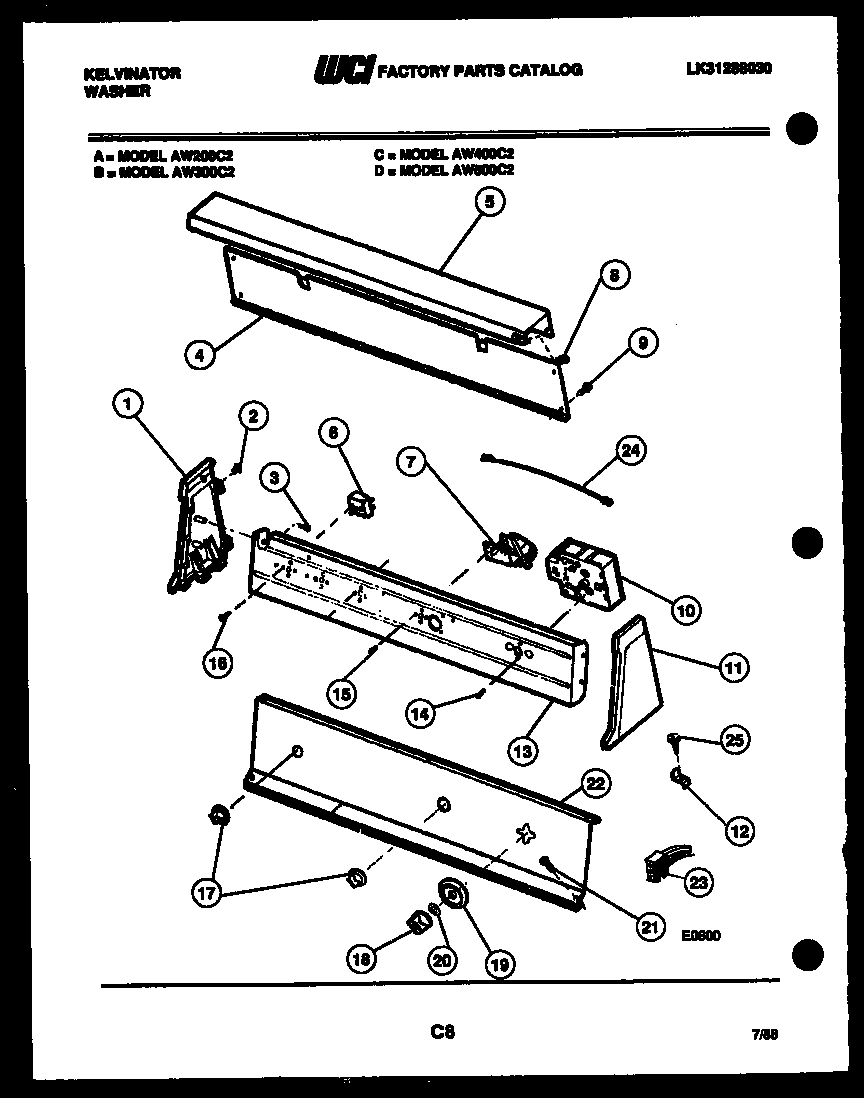

05 - CONSOLE AND CONTROL PARTS

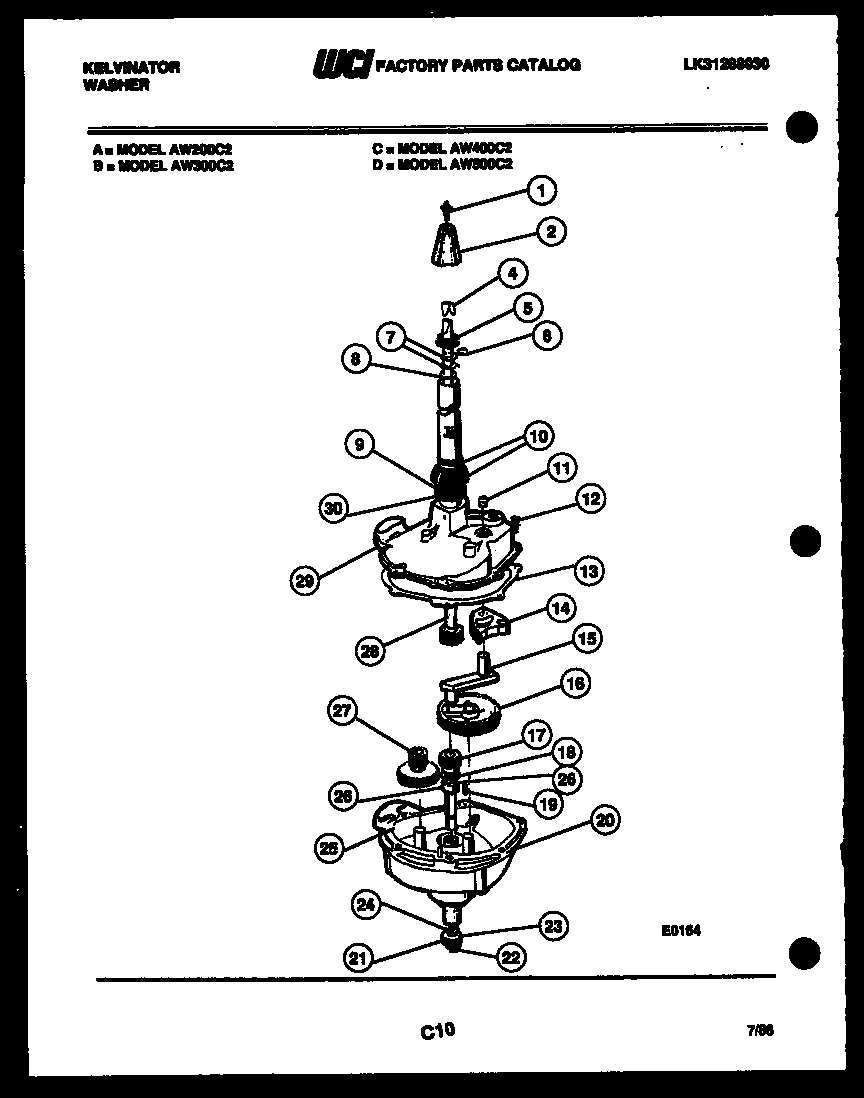

06 - TRANSMISSION PARTS

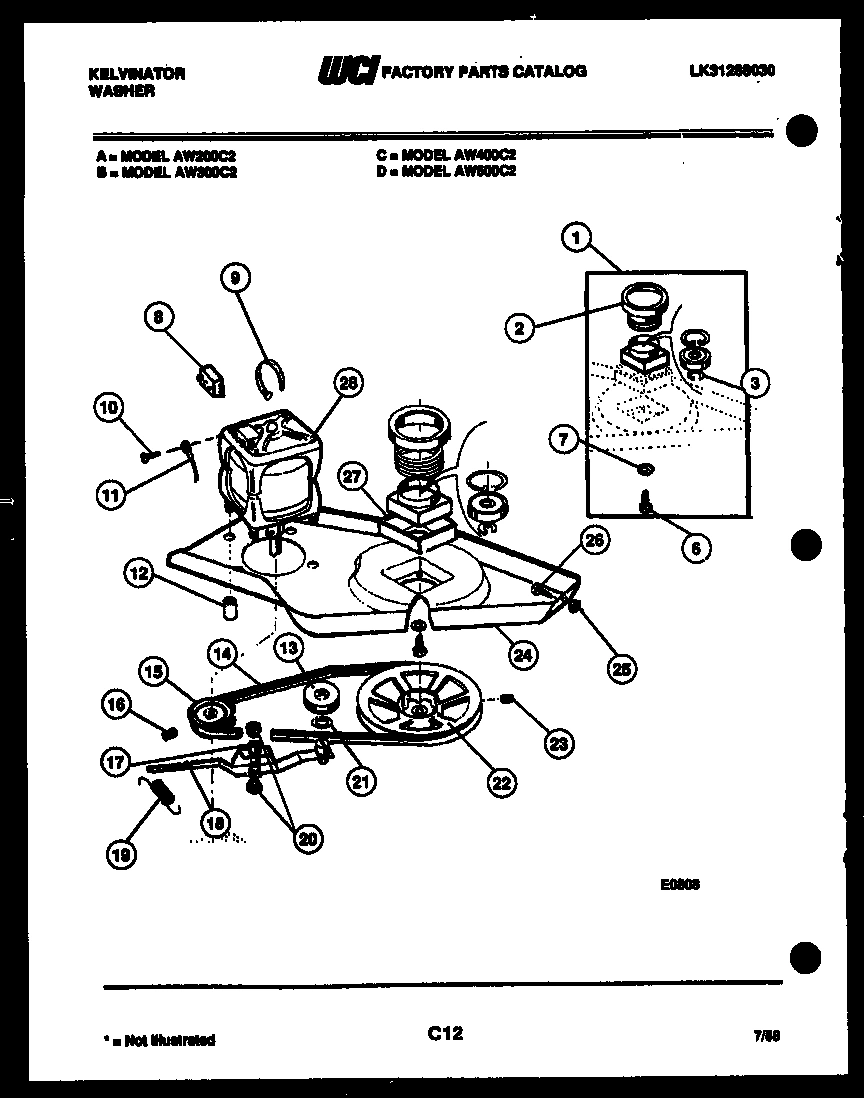

07 - MOTOR AND IDLER ARM CLUTCH
Common parts from model Electrolux AW400C2T WASHER
*60329
CLIP-HOSE-REAR-SHRT WCI F139821-000 Contact Us For Availability
*60329
CLIP-HOSE-FRONT-LG WCI F139821-100 Contact Us For Availability
*60374
WCI 134735700 No Longer Available
1
WCI F060509-000 WCI F060509-000 Contact Us For Availability
1
CAP & WASHER ASSY WCI F137275-100 Contact Us For Availability
1
WCI F137862-000 WCI F137862-000 Contact Us For Availability
1
END CAP, LH WCI F139719-100 Contact Us For Availability
1
WCI F063882-000 WCI F063882-000 Contact Us For Availability
1
BEARING HSG PKG WCI F137014-000 Contact Us For Availability
2
GASKET WCI F060508-000 Contact Us For Availability
2
FABRIC DISP. WCI F077317-100 Contact Us For Availability
2
WCI F064154-010 WCI F064154-010 Contact Us For Availability
2
WCI F139577-000 WCI F139577-000 Contact Us For Availability
2
WCI F140465-000 WCI F140465-000 Contact Us For Availability
2
WCI F130417-000 WCI F130417-000 Contact Us For Availability
3
SPACER WCI F141007-000 Contact Us For Availability
3
WCI F137506-000 WCI F137506-000 Contact Us For Availability
3
WCI F141261-000 WCI F141261-000 Contact Us For Availability
4
WCI F061076-000 WCI F061076-000 Contact Us For Availability
4
WCI F077166-100 WCI F077166-100 Contact Us For Availability
4
WATER INLET ASSY WCI F137017-000 Contact Us For Availability
4
WCI F139230-026 WCI F139230-026 Contact Us For Availability
4
SHIM (AS RQ.) WCI F063881-400 Contact Us For Availability
5
WCI F060582-000 WCI F060582-000 Contact Us For Availability
5
WCI F138570-000 WCI F138570-000 Contact Us For Availability
5
COVER-TOP WCI F141095-000 Contact Us For Availability
6
WCI F066964-000 WCI F066964-000 Contact Us For Availability
6
WCI F138571-000 WCI F138571-000 Contact Us For Availability
6
WCI F142220-000 WCI F142220-000 Contact Us For Availability
7
SCREW ( 4 ) WCI F060557-000 Contact Us For Availability
7
HSG-LINT FILTER WCI F140090-000 Contact Us For Availability
7
SWITCH-PRESSURE WCI F139790-000 Contact Us For Availability
7
SPCR WASHER (AS REQ) WCI F077060-000 Contact Us For Availability
7
SPCR-RUBBER (2) WCI F078749-000 Contact Us For Availability
8
WCI F079149-000 WCI F079149-000 Contact Us For Availability
8
WCI F078887-000 WCI F078887-000 Contact Us For Availability
8
WCI F131968-000 WCI F131968-000 Contact Us For Availability
8
WCI F139635-000 WCI F139635-000 Contact Us For Availability
8
WCI F062568-000 WCI F062568-000 Contact Us For Availability
8
WCI F067630-015 WCI F067630-015 Contact Us For Availability
9
WCI F141005-038 WCI F141005-038 Contact Us For Availability
9
DRAIN HOSE & BUSH WCI F137465-000 Contact Us For Availability
9
WCI F077156-000 WCI F077156-000 Contact Us For Availability
10
WCI F140091-000 WCI F140091-000 Contact Us For Availability
10
WCI F064154-015 WCI F064154-015 Contact Us For Availability
10
WCI 3015651 WCI 3015651 Contact Us For Availability
10
WCI F079420-000 WCI F079420-000 Contact Us For Availability
10
WCI F132144-000 WCI F132144-000 Contact Us For Availability
11
WCI F079975-000 WCI F079975-000 Contact Us For Availability
11
WCI F141124-000 WCI F141124-000 Contact Us For Availability
11
END CAP, RH WCI F139719-000 Contact Us For Availability
11
WCI F077061-000 WCI F077061-000 Contact Us For Availability
11
WCI F065900-013 WCI F065900-013 Contact Us For Availability
12
WCI F141003-000 WCI F141003-000 Contact Us For Availability
12
WCI F078611-100 WCI F078611-100 Contact Us For Availability
12
WCI F131276-000 WCI F131276-000 Contact Us For Availability
12
WCI F079171-000 WCI F079171-000 Contact Us For Availability
12
WCI F079688-000 WCI F079688-000 Contact Us For Availability
13
WCI 3018962 WCI 3018962 Contact Us For Availability
13
WCI F079147-400 WCI F079147-400 Contact Us For Availability
13
WCI F064154-013 WCI F064154-013 Contact Us For Availability
13
BRACKET, MTG. WCI F140427-026 Contact Us For Availability
13
WCI F077047-000 WCI F077047-000 Contact Us For Availability
14
WCI F140624-000 WCI F140624-000 Contact Us For Availability
14
HOSE-PUMP TO COUPLING WCI F141125-000 Contact Us For Availability
14
WCI F060796-000 WCI F060796-000 Contact Us For Availability
14
GEAR-SECTOR WCI F130405-100 Contact Us For Availability
15
WCI F064572-000 WCI F064572-000 Contact Us For Availability
15
WCI F137033-000 WCI F137033-000 Contact Us For Availability
15
WCI F140073-000 WCI F140073-000 Contact Us For Availability
15
ROD-CONNECTING WCI F066078-100 Contact Us For Availability
15
PULLEY-MOTOR WCI F134881-000 Contact Us For Availability
16
BRACKET-LID WCI F141002-000 Contact Us For Availability
16
WCI F130491-100 WCI F130491-100 Contact Us For Availability
16
SCREW (2) WCI F135021-000 Contact Us For Availability
16
WCI F130404-100 WCI F130404-100 Contact Us For Availability
16
WCI F132861-000 WCI F132861-000 Contact Us For Availability
17
WCI F132459-000 WCI F132459-000 Contact Us For Availability
17
WCI F077075-000 WCI F077075-000 Contact Us For Availability
17
WCI F078029-000 WCI F078029-000 Contact Us For Availability
17
WCI F078949-000 WCI F078949-000 Contact Us For Availability
17
WCI F140472-000 WCI F140472-000 Contact Us For Availability
17
SPACER WCI F141131-000 Contact Us For Availability
18
WCI F078921-000 WCI F078921-000 Contact Us For Availability
18
WCI F137203-000 WCI F137203-000 Contact Us For Availability
18
KNOB, TIMER WCI F141025-000 Contact Us For Availability
18
IDLER ARM & SHAFT ASSY WCI F133091-000 Contact Us For Availability
18A
BEARING PKG-OVERSIZE (NON-ILLUSTRATED) WCI F137046-000 Contact Us For Availability
19
SCREW WCI F132080-000 Contact Us For Availability
19
WCI F076143-000 WCI F076143-000 Contact Us For Availability
19
WCI F141024-000 WCI F141024-000 Contact Us For Availability
19
WCI F077058-000 WCI F077058-000 Contact Us For Availability
19
WCI F078465-000 WCI F078465-000 Contact Us For Availability
20
CLIP-SPRING (2) WCI F130448-000 Contact Us For Availability
20
WCI F139372-026 WCI F139372-026 Contact Us For Availability
20
IMPELLER KIT (SEAL, GASKET, SCREW) WCI F079428-000 Contact Us For Availability
20
SPACER WCI F078212-000 Contact Us For Availability
20
HSG ASSY-LOWER WCI F130883-000 Contact Us For Availability
20
WCI F078792-000 WCI F078792-000 Contact Us For Availability
21
SPRING-HORZ. WCI F140088-000 Contact Us For Availability
21
WCI F140887-028 WCI F140887-028 Contact Us For Availability
21
SCREW (2) WCI F140203-000 Contact Us For Availability
21
WCI F077098-000 WCI F077098-000 Contact Us For Availability
22
PANEL-REAR WCI F139218-026 Contact Us For Availability
22
LEG & DOME ASSY WCI F140087-000 Contact Us For Availability
22
WCI F077278-000 WCI F077278-000 Contact Us For Availability
22
WCI F141102-100 WCI F141102-100 Contact Us For Availability
22
SNAP RING WCI F068158-000 Contact Us For Availability
22
PULLEY-TRANSMISSION WCI F140999-100 Contact Us For Availability
22A
CLIP-HARN TO CAB. (NON-ILLUSTRATED) WCI F136345-000 Contact Us For Availability
22B
TIE-HARN TOP PNL (NON-ILLUSTRATED) WCI F133780-000 Contact Us For Availability
23
BRACKET, CAPACITOR WCI F140401-000 Contact Us For Availability
23
NUT-EXPANSION WCI F077074-000 Contact Us For Availability
23
WCI F140887-020 WCI F140887-020 Contact Us For Availability
23
WCI 3018970 WCI 3018970 Contact Us For Availability
23
WCI F077051-000 WCI F077051-000 Contact Us For Availability
24
WCI F140443-000 WCI F140443-000 Contact Us For Availability
24
WCI F130789-000 WCI F130789-000 Contact Us For Availability
24
HARNESS-GROUND WCI F140869-000 Contact Us For Availability
24
SUPT PLATE WCI F132770-028 Contact Us For Availability
25
CORD SERVICE WCI F140867-000 Contact Us For Availability
25
VERT. SPRING-SHORT WCI F140141-100 Contact Us For Availability
25
SCREW, MTG (4) WCI F077669-000 Contact Us For Availability
25
TRANS OIL WCI F060821-100 Contact Us For Availability
25
WCI F073804-000 WCI F073804-000 Contact Us For Availability
26
VERT. SPRING-LONG (2) WCI F140141-000 Contact Us For Availability
26
WCI F077351-000 WCI F077351-000 Contact Us For Availability
26
LGS SPRING-SMALL WCI F077052-000 Contact Us For Availability
26
WCI F077090-000 WCI F077090-000 Contact Us For Availability
27
WCI F140749-038 WCI F140749-038 Contact Us For Availability
27
WCI F077203-000 WCI F077203-000 Contact Us For Availability
27
WCI F130403-100 WCI F130403-100 Contact Us For Availability
27
WCI F077009-100 WCI F077009-100 Contact Us For Availability
28
PANEL ACCESS (WHEAT) WCI F078316-038 Contact Us For Availability
28
WCI F140887-027 WCI F140887-027 Contact Us For Availability
28
WCI F077354-000 WCI F077354-000 Contact Us For Availability
28
SHAFT ASSY-AGIT. WCI F140482-000 Contact Us For Availability
28
MTR & SW. ASSY WCI F140323-000 Contact Us For Availability
29
SCREW-NIB (2) WCI F136470-000 Contact Us For Availability
29
WCI F137466-000 WCI F137466-000 Contact Us For Availability
29
PUMP COVER WCI F077352-000 Contact Us For Availability
29
HSG ASSY-UPPER WCI F141182-000 Contact Us For Availability
30
WCI F079109-000 WCI F079109-000 Contact Us For Availability
30
WCI F139592-000 WCI F139592-000 Contact Us For Availability
30
WCI F064154-003 WCI F064154-003 Contact Us For Availability
30
WCI F077154-000 WCI F077154-000 Contact Us For Availability
31
SCREW-SEMS (2) WCI F137505-000 Contact Us For Availability
31
WCI F054287-000 WCI F054287-000 Contact Us For Availability
32
LID LOCK ASSY. WCI 3017110 Contact Us For Availability
32
WCI F063532-000 WCI F063532-000 Contact Us For Availability
32
WCI F141175-000 WCI F141175-000 Contact Us For Availability
33
WCI 3018963 WCI 3018963 Contact Us For Availability
33
WCI F076138-011 WCI F076138-011 Contact Us For Availability
34
WCI 3018964 WCI 3018964 Contact Us For Availability
34
BEARING HSG WCI F138510-000 Contact Us For Availability
35
BUMPER WCI F001345-000 Contact Us For Availability
36
WCI 3019081 WCI 3019081 Contact Us For Availability
36
PUMP ASSY COMPLETE WCI F133058-000 Contact Us For Availability
37
WASHER-NYLON WCI F078259-000 Contact Us For Availability
37
WCI F140604-100 WCI F140604-100 Contact Us For Availability
37
WCI F132251-000 WCI F132251-000 Contact Us For Availability
38
WCI F131174-000 WCI F131174-000 Contact Us For Availability
38
WCI F065719-000 WCI F065719-000 Contact Us For Availability
39
WCI F078451-000 WCI F078451-000 Contact Us For Availability
41
WCI FAB LOCALLY WCI FAB LOCALLY Contact Us For Availability
42
WCI F132044-000 WCI F132044-000 Contact Us For Availability
43
TUBE-BLCH DISP. WCI F077271-000 Contact Us For Availability
44
WCI F063460-001 WCI F063460-001 Contact Us For Availability
45
CLAMP WCI F064154-020 Contact Us For Availability
46
NUT PLATE WCI F132729-000 Contact Us For Availability
47
WCI F136029-000 WCI F136029-000 Contact Us For Availability
48
WCI F077276-000 WCI F077276-000 Contact Us For Availability
49
WCI F134167-000 WCI F134167-000 Contact Us For Availability
49A
CLIP-HOSE REAR SHORT (NON-ILLUSTRATED) WCI F139821-200 Contact Us For Availability
49B
CLIP-HOSE FRONT LARGE (NON-ILLUSTRATED) WCI F139821-300 Contact Us For Availability
52
WCI F073565-000 WCI F073565-000 Contact Us For Availability
× ![]()
