Model Electrolux AW300F1T WASHER – Common Parts & Diagrams
02 - CABINET PARTS
03 - CONSOLE AND CONTROL PARTS

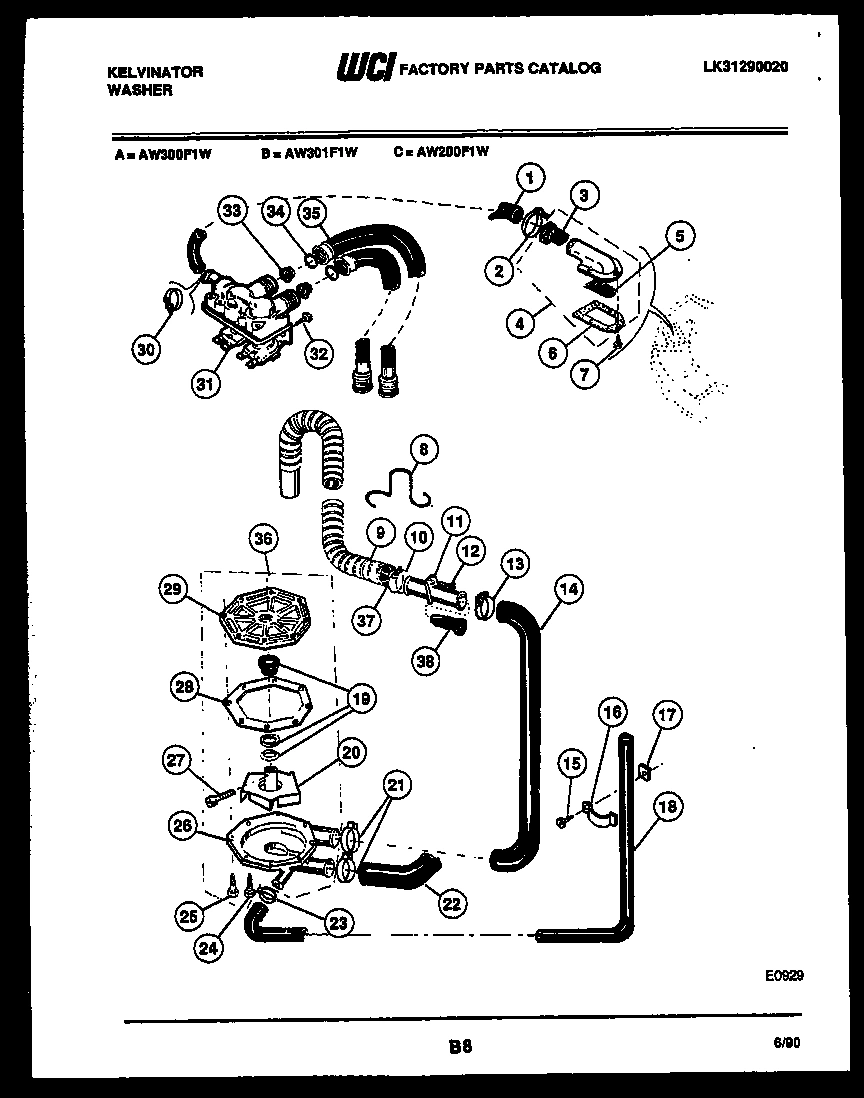

04 - PUMP, WATER VALVE, WATER INLET

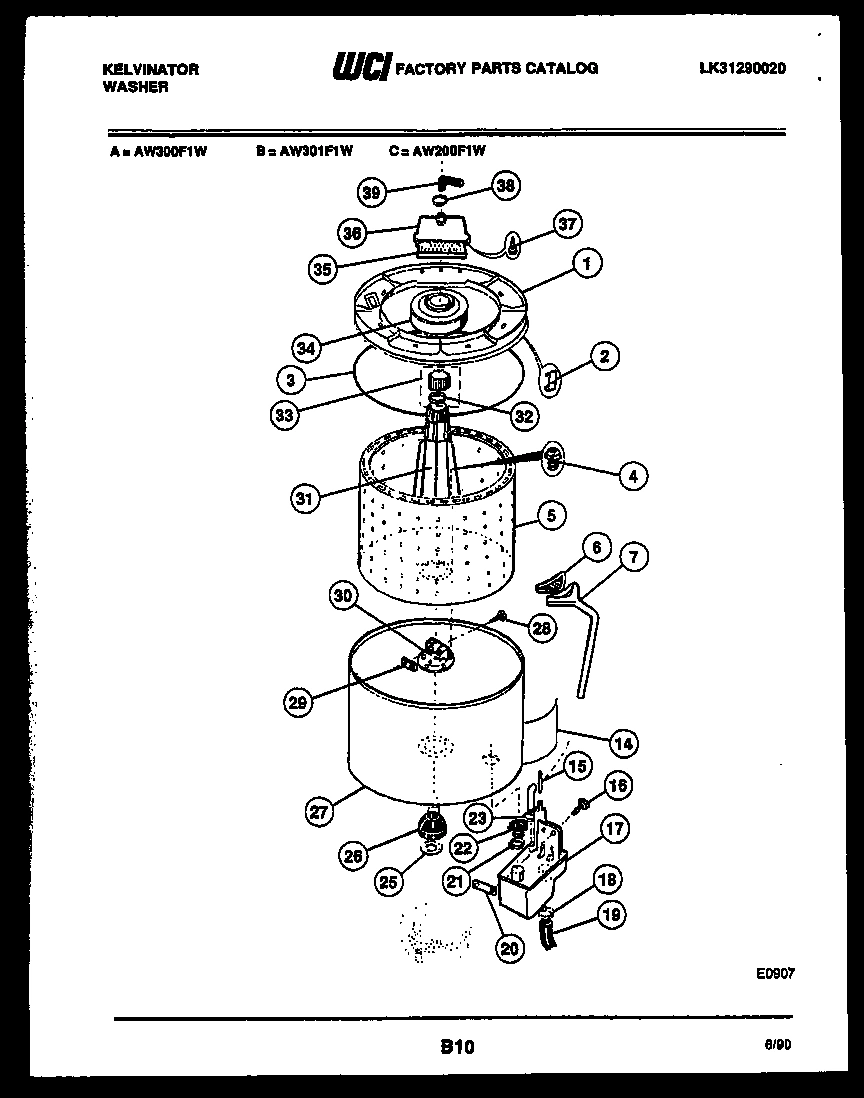

05 - TUB DETAIL

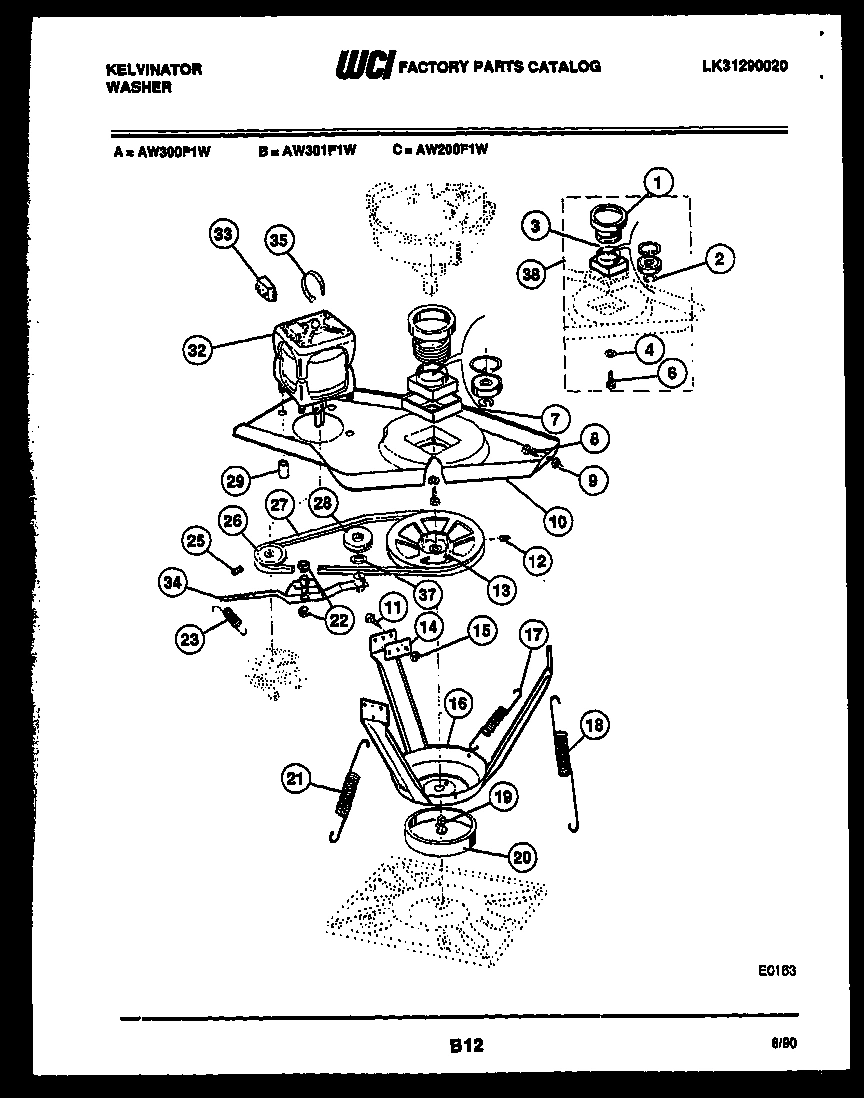

06 - MOTOR AND IDLER ARM CLUTCH

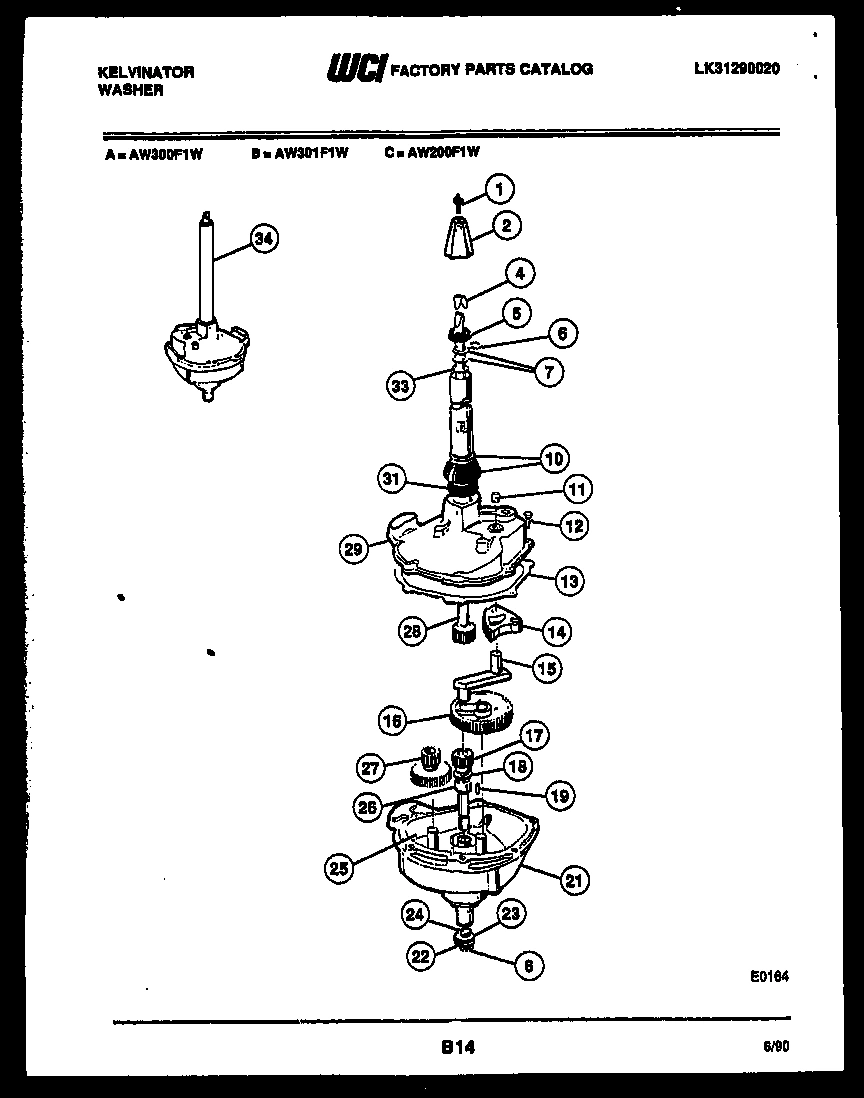

07 - TRANSMISSION PARTS
Common parts from model Electrolux AW300F1T WASHER
1
WCI 5303207074 WCI 5303207074 Contact Us For Availability
1
WCI 08008471 WCI 08008471 Contact Us For Availability
1
WCI 08011314 WCI 08011314 Contact Us For Availability
1
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
1
WCI 08002491 WCI 08002491 Contact Us For Availability
2
WCI 08010825 WCI 08010825 Contact Us For Availability
2
WCI F064154011 WCI F064154011 Contact Us For Availability
2
WCI F079975-000 WCI F079975-000 Contact Us For Availability
2
SNAP RING WCI 08015536 Contact Us For Availability
2
WCI 08014904 WCI 08014904 Contact Us For Availability
3
WCI 3015649 WCI 3015649 Contact Us For Availability
3
WCI 08027515 WCI 08027515 Contact Us For Availability
3
WCI F137064-000 WCI F137064-000 Contact Us For Availability
3
WCI 08057430 WCI 08057430 Contact Us For Availability
4
WCI 5303161139 WCI 5303161139 Contact Us For Availability
4
WCI F142054-000 WCI F142054-000 Contact Us For Availability
4
SPACER-RUBBER (2) WCI 5303207426 Contact Us For Availability
4
SHIM WCI F063881-400 Contact Us For Availability
5
WCI 08027483 WCI 08027483 Contact Us For Availability
5
WCI 08006682 WCI 08006682 Contact Us For Availability
5
WCI 08015495 WCI 08015495 Contact Us For Availability
6
WCI 5303206914 WCI 5303206914 Contact Us For Availability
6
WCI 08006683 WCI 08006683 Contact Us For Availability
6
WCI 5308011246 WCI 5308011246 Contact Us For Availability
6
SCREW (2) WCI 08027582 Contact Us For Availability
6
SNAP RING (2) WCI 3161223 Contact Us For Availability
7
WCI 3018968 WCI 3018968 Contact Us For Availability
7
WCI 08015503 WCI 08015503 Contact Us For Availability
7
WCI 3161291 WCI 3161291 Contact Us For Availability
7
WCI 5308027530 WCI 5308027530 Contact Us For Availability
7
WCI F077009-100 WCI F077009-100 Contact Us For Availability
7
WCI 08002485 WCI 08002485 Contact Us For Availability
8
SCREW-TIMER (2) WCI 3161188 Contact Us For Availability
8
WCI 08002368 WCI 08002368 Contact Us For Availability
8
WCI F077090-000 WCI F077090-000 Contact Us For Availability
9
WCI 08011286 WCI 08011286 Contact Us For Availability
9
WCI F141111-100 WCI F141111-100 Contact Us For Availability
9
DRAIN HOSE & BUSHING WCI 3205936 Contact Us For Availability
9
WCI F073804-000 WCI F073804-000 Contact Us For Availability
9A
CABLE TIE-DRAIN HOSE (NON-ILLUSTRATED) WCI 3161250 Contact Us For Availability
10
WCI 08015493 WCI 08015493 Contact Us For Availability
10
HOSE-CLAMP WCI 5364154013 Contact Us For Availability
10
WCI 08002472 WCI 08002472 Contact Us For Availability
10
SEAL KIT WCI 08950197 Contact Us For Availability
11
WCI 08015529 WCI 08015529 Contact Us For Availability
11
WCI 08015078 WCI 08015078 Contact Us For Availability
11
WCI F063532000 WCI F063532000 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
12
WCI 08015515 WCI 08015515 Contact Us For Availability
12
WCI 5303207073 WCI 5303207073 Contact Us For Availability
12
WCI 3161225 WCI 3161225 Contact Us For Availability
13
WCI 08015513 WCI 08015513 Contact Us For Availability
13
CLAMP WCI 3161183 Contact Us For Availability
13
WCI 3937008 WCI 3937008 Contact Us For Availability
13
WCI 08015778 WCI 08015778 Contact Us For Availability
14
SCREW-SWITCH TO BRACKET (2) WCI 3161259 Contact Us For Availability
14
WCI 08015531 WCI 08015531 Contact Us For Availability
14
MOTOR SHIELD (FABRICATE FROM FLAME RETARDANT WCI 08011275 Contact Us For Availability
14
WCI 08002379 WCI 08002379 Contact Us For Availability
14
SECTOR GEAR WCI 08011268 Contact Us For Availability
15
WCI 08011290 WCI 08011290 Contact Us For Availability
15
WCI 08008462 WCI 08008462 Contact Us For Availability
15
WCI 08015500 WCI 08015500 Contact Us For Availability
15
WCI 08002377 WCI 08002377 Contact Us For Availability
15
CONNECTING ROD WCI 3161169 Contact Us For Availability
15A
WCI 08011304 WCI 08011304 Contact Us For Availability
15B
WCI 08011305 WCI 08011305 Contact Us For Availability
16
LEVELING LEG (4) WCI 3937004 Contact Us For Availability
16
WCI 3003870 WCI 3003870 Contact Us For Availability
16
WCI F136029-000 WCI F136029-000 Contact Us For Availability
16
WCI 08011310 WCI 08011310 Contact Us For Availability
16
WCI 5308015496 WCI 5308015496 Contact Us For Availability
17
WCI 08027679 WCI 08027679 Contact Us For Availability
17
SPEEDNUT WCI 3005492 Contact Us For Availability
17
WCI 5303206795 WCI 5303206795 Contact Us For Availability
17
WCI 08011311 WCI 08011311 Contact Us For Availability
17
LOWER SHAFT ASSY WCI 3161178 Contact Us For Availability
18
SHIPPING BLOCK WCI 3161202 Contact Us For Availability
18
CLIP (4) WCI 08010830 Contact Us For Availability
18
WCI F140887-027 WCI F140887-027 Contact Us For Availability
18
WCI 08011317 WCI 08011317 Contact Us For Availability
19
WCI 08011262 WCI 08011262 Contact Us For Availability
19
WCI 08014346 WCI 08014346 Contact Us For Availability
19
WCI 08950093 WCI 08950093 Contact Us For Availability
19
WCI 08008997 WCI 08008997 Contact Us For Availability
19
NUT-EXPRESSION WCI 3161203 Contact Us For Availability
19
DOWEL PIN (2) WCI 3161227 Contact Us For Availability
20
IMPELLER KIT (INCLUDES SEAL, GASKET, SCREW) WCI 3161162 Contact Us For Availability
20
WCI F139592-000 WCI F139592-000 Contact Us For Availability
20
WCI F130789-000 WCI F130789-000 Contact Us For Availability
21
SCREW (4) WCI 08001578 Contact Us For Availability
21
WCI 5303209659 WCI 5303209659 Contact Us For Availability
21
HOSE-CLAMP (2) WCI 3004826 Contact Us For Availability
21
CLAMP WCI F064154-020 Contact Us For Availability
21
WCI F140141-100 WCI F140141-100 Contact Us For Availability
21
LOWER HOUSING ASSY WCI 3161171 Contact Us For Availability
22
WCI 08001597 WCI 08001597 Contact Us For Availability
22
GROMMET (USE F133016000 PRIMER ADHESIVE AND 0 WCI F137466-000 Contact Us For Availability
22
WCI 08027535 WCI 08027535 Contact Us For Availability
22
WCI 08002475 WCI 08002475 Contact Us For Availability
23
WCI 3004092 WCI 3004092 Contact Us For Availability
23
WCI F140887-013 WCI F140887-013 Contact Us For Availability
23
WCI 08002456 WCI 08002456 Contact Us For Availability
23
WCI 08002476 WCI 08002476 Contact Us For Availability
24
WCI 08002384 WCI 08002384 Contact Us For Availability
24
WCI 3018965 WCI 3018965 Contact Us For Availability
24A
WCI 08057419 WCI 08057419 Contact Us For Availability
24A
CLIP-HARNESS TO CAB RH REAR (2) (NON-ILLUSTRA WCI 3161276 Contact Us For Availability
24B
WCI 08010837 WCI 08010837 Contact Us For Availability
25
LID LOCK ASSY. WCI 3017110 Contact Us For Availability
25
SCREW-CONSOLE TO TOP PANEL (2) WCI 08011318 Contact Us For Availability
25
MOUNTING SCREW (4) WCI 3161216 Contact Us For Availability
25
WCI F132861-000 WCI F132861-000 Contact Us For Availability
25
WCI 5303208460 WCI 5303208460 Contact Us For Availability
26
WCI 5303161174 WCI 5303161174 Contact Us For Availability
26
WCI 3018963 WCI 3018963 Contact Us For Availability
26
WCI 3161469 WCI 3161469 Contact Us For Availability
26
BEARING HOUSING WCI 08027536 Contact Us For Availability
26
MOTOR PULLEY WCI 08006686 Contact Us For Availability
27
WCI 08010824 WCI 08010824 Contact Us For Availability
27
SET SCREW WCI 3161217 Contact Us For Availability
27
WCI F141742-000 WCI F141742-000 Contact Us For Availability
27
IDLER GEAR WCI 3161175 Contact Us For Availability
28
WCI 3161220 WCI 3161220 Contact Us For Availability
28
AGITATOR SHAFT ASSY WCI 3161437 Contact Us For Availability
29
WCI 3161198 WCI 3161198 Contact Us For Availability
29
WCI 08002397 WCI 08002397 Contact Us For Availability
29
WCI F141131-000 WCI F141131-000 Contact Us For Availability
29
UPPER HOUSING ASSY WCI 3161436 Contact Us For Availability
29A
WCI 3201647 WCI 3201647 Contact Us For Availability
30
WCI 5303206915 WCI 5303206915 Contact Us For Availability
30
WCI F064154-004 WCI F064154-004 Contact Us For Availability
30
WCI 08014908 WCI 08014908 Contact Us For Availability
31
WCI 08002424 WCI 08002424 Contact Us For Availability
31
WCI 3161231 WCI 3161231 Contact Us For Availability
32
WCI 08015533 WCI 08015533 Contact Us For Availability
32
WCI 08002427 WCI 08002427 Contact Us For Availability
32
MOTOR & SWITCH ASSY WCI 08015502 Contact Us For Availability
33
RIVET (2) WCI 08002412 Contact Us For Availability
33
WCI 08002439 WCI 08002439 Contact Us For Availability
33
WCI F131203-100 WCI F131203-100 Contact Us For Availability
33
MOTOR SWITCH WCI 08014888 Contact Us For Availability
33
WCI 08002481 WCI 08002481 Contact Us For Availability
34
SEMS SCREW (2) WCI 3018964 Contact Us For Availability
34
WCI F141410-000 WCI F141410-000 Contact Us For Availability
34
IDLER ARM ASSY. WCI 3937001 Contact Us For Availability
35
WCI 08002435 WCI 08002435 Contact Us For Availability
36
WCI 5303912510 No Longer Available
36
WCI F141384-000 WCI F141384-000 Contact Us For Availability
36
BEARING HOUSING PKG WCI 08950058 Contact Us For Availability
37
WCI 5303206866 WCI 5303206866 Contact Us For Availability
37
WCI F134167-000 WCI F134167-000 Contact Us For Availability
38
WCI 08014902 WCI 08014902 Contact Us For Availability
38
WCI 3161282 WCI 3161282 Contact Us For Availability
38
WCI 5308014555 WCI 5308014555 Contact Us For Availability
39
WCI 08014903 WCI 08014903 Contact Us For Availability
39
HOSE WCI 08002353 Contact Us For Availability
40
WCI 08015520 WCI 08015520 Contact Us For Availability
41
WCI 08015519 WCI 08015519 Contact Us For Availability
× ![]()
