Model Maytag AW2402B ROOM AIR CONDITIONER – Common Parts & Diagrams

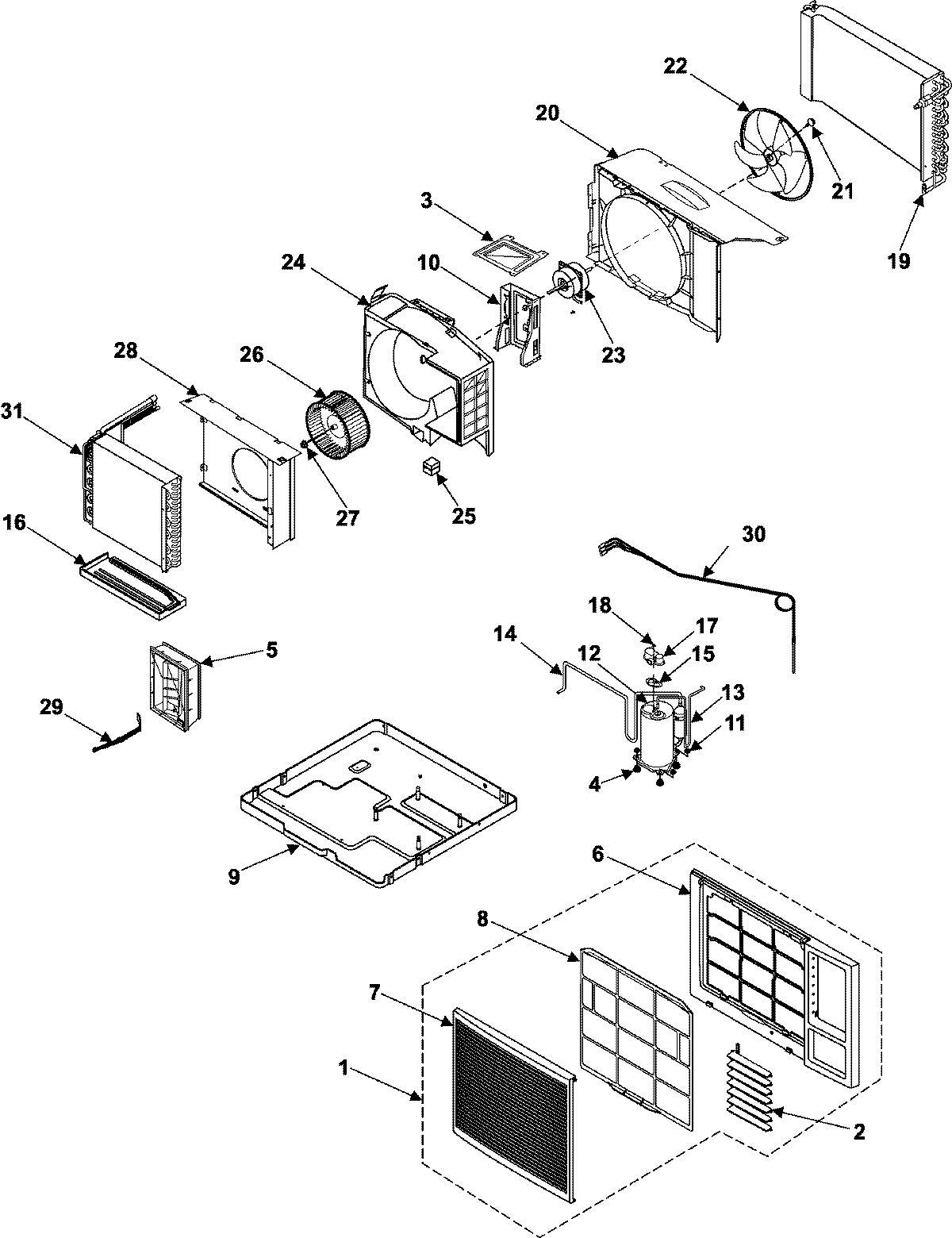

01 - CHASSIS ASSEMBLY

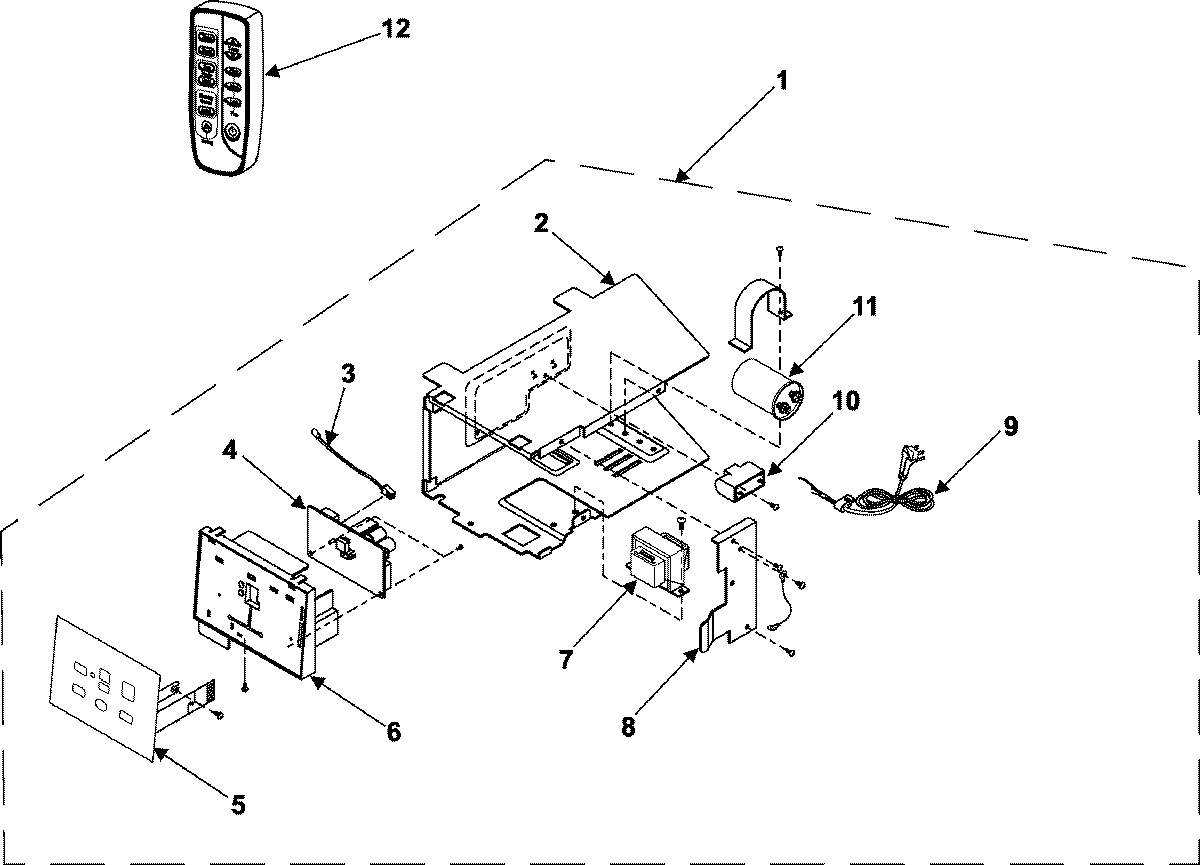

02 - CONTROL ASSEMBLY

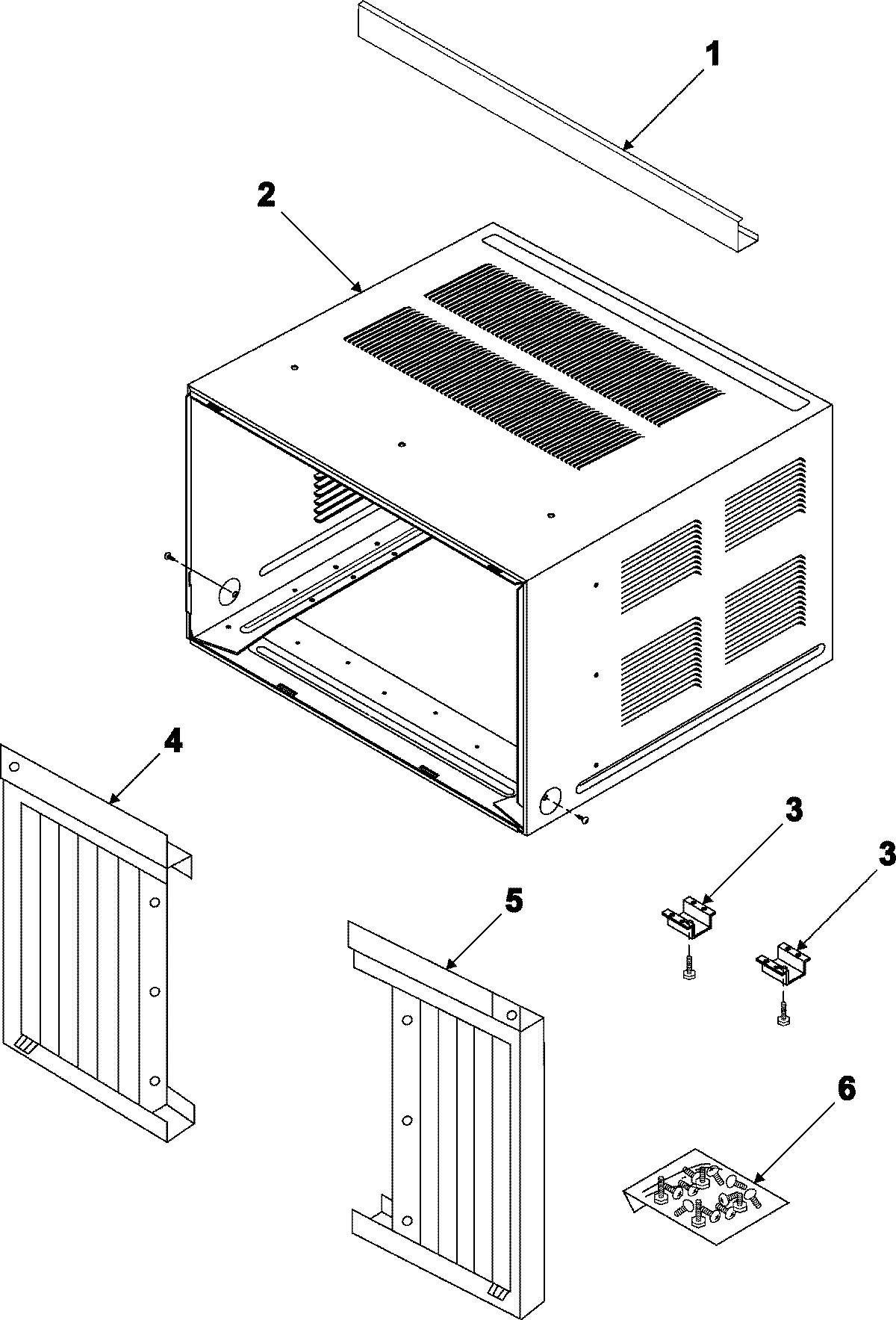

03 - OUTER CASE ASSEMBLY
Common parts from model Maytag AW2402B ROOM AIR CONDITIONER
1
MAY DB92-00506B MAY DB92-00506B Contact Us For Availability
1
MAY DB93-02633C MAY DB93-02633C Contact Us For Availability
1
MAY DB64-01020A MAY DB64-01020A Contact Us For Availability
2
MAY DB66-00493A MAY DB66-00493A Contact Us For Availability
2
MAY DB61-00417A MAY DB61-00417A Contact Us For Availability
2
MAY DB90-01217B MAY DB90-01217B Contact Us For Availability
3
MAY DB70-00342A MAY DB70-00342A Contact Us For Availability
3
MAY DB61-30219F MAY DB61-30219F Contact Us For Availability
4
MAY DB73-00082A MAY DB73-00082A Contact Us For Availability
4
MAY DB93-02478G MAY DB93-02478G Contact Us For Availability
4
MAY DB92-00109A MAY DB92-00109A Contact Us For Availability
5
MAY DB90-01219A MAY DB90-01219A Contact Us For Availability
5
MAY DB34-00034A MAY DB34-00034A Contact Us For Availability
5
MAY DB92-00108A MAY DB92-00108A Contact Us For Availability
6
MAY DB64-00894A MAY DB64-00894A Contact Us For Availability
6
MAY DB64-01086A MAY DB64-01086A Contact Us For Availability
6
MAY DB97-90014X MAY DB97-90014X Contact Us For Availability
7
MAY DB64-00895A MAY DB64-00895A Contact Us For Availability
7
MAY DB26-00006K MAY DB26-00006K Contact Us For Availability
8
MAY DB63-00784B MAY DB63-00784B Contact Us For Availability
8
MAY DB61-01493A MAY DB61-01493A Contact Us For Availability
9
MAY DB90-01215B MAY DB90-01215B Contact Us For Availability
9
MAY DB39-00200B MAY DB39-00200B Contact Us For Availability
10
MAY DB61-01496A MAY DB61-01496A Contact Us For Availability
10
MAY 2301-001449 MAY 2301-001449 Contact Us For Availability
11
MAY 2501-001238 MAY 2501-001238 Contact Us For Availability
12
MAY 55A240IU2EN MAY 55A240IU2EN Contact Us For Availability
12
MAY DB93-03018W MAY DB93-03018W Contact Us For Availability
13
MAY DB62-02136A MAY DB62-02136A Contact Us For Availability
14
MAY DB62-02546A MAY DB62-02546A Contact Us For Availability
16
MAY DB63-00783A MAY DB63-00783A Contact Us For Availability
18
SEE NOTE NUT-TERMINAL COVER CURRENTLY NO MAY Y00000000 Contact Us For Availability
19
MAY DB96-02699B MAY DB96-02699B Contact Us For Availability
20
MAY DB61-01495A MAY DB61-01495A Contact Us For Availability
21
MAY 6021-001056 MAY 6021-001056 Contact Us For Availability
22
MAY DB67-00047B MAY DB67-00047B Contact Us For Availability
23
MAY DB31-00214B MAY DB31-00214B Contact Us For Availability
24
MAY DB97-01959A MAY DB97-01959A Contact Us For Availability
25
MAY DB73-20096A MAY DB73-20096A Contact Us For Availability
26
MAY DB67-00344A MAY DB67-00344A Contact Us For Availability
27
MAY DB60-30028A MAY DB60-30028A Contact Us For Availability
28
MAY DB90-01220A MAY DB90-01220A Contact Us For Availability
29
MAY DB66-00492A MAY DB66-00492A Contact Us For Availability
30
MAY DB96-03251A MAY DB96-03251A Contact Us For Availability
31
MAY DB96-02859A MAY DB96-02859A Contact Us For Availability
× ![]()
