Model Maytag AW1203B ROOM AIR CONDITIONER – Common Parts & Diagrams

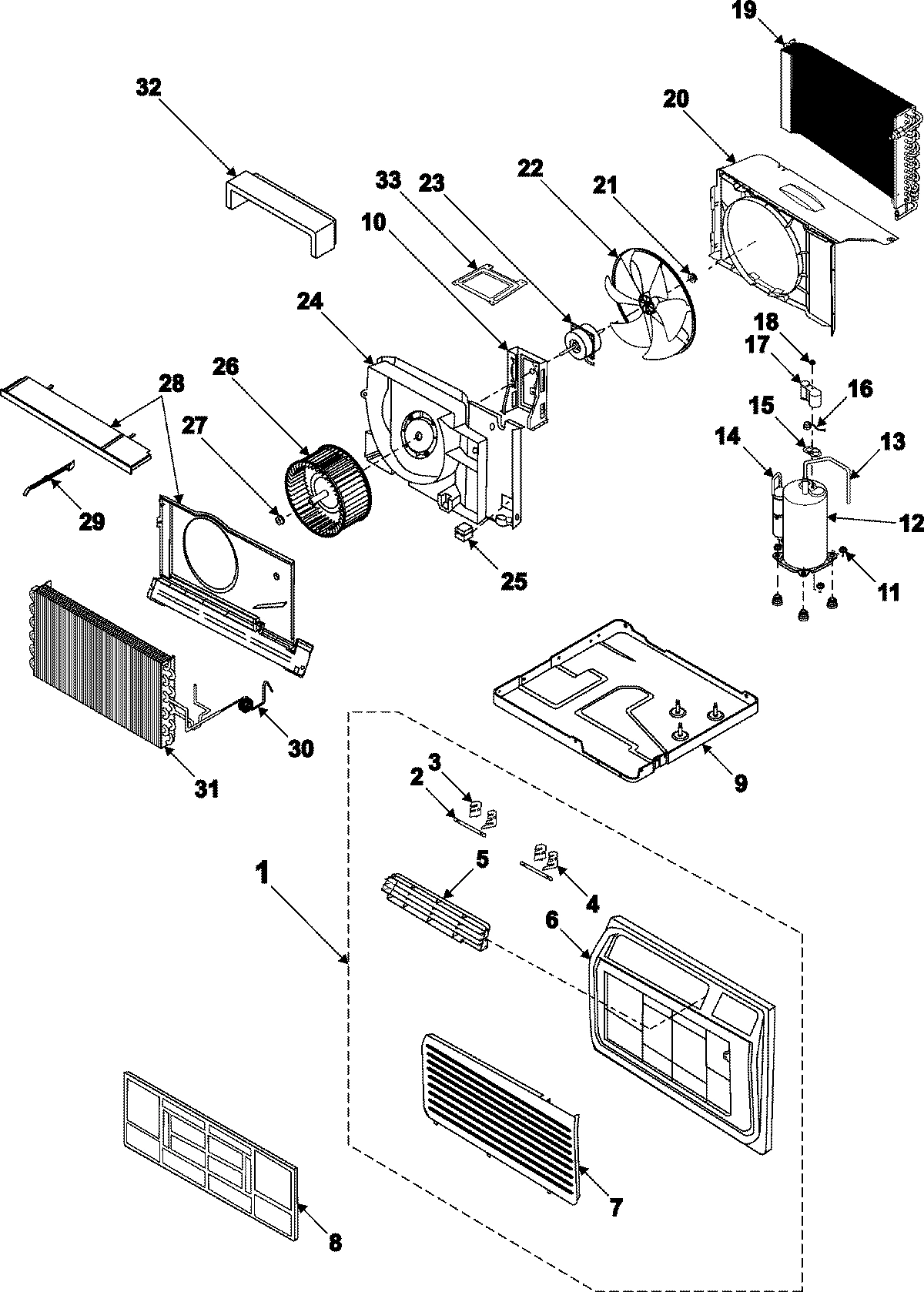

01 - CHASSIS ASSEMBLY

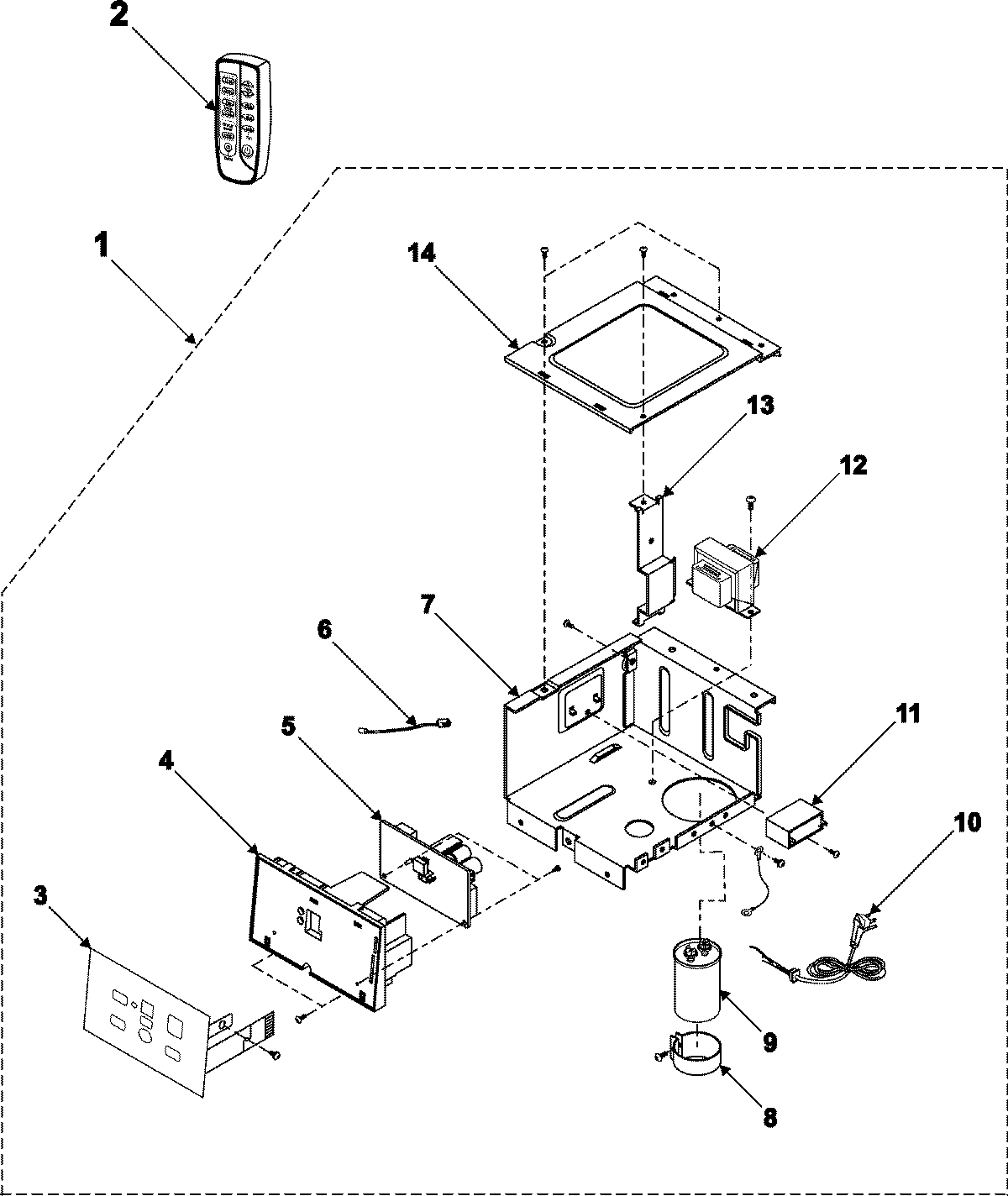

02 - CONTROL ASSEMBLY

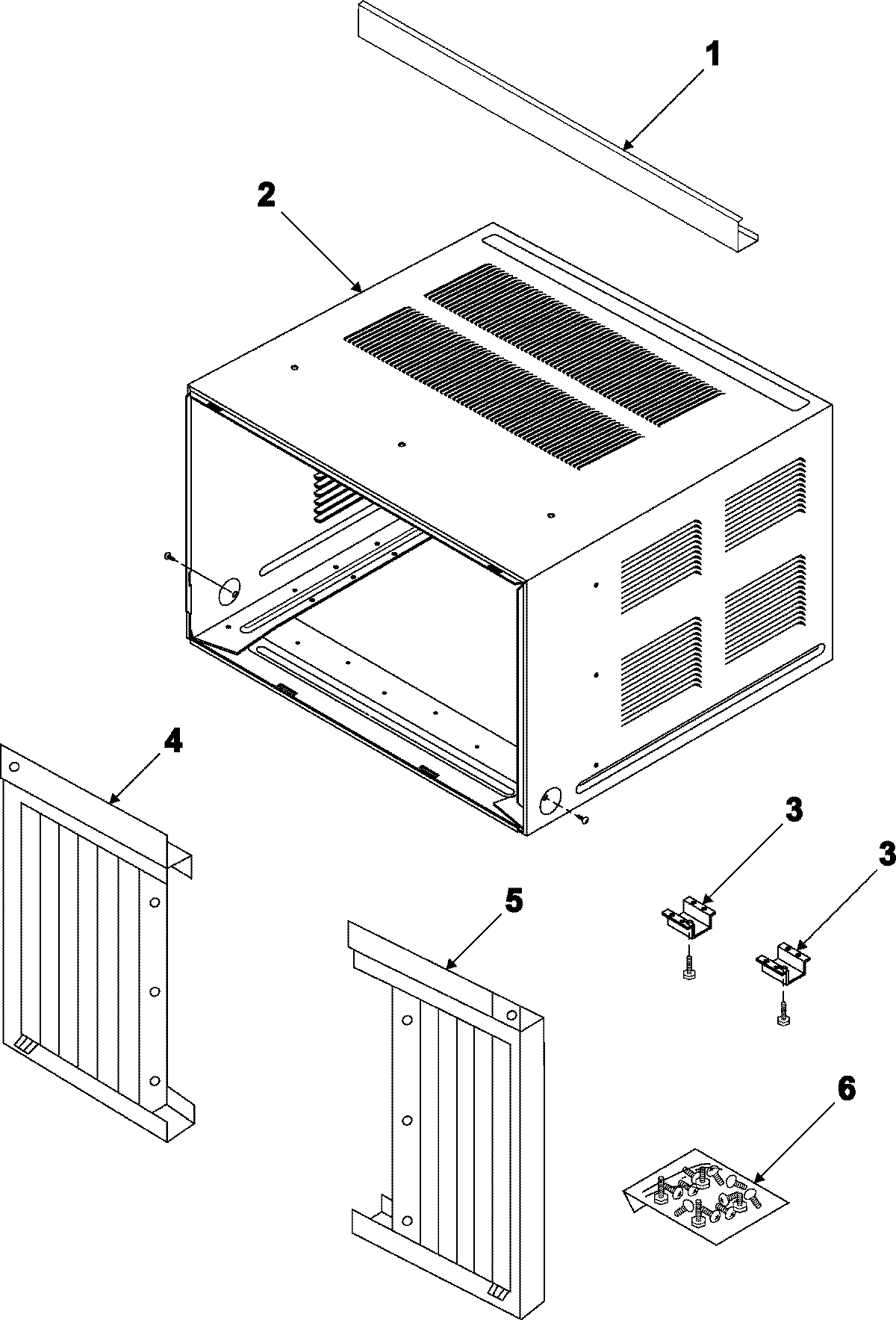

03 - OUTER CASE ASSEMBLY
04 - SUPPLEMENTAL INFORMATION

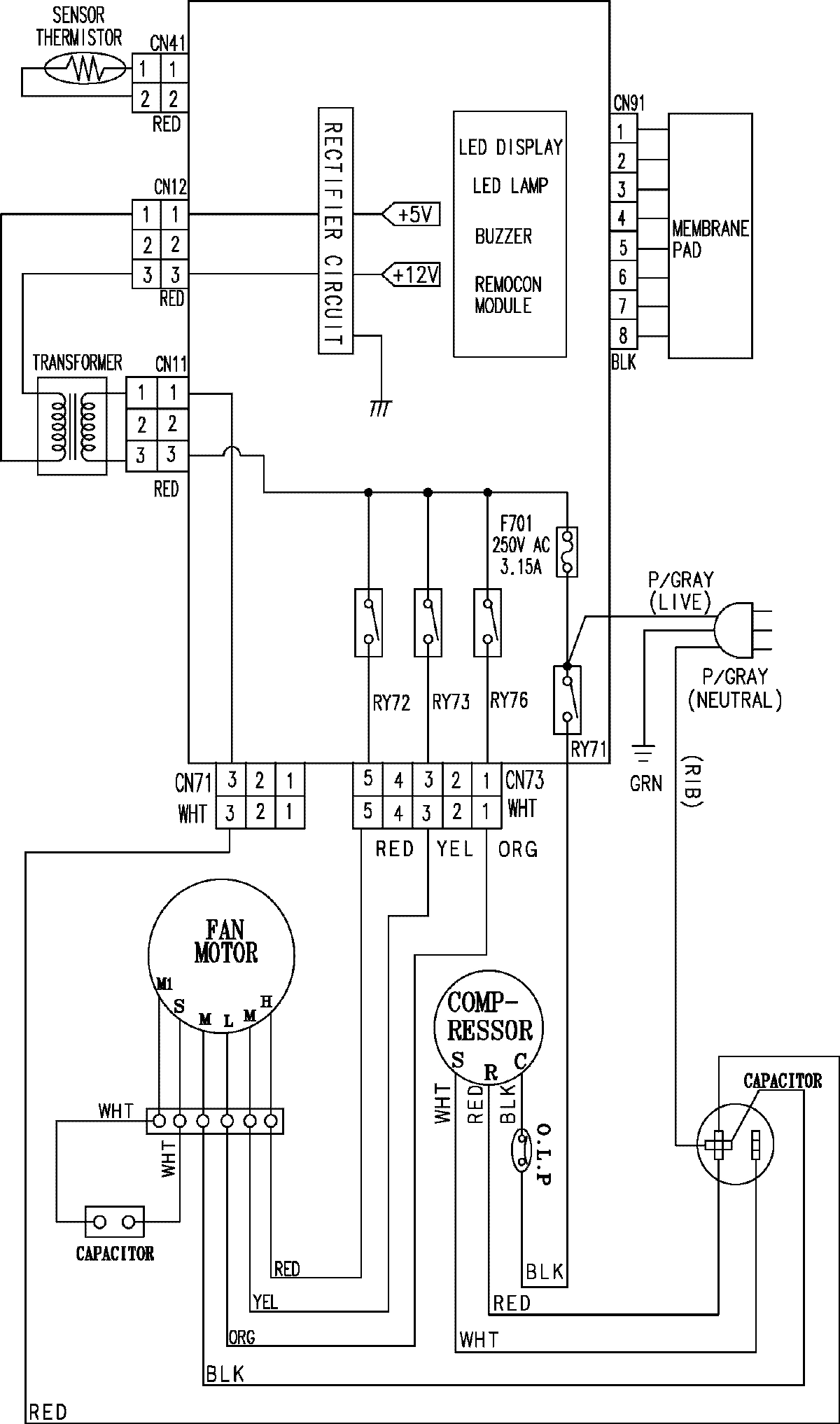

05 - WIRING INFORMATION
Common parts from model Maytag AW1203B ROOM AIR CONDITIONER
1
MAY DB92-00553G MAY DB92-00553G Contact Us For Availability
1
MAY DB93-02520A MAY DB93-02520A Contact Us For Availability
1
MAY DB64-00048J MAY DB64-00048J Contact Us For Availability
2
MAY DB66-00562A MAY DB66-00562A Contact Us For Availability
2
MAY DB93-03018X MAY DB93-03018X Contact Us For Availability
2
MAY DB90-01284A MAY DB90-01284A Contact Us For Availability
3
MAY DB66-00561A MAY DB66-00561A Contact Us For Availability
3
MAY DB34-00032A MAY DB34-00032A Contact Us For Availability
3
MAY DB61-30219F MAY DB61-30219F Contact Us For Availability
4
MAY DB66-00560A MAY DB66-00560A Contact Us For Availability
4
MAY DB64-00929A MAY DB64-00929A Contact Us For Availability
4
MAY DB92-00111A MAY DB92-00111A Contact Us For Availability
5
MAY DB61-01538A MAY DB61-01538A Contact Us For Availability
5
MAY DB93-02478C MAY DB93-02478C Contact Us For Availability
5
MAY DB92-00110A MAY DB92-00110A Contact Us For Availability
6
MAY DB64-00924A MAY DB64-00924A Contact Us For Availability
6
MAY DB32-10031A MAY DB32-10031A Contact Us For Availability
6
MAY DB97-30156C MAY DB97-30156C Contact Us For Availability
7
MAY DB64-00925B MAY DB64-00925B Contact Us For Availability
7
MAY DB61-00669D MAY DB61-00669D Contact Us For Availability
8
MAY DB61-00191A MAY DB61-00191A Contact Us For Availability
8
MAY DB63-00813B MAY DB63-00813B Contact Us For Availability
8
MAY DB65-00031B MAY DB65-00031B Contact Us For Availability
9
MAY DB90-01285B MAY DB90-01285B Contact Us For Availability
9
MAY 2501-001230 MAY 2501-001230 Contact Us For Availability
10
MAY DB90-01420A MAY DB90-01420A Contact Us For Availability
10
MAY DB39-00343E MAY DB39-00343E Contact Us For Availability
11
MAY DB60-30028A MAY DB60-30028A Contact Us For Availability
11
SEE NOTE C-OIL CURRENTLY UNAVAILABLE MAY Y00000000 Contact Us For Availability
12
MAY DB95-00492A MAY DB95-00492A Contact Us For Availability
13
MAY DB62-02287A MAY DB62-02287A Contact Us For Availability
13
MAY DB61-00676A MAY DB61-00676A Contact Us For Availability
14
MAY DB62-02213A MAY DB62-02213A Contact Us For Availability
14
MAY DB61-00670B MAY DB61-00670B Contact Us For Availability
15
MAY DB63-00990A MAY DB63-00990A Contact Us For Availability
16
MAY DB35-00031B MAY DB35-00031B Contact Us For Availability
17
MAY DB63-00989A MAY DB63-00989A Contact Us For Availability
19
MAY DB96-02940A MAY DB96-02940A Contact Us For Availability
20
MAY DB61-01537A MAY DB61-01537A Contact Us For Availability
21
MAY DB60-30020A MAY DB60-30020A Contact Us For Availability
23
MAY DB31-00211A MAY DB31-00211A Contact Us For Availability
24
MAY DB97-02047A MAY DB97-02047A Contact Us For Availability
25
MAY DB73-00178A MAY DB73-00178A Contact Us For Availability
26
MAY DB67-50073A MAY DB67-50073A Contact Us For Availability
27
MAY DB60-30004A MAY DB60-30004A Contact Us For Availability
28
MAY DB90-01286A MAY DB90-01286A Contact Us For Availability
29
MAY DB66-00559A MAY DB66-00559A Contact Us For Availability
30
MAY DB62-02367A MAY DB62-02367A Contact Us For Availability
31
MAY DB96-02939A MAY DB96-02939A Contact Us For Availability
32
MAY DB90-01342A MAY DB90-01342A Contact Us For Availability
33
MAY DB70-00367A MAY DB70-00367A Contact Us For Availability
NI
MAY SAM0001 MAY SAM0001 Contact Us For Availability
NI
MAY 15003959 MAY 15003959 Contact Us For Availability
× ![]()
