Model Maytag AW1200A ROOM AIR CONDITIONER – Common Parts & Diagrams

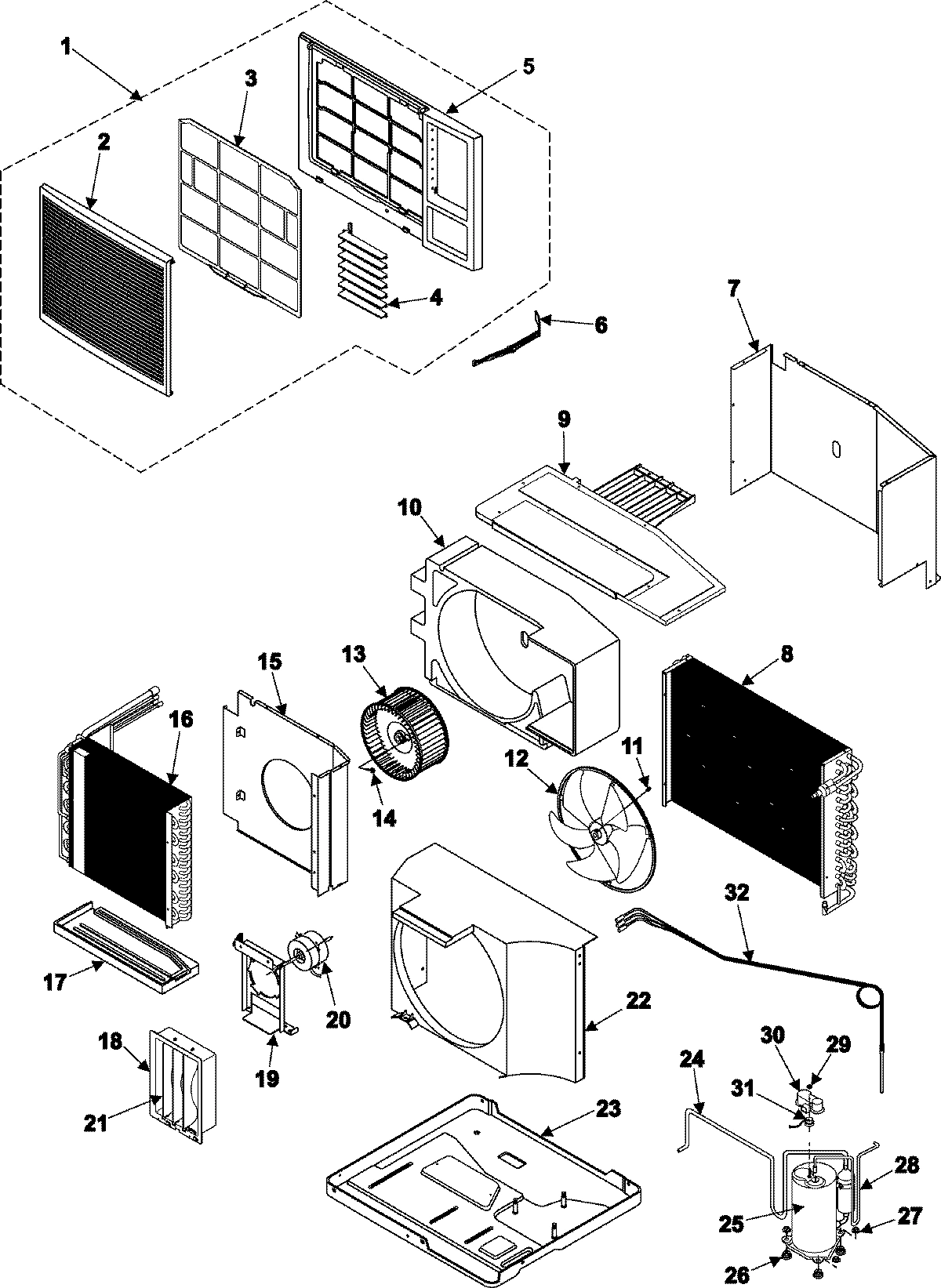

01 - CHASSIS ASSEMBLY

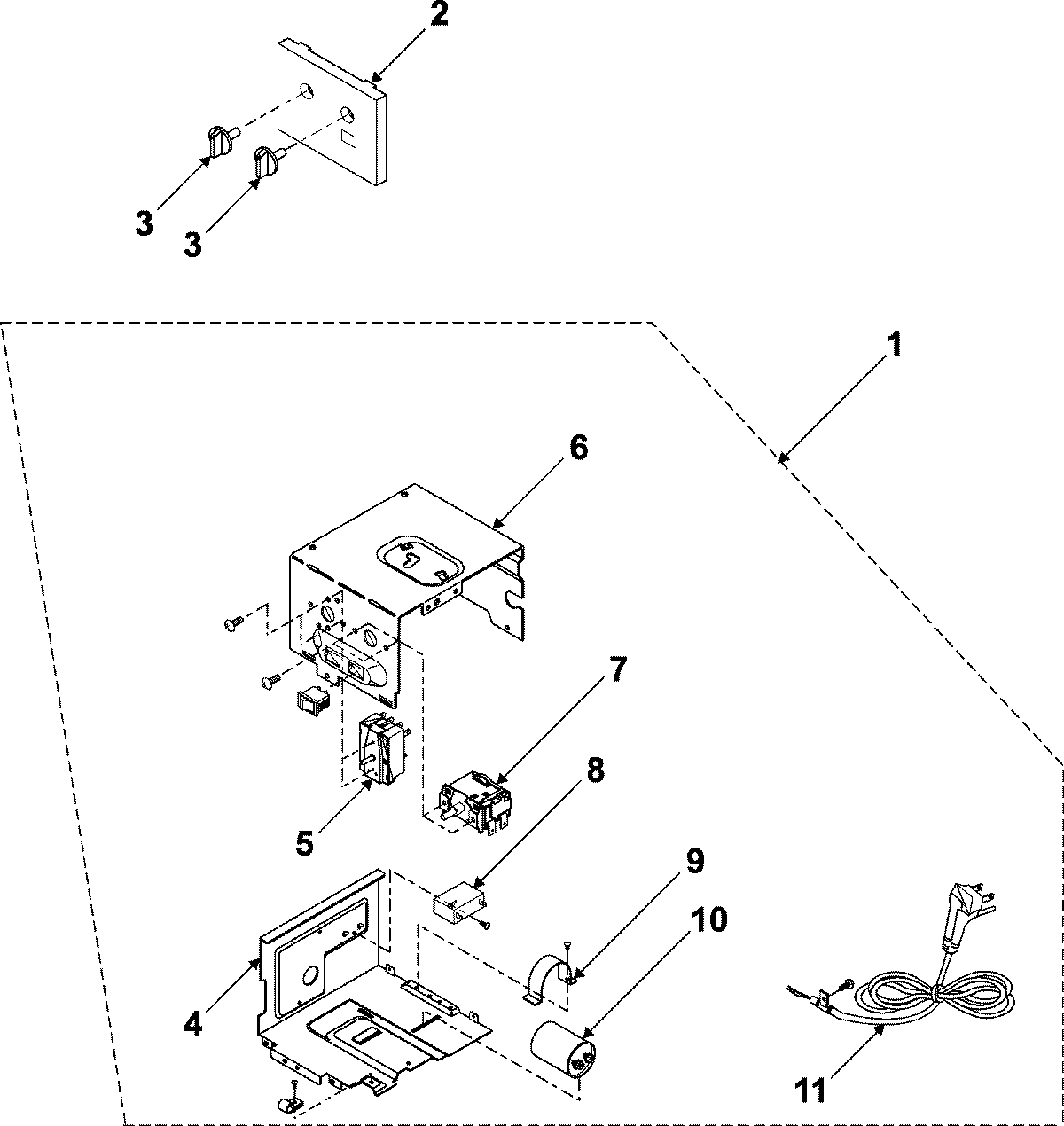

02 - CONTROL ASSEMBLY

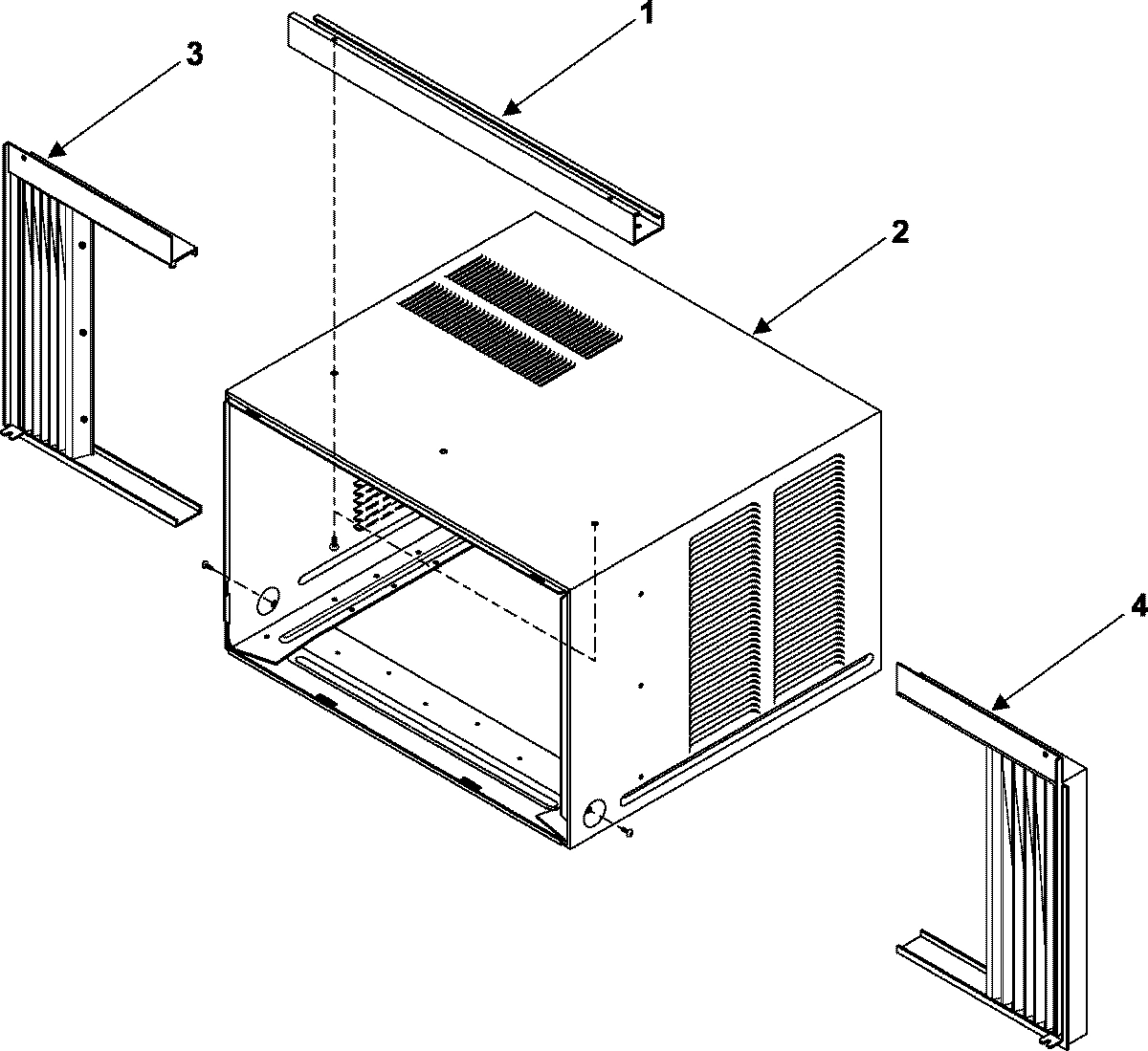

03 - OUTER CASE ASSEMBLY
04 - SUPPLEMENTAL INFORMATION

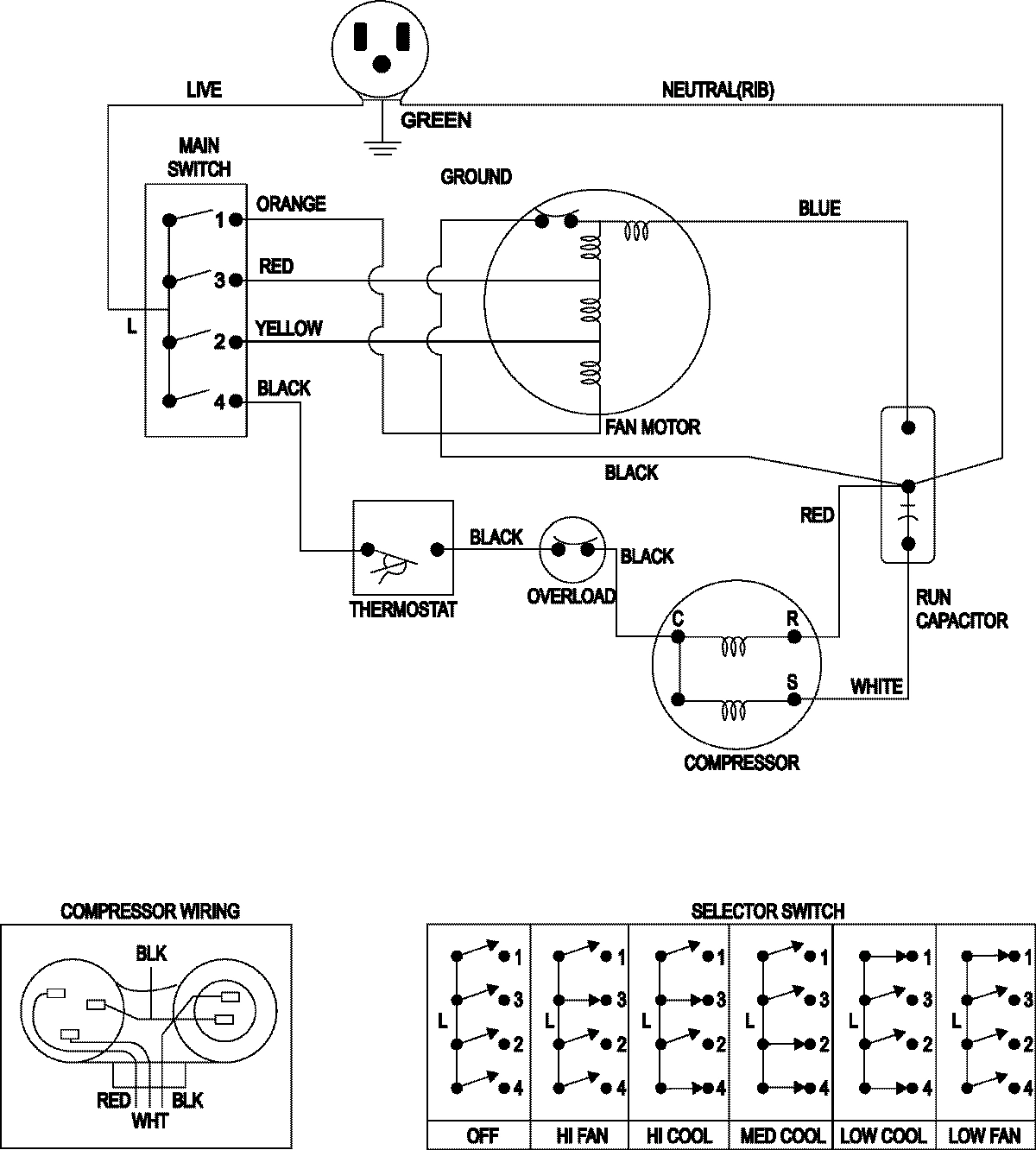

05 - WIRING INFORMATION (AW1200)
Common parts from model Maytag AW1200A ROOM AIR CONDITIONER
1
MAY DB92-00067A MAY DB92-00067A Contact Us For Availability
1
MAY DB93-00483C MAY DB93-00483C Contact Us For Availability
1
MAY DB64-00048D MAY DB64-00048D Contact Us For Availability
2
MAY DB64-00178A MAY DB64-00178A Contact Us For Availability
2
MAY DB92-00066C MAY DB92-00066C Contact Us For Availability
2
MAY DB64-00262C MAY DB64-00262C Contact Us For Availability
2
MAY DB90-00311A MAY DB90-00311A Contact Us For Availability
3
MAY DB63-00100A MAY DB63-00100A Contact Us For Availability
3
MAY DB64-50128A MAY DB64-50128A Contact Us For Availability
3
MAY DB64-50138A MAY DB64-50138A Contact Us For Availability
3
MAY DB64-00284A MAY DB64-00284A Contact Us For Availability
3
MAY DB92-00108A MAY DB92-00108A Contact Us For Availability
4
MAY DB66-00120A MAY DB66-00120A Contact Us For Availability
4
MAY DB61-00417A MAY DB61-00417A Contact Us For Availability
4
MAY DB64-00285A MAY DB64-00285A Contact Us For Availability
4
MAY DB92-00109A MAY DB92-00109A Contact Us For Availability
5
MAY DB64-00177A MAY DB64-00177A Contact Us For Availability
5
MAY 3406-001045 MAY 3406-001045 Contact Us For Availability
6
MAY DB66-70024A MAY DB66-70024A Contact Us For Availability
6
MAY DB61-00418A MAY DB61-00418A Contact Us For Availability
7
MAY DB70-10679A MAY DB70-10679A Contact Us For Availability
7
MAY DB32-10031A MAY DB32-10031A Contact Us For Availability
7
MAY DB47-20074A MAY DB47-20074A Contact Us For Availability
8
MAY DB96-01043A MAY DB96-01043A Contact Us For Availability
8
MAY 2301-001448 MAY 2301-001448 Contact Us For Availability
9
MAY DB63-10487A MAY DB63-10487A Contact Us For Availability
9
MAY DB90-40174A MAY DB90-40174A Contact Us For Availability
9
MAY DB65-10008B MAY DB65-10008B Contact Us For Availability
10
MAY DB61-00422A MAY DB61-00422A Contact Us For Availability
10
MAY DB61-00609A MAY DB61-00609A Contact Us For Availability
10
MAY DB96-00868A MAY DB96-00868A Contact Us For Availability
10
MAY 2501-001230 MAY 2501-001230 Contact Us For Availability
11
MAY DB39-00343B MAY DB39-00343B Contact Us For Availability
12
MAY DB67-00047A MAY DB67-00047A Contact Us For Availability
13
MAY DB67-00096A MAY DB67-00096A Contact Us For Availability
14
MAY 6021-001056 MAY 6021-001056 Contact Us For Availability
15
MAY DB96-00026A MAY DB96-00026A Contact Us For Availability
16
MAY DB96-01039A MAY DB96-01039A Contact Us For Availability
17
MAY DB63-40019A MAY DB63-40019A Contact Us For Availability
18
MAY DB90-00161A MAY DB90-00161A Contact Us For Availability
19
MAY DB61-00440A MAY DB61-00440A Contact Us For Availability
20
MAY DB31-00075A MAY DB31-00075A Contact Us For Availability
21
MAY DB61-60125A MAY DB61-60125A Contact Us For Availability
22
MAY DB61-00448A MAY DB61-00448A Contact Us For Availability
23
MAY DB90-00304A MAY DB90-00304A Contact Us For Availability
24
MAY DB62-00563A MAY DB62-00563A Contact Us For Availability
25
MAY 44B124HU1EL MAY 44B124HU1EL Contact Us For Availability
25
MAY DB63-20002A MAY DB63-20002A Contact Us For Availability
26
SEE NOTE GROMMET-ISOLATOR CURRENTLY UNA MAY Y00000000 Contact Us For Availability
27
MAY DB60-30028A MAY DB60-30028A Contact Us For Availability
28
MAY DB62-00534B MAY DB62-00534B Contact Us For Availability
29
MAY DB60-30018A MAY DB60-30018A Contact Us For Availability
30
MAY DB63-10026A MAY DB63-10026A Contact Us For Availability
31
MAY DB47-20001U MAY DB47-20001U Contact Us For Availability
32
MAY DB62-00342J MAY DB62-00342J Contact Us For Availability
NI
MAY DB97-00231A MAY DB97-00231A Contact Us For Availability
NI
MAY DB97-00394A MAY DB97-00394A Contact Us For Availability
NI
MAY SAM0111 MAY SAM0111 Contact Us For Availability
NI
MAY 15003965 MAY 15003965 Contact Us For Availability
× ![]()
