Model LG AUUW36GH0.EWGBEUS – Common Parts & Diagrams

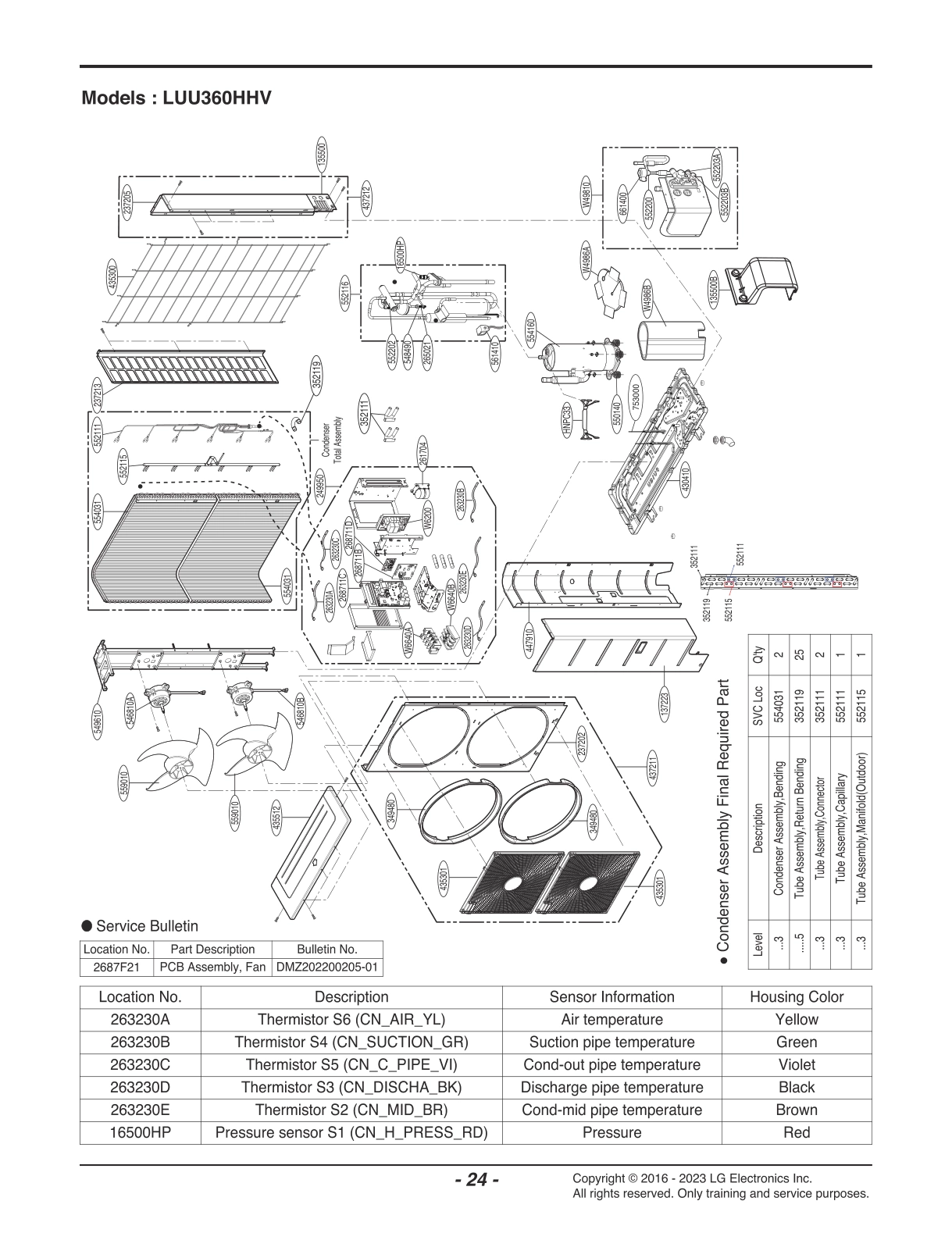

DIAGRAM 1
Common parts from model LG AUUW36GH0.EWGBEUS
16500HP
Sensor,Pressure LGE EBD60663821 Contact Us For Availability
135500
Cover LGE MCK39626227 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL34579165 Contact Us For Availability
237202
Panel,Front LGE MGC39426120 Contact Us For Availability
237205
Panel,Rear LGE MGC39613745 Contact Us For Availability
237213
Panel,Side LGE MGC39426024 Contact Us For Availability
249950
Case Assembly,Control Box LGE ABQ75744273 Contact Us For Availability
263230B
Thermistor Assembly,NTC LGE EBG61405903 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61445812 Contact Us For Availability
268711B
PCB Assembly,Cycle(Onboarding) LGE EBR86560941 Contact Us For Availability
268711C
PCB Assembly,Inv(Onboarding) LGE EBR82716233 Contact Us For Availability
268711D
PCB Assembly,Fan LGE EBR79191511 Contact Us For Availability
349480
Orifice LGE MFX63082101 Contact Us For Availability
352111
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75870802 Contact Us For Availability
435300
Grille,Rear LGE MDX40922521 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131832 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578727 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76512821 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646444 Contact Us For Availability
546810B
Motor Assembly,DC,Outdoor LGE EAU62543704 Contact Us For Availability
548490
Accumulator LGE 4848A20007R Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
550140
Damper,Rubber LGE MCQ68888201 Contact Us For Availability
552111
Tube Assembly,Capillary LGE AJR75062901 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR76562801 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR76802405 Contact Us For Availability
552200
Valve,Expansion Body LGE 5220A90013J Contact Us For Availability
552203A
Valve,Service LGE MJX62472107 Contact Us For Availability
552203B
Valve,Service LGE MJX62472202 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG73706311 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ38294401 Contact Us For Availability
561410
Coil Assembly,Reverse LGE EAP64467707 Contact Us For Availability
661400
Coil,Expansion LGE EAP63107103 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270708 Contact Us For Availability
753000
Heater,Electric LGE MEE63124904 Contact Us For Availability
HNPC33
Harness,Multi LGE EAD63768954 Contact Us For Availability
W4986A
Sound proof LGE MMC00120719 Contact Us For Availability
W4986B
Sound proof LGE MMC00120717 Contact Us For Availability
W6200
PCB Assembly,Filter LGE EBR81792504 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG63591101 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG38884441 Contact Us For Availability
× ![]()
