Model GE ATGE9AGP113TW01 General Electric Model ATGE9AGP113TW01 – Common Parts & Diagrams
Access Panel, Front Panel and Seal
Base, Side Panels and Rear Panel

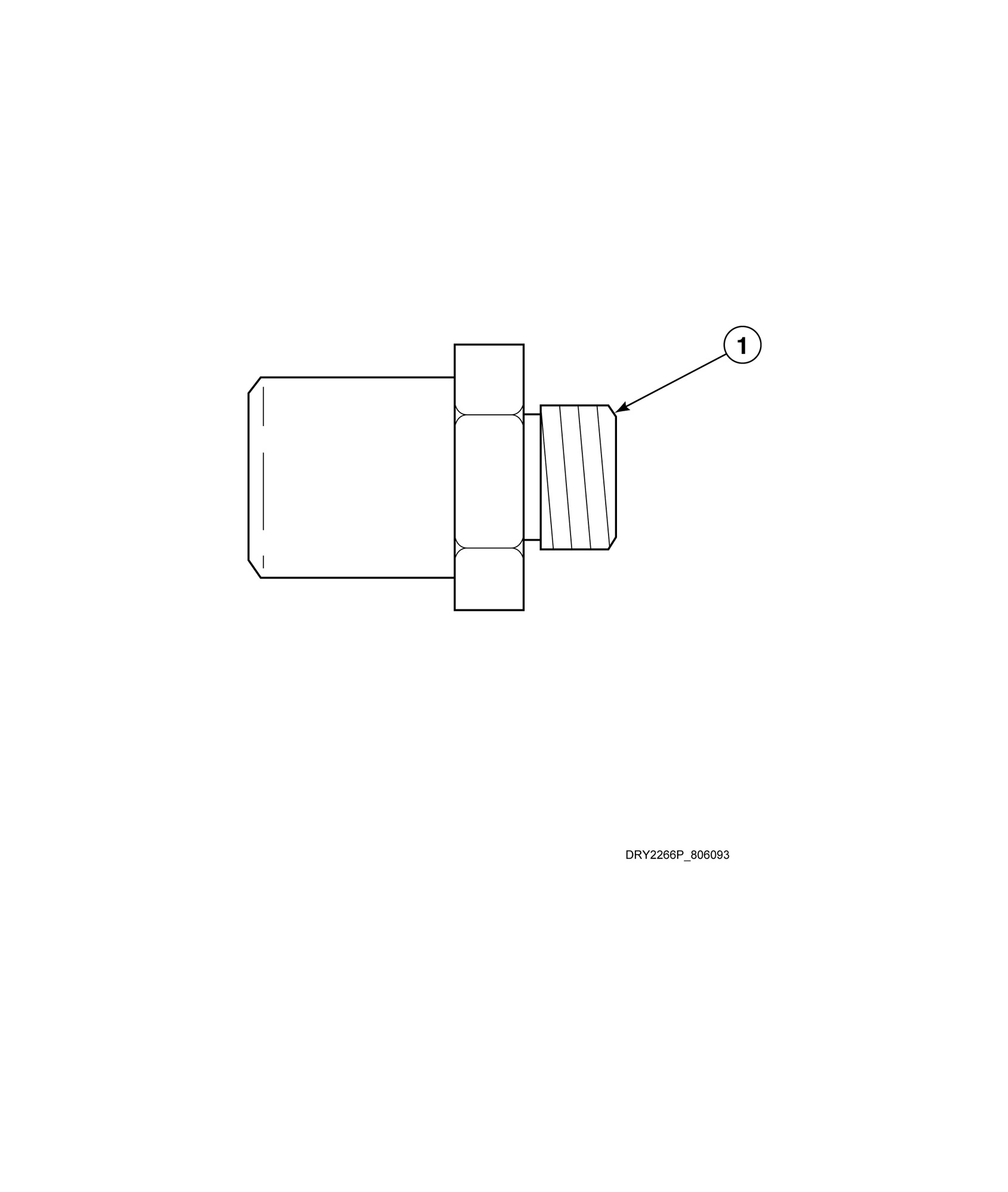

Burner Orifice Spuds - For Higher Elevations (Gas Models)

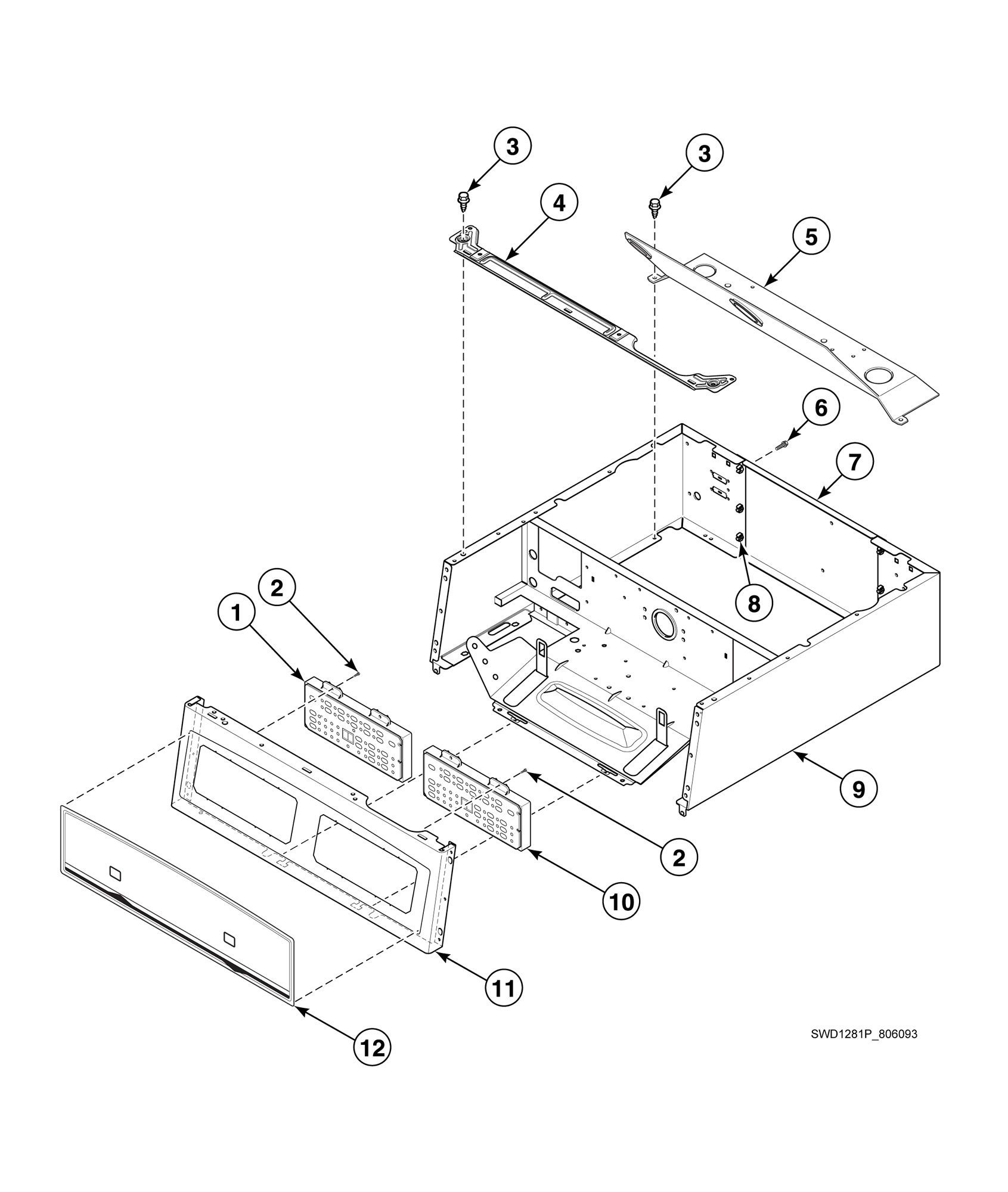

Control Cabinet and Controls

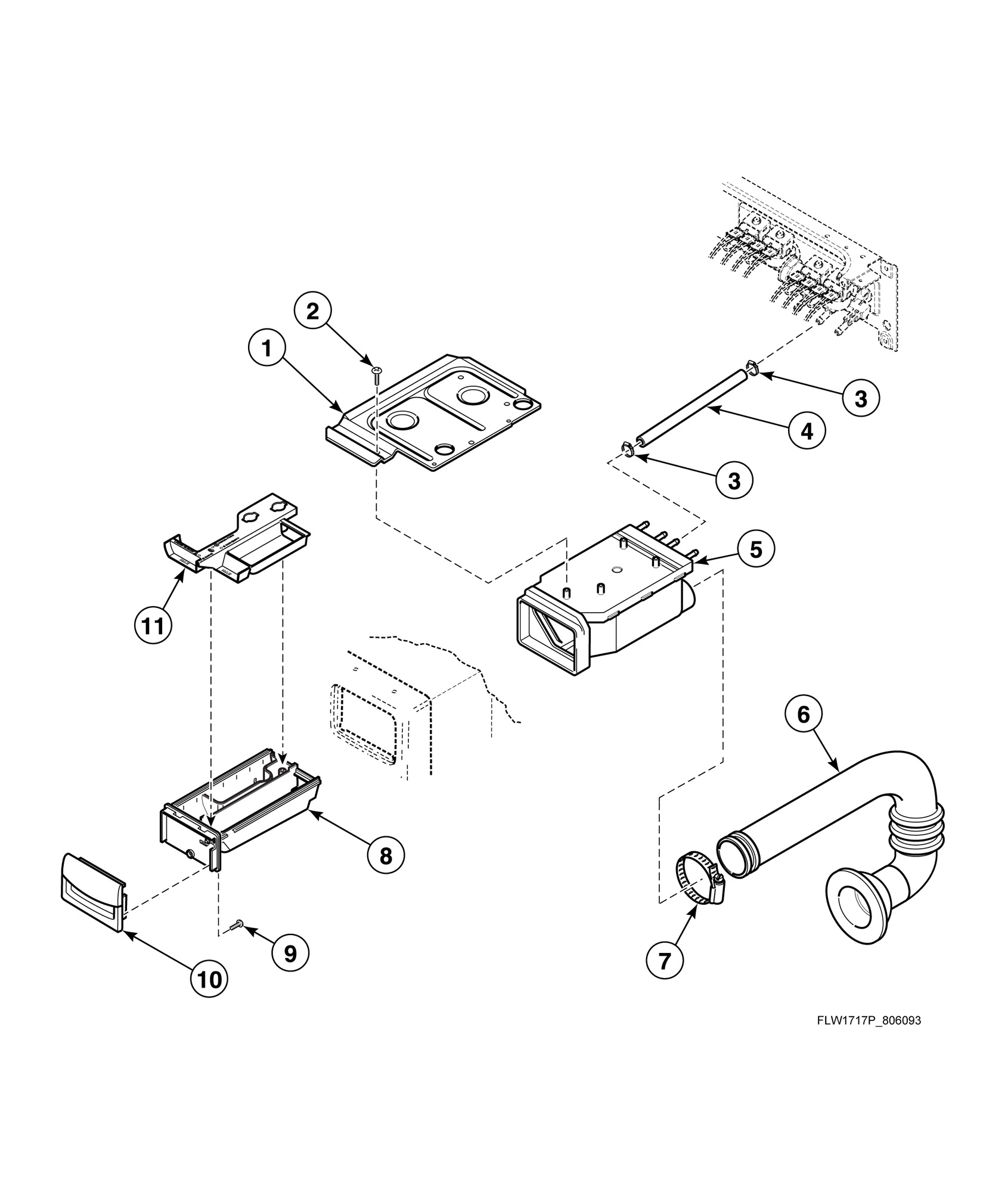

Dispenser Assembly

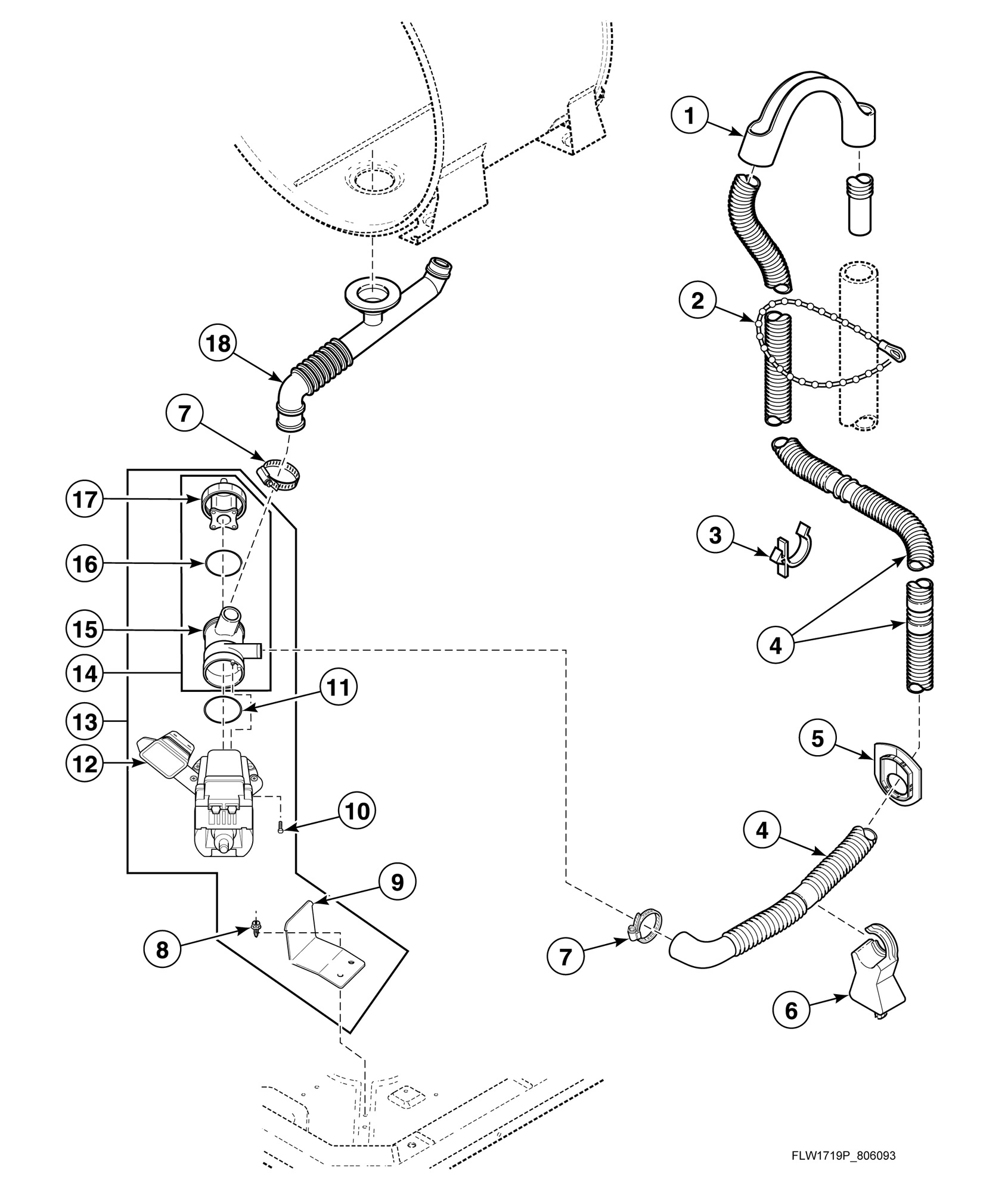

Drain Hose and Pump

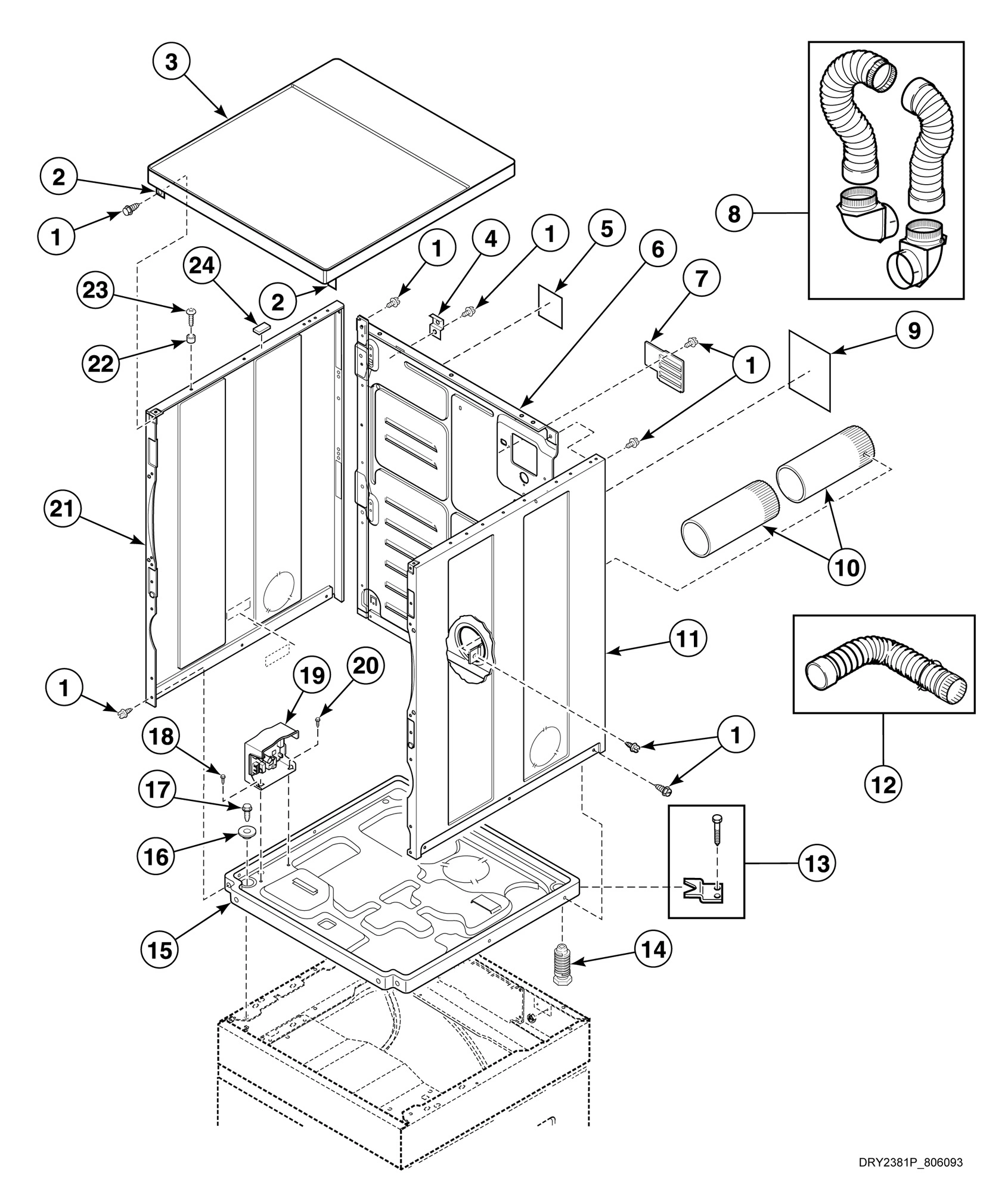

Dryer Cabinet, Exhaust Duct and Base

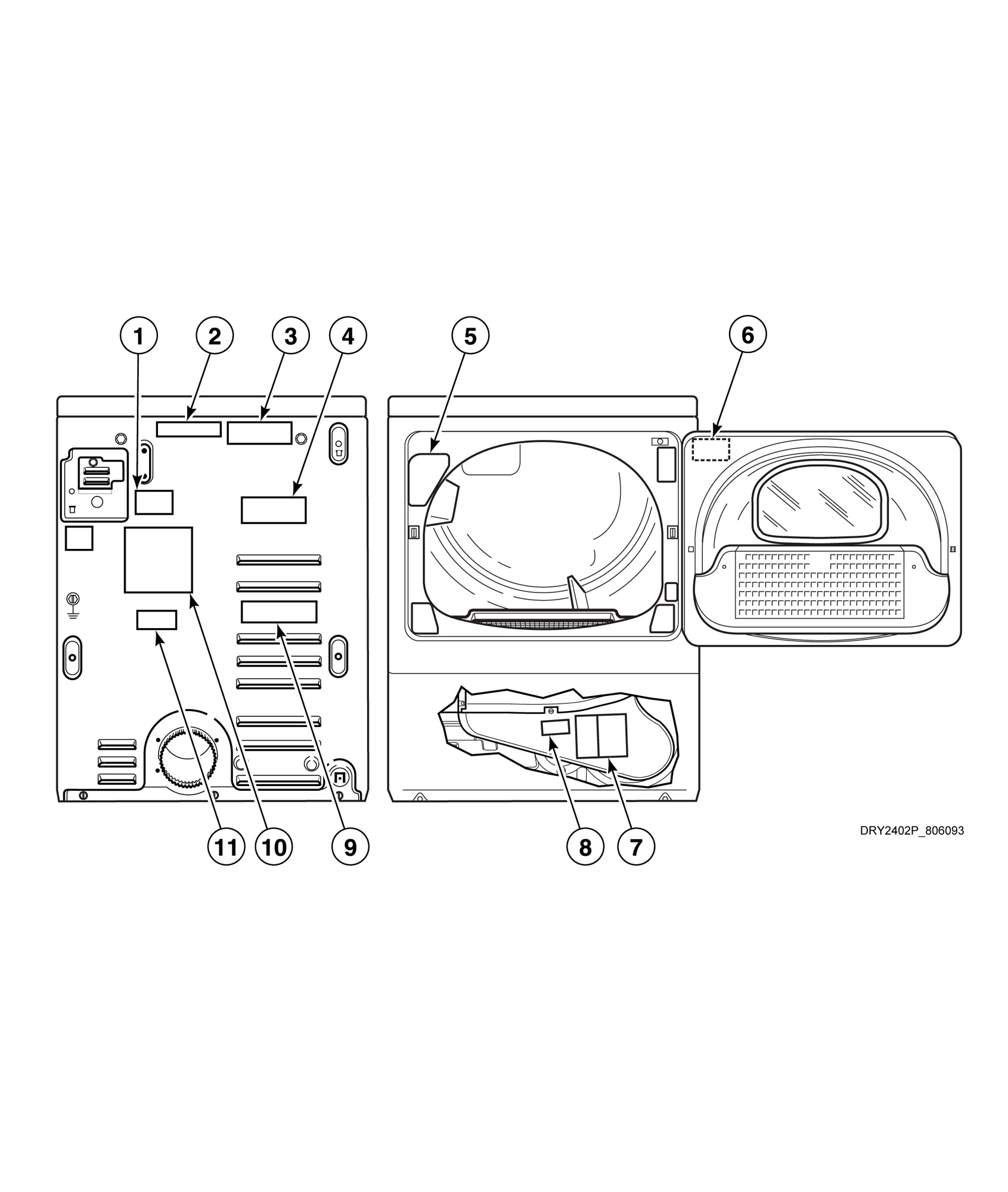

Dryer Labels

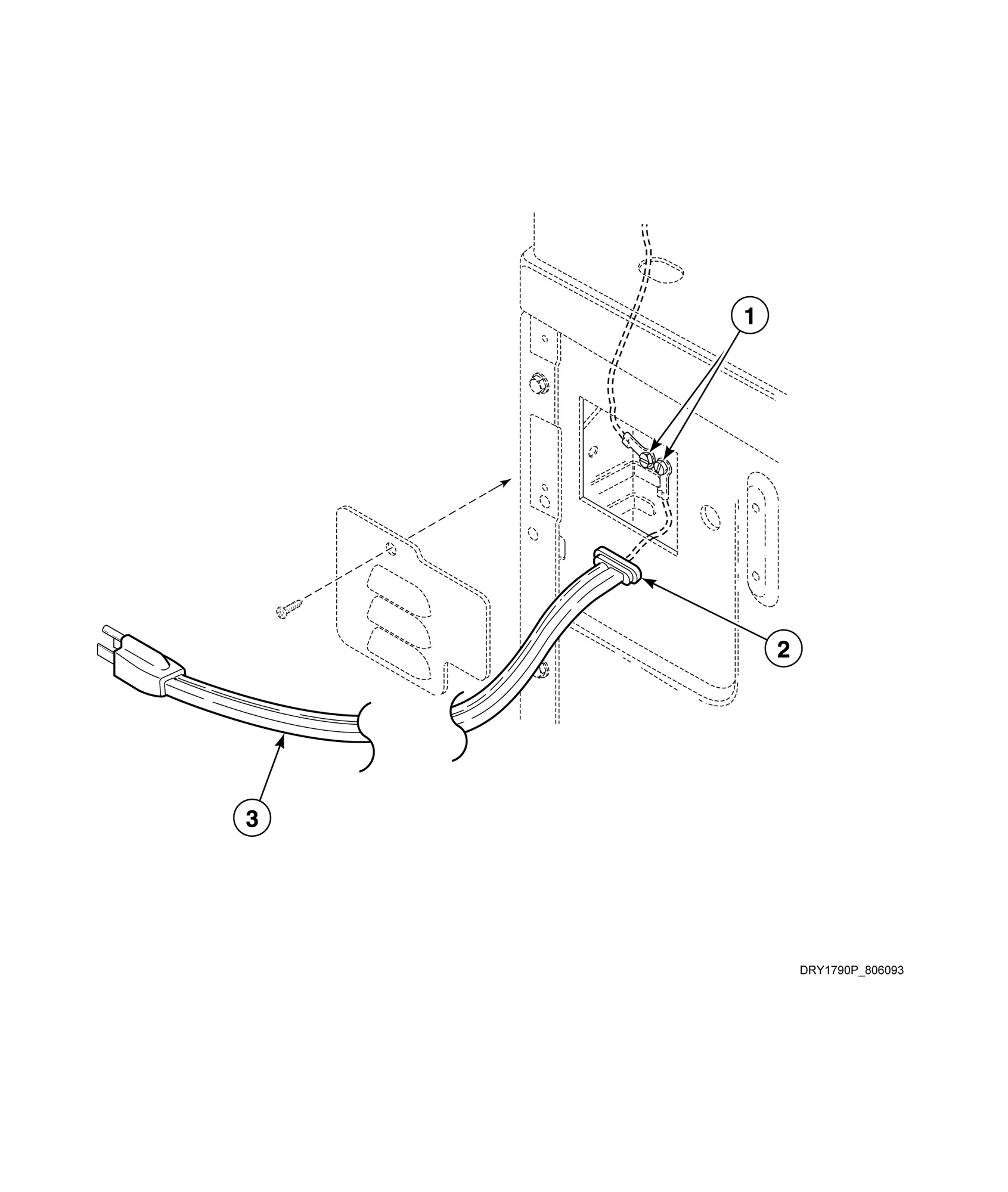

Dryer Lead-In Cord (Gas Models)

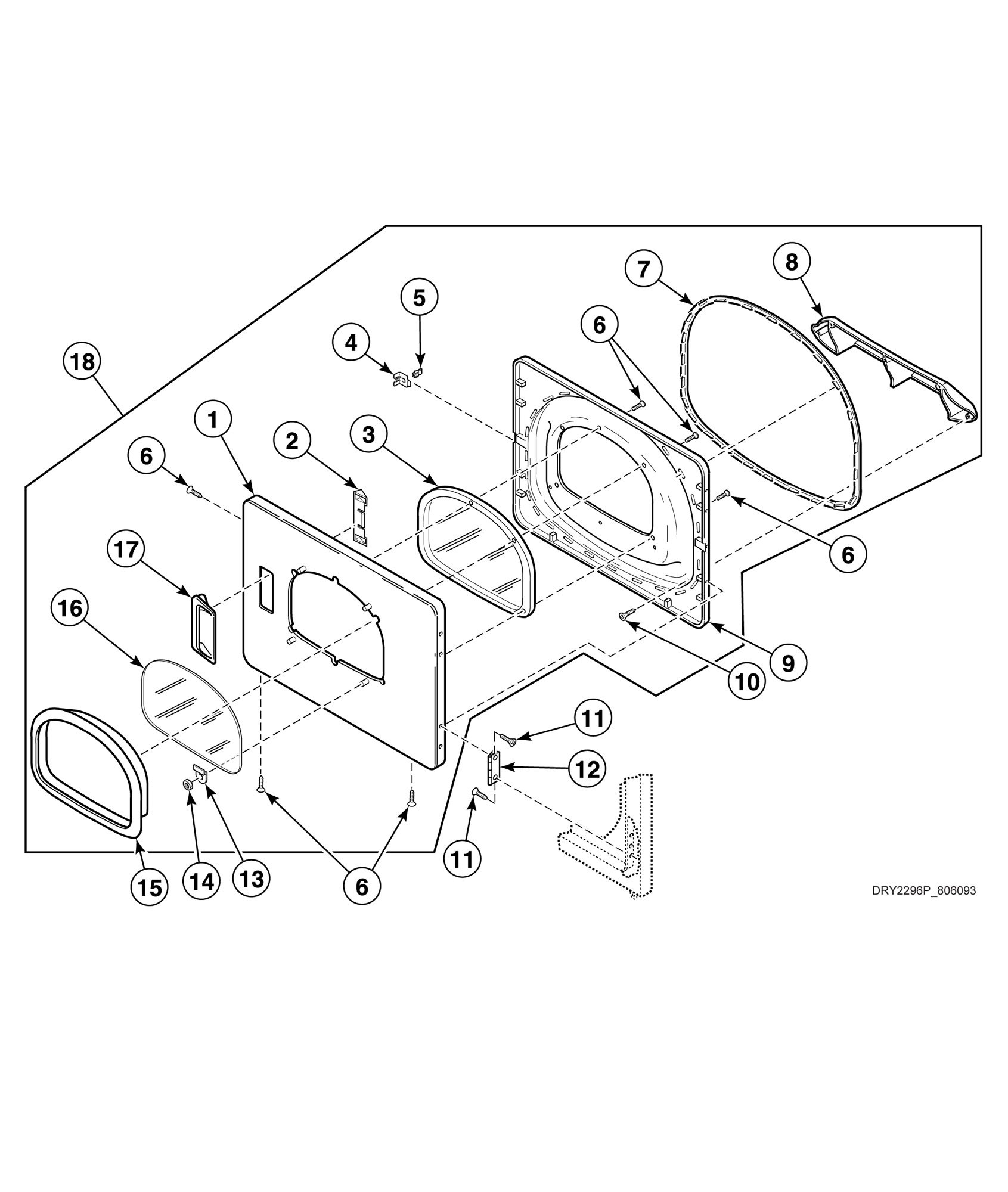

Dryer Loading Door (Drawing 1 of 2)

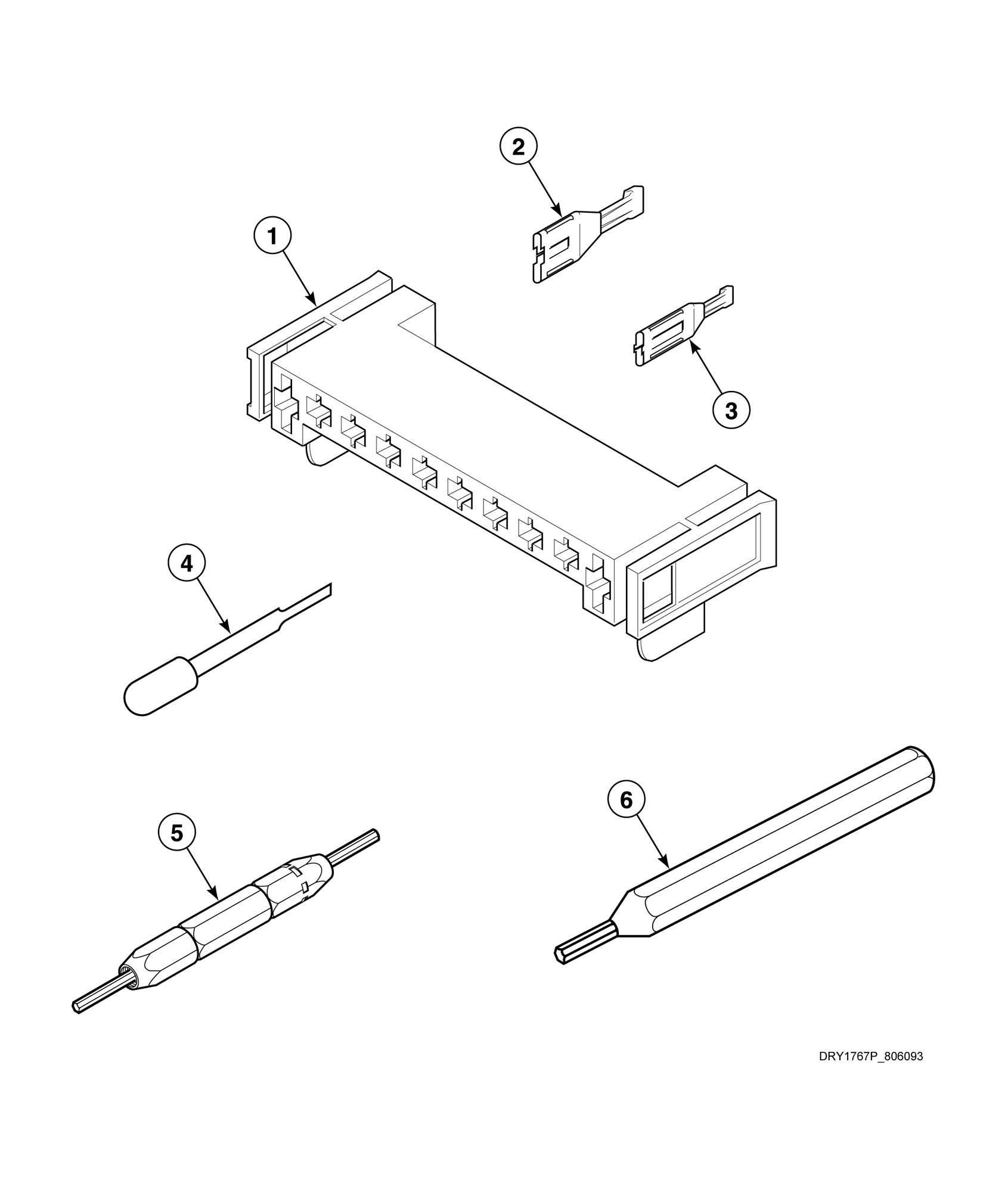

Dryer Terminals and Terminal Extractor Tools

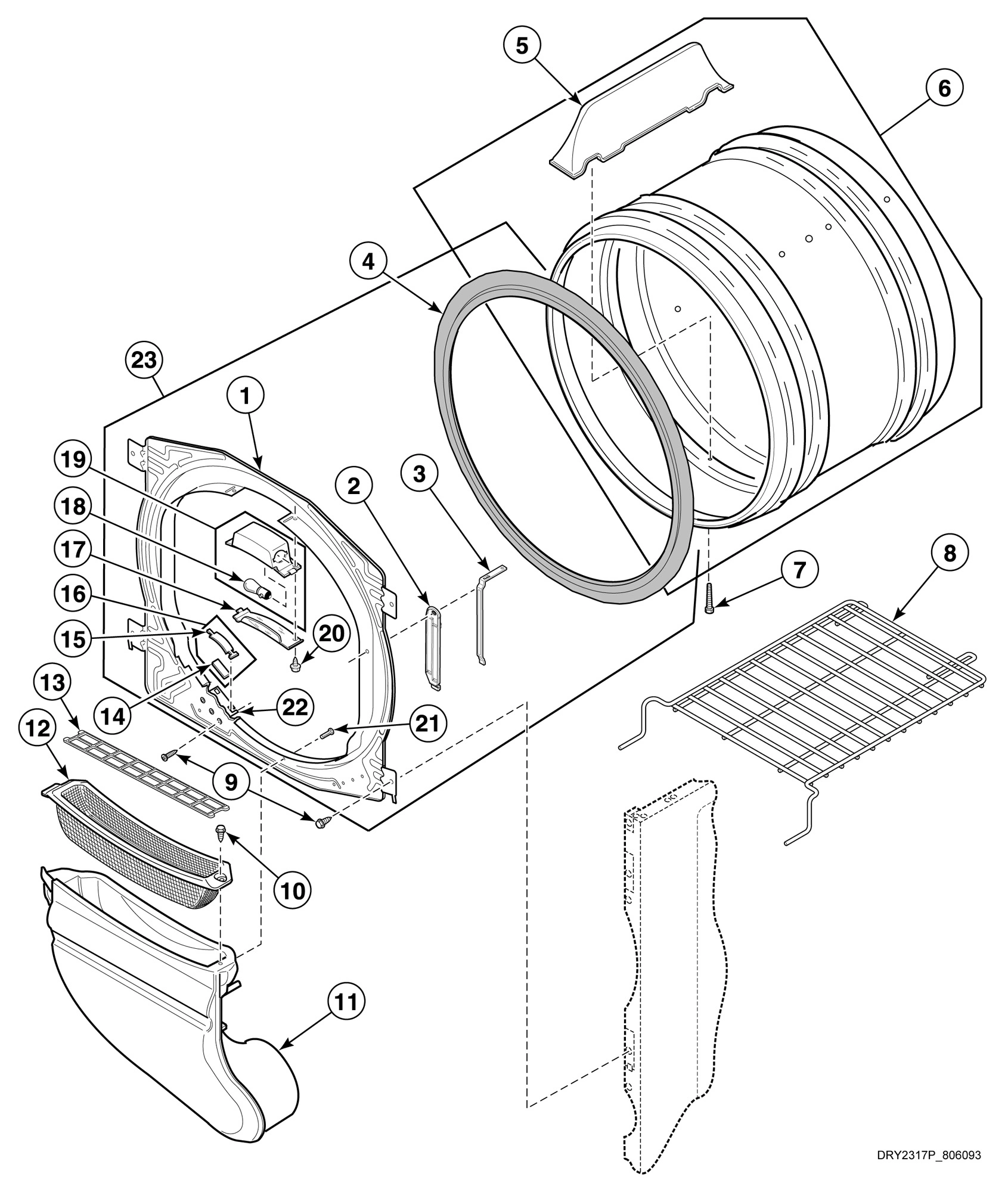

Front Bulkhead, Air Duct, Felt Seal and Cylinder

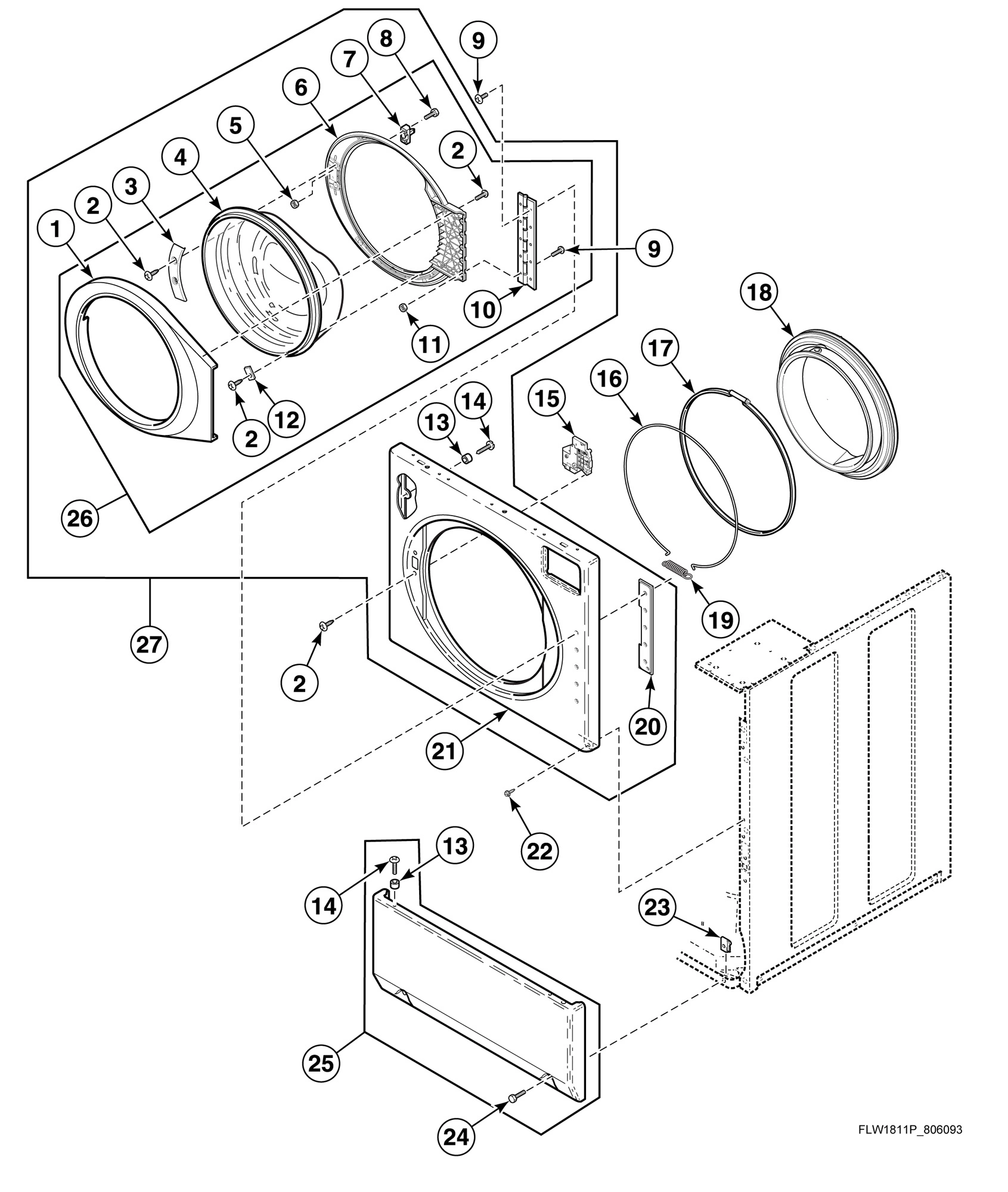

Front Panel, Door Assembly and Door Seal

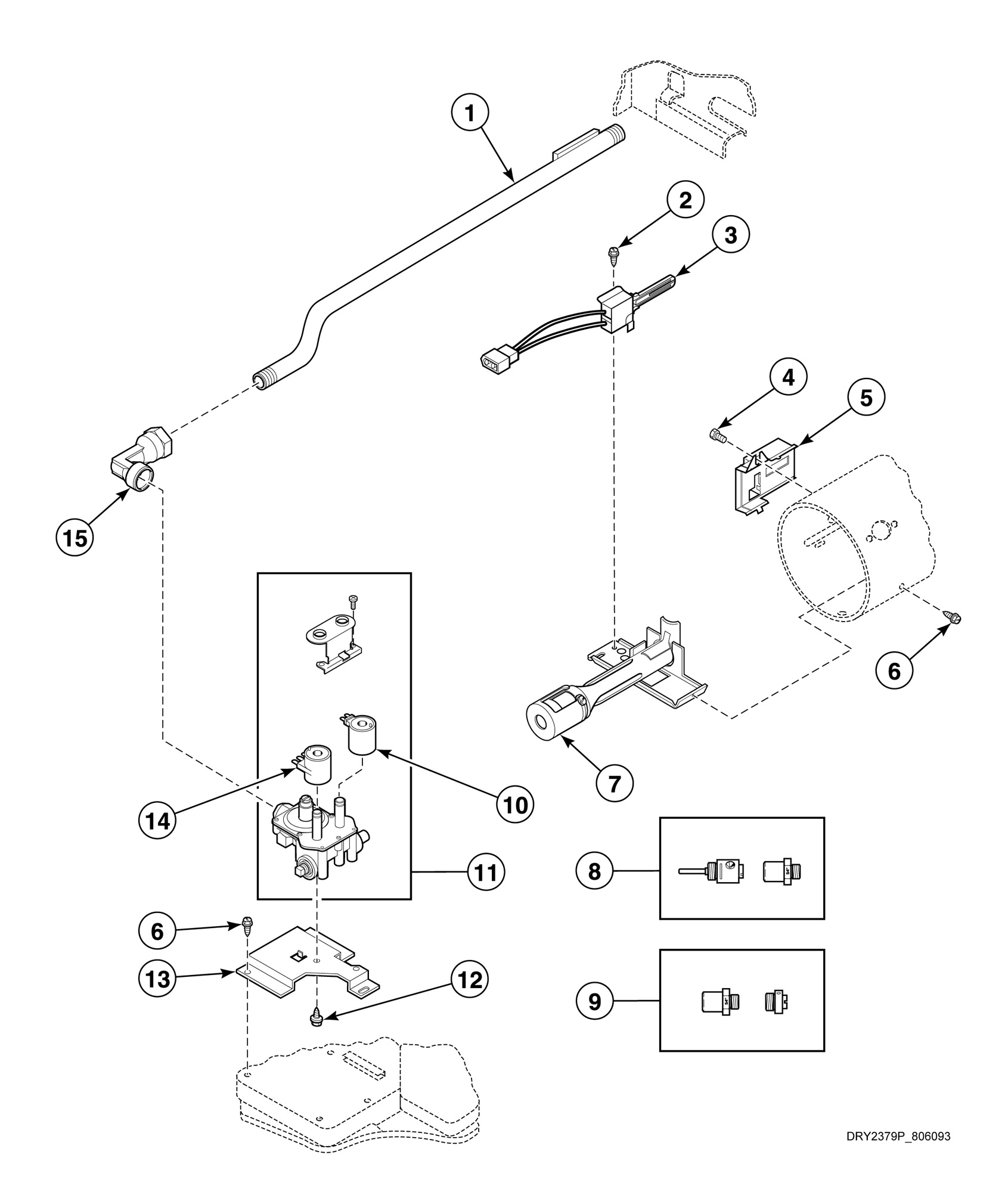

Gas Valve, Igniter and Gas Conversion Kits (Gas Models)

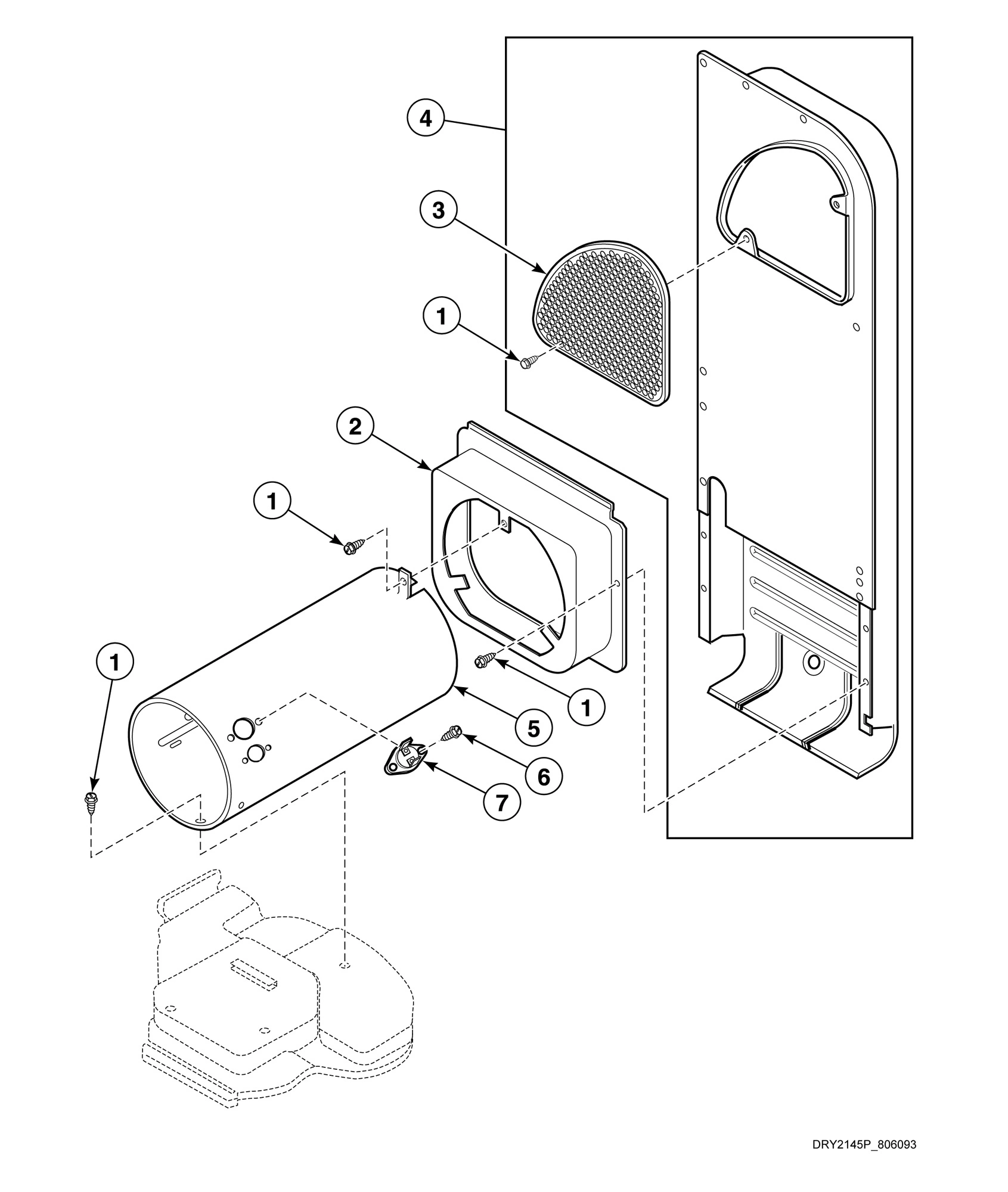

Heater Duct Assembly (Gas Models)

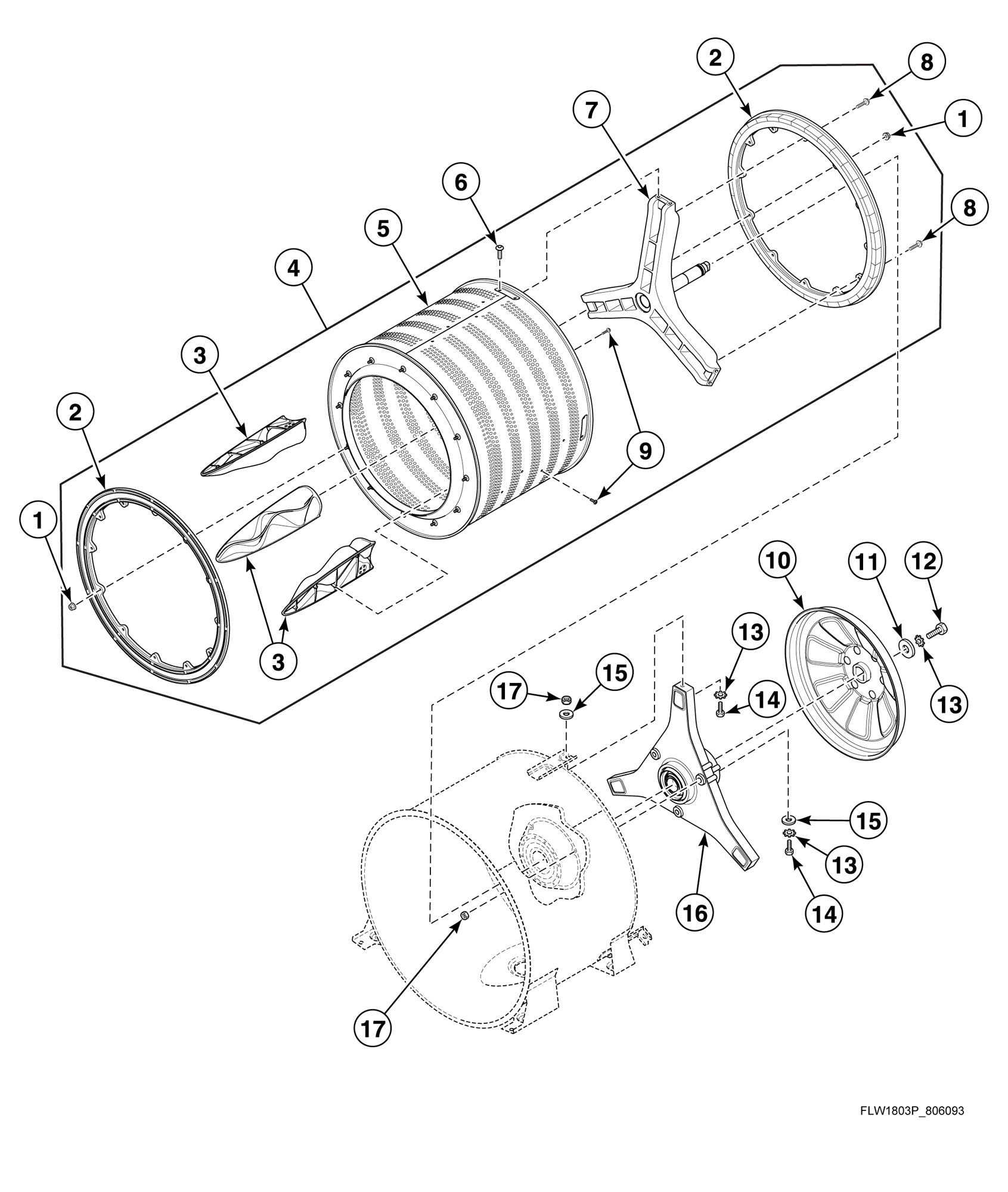

Inner Basket, Trunnion, Bearing Housing and Pulley

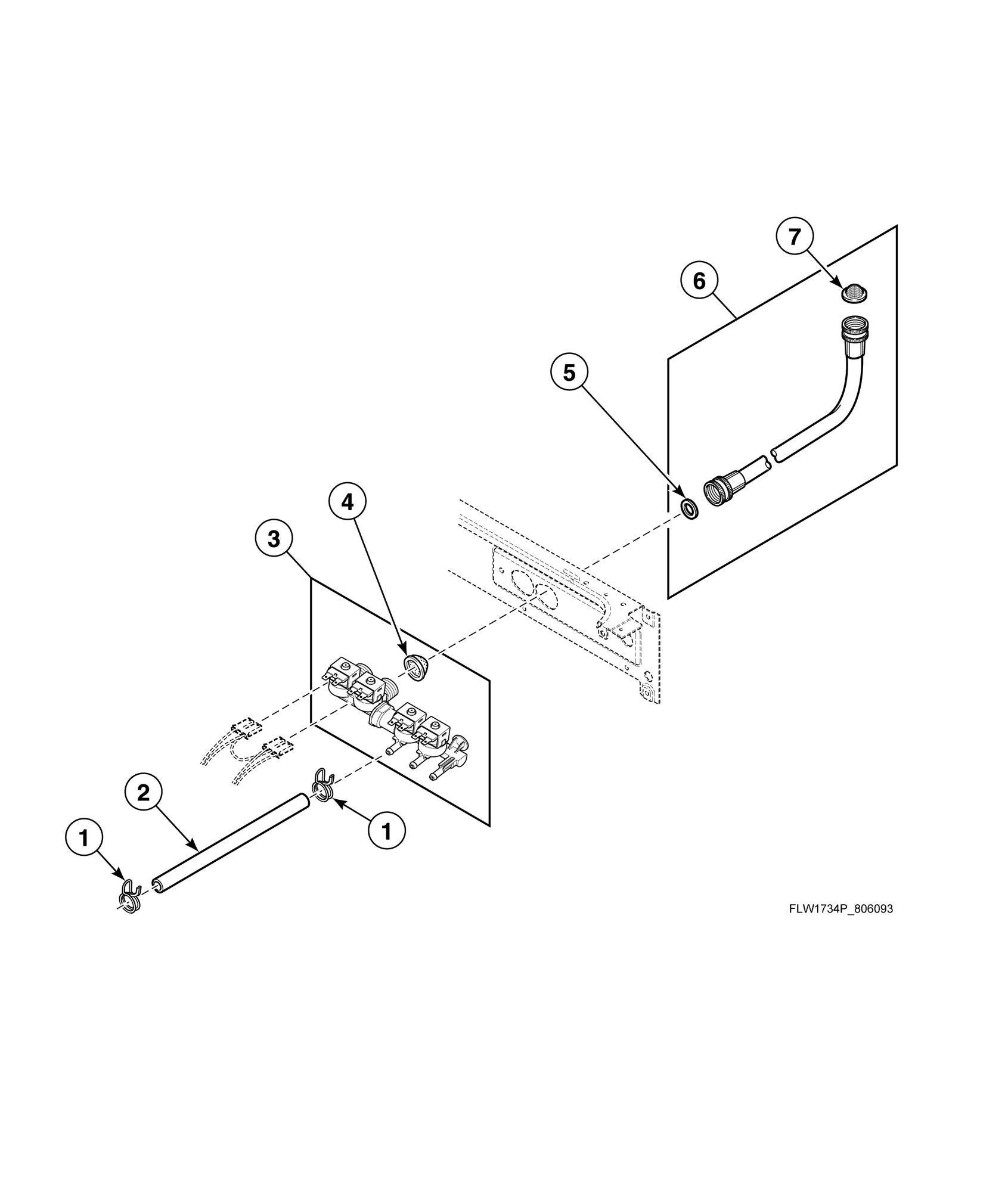

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

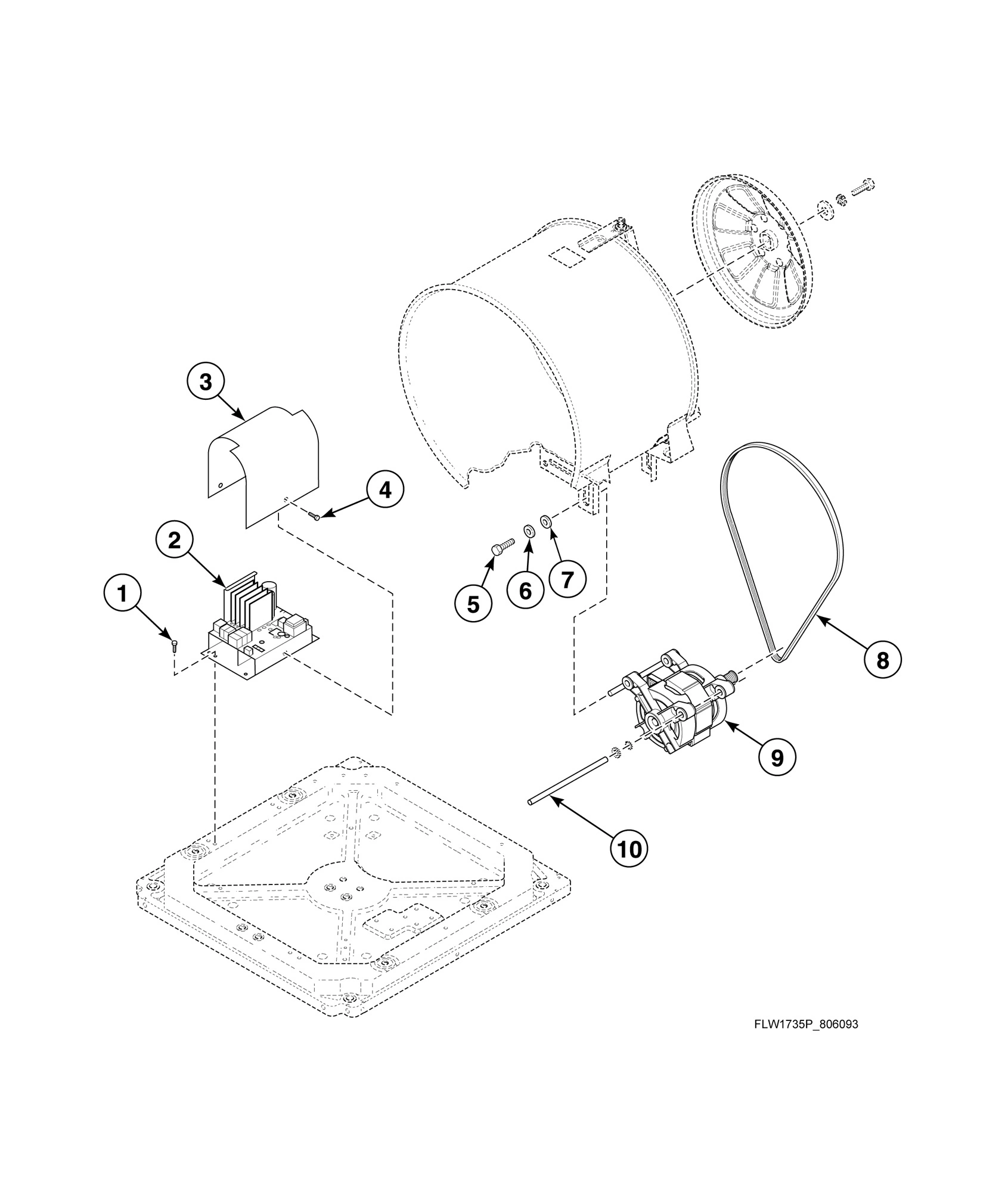

Motor and Belt

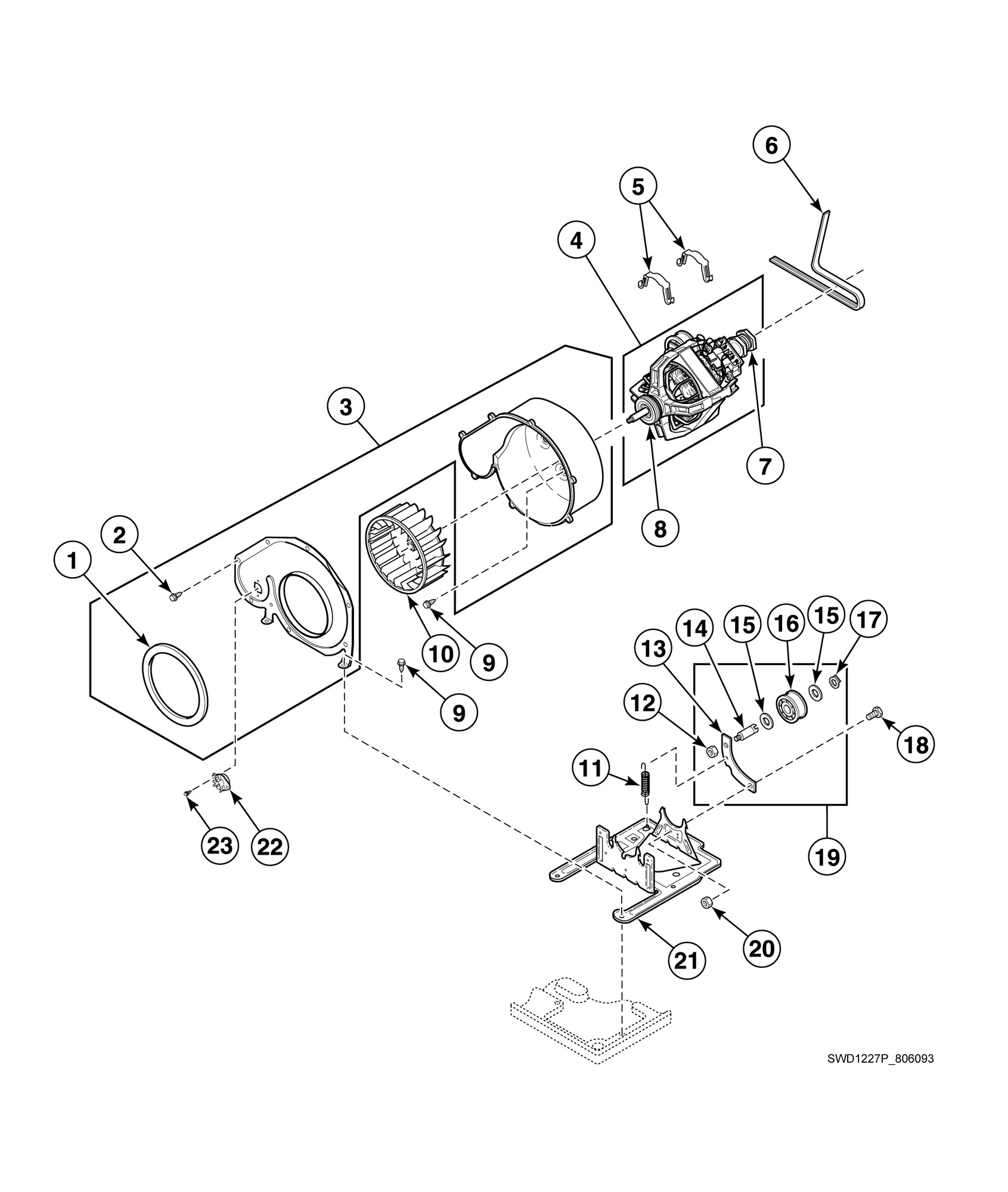

Motor, Exhaust Fan and Belt

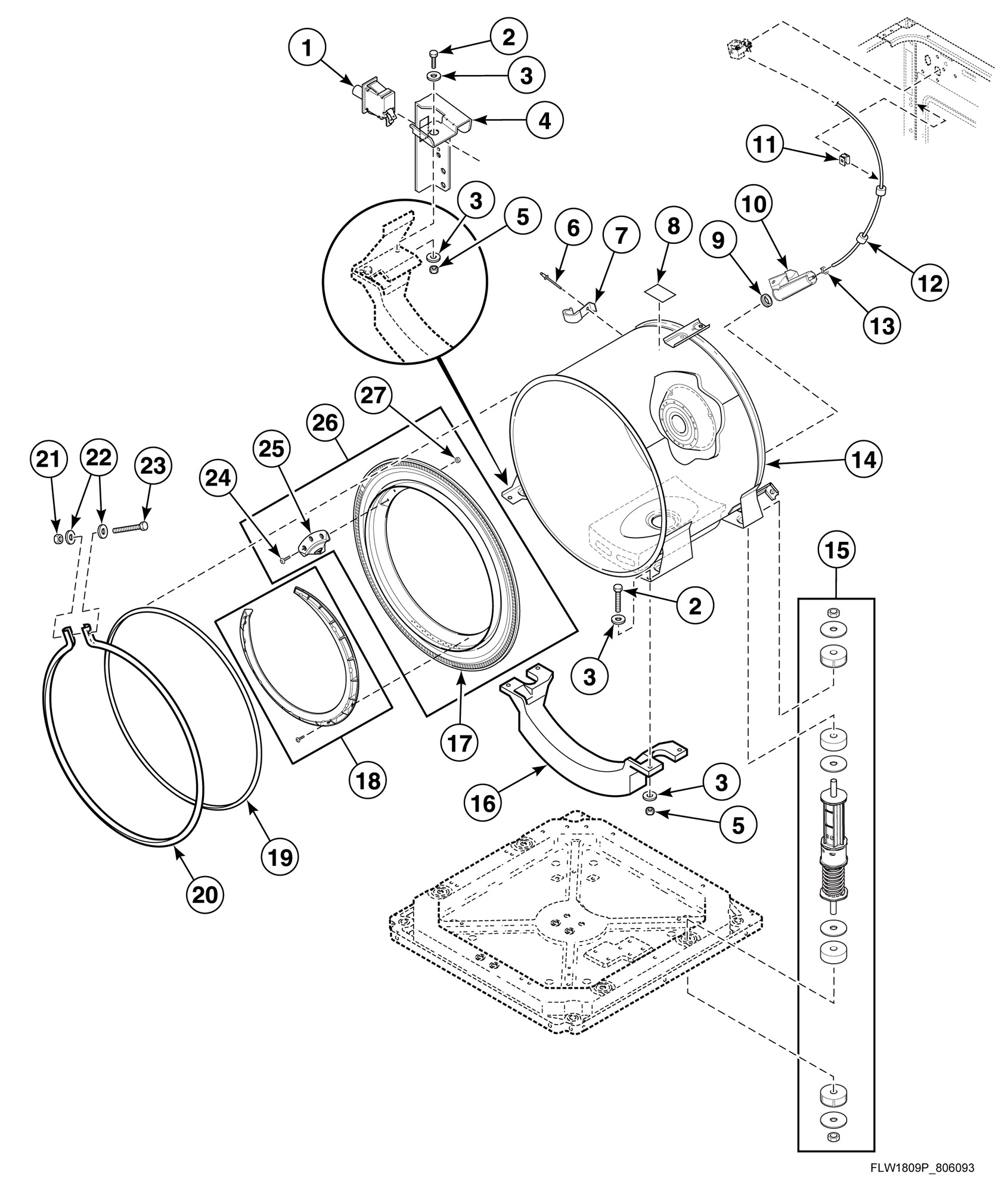

Outer Tub, Front and Clamp Ring
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

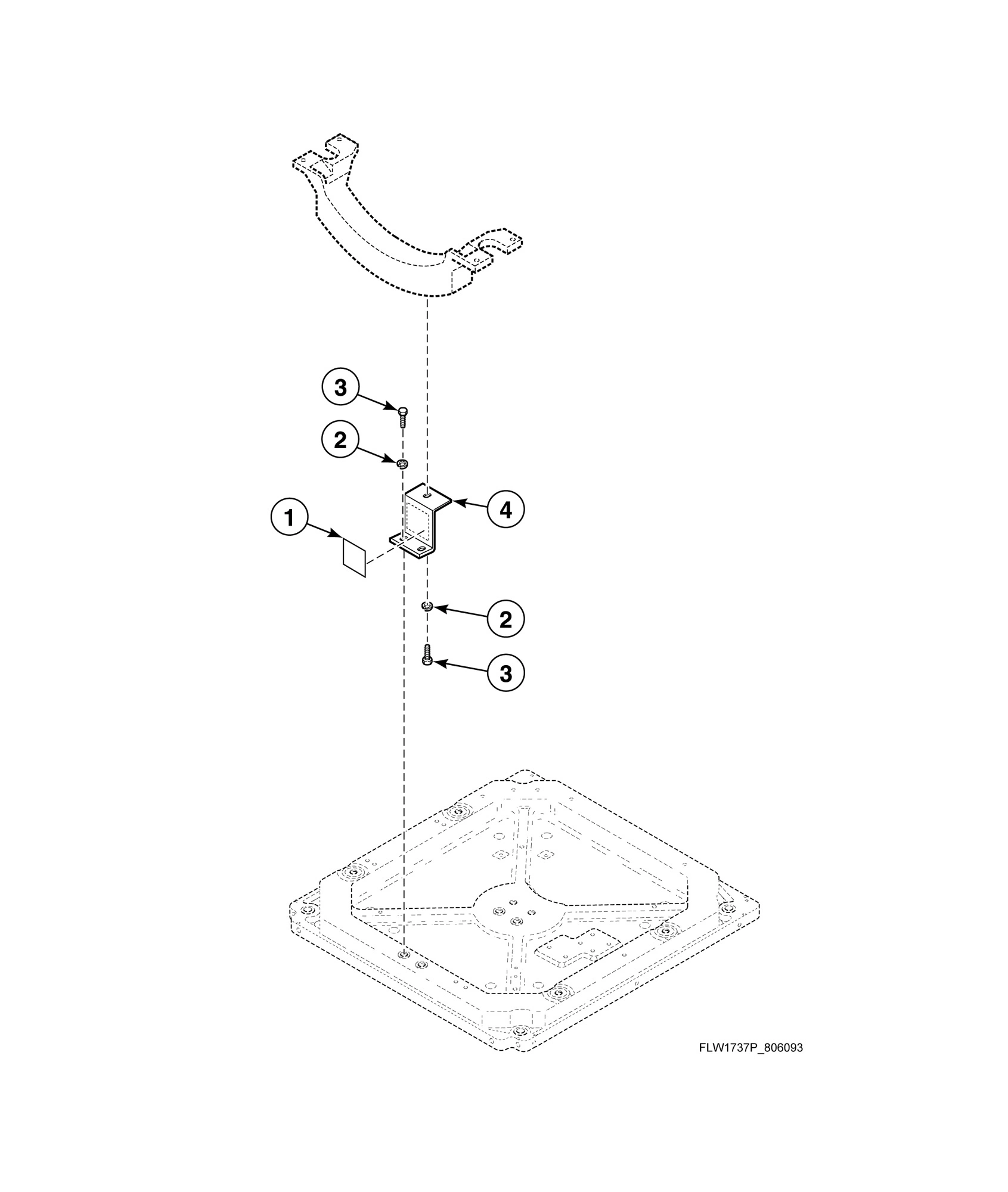

Shipping Materials

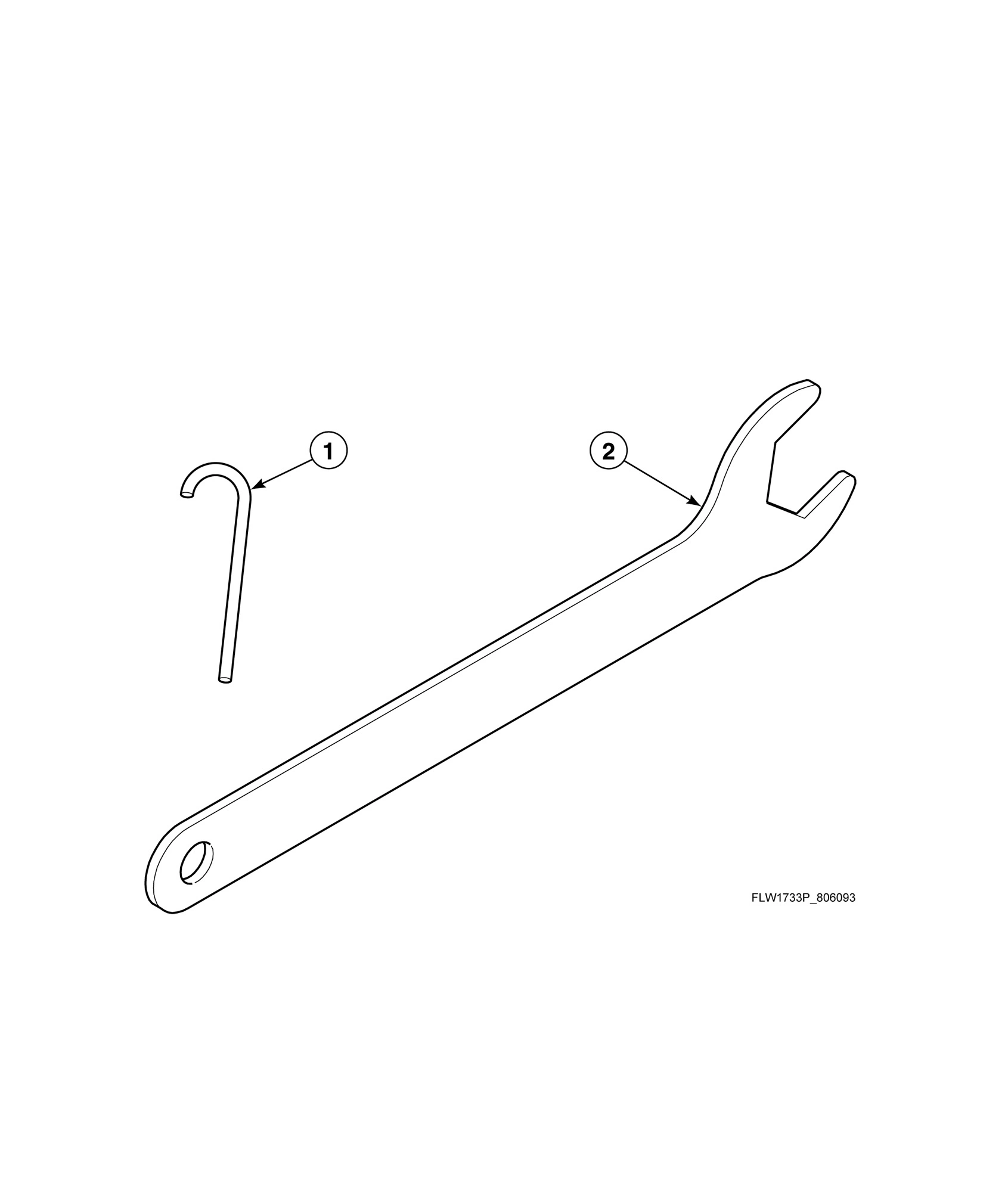

Special Tools

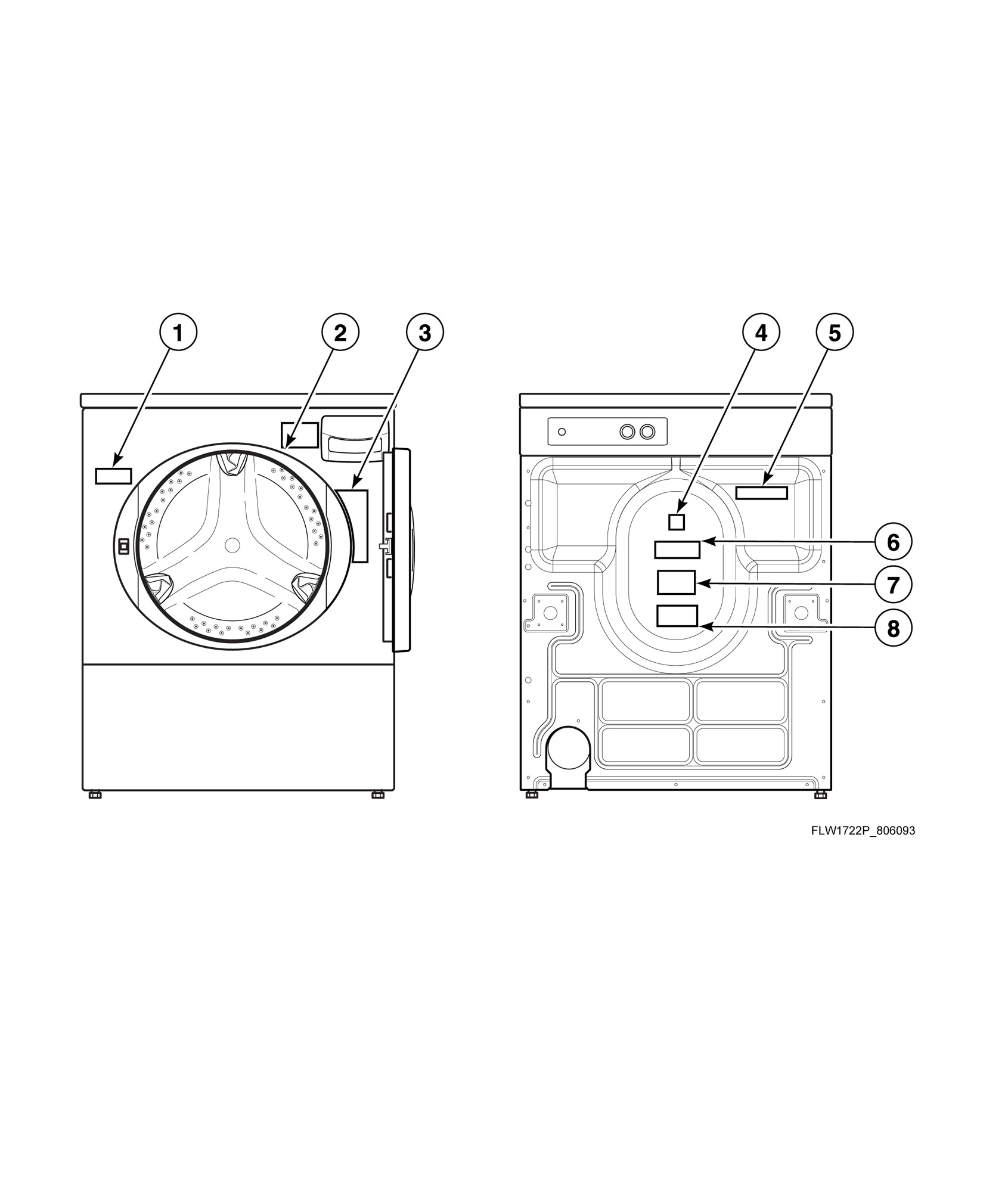

Washer Labels

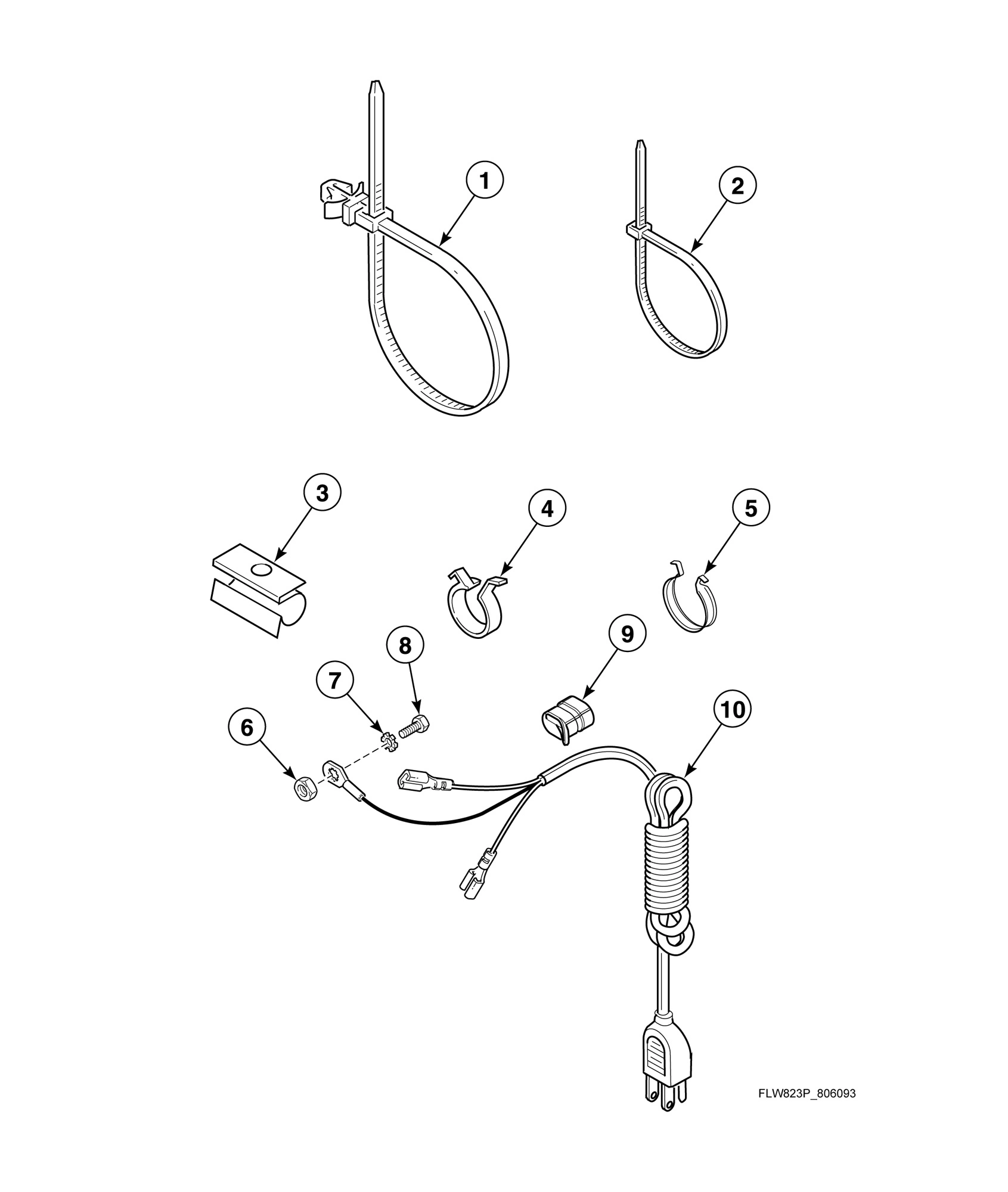

Washer Lead-In Cord, Wire Ties and Harness Clips

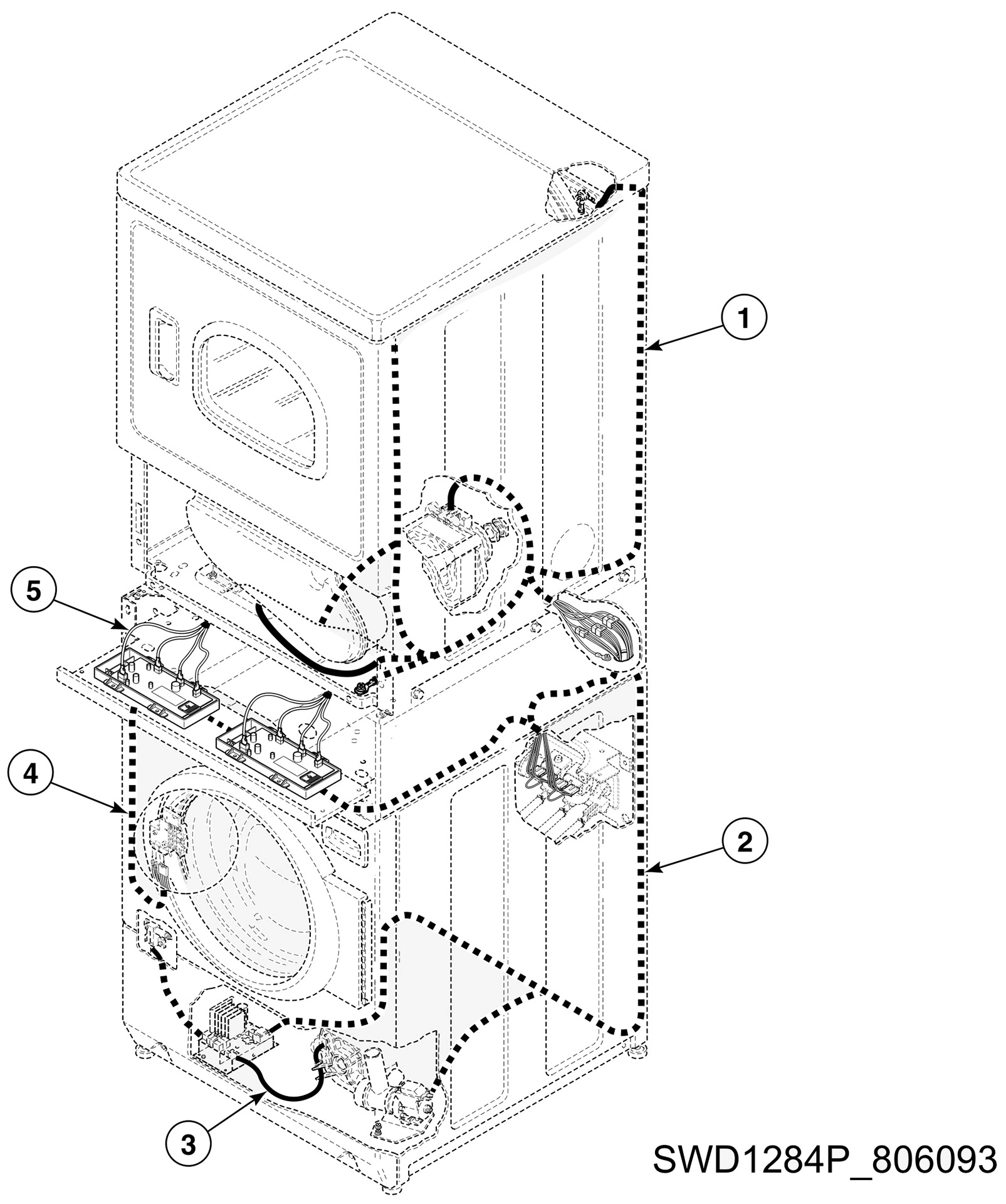

Wire Harnesses and Wires
Common parts from model GE ATGE9AGP113TW01 General Electric Model ATGE9AGP113TW01
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Screw Orifice (Comment: N.G., 22,500 Btu, 600 GEN 58719 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 3000-7999 GEN 58755 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 3000-5999 GEN D503778 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 8000-8999 GEN D503779 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 9000-9999 GEN D503780 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 10,000 fee GEN D503781 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 8000 feet GEN D503786 Contact Us For Availability
1
Control Assembly (Comment: Washer) GEN 805219P Contact Us For Availability
1
Dispenser Plate GEN 803843 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) GEN 804173 Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Dryer Door (Comment: through Serial No. 16060 GEN D510082WP Contact Us For Availability
1
Dryer Door (Comment: Starting Serial Nos. beg GEN D515961W Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Front Bulkhead (Comment: White) GEN D513640W Contact Us For Availability
1
Front Bulkhead (Comment: Galvanized) GEN D513641 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Outer Door Bezel (Comment: White) GEN 803710WP Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
1
Gas Harness (Comment: Dryer) GEN D517096 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw GEN 801001 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Bracket GEN D510146 Contact Us For Availability
2
Door Handle Wedge GEN D510129W Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) or (2 GEN 00256 Contact Us For Availability
2
Moisture Sensor Base GEN D513738 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Inverter Control Assembly GEN 807175P Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Front Control Harness (Comment: Washer) GEN 806031 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Top Kit GEN D510032WP Contact Us For Availability
3
Warning Label (Comment: Electric shock) GEN 44324001 Contact Us For Availability
3
Dryer Door Window (Comment: Through Serial No GEN D503982P Contact Us For Availability
3
Dryer Door Window (Comment: Glass, Starting S GEN D515681 Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
3
Door Glass Mounting Plate GEN 804239 Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover (Comment: Aluminized steel) GEN D500820 Contact Us For Availability
3
Outlet Cover (Comment: Black, Nitrocarburized GEN D515573 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Screw GEN M400043 Contact Us For Availability
3
Mixing Valve (Comment: Through Serial No. 181 GEN 803809 Contact Us For Availability
3
Mixing Valve (Comment: Starting Serial No. 18 GEN 806509 Contact Us For Availability
3
Motor Control Shield GEN 804878 Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 802367 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Shield Bracket GEN 804018 Contact Us For Availability
4
Drain Hose GEN 803976 Contact Us For Availability
4
Top Hinge GEN D510136 Contact Us For Availability
4
Venting Instruction Label GEN D502791 Contact Us For Availability
4
Door Strike Mount (Comment: Through Serial No GEN D510127 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Door Glass GEN 802695P Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Inner Basket Assembly Kit (Comment: Includes GEN 804376P Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Shipping Brace GEN 804454 Contact Us For Availability
4
Read Instructions Label GEN D513371 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Warning/Caution Label GEN D500281 Contact Us For Availability
5
Control Shield GEN 804363 Contact Us For Availability
5
Dispenser Assembly GEN 803698 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
5
Door Strike GEN D510181 Contact Us For Availability
5
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
5
Nut GEN 685846 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Washer GEN 20290 Contact Us For Availability
5
Screw GEN M400057 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Security Cabinet Harness GEN D513991 Contact Us For Availability
6
Front Panel GEN D510066WP Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Screw GEN 70240301 Contact Us For Availability
6
Detergent Hose GEN 804717 Contact Us For Availability
6
Hose Stand GEN 38732 Contact Us For Availability
6
Cabinet Rear Panel GEN D514632P Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Remove Door Label GEN 59414 Contact Us For Availability
6
Screw (Comment: through Serial No. 1606000838 GEN D500226 Contact Us For Availability
6
Screw (Comment: Starting Serial Nos. beginnin GEN D515967 Contact Us For Availability
6
Extractor Tool (Comment: For use on gas dryer GEN 128P4 Contact Us For Availability
6
Cylinder Assembly (Comment: White, If black m GEN D510159WP Contact Us For Availability
6
Cylinder Assembly (Comment: Includes item 5) GEN D510265WP Contact Us For Availability
6
Inner Door Bezel Kit GEN 802307P Contact Us For Availability
6
Inner Door Bezel (Comment: Glass-filled polyp GEN 804562P Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Screw GEN 804699 Contact Us For Availability
6
Water Hose (Comment: Includes items 5 and 7) GEN F200116 Contact Us For Availability
6
Washer GEN 02834 Contact Us For Availability
6
Cylinder Belt GEN D511255P Contact Us For Availability
6
Pop Rivet GEN 685847 Contact Us For Availability
6
Left Hand Thread Label GEN 685928 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
7
Rear Access Panel GEN 803998 Contact Us For Availability
7
Hose Clamp GEN 685725 Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Gas Clearance Label GEN D511004 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Warning Label (Comment: Disconnect power) GEN 803260 Contact Us For Availability
7
Liner Door Seal (Comment: Through Serial Nos. GEN D510147P Contact Us For Availability
7
Screw GEN 62588 Contact Us For Availability
7
Door Catch Assembly GEN 802803 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar GEN 804405P Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Washer GEN M400080 Contact Us For Availability
7
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
7
Hose Clip GEN 800553 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Screw GEN 33562 Contact Us For Availability
8
Shipping Plug GEN 803859 Contact Us For Availability
8
Expansion Clip GEN 70030501 Contact Us For Availability
8
Dispenser Drawer GEN 803667 Contact Us For Availability
8
Flexible Venting Kit GEN 521P3 Contact Us For Availability
8
Warning Label GEN D500049 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
8
Door Liner Grill (Comment: through Serial No. GEN D503870W Contact Us For Availability
8
Drying Rack GEN D512082P Contact Us For Availability
8
Screw GEN 801993 Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Drive Belt GEN 804985 Contact Us For Availability
8
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Warning Label GEN D500314 Contact Us For Availability
9
Shipping Plate GEN 803851 Contact Us For Availability
9
Wrapper Assembly GEN 804112W Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Drain Base Bracket GEN 803814 Contact Us For Availability
9
Gas Label (Comment: Stainless steel flexible GEN D505215 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098W Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes se GEN D516509 Contact Us For Availability
9
Screw GEN 801019 Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
9
Grommet GEN 29175 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Drain Hose Bracket GEN 803828 Contact Us For Availability
10
Control (Comment: Dryer) GEN D514567P Contact Us For Availability
10
Dispenser Handle GEN 804227WP Contact Us For Availability
10
Screw GEN 802431 Contact Us For Availability
10
Exhaust Duct GEN D516196 Contact Us For Availability
10
Lead-In Cord GEN 202777 Contact Us For Availability
10
Screw GEN D505870 Contact Us For Availability
10
Screw GEN D501285 Contact Us For Availability
10
Door Hinge GEN 802934 Contact Us For Availability
10
Secondary Coil GEN 58804B Contact Us For Availability
10
Pulley Assembly GEN 803974 Contact Us For Availability
10
Motor Rod GEN 803861 Contact Us For Availability
10
Blower Fan Assembly GEN D510139P Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
10
Pressure Bulb GEN 803837 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Side Panel Kit (Comment: Right, White) GEN 806492 Contact Us For Availability
11
Control Panel GEN 803960WP Contact Us For Availability
11
Compartment Cover GEN 803669 Contact Us For Availability
11
O-Ring GEN 802429P Contact Us For Availability
11
Cabinet Side Panel (Comment: Right) GEN D510002WP Contact Us For Availability
11
Exhaust Warning Label GEN D500497 Contact Us For Availability
11
Screw GEN D505295 Contact Us For Availability
11
Air Duct Assembly (Comment: through Serial No GEN D510151W Contact Us For Availability
11
Air Duct Assembly GEN D515805LG Contact Us For Availability
11
Nut GEN 23951 Contact Us For Availability
11
Gas Valve Assembly (Comment: 22,500 Btu, Incl GEN D510506P Contact Us For Availability
11
Washer GEN 800464 Contact Us For Availability
11
Idler Spring GEN D510185 Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Leveling Leg GEN 34319 Contact Us For Availability
12
Control Overlay GEN 804491 Contact Us For Availability
12
Drain Pump Isolator GEN 803815 Contact Us For Availability
12
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
12
Hinge GEN D511036 Contact Us For Availability
12
Lint Filter (Comment: Light gray, starting Se GEN D503980LG Contact Us For Availability
12
Lint Filter (Comment: through Serial No. 1606 GEN D503980W Contact Us For Availability
12
Glass Mounting Clip (Comment: 7 required) GEN 802700 Contact Us For Availability
12
Screw GEN 56124 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Panel Locator GEN 56079 Contact Us For Availability
13
Front Panel Assembly (Comment: Includes items GEN D513781WP Contact Us For Availability
13
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
13
Drain Pump Assembly (Comment: Includes items GEN 805724P Contact Us For Availability
13
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
13
Lint Filter Cover (Comment: starting Serial N GEN D510502LG Contact Us For Availability
13
Lint Filter Cover (Comment: through Serial No GEN D510502W Contact Us For Availability
13
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
13
Washer (Comment: Used on models through Seria GEN M403958 Contact Us For Availability
13
Idler Lever GEN D510133 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
13
Hose Clamp GEN 803891 Contact Us For Availability
14
Screw GEN 39733 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
14
Leveling Leg GEN D510135 Contact Us For Availability
14
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
14
Booster and Holding Coil GEN 58804A Contact Us For Availability
14
Outer Tub Assembly GEN 803864 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
15
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
15
Pump Housing GEN 802428 Contact Us For Availability
15
Dryer Base GEN D514245 Contact Us For Availability
15
Window Trim (Comment: through Serial No. 1606 GEN D503981W Contact Us For Availability
15
Window Trim (Comment: Starting Serial Nos. be GEN D515956W Contact Us For Availability
15
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
15
Door Latch Assembly GEN 803920 Contact Us For Availability
15
Elbow GEN D513072 Contact Us For Availability
15
Washer GEN 800457 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
15
Shock Assembly (Comment: Must replace all fou GEN 803777 Contact Us For Availability
16
Nut GEN 21899 Contact Us For Availability
16
Gasket GEN 802427 Contact Us For Availability
16
Washer GEN 26509 Contact Us For Availability
16
Glide Kit (Comment: Includes items 14 and 15 GEN RB170003 Contact Us For Availability
16
Wire Clamp Ring GEN 802283 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
16
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
16
Counterweight GEN 803810 Contact Us For Availability
17
Base Assembly GEN 803876 Contact Us For Availability
17
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
17
Screw GEN 36048 Contact Us For Availability
17
Door Pull and Wedge Kit GEN D510103WP Contact Us For Availability
17
Cylinder GEN D512106 Contact Us For Availability
17
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
17
Tub Front GEN 803770 Contact Us For Availability
18
Pressure Sensor GEN 203843 Contact Us For Availability
18
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
18
Tub-to-Pump Hose GEN 803829 Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
18
Door and Liner Assembly (Comment: Whi GEN D511636WP Contact Us For Availability
18
GEN 60954 GEN 60954 Contact Us For Availability
18
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
18
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
18
Screw GEN D500824 Contact Us For Availability
18
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
18
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
18
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
19
GEN D512108 GEN D512108 Contact Us For Availability
19
Extension Spring GEN 802285 Contact Us For Availability
19
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
19
Tub Front Seal GEN 803801 Contact Us For Availability
20
Screw GEN 804667 Contact Us For Availability
20
GEN D500227 GEN D500227 Contact Us For Availability
20
Hinge Plate GEN 802206 Contact Us For Availability
20
Nut GEN 52566 Contact Us For Availability
20
Clamp Ring GEN 803802 Contact Us For Availability
21
Cabinet Side Panel (Comment: Left) GEN D510001WP Contact Us For Availability
21
GEN D501086 GEN D501086 Contact Us For Availability
21
Front Panel GEN 802277WP Contact Us For Availability
21
Motor Mount GEN D510060 Contact Us For Availability
21
Nut GEN F430218 Contact Us For Availability
22
GEN D510145 GEN D510145 Contact Us For Availability
22
Thermistor Assembly (Comment: Black) GEN D510523 Contact Us For Availability
22
Washer GEN M400081 Contact Us For Availability
23
GEN D515533 GEN D515533 Contact Us For Availability
23
GEN D515544W GEN D515544W Contact Us For Availability
23
Nut GEN 36020 Contact Us For Availability
23
Screw GEN D502535 Contact Us For Availability
24
Bumper Pad GEN 56128 Contact Us For Availability
24
Screw GEN 801045 Contact Us For Availability
24
Screw GEN 802596 Contact Us For Availability
25
Access Panel Assembly GEN D514250WP Contact Us For Availability
25
Clothes Guard Deflector GEN 804467 Contact Us For Availability
25
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
26
Door Assembly (Comment: White, Includes items GEN 804083WP Contact Us For Availability
26
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
27
Front Panel Assembly Kit (Comment: Includes i GEN 806505W Contact Us For Availability
27
Nut GEN 802343 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Foam Pad GEN 804875 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
Screw GEN 800462 Contact Us For Availability
NA
Washer GEN 800624 Contact Us For Availability
NA
Shipping Spacer GEN 803858 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Pressure Sensor Harness GEN 804433 Contact Us For Availability
× ![]()
