Model Electrolux ATG185NCD0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

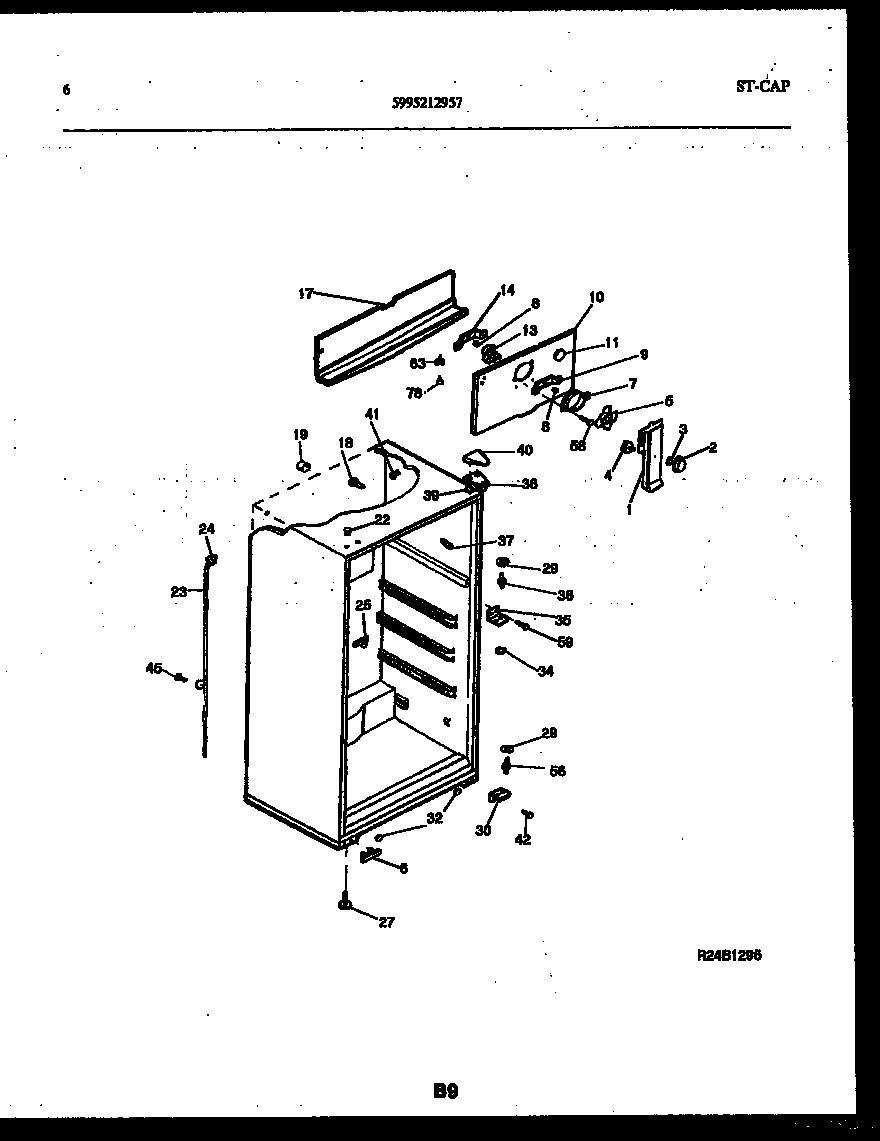

04 - CABINET PARTS

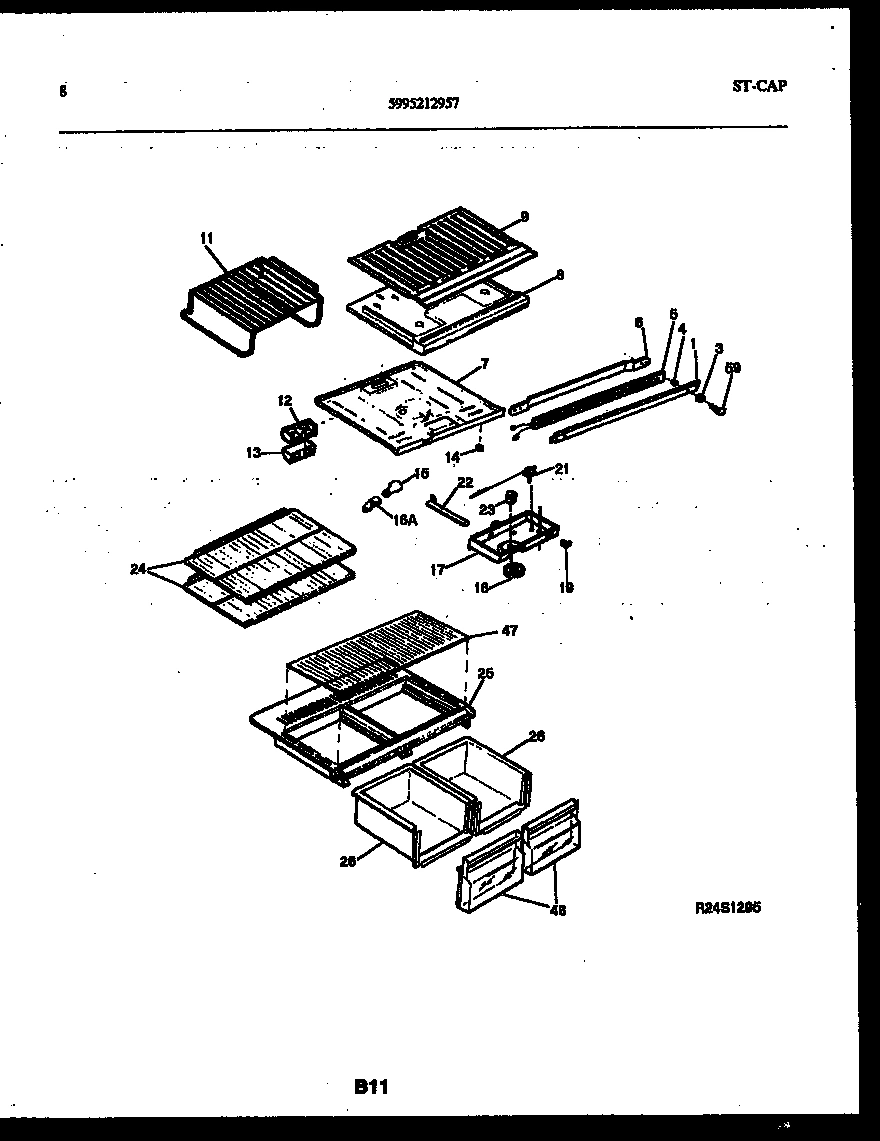

05 - SHELVES AND SUPPORTS

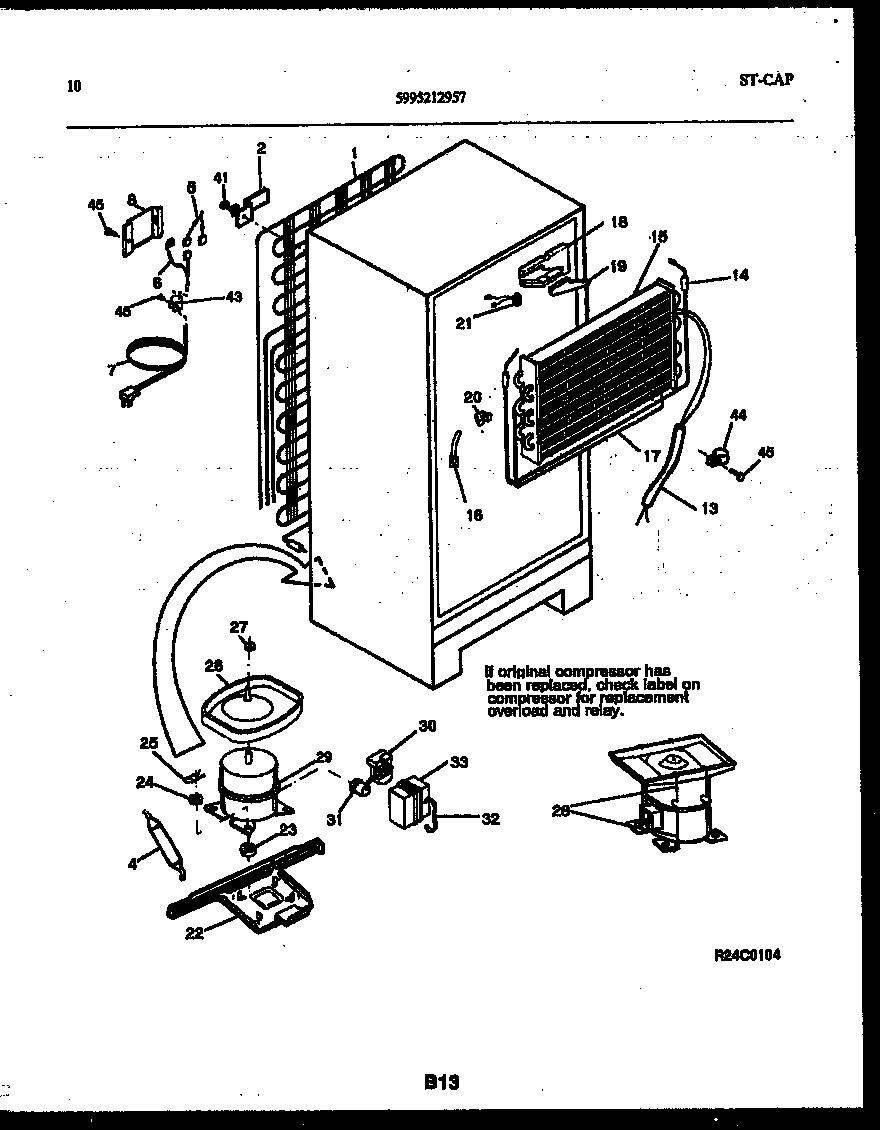

06 - SYSTEM AND AUTOMATIC DEFROST PARTS

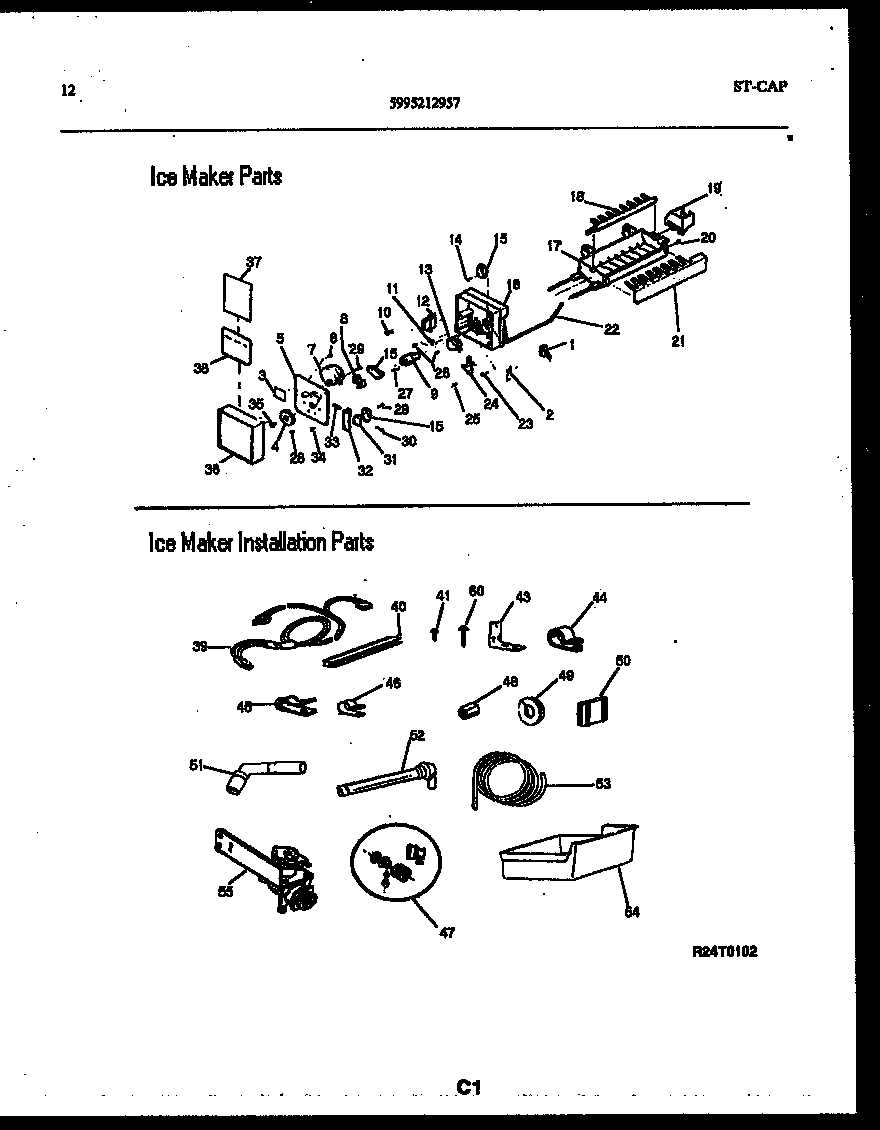

07 - ICE MAKER AND INSTALLATION PARTS

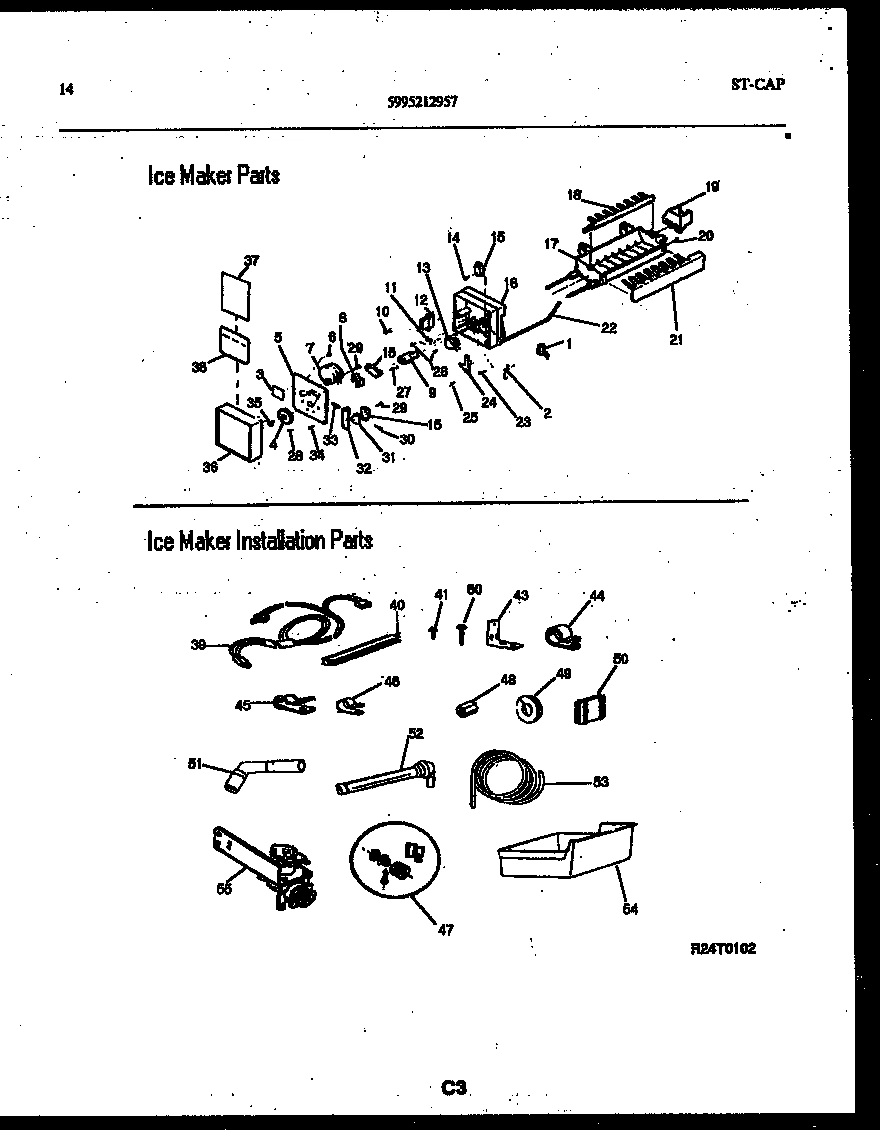

08 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux ATG185NCD0 REFRIGERATOR
*55552
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*55558
WCI 3916557 WCI 3916557 Contact Us For Availability
*55563
WCI 5308000247 WCI 5308000247 Contact Us For Availability
1
WIRING HARNESS, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 3206450 WCI 3206450 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 5303281481 WCI 5303281481 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303207230 No Longer Available
5
WCI 3206445 WCI 3206445 Contact Us For Availability
5
WIRING HARNESS,CONTROL/DIVIDER WCI 3018900 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5303207229 No Longer Available
6
WCI 5303275252 WCI 5303275252 Contact Us For Availability
6
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206454 WCI 3206454 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206456 WCI 3206456 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 3206455 WCI 3206455 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
WCI 3206452 WCI 3206452 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 3206130 WCI 3206130 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 3206129 WCI 3206129 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
PLATE-COMPRESSOR MTG, WITH RAIL WCI 3206126 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303269702 Contact Us For Availability
23
SCREW-SUPT/MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303281383 WCI 5303281383 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVER/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 3206141 WCI 3206141 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5303916004 Contact Us For Availability
29
SCREW-MOTOR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 5303274700 WCI 5303274700 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
WIRING HARNESS,ICE MAKER WCI 3206358 Contact Us For Availability
46
WCI 5303281475 WCI 5303281475 Contact Us For Availability
47
WCI 5303281398 WCI 5303281398 Contact Us For Availability
47
ADAPTER-WATER SUPPLY WCI 3206360 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-SOLENOID/WATER WCI 3206356 Contact Us For Availability
55A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
SCREW-HNG/MULL MTG,ACORN HX WSH HD,10-24(23)X WCI 3206134 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
