Model Maytag ATF1822MRE01 REFRIGERATOR – Common Parts & Diagrams

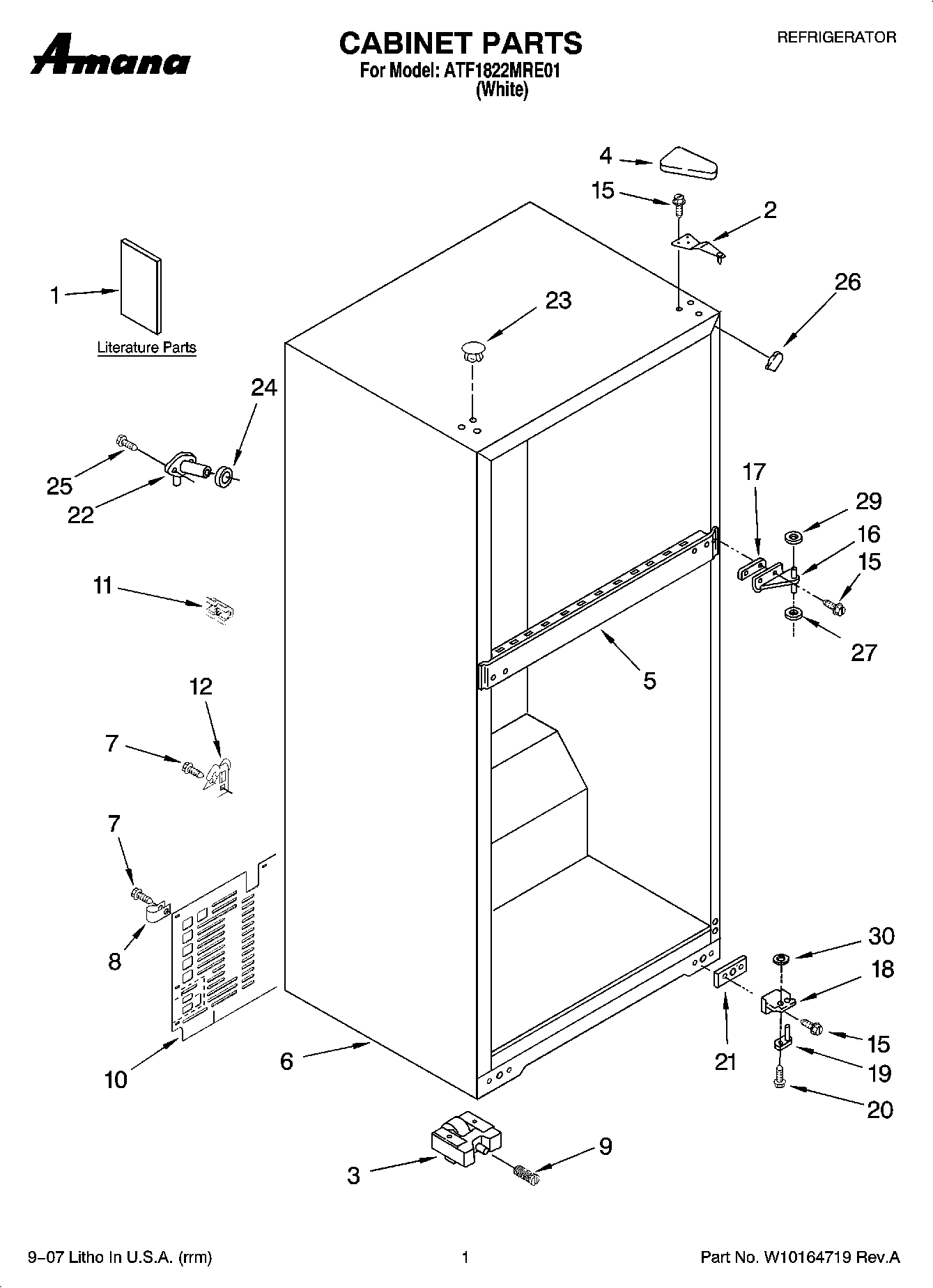

01 - CABINET PARTS

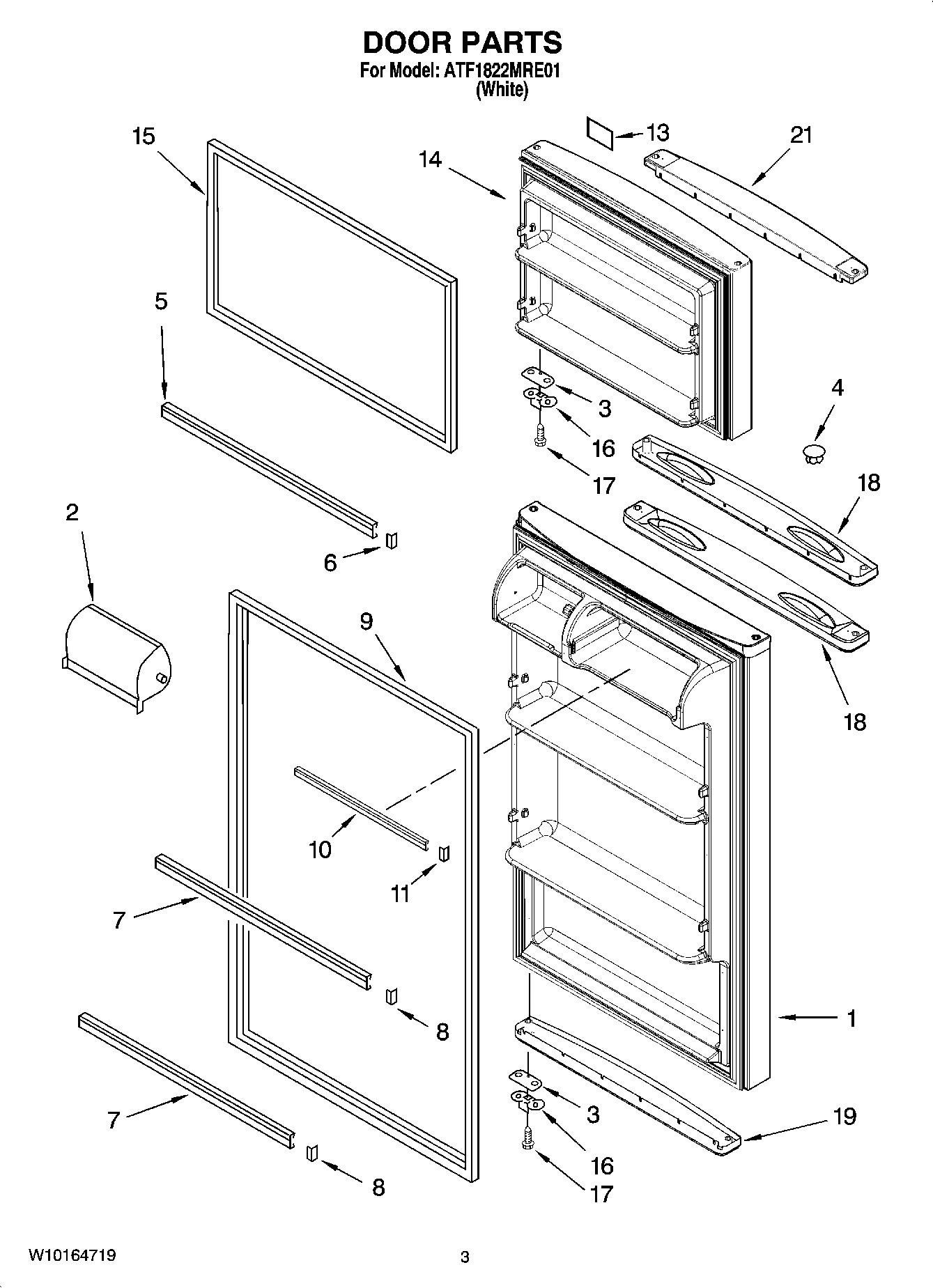

02 - DOOR PARTS

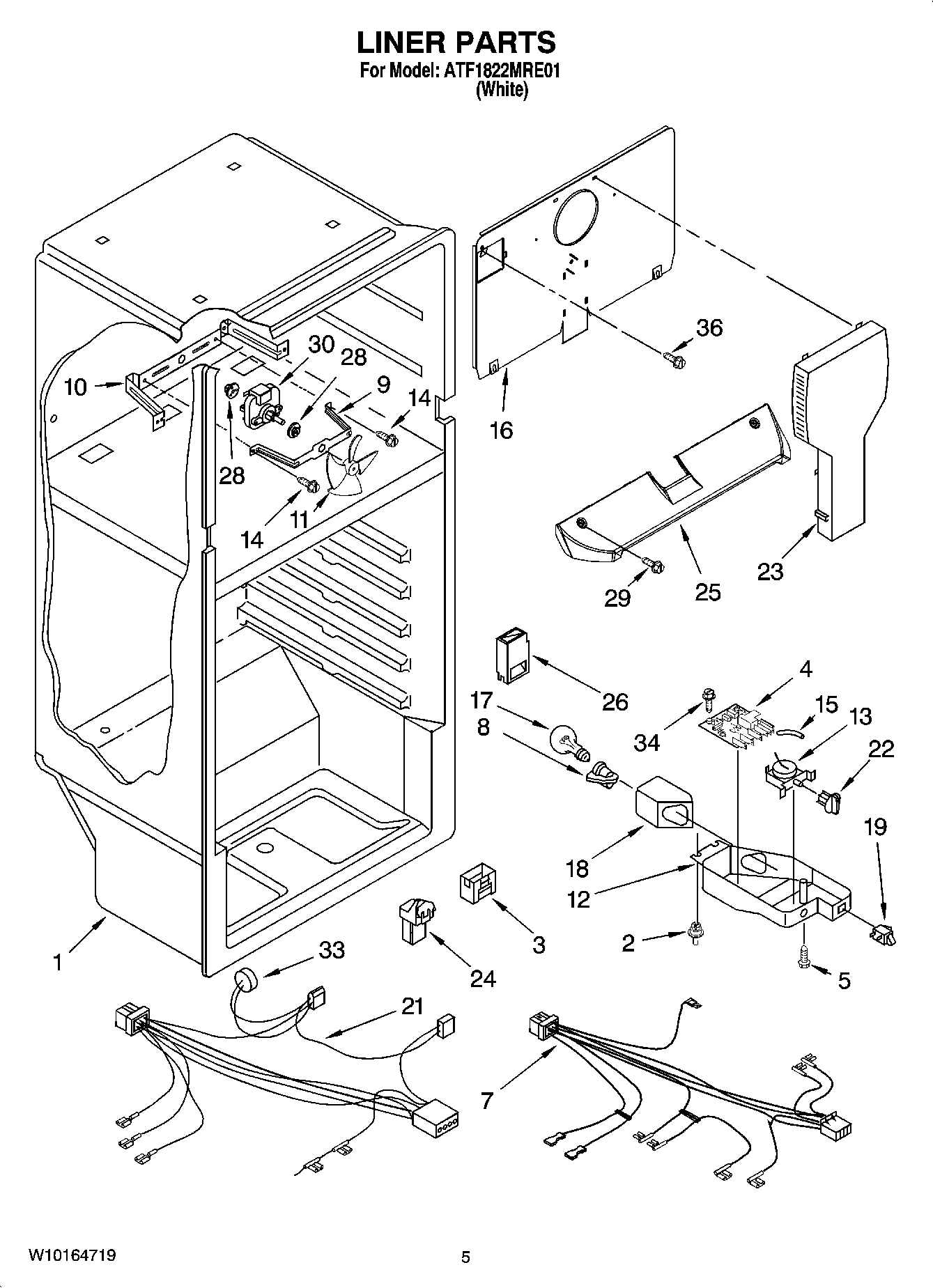

03 - LINER PARTS

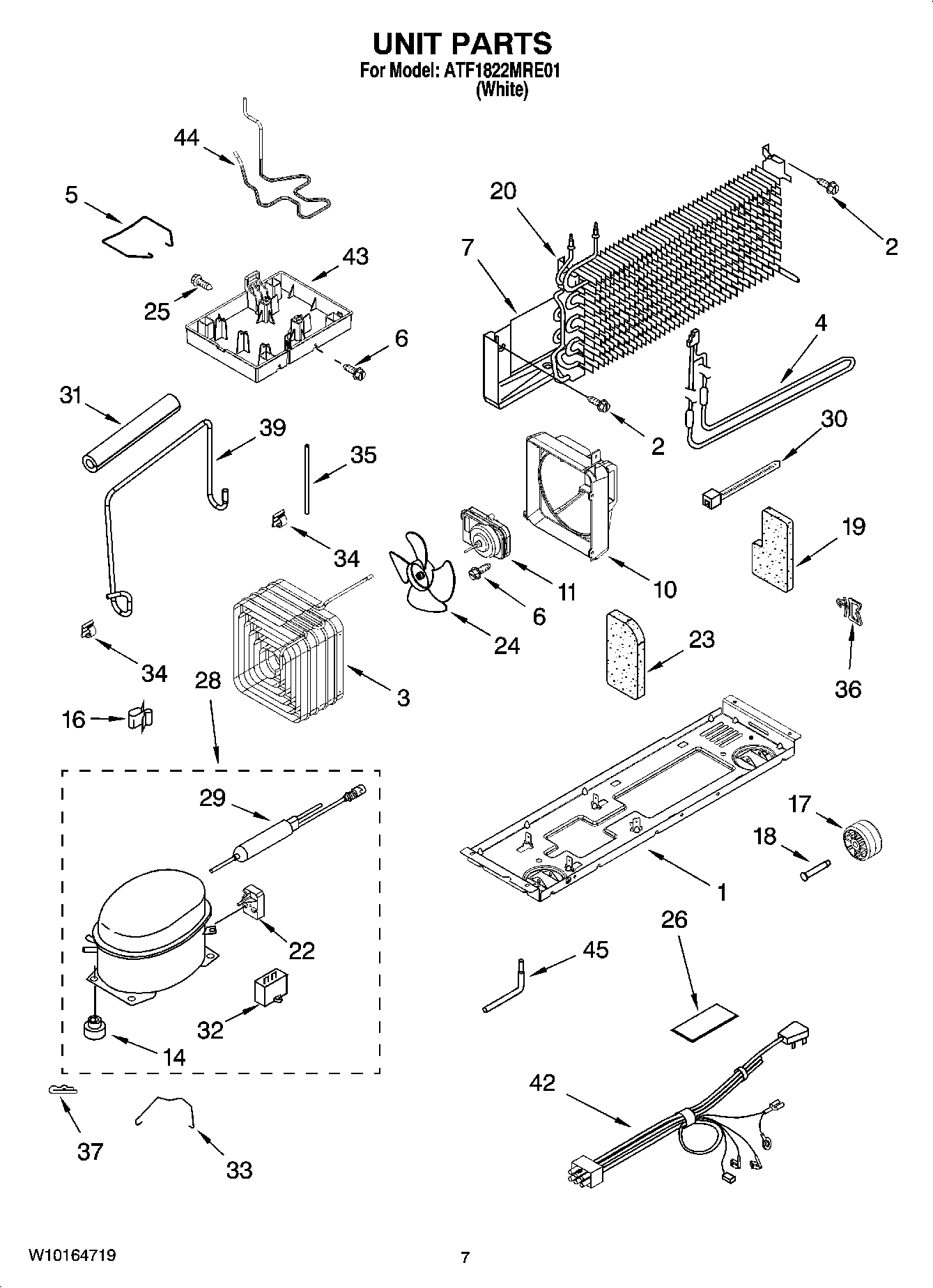

04 - UNIT PARTS

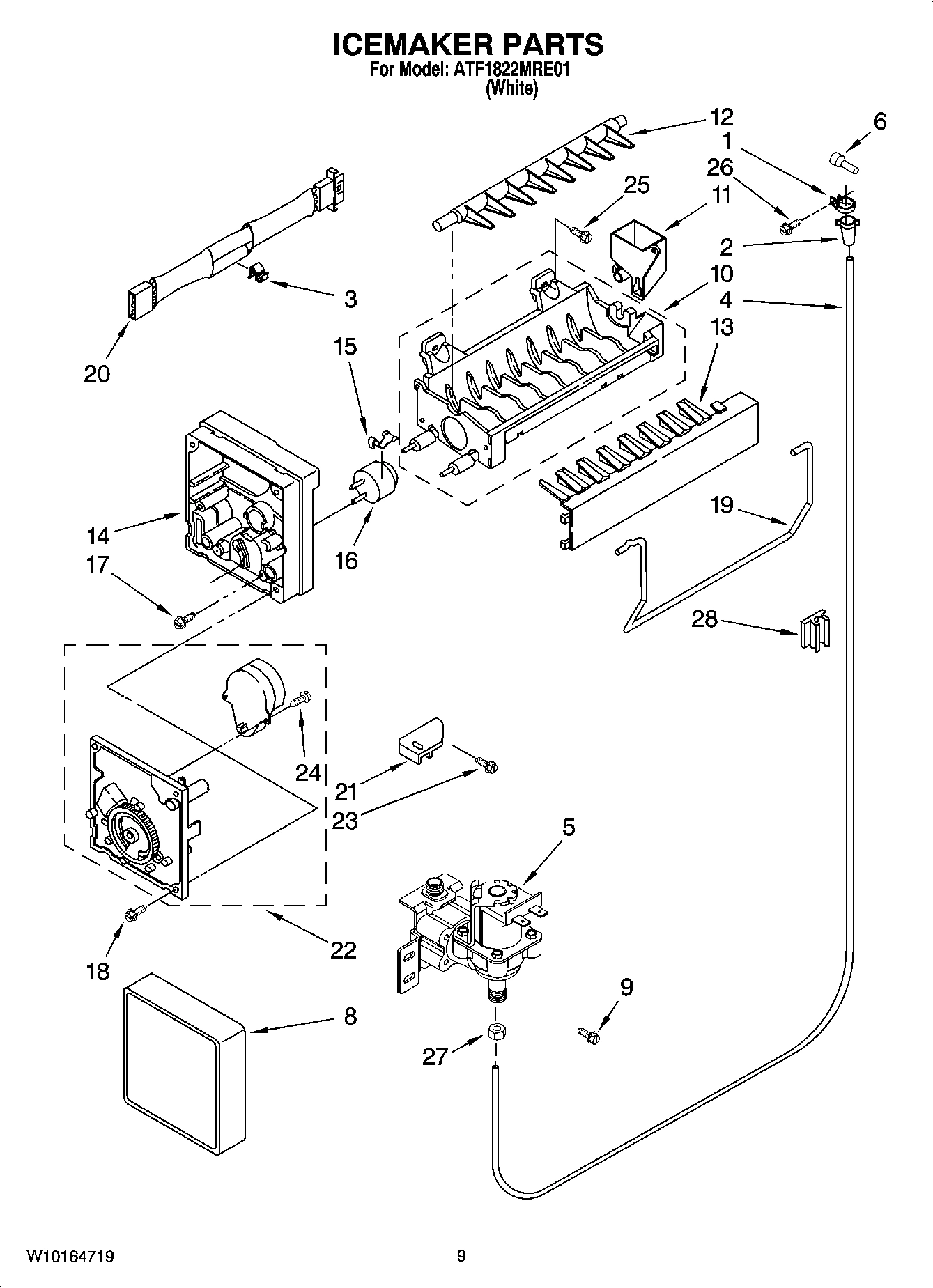

05 - ICEMAKER PARTS

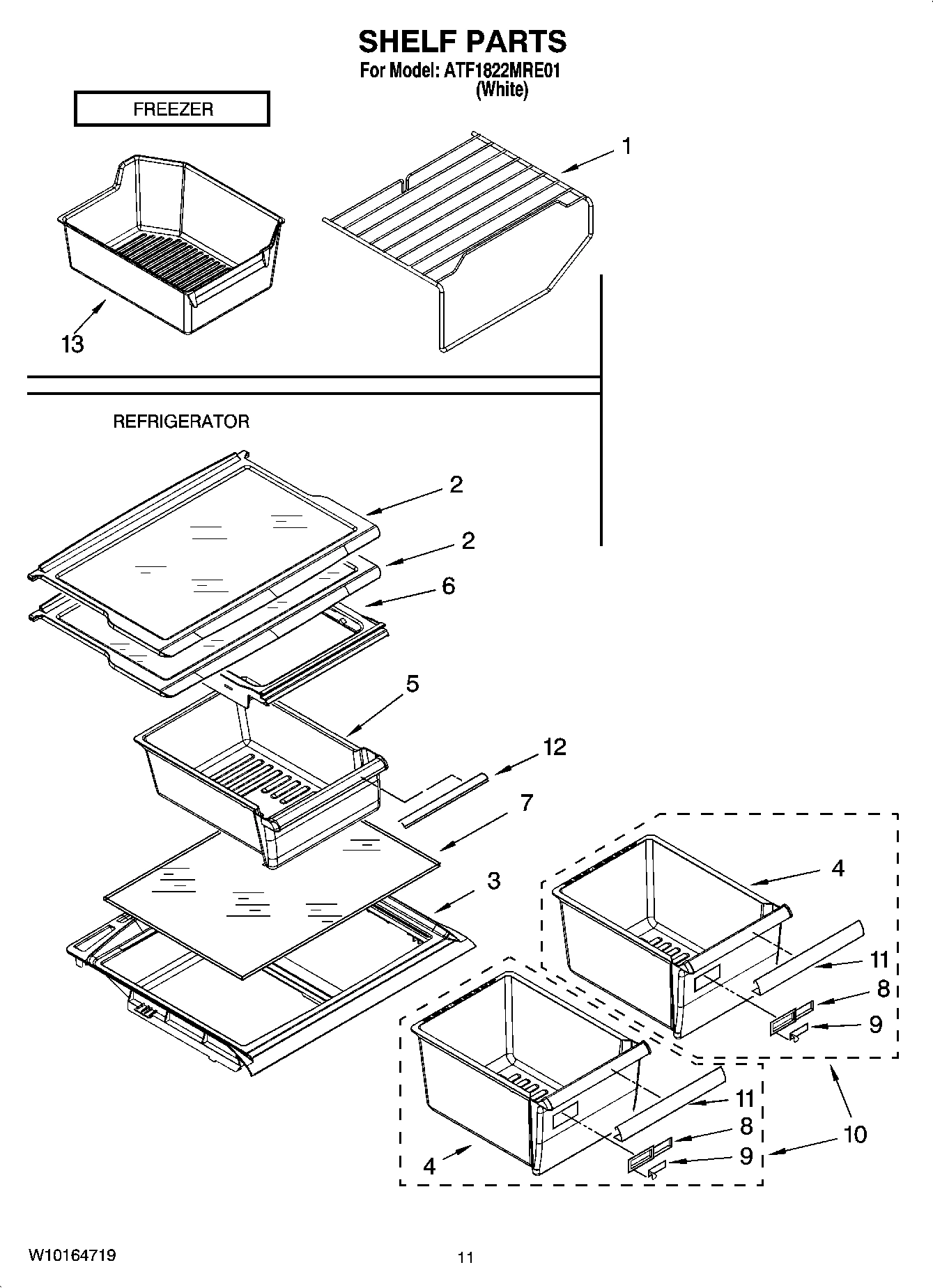

06 - SHELF PARTS, OPTIONAL PARTS
Common parts from model Maytag ATF1822MRE01 REFRIGERATOR
1
MAY 2265591 MAY 2265591 Contact Us For Availability
1
MAY 628370 MAY 628370 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10154917 MAY W10154917 Contact Us For Availability
1
MAY W10162920 MAY W10162920 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 9) MAY W10153823 Contact Us For Availability
1
MAY W10127456 MAY W10127456 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
MAY 2262654 MAY 2262654 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 2207942 MAY 2207942 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
2
MAY 2263641 MAY 2263641 Contact Us For Availability
3
Roller-Front MAY 2324094 Contact Us For Availability
3
MAY 2258681W MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY W10140200 MAY W10140200 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
CRISPER, COVER MAY 2222031 Contact Us For Availability
4
Cover, Hinge MAY 2213360 Contact Us For Availability
4
MAY 2212648 MAY 2212648 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
Valve Solenoid (Single) MAY 2210494 Contact Us For Availability
5
MAY 2261880 MAY 2261880 Contact Us For Availability
6
END CAP, TRIM MAY 2156003 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2174755 MAY 2174755 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
7
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
GLASS, COVER MAY 2262441 Contact Us For Availability
8
CLAMP, TUBE MAY 489385 Contact Us For Availability
8
END CAP, TRIM MAY 2195916 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2174157 MAY 2174157 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
SCREW MAY 2222100 Contact Us For Availability
9
Door Gasket, Magnetic MAY 2264727 Contact Us For Availability
9
MAY 2197404 MAY 2197404 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2266389 MAY 2266389 Contact Us For Availability
10
Trim, Door MAY 2266729 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
10
Crisper Pan Assy. (Includes Illus. 4, 8, 9 & MAY 2328554 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
Plug-Trim MAY 2156007 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY 2188875 MAY 2188875 Contact Us For Availability
11
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 2328555 MAY 2328555 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY 2263083 MAY 2263083 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 2176356 MAY 2176356 Contact Us For Availability
13
Nameplate-Amana MAY 2325418 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
Ice Striper MAY 2182124 Contact Us For Availability
13
Pan-Ice Cube MAY 2166261 Contact Us For Availability
14
Freezer Door (Includes Illus. 15) MAY W10162670 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
14
Grommet (Service) MAY 4387558 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 489497 MAY 489497 Contact Us For Availability
15
Door Gasket, Magnetic MAY 2264726 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 2166086 MAY 2166086 Contact Us For Availability
16
MAY 2189202 MAY 2189202 Contact Us For Availability
16
MAY 2264669 MAY 2264669 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
17
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
17
MAY 8533904 MAY 8533904 Contact Us For Availability
17
MAY 2252970 MAY 2252970 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY 2221926 MAY 2221926 Contact Us For Availability
18
Endcap, Handle MAY 2265645W Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
19
Hinge-Pin, Bottom MAY 9791682 Contact Us For Availability
19
MAY 2265647W MAY 2265647W Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
MAY 3428970 MAY 3428970 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
20
MAY 2187464 MAY 2187464 Contact Us For Availability
21
MAY 2201567 MAY 2201567 Contact Us For Availability
21
MAY 2265644W MAY 2265644W Contact Us For Availability
21
Wiring-Freezer (Includes Item 33) MAY 2319442 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
MAY 2174760 MAY 2174760 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
Start- Device Combination (Start Relay and Ov MAY W10128791 Contact Us For Availability
22
Module Assembly (Includes Item 24) MAY 626680 Contact Us For Availability
23
MAY 2201012 MAY 2201012 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Seal MAY 1106508 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
MAY 2262176 MAY 2262176 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
25
Screw MAY 488208 Contact Us For Availability
26
Screw, 8-18 x 1/2 MAY 489442 Contact Us For Availability
26
Corner Filler MAY 2166003 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 487576 MAY 487576 Contact Us For Availability
27
MAY 627018 MAY 627018 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
Compressor (Includes Items 14, 29 & 32) (Also MAY W10141544 Contact Us For Availability
28
Clip-Fill Tube MAY 2154101 Contact Us For Availability
29
MAY 489341 MAY 489341 Contact Us For Availability
29
MAY 2262178 MAY 2262178 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
30
Washer MAY 488296 Contact Us For Availability
30
Evaporator, Fan Motor MAY 2201212 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
Capacitor (Service) MAY 1118576 Contact Us For Availability
32
Capacitator (Production) MAY 2264017 Contact Us For Availability
33
MAY 2266066 MAY 2266066 Contact Us For Availability
33
Bale Strap MAY W10141545 Contact Us For Availability
34
Screw MAY 488693 Contact Us For Availability
34
MAY 1114718 MAY 1114718 Contact Us For Availability
35
MAY 2264278 MAY 2264278 Contact Us For Availability
36
CLIP-HARNESS MAY 2266467 Contact Us For Availability
37
MAY 24364001 MAY 24364001 Contact Us For Availability
39
MAY W10140199 MAY W10140199 Contact Us For Availability
42
Wire Assy. Unit MAY W10151677 Contact Us For Availability
43
Evaporating Tray MAY 2263928 Contact Us For Availability
44
Tube, Discharge (Incl. Pre Cooler) MAY W10140197 Contact Us For Availability
45
MAY W10140201 MAY W10140201 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
Icemaker,Complete Assembly MAY W10122496 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Enamel, White (12 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
Enamel, Black (12 Oz. Spray Can) MAY 350939 Contact Us For Availability
NI
Primer, White (12 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
Brush Touch-Up Kit (Biscuit) MAY 4392899 Contact Us For Availability
NI
Enamel, Biscuit (1 Qt. Uncut) MAY 4392900 Contact Us For Availability
NI
Enamel, Biscuit (12 Oz. Spray Can) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
Login and Registration Form
