Model Maytag ATB1836ARQ REFRIGERATOR – Common Parts & Diagrams
01 - COMPRESSOR
02 - CONTROLS

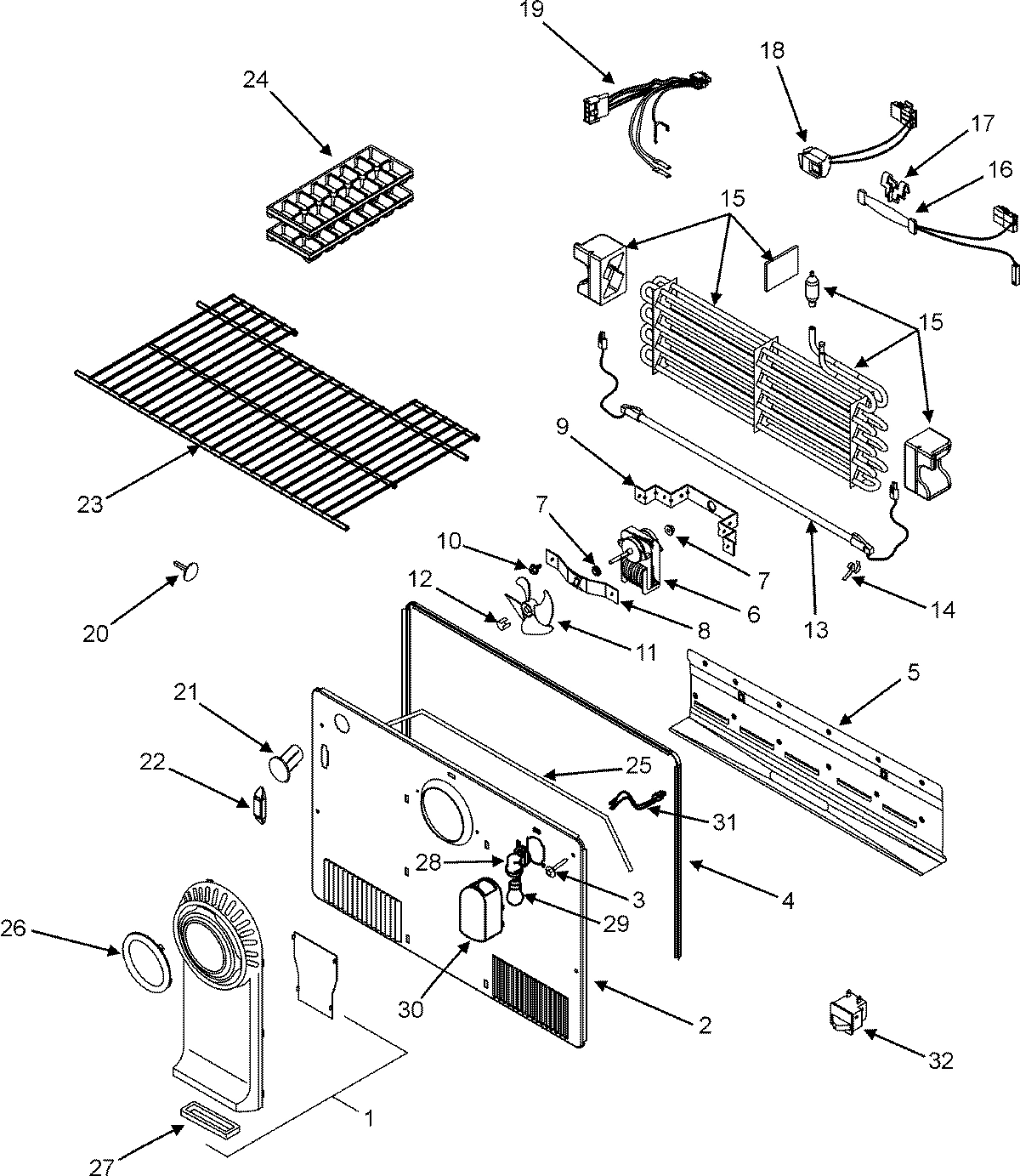

03 - FREEZER COMPARTMENT

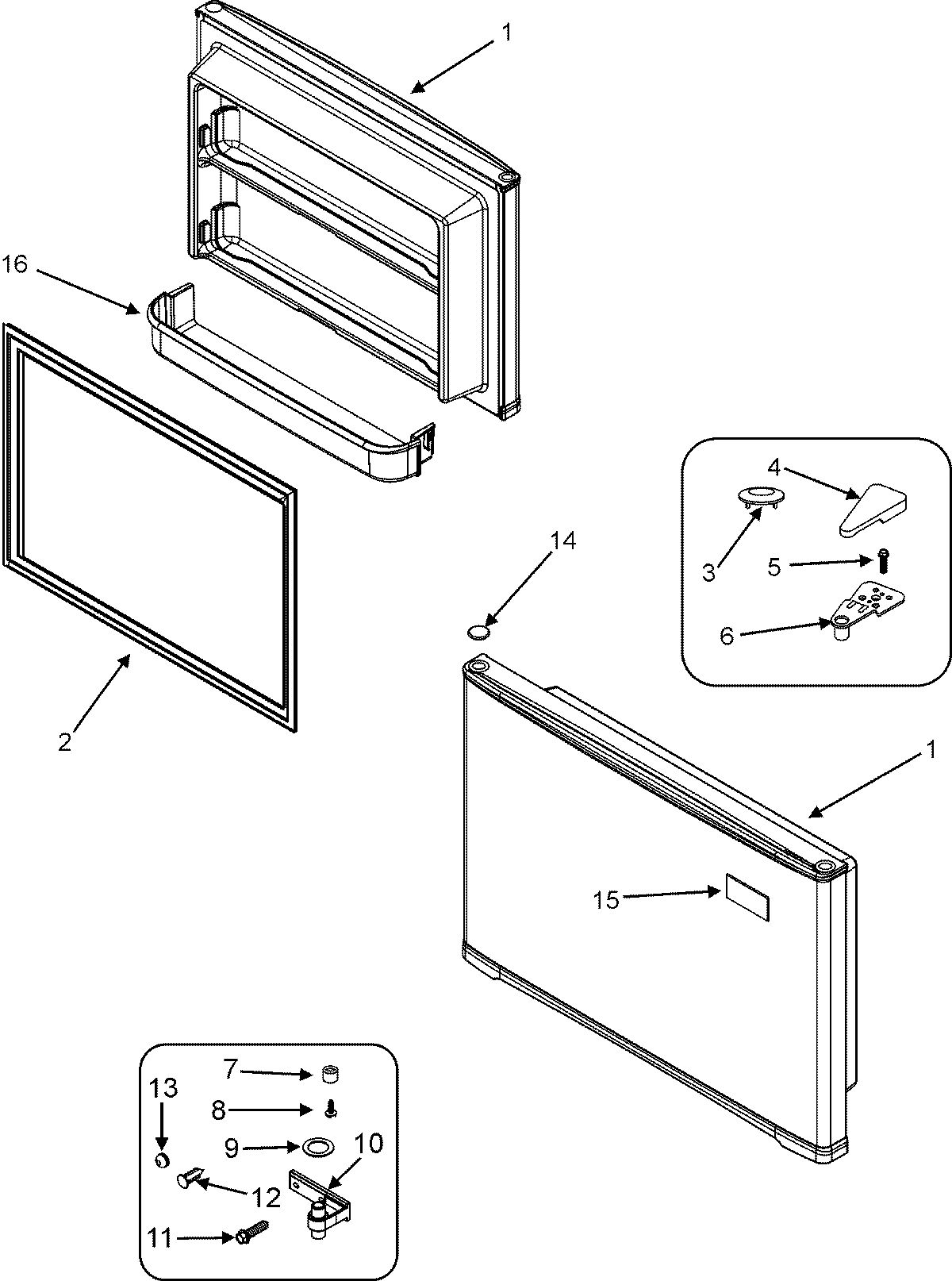

04 - FREEZER DOOR

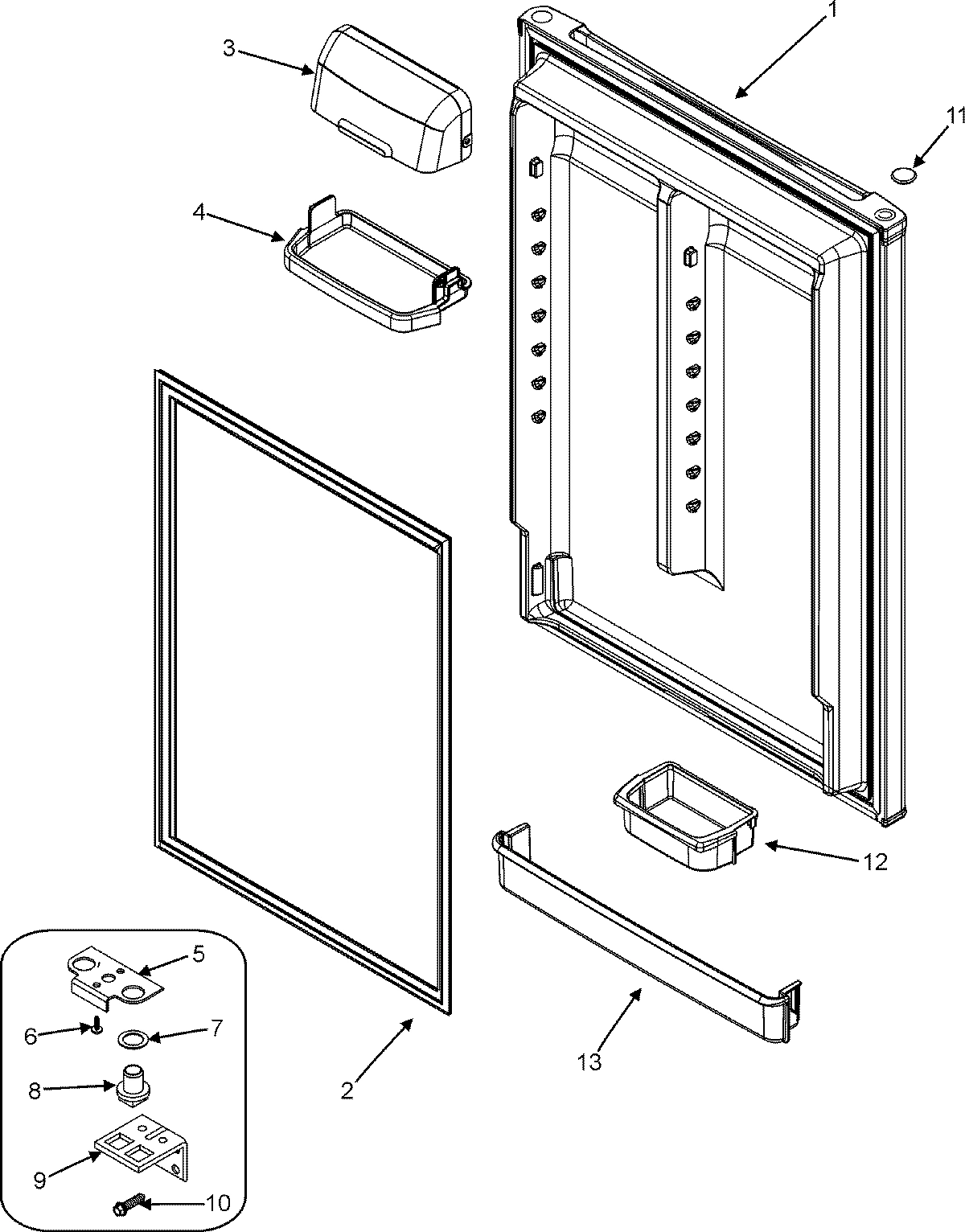

05 - FRESH FOOD DOOR

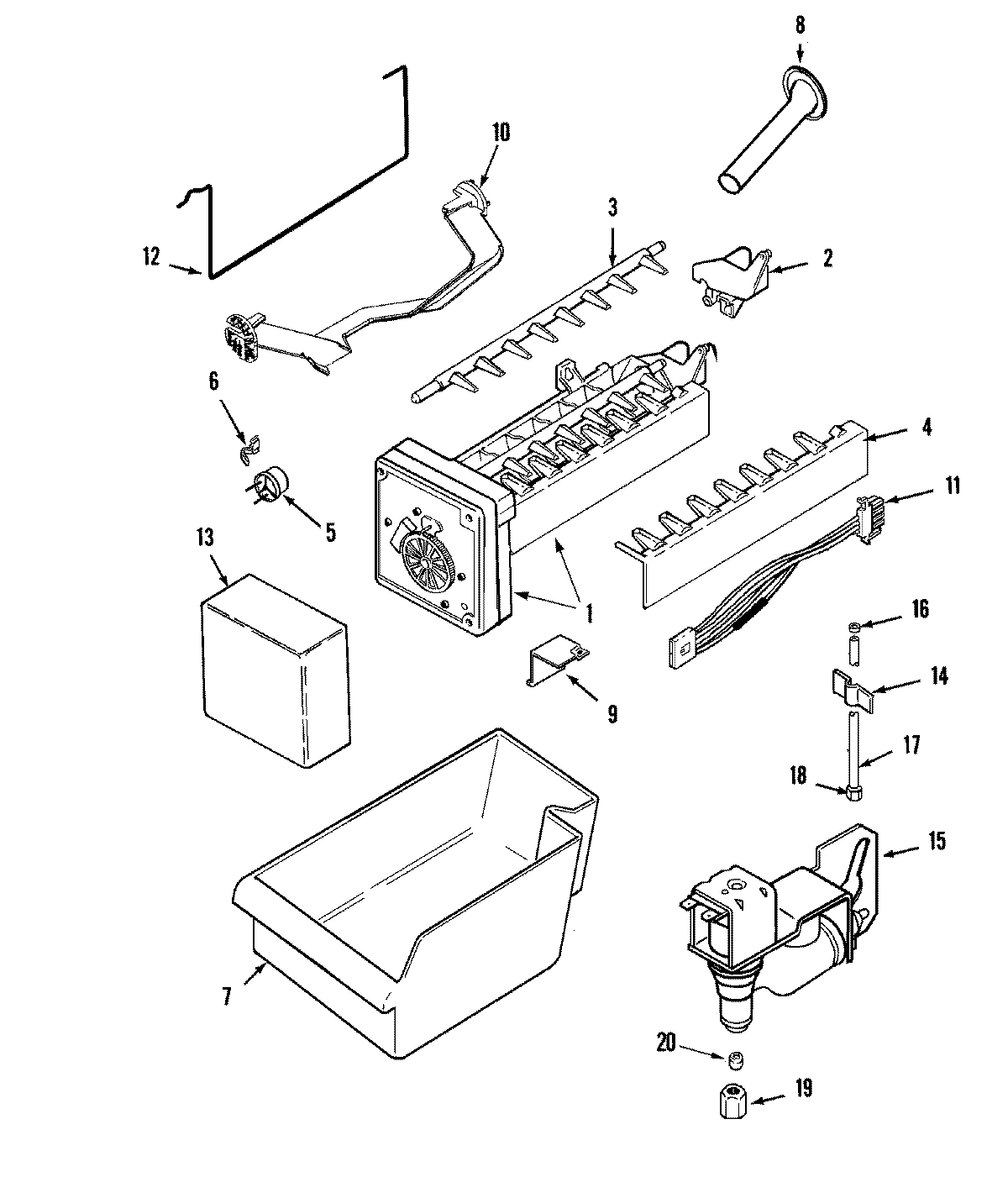

06 - OPTIONAL ICE MAKER KIT-UKI1500AXX

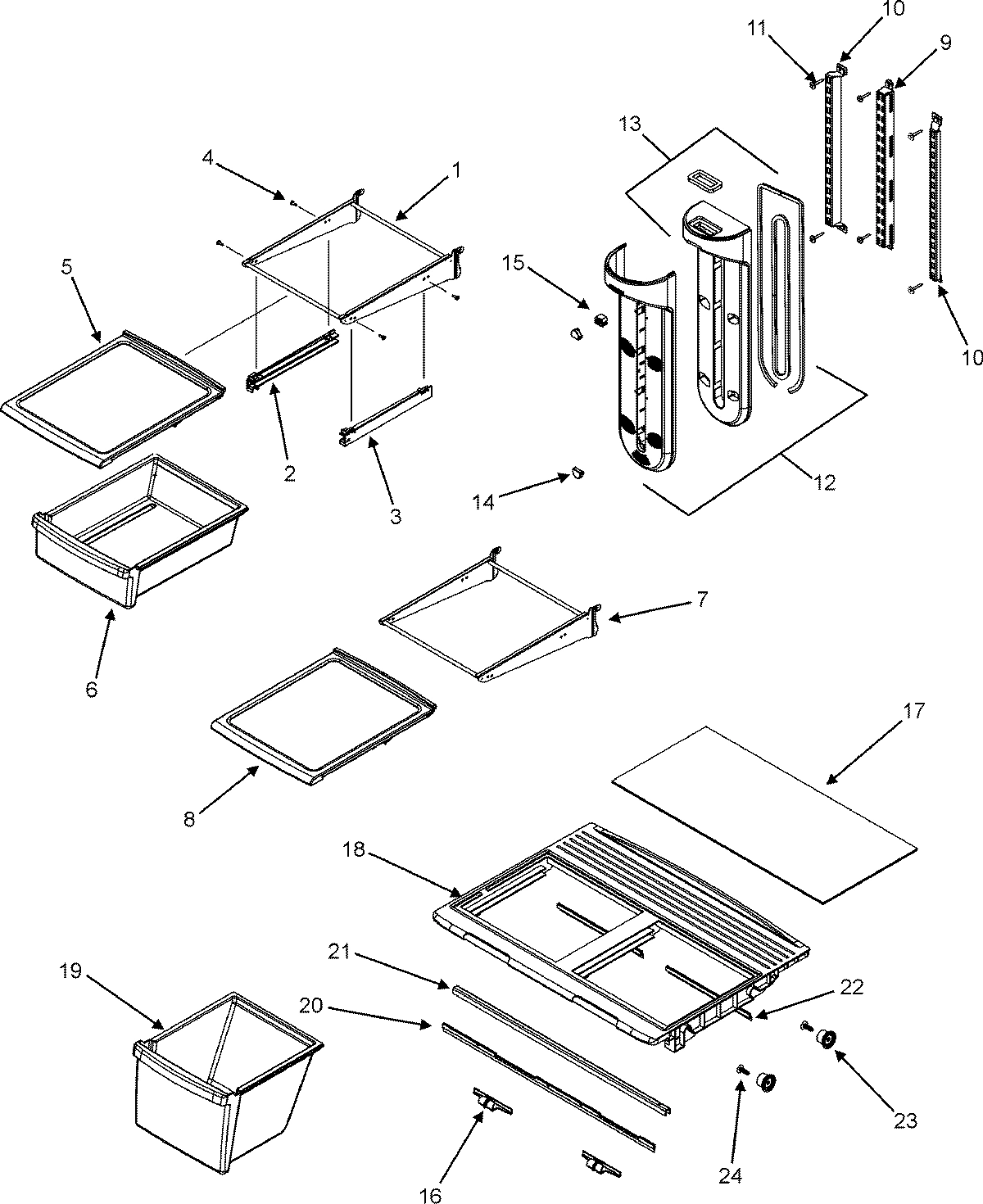

07 - SHELVES & ACCESSORIES
08 - SUPPLEMENTAL INFORMATION

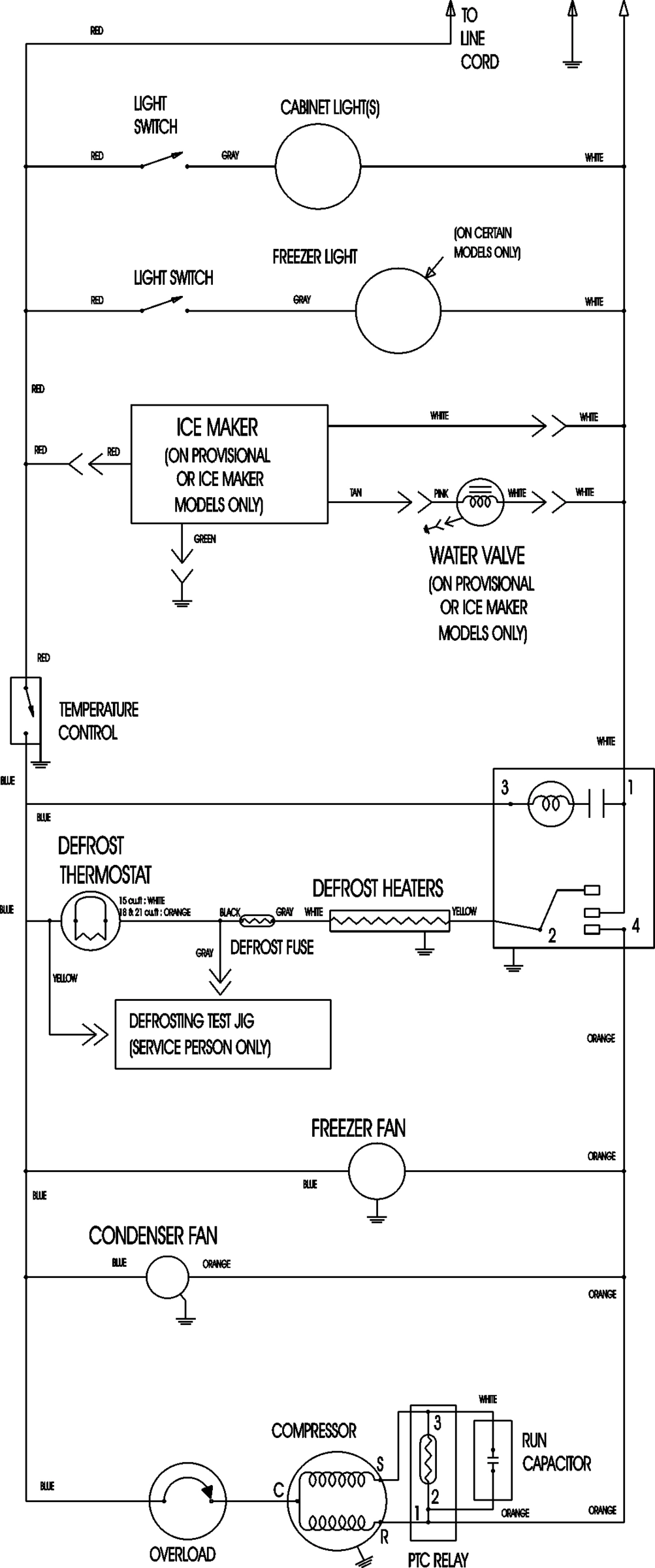

09 - WIRING INFORMATION
Common parts from model Maytag ATB1836ARQ REFRIGERATOR
1
MAY 63001471 MAY 63001471 Contact Us For Availability
1
MAY 63001506 MAY 63001506 Contact Us For Availability
1
MAY 63001509 MAY 63001509 Contact Us For Availability
1
MAY 63001513 MAY 63001513 Contact Us For Availability
1
MAY 400021-1 MAY 400021-1 Contact Us For Availability
1
MAY 63001518 MAY 63001518 Contact Us For Availability
1
MAY 3013913000 MAY 3013913000 Contact Us For Availability
2
MAY 63001353 MAY 63001353 Contact Us For Availability
2
MAY 405007-1 MAY 405007-1 Contact Us For Availability
2
MAY 63001447 MAY 63001447 Contact Us For Availability
2
MAY 63001418 MAY 63001418 Contact Us For Availability
2
MAY 63001399 MAY 63001399 Contact Us For Availability
2
MAY 63001519 MAY 63001519 Contact Us For Availability
2
MAY 16023446 MAY 16023446 Contact Us For Availability
3
MAY 63001358 MAY 63001358 Contact Us For Availability
3
MAY 63001397 MAY 63001397 Contact Us For Availability
3
MAY 63001078 MAY 63001078 Contact Us For Availability
3
MAY 63001520 MAY 63001520 Contact Us For Availability
3
MAY 63001439 MAY 63001439 Contact Us For Availability
4
MAY 63001473 MAY 63001473 Contact Us For Availability
4
MAY 63001385 MAY 63001385 Contact Us For Availability
4
MAY 63001407 MAY 63001407 Contact Us For Availability
4
MAY 63001398 MAY 63001398 Contact Us For Availability
4
MAY 16023494 MAY 16023494 Contact Us For Availability
5
MAY 63001386 MAY 63001386 Contact Us For Availability
5
MAY 63001231 MAY 63001231 Contact Us For Availability
5
MAY 63001394 MAY 63001394 Contact Us For Availability
5
MAY 95093-1 MAY 95093-1 Contact Us For Availability
5
MAY 63001522 MAY 63001522 Contact Us For Availability
6
MAY 63001057 MAY 63001057 Contact Us For Availability
6
MAY 63001408 MAY 63001408 Contact Us For Availability
6
MAY 63001255 MAY 63001255 Contact Us For Availability
6
MAY 63001373 MAY 63001373 Contact Us For Availability
7
MAY 63001079 MAY 63001079 Contact Us For Availability
7
MAY 63001355 MAY 63001355 Contact Us For Availability
7
MAY 63001058 MAY 63001058 Contact Us For Availability
7
MAY 63001438 MAY 63001438 Contact Us For Availability
7
MAY 61001886 MAY 61001886 Contact Us For Availability
7
MAY 63001523 MAY 63001523 Contact Us For Availability
8
MAY 63001089 MAY 63001089 Contact Us For Availability
8
MAY 63001356 MAY 63001356 Contact Us For Availability
8
MAY 63001062 MAY 63001062 Contact Us For Availability
8
MAY 61001888 MAY 61001888 Contact Us For Availability
8
MAY 63001524 MAY 63001524 Contact Us For Availability
9
MAY 63001128 MAY 63001128 Contact Us For Availability
9
MAY 63001063 MAY 63001063 Contact Us For Availability
9
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
9
MAY 95108-1 MAY 95108-1 Contact Us For Availability
9
MAY 63001498 MAY 63001498 Contact Us For Availability
10
MAY 61005174 MAY 61005174 Contact Us For Availability
10
MAY 63001005 MAY 63001005 Contact Us For Availability
10
MAY 63001357 MAY 63001357 Contact Us For Availability
10
MAY 63001104 MAY 63001104 Contact Us For Availability
10
MAY 63001412 MAY 63001412 Contact Us For Availability
10
MAY 63001226 MAY 63001226 Contact Us For Availability
10
MAY 63001517 MAY 63001517 Contact Us For Availability
11
MAY 63001021 MAY 63001021 Contact Us For Availability
11
MAY 61001882 MAY 61001882 Contact Us For Availability
11
MAY 63001036 MAY 63001036 Contact Us For Availability
11
MAY 63001360 MAY 63001360 Contact Us For Availability
11
MAY 63001060 MAY 63001060 Contact Us For Availability
11
MAY 63001234 MAY 63001234 Contact Us For Availability
11
MAY 63001075 MAY 63001075 Contact Us For Availability
12
MAY 63001359 MAY 63001359 Contact Us For Availability
12
MAY 63001061 MAY 63001061 Contact Us For Availability
12
MAY 63001414 MAY 63001414 Contact Us For Availability
12
MAY 63001516 MAY 63001516 Contact Us For Availability
12
MAY 61005173 MAY 61005173 Contact Us For Availability
12
MAY 61005175 MAY 61005175 Contact Us For Availability
12
MAY 63001477 MAY 63001477 Contact Us For Availability
13
MAY 63001472 MAY 63001472 Contact Us For Availability
13
MAY 63001387 MAY 63001387 Contact Us For Availability
13
MAY 63001114 MAY 63001114 Contact Us For Availability
13
MAY 63001401 MAY 63001401 Contact Us For Availability
13
MAY 61004594 MAY 61004594 Contact Us For Availability
13
MAY 63001478 MAY 63001478 Contact Us For Availability
14
MAY 63001018 MAY 63001018 Contact Us For Availability
14
MAY 63001497 MAY 63001497 Contact Us For Availability
14
MAY 63001050 MAY 63001050 Contact Us For Availability
14
MAY 61004913 MAY 61004913 Contact Us For Availability
14
MAY 63001499 MAY 63001499 Contact Us For Availability
15
MAY 12002519 MAY 12002519 Contact Us For Availability
15
MAY 63001415 MAY 63001415 Contact Us For Availability
15
MAY 61002819 MAY 61002819 Contact Us For Availability
15
MAY 63001479 MAY 63001479 Contact Us For Availability
16
MAY 63001052 MAY 63001052 Contact Us For Availability
16
MAY 63001419 MAY 63001419 Contact Us For Availability
16
MAY 63001500 MAY 63001500 Contact Us For Availability
17
MAY 63001053 MAY 63001053 Contact Us For Availability
17
MAY 61003021 MAY 61003021 Contact Us For Availability
17
MAY 63001374 MAY 63001374 Contact Us For Availability
18
MAY 63001388 MAY 63001388 Contact Us For Availability
18
MAY 63001375 MAY 63001375 Contact Us For Availability
19
MAY 63001059 MAY 63001059 Contact Us For Availability
19
MAY 63001377 MAY 63001377 Contact Us For Availability
20
MAY 63001066 MAY 63001066 Contact Us For Availability
20
MAY 63001379 MAY 63001379 Contact Us For Availability
21
MAY 63001065 MAY 63001065 Contact Us For Availability
21
MAY 63001380 MAY 63001380 Contact Us For Availability
22
MAY 63001064 MAY 63001064 Contact Us For Availability
22
MAY 63001381 MAY 63001381 Contact Us For Availability
23
MAY 63001389 MAY 63001389 Contact Us For Availability
23
MAY 63001045 MAY 63001045 Contact Us For Availability
24
MAY 63001068 MAY 63001068 Contact Us For Availability
24
MAY 63001277 MAY 63001277 Contact Us For Availability
25
MAY 63001022 MAY 63001022 Contact Us For Availability
25
MAY 63001384 MAY 63001384 Contact Us For Availability
26
MAY 63001099 MAY 63001099 Contact Us For Availability
26
MAY 63001348 MAY 63001348 Contact Us For Availability
26
MAY 63001507 MAY 63001507 Contact Us For Availability
27
SEE NOTE (BASE PAN NOT AVAILABLE) MAY Y00000000 Contact Us For Availability
27
MAY 63001429 MAY 63001429 Contact Us For Availability
28
MAY 63001251 MAY 63001251 Contact Us For Availability
28
MAY 63001448 MAY 63001448 Contact Us For Availability
29
MAY 63001252 MAY 63001252 Contact Us For Availability
30
MAY 63001449 MAY 63001449 Contact Us For Availability
31
MAY 56001210 MAY 56001210 Contact Us For Availability
31
MAY 63001443 MAY 63001443 Contact Us For Availability
31
MAY 63001450 MAY 63001450 Contact Us For Availability
32
MAY 63001001 MAY 63001001 Contact Us For Availability
33
MAY 63001002 MAY 63001002 Contact Us For Availability
34
MAY 63001025 MAY 63001025 Contact Us For Availability
35
MAY 63001350 MAY 63001350 Contact Us For Availability
36
MAY 63001351 MAY 63001351 Contact Us For Availability
37
MAY 63001420 MAY 63001420 Contact Us For Availability
39
MAY 63001346 MAY 63001346 Contact Us For Availability
40
MAY 63001012 MAY 63001012 Contact Us For Availability
41
MAY 63001028 MAY 63001028 Contact Us For Availability
42
MAY 63001276 MAY 63001276 Contact Us For Availability
43
MAY 63001011 MAY 63001011 Contact Us For Availability
44
MAY 63001091 MAY 63001091 Contact Us For Availability
45
MAY 63001424 MAY 63001424 Contact Us For Availability
46
MAY 63001425 MAY 63001425 Contact Us For Availability
47
MAY 63001426 MAY 63001426 Contact Us For Availability
48
MAY 63001427 MAY 63001427 Contact Us For Availability
NI
MAY 15003630 MAY 15003630 Contact Us For Availability
× ![]()
