Model Maytag ATB1504ARS REFRIGERATOR – Common Parts & Diagrams

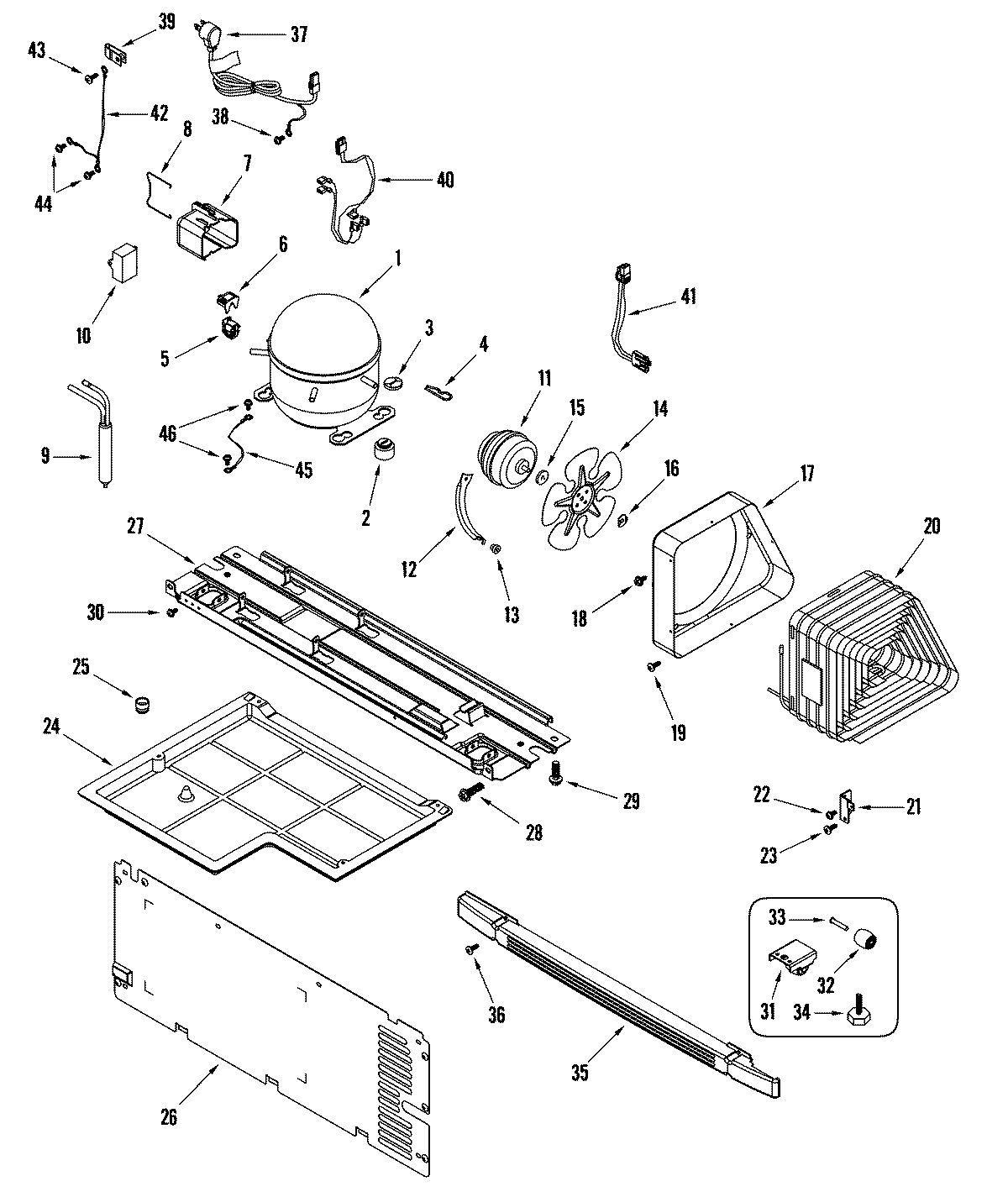

01 - COMPRESSOR

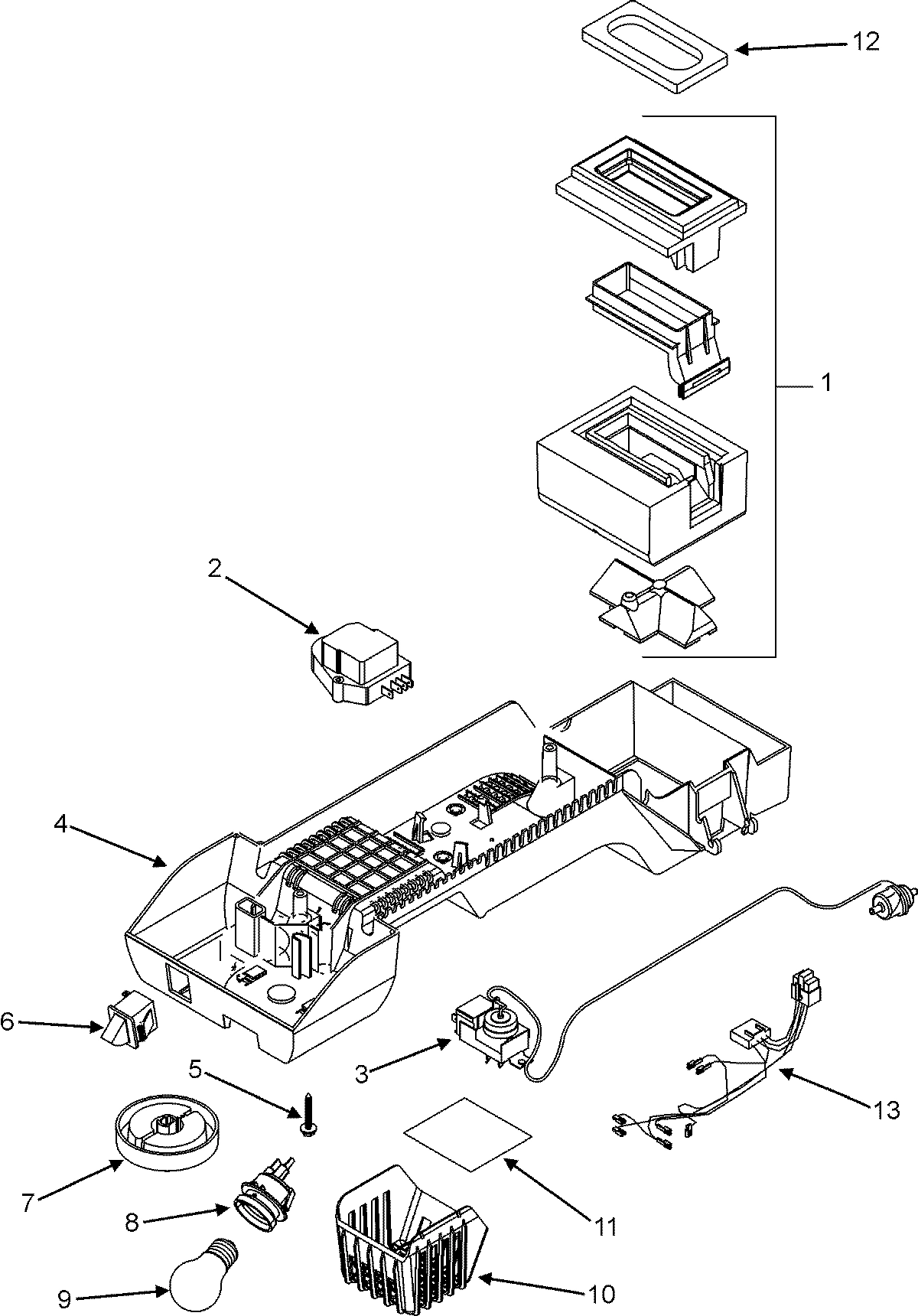

02 - CONTROLS

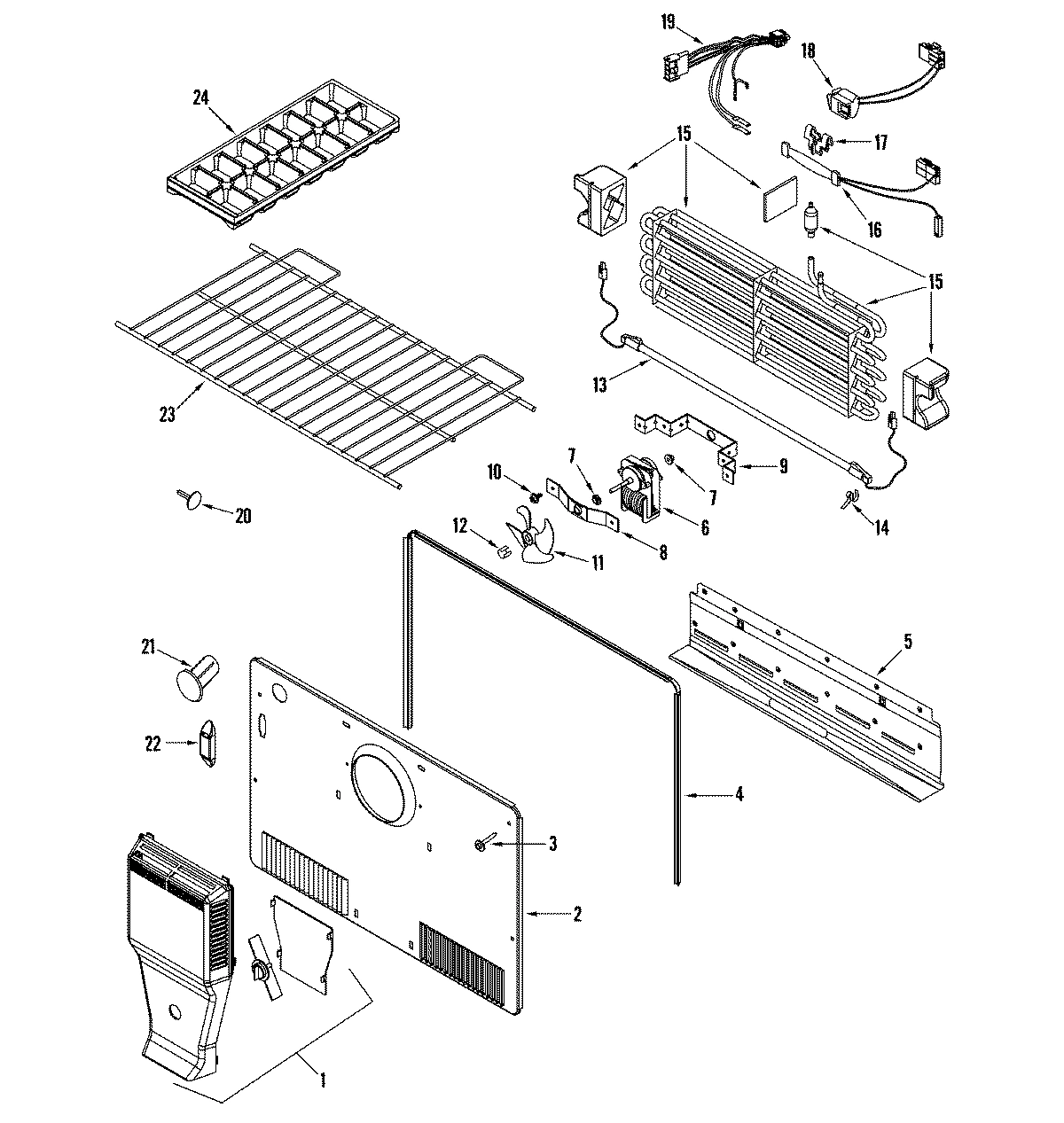

03 - FREEZER COMPARTMENT

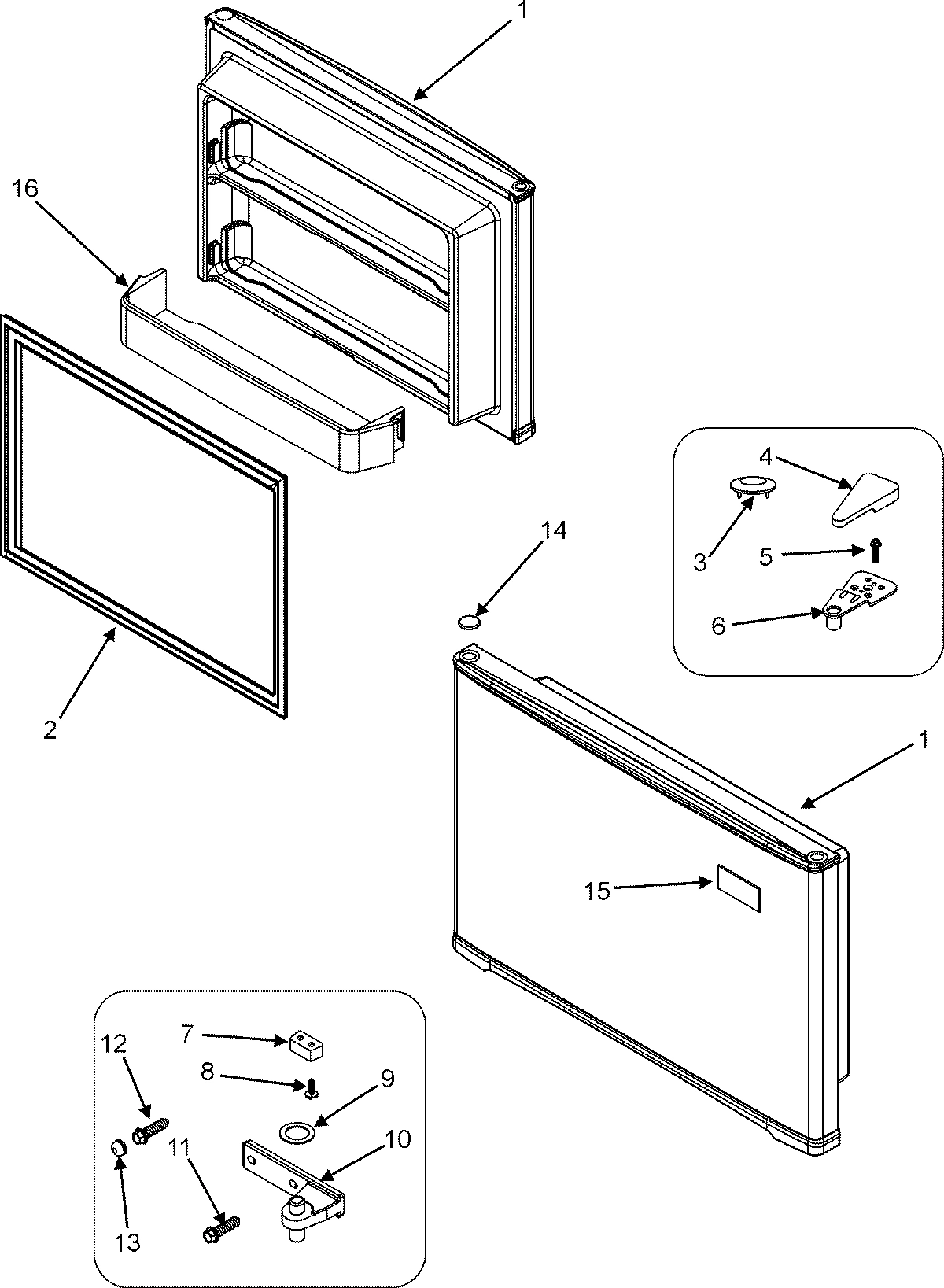

04 - FREEZER DOOR

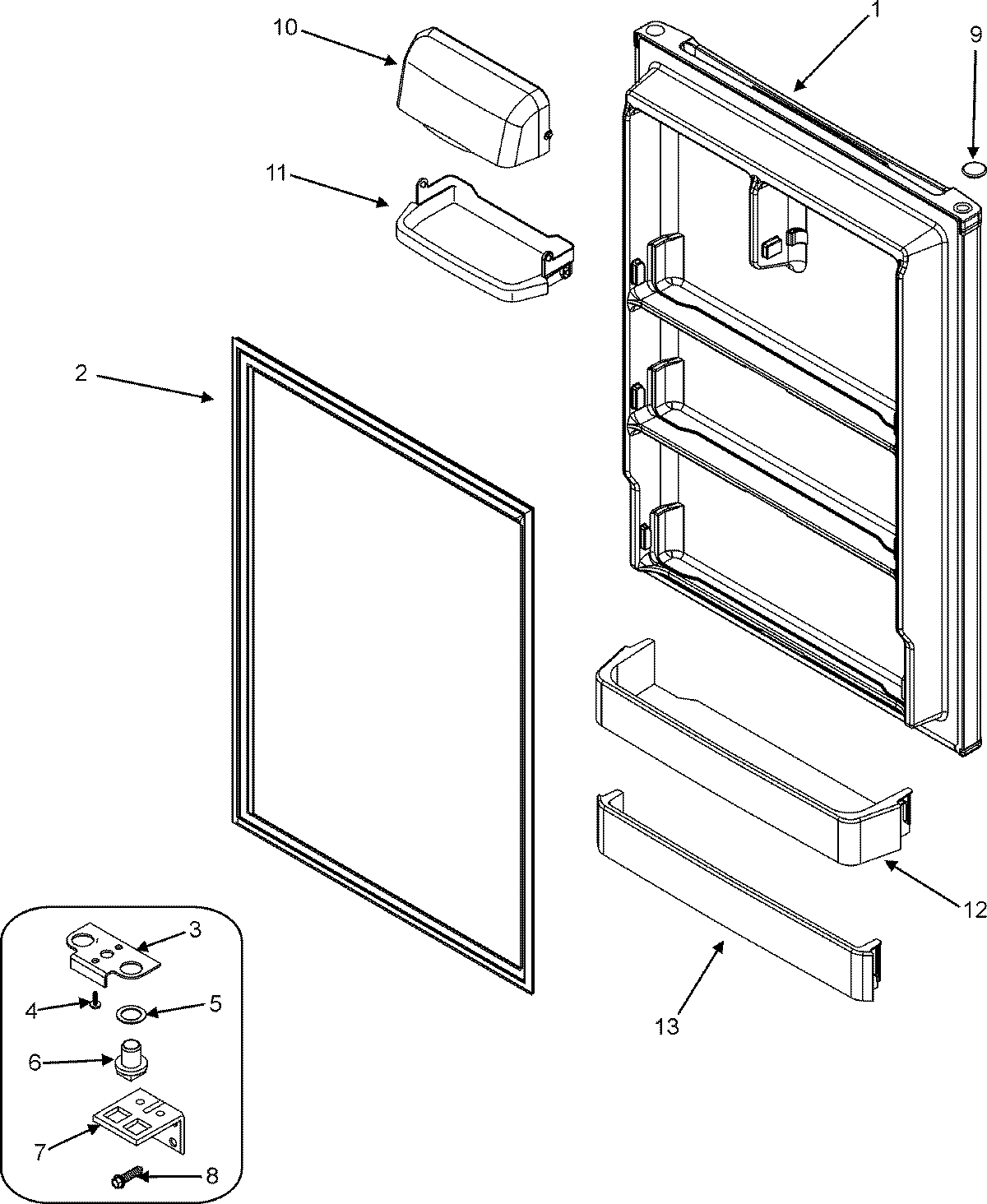

05 - FRESH FOOD DOOR

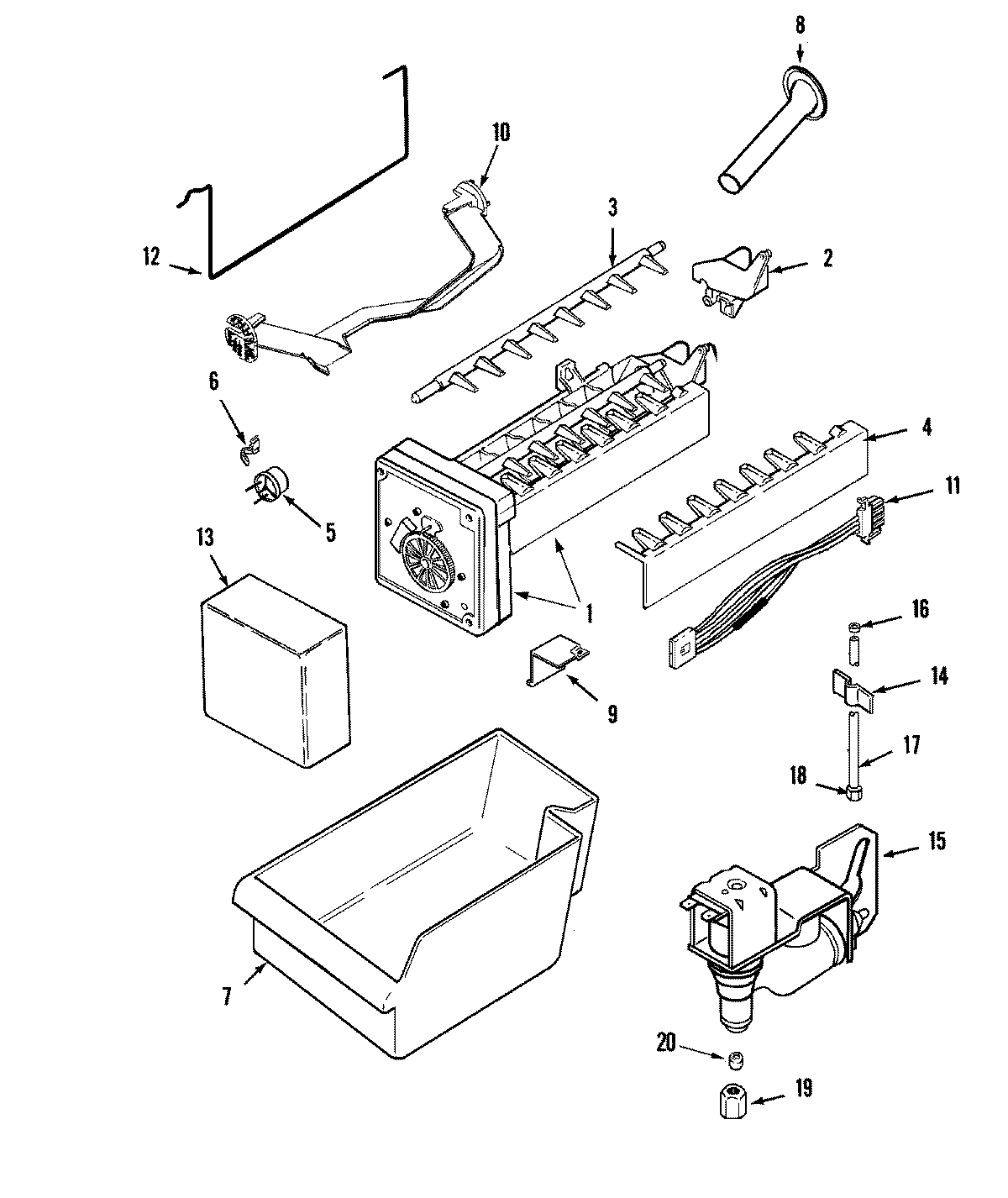

06 - OPTIONAL ICE MAKER KIT-UKI1500AXX

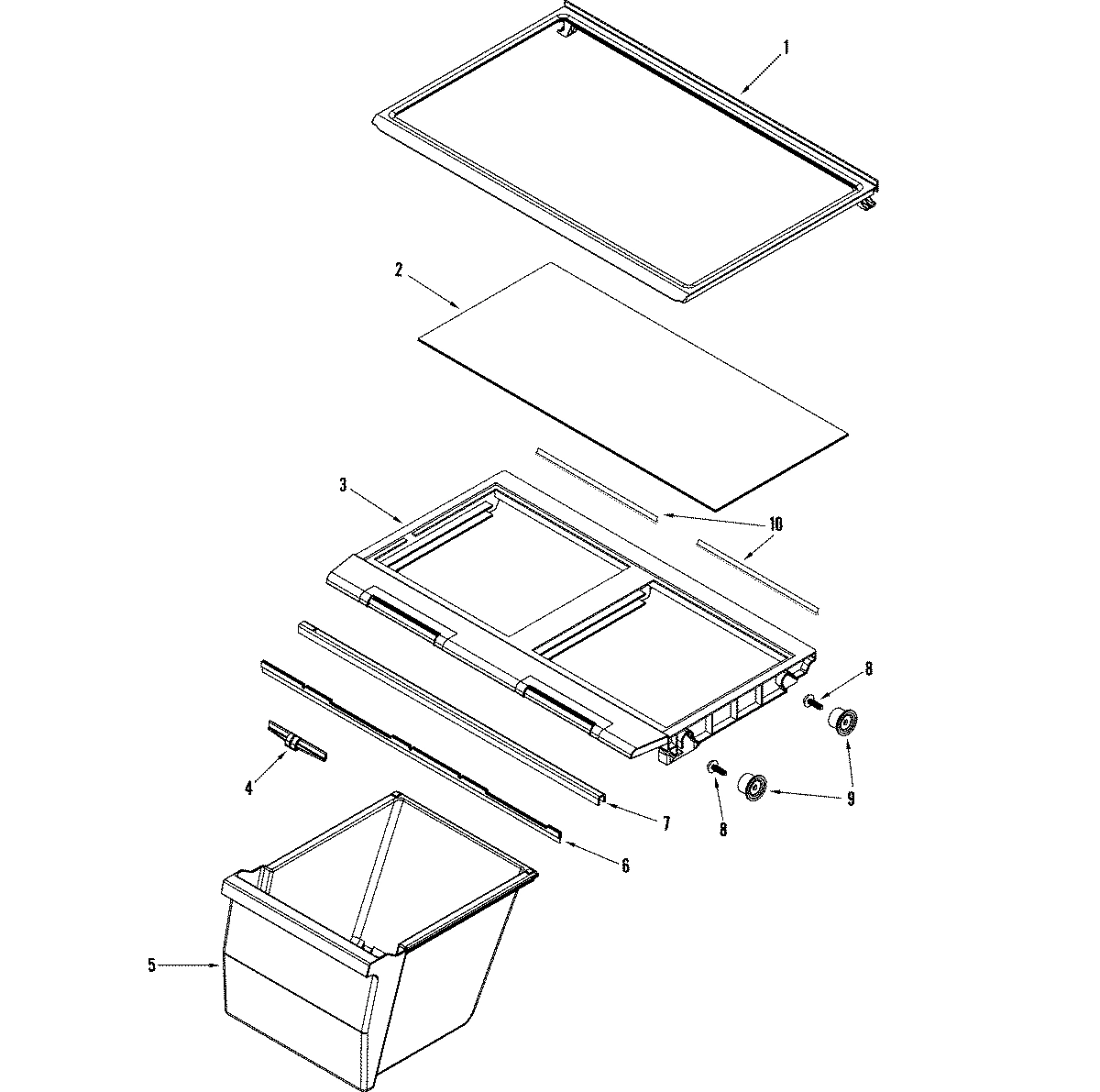

07 - SHELVES & ACCESSORIES
08 - SUPPLEMENTAL INFORMATION

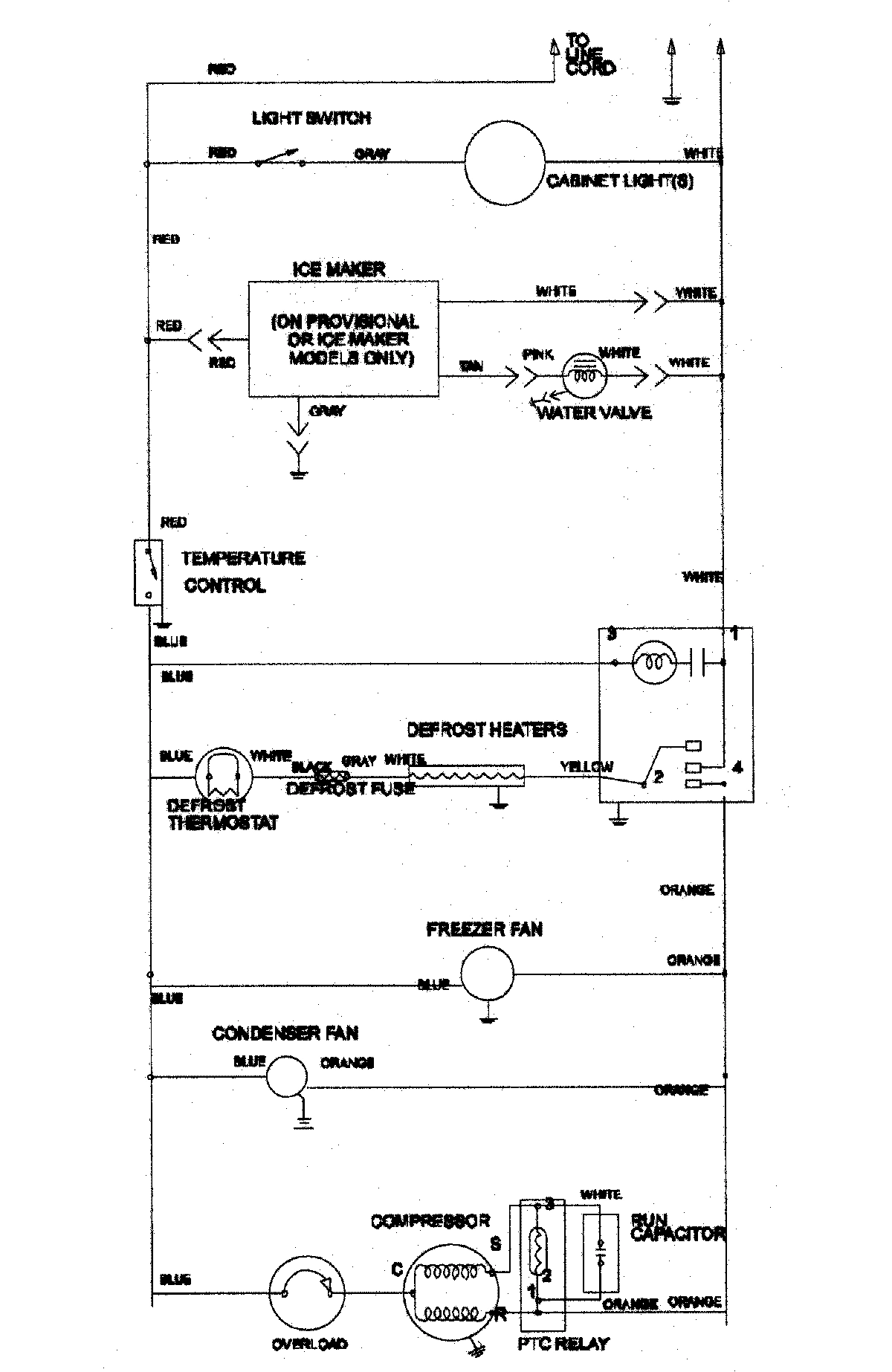

09 - WIRING INFORMATION
Common parts from model Maytag ATB1504ARS REFRIGERATOR
1
MAY 63001101 MAY 63001101 Contact Us For Availability
1
MAY 63001131 MAY 63001131 Contact Us For Availability
1
MAY 63001228 MAY 63001228 Contact Us For Availability
1
MAY 63001224 MAY 63001224 Contact Us For Availability
1
MAY 400021-1 MAY 400021-1 Contact Us For Availability
1
MAY 63001037 MAY 63001037 Contact Us For Availability
1
MAY 3013911600 MAY 3013911600 Contact Us For Availability
1
MAY 3013913010 MAY 3013913010 Contact Us For Availability
2
MAY 405007-1 MAY 405007-1 Contact Us For Availability
2
MAY 63001032 MAY 63001032 Contact Us For Availability
2
MAY 63001055 MAY 63001055 Contact Us For Availability
2
MAY 63001238 MAY 63001238 Contact Us For Availability
2
MAY 63001227 MAY 63001227 Contact Us For Availability
2
MAY 63001039 MAY 63001039 Contact Us For Availability
2
MAY 63001137 MAY 63001137 Contact Us For Availability
3
MAY 63001103 MAY 63001103 Contact Us For Availability
3
MAY 63001229 MAY 63001229 Contact Us For Availability
3
MAY 63001087 MAY 63001087 Contact Us For Availability
3
MAY 63001038 MAY 63001038 Contact Us For Availability
3
MAY 16022675 MAY 16022675 Contact Us For Availability
4
MAY 63001029 MAY 63001029 Contact Us For Availability
4
MAY 63001056 MAY 63001056 Contact Us For Availability
4
MAY 63001230 MAY 63001230 Contact Us For Availability
4
MAY 63001088 MAY 63001088 Contact Us For Availability
4
MAY 63001040 MAY 63001040 Contact Us For Availability
4
MAY 16022727 MAY 16022727 Contact Us For Availability
5
MAY 63001036 MAY 63001036 Contact Us For Availability
5
MAY 63001054 MAY 63001054 Contact Us For Availability
5
MAY 63001231 MAY 63001231 Contact Us For Availability
5
MAY 95093-1 MAY 95093-1 Contact Us For Availability
5
MAY 63001044 MAY 63001044 Contact Us For Availability
6
MAY 63001057 MAY 63001057 Contact Us For Availability
6
MAY 63001089 MAY 63001089 Contact Us For Availability
6
MAY 63001108 MAY 63001108 Contact Us For Availability
6
MAY 63001042 MAY 63001042 Contact Us For Availability
7
MAY 63001128 MAY 63001128 Contact Us For Availability
7
MAY 63001034 MAY 63001034 Contact Us For Availability
7
MAY 63001058 MAY 63001058 Contact Us For Availability
7
MAY 63001232 MAY 63001232 Contact Us For Availability
7
MAY 61001886 MAY 61001886 Contact Us For Availability
7
MAY 63001041 MAY 63001041 Contact Us For Availability
8
MAY 63001031 MAY 63001031 Contact Us For Availability
8
MAY 63001062 MAY 63001062 Contact Us For Availability
8
MAY 63001226 MAY 63001226 Contact Us For Availability
8
MAY 61001888 MAY 61001888 Contact Us For Availability
9
MAY 63001079 MAY 63001079 Contact Us For Availability
9
MAY 63001063 MAY 63001063 Contact Us For Availability
9
MAY 63001225 MAY 63001225 Contact Us For Availability
9
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
9
MAY 95108-1 MAY 95108-1 Contact Us For Availability
9
MAY 63001045 MAY 63001045 Contact Us For Availability
10
MAY 61005174 MAY 61005174 Contact Us For Availability
10
MAY 63001005 MAY 63001005 Contact Us For Availability
10
MAY 63001048 MAY 63001048 Contact Us For Availability
10
MAY 63001104 MAY 63001104 Contact Us For Availability
10
MAY 63001233 MAY 63001233 Contact Us For Availability
10
MAY 63001084 MAY 63001084 Contact Us For Availability
10
MAY 63001043 MAY 63001043 Contact Us For Availability
11
MAY 63001021 MAY 63001021 Contact Us For Availability
11
MAY 61001882 MAY 61001882 Contact Us For Availability
11
MAY 63001047 MAY 63001047 Contact Us For Availability
11
MAY 63001060 MAY 63001060 Contact Us For Availability
11
MAY 63001083 MAY 63001083 Contact Us For Availability
12
MAY 63001180 MAY 63001180 Contact Us For Availability
12
MAY 63001061 MAY 63001061 Contact Us For Availability
12
MAY 63001234 MAY 63001234 Contact Us For Availability
12
MAY 63001086 MAY 63001086 Contact Us For Availability
12
MAY 61005173 MAY 61005173 Contact Us For Availability
12
MAY 61005175 MAY 61005175 Contact Us For Availability
13
MAY 63001033 MAY 63001033 Contact Us For Availability
13
MAY 63001049 MAY 63001049 Contact Us For Availability
13
MAY 63001235 MAY 63001235 Contact Us For Availability
13
MAY 63001085 MAY 63001085 Contact Us For Availability
13
MAY 61004594 MAY 61004594 Contact Us For Availability
14
MAY 63001018 MAY 63001018 Contact Us For Availability
14
MAY 63001050 MAY 63001050 Contact Us For Availability
14
MAY 61004913 MAY 61004913 Contact Us For Availability
15
MAY 63001237 MAY 63001237 Contact Us For Availability
15
MAY 61002819 MAY 61002819 Contact Us For Availability
16
MAY 63001052 MAY 63001052 Contact Us For Availability
16
MAY 63001071 MAY 63001071 Contact Us For Availability
17
MAY 63001053 MAY 63001053 Contact Us For Availability
17
MAY 61003021 MAY 61003021 Contact Us For Availability
18
MAY 63001051 MAY 63001051 Contact Us For Availability
18
MAY 63001816 MAY 63001816 Contact Us For Availability
19
MAY 63001093 MAY 63001093 Contact Us For Availability
19
MAY 63001059 MAY 63001059 Contact Us For Availability
20
MAY 63001016 MAY 63001016 Contact Us For Availability
20
MAY 63001066 MAY 63001066 Contact Us For Availability
21
MAY 63001023 MAY 63001023 Contact Us For Availability
21
MAY 63001065 MAY 63001065 Contact Us For Availability
22
MAY 63001064 MAY 63001064 Contact Us For Availability
23
MAY 63001067 MAY 63001067 Contact Us For Availability
24
MAY 63001024 MAY 63001024 Contact Us For Availability
24
MAY 63001068 MAY 63001068 Contact Us For Availability
25
MAY 63001022 MAY 63001022 Contact Us For Availability
26
MAY 63001027 MAY 63001027 Contact Us For Availability
26
MAY 63001099 MAY 63001099 Contact Us For Availability
27
SEE NOTE (BASE PAN NOT AVAILABLE) MAY Y00000000 Contact Us For Availability
28
MAY 63001129 MAY 63001129 Contact Us For Availability
29
MAY 63001130 MAY 63001130 Contact Us For Availability
31
MAY 63001100 MAY 63001100 Contact Us For Availability
32
MAY 63001001 MAY 63001001 Contact Us For Availability
33
MAY 63001002 MAY 63001002 Contact Us For Availability
34
MAY 63001025 MAY 63001025 Contact Us For Availability
35
MAY 63001223 MAY 63001223 Contact Us For Availability
36
MAY 63001097 MAY 63001097 Contact Us For Availability
37
MAY 63001009 MAY 63001009 Contact Us For Availability
39
MAY 63001010 MAY 63001010 Contact Us For Availability
40
MAY 63001012 MAY 63001012 Contact Us For Availability
41
MAY 63001028 MAY 63001028 Contact Us For Availability
42
MAY 63001095 MAY 63001095 Contact Us For Availability
43
MAY 63001096 MAY 63001096 Contact Us For Availability
45
MAY 63001011 MAY 63001011 Contact Us For Availability
46
MAY 63001091 MAY 63001091 Contact Us For Availability
NI
MAY 15003473 MAY 15003473 Contact Us For Availability
× ![]()
