Model Maytag AT18MC2 WASHER – Common Parts & Diagrams
01 - MAIN EXPLODED VIEW (FINAL ASSEMBLY)

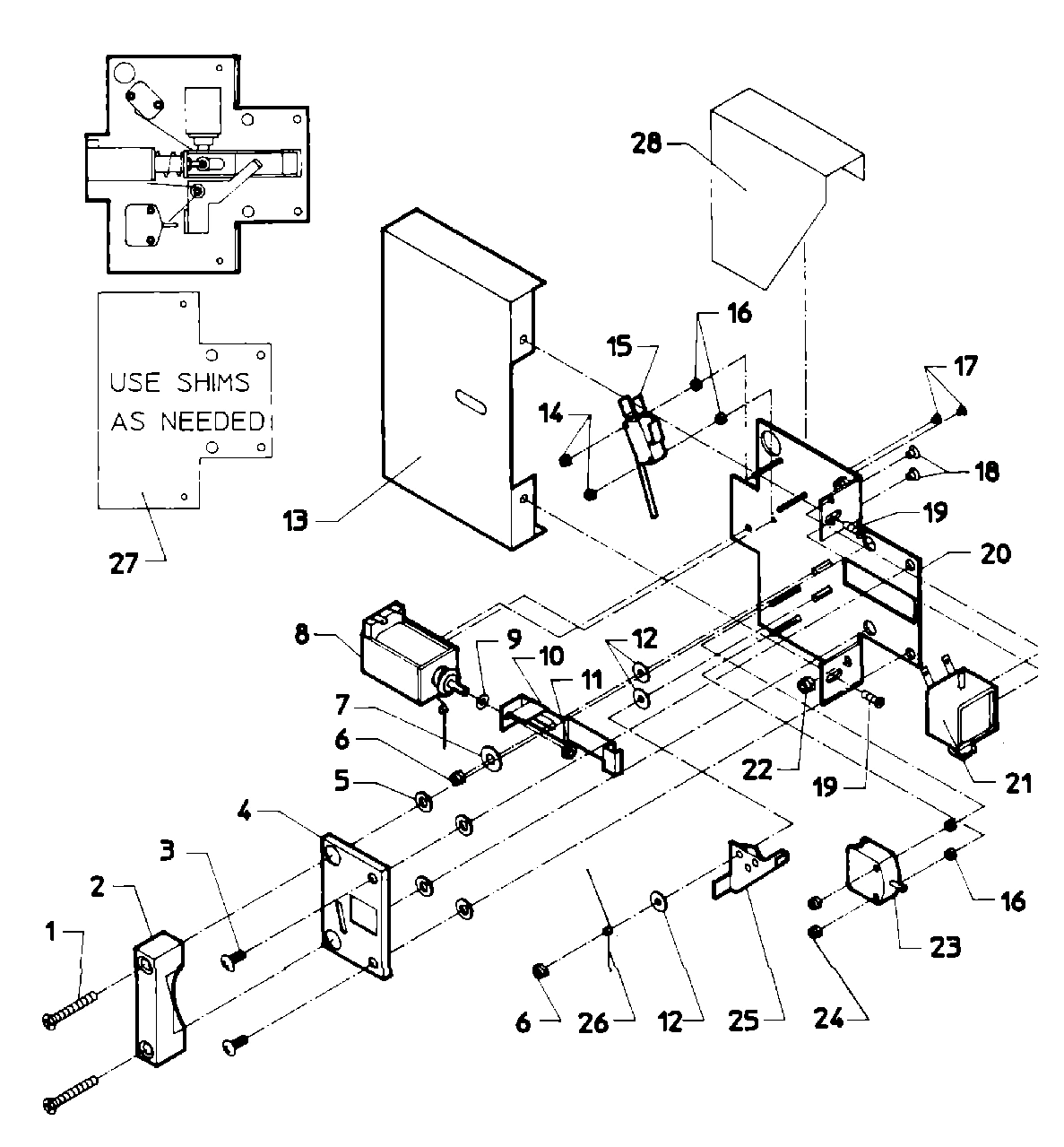

02 - DOOR & RELATED PARTS
03 - DOOR SAFETY INTERLOCK (COIN MODELS)

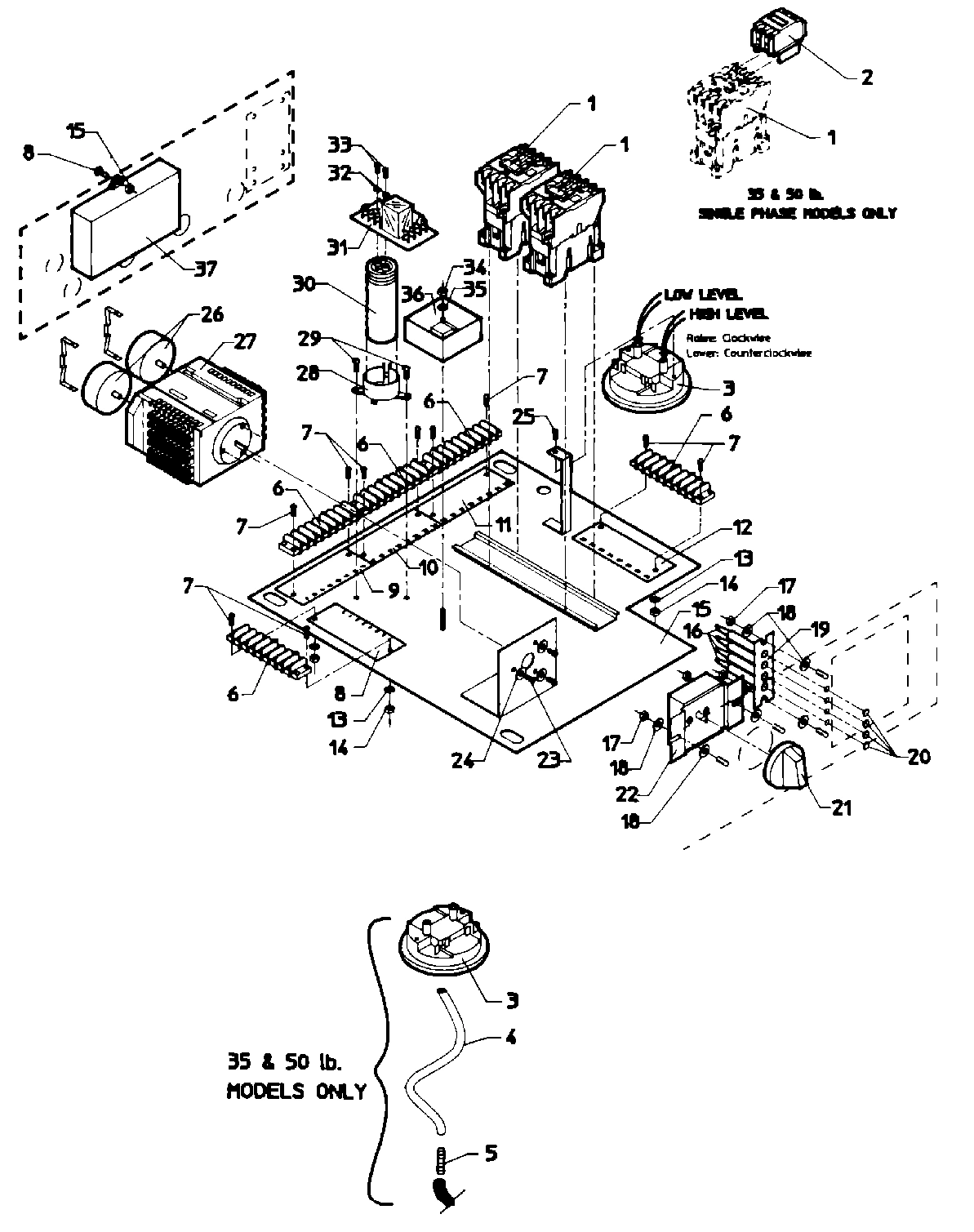

04 - CONTROL MODULE

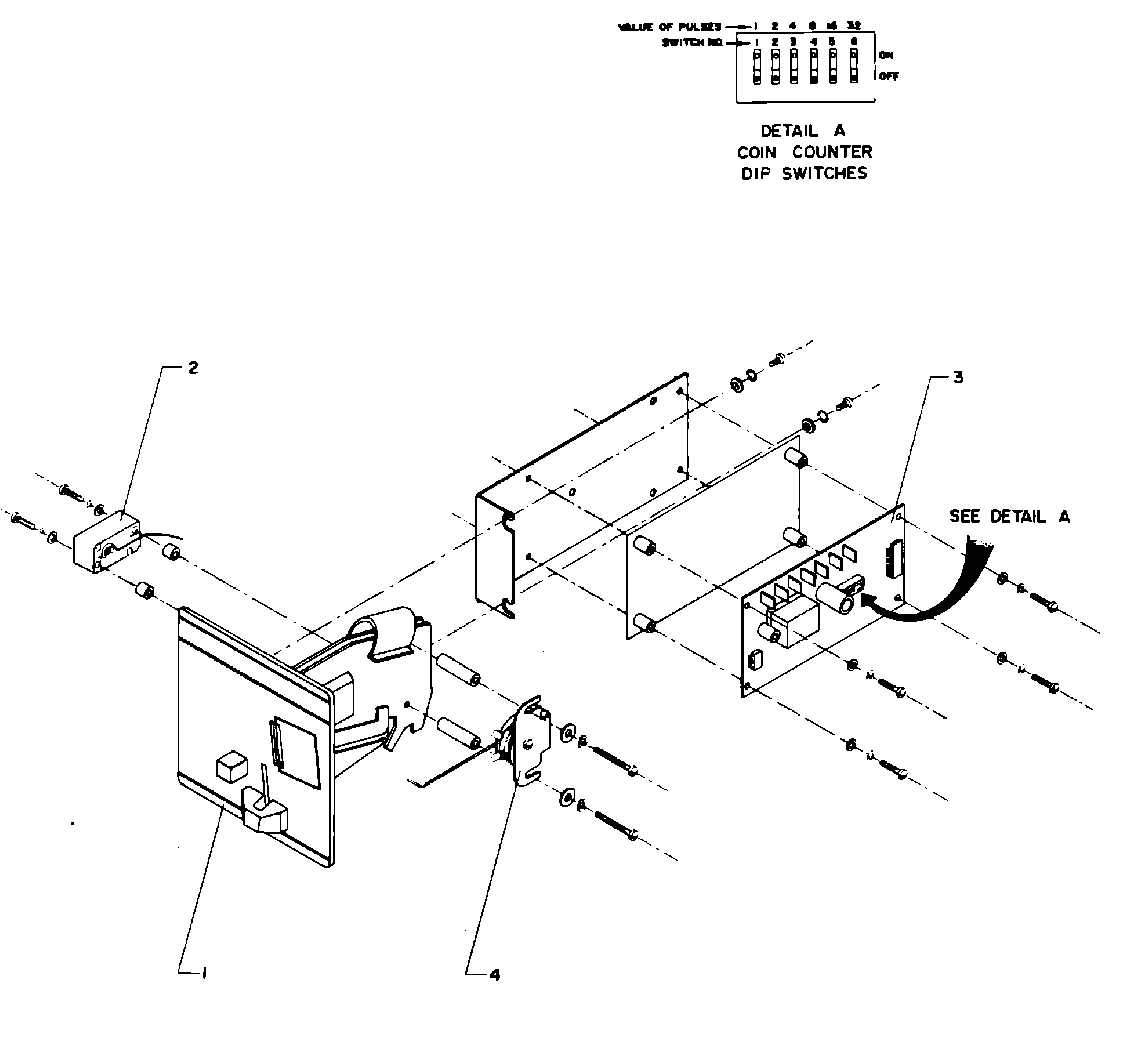

05 - COIN METER & COIN BOX

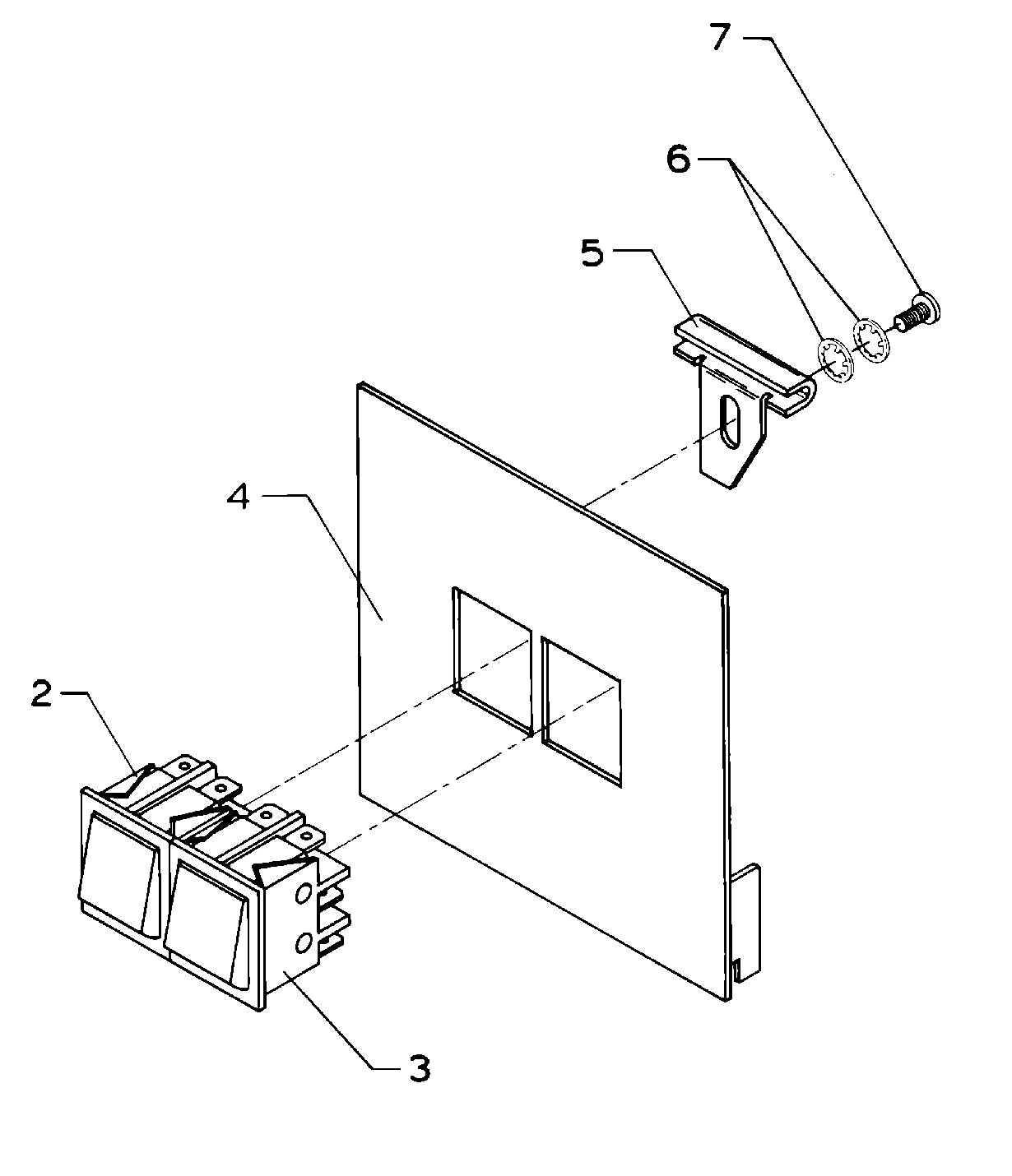

06 - MANUAL START CONTROL

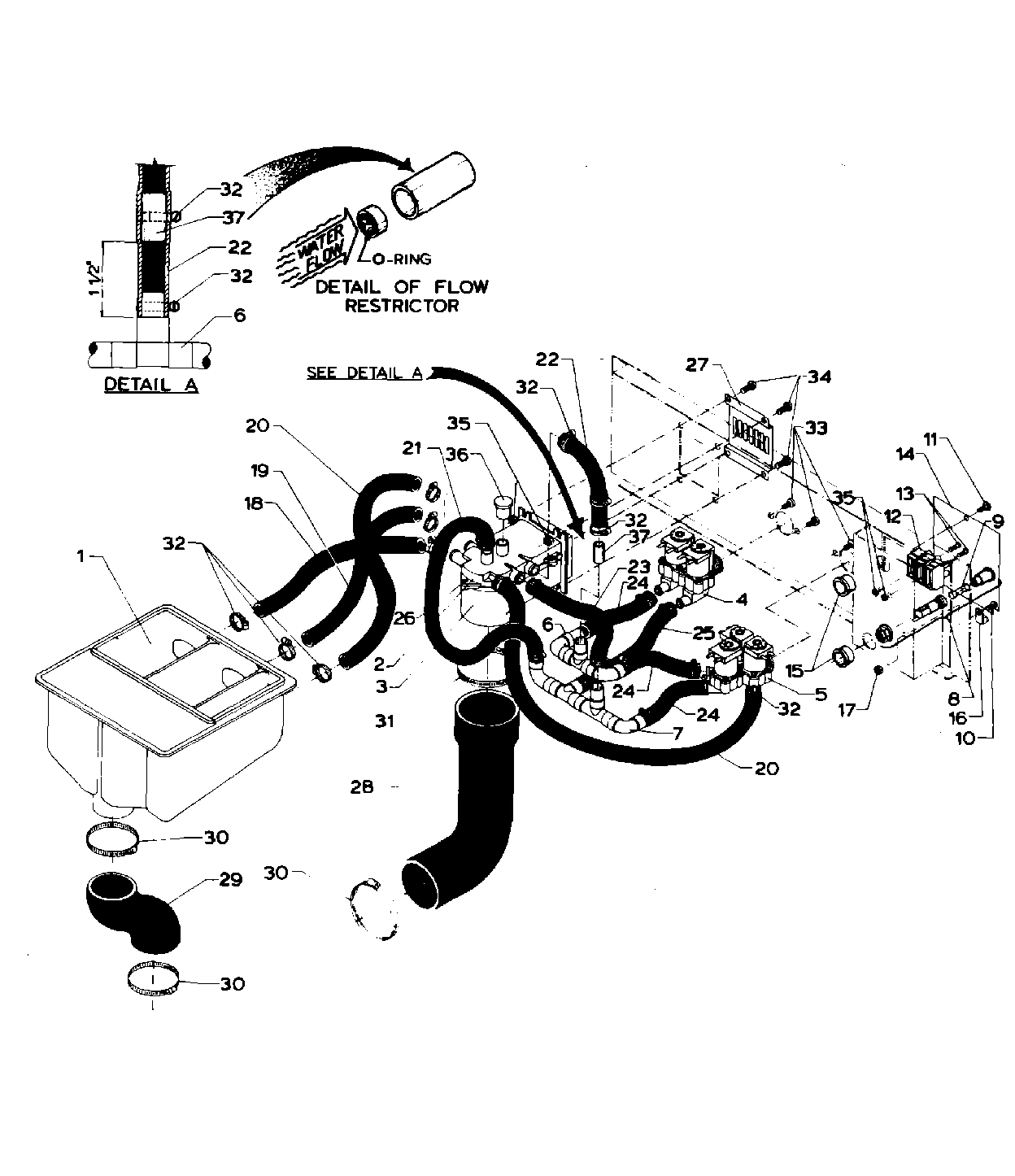

07 - SOAP DISPENSER (AT18)

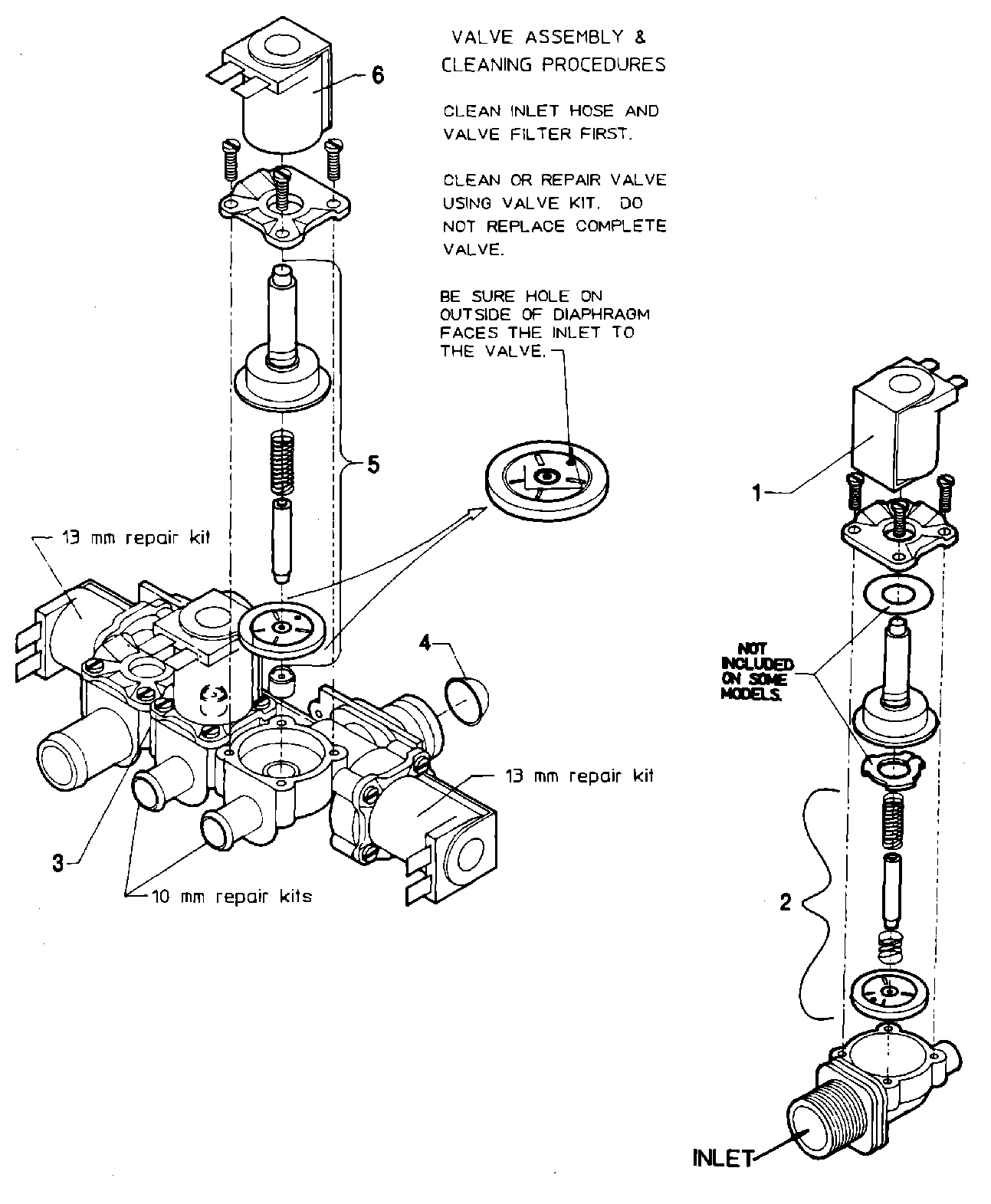

08 - WATER VALVE

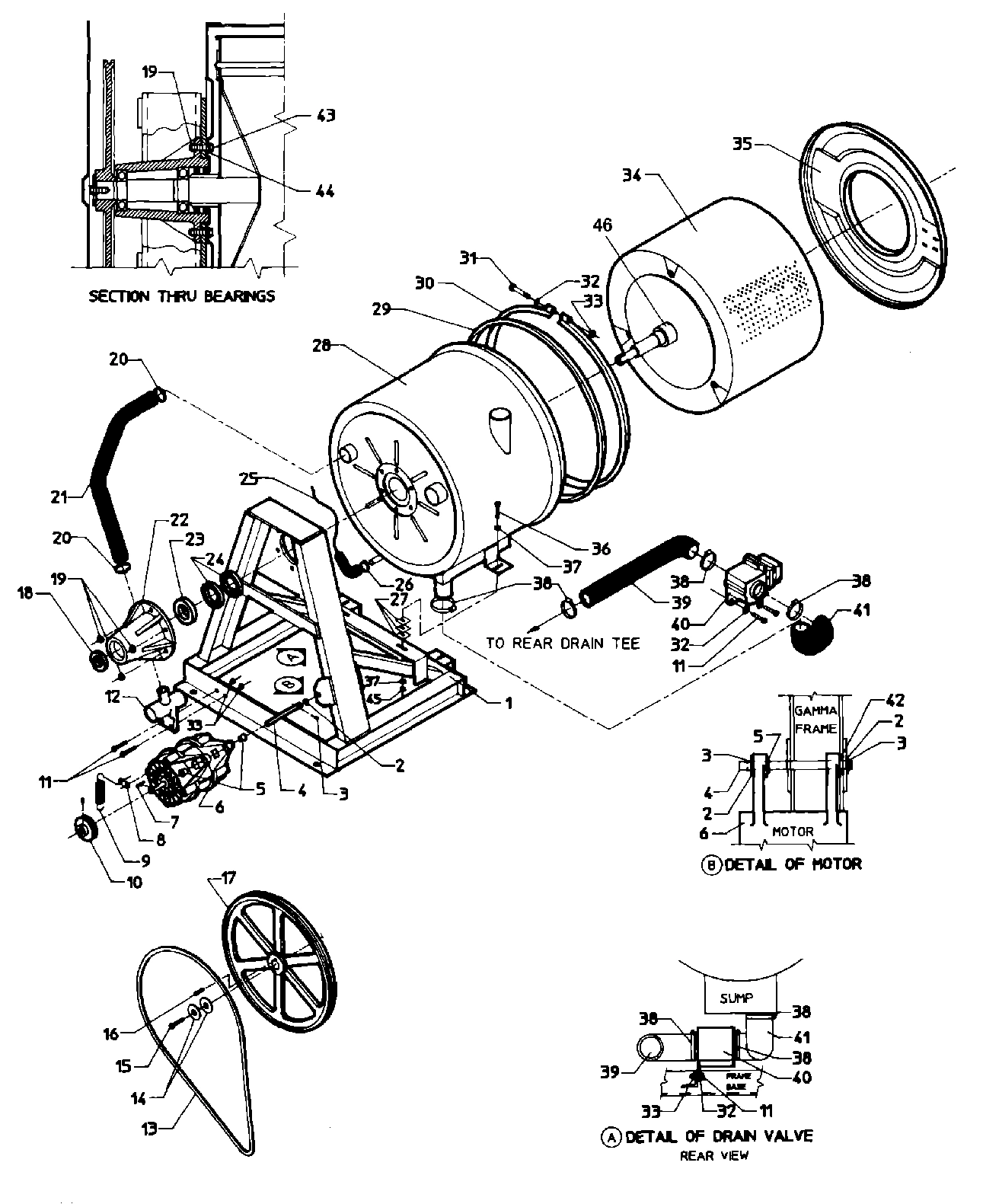

09 - MAIN EXPLODED VIEW-SUB ASSEMBLY

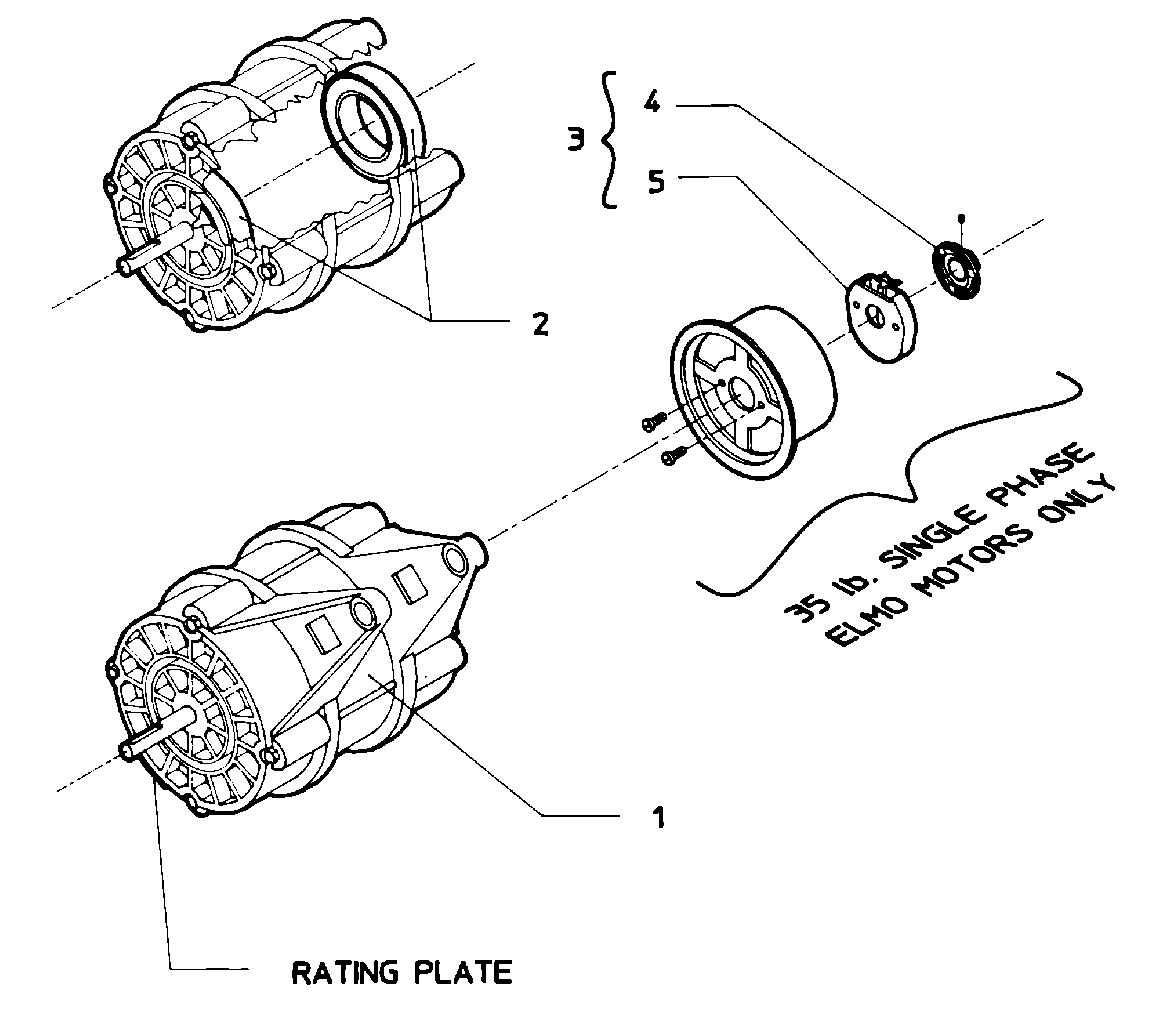

10 - MOTOR

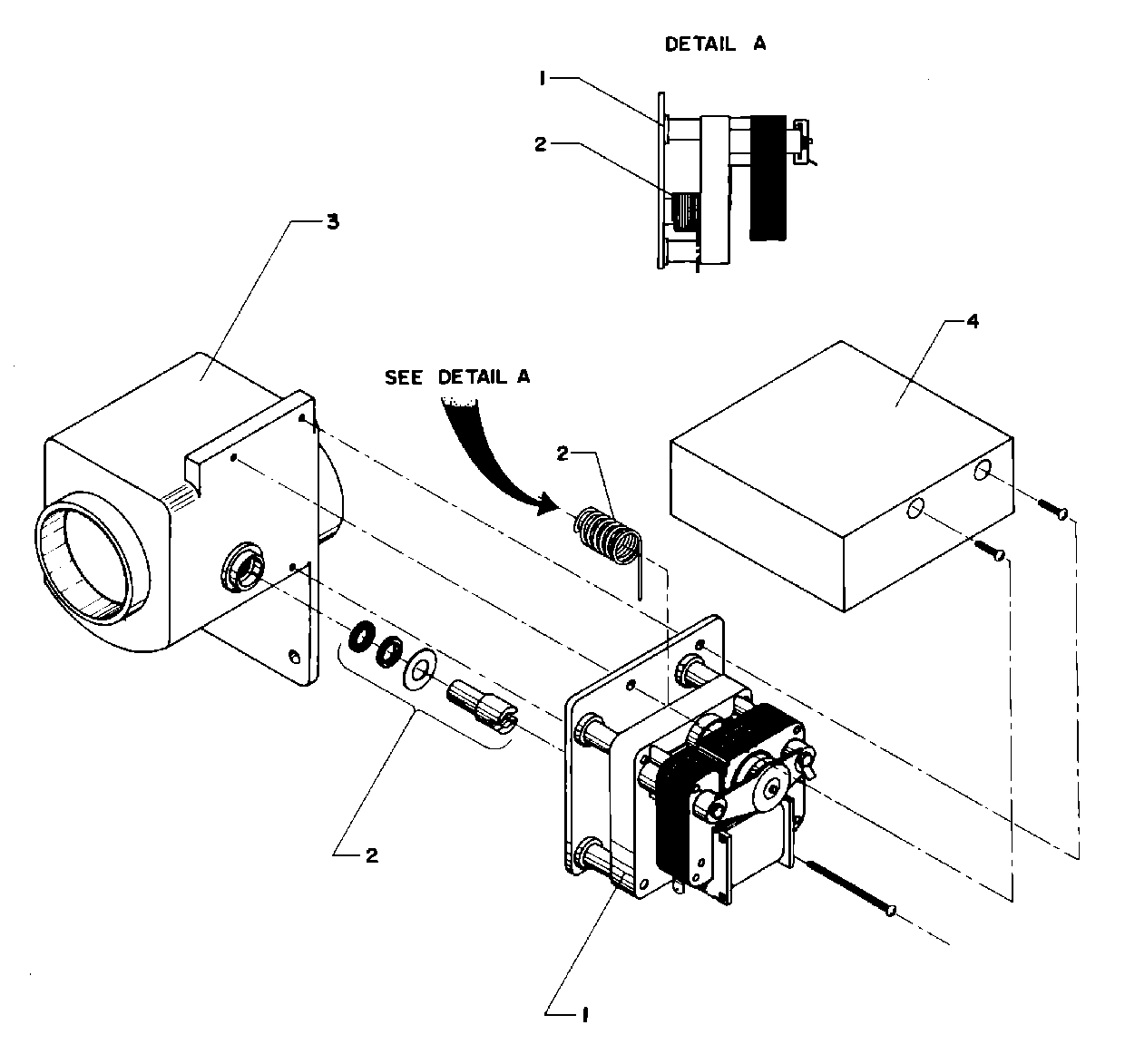

11 - DRAIN VALVE
Common parts from model Maytag AT18MC2 WASHER
001
MAY 24001169 MAY 24001169 Contact Us For Availability
001
MAY 24001170 MAY 24001170 Contact Us For Availability
001
DOOR ASSY. (COMPLETE) MAY 24001638 Contact Us For Availability
001
MAY 24001716 MAY 24001716 Contact Us For Availability
001
MAY 24001719 MAY 24001719 Contact Us For Availability
001
MAY 24001640 MAY 24001640 Contact Us For Availability
001
MAY 24001641 MAY 24001641 Contact Us For Availability
001
MAY 24001642 MAY 24001642 Contact Us For Availability
001
MAY 24001105 MAY 24001105 Contact Us For Availability
001
MAY 24001615 MAY 24001615 Contact Us For Availability
001
COIN METER (110V/50-60HZ) MAY 24001754 Contact Us For Availability
001
COIN METER (110V/50-60HZ) MAY 24001755 Contact Us For Availability
001
DISPENSER, SUPPLY (COIN) MAY 24001627 Contact Us For Availability
001
VALVE (3WAY 110-127V/50-60HZ) MAY 24001118 Contact Us For Availability
001
MAY 24001119 MAY 24001119 Contact Us For Availability
001
MAY 24001776 MAY 24001776 Contact Us For Availability
001
MAY 24001369 MAY 24001369 Contact Us For Availability
001
MAY 24001371 MAY 24001371 Contact Us For Availability
001
MAY 24001078 MAY 24001078 Contact Us For Availability
001
MOTOR 2SP 1 PHASE (208/240/60) MAY 24001079 Contact Us For Availability
001
MAY 24001082 MAY 24001082 Contact Us For Availability
001
MAY 24001083 MAY 24001083 Contact Us For Availability
001
MAY 24001116 MAY 24001116 Contact Us For Availability
001
MAY 24001530 MAY 24001530 Contact Us For Availability
002
HINGE (TAKE APART) MAY Y24001300 Contact Us For Availability
002
MAY 24001075 MAY 24001075 Contact Us For Availability
002
MAY 24001076 MAY 24001076 Contact Us For Availability
002
MAY 24001483 MAY 24001483 Contact Us For Availability
002
MAY 24001104 MAY 24001104 Contact Us For Availability
002
MAY 24001251 MAY 24001251 Contact Us For Availability
002
MAY 24001031 MAY 24001031 Contact Us For Availability
002
MAY 24001120 MAY 24001120 Contact Us For Availability
002
MAY 24001121 MAY 24001121 Contact Us For Availability
002
MAY 24001448 MAY 24001448 Contact Us For Availability
002
MAY 24001549 MAY 24001549 Contact Us For Availability
002
MAY 24001511 MAY 24001511 Contact Us For Availability
002
BEARING, MOTOR (CV132) MAY 24001017 Contact Us For Availability
002
MAY 24001018 MAY 24001018 Contact Us For Availability
002
MAY 24001528 MAY 24001528 Contact Us For Availability
003
MAY 24001323 MAY 24001323 Contact Us For Availability
003
MAY 24001098 MAY 24001098 Contact Us For Availability
003
MAY 24001099 MAY 24001099 Contact Us For Availability
003
SWITCH, DUAL LEVEL MAY 24001223 Contact Us For Availability
003
MAY 24001617 MAY 24001617 Contact Us For Availability
003
MAY 24001252 MAY 24001252 Contact Us For Availability
003
MAY 24001032 MAY 24001032 Contact Us For Availability
003
MAY 24001226 MAY 24001226 Contact Us For Availability
003
MAY 24001512 MAY 24001512 Contact Us For Availability
003
MAY 23002317 MAY 23002317 Contact Us For Availability
003
MAY 24001570 MAY 24001570 Contact Us For Availability
004
MAY 24001333 MAY 24001333 Contact Us For Availability
004
MAY 24001484 MAY 24001484 Contact Us For Availability
004
MAY 24001747 MAY 24001747 Contact Us For Availability
004
COIN BLOCKING SOLENOID (110V) MAY 24001618 Contact Us For Availability
004
SOLENOID, COIN BLOCKING MAY 24001756 Contact Us For Availability
004
VALVE (2WAY 110-127V/50-60HZ) MAY 24001117 Contact Us For Availability
004
MAY 24001634 MAY 24001634 Contact Us For Availability
004
MAY 24001647 MAY 24001647 Contact Us For Availability
004
MAY 24001802 MAY 24001802 Contact Us For Availability
004
MAY 24001815 MAY 24001815 Contact Us For Availability
005
MAY 24001403 MAY 24001403 Contact Us For Availability
005
MAY Y24001400 MAY Y24001400 Contact Us For Availability
005
MAY 24001334 MAY 24001334 Contact Us For Availability
005
MAY 24001746 MAY 24001746 Contact Us For Availability
005
MAY 24001122 MAY 24001122 Contact Us For Availability
005
KIT, DIAPHRAM (SHORT) MAY 24001231 Contact Us For Availability
005
MAY 24001021 MAY 24001021 Contact Us For Availability
006
MAY 24001159 MAY 24001159 Contact Us For Availability
006
PANEL KIT, SIDE (RT.)18 MAY 24001162 Contact Us For Availability
006
MAY 24001412 MAY 24001412 Contact Us For Availability
006
MAY 24001765 MAY 24001765 Contact Us For Availability
006
MAY 24001232 MAY 24001232 Contact Us For Availability
007
PANEL ASSY. (INR. FRNT.) MAY 24001677 Contact Us For Availability
007
MAY 24001678 MAY 24001678 Contact Us For Availability
007
MAY 24001341 MAY 24001341 Contact Us For Availability
007
MAY 24001485 MAY 24001485 Contact Us For Availability
007
MAY 24001766 MAY 24001766 Contact Us For Availability
007
MAY 24001648 MAY 24001648 Contact Us For Availability
008
TRIM, PANEL (INR. FRNT.) MAY 24001550 Contact Us For Availability
008
MAY 24001101 MAY 24001101 Contact Us For Availability
008
MAY 24001433 MAY 24001433 Contact Us For Availability
008
MAY 24001651 MAY 24001651 Contact Us For Availability
009
MAY 24001212 MAY 24001212 Contact Us For Availability
009
MAY 24001467 MAY 24001467 Contact Us For Availability
009
MAY 24001225 MAY 24001225 Contact Us For Availability
009
MAY 24001650 MAY 24001650 Contact Us For Availability
010
MAY 24001103 MAY 24001103 Contact Us For Availability
010
MAY 24001250 MAY 24001250 Contact Us For Availability
010
MAY 24001086 MAY 24001086 Contact Us For Availability
010
MAY 24001090 MAY 24001090 Contact Us For Availability
011
MAY 24001301 MAY 24001301 Contact Us For Availability
011
MAY 24001157 MAY 24001157 Contact Us For Availability
011
MAY 24001336 MAY 24001336 Contact Us For Availability
011
MAY 24001481 MAY 24001481 Contact Us For Availability
011
MAY 24001502 MAY 24001502 Contact Us For Availability
012
MAY 24001539 MAY 24001539 Contact Us For Availability
012
MAY 24001721 MAY 24001721 Contact Us For Availability
012
MAY 24001480 MAY 24001480 Contact Us For Availability
012
MAY 24001030 MAY 24001030 Contact Us For Availability
012
MAY 24001366 MAY 24001366 Contact Us For Availability
012
BLOCK, INPUT POWER (3 WIRE) MAY 24001629 Contact Us For Availability
012
MAY 24001826 MAY 24001826 Contact Us For Availability
013
MAY 24001540 MAY 24001540 Contact Us For Availability
013
MAY 24001338 MAY 24001338 Contact Us For Availability
013
MAY 24001487 MAY 24001487 Contact Us For Availability
013
MAY 24001415 MAY 24001415 Contact Us For Availability
013
MAY 24001430 MAY 24001430 Contact Us For Availability
013
MAY 24001093 MAY 24001093 Contact Us For Availability
013
MAY 24001095 MAY 24001095 Contact Us For Availability
014
MAY 24001510 MAY 24001510 Contact Us For Availability
014
MAY 24001310 MAY 24001310 Contact Us For Availability
014
MAY 24001407 MAY 24001407 Contact Us For Availability
014
MAY 24001476 MAY 24001476 Contact Us For Availability
014
COVER, JUNCTION BOX MAY 24001429 Contact Us For Availability
014
MAY 24001501 MAY 24001501 Contact Us For Availability
015
MAY 24001304 MAY 24001304 Contact Us For Availability
015
MAY 24001340 MAY 24001340 Contact Us For Availability
015
MAY 24001229 MAY 24001229 Contact Us For Availability
015
MAY 24001436 MAY 24001436 Contact Us For Availability
015
MAY Y24001500 MAY Y24001500 Contact Us For Availability
016
COVER, SOAP DISPENSER MAY 24001219 Contact Us For Availability
016
MAY 24001343 MAY 24001343 Contact Us For Availability
016
MAY 24001477 MAY 24001477 Contact Us For Availability
016
MAY 24001209 MAY 24001209 Contact Us For Availability
016
MAY 24001434 MAY 24001434 Contact Us For Availability
016
MAY 24001499 MAY 24001499 Contact Us For Availability
017
MAY 24001542 MAY 24001542 Contact Us For Availability
017
PANEL KIT, FRONT COIN MAY 24001133 Contact Us For Availability
017
MAY 24001342 MAY 24001342 Contact Us For Availability
017
MAY 24001643 MAY 24001643 Contact Us For Availability
017
PULLEY, BASKET MAY 24001085 Contact Us For Availability
017
MAY 24002037 MAY 24002037 Contact Us For Availability
018
COVER ASSY KIT, TOP MAY 24001168 Contact Us For Availability
018
PANEL KIT, FRONT COIN MAY 24001140 Contact Us For Availability
018
OUTER PANEL KIT (COIN ALM) MAY 24001728 Contact Us For Availability
018
MAY 24001734 MAY 24001734 Contact Us For Availability
018
MAY 24001479 MAY 24001479 Contact Us For Availability
018
MAY 24001576 MAY 24001576 Contact Us For Availability
018
MAY 24001767 MAY 24001767 Contact Us For Availability
018
MAY 24001015 MAY 24001015 Contact Us For Availability
019
MAY 24001220 MAY 24001220 Contact Us For Availability
019
MAY 24001474 MAY 24001474 Contact Us For Availability
019
MAY 24001768 MAY 24001768 Contact Us For Availability
019
MAY 24001563 MAY 24001563 Contact Us For Availability
020
MAY 24001221 MAY 24001221 Contact Us For Availability
020
MAY 24001722 MAY 24001722 Contact Us For Availability
020
MAY 24001724 MAY 24001724 Contact Us For Availability
020
MAY 24001210 MAY 24001210 Contact Us For Availability
020
MAY 24001769 MAY 24001769 Contact Us For Availability
020
MAY 24001283 MAY 24001283 Contact Us For Availability
021
MAY 24001690 MAY 24001690 Contact Us For Availability
021
MAY 24001695 MAY 24001695 Contact Us For Availability
021
MAY 24001827 MAY 24001827 Contact Us For Availability
021
MAY 24001102 MAY 24001102 Contact Us For Availability
021
MAY 24001204 MAY 24001204 Contact Us For Availability
021
MAY 24001770 MAY 24001770 Contact Us For Availability
021
MAY 24001506 MAY 24001506 Contact Us For Availability
021
MAY 24001662 MAY 24001662 Contact Us For Availability
022
CAPACITOR (100MF) (SINGLE PHASE) MAY 24001236 Contact Us For Availability
022
CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS) MAY 24001237 Contact Us For Availability
022
MAY 24001238 MAY 24001238 Contact Us For Availability
022
MAY 24001239 MAY 24001239 Contact Us For Availability
022
CAPACITOR (10MF) (W/CENTURY MOTORS) MAY 24001240 Contact Us For Availability
022
CAPACITOR W/RES. (130MF) (SINGLE PHASE) MAY 24001241 Contact Us For Availability
022
CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS) MAY 24001242 Contact Us For Availability
022
MAY 24001675 MAY 24001675 Contact Us For Availability
022
MAY 24001698 MAY 24001698 Contact Us For Availability
022
MAY 24001305 MAY 24001305 Contact Us For Availability
022
MAY 24001466 MAY 24001466 Contact Us For Availability
022
MAY 24001207 MAY 24001207 Contact Us For Availability
022
MAY 24001771 MAY 24001771 Contact Us For Availability
023
MAY 24001303 MAY 24001303 Contact Us For Availability
023
MAY 24001462 MAY 24001462 Contact Us For Availability
023
MAY 24001255 MAY 24001255 Contact Us For Availability
023
MAY 24001772 MAY 24001772 Contact Us For Availability
023
MAY 24001014 MAY 24001014 Contact Us For Availability
023
MAY 24001016 MAY 24001016 Contact Us For Availability
024
MAY 24001674 MAY 24001674 Contact Us For Availability
024
MAY 24001692 MAY 24001692 Contact Us For Availability
024
MAY 24001358 MAY 24001358 Contact Us For Availability
024
MAY 24001736 MAY 24001736 Contact Us For Availability
024
MAY 24001773 MAY 24001773 Contact Us For Availability
024
MAY 24001019 MAY 24001019 Contact Us For Availability
024
MAY 24001020 MAY 24001020 Contact Us For Availability
025
HOSE MAY NLA Contact Us For Availability
025
MAY 24001546 MAY 24001546 Contact Us For Availability
025
MAY 24001230 MAY 24001230 Contact Us For Availability
025
MAY 24001411 MAY 24001411 Contact Us For Availability
025
AIR TRAP MAY 24001661 Contact Us For Availability
026
MAY 24001293 MAY 24001293 Contact Us For Availability
026
MAY 24001577 MAY 24001577 Contact Us For Availability
026
MAY 24001432 MAY 24001432 Contact Us For Availability
026
MAY 24001438 MAY 24001438 Contact Us For Availability
027
MAY 24001559 MAY 24001559 Contact Us For Availability
027
MAY 24001178 MAY 24001178 Contact Us For Availability
027
MAY 24001426 MAY 24001426 Contact Us For Availability
027
MAY 24001803 MAY 24001803 Contact Us For Availability
028
MAY W10124350 MAY W10124350 Contact Us For Availability
028
MAY 24001488 MAY 24001488 Contact Us For Availability
028
MAY 24001552 MAY 24001552 Contact Us For Availability
028
MAY 24001375 MAY 24001375 Contact Us For Availability
028
MAY 24001377 MAY 24001377 Contact Us For Availability
028
MAY 24001836 MAY 24001836 Contact Us For Availability
029
MAY 24001578 MAY 24001578 Contact Us For Availability
029
MAY 24001442 MAY 24001442 Contact Us For Availability
029
MAY 24001184 MAY 24001184 Contact Us For Availability
030
MAY 24001247 MAY 24001247 Contact Us For Availability
030
MAY 24001388 MAY 24001388 Contact Us For Availability
030
MAY 24001389 MAY 24001389 Contact Us For Availability
031
MAY 24001248 MAY 24001248 Contact Us For Availability
031
MAY 24001282 MAY 24001282 Contact Us For Availability
032
MAY 24001579 MAY 24001579 Contact Us For Availability
032
MAY 24001423 MAY 24001423 Contact Us For Availability
033
MAY 24001357 MAY 24001357 Contact Us For Availability
033
MAY 24001580 MAY 24001580 Contact Us For Availability
033
MAY 24001215 MAY 24001215 Contact Us For Availability
034
MAY 24001414 MAY 24001414 Contact Us For Availability
034
MAY 24001419 MAY 24001419 Contact Us For Availability
034
MAY 24001266 MAY 24001266 Contact Us For Availability
034
MAY 24001804 MAY 24001804 Contact Us For Availability
035
MAY 24001425 MAY 24001425 Contact Us For Availability
035
MAY 24001295 MAY 24001295 Contact Us For Availability
035
MAY 24001384 MAY 24001384 Contact Us For Availability
035
MAY 24001385 MAY 24001385 Contact Us For Availability
036
MAY 24001176 MAY 24001176 Contact Us For Availability
036
MAY 24001424 MAY 24001424 Contact Us For Availability
036
MAY 24001657 MAY 24001657 Contact Us For Availability
037
MAY 24001743 MAY 24001743 Contact Us For Availability
037
MAY 24001775 MAY 24001775 Contact Us For Availability
037
MAY 24001516 MAY 24001516 Contact Us For Availability
038
MAY 24001353 MAY 24001353 Contact Us For Availability
039
MAY 24001564 MAY 24001564 Contact Us For Availability
039
MAY 24001660 MAY 24001660 Contact Us For Availability
041
MAY 24001565 MAY 24001565 Contact Us For Availability
042
MAY 24001805 MAY 24001805 Contact Us For Availability
042
MAY 24001806 MAY 24001806 Contact Us For Availability
043
MAY 24001497 MAY 24001497 Contact Us For Availability
043
MAY 24001659 MAY 24001659 Contact Us For Availability
043
MAY 24001807 MAY 24001807 Contact Us For Availability
044
MAY 24001808 MAY 24001808 Contact Us For Availability
044
MAY 24001809 MAY 24001809 Contact Us For Availability
044
MAY 24001810 MAY 24001810 Contact Us For Availability
045
MAY 24001515 MAY 24001515 Contact Us For Availability
046
MAY 24001130 MAY 24001130 Contact Us For Availability
046
MAY 24001271 MAY 24001271 Contact Us For Availability
047
MAY 24001260 MAY 24001260 Contact Us For Availability
NI
MAY 24001764 MAY 24001764 Contact Us For Availability
NI
MAY 24001258 MAY 24001258 Contact Us For Availability
× ![]()
