Model Whirlpool AT17M6A REFRIGERATOR – Common Parts & Diagrams

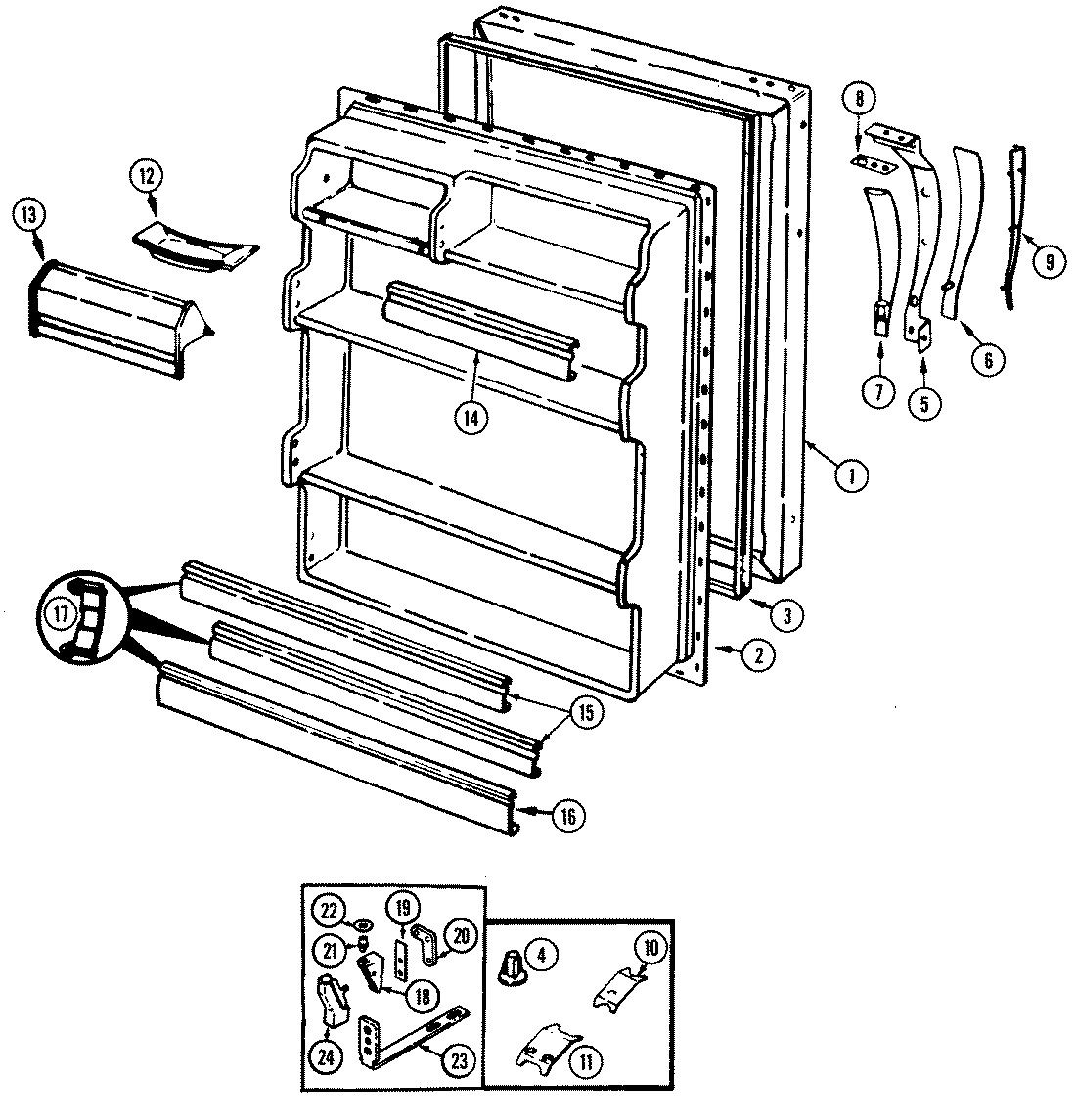

04 - FRESH FOOD DOOR
01 - FREEZER COMPARTMENT

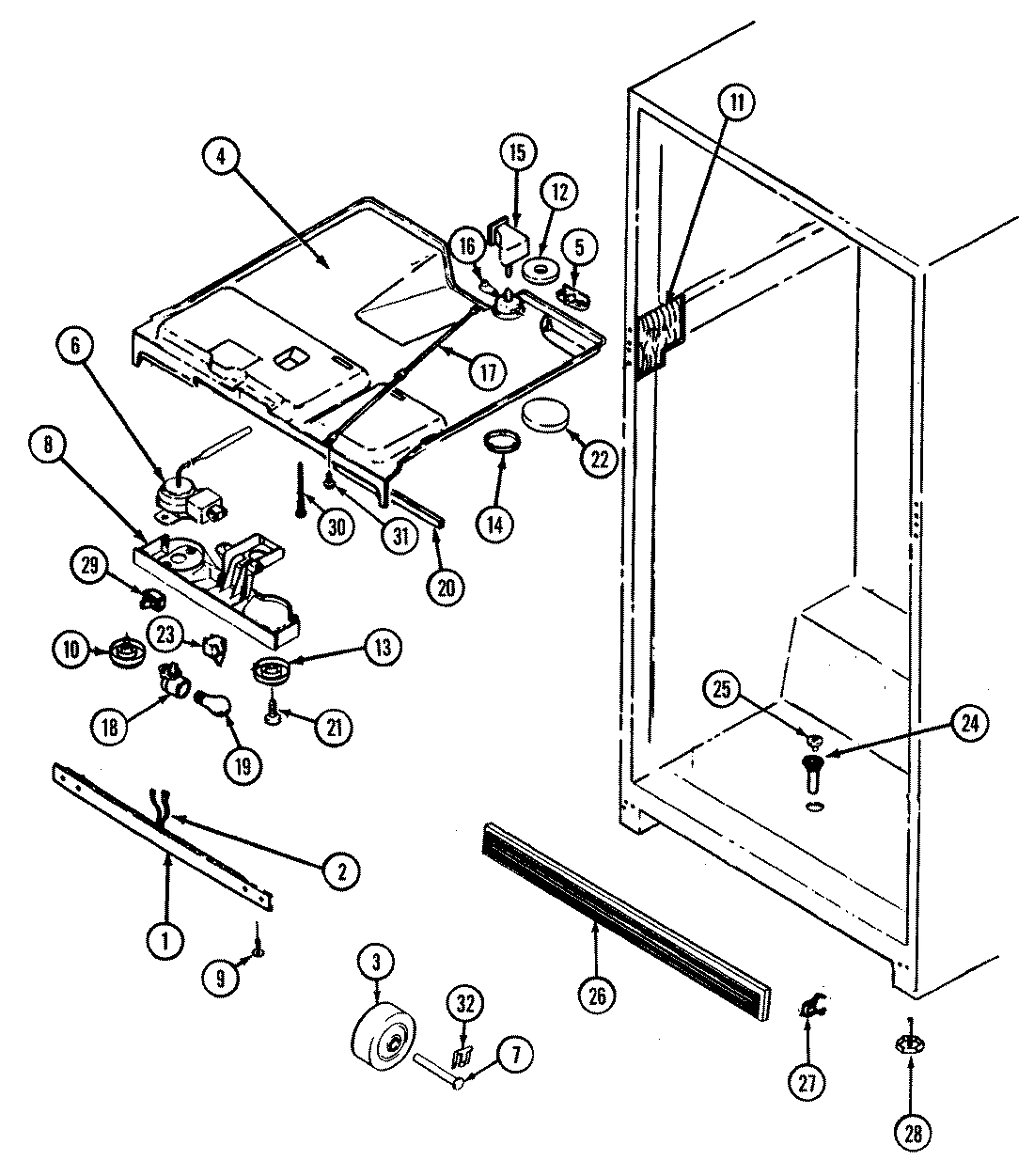

03 - FRESH FOOD COMPARTMENT

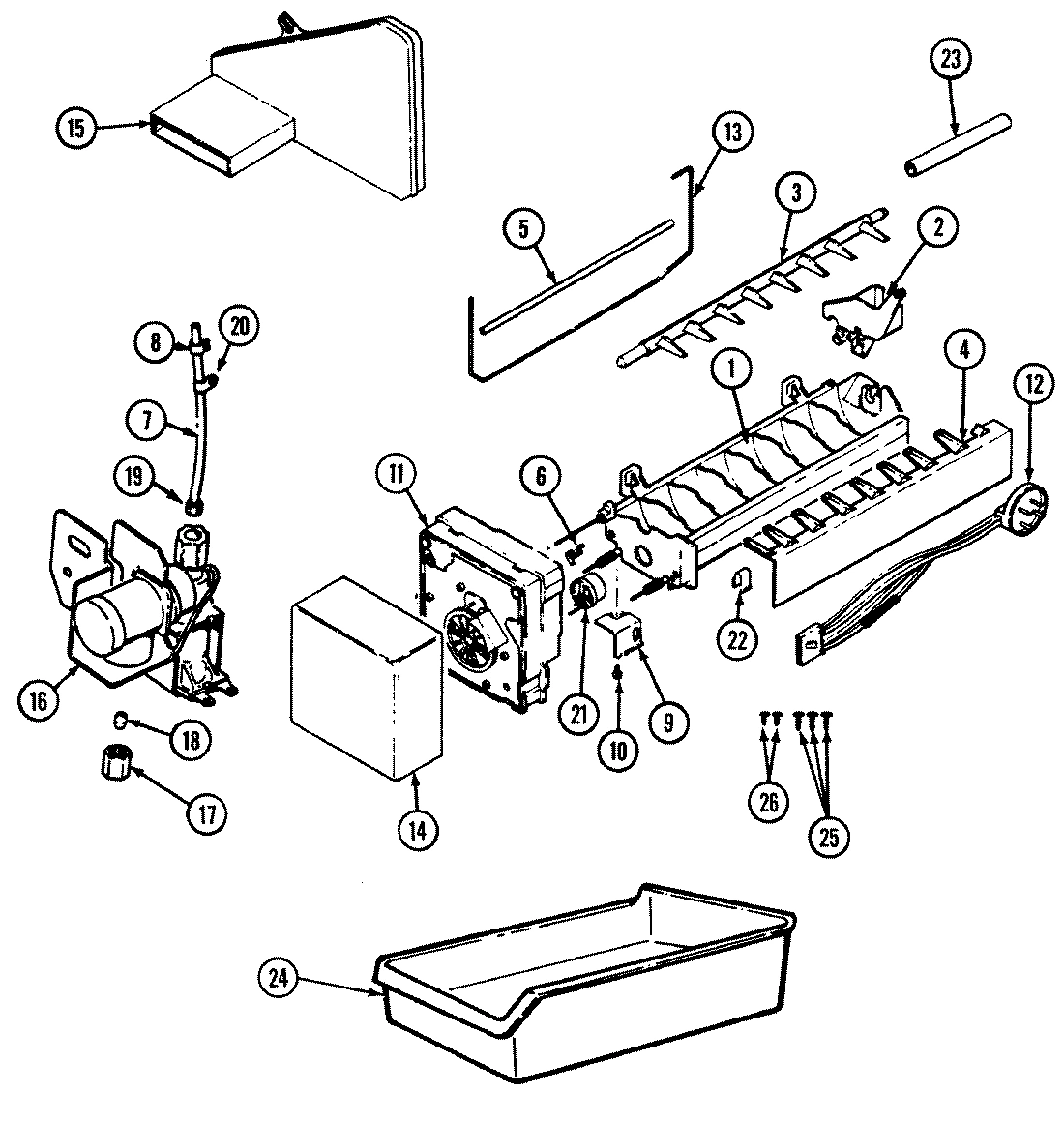

05 - OPTIONAL ICE MAKER KIT

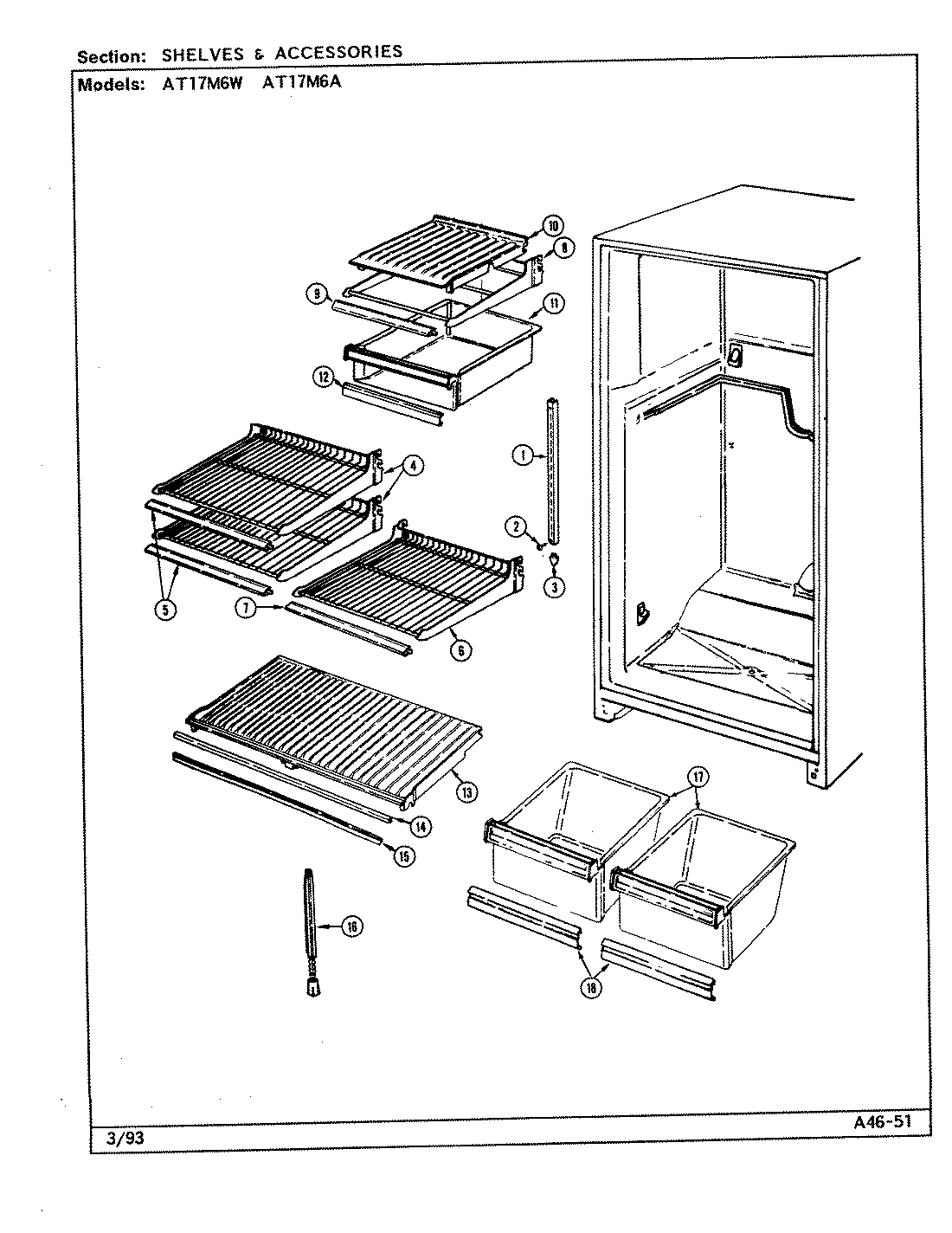

06 - SHELVES & ACCESSORIES

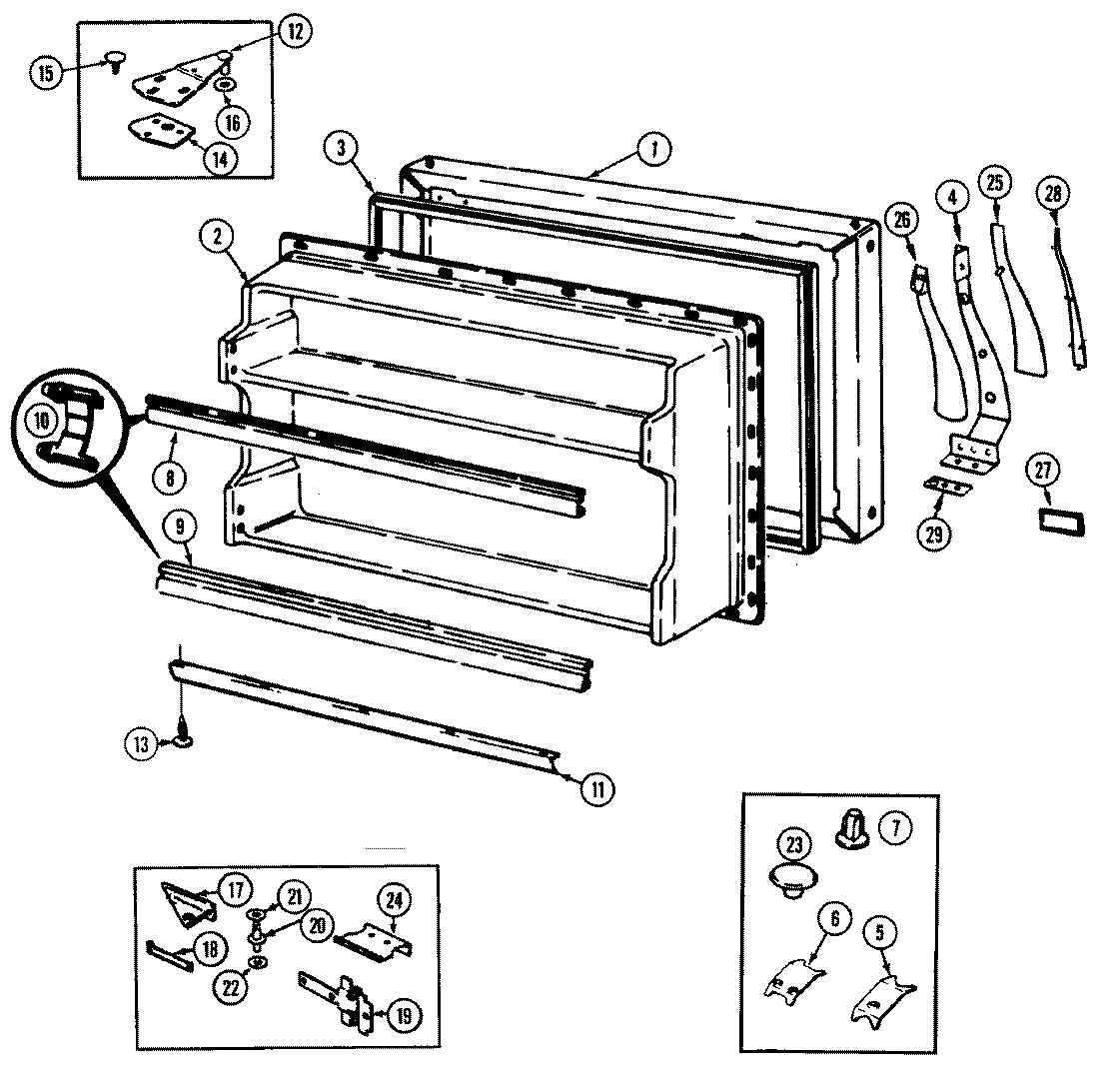

02 - FREEZER DOOR
Common parts from model Whirlpool AT17M6A REFRIGERATOR
1
PANEL, OUTER DOOR WPL 723495AM Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 723455AM Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694451 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
LINER WPL 694661 Contact Us For Availability
3
GASKET, DOOR WPL 700204 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
WHEEL WPL 298342 Contact Us For Availability
3
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
GASKET, DOOR WPL 700203 Contact Us For Availability
4
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
4
SCREW WPL 9986122 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SHELF, SPLIT WPL 6041720 Contact Us For Availability
4
HANDLE, DOOR WPL 693003 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 6060328 Contact Us For Availability
5
HANDLE, DOOR----NA WPL 693004 Contact Us For Availability
5
CLIP, HANDLE WPL 692571 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
5
TRIM WPL 6041439 Contact Us For Availability
6
INSERT, HANDLE WPL 6060210 Contact Us For Availability
6
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
SCREW WPL 40002636 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SHELF, FULL WPL 6041721 Contact Us For Availability
7
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
PIN, WHEEL WPL 298352 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 694212 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
8
SHELF, MEAT WPL 6041613 Contact Us For Availability
9
TUNNEL, AIR WPL 685922 Contact Us For Availability
9
TRIM WPL 6041462 Contact Us For Availability
9
SCREW WPL 6527554 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
TRIM, DOOR SHELF WPL 65151349 Contact Us For Availability
10
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, MEAT PAN WPL 600757 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
11
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
PAN, MEAT WPL 6663637 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
12
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
12
HINGE, UPPER WPL 5370920 Contact Us For Availability
12
SCREW WPL 6527552 Contact Us For Availability
13
DOOR, DAIRY WPL 690582 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
SHELF WPL 6043831 Contact Us For Availability
13
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHELF, CRISPER WPL 666442 Contact Us For Availability
13
CLIP WPL 524474 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151344 Contact Us For Availability
14
COVER, CRANK WPL 674931 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
14
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
ORIFICE ASSY., DAMPER WPL 698114 Contact Us For Availability
15
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
15
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
15
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
15
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
15
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
16
TRIM, DOOR SHELF WPL 65151348 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
16
WASHER WPL 542331 Contact Us For Availability
17
COVER, PLENUM WPL 664804 Contact Us For Availability
17
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
17
PAN, CRISPER WPL 68221122 Contact Us For Availability
17
SCREW WPL 6527555 Contact Us For Availability
17
HINGE, CENTER WPL 695142 Contact Us For Availability
18
SCREW WPL 4031001 Contact Us For Availability
18
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
HANDLE CRISPER PAN WPL 60132103 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
19
WASHER WPL 542337 Contact Us For Availability
19
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
TAPPING PLATE WPL 606221 Contact Us For Availability
20
SCREW WPL 4140121 Contact Us For Availability
20
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
20
MAGNET WPL 694131 Contact Us For Availability
20
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
20
PAN, ICE WPL 606531 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
21
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
21
CAP, GROMMET WPL 683871 Contact Us For Availability
21
SCREW WPL 405016103 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
22
TRAY, EGG WPL 600661 Contact Us For Availability
22
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
22
PLUG BUTTON WPL 701462 Contact Us For Availability
22
DISC, CRANK COVER WPL 690371 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
WASHER WPL 542332 Contact Us For Availability
23
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
23
CAP, CONNECTOR WPL 681871 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
24
SCREW WPL 6527548 Contact Us For Availability
24
STOP, DOOR WPL 692562 Contact Us For Availability
24
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
24
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
25
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
INSERT, HANDLE WPL 606029 Contact Us For Availability
26
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
26
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
26
KICKPLATE ASSY. W/CLIPS (BLK) WPL 701281 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
27
PLUG BUTTON (ALM) WPL 701463 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
INSERT, NAMEPLATE WPL 6060327 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
SCREW WPL 6527553 Contact Us For Availability
29
SHIM, HANDLE WPL 693011 Contact Us For Availability
29
SWITCH, HEATER WPL 692831 Contact Us For Availability
30
SCREW WPL 6527578 Contact Us For Availability
31
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
31
SCREW WPL 6527513 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
× ![]()
