Model Electrolux ASM140WKH1 REFRIGERATOR – Common Parts & Diagrams

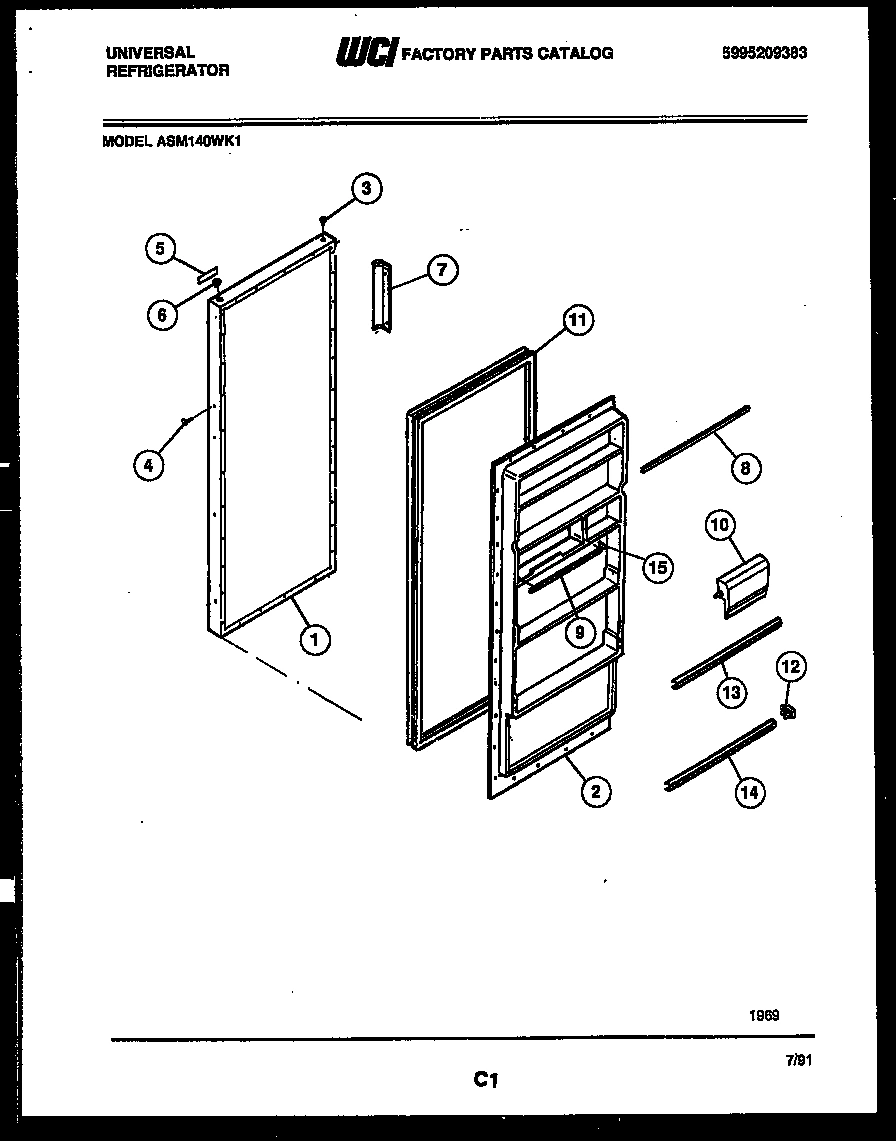

02 - DOOR PARTS

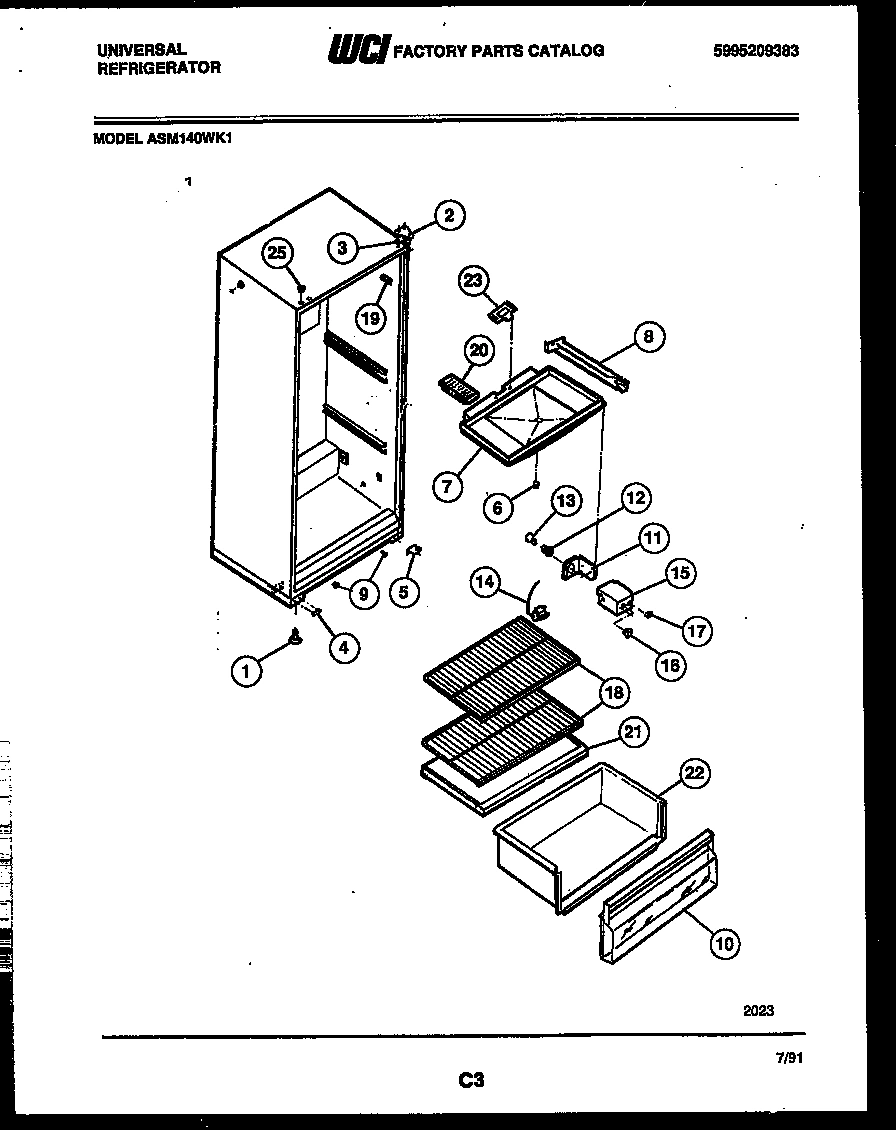

03 - CABINET PARTS

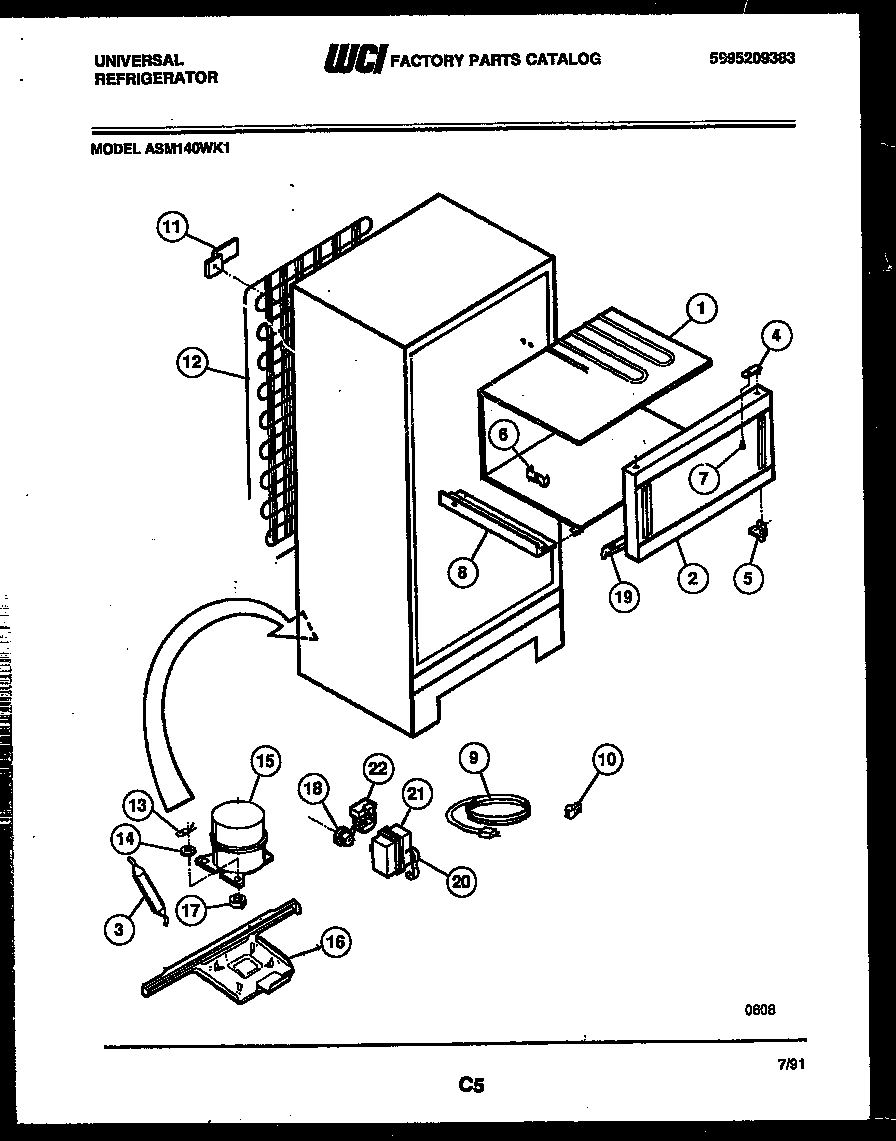

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux ASM140WKH1 REFRIGERATOR
*47836
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
*47836
WCI 5303209961 WCI 5303209961 Contact Us For Availability
1
SCREW-LEVELING, (2) WCI 3206141 Contact Us For Availability
1
WCI 5303276694 WCI 5303276694 Contact Us For Availability
1A
CLAMP-CONTROL BULB (NON-ILLUSTRATED) WCI 08009792 Contact Us For Availability
2
HINGE, TOP WCI 3206100 Contact Us For Availability
2
WCI 5303209938 WCI 5303209938 Contact Us For Availability
2B
WASHER-TOP HINGE (NON-ILLUSTRATED) WCI 5308000007 Contact Us For Availability
3
WCI 5303001037 WCI 5303001037 Contact Us For Availability
4
PLUG, HANDLE, WHEAT WCI 5308000180 Contact Us For Availability
4
COVER-LWR HINGE WCI 3206135 Contact Us For Availability
4
WCI 08009748 WCI 08009748 Contact Us For Availability
4A
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
4A
WCI 5300185054 WCI 5300185054 Contact Us For Availability
5
WCI 5303276130 WCI 5303276130 Contact Us For Availability
5
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
5
WCI 08009997 WCI 08009997 Contact Us For Availability
5B
WASHER-BOTTOM HINGE (NON-ILLUSTRATED) WCI 5303001038 Contact Us For Availability
6
BEARING-HINGE (4) WCI 3206153 Contact Us For Availability
6
WCI 08009779 WCI 08009779 Contact Us For Availability
6
WCI 08014590 WCI 08014590 Contact Us For Availability
6B
WASHER - STEEL (NON-ILLUSTRATED) WCI 5308003607 Contact Us For Availability
7
HANDLE WCI 5308009875 Contact Us For Availability
7
WCI 5317766801 WCI 5317766801 Contact Us For Availability
7
WCI 5303001288 WCI 5303001288 Contact Us For Availability
7A
SCREW-HANDLE MOUNTING (2) (NON-ILLUSTRATED) WCI 5308013645 Contact Us For Availability
7A
WCI 5300179982 WCI 5300179982 Contact Us For Availability
8
WCI 5303276684 WCI 5303276684 Contact Us For Availability
8
WCI 5300163217 WCI 5300163217 Contact Us For Availability
8
WCI 08009749 WCI 08009749 Contact Us For Availability
9
WCI 5303276688 WCI 5303276688 Contact Us For Availability
9
PLUG-BUTTON WCI 3206142 Contact Us For Availability
9
WCI 5316254901 WCI 5316254901 Contact Us For Availability
10
WCI 5303276149 WCI 5303276149 Contact Us For Availability
10
WCI 3206106 WCI 3206106 Contact Us For Availability
11
WCI 5303276686 WCI 5303276686 Contact Us For Availability
11
WCI 5300163210 WCI 5300163210 Contact Us For Availability
11
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
11B
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
12
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
12
WCI 5303276690 WCI 5303276690 Contact Us For Availability
12
WCI 08001012 WCI 08001012 Contact Us For Availability
12A
WCI 5303276691 WCI 5303276691 Contact Us For Availability
12A
CLAMP-SUCTION TUBE (NON-ILLUSTRATED) WCI 5303204887 Contact Us For Availability
13
WCI 5303276685 WCI 5303276685 Contact Us For Availability
13
CLIP-MOUNTING (3) WCI 5308003596 Contact Us For Availability
14
WCI 5316266703 WCI 5316266703 Contact Us For Availability
14
WCI 5303276689 WCI 5303276689 Contact Us For Availability
14
WASHER-MOUNTING (3) WCI 5308003633 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
WCI 5303274518 WCI 5303274518 Contact Us For Availability
15
WCI 5303209951 WCI 5303209951 Contact Us For Availability
15
COMPRESSOR W/ELEC WCI 5300186041 Contact Us For Availability
15A
SCREW-MOUNTING (2) (NON-ILLUSTRATED) WCI 08003581 Contact Us For Availability
16
WCI 5303209953 WCI 5303209953 Contact Us For Availability
16
PLATE-COMPRESSOR MOUNTING WCI 3206126 Contact Us For Availability
18
WCI 5303209934 WCI 5303209934 Contact Us For Availability
18
WCI 5303276693 WCI 5303276693 Contact Us For Availability
19
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
19
WCI 5300181105 WCI 5300181105 Contact Us For Availability
20
WCI 5303211232 WCI 5303211232 Contact Us For Availability
21
WCI 5303209935 WCI 5303209935 Contact Us For Availability
21
WCI 08016583 WCI 08016583 Contact Us For Availability
22
WCI 5303209937 WCI 5303209937 Contact Us For Availability
22
WCI 5303017583 WCI 5303017583 Contact Us For Availability
23
WCI 5300179612 WCI 5300179612 Contact Us For Availability
23A
WCI 5300183114 WCI 5300183114 Contact Us For Availability
23B
WCI 5300179540 WCI 5300179540 Contact Us For Availability
25
PLUG - HINGE - WHEAT WCI 5303001678 Contact Us For Availability
× ![]()
