Model Maytag ASI2575GRB00 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

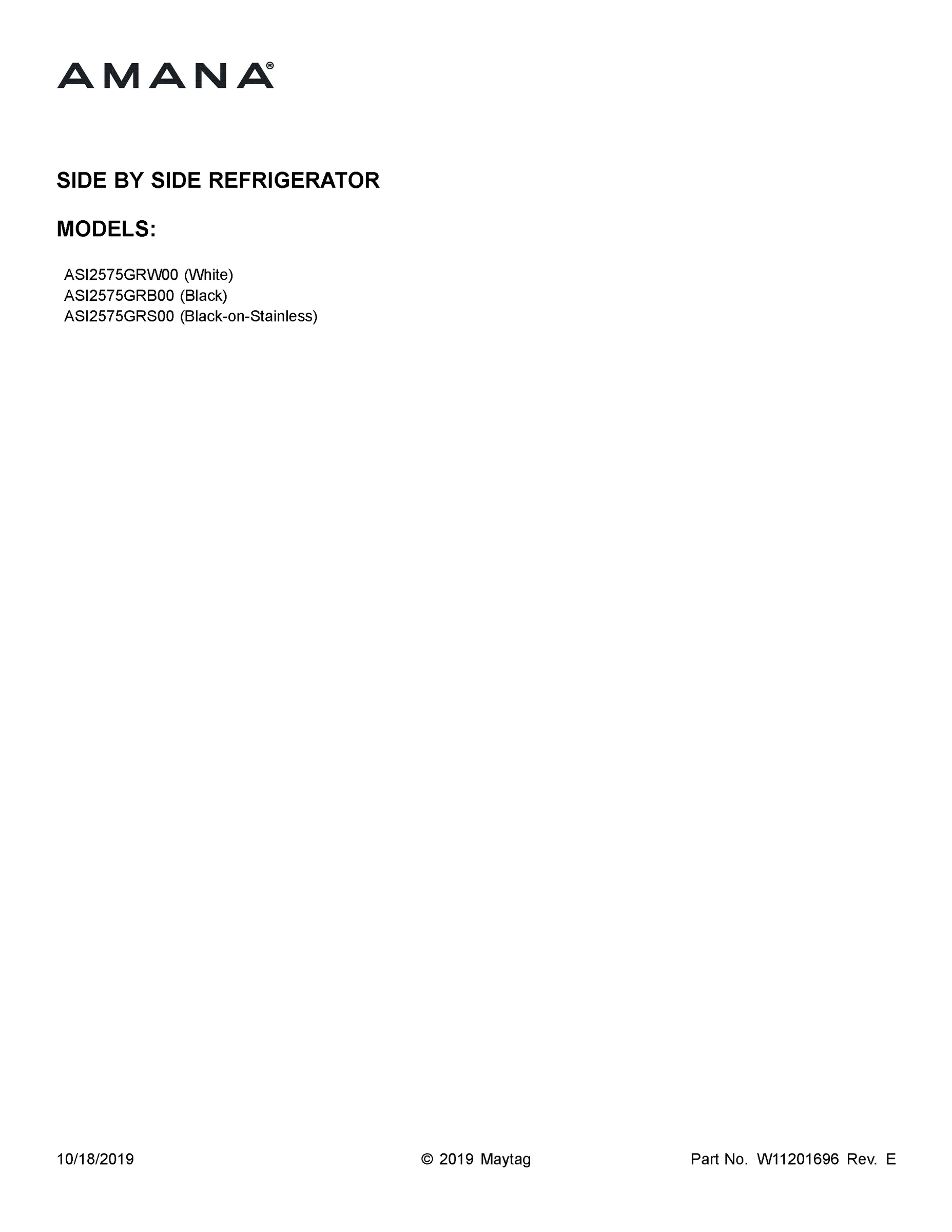

01 - COVER SHEET

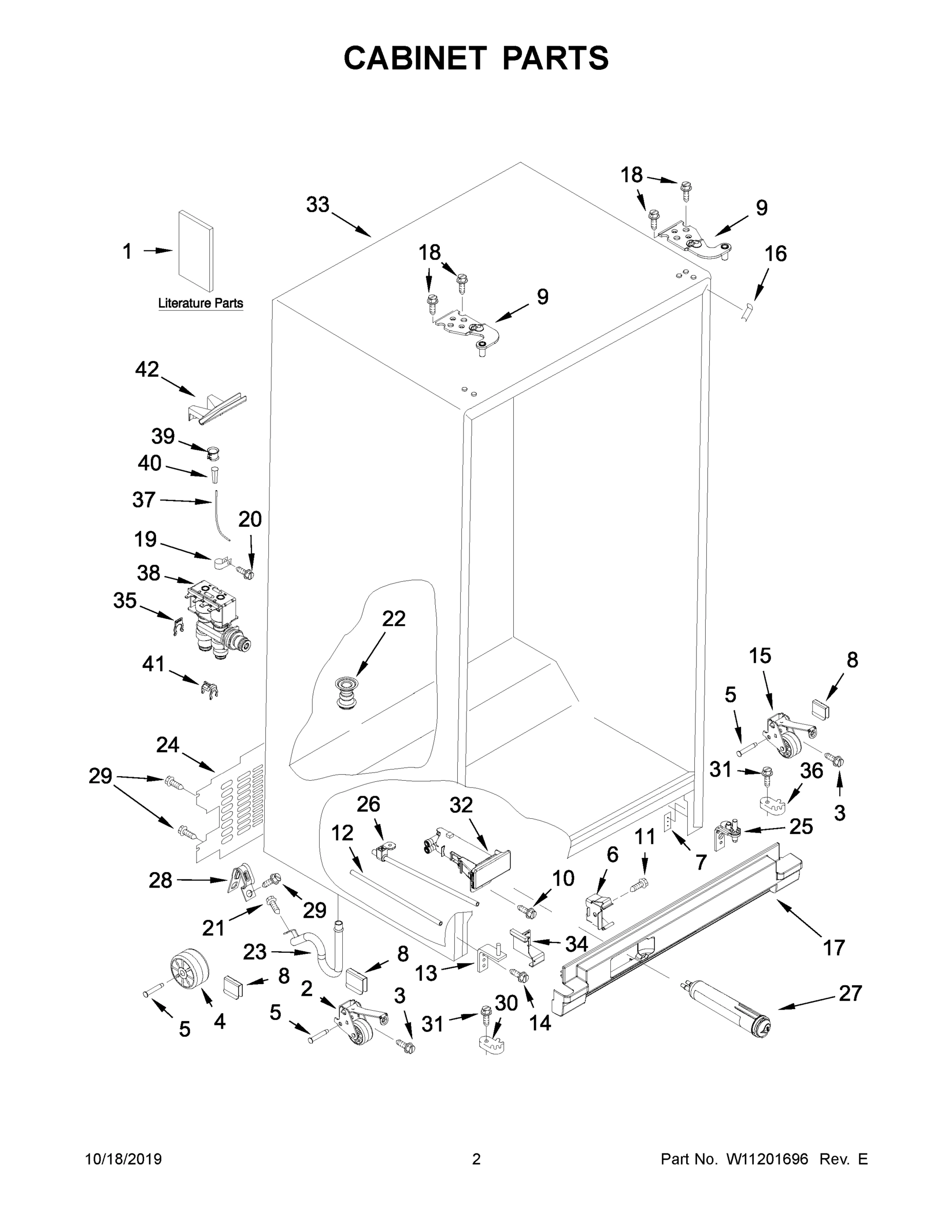

02 - CABINET PARTS

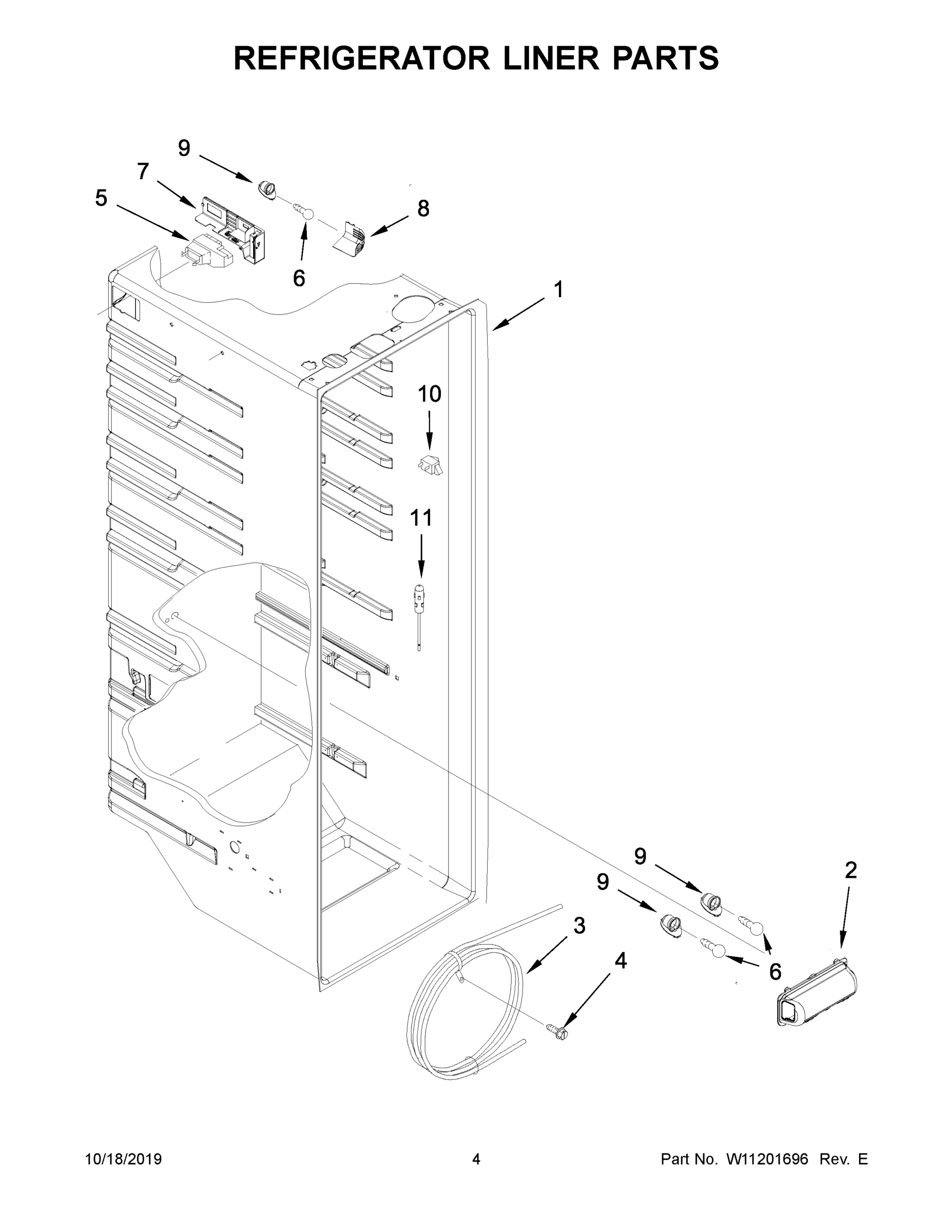

03 - REFRIGERATOR LINER PARTS

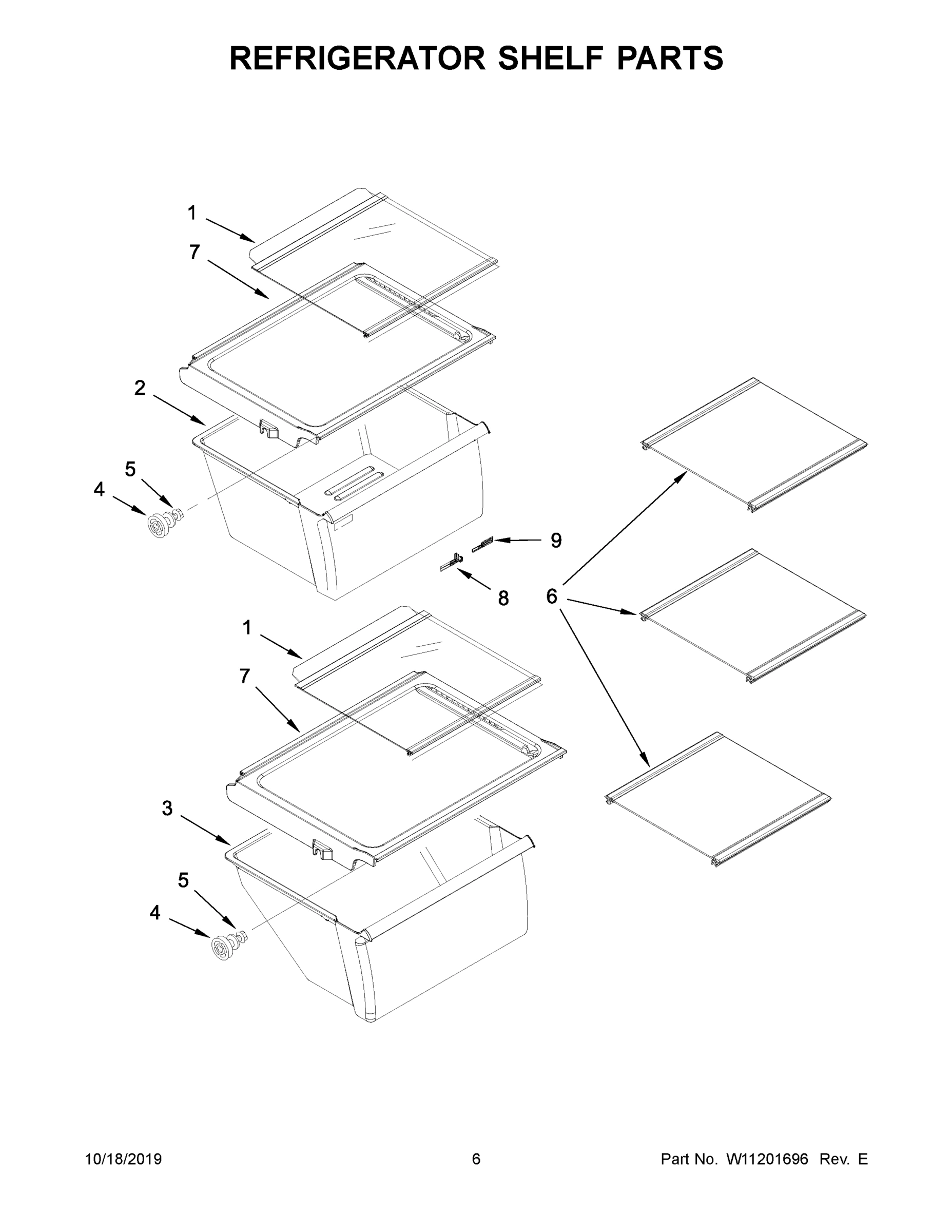

04 - REFRIGERATOR SHELF PARTS

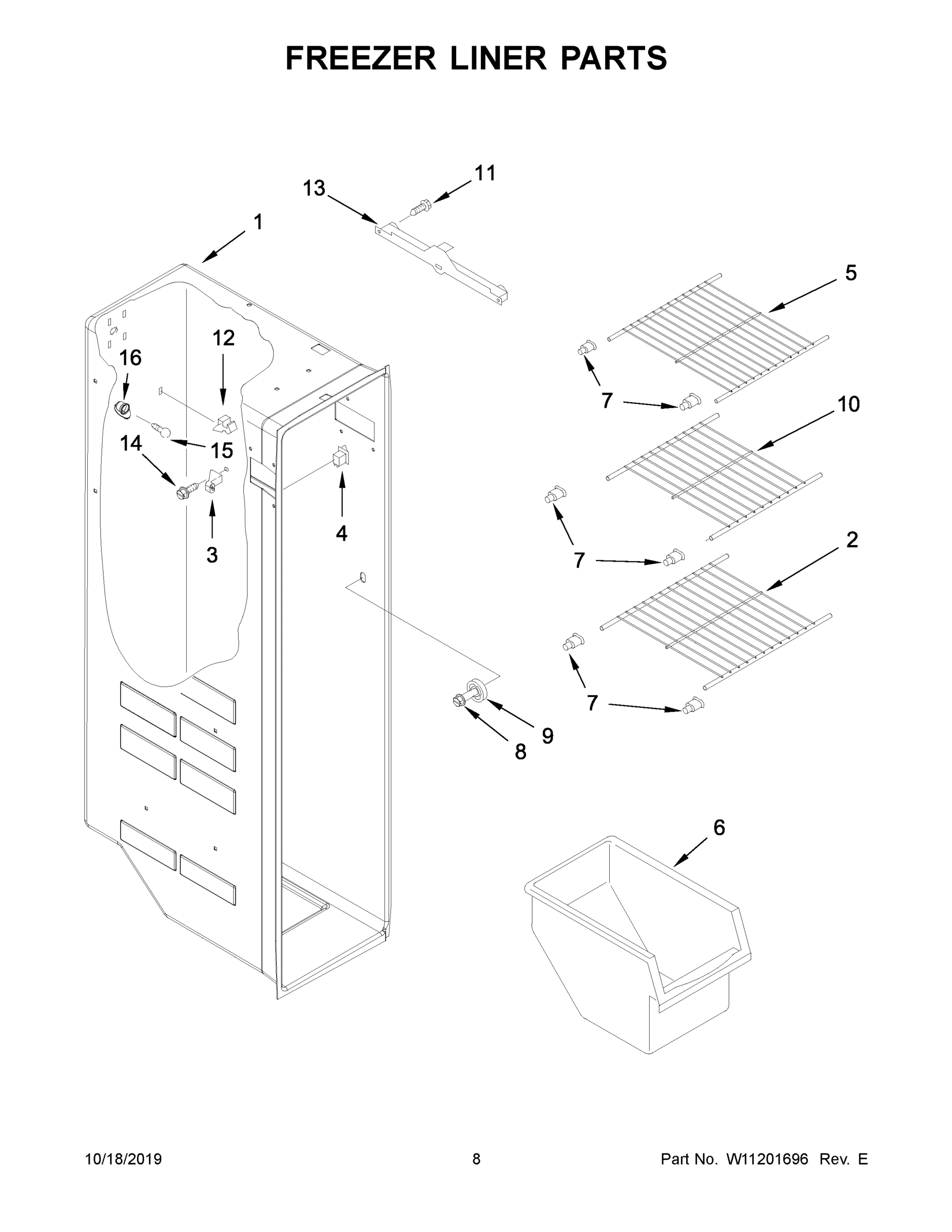

05 - FREEZER LINER PARTS

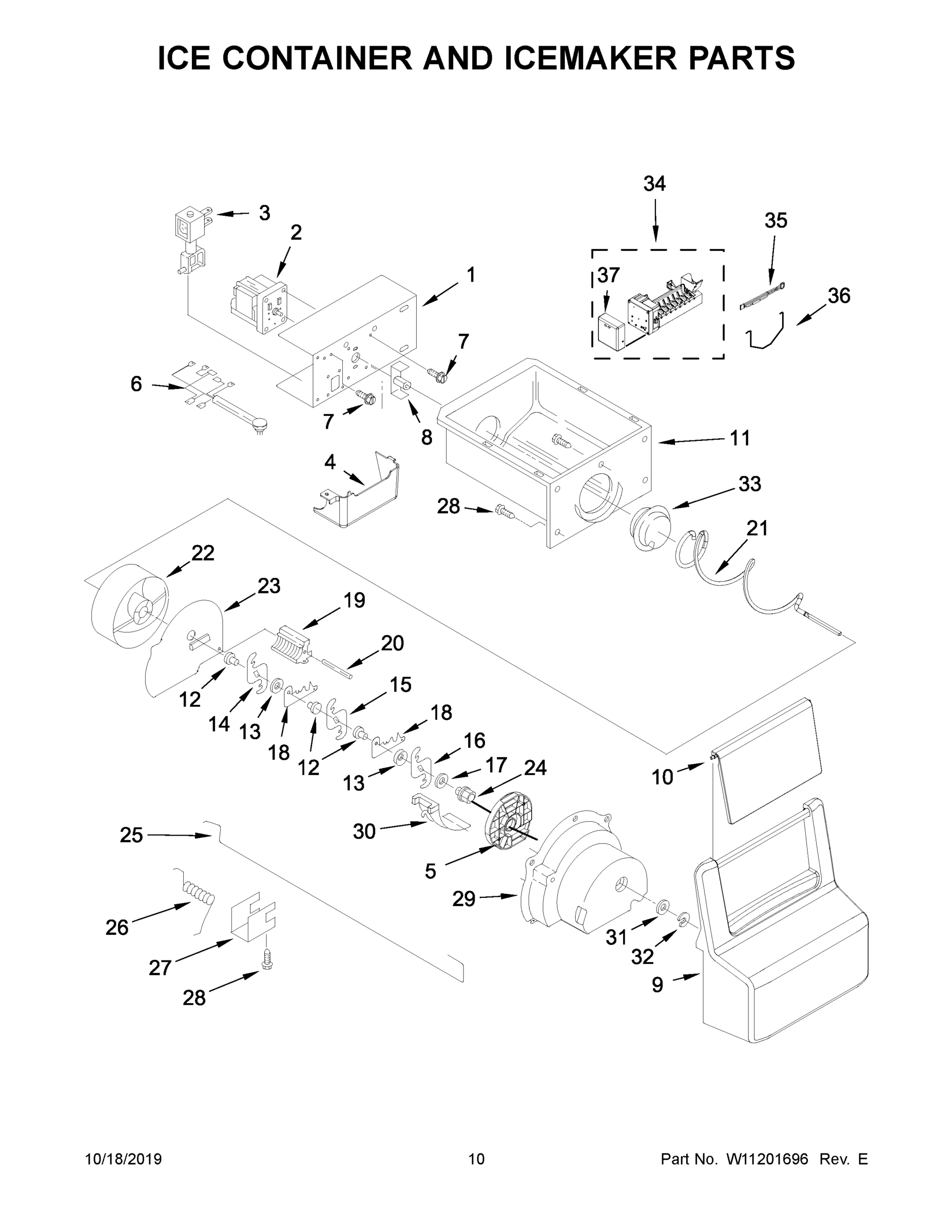

06 - ICE CONTAINER AND ICEMAKER PARTS

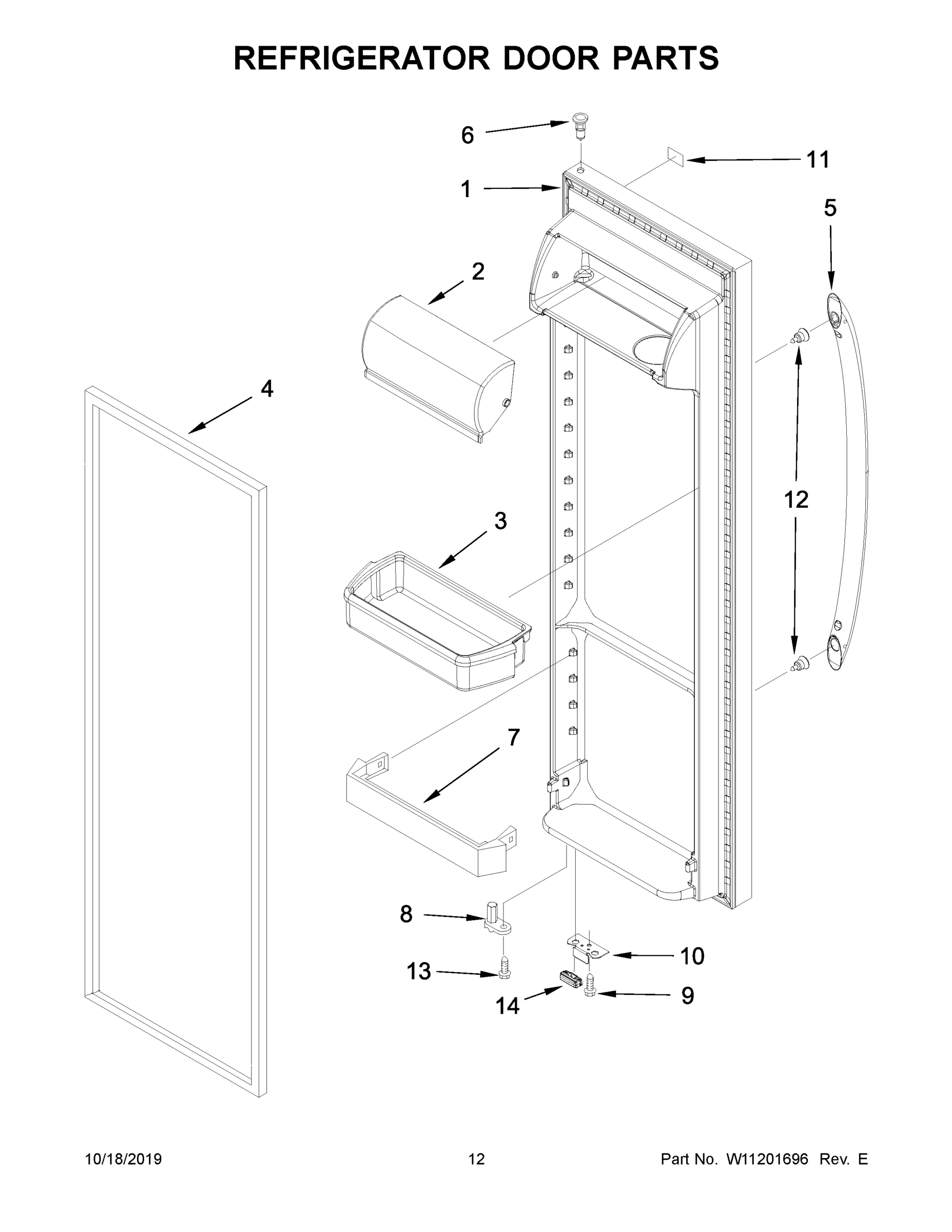

07 - REFRIGERATOR DOOR PARTS

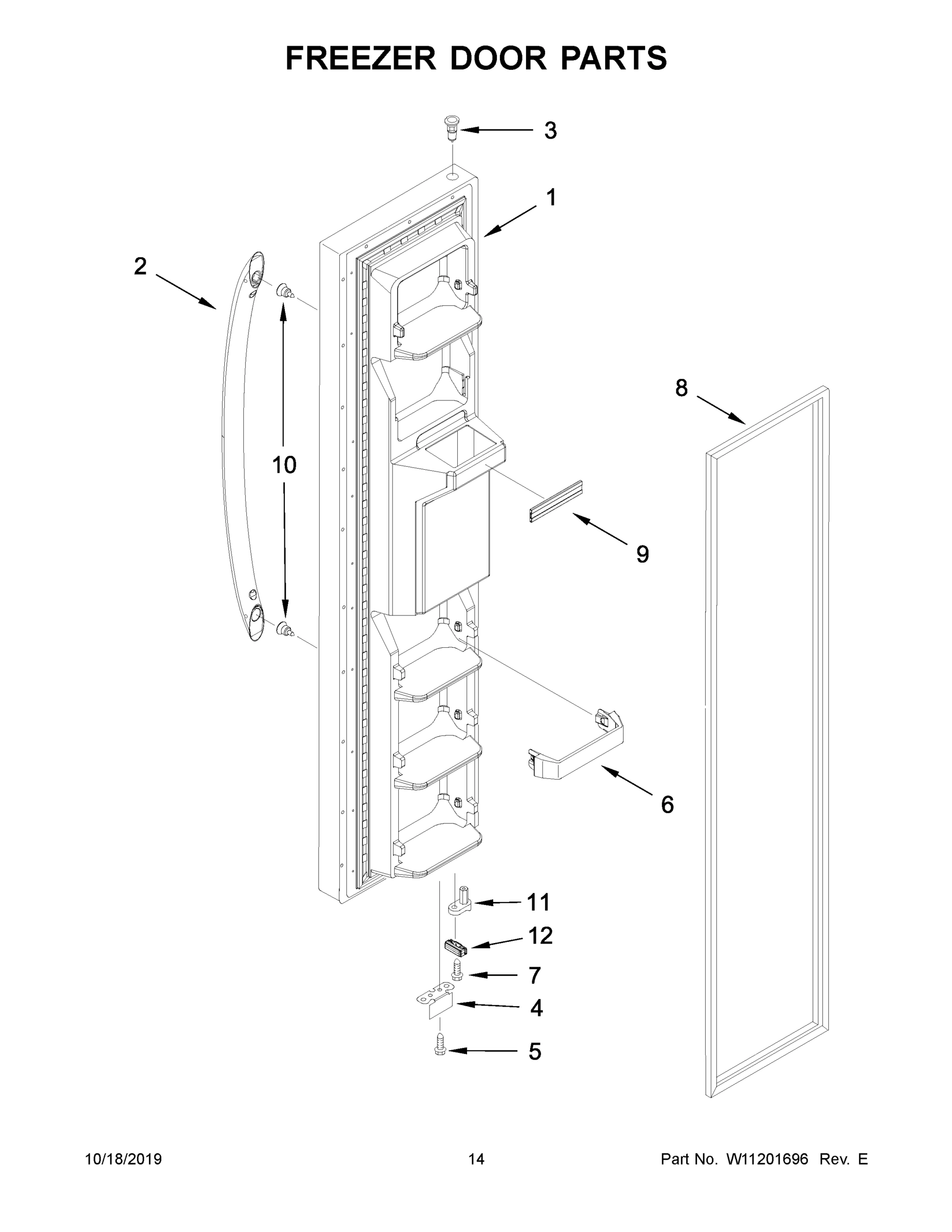

08 - FREEZER DOOR PARTS

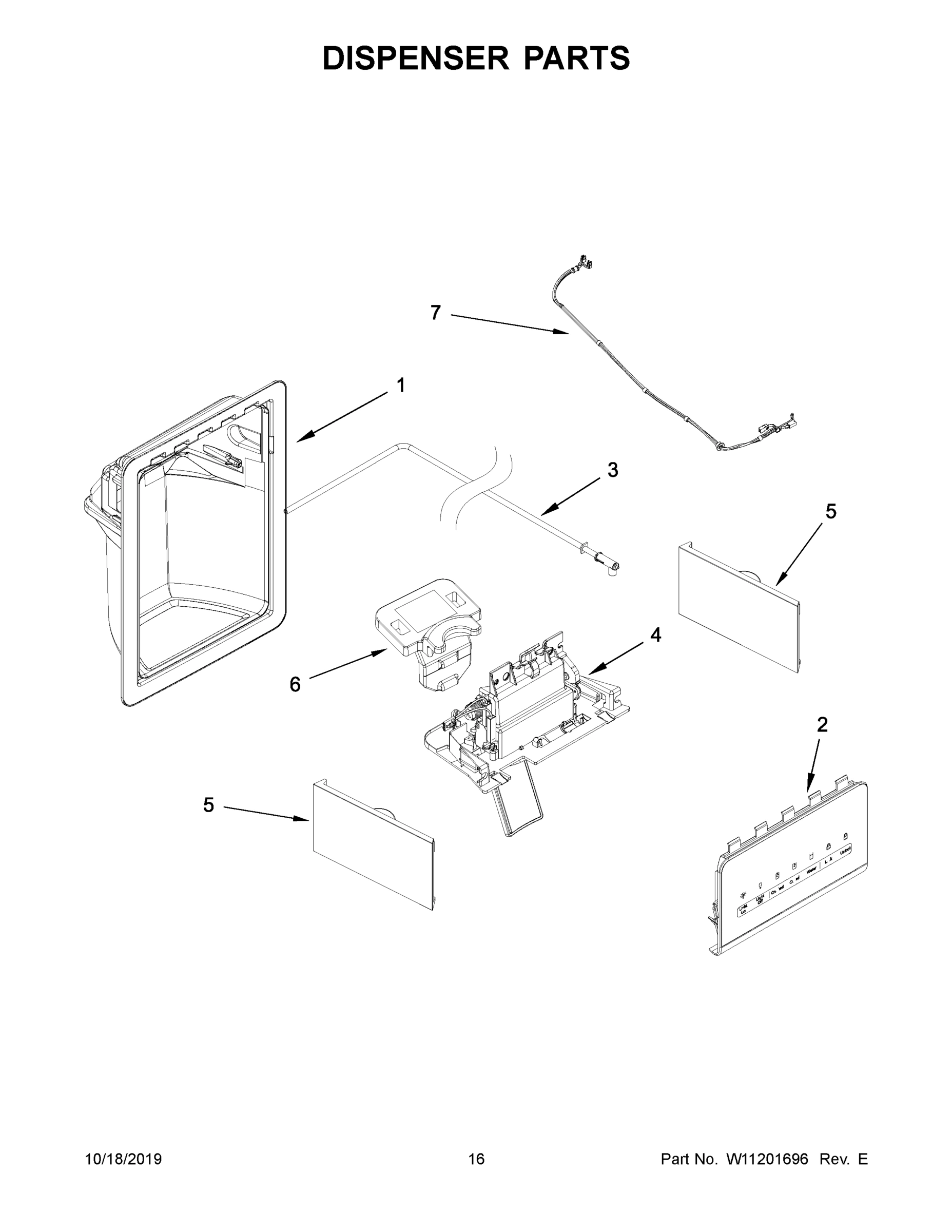

09 - DISPENSER PARTS

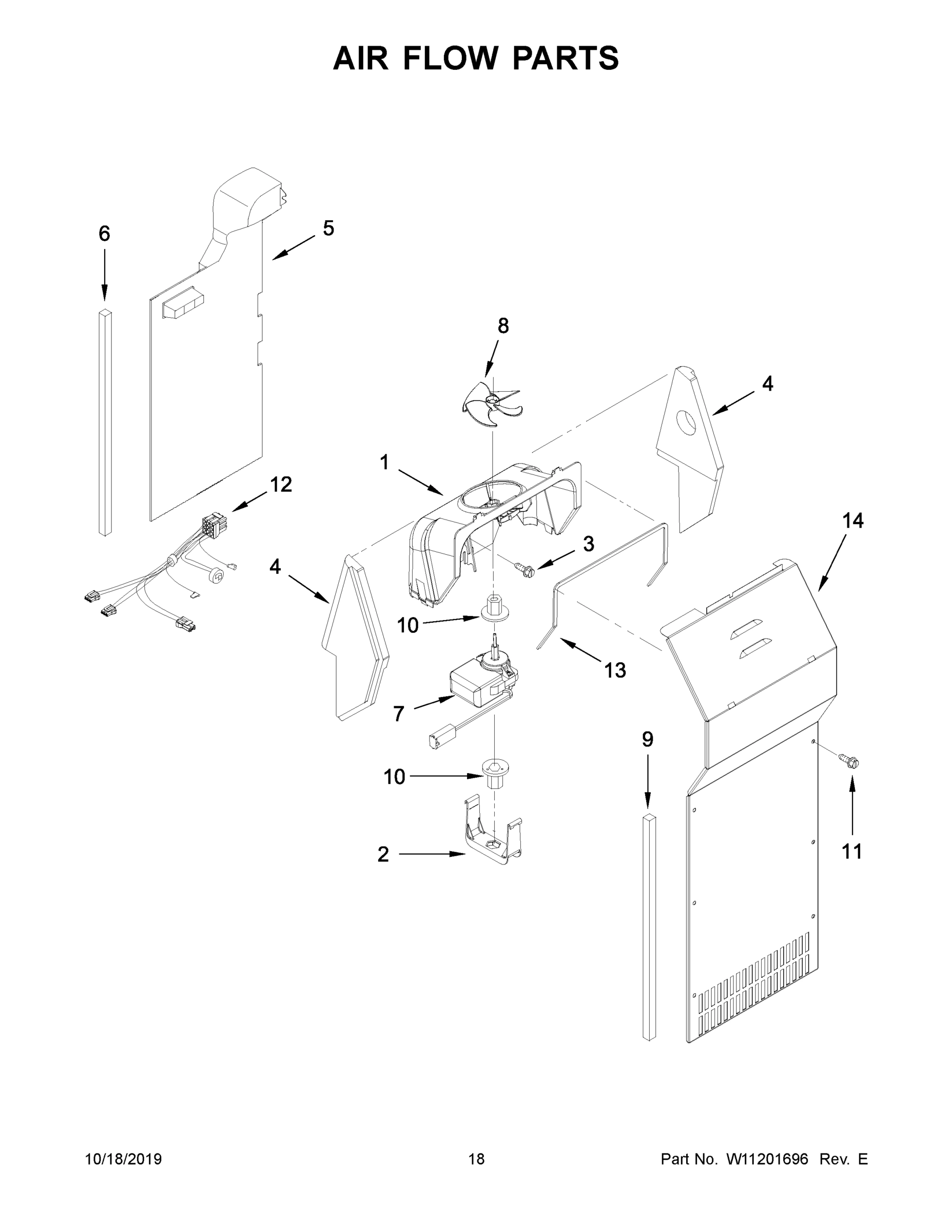

10 - AIR FLOW PARTS

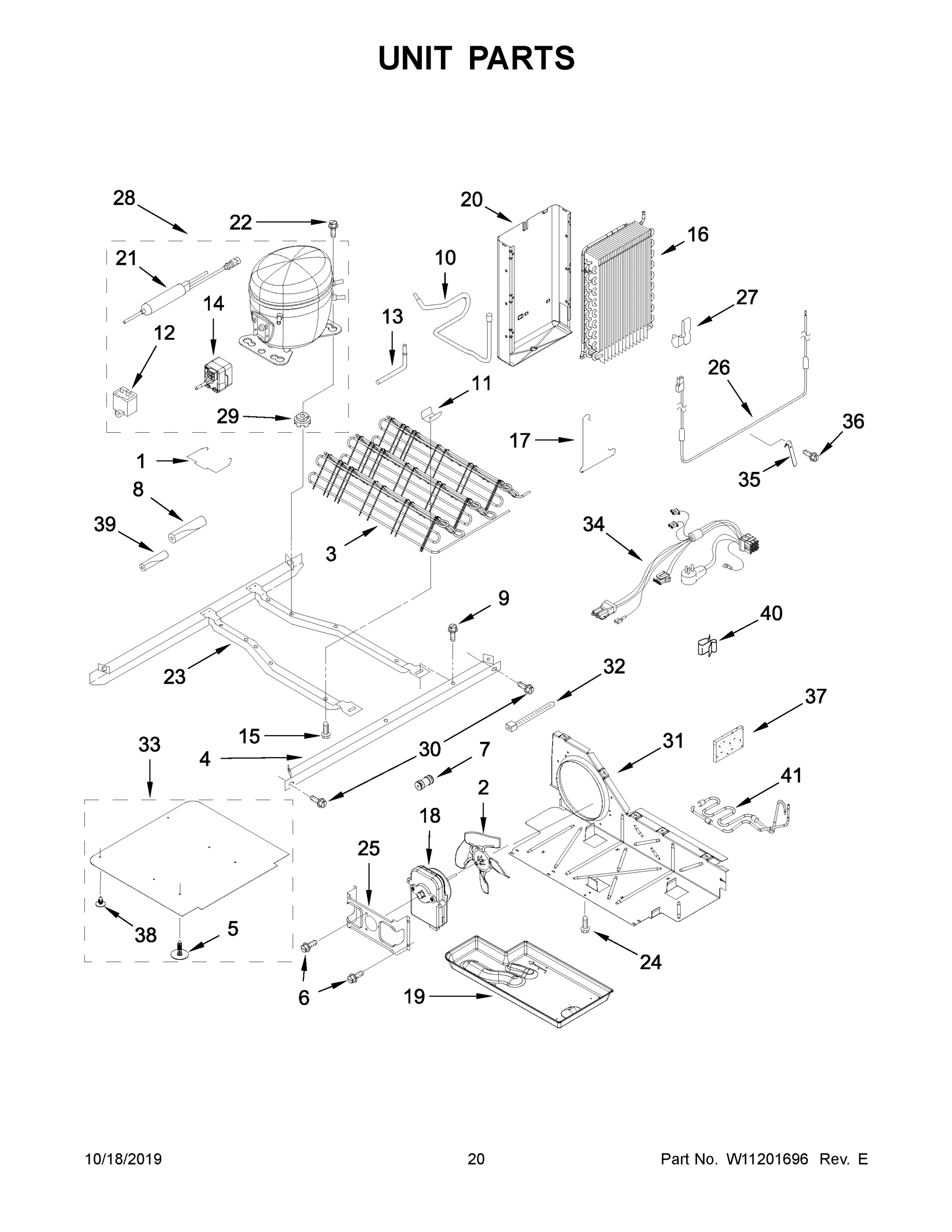

11 - UNIT PARTS
12 - OPTIONAL PARTS
Common parts from model Maytag ASI2575GRB00 REFRIGERATOR, SIDE-BY-SIDE
1
TECH SHEET MAY W11125069 Contact Us For Availability
1
COVER, CRISPER MAY W11205399 Contact Us For Availability
1
BRACKET, MOTOR MAY W11210541 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WH MAY W10912118 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES DOOR GASKET) (WHITE) MAY W11108865 Contact Us For Availability
1
SCROLL, FAN MAY W11228713 Contact Us For Availability
1
STRAP, BALE MAY 2212996 Contact Us For Availability
1A
TECH SHEET (FRENCH) MAY W11125070 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BL MAY W10912126 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK) MAY W11108866 Contact Us For Availability
1B
MAY W11159303 MAY W11159303 Contact Us For Availability
1B
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (ST MAY W11156545 Contact Us For Availability
1B
DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLE MAY W10898312 Contact Us For Availability
1C
MAY W11239614 MAY W11239614 Contact Us For Availability
2
ASSEMBLY, ROLLER (LEFT HAND) MAY W10304660 Contact Us For Availability
2
LENS, LIGHT (INCLUDES GASKET) MAY W10166130 Contact Us For Availability
2
PAN, CRISPER MAY W10902068 Contact Us For Availability
2
SHELF, WIRE MAY W10318948 Contact Us For Availability
2
MOTOR, DISPENSER MAY W10884561 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
HANDLE (WHITE) MAY W10210942 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEAT MAY W10922069 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10188846 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10210943 Contact Us For Availability
2B
HANDLE (GREY) MAY W10257120 Contact Us For Availability
3
SCREW MAY 2152958 Contact Us For Availability
3
TUBING, WATER RESERVOIR MAY W11222026 Contact Us For Availability
3
PAN, MEAT MAY W11035216 Contact Us For Availability
3
STUD, SUPPORT MAY 2196206 Contact Us For Availability
3
ASSEMBLY, SOLENOID MAY 2152713 Contact Us For Availability
3
BIN, DOOR MAY W11034658 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
ASSEMBLY, WATER FITTING MAY W10898317 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY W10904626 Contact Us For Availability
4
ROLLER MAY 2150304 Contact Us For Availability
4
SCREW MAY W10141518 Contact Us For Availability
4
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
4
SWITCH, ROCKER ARM (FREEZER) MAY 1115373 Contact Us For Availability
4
MAY W11204001 MAY W11204001 Contact Us For Availability
4
GASKET, DOOR (BEIGE) MAY W10912123 Contact Us For Availability
4
BRACKET, DOOR STOP (BLACK) MAY W10900531 Contact Us For Availability
4
ASSEMBLY, SEPARATOR (WHITE) MAY W11231390 Contact Us For Availability
4
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
4
RAIL, UNIT MOUNTING MAY W10900442 Contact Us For Availability
4A
GASKET, DOOR (BLACK) MAY W10912133 Contact Us For Availability
4A
ASSEMBLY, SEPARATOR (BLACK) MAY W11231389 Contact Us For Availability
4A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
SCREW MAY W10296816 Contact Us For Availability
5
MAY W11264792 MAY W11264792 Contact Us For Availability
5
SHELF, WIRE MAY W10318947 Contact Us For Availability
5
SPACER - CRUSHER HOUSING MAY W10138206 Contact Us For Availability
5
FRONT COVER, DISPENSER (WHITE (LEFT HAND)) MAY W11183318 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W11110658 Contact Us For Availability
5
CLIP MAY 489396 Contact Us For Availability
5A
FRONT COVER, DISPENSER (WHITE (RIGHT HAND)) MAY W11183314 Contact Us For Availability
5B
FRONT COVER, DISPENSER (BLACK (RIGHT HAND)) MAY W11183313 Contact Us For Availability
5C
FRONT COVER, DISPENSER (BLACK (LEFT HAND)) MAY W11183317 Contact Us For Availability
6
CLIP, GRILLE MAY 2155013 Contact Us For Availability
6
ASSEMBLY, SHELF MAY W11135530 Contact Us For Availability
6
BIN, FREEZER MAY 2309757 Contact Us For Availability
6
MAY W11218402 MAY W11218402 Contact Us For Availability
6
TRIVET MAY 2309718 Contact Us For Availability
6
RETAINER, SEPARATOR HOSE MAY W11039857 Contact Us For Availability
6
GASKET, AIR DUCT MAY W10252477 Contact Us For Availability
6
SCREW MAY 8533993 Contact Us For Availability
7
PLATE, SCREW (REFRIGERATOR) MAY W11036715 Contact Us For Availability
7
ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CO MAY W11026017 Contact Us For Availability
7
HOLDER, PAN MAY W10904001 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
SCREW MAY 489399 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
SCREW MAY W10296804 Contact Us For Availability
7
HARNESS, WIRE MAY W10898319 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
7A
PLATE, SCREW (FREEZER) MAY W10904380 Contact Us For Availability
8
CLIP, ROLLER MAY W11087168 Contact Us For Availability
8
COVER, LIGHT MAY W10900030 Contact Us For Availability
8
SCREW MAY W10191954 Contact Us For Availability
8
SLIDE, HUMIDITY MAY W10282883 Contact Us For Availability
8
COUPLING, MOTOR MAY W10169511 Contact Us For Availability
8
THIMBLE, CAM MAY W10900464 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10911412 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
SLEEVE MAY 2161302 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10911422 Contact Us For Availability
9
HINGE, TOP (WHITE (REFRIGERATOR)) MAY W10922200 Contact Us For Availability
9
HOUSING, HUMIDITY MAY W10282880 Contact Us For Availability
9
ASSEMBLY, STUD MAY 2196208 Contact Us For Availability
9
COVER, ICE CONTAINER FRONT MAY W10189191 Contact Us For Availability
9
TRIM, DOOR SHELF MAY W10307494 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
SCREW MAY 489427 Contact Us For Availability
9A
HINGE, TOP (WHITE (FREEZER)) MAY W10922201 Contact Us For Availability
9B
HINGE, TOP (BLACK (REFRIGERATOR)) MAY W10922216 Contact Us For Availability
9C
HINGE, TOP (BLACK (FREEZER)) MAY W10922217 Contact Us For Availability
10
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
10
SHELF, WIRE MAY W10318961 Contact Us For Availability
10
ICE DOOR MAY W10189202 Contact Us For Availability
10
BRACKET, DOOR STOP (BLACK) MAY W10900463 Contact Us For Availability
10
SCREW MAY W10288153 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
TUBE, SUCTION MAY W10745337 Contact Us For Availability
11
SCREW MAY W10141604 Contact Us For Availability
11
THERMISTOR MAY W10384183 Contact Us For Availability
11
SCREW MAY 489100 Contact Us For Availability
11
CONTAINER, ICE MAY W10670845 Contact Us For Availability
11
NAMEPLATE (WHITE) MAY W11046244 Contact Us For Availability
11
THIMBLE, CAM MAY W10900532 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
CLIP, CONDENSER MAY 2311725 Contact Us For Availability
11A
NAMEPLATE (BLACK) MAY W11046243 Contact Us For Availability
11B
NAMEPLATE (STAINLESS) MAY W11046241 Contact Us For Availability
12
TUBE, FILTER OUTLET MAY W10900447 Contact Us For Availability
12
CLIP, AIR DUCT MAY 2315163 Contact Us For Availability
12
SPACER, STEP MAY W11032812 Contact Us For Availability
12
BUMPER, DOOR (WHITE) MAY W10407175 Contact Us For Availability
12
MAY W11218400 MAY W11218400 Contact Us For Availability
12
CAPACITOR MAY W10350564 Contact Us For Availability
12A
BUMPER, DOOR (BLACK) MAY W10407187 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W11093938 Contact Us For Availability
13
SLIDE, ICE CONTAINER (LEFT) MAY W10845585 Contact Us For Availability
13
SPACER, FLAT MAY W11032808 Contact Us For Availability
13
SCREW (WHITE) MAY W10142283 Contact Us For Availability
13
GASKET MAY 2155789 Contact Us For Availability
13
TUBE, PROCESS MAY 2325479 Contact Us For Availability
13A
SLIDE, ICE CONTAINER (RIGHT) MAY W10845583 Contact Us For Availability
13A
SCREW (BLACK) MAY W10308487 Contact Us For Availability
14
SCREW MAY 3400113 Contact Us For Availability
14
SCREW MAY 3400893 Contact Us For Availability
14
BLADE, ROTARY A MAY W10278731 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10463013 Contact Us For Availability
14
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
15
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
BULB, LIGHT MAY 2311792 Contact Us For Availability
15
BLADE, ROTARY B MAY W10278732 Contact Us For Availability
15
SCREW MAY 8281232 Contact Us For Availability
16
MAY W11219639 MAY W11219639 Contact Us For Availability
16
SOCKET, LIGHT MAY W10134764 Contact Us For Availability
16
BLADE, ROTARY C MAY W10278733 Contact Us For Availability
16
EVAPORATOR MAY 2188823 Contact Us For Availability
16A
MAY W11219641 MAY W11219641 Contact Us For Availability
17
GRILLE (WHITE) MAY W11226340 Contact Us For Availability
17
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
17A
GRILLE (BLACK) MAY W11226342 Contact Us For Availability
18
SCREW (WHITE) MAY W10308750 Contact Us For Availability
18
BLADE, FIXED MAY W10181990 Contact Us For Availability
18
MOTOR, CONDENSER FAN MAY W10522629 Contact Us For Availability
18A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
19
CLAMP, TUBE MAY M0108107 Contact Us For Availability
19
BLOCK, BLADE MAY W10189708 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10897557 Contact Us For Availability
20
SCREW MAY 489463 Contact Us For Availability
20
PIN, ROLL MAY 489229 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194475 Contact Us For Availability
21
AUGER MAY W10295082 Contact Us For Availability
21
DRIER MAY W10771114 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
DRUM MAY W10698642 Contact Us For Availability
22
SCREW MAY 489473 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
BAFFLE, FLOATING MAY W10403781 Contact Us For Availability
23
FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING MAY W10900446 Contact Us For Availability
24
SCREW MAY 489464 Contact Us For Availability
24
MAY W11305037 MAY W11305037 Contact Us For Availability
24
NUT, BEARING MAY 1119018 Contact Us For Availability
25
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) MAY W11097327 Contact Us For Availability
25
ARM, CONTROL MAY W10838981 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
TUBE, FILTER INLET MAY W10900449 Contact Us For Availability
26
SPRING, RETURN MAY 1119020 Contact Us For Availability
26
HEATER, DEFROST MAY 2188175 Contact Us For Availability
27
FILTER, WATER MAY W10735398 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) MAY 1119021 Contact Us For Availability
27
CLIP MAY 2304287 Contact Us For Availability
28
MAY W11242280 MAY W11242280 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10253005 Contact Us For Availability
29
SCREW MAY W10141645 Contact Us For Availability
29
HOUSING, CRUSHER MAY W10185018 Contact Us For Availability
29
GROMMET, COMPRESSOR MAY W10836504 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) MAY W11095731 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
SCREW MAY W10142234 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
BAFFLE, AIR MAY W10897567 Contact Us For Availability
32
HOUSING, WATER FILTER (WHITE) MAY W11036340 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
CABLE TIE MAY W10155270 Contact Us For Availability
32A
HOUSING, WATER FILTER (BLACK) MAY W11036341 Contact Us For Availability
33
COUPLING, ICE CONVEYOR MAY W10698668 Contact Us For Availability
33
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10897560 Contact Us For Availability
34
ASSEMBLY, BRACKET MAY W10897565 Contact Us For Availability
34
ASSEMBLY, ICEMAKER MAY W10300022 Contact Us For Availability
34
MAY W11218404 MAY W11218404 Contact Us For Availability
35
LOCKING RING (1/4) MAY W11175632 Contact Us For Availability
35
HARNESS, ICEMAKER MAY W10508644 Contact Us For Availability
35
PROBE, HEAT MAY W10895163 Contact Us For Availability
35A
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
36
CLOSER, LOWER CAM DOOR (REFRIGERATOR) MAY W10905504 Contact Us For Availability
36
ASSEMBLY, SHUT OFF ARM MAY W11182354 Contact Us For Availability
36
SCREW MAY 489478 Contact Us For Availability
37
TUBE, WATER MAY W10357076 Contact Us For Availability
37
COVER, ICEMAKER MAY W10289690 Contact Us For Availability
37
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
38
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
38
RETAINER, PUSH-IN MAY W10000080 Contact Us For Availability
39
CLAMP, TUBE MAY W10329003 Contact Us For Availability
39
SLEEVE MAY 2264838 Contact Us For Availability
40
INSERT, TUBE MAY 2181939 Contact Us For Availability
40
CLIP, WIRE MAY 2326941 Contact Us For Availability
41
MAY W11252188 MAY W11252188 Contact Us For Availability
41
MAY W11189542 MAY W11189542 Contact Us For Availability
42
CHUTE, WATER MAY 2209774 Contact Us For Availability
100
ICE CONTAINER, COMPLETE MAY W10558423 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
NI
MISCELLANEOUS, KIT, HANDLE INSTALLATION MAY W10300794 Contact Us For Availability
× ![]()
