Model GE ASH3036UCDDA1 Room Air Conditioner Built In – Common Parts & Diagrams

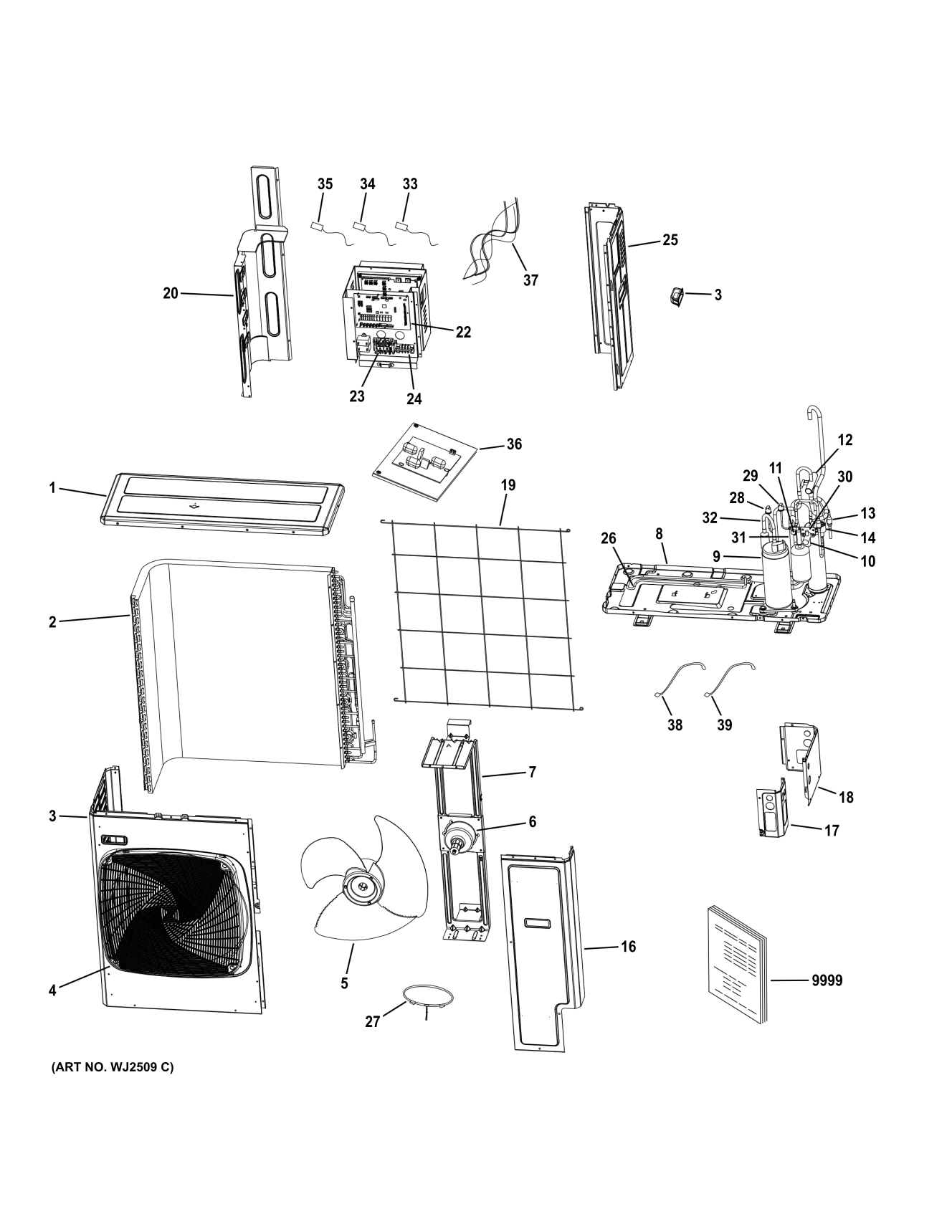

Common parts from model GE ASH3036UCDDA1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

WJ76X32424 GE Top Cover Backorder GEN WJ76X32424 View Details $42.82

View on Model

2

WJ88X31264 GE Condenser Assembly Backorder GEN WJ88X31264 View Details $862.65

View on Model

3

WJ65X32236 GE Handle Backorder GEN WJ65X32236 View Details $4.58

View on Model

4

WJ71X32428 GE Front Panel Assembly Backorder GEN WJ71X32428 View Details $165.54

View on Model

5

WJ73X32233 GE Fan Blade Backorder GEN WJ73X32233 View Details $39.16

View on Model

6

WJ94X31189 GE DC Fan Motor Backorder GEN WJ94X31189 View Details $187.02

View on Model

7

WJ65X31170 GE Motor Bracket Backorder GEN WJ65X31170 View Details $61.78

View on Model

8

WJ76X32423 GE Bottom Base Pan Backorder GEN WJ76X32423 View Details $85.25

View on Model

9

COMPRESSOR GEN WJ98X32935 Contact Us For Availability

View on Model

10

WJ58X32300 GE Liquid Service Valve Backorder GEN WJ58X32300 View Details $23.42

View on Model

11

WJ53X31256 GE Liquid Service Valve 3/4" Backorder GEN WJ53X31256 View Details $70.32

View on Model

12

WJ53X31157 GE 4-Way Valve Backorder GEN WJ53X31157 View Details $102.63

View on Model

13

STRAINER GEN WJ53X31319 Contact Us For Availability

View on Model

14

WJ53X23724 GE Outdoor EEV Coil Assembly Backorder GEN WJ53X23724 View Details $73.18

View on Model

16

WJ71X32422 GE Access Panel Backorder GEN WJ71X32422 View Details $36.97

View on Model

17

WJ71X32425 GE Front Passthrough Panel Backorder GEN WJ71X32425 View Details $10.98

View on Model

18

WJ71X32426 GE Passthrough Panel Rear Backorder GEN WJ71X32426 View Details $17.93

View on Model

19

WJ71X26197 GE Rear Grille Backorder GEN WJ71X26197 View Details $26.90

View on Model

20

WJ71X31314 GE Panel Left Side Backorder GEN WJ71X31314 View Details $38.81

View on Model

22

PCB GEN WJ26X31188 Contact Us For Availability

View on Model

23

TERMINAL BLOCK GEN WJ26X31255 Contact Us For Availability

View on Model

24

WJ26X25073 GE Terminal Block Supply Backorder GEN WJ26X25073 View Details $7.69

View on Model

25

WJ71X32427 GE Right Side Panel Backorder GEN WJ71X32427 View Details $40.08

View on Model

26

WJ70X32311 GE Heater Base Pan Backorder GEN WJ70X32311 View Details $106.97

View on Model

27

CRANK CASE HEATER GEN WJ27X31167 Contact Us For Availability

View on Model

28

WJ26X23722 GE Low Pressure Switch Backorder GEN WJ26X23722 View Details $25.42

View on Model

29

WJ27X22646 GE High Pressure Switch Backorder GEN WJ27X22646 View Details $20.37

View on Model

30

WJ65X31313 GE Valve Bracket Backorder GEN WJ65X31313 View Details $27.29

View on Model

31

WJ56X32306 GE Discharging Pipe Backorder GEN WJ56X32306 View Details $74.03

View on Model

32

WJ56X32305 GE Suction Pipe Backorder GEN WJ56X32305 View Details $62.63

View on Model

33

DEFROST TEMP. SENSOR GEN WJ26X31164 Contact Us For Availability

View on Model

34

DISCHARGE TEMP. SENSOR GEN WJ26X31163 Contact Us For Availability

View on Model

35

AMBIENT TEMP. SENSOR GEN WJ26X31162 Contact Us For Availability

View on Model

36

WJ26X31774 GE Inverter Board Backorder GEN WJ26X31774 View Details $488.75

View on Model

37

WJ35X31775 GE Wiring Harness Backorder GEN WJ35X31775 View Details $134.03

View on Model

38

WJ26X22636 GE Defrost/Toci Sensor Backorder GEN WJ26X22636 View Details $7.69

View on Model

39

WJ26X22533 GE Liquid Pipe Temperature Sensor Backorder GEN WJ26X22533 View Details $7.78

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 31-5000788 Contact Us For Availability
