Model GE ASH109URDSE1 Room Air Conditioner Built In – Common Parts & Diagrams

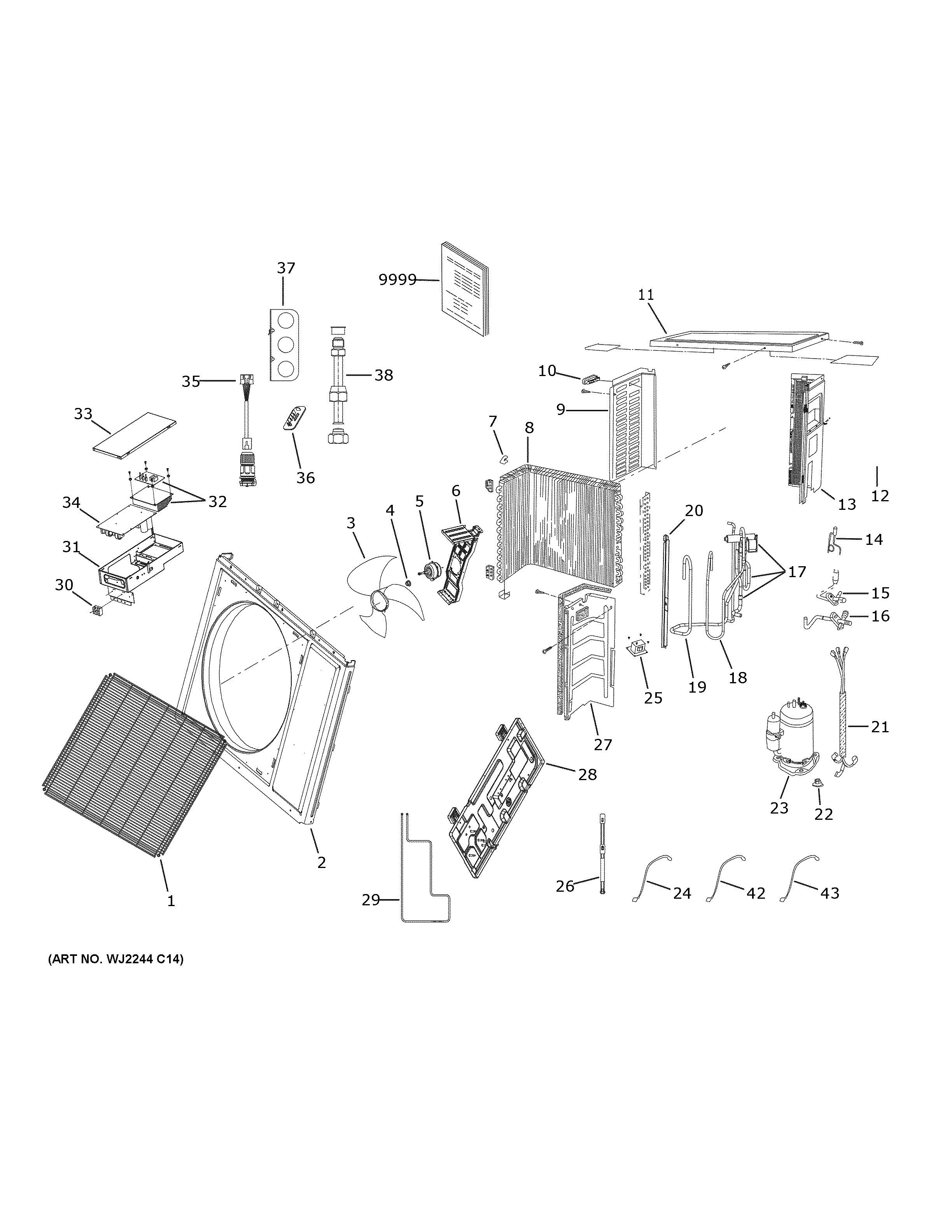

Common parts from model GE ASH109URDSE1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

WJ71X26473 GE Grille Backorder GEN WJ71X26473 View Details $44.40

View on Model

2

WJ76X26480 GE Casing Backorder GEN WJ76X26480 View Details $34.20

View on Model

3

FAN BLADE GEN WJ73X22998 Contact Us For Availability

View on Model

4

WJ01X22974 GE Flange Nut Backorder GEN WJ01X22974 View Details $7.69

View on Model

5

OUTDOOR FAN MOTOR GEN WJ94X23000 Contact Us For Availability

View on Model

6

WJ65X23001 GE Bracket Outdoor Fan Motor Backorder GEN WJ65X23001 View Details $23.61

View on Model

7

WJ01X23219 GE Sensor Clip Backorder GEN WJ01X23219 View Details $4.58

View on Model

8

CONDENSER Backorder GEN WJ88X26443 View Details $201.63

View on Model

9

WJ71X26481 GE Left Side Panel Backorder GEN WJ71X26481 View Details $17.11

View on Model

10

WJ01X26475 GE Handle Backorder GEN WJ01X26475 View Details $4.81

View on Model

11

WJ76X26482 GE Top Cover Backorder GEN WJ76X26482 View Details $26.52

View on Model

12

WJ76X26476 GE Valve Cover Backorder GEN WJ76X26476 View Details $14.04

View on Model

13

WJ71X26483 GE Right Side Panel Backorder GEN WJ71X26483 View Details $26.72

View on Model

14

WJ53X26455 GE EEV Valve Backorder GEN WJ53X26455 View Details $44.16

View on Model

15

WJ53X24973 GE Liquid Service Valve Backorder GEN WJ53X24973 View Details $14.60

View on Model

16

WJ53X24975 GE Vapor Service Valve Backorder GEN WJ53X24975 View Details $23.42

View on Model

17

WJ53X26454 GE 4-Way Valve Backorder GEN WJ53X26454 View Details $47.09

View on Model

18

DISCHARGE TUBE GEN WJ53X26451 Contact Us For Availability

View on Model

19

WJ53X26452 GE Suction Tube Backorder GEN WJ53X26452 View Details $12.88

View on Model

20

WJ65X32954 GE Support Bar Backorder GEN WJ65X32954 View Details $10.61

View on Model

21

WJ35X27920 GE Outdoor Harness Wire Backorder GEN WJ35X27920 View Details $25.95

View on Model

22

WJ01X26442 GE Compressor Nut Backorder GEN WJ01X26442 View Details $4.81

View on Model

23

COMPRESSOR GEN WJ98X26446 Contact Us For Availability

View on Model

24

WJ26X23009 GE Suction Sensor Backorder GEN WJ26X23009 View Details $8.55

View on Model

25

WJ27X23157 GE Reactor Backorder GEN WJ27X23157 View Details $31.77

View on Model

26

COMPRESSOR HEATER Backorder GEN WJ27X26437 View Details $9.99

View on Model

27

WJ71X32956 GE Divider Panel Backorder GEN WJ71X32956 View Details $27.27

View on Model

28

BOTTOM PLATE ASSY. GEN WJ76X32958 Contact Us For Availability

View on Model

29

WJ27X24665 GE Heater Basepan Backorder GEN WJ27X24665 View Details $44.84

View on Model

30

WJ27X26435 GE Terminal Block Backorder GEN WJ27X26435 View Details $7.69

View on Model

31

ELECTRICAL BOX GEN WJ76X32636 Contact Us For Availability

View on Model

32

WJ26X27117 GE Inverter Assembly Backorder GEN WJ26X27117 View Details $109.15

View on Model

33

CONTROL BOX COVER GEN WJ76X32634 Contact Us For Availability

View on Model

34

WJ26X28293 GE Power Control Board Backorder GEN WJ26X28293 View Details $183.69

View on Model

35

RJ45 GEN WJ27X27115 Contact Us For Availability

View on Model

36

COVER GEN WJ76X32953 Contact Us For Availability

View on Model

37

WJ65X27113 GE Bracket Strain Relief Backorder GEN WJ65X27113 View Details $4.81

View on Model

38

WJ01X27116 GE 1/2" X 3/8" Adapter Backorder GEN WJ01X27116 View Details $10.19

View on Model

42

WJ26X22984 GE Sensor Assembly Amb/Dis/Coil Backorder GEN WJ26X22984 View Details $15.39

View on Model

43

WJ26X23334 GE Sensor Pipe Backorder GEN WJ26X23334 View Details $7.69

View on Model
