Model GE ASH109URDEB1 Room Air Conditioner Built In – Common Parts & Diagrams

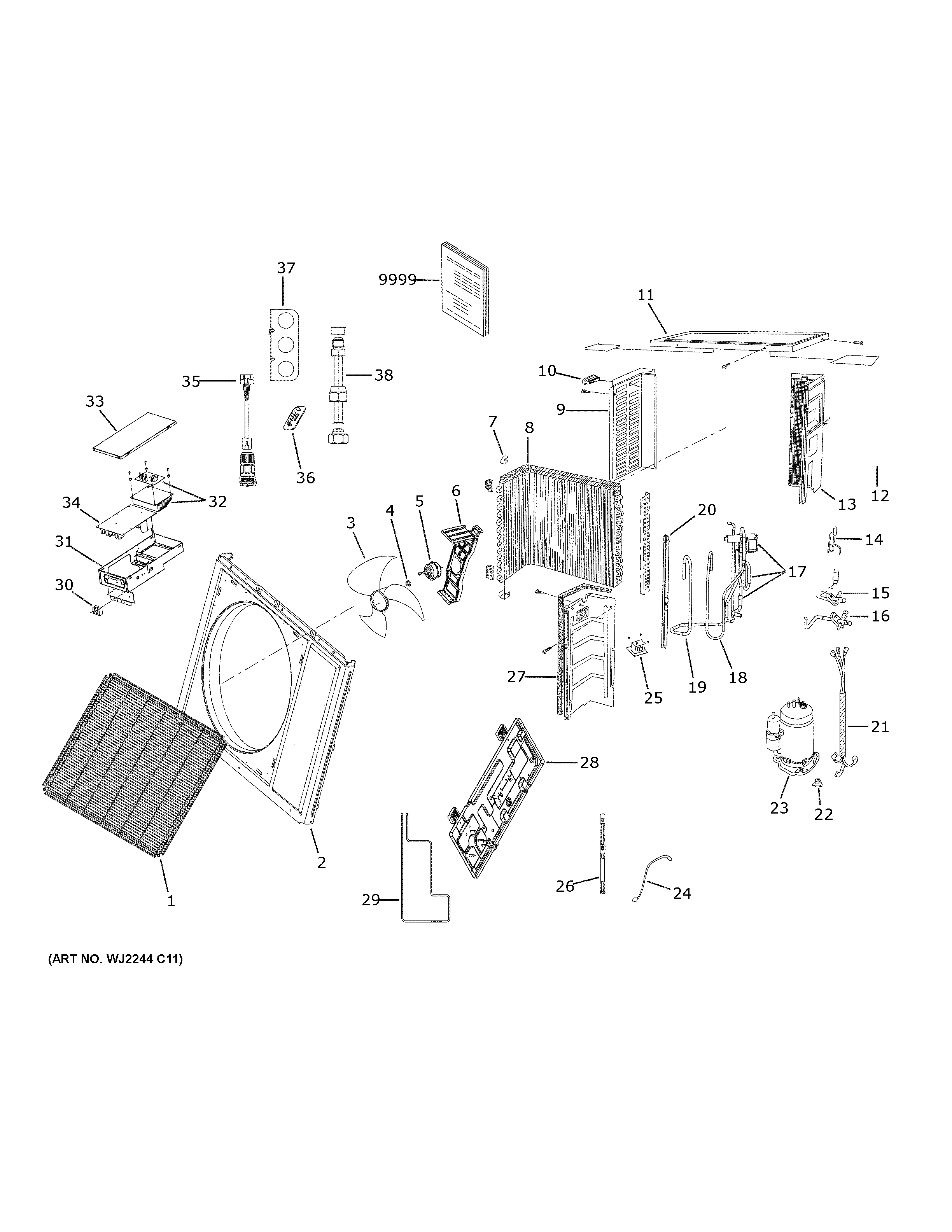

Common parts from model GE ASH109URDEB1 Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

GRILL Backorder GEN WJ71X33076 View Details $55.75

View on Model

2

CASING GEN WJ71X33099 Contact Us For Availability

View on Model

3

WJ73X33079 GE Fan Blade Backorder GEN WJ73X33079 View Details $24.89

View on Model

4

WJ01X22974 GE Flange Nut Backorder GEN WJ01X22974 View Details $7.69

View on Model

5

OUTDOOR FAN MOTOR GEN WJ94X23000 Contact Us For Availability

View on Model

6

WJ65X23001 GE Bracket Outdoor Fan Motor Backorder GEN WJ65X23001 View Details $23.61

View on Model

7

WJ01X23219 GE Sensor Clip Backorder GEN WJ01X23219 View Details $4.58

View on Model

8

CONDENSER Backorder GEN WJ88X26443 View Details $201.63

View on Model

9

WJ71X33100 GE Left Side Panel Backorder GEN WJ71X33100 View Details $23.42

View on Model

10

WJ65X33081 GE Handle Backorder GEN WJ65X33081 View Details $4.58

View on Model

11

WJ71X33106 GE Top Cover Backorder GEN WJ71X33106 View Details $44.29

View on Model

12

VALVE COVER GEN WJ76X33088 Contact Us For Availability

View on Model

13

WJ71X33102 GE Right Side Panel Backorder GEN WJ71X33102 View Details $37.52

View on Model

14

WJ53X26455 GE EEV Valve Backorder GEN WJ53X26455 View Details $44.16

View on Model

15

WJ53X24973 GE Liquid Service Valve Backorder GEN WJ53X24973 View Details $14.60

View on Model

16

WJ53X24975 GE Vapor Service Valve Backorder GEN WJ53X24975 View Details $23.42

View on Model

17

WJ53X26454 GE 4-Way Valve Backorder GEN WJ53X26454 View Details $47.09

View on Model

18

DISCHARGE TUBE GEN WJ53X26451 Contact Us For Availability

View on Model

19

WJ53X26452 GE Suction Tube Backorder GEN WJ53X26452 View Details $12.88

View on Model

20

WJ71X33101 GE Crossbeam Backorder GEN WJ71X33101 View Details $10.43

View on Model

21

WJ35X27920 GE Outdoor Harness Wire Backorder GEN WJ35X27920 View Details $25.95

View on Model

22

WJ01X26442 GE Compressor Nut Backorder GEN WJ01X26442 View Details $4.81

View on Model

23

COMPRESSOR GEN WJ98X26446 Contact Us For Availability

View on Model

24

WJ26X23009 GE Suction Sensor Backorder GEN WJ26X23009 View Details $8.55

View on Model

25

WJ27X23157 GE Reactor Backorder GEN WJ27X23157 View Details $31.77

View on Model

26

COMPRESSOR HEATER Backorder GEN WJ27X26437 View Details $9.99

View on Model

27

WJ71X32956 GE Divider Panel Backorder GEN WJ71X32956 View Details $27.27

View on Model

28

BOTTOM PLATE ASSY. GEN WJ76X32958 Contact Us For Availability

View on Model

29

WJ27X24665 GE Heater Basepan Backorder GEN WJ27X24665 View Details $44.84

View on Model

30

WJ27X26435 GE Terminal Block Backorder GEN WJ27X26435 View Details $7.69

View on Model

31

ELECTRICAL BOX GEN WJ76X32636 Contact Us For Availability

View on Model

32

WJ26X27117 GE Inverter Assembly Backorder GEN WJ26X27117 View Details $109.15

View on Model

33

CONTROL BOX COVER GEN WJ76X32634 Contact Us For Availability

View on Model

34

WJ26X33213 GE Power Control Board Backorder GEN WJ26X33213 View Details $173.02

View on Model

35

RJ45 GEN WJ27X27115 Contact Us For Availability

View on Model

36

WJ76X27114 GE Cover Backorder GEN WJ76X27114 View Details $4.81

View on Model

37

WJ65X27113 GE Bracket Strain Relief Backorder GEN WJ65X27113 View Details $4.81

View on Model

38

WJ01X27116 GE 1/2" X 3/8" Adapter Backorder GEN WJ01X27116 View Details $10.19

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 315000276 Contact Us For Availability

View on Model

×
