Model GE ASH109PRDWA Room Air Conditioner Built In – Common Parts & Diagrams

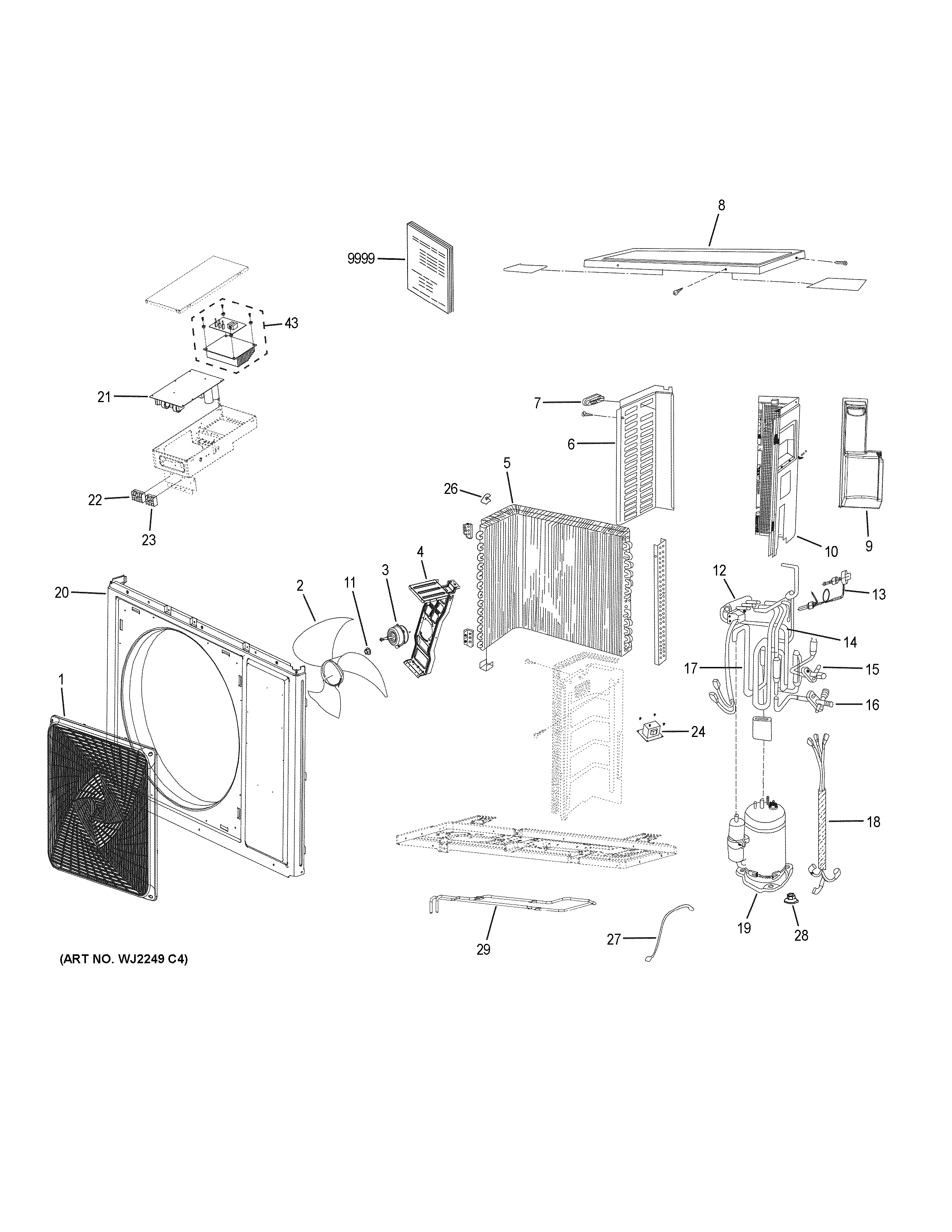

Common parts from model GE ASH109PRDWA Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

1

GRILL GEN WJ71X25110 Contact Us For Availability

View on Model

2

WJ73X22973 GE Fan Blade Backorder GEN WJ73X22973 View Details $23.06

View on Model

3

OUTDOOR FAN MOTOR GEN WJ94X22975 Contact Us For Availability

View on Model

4

WJ65X22976 GE Outdoor Fan Motor Bracket Backorder GEN WJ65X22976 View Details $13.36

View on Model

5

CONDENSER GEN WJ88X22970 Contact Us For Availability

View on Model

6

LEFT SIDE PANEL GEN WJ76X24660 Contact Us For Availability

View on Model

7

HANDLE GEN WJ01X24654 Contact Us For Availability

View on Model

8

TOPCOVER GEN WJ76X24662 Contact Us For Availability

View on Model

9

WJ76X22982 GE Valve Cover Backorder GEN WJ76X22982 View Details $9.61

View on Model

10

RIGHT SIDE PANEL GEN WJ76X24661 Contact Us For Availability

View on Model

11

FLANGE NUT GEN WJ01X23150 Contact Us For Availability

View on Model

12

4-WAY VALVE TUBE ASSEMBLY GEN WJ53X24700 Contact Us For Availability

View on Model

13

WJ26X24659 GE Electronic Expansion Valve Backorder GEN WJ26X24659 View Details $61.54

View on Model

14

WJ53X22971 GE Discharge Tube Backorder GEN WJ53X22971 View Details $18.30

View on Model

15

WJ53X24973 GE Liquid Service Valve Backorder GEN WJ53X24973 View Details $14.60

View on Model

16

WJ53X24974 GE Vapor Service Valve Backorder GEN WJ53X24974 View Details $17.75

View on Model

17

WJ53X22983 GE Suction Tube Backorder GEN WJ53X22983 View Details $18.67

View on Model

18

WJ35X22978 GE Outdoor Wire Harness Backorder GEN WJ35X22978 View Details $44.01

View on Model

19

COMPRESSOR Backorder GEN WJ98X22969 View Details $306.77

View on Model

20

CASING Backorder GEN WJ76X24653 View Details $30.38

View on Model

21

WJ26X25077 GE Power Control Board Backorder GEN WJ26X25077 View Details $213.63

View on Model

22

WJ27X22985 GE Terminal Block Backorder GEN WJ27X22985 View Details $10.19

View on Model

23

WJ27X24663 GE Supply Terminal Block Backorder GEN WJ27X24663 View Details $5.97

View on Model

24

WJ27X22981 GE Reactor Backorder GEN WJ27X22981 View Details $19.58

View on Model

26

WJ01X23219 GE Sensor Clip Backorder GEN WJ01X23219 View Details $4.58

View on Model

27

WJ26X22984 GE Sensor Assembly Amb/Dis/Coil Backorder GEN WJ26X22984 View Details $15.39

View on Model

28

WJ01X22974 GE Flange Nut Backorder GEN WJ01X22974 View Details $7.69

View on Model

29

WJ27X24656 GE Basepan Heater Backorder GEN WJ27X24656 View Details $54.93

View on Model

43

WJ26X24110 GE Inverter Assembly Backorder GEN WJ26X24110 View Details $181.35

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 315000276 Contact Us For Availability
