Model Maytag ASD2524VEW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

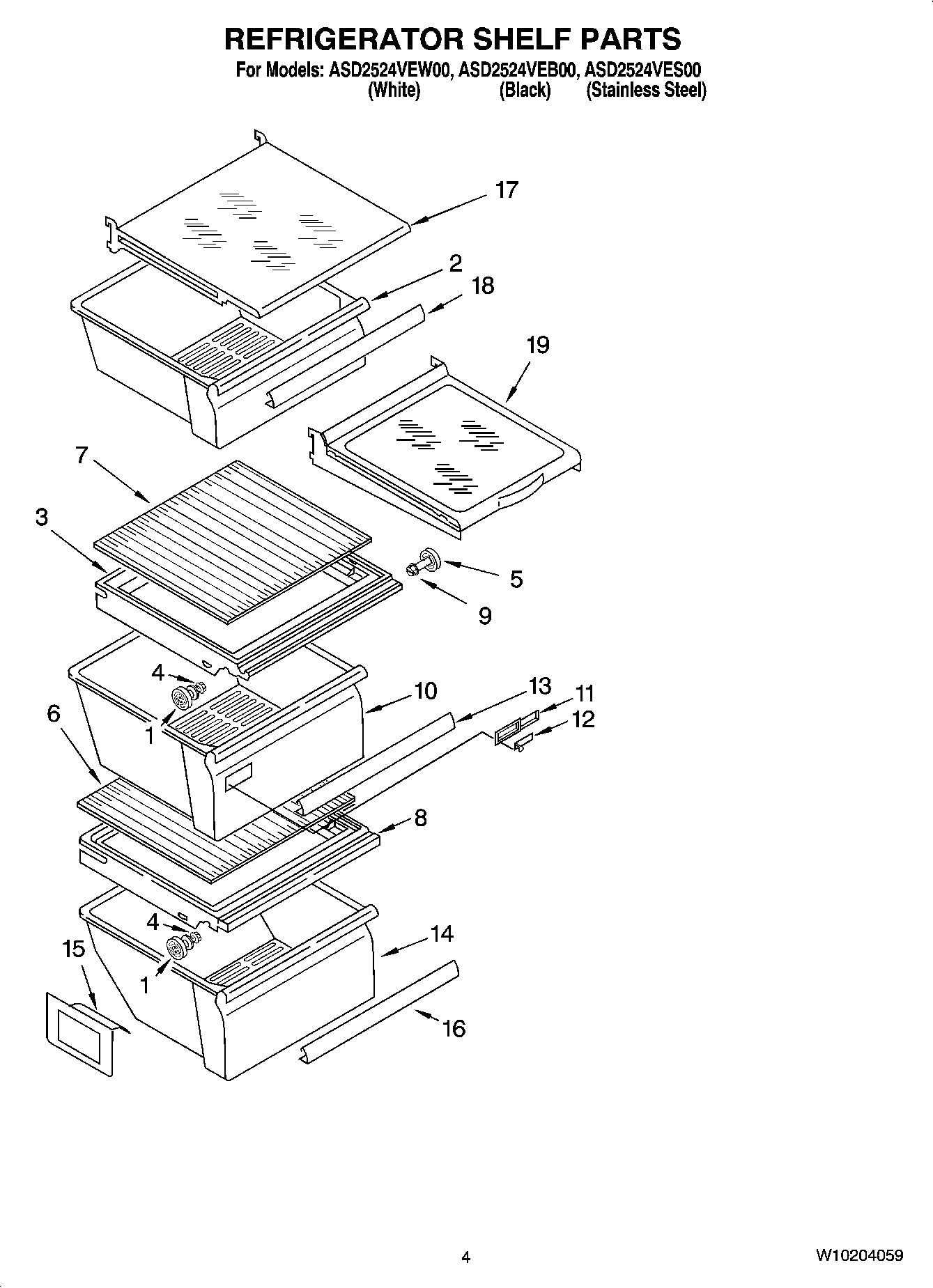

03 - REFRIGERATOR SHELF PARTS

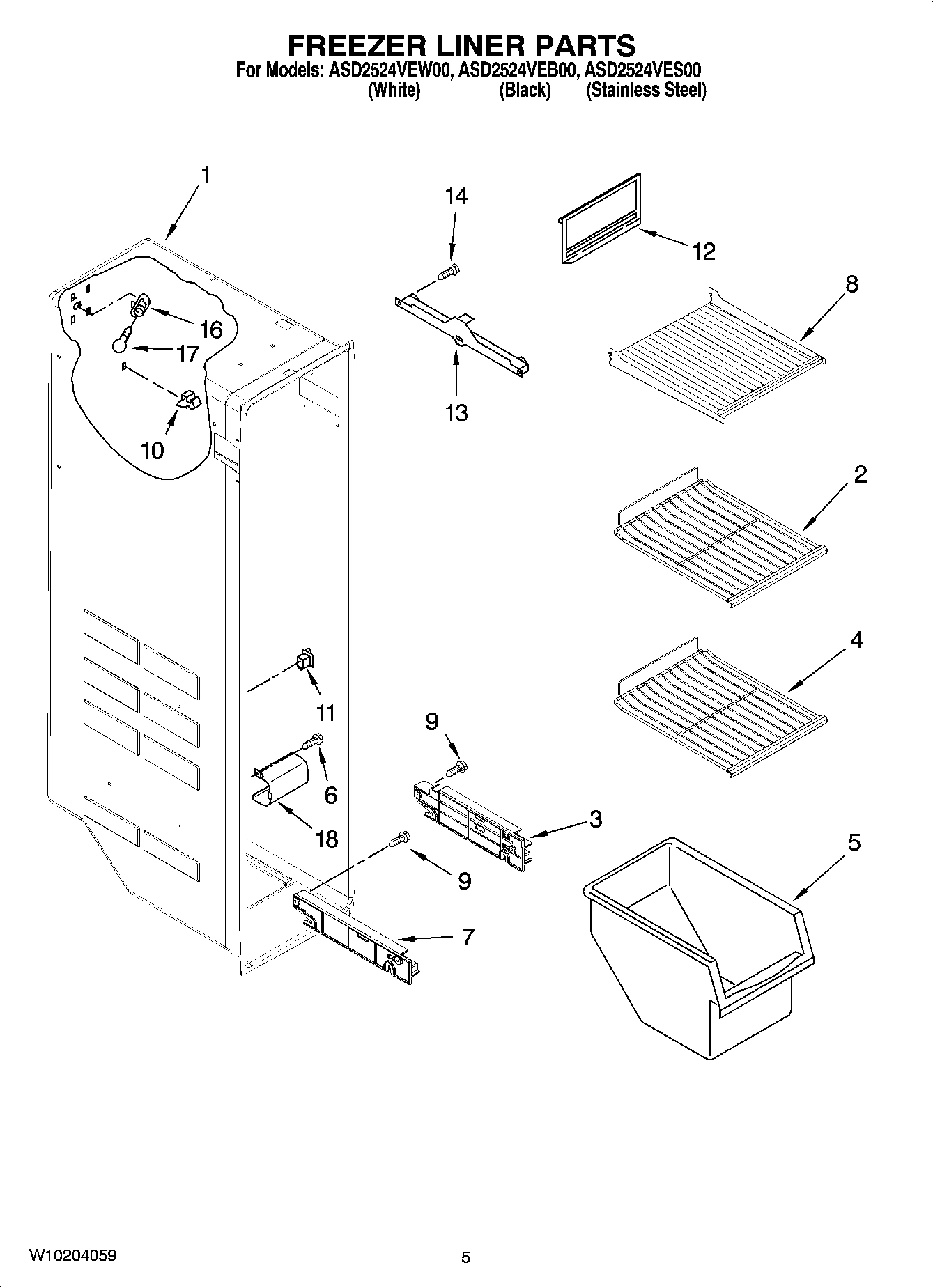

04 - FREEZER LINER PARTS

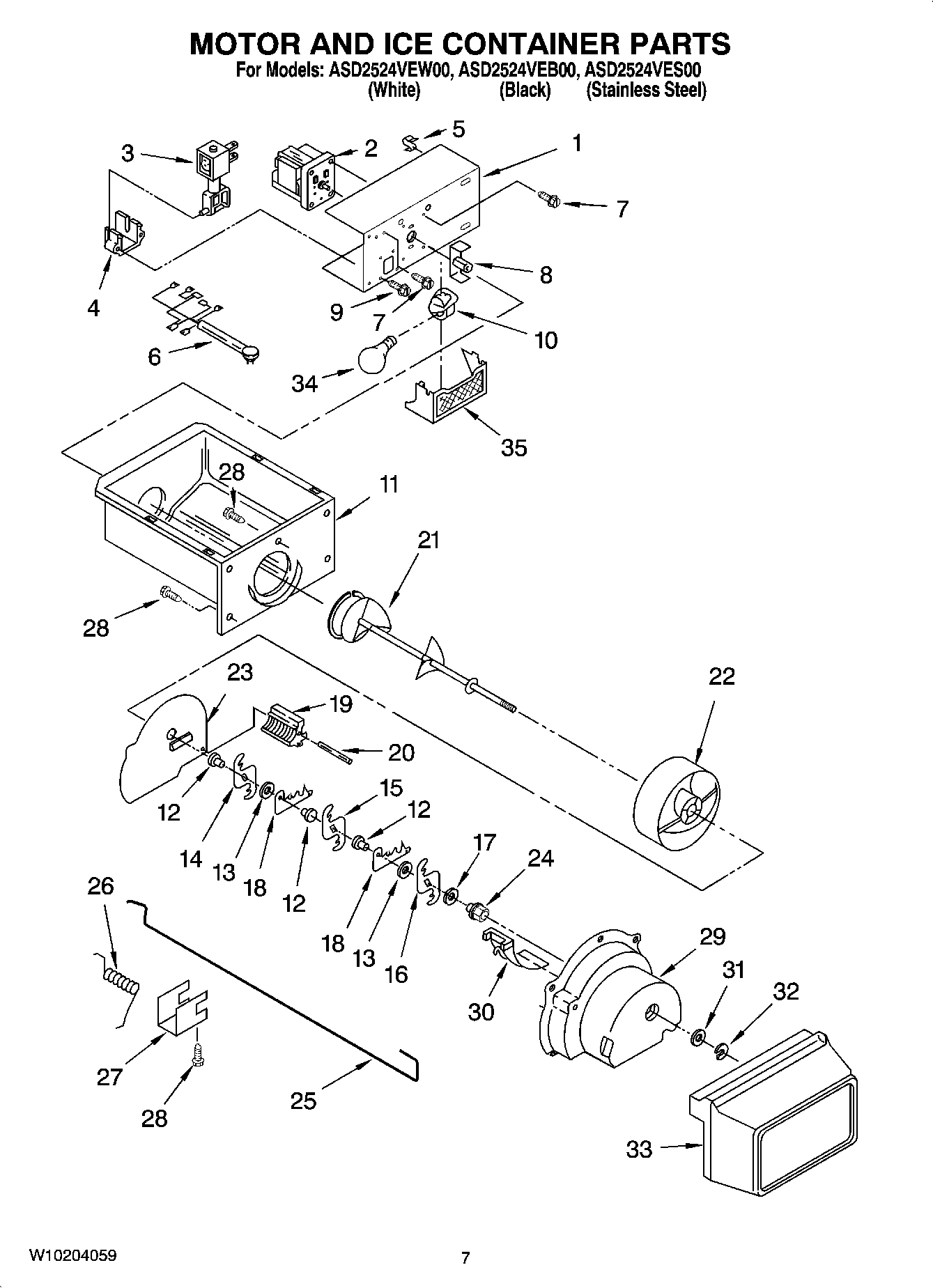

05 - MOTOR AND ICE CONTAINER PARTS

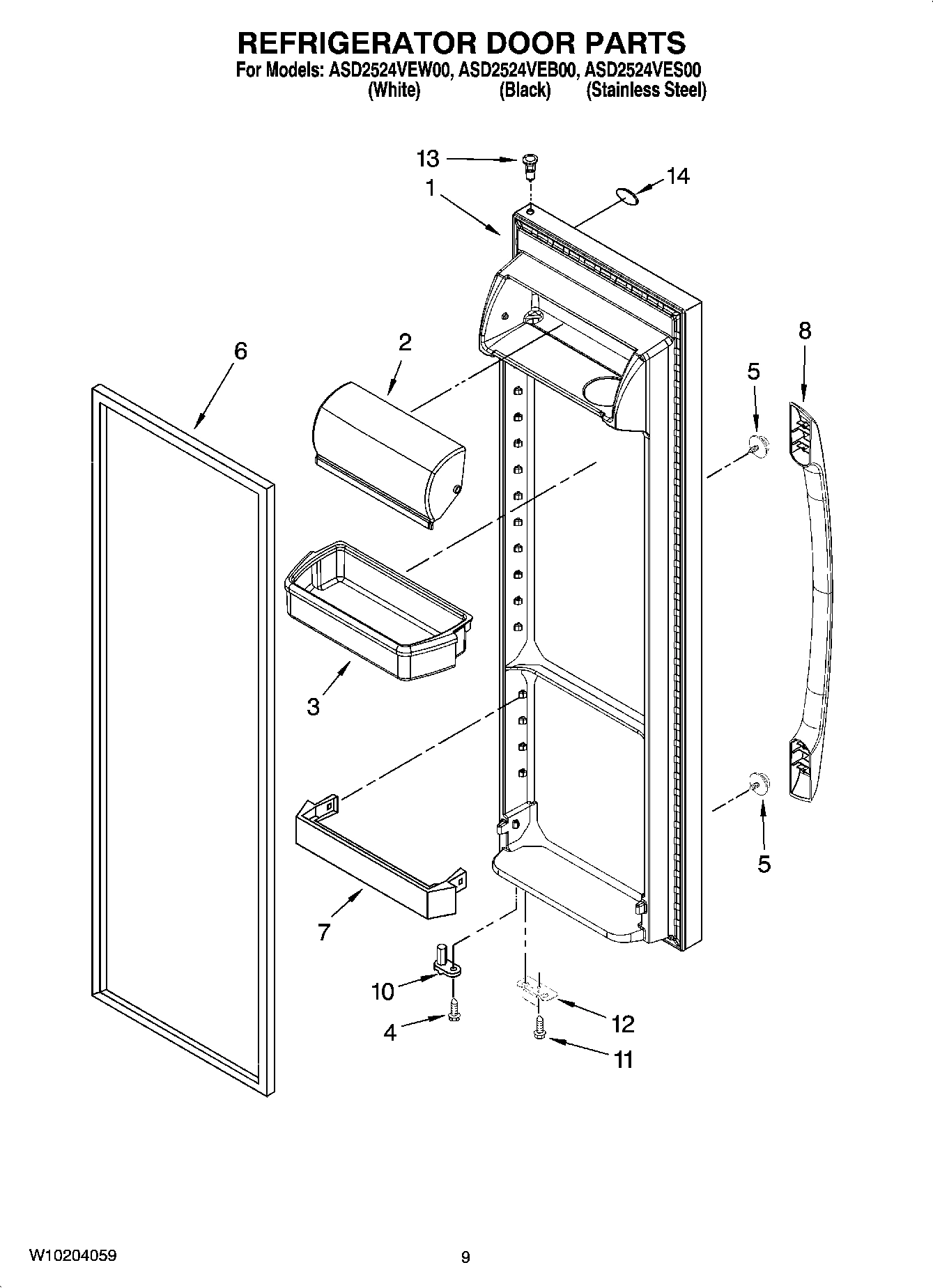

06 - REFRIGERATOR DOOR PARTS

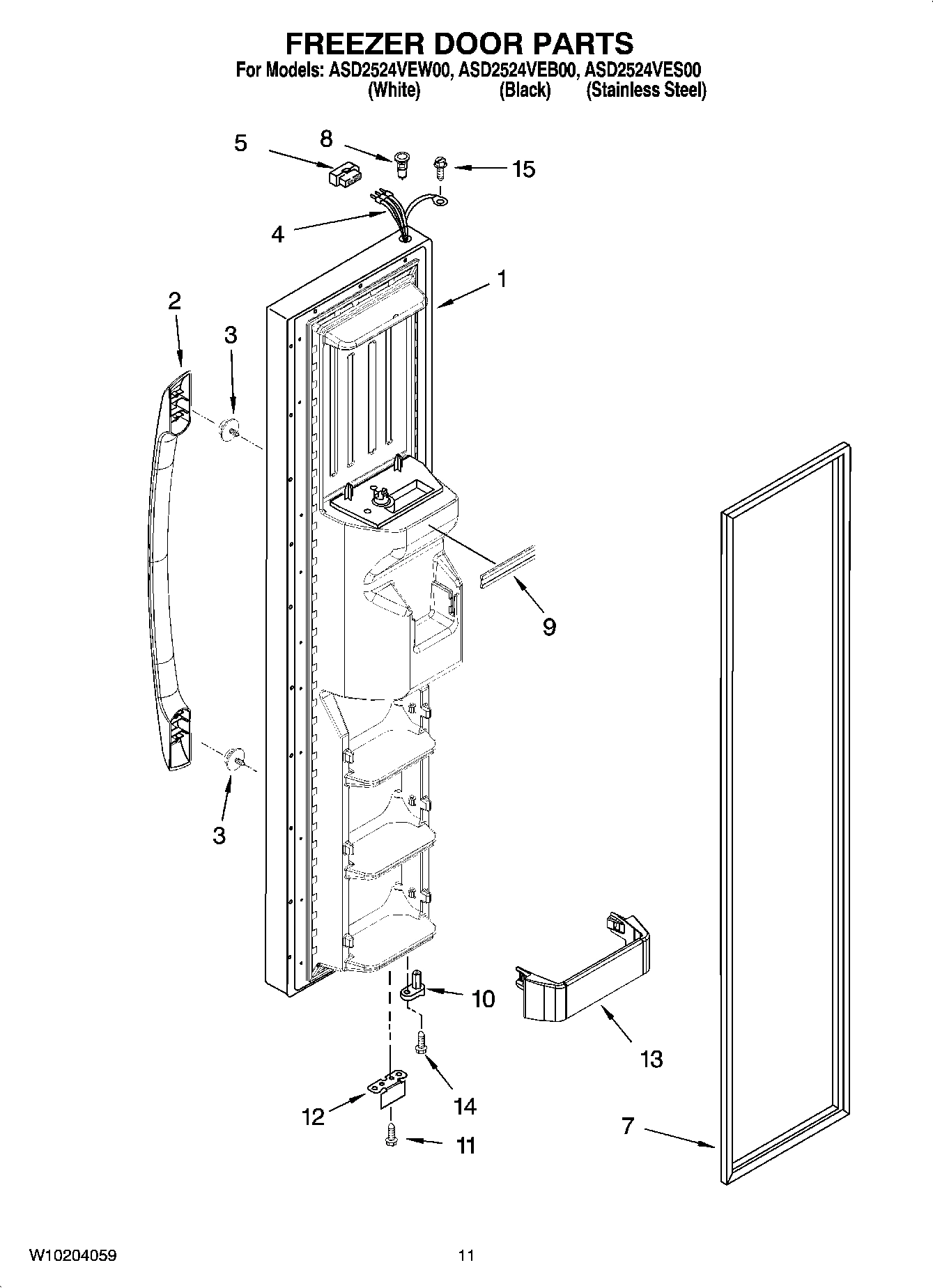

07 - FREEZER DOOR PARTS

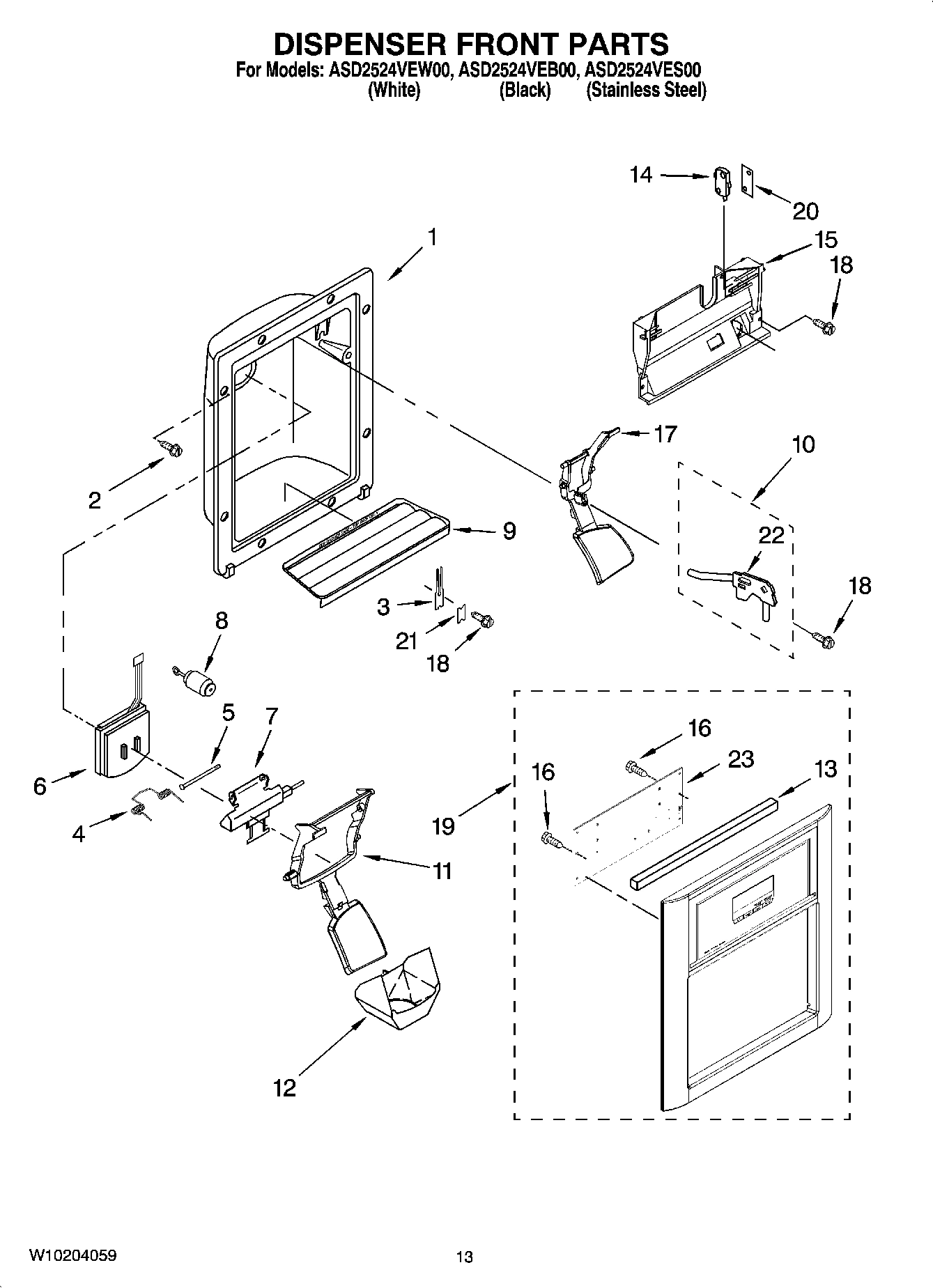

08 - DISPENSER FRONT PARTS

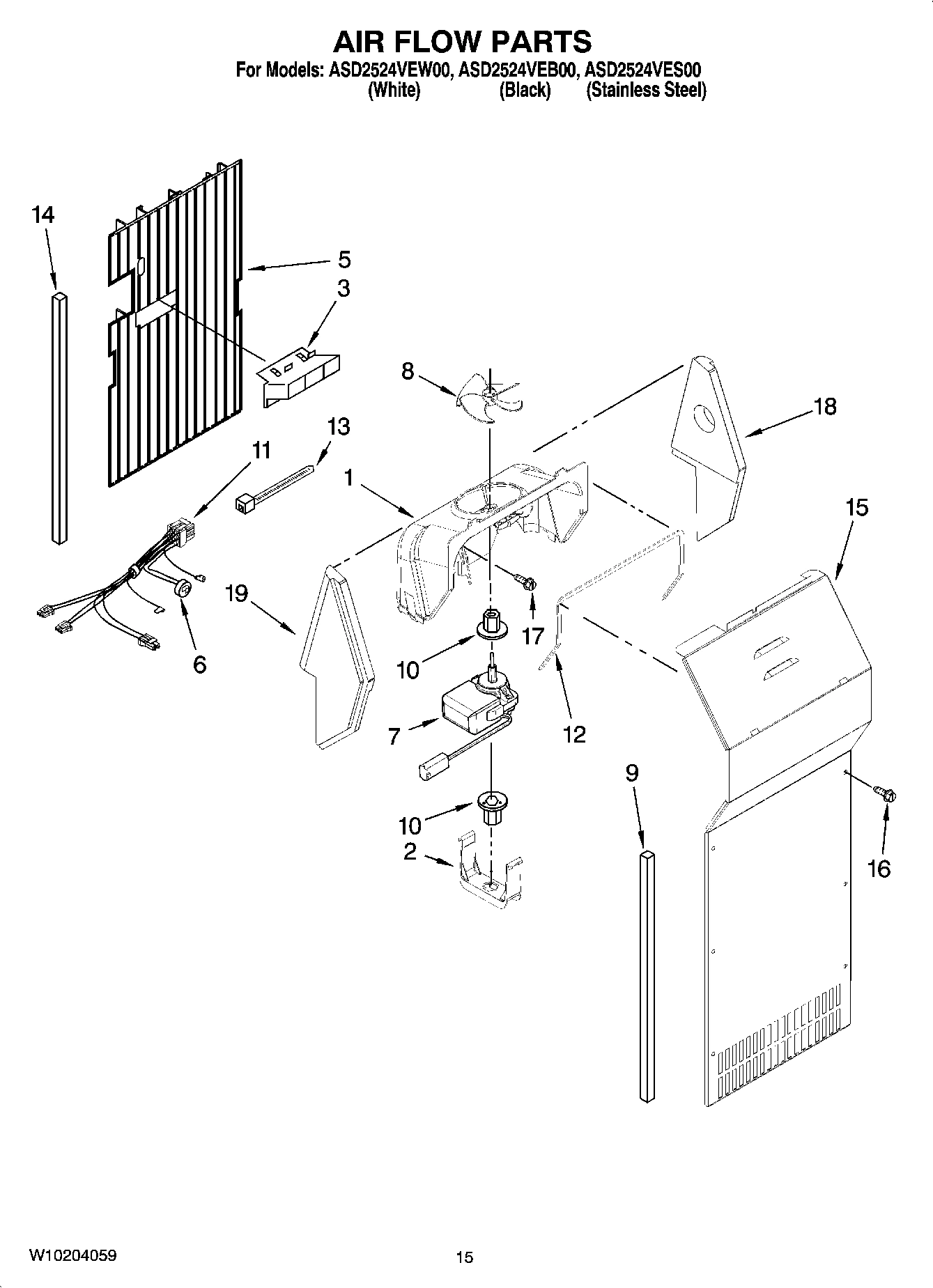

09 - AIR FLOW PARTS

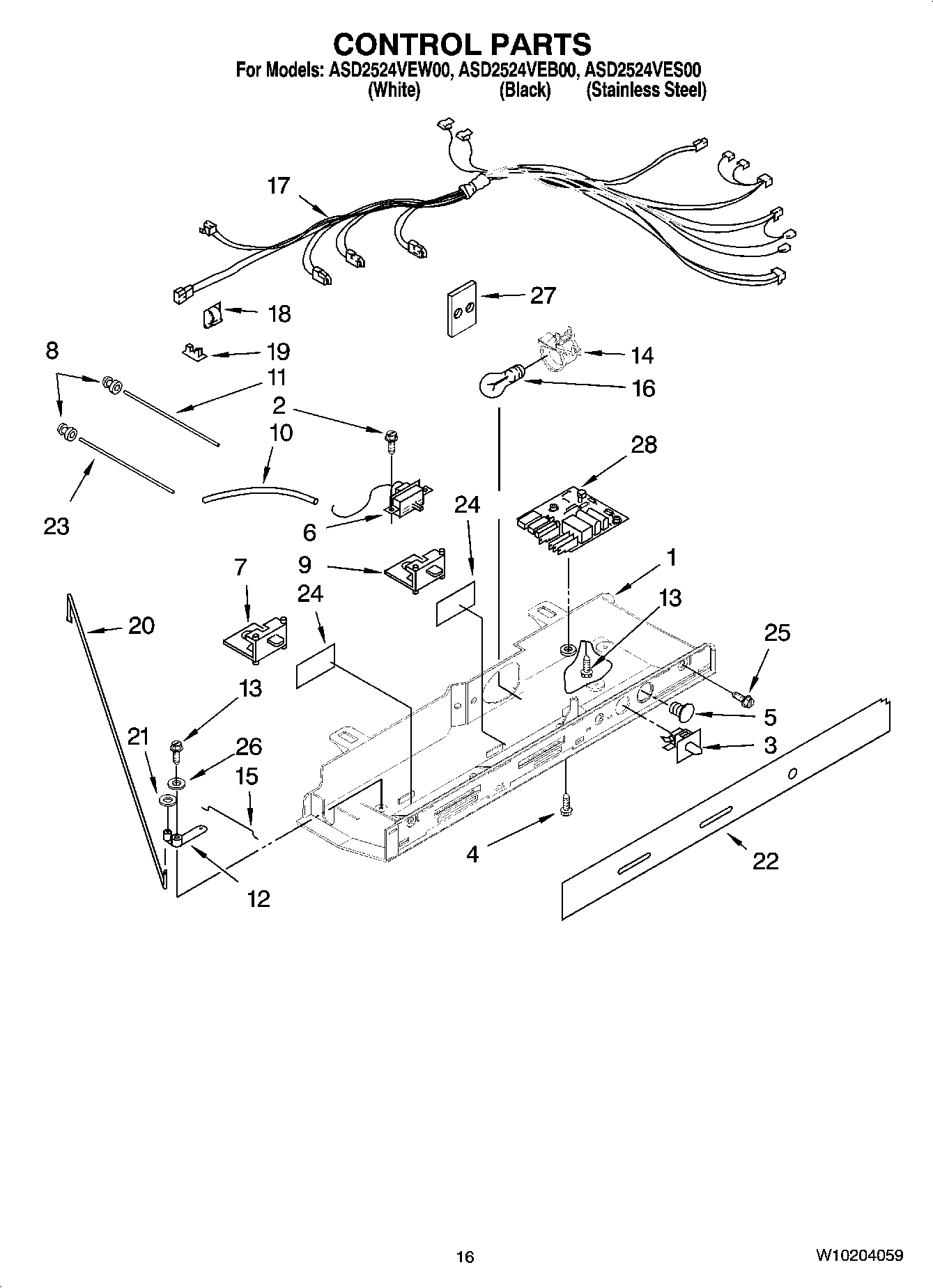

10 - CONTROL PARTS

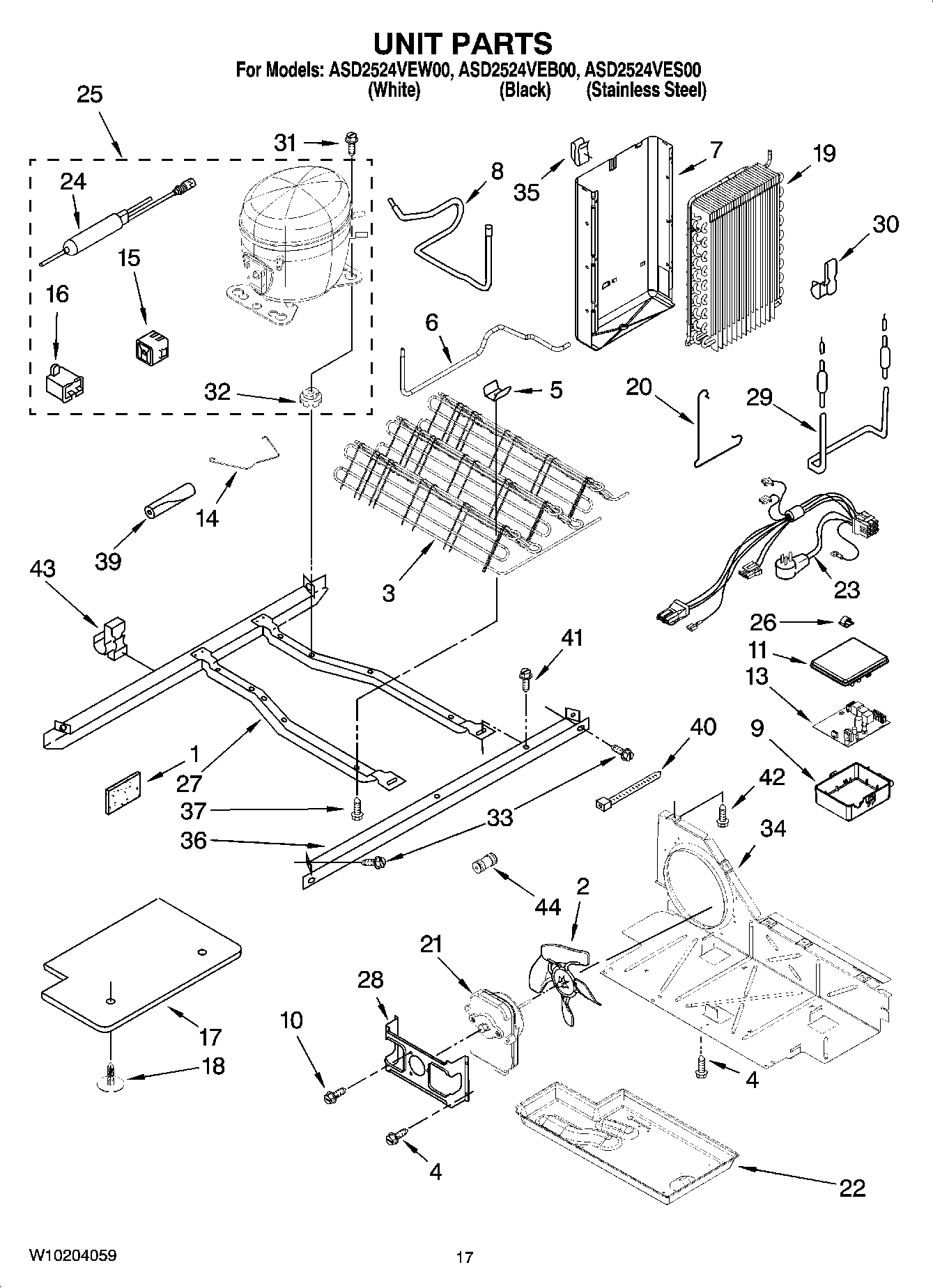

11 - UNIT PARTS

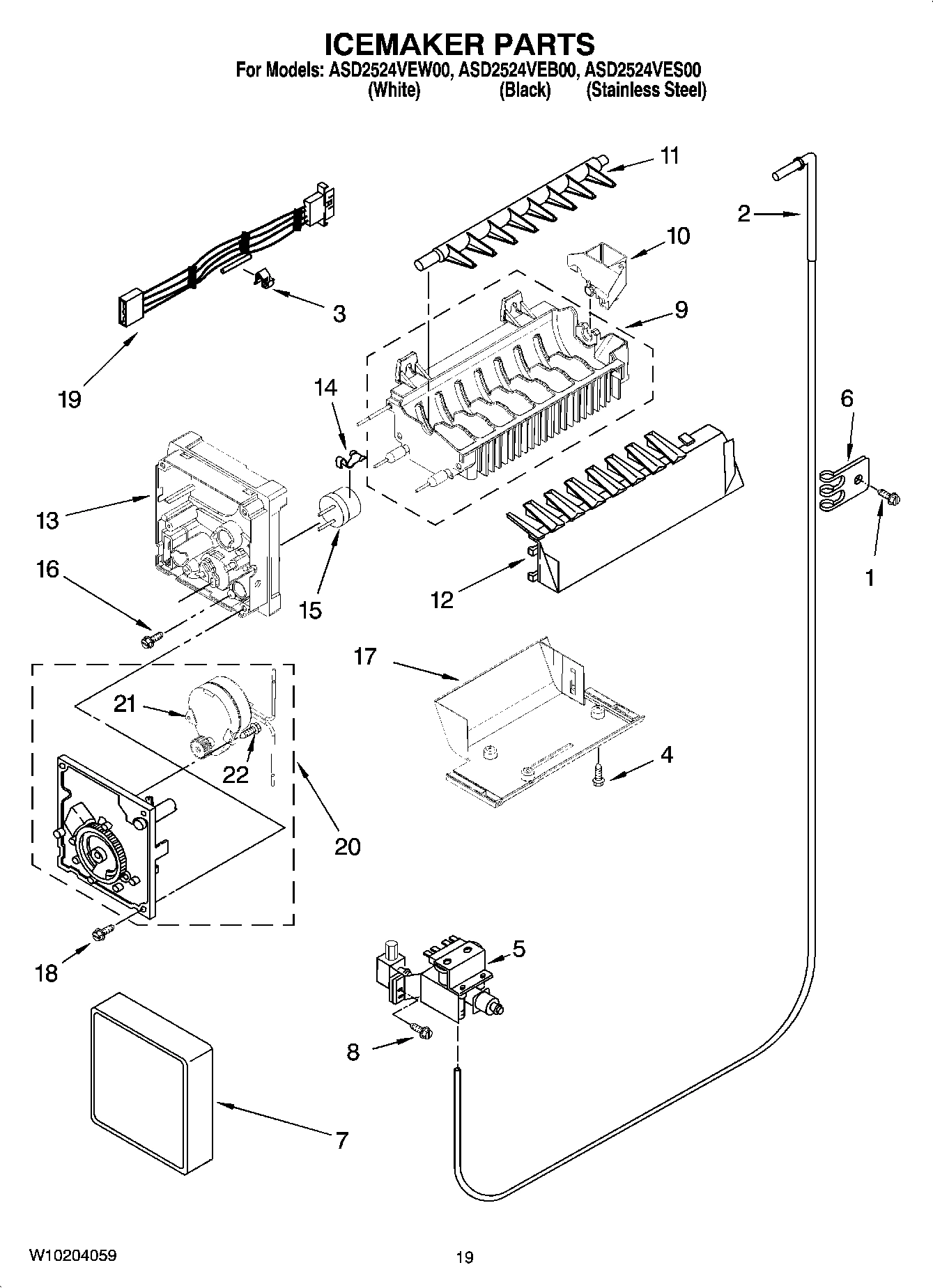

12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ASD2524VEW00 REFRIGERATOR
MAY 876764 MAY 876764 Contact Us For Availability
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 350930 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 350939 Contact Us For Availability
PAINT, BULK (1 qt.) (Primer, White) MAY 350942 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
PAINT, BULK (1 qt.) (Biscuit) MAY 4392901 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 80051 MAY 80051 Contact Us For Availability
MAY 8129 MAY 8129 Contact Us For Availability
PAINT, BULK (1 qt.) (Graphite) MAY 8171357 Contact Us For Availability
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10162456 MAY W10162456 Contact Us For Availability
1
MAY W10168294 MAY W10168294 Contact Us For Availability
1
MAY W10180856 MAY W10180856 Contact Us For Availability
1
MAY W10194140 MAY W10194140 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
MAY 2196485 MAY 2196485 Contact Us For Availability
1
MAY 2254587 MAY 2254587 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Stainles MAY 2318542S Contact Us For Availability
1
MAY W10173407 MAY W10173407 Contact Us For Availability
1
MAY W10173409 MAY W10173409 Contact Us For Availability
1
MAY W10169442 MAY W10169442 Contact Us For Availability
1
MAY W10169443 MAY W10169443 Contact Us For Availability
1
MAY W10169444 MAY W10169444 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
1
INSULATION, SOUND MAY 2169104 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
MAY 2188655 MAY 2188655 Contact Us For Availability
2
Shelf, Slide Out Upper MAY 2171714K Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
MAY 2256101 MAY 2256101 Contact Us For Availability
2
MAY W10136870 MAY W10136870 Contact Us For Availability
2
Handle, Assy (Black) MAY W10179169 Contact Us For Availability
2
Handle, Assy (White) MAY W10179171 Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
Screw (2) MAY 489214 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
Fitting, Water Tube MAY 2209774 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
Track, Basket-Dual (Left) MAY 2261448 Contact Us For Availability
3
Track, Basket-Dual (Right) MAY 2261449 Contact Us For Availability
3
Solenoid Assy MAY 2152713 Contact Us For Availability
3
Shelf Bin (3) MAY 2304235K Contact Us For Availability
3
Screw, Mounting MAY 2326016 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
Duct, I/M MAY 2182146 Contact Us For Availability
3
Switch, Light MAY 2149705 Contact Us For Availability
3
MAY W10121484 MAY W10121484 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
Rear Roller (2) MAY 2196236 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY 3400894 MAY 3400894 Contact Us For Availability
4
Shelf, Slide Out MAY 2174268K Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY W10167528 MAY W10167528 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 489398 MAY 489398 Contact Us For Availability
5
MAY 2256035 MAY 2256035 Contact Us For Availability
5
MAY 2196483 MAY 2196483 Contact Us For Availability
5
MAY 2182971 MAY 2182971 Contact Us For Availability
5
Connector MAY 2154473 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2203593 MAY 2203593 Contact Us For Availability
5
MAY 940014 MAY 940014 Contact Us For Availability
5
MAY 2216914 MAY 2216914 Contact Us For Availability
5
MAY 2315534 MAY 2315534 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Wire Harness, Dual Crisper MAY 2311637 Contact Us For Availability
6
Glass, Meat Cover MAY 2179259 Contact Us For Availability
6
MAY 3400893 MAY 3400893 Contact Us For Availability
6
Wire Assy, Disp MAY 2206501 Contact Us For Availability
6
Door Gasket, Magnetic (Black) MAY 2221313 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 2321799 MAY 2321799 Contact Us For Availability
6
Thermostat MAY 2315562 Contact Us For Availability
6
MAY 2161341 MAY 2161341 Contact Us For Availability
6
Clip, Tube MAY 2208136 Contact Us For Availability
7
Shelf Ladder MAY 2319866 Contact Us For Availability
7
MAY W10141752 MAY W10141752 Contact Us For Availability
7
MAY 2301289 MAY 2301289 Contact Us For Availability
7
MAY 2301290 MAY 2301290 Contact Us For Availability
7
MAY 489399 MAY 489399 Contact Us For Availability
7
Shelf Bin MAY 2156022 Contact Us For Availability
7
Door Gasket, Magnetic (Black) MAY 2221314 Contact Us For Availability
7
MAY 2326339 MAY 2326339 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
7
MAY 2181741 MAY 2181741 Contact Us For Availability
7
MAY 2217194 MAY 2217194 Contact Us For Availability
7
MAY 2174155 MAY 2174155 Contact Us For Availability
8
Shim MAY 2156056 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
MAY 2205837K MAY 2205837K Contact Us For Availability
8
Coupling, Mtr MAY W10140958 Contact Us For Availability
8
Handle, Assy (Stainless) MAY W10136871 Contact Us For Availability
8
Handle, Assy (Black) MAY W10179166 Contact Us For Availability
8
Handle, Assy (White) MAY W10179168 Contact Us For Availability
8
Thimble-Top (For White, Black, Biscuit and St MAY 2301049 Contact Us For Availability
8
Thimble-Top (For Stainless Steel Model) MAY 2308091 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
Grommet, Light Bar (4) MAY 2172906 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
9
HINGE TOP RC MAY 2203771 Contact Us For Availability
9
Screw (8) MAY W10004810 Contact Us For Availability
9
MAY 8281158 MAY 8281158 Contact Us For Availability
9
Trim, Door Shelf MAY 2313199K Contact Us For Availability
9
Grille, Overflow (Black) MAY 2206670B Contact Us For Availability
9
Grille, Overflow (White) MAY 2206670W Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 2161466 MAY 2161466 Contact Us For Availability
9
MAY 2326982 MAY 2326982 Contact Us For Availability
9
MAY W10122527 MAY W10122527 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 2256085 MAY 2256085 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
Tube Barrier MAY 2196001 Contact Us For Availability
10
MAY 8533993 MAY 8533993 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 8281227 MAY 8281227 Contact Us For Availability
11
Screw MAY 489290 Contact Us For Availability
11
Body, Humidity Control MAY 2179343 Contact Us For Availability
11
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
11
Container, Ice MAY 2196091 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
Harness, Fan Evaporator (Includes 6) MAY W10129815 Contact Us For Availability
11
MAY 2179920 MAY 2179920 Contact Us For Availability
11
Box Cover MAY 2255624 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Hinge Cover (FC) (White) MAY W10138576 Contact Us For Availability
12
Hinge Cover (FC) (Black) MAY W10138577 Contact Us For Availability
12
MAY W10151374 MAY W10151374 Contact Us For Availability
12
MAY 2179342 MAY 2179342 Contact Us For Availability
12
Door, Ice Comp MAY 2171713K Contact Us For Availability
12
Spacer, Step (2) MAY 1119005 Contact Us For Availability
12
Bracket, Door Stop (Chrome) MAY 2323534 Contact Us For Availability
12
Bracket, Door Stop (Black) MAY 2323534B Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
Pivot Arm MAY 2161306 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
Hinge Bottom (FC) MAY 2303141 Contact Us For Availability
13
Hinge Bottom (RC) MAY W10138965 Contact Us For Availability
13
Air Diffuser Cover MAY 2152019 Contact Us For Availability
13
Trim, Handle MAY 2255593 Contact Us For Availability
13
Slide, Ice Maker Mounting (Left Side) MAY 1119237 Contact Us For Availability
13
Slide, Ice Maker Mounting (Right Side) MAY 1119293 Contact Us For Availability
13
Spacer, Flat (4) MAY 1119007 Contact Us For Availability
13
Trivet-FC MAY 2174267K Contact Us For Availability
13
MAY 2305571 MAY 2305571 Contact Us For Availability
13
MAY 627068 MAY 627068 Contact Us For Availability
13
MAY 2322547 MAY 2322547 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 2304846 MAY 2304846 Contact Us For Availability
14
MAY 2304848 MAY 2304848 Contact Us For Availability
14
MAY 2150331 MAY 2150331 Contact Us For Availability
14
Light Socket MAY 2162085 Contact Us For Availability
14
MAY 2188654 MAY 2188654 Contact Us For Availability
14
MAY 2257022 MAY 2257022 Contact Us For Availability
14
MAY 3400012 MAY 3400012 Contact Us For Availability
14
MAY 12528501 MAY 12528501 Contact Us For Availability
14
Switch MAY 2162361 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
MAY 2223314 MAY 2223314 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY W10184886 MAY W10184886 Contact Us For Availability
15
MAY W10184888 MAY W10184888 Contact Us For Availability
15
MAY 2179350 MAY 2179350 Contact Us For Availability
15
MAY 2257023 MAY 2257023 Contact Us For Availability
15
MAY 488500 MAY 488500 Contact Us For Availability
15
MAY W10167536 MAY W10167536 Contact Us For Availability
15
Cover, Evaporator (Includes 9) MAY 2203841 Contact Us For Availability
15
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
15
Start-Device, Combination (Start Relay and Ov MAY 2304884 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
MAY 489497 MAY 489497 Contact Us For Availability
16
MAY 2307107 MAY 2307107 Contact Us For Availability
16
MAY 2255743 MAY 2255743 Contact Us For Availability
16
Trim, Handle MAY 2255592 Contact Us For Availability
16
MAY 2257024 MAY 2257024 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 2169373 MAY 2169373 Contact Us For Availability
16
Capacitor (Service) MAY 2264017 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
Shelf, Snack Bin MAY W10141750 Contact Us For Availability
17
MAY 489235 MAY 489235 Contact Us For Availability
17
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
17
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
17
MAY 2187868 MAY 2187868 Contact Us For Availability
17
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
17
Bracket, Ice Maker Mounting MAY 628320 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
MAY 2209769 MAY 2209769 Contact Us For Availability
18
MAY 2179243 MAY 2179243 Contact Us For Availability
18
Light Lens MAY 2171705 Contact Us For Availability
18
MAY 1119009 MAY 1119009 Contact Us For Availability
18
MAY 489000 MAY 489000 Contact Us For Availability
18
MAY 2203595 MAY 2203595 Contact Us For Availability
18
MAY 489396 MAY 489396 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
19
MAY 2304937 MAY 2304937 Contact Us For Availability
19
Screw MAY 488280 Contact Us For Availability
19
Shelf Assembly, Spillguard (2) MAY W10141749 Contact Us For Availability
19
Block, Blade MAY 2157405 Contact Us For Availability
19
MAY W10139879 MAY W10139879 Contact Us For Availability
19
MAY W10139881 MAY W10139881 Contact Us For Availability
19
MAY 2203596 MAY 2203596 Contact Us For Availability
19
Clip-Wiring MAY 1115375 Contact Us For Availability
19
Evaporator MAY 2188823 Contact Us For Availability
19
MAY 2187464 MAY 2187464 Contact Us For Availability
20
MAY 1108439 MAY 1108439 Contact Us For Availability
20
MAY 489229 MAY 489229 Contact Us For Availability
20
MAY 625834 MAY 625834 Contact Us For Availability
20
Connecting Rod MAY 2161308 Contact Us For Availability
20
Clip MAY 2161324 Contact Us For Availability
20
Module Assembly (Includes Items 37 & 38) MAY 626691 Contact Us For Availability
21
MAY 2188739 MAY 2188739 Contact Us For Availability
21
MAY 2196295 MAY 2196295 Contact Us For Availability
21
MAY 2195051 MAY 2195051 Contact Us For Availability
21
Fastner, Push-On MAY 489391 Contact Us For Availability
21
Motor, Fan MAY 2188874 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
MAY 2305377 MAY 2305377 Contact Us For Availability
22
MAY 2304673 MAY 2304673 Contact Us For Availability
22
MAY W10176424 MAY W10176424 Contact Us For Availability
22
MAY 1105523 MAY 1105523 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
Hinge Cover (RC) (White) MAY W10138581 Contact Us For Availability
23
Hinge Cover (RC) (Black) MAY W10138582 Contact Us For Availability
23
Baffle, Floating MAY 2171682 Contact Us For Availability
23
MAY W10170979 MAY W10170979 Contact Us For Availability
23
LIGHT BAR FC MAY 2179921 Contact Us For Availability
23
MAY W10163019 MAY W10163019 Contact Us For Availability
24
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
MAY 2175513 MAY 2175513 Contact Us For Availability
24
MAY 2317845 MAY 2317845 Contact Us For Availability
24
MAY W10177049 MAY W10177049 Contact Us For Availability
25
MAY 2155231 MAY 2155231 Contact Us For Availability
25
Compressor (Includes Items 15, 16, 24, & 32) MAY W10120459 Contact Us For Availability
26
DOOR CLOSER, RC MAY 2155311 Contact Us For Availability
26
DOOR CLOSER, FC MAY 2223751 Contact Us For Availability
26
MAY 1115374 MAY 1115374 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
Spring Washer MAY 489203 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 1119021 MAY 1119021 Contact Us For Availability
27
MAY 2172931 MAY 2172931 Contact Us For Availability
27
MAY 2304904 MAY 2304904 Contact Us For Availability
28
MAY 2260507 MAY 2260507 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
Control, Elec MAY 2303824 Contact Us For Availability
28
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
29
MAY 4396841 MAY 4396841 Contact Us For Availability
29
MAY 2180348 MAY 2180348 Contact Us For Availability
29
MAY 2323198 MAY 2323198 Contact Us For Availability
30
MAY 2260502B MAY 2260502B Contact Us For Availability
30
MAY 2260502W MAY 2260502W Contact Us For Availability
30
MAY 1119017 MAY 1119017 Contact Us For Availability
30
Clip, Heater MAY 2304287 Contact Us For Availability
31
MAY 489500 MAY 489500 Contact Us For Availability
31
MAY 489234 MAY 489234 Contact Us For Availability
31
MAY 489373 MAY 489373 Contact Us For Availability
32
Block, Housing Support MAY 2260519 Contact Us For Availability
32
MAY 489236 MAY 489236 Contact Us For Availability
32
MAY 1100826 MAY 1100826 Contact Us For Availability
32
MAY 4387558 MAY 4387558 Contact Us For Availability
33
MAY 2260503B MAY 2260503B Contact Us For Availability
33
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
33
Cover, Ice Cont`r MAY 2204321 Contact Us For Availability
33
MAY 489340 MAY 489340 Contact Us For Availability
34
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
34
MAY 527949 MAY 527949 Contact Us For Availability
34
MAY 2196202 MAY 2196202 Contact Us For Availability
35
MAY 2319867 MAY 2319867 Contact Us For Availability
35
Lens, Light MAY 2171706 Contact Us For Availability
35
Clip, Heat MAY 2155547 Contact Us For Availability
36
HINGE TOP, FC MAY 2203770 Contact Us For Availability
36
MAY 2305374 MAY 2305374 Contact Us For Availability
37
MAY 8281232 MAY 8281232 Contact Us For Availability
39
MAY 2161302 MAY 2161302 Contact Us For Availability
40
Wire Tie MAY 2172840 Contact Us For Availability
41
MAY 489427 MAY 489427 Contact Us For Availability
43
MAY W10169512 MAY W10169512 Contact Us For Availability
44
Union MAY 2320322 Contact Us For Availability
NI
MAY W10122506 MAY W10122506 Contact Us For Availability
× ![]()
Login and Registration Form
