Model Electrolux AS287L2K1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - SYSTEM PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AS287L2K1 ROOM AIR CONDITIONER
*12252
INSULATION - VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
*12254
WCI 3017560 WCI 3017560 Contact Us For Availability
1
WRAPPER WCI 3016221 Contact Us For Availability
1

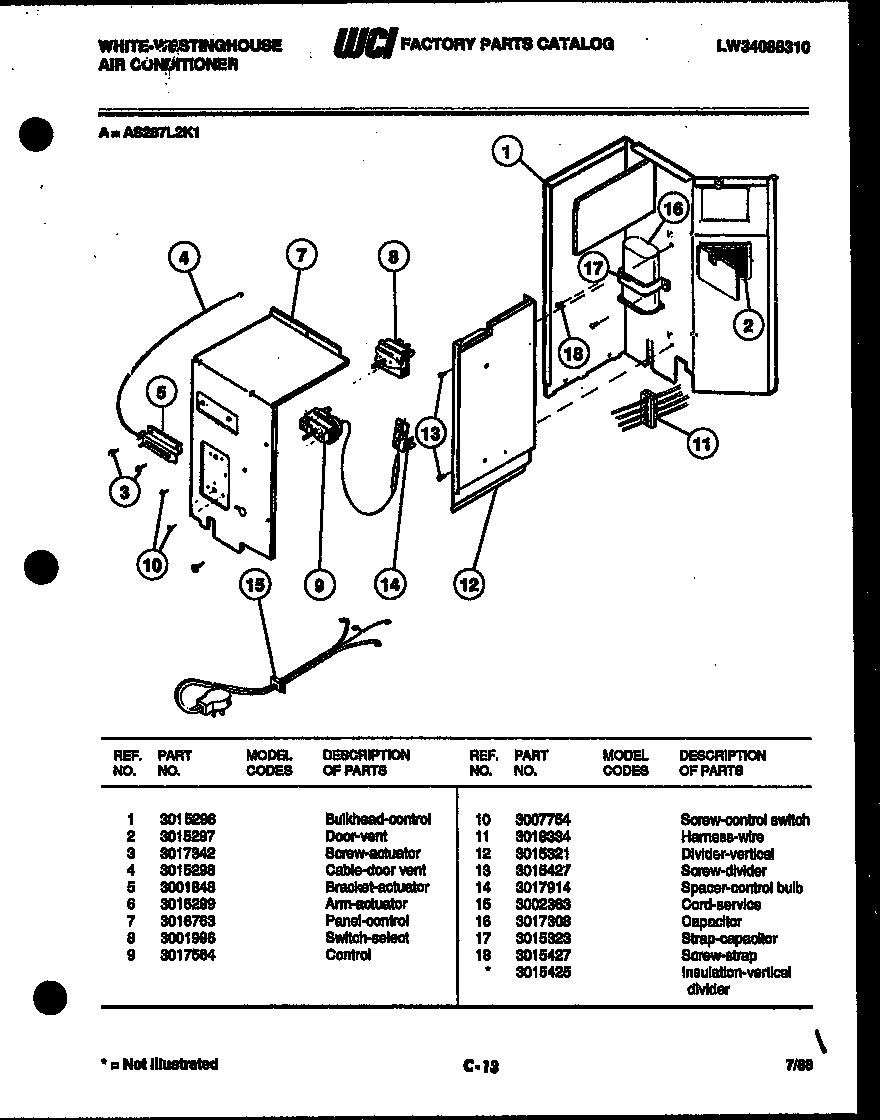

BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
MOTOR-FANS WCI 3017557 Contact Us For Availability
1
WCI 3017558 WCI 3017558 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2

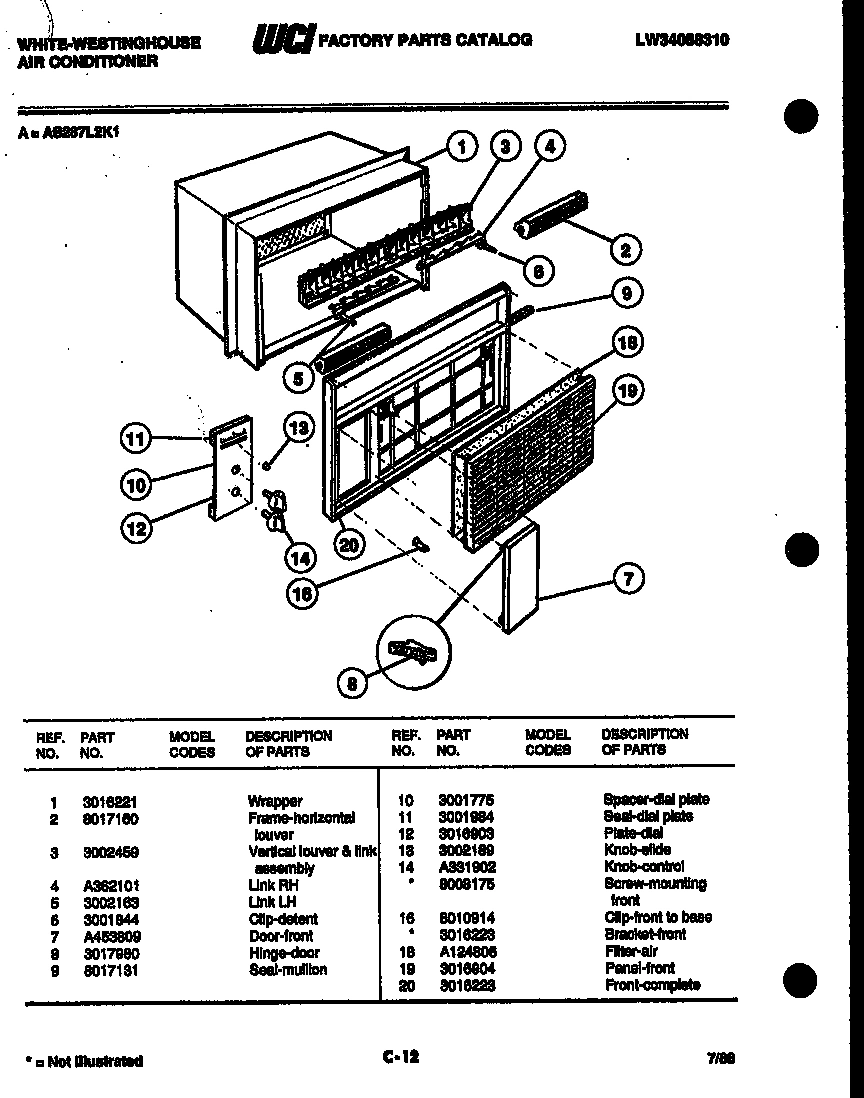

FRAME-HORIZONTAL LOUVER WCI 8017160 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
SCREW-MOUNTING MOTOR WCI 3015294 Contact Us For Availability
2
NUT-COMPRESSOR MOUNTING WCI 8006948 Contact Us For Availability
2
ANGLE-STOP WCI 8047518 Contact Us For Availability
3
VERTICAL-LOUVER & LINK ASSEMBLY WCI 3002459 Contact Us For Availability
3
WCI 3017342 WCI 3017342 Contact Us For Availability
3
SHROUD-UPPER WCI 3015305 Contact Us For Availability
3
WCI 3001814 WCI 3001814 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
LINK-RH WCI A362101 Contact Us For Availability
4
WCI 3015298 WCI 3015298 Contact Us For Availability
4
SHROUD-LOWER WCI 3015304 Contact Us For Availability
4
WCI 3001846 WCI 3001846 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
LINK LH WCI 3002163 Contact Us For Availability
5
WCI 3001848 WCI 3001848 Contact Us For Availability
5
COVER-TERMINAL WCI 3001845 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
CLIP-DETENT WCI 3001844 Contact Us For Availability
6
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
6
NUT WCI 3211017 Contact Us For Availability
6
ANGLE-SIDE WINDOW WCI 3002059 Contact Us For Availability
7
WCI A453809 WCI A453809 Contact Us For Availability
7
WCI 3016763 WCI 3016763 Contact Us For Availability
7
SEAL-CONDITIONER SHROUD WCI 3016696 Contact Us For Availability
7
WCI 3016182 WCI 3016182 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3017980 WCI 3017980 Contact Us For Availability
8
SWITCH-SELECT WCI 3001996 Contact Us For Availability
8
WCI 3015306 WCI 3015306 Contact Us For Availability
8
WCI 3015302 WCI 3015302 Contact Us For Availability
8
BRACKET, WINDOW WCI A125501 Contact Us For Availability
9
WCI 8017131 WCI 8017131 Contact Us For Availability
9
WCI 3017564 WCI 3017564 Contact Us For Availability
9
WCI 3017307 WCI 3017307 Contact Us For Availability
9
WCI H101406 WCI H101406 Contact Us For Availability
10
WCI 3001775 WCI 3001775 Contact Us For Availability
10
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
10
WCI 3017959 WCI 3017959 Contact Us For Availability
10
KIT, START WCI A250904 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
11
WCI 3018334 WCI 3018334 Contact Us For Availability
11
WCI 3015309 WCI 3015309 Contact Us For Availability
11
WCI 3016901 WCI 3016901 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 3016903 WCI 3016903 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
WCI 3012110 WCI 3012110 Contact Us For Availability
13
WCI 3002189 WCI 3002189 Contact Us For Availability
13
WCI 3015310 WCI 3015310 Contact Us For Availability
13
WCI 3002664 WCI 3002664 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI A331902 WCI A331902 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3017914 Contact Us For Availability
14
WCI 3015311 WCI 3015311 Contact Us For Availability
14
GASKET-PANEL/SLEEVE WCI 3001819 Contact Us For Availability
14A
SCREW-MOUNTING FRONT (NON-ILLUSTRATED) WCI 8008175 Contact Us For Availability
15
WCI 3002363 WCI 3002363 Contact Us For Availability
15
WCI 3015313 WCI 3015313 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CAPACITOR WCI 3017308 Contact Us For Availability
16
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
16
ANGLE-TOP WINDOW WCI 3002058 Contact Us For Availability
17
WCI 3015323 WCI 3015323 Contact Us For Availability
18
WCI A124806 WCI A124806 Contact Us For Availability
18
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
19
WCI 3016904 WCI 3016904 Contact Us For Availability
20
FRONT-COMPLETE WCI 3016223 Contact Us For Availability
× ![]()
