Model Electrolux AS246L2C9 ROOM AIR CONDITIONER – Common Parts & Diagrams

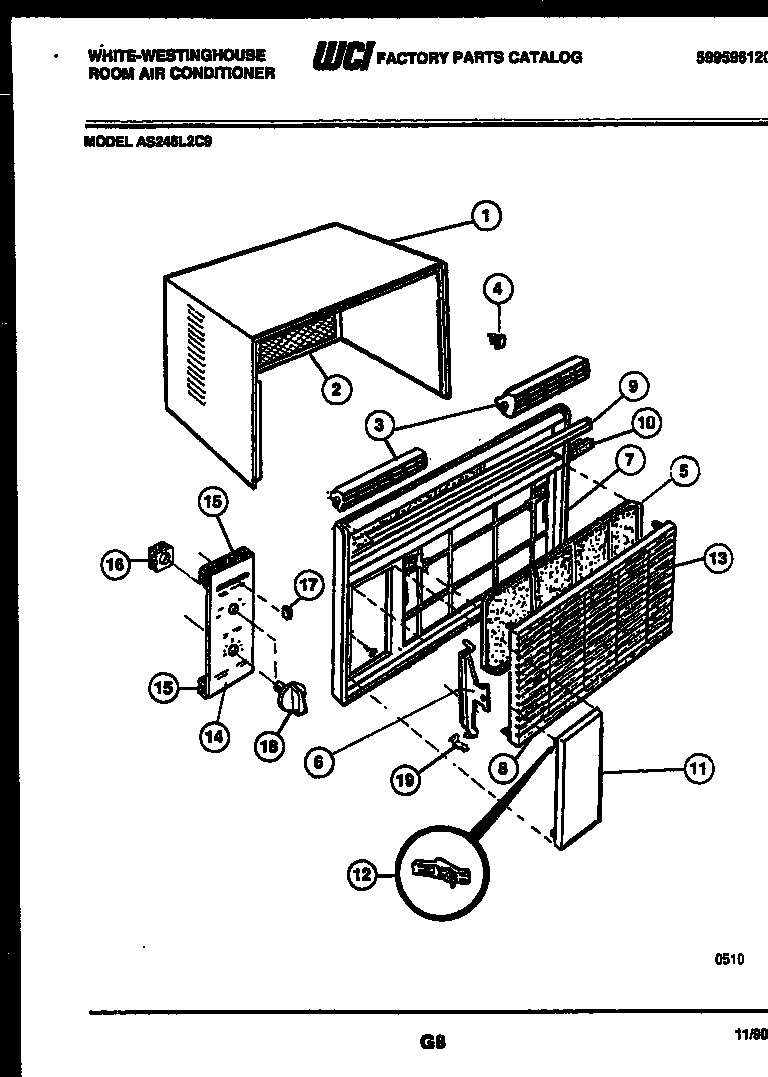

02 - CABINET PARTS

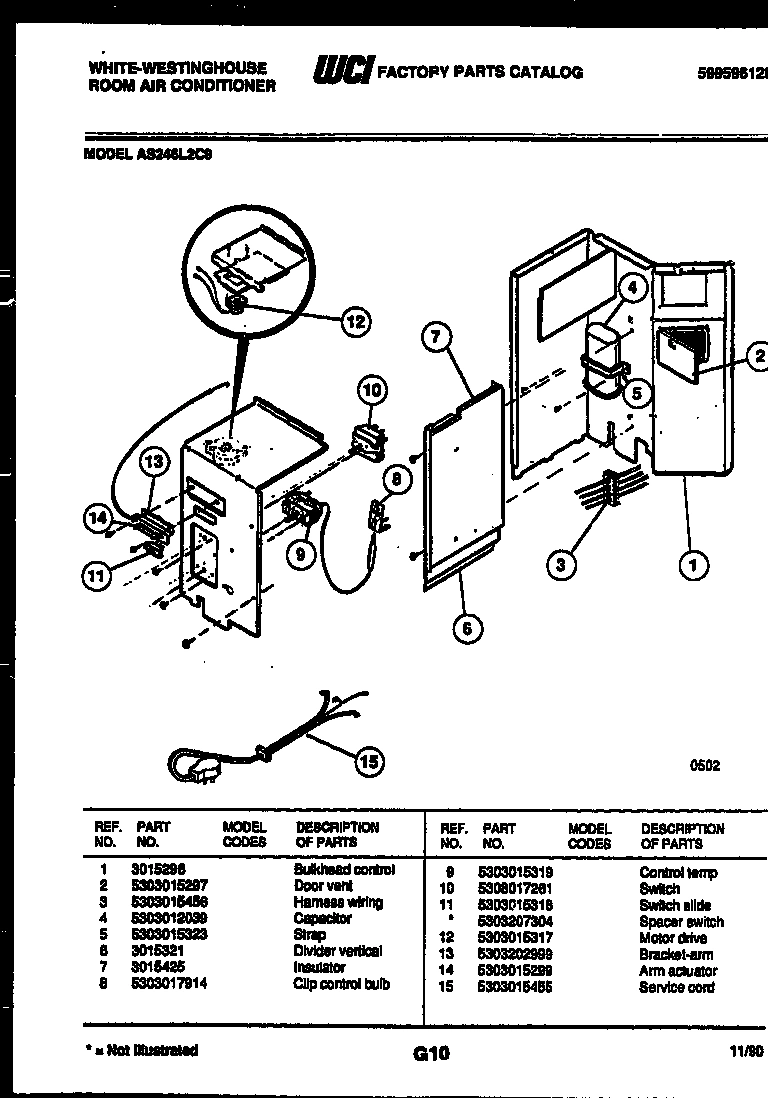

03 - ELECTRICAL PARTS

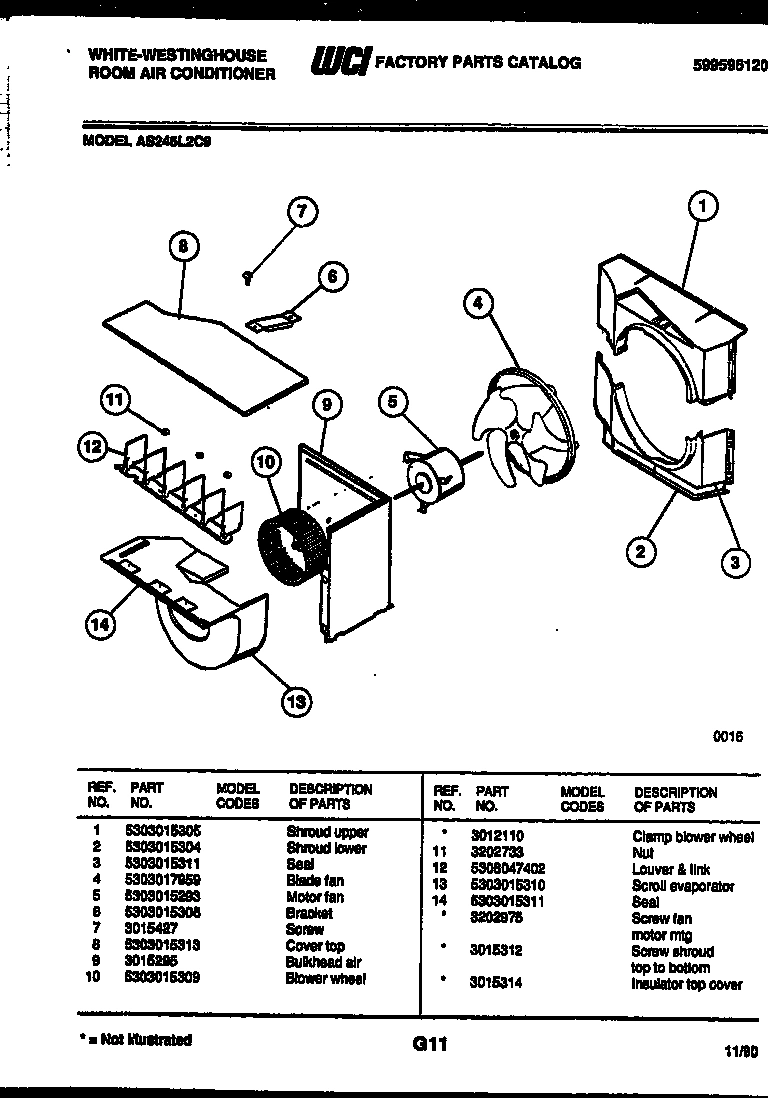

04 - AIR HANDLING PARTS

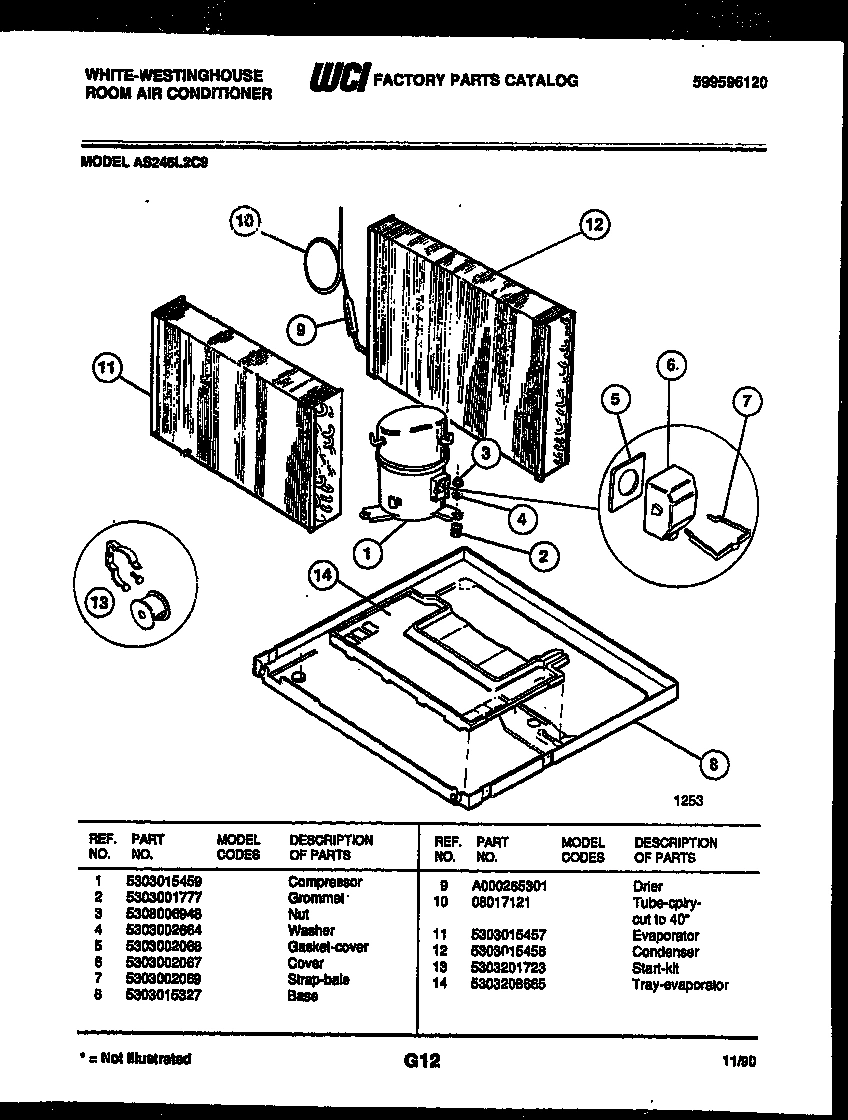

05 - SYSTEM PARTS
Common parts from model Electrolux AS246L2C9 ROOM AIR CONDITIONER
*37592
INSULATOR TOP COVER WCI 3015314 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303015305 WCI 5303015305 Contact Us For Availability
1
WCI 5303015459 WCI 5303015459 Contact Us For Availability
2
GRILLE-REAR WCI 5303210207 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
WCI 5303015304 WCI 5303015304 Contact Us For Availability
2
GROMMET WCI 5303001777 Contact Us For Availability
2A
CABINET FRONT COMPLETE (NON-ILLUSTRATED) WCI 5303017075 Contact Us For Availability
2B
SCREW CAB FRONT (2) (NON-ILLUSTRATED) WCI 5308008175 Contact Us For Availability
3
WCI 5308017160 WCI 5308017160 Contact Us For Availability
3
WCI 5303015456 WCI 5303015456 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
WCI 5308017263 WCI 5308017263 Contact Us For Availability
4
WCI 5303012039 WCI 5303012039 Contact Us For Availability
4
WCI 5303017959 WCI 5303017959 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
5
FILTER-FRAMED WCI 5300462101 Contact Us For Availability
5
STRAP WCI 5303015323 Contact Us For Availability
5
WCI 5303015293 WCI 5303015293 Contact Us For Availability
5
WCI 5303002068 WCI 5303002068 Contact Us For Availability
6
WCI 5300345801 WCI 5300345801 Contact Us For Availability
6
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
6
BRACKET WCI 5303015306 Contact Us For Availability
6
WCI 5303002067 WCI 5303002067 Contact Us For Availability
7
FRAME FRONT WCI 5300454302 Contact Us For Availability
7
INSULATOR WCI 3015425 Contact Us For Availability
7
WCI 5303002069 WCI 5303002069 Contact Us For Availability
8
WCI 5300138101 WCI 5300138101 Contact Us For Availability
8
WCI 5303017914 WCI 5303017914 Contact Us For Availability
8
WCI 5303015313 WCI 5303015313 Contact Us For Availability
8
WCI 5303015327 WCI 5303015327 Contact Us For Availability
9
TRIM WCI 5300344903 Contact Us For Availability
9
CONTROL TEMP WCI 5303015319 Contact Us For Availability
9
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
10
SEAL WCI 08017259 Contact Us For Availability
10
SWITCH WCI 5308017261 Contact Us For Availability
10
BLOWER WHEEL WCI 5303015309 Contact Us For Availability
10
TUBE-CPLRY (CUT TO 40``) WCI 08017121 Contact Us For Availability
10A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
11
DOOR WCI 3202502 Contact Us For Availability
11
SWITCH-SLIDE WCI 5303015318 Contact Us For Availability
11
WCI 3202733 WCI 3202733 Contact Us For Availability
11
WCI 5303015457 WCI 5303015457 Contact Us For Availability
11A
SPACER SWITCH (NON-ILLUSTRATED) WCI 5303207304 Contact Us For Availability
12
WCI 5303017980 WCI 5303017980 Contact Us For Availability
12
MOTOR-DRIVE WCI 5303015317 Contact Us For Availability
12
WCI 5308047402 WCI 5308047402 Contact Us For Availability
12
WCI 5303015458 WCI 5303015458 Contact Us For Availability
13
WCI 5300454403 WCI 5300454403 Contact Us For Availability
13
BRACKET-ARM WCI 5303202999 Contact Us For Availability
13
SCROLL-EVAPORATOR WCI 5303015310 Contact Us For Availability
13
WCI 5303201723 WCI 5303201723 Contact Us For Availability
14
WCI 5303202729 WCI 5303202729 Contact Us For Availability
14
WCI 5303015299 WCI 5303015299 Contact Us For Availability
14
SEAL WCI 5303015311 Contact Us For Availability
14
WCI 5303208665 WCI 5303208665 Contact Us For Availability
15
WCI 5303001984 WCI 5303001984 Contact Us For Availability
15
WCI 5303015455 WCI 5303015455 Contact Us For Availability
16
WCI 5303001775 WCI 5303001775 Contact Us For Availability
17
WCI 5303002189 WCI 5303002189 Contact Us For Availability
18
KNOB-CONTROL (2) WCI 5300331902 Contact Us For Availability
19
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
× ![]()
