Model Electrolux AS18EN2K1 ROOM AIR CONDITIONER – Common Parts & Diagrams

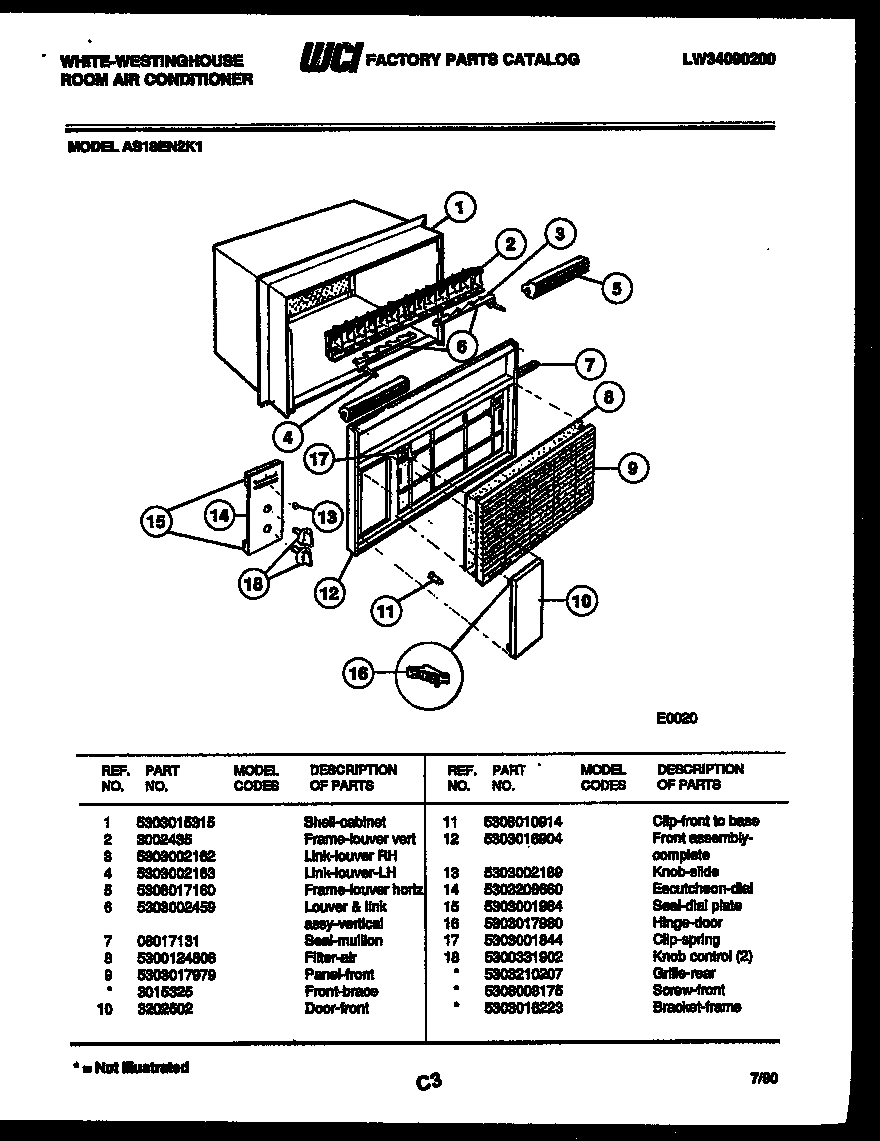

02 - CABINET PARTS

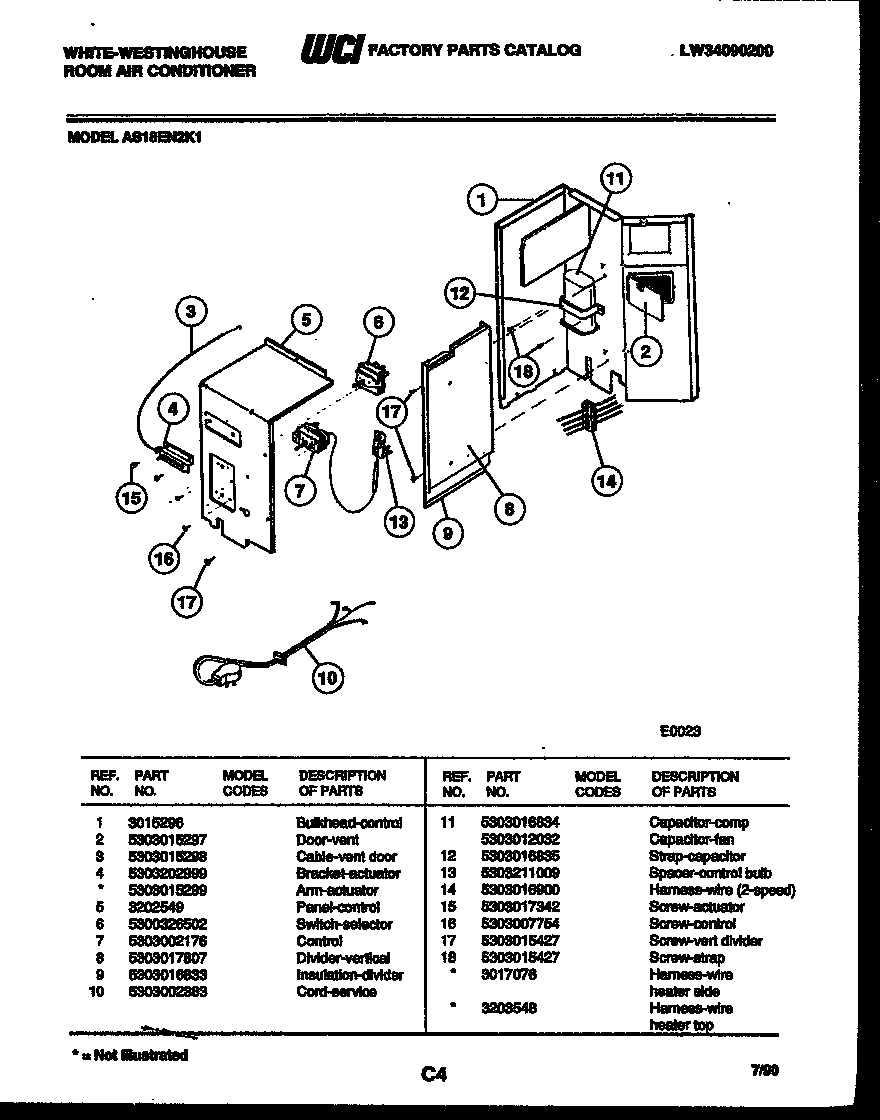

03 - ELECTRICAL PARTS

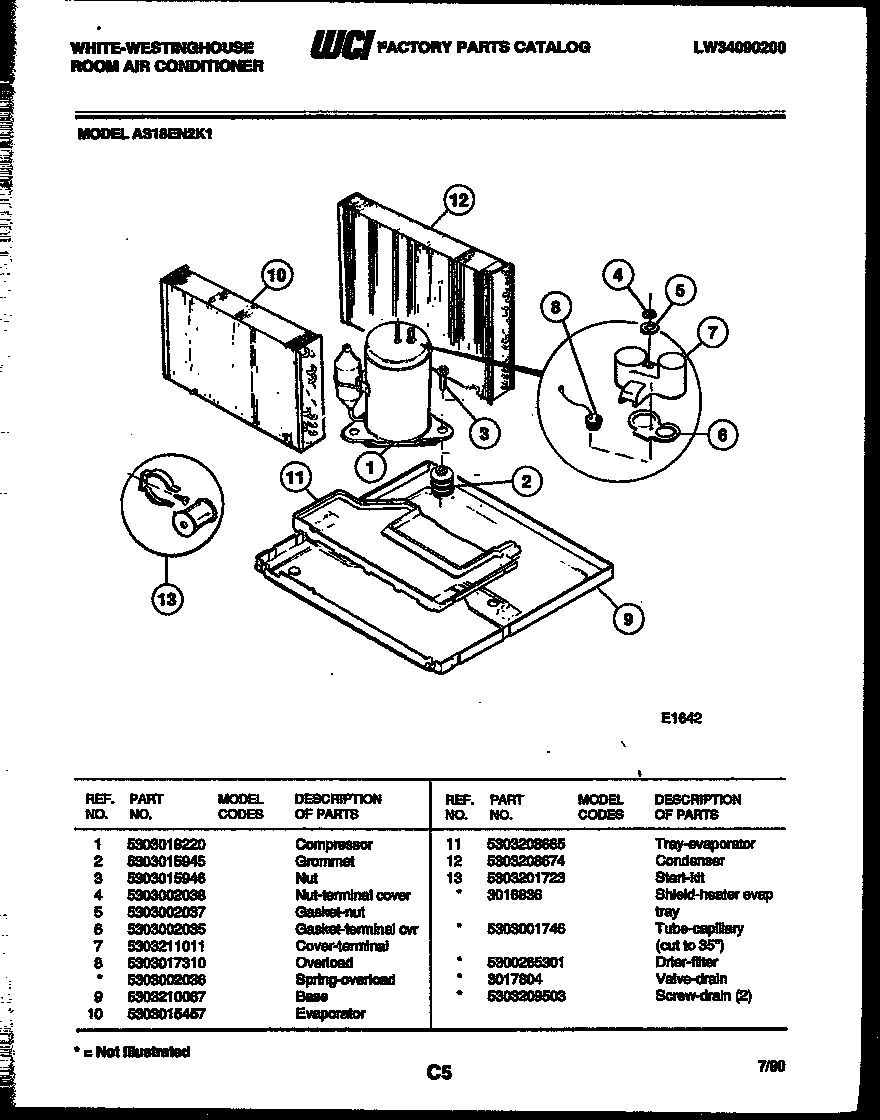

04 - SYSTEM PARTS

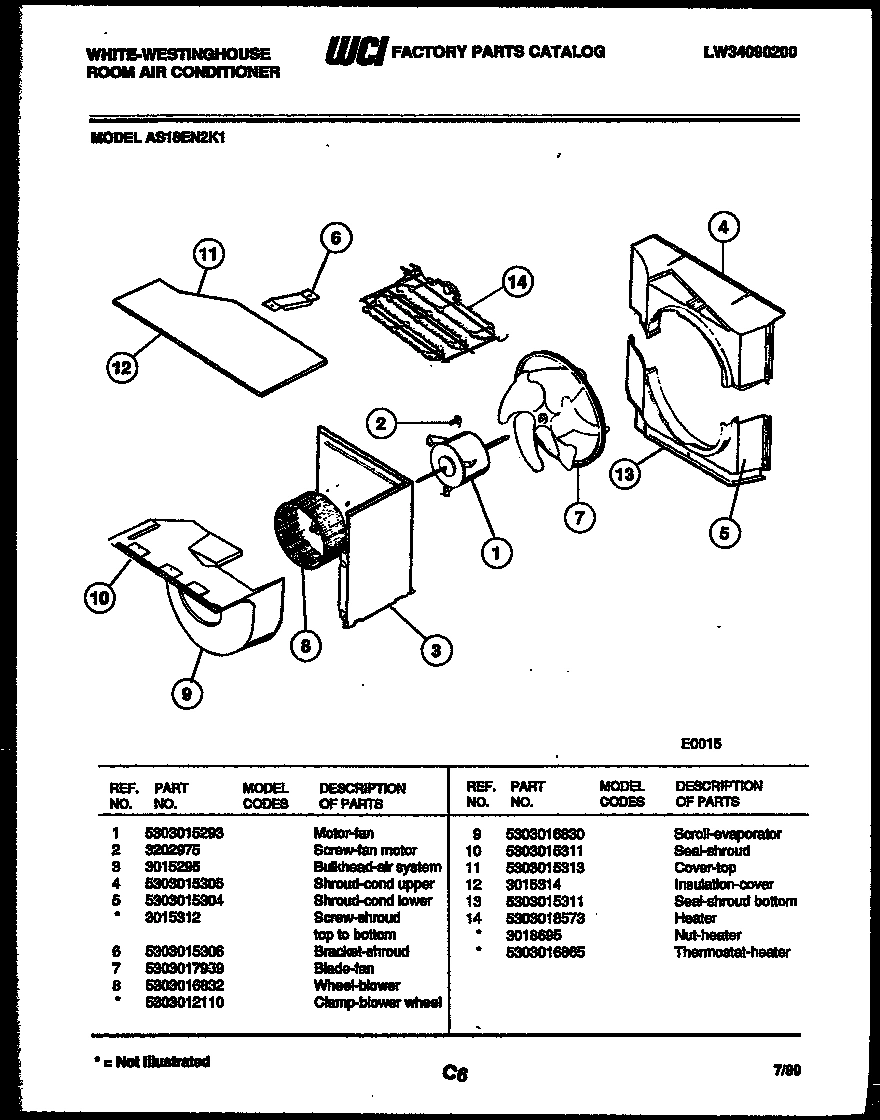

05 - AIR HANDLING PARTS

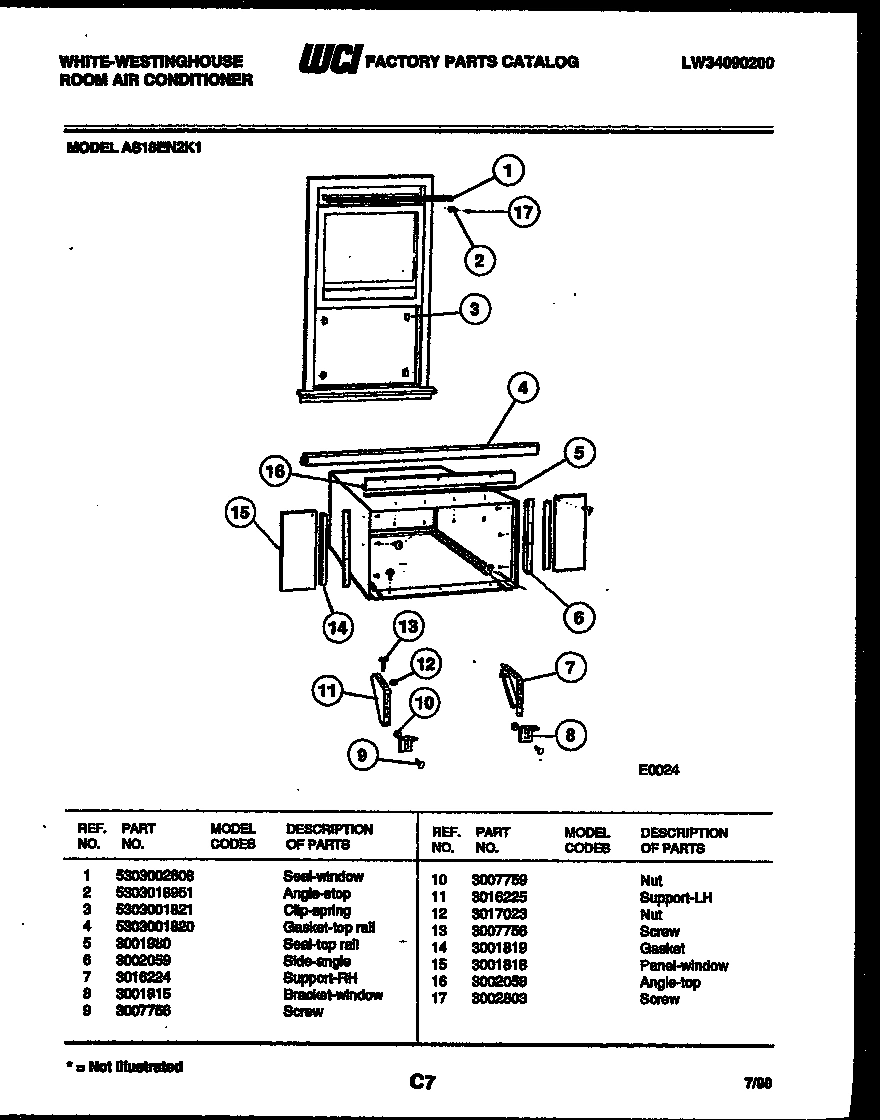

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AS18EN2K1 ROOM AIR CONDITIONER
*33486
GRILLE-REAR WCI 5303210207 Contact Us For Availability
*33486
SCREW-FRONT WCI 5308008175 Contact Us For Availability
*33488
HARNESS-WIRE HEATER SIDE WCI 3017076 Contact Us For Availability
*33488
HARNESS-WIRE HEATER TOP WCI 3203548 Contact Us For Availability
*33490
SHIELD-HEATER EVAP TRAY WCI 3016836 Contact Us For Availability
*33490
TUBE-CAPILLARY (CUT TO 35``) WCI 5303001746 Contact Us For Availability
*33491
WCI 3017804 WCI 3017804 Contact Us For Availability
*33491
SCREW-DRAIN (2) WCI 5303209503 Contact Us For Availability
*33493
THERMOSTAT-HEATER WCI 5303016865 Contact Us For Availability
*33493
NUT-HEATER WCI 3018695 Contact Us For Availability
1
SHELL-CABINET WCI 5303015315 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303018220 WCI 5303018220 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 3002435 WCI 3002435 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
ANGLE-STOP WCI 5303018951 Contact Us For Availability
3
LINK-LOUVER RH WCI 5303002162 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
WCI 3015295 WCI 3015295 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
LINK-LOUVER LH WCI 5303002163 Contact Us For Availability
4
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
4
NUT-TERMINAL COVER WCI 5303002038 Contact Us For Availability
4
SHROUD-COND. UPPER WCI 5303015305 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
4A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303015299 Contact Us For Availability
5
FRAME-LOUVER HORIZ WCI 5308017160 Contact Us For Availability
5
WCI 3202549 WCI 3202549 Contact Us For Availability
5
WCI 5303002037 WCI 5303002037 Contact Us For Availability
5
SHROUD-COND. LOWER WCI 5303015304 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
LOUVER & LINK ASSY-VERTICAL WCI 5303002459 Contact Us For Availability
6
WCI 5300326502 WCI 5300326502 Contact Us For Availability
6
GASKET-TERMINAL CVR WCI 5303002035 Contact Us For Availability
6
WCI 5303015306 WCI 5303015306 Contact Us For Availability
6
SIDE - ANGLE WCI 3002059 Contact Us For Availability
7
WCI 08017131 WCI 08017131 Contact Us For Availability
7
CONTROL WCI 5303002176 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5303017959 WCI 5303017959 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 5300124806 WCI 5300124806 Contact Us For Availability
8
DIVIDER - VERTICAL WCI 5303017807 Contact Us For Availability
8
WCI 5303017310 WCI 5303017310 Contact Us For Availability
8
WCI 5303016832 WCI 5303016832 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
8A
SPRING-OVERLOAD (NON-ILLUSTRATED) WCI 5303002036 Contact Us For Availability
8A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
9
WCI 5303017979 WCI 5303017979 Contact Us For Availability
9
INSULATION-DIVIDER WCI 5303016833 Contact Us For Availability
9
WCI 5303210067 WCI 5303210067 Contact Us For Availability
9
SCROLL-EVAPORATOR WCI 5303016830 Contact Us For Availability
9A
FRONT-BRACE (NON-ILLUSTRATED) WCI 3015325 Contact Us For Availability
10
WCI 3202502 WCI 3202502 Contact Us For Availability
10
WCI 5303002363 WCI 5303002363 Contact Us For Availability
10
WCI 5303015457 WCI 5303015457 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
11
CAPACITOR-COMP WCI 5303016834 Contact Us For Availability
11
WCI 5303208665 WCI 5303208665 Contact Us For Availability
11
WCI 5303015313 WCI 5303015313 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
CAPACITOR-FAN WCI 5303012032 Contact Us For Availability
12
FRONT ASSEMBLY-COMPLETE WCI 5303016904 Contact Us For Availability
12
STRAP-CAPACITOR WCI 5303016835 Contact Us For Availability
12
WCI 5303208674 WCI 5303208674 Contact Us For Availability
12
INSULATION-COVER WCI 3015314 Contact Us For Availability
13
WCI 5303002189 WCI 5303002189 Contact Us For Availability
13
SPACER-CONTROL BULB WCI 5303211009 Contact Us For Availability
13
WCI 5303201723 WCI 5303201723 Contact Us For Availability
13
WCI 5303015311 WCI 5303015311 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 5303208660 WCI 5303208660 Contact Us For Availability
14
HARNESS-WIRE (2-SPEED) WCI 5303016900 Contact Us For Availability
14
WCI 5303018573 WCI 5303018573 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
15
SCREW-ACTUATOR WCI 5303017342 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
HINGE - DOOR WCI 5303017980 Contact Us For Availability
16
WCI 5303007754 WCI 5303007754 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
CLIP-SPRING WCI 5303001844 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
KNOB-CONTROL (2) WCI 5300331902 Contact Us For Availability
× ![]()
