Model Electrolux AS189L2K7 ROOM AIR CONDITIONER – Common Parts & Diagrams

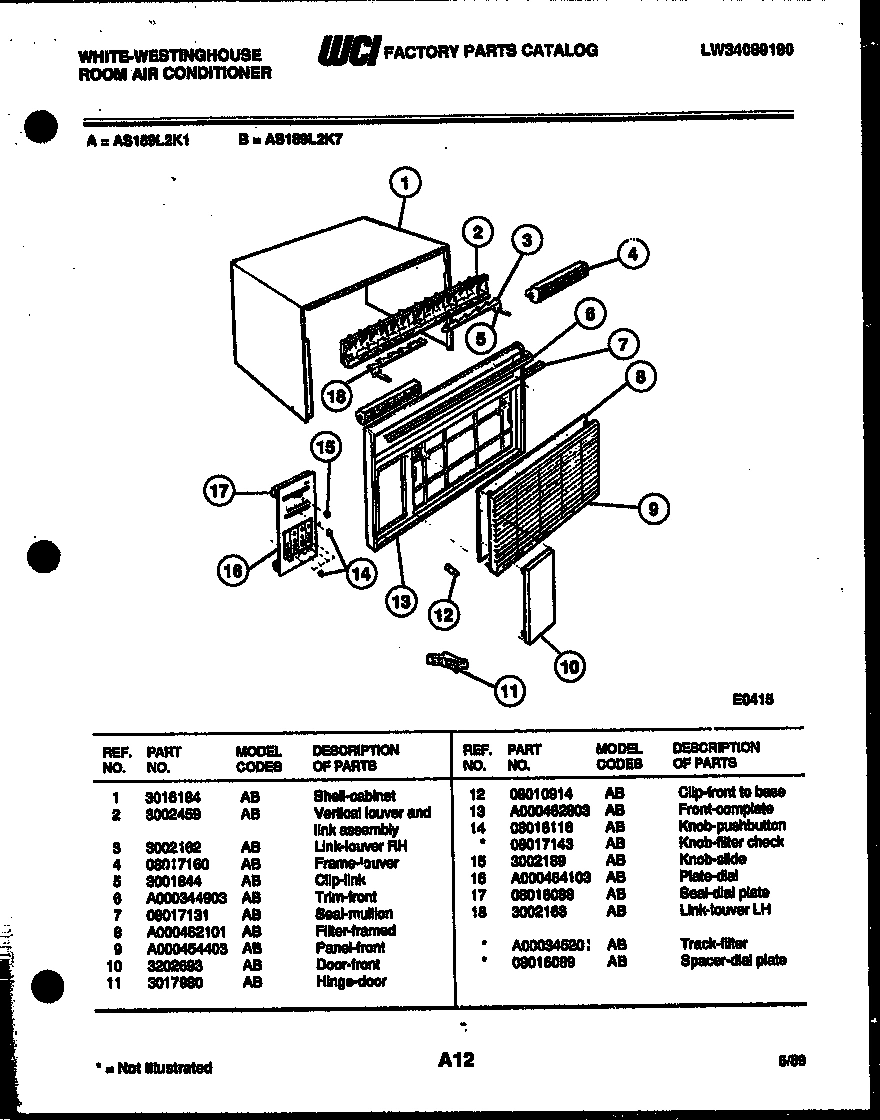

02 - CABINET PARTS

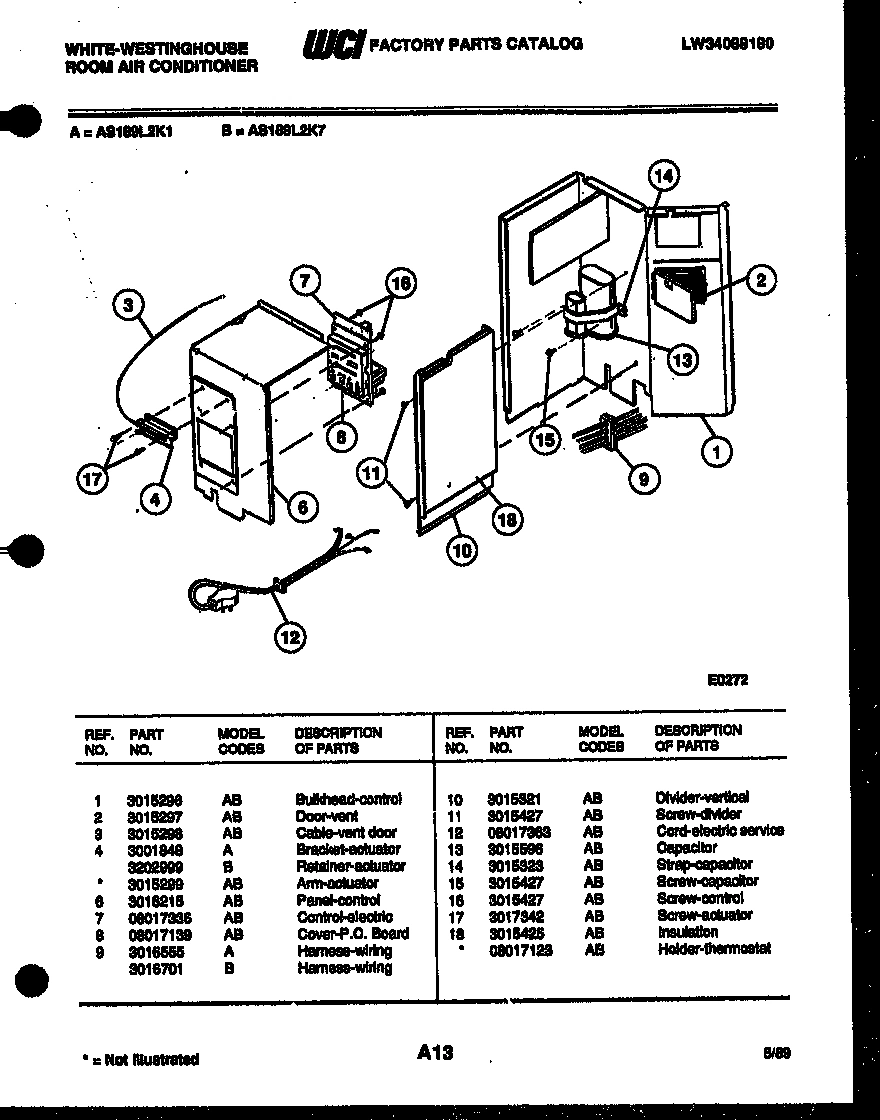

03 - ELECTRICAL PARTS

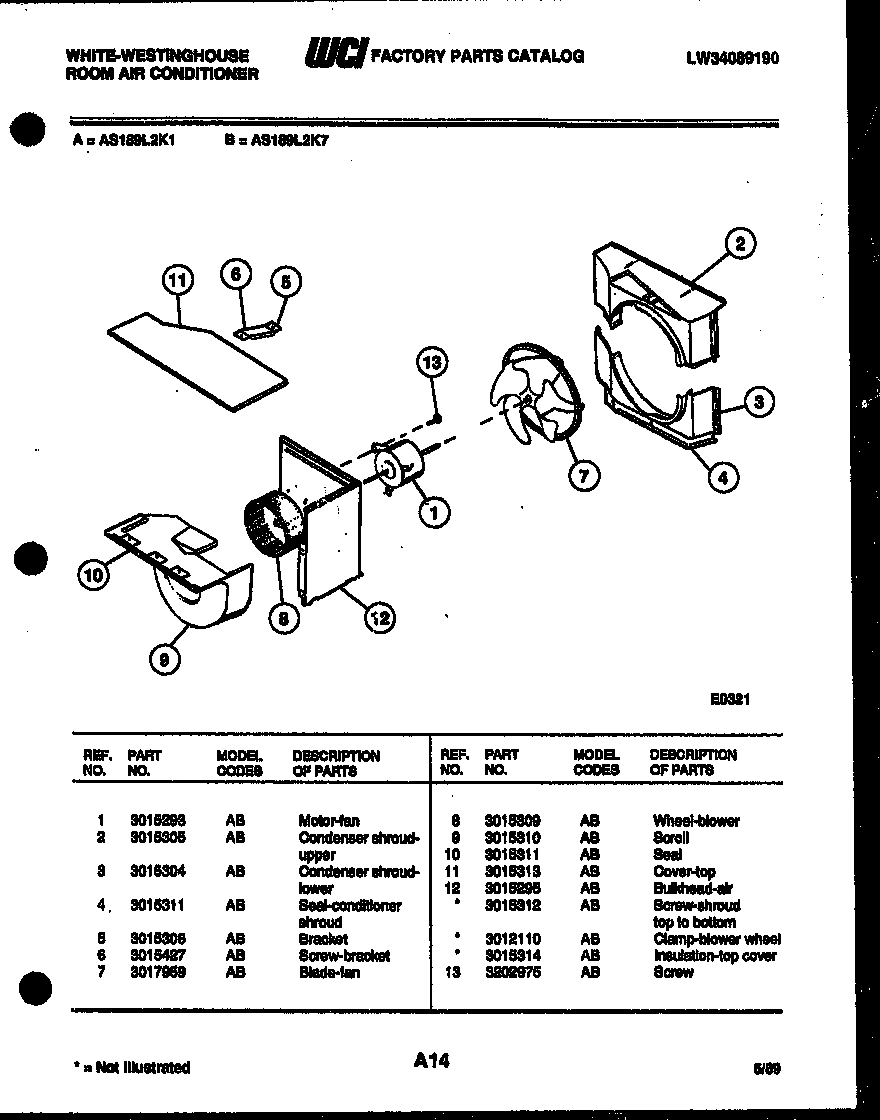

04 - AIR HANDLING PARTS

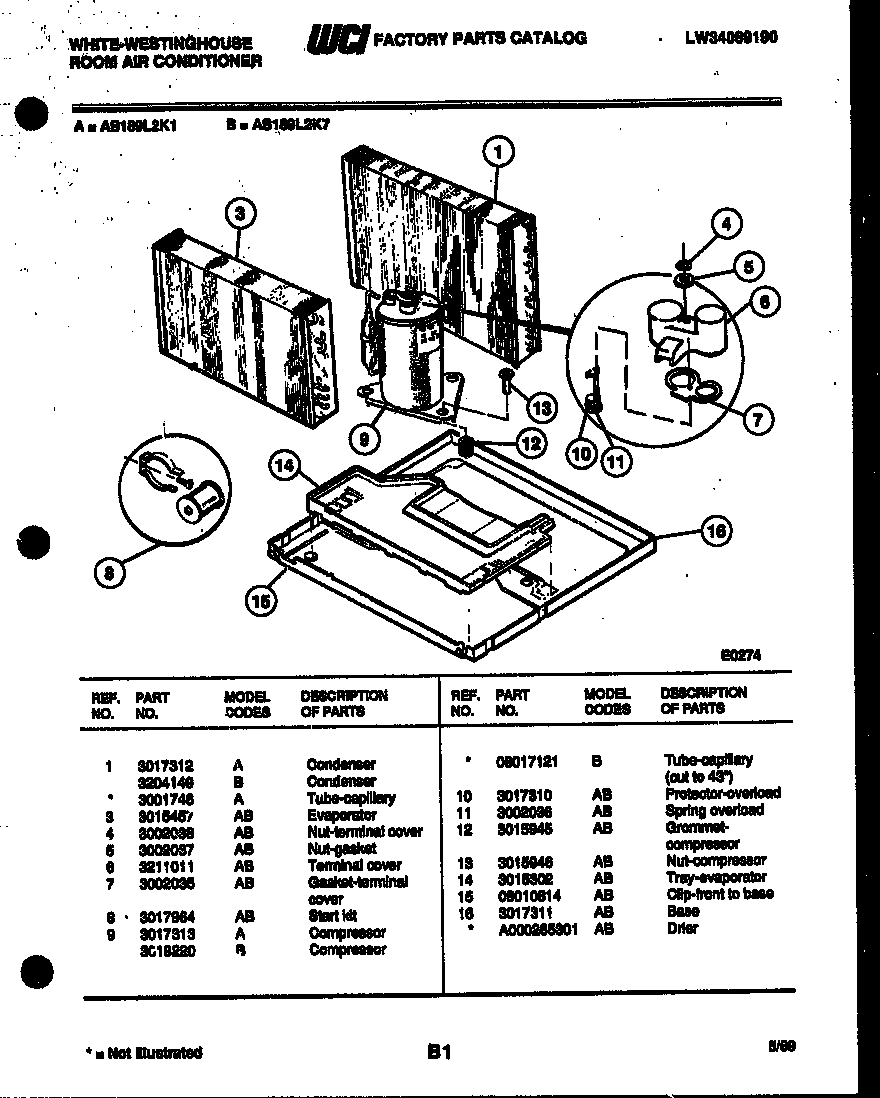

05 - SYSTEM PARTS

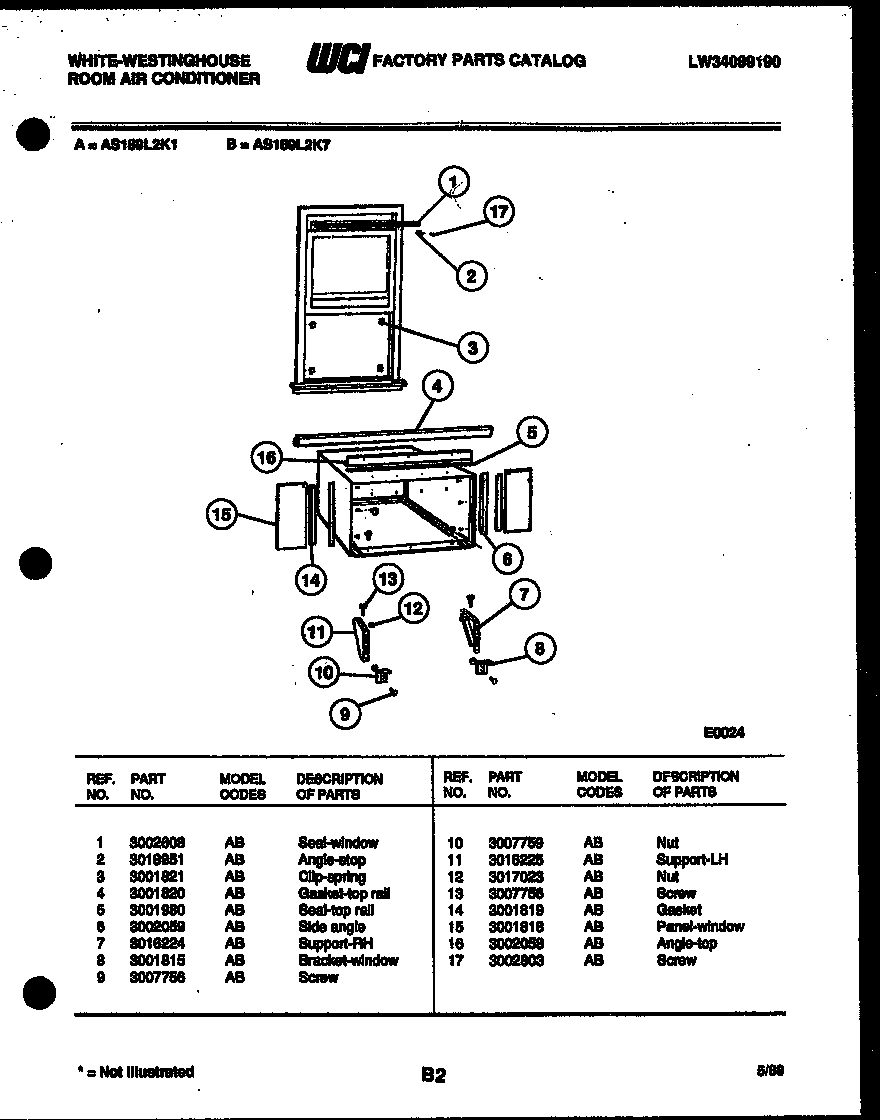

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AS189L2K7 ROOM AIR CONDITIONER
*12000
SPACER-DIAL PLATE WCI 08016089 Contact Us For Availability
*12000
WCI A000345201 WCI A000345201 Contact Us For Availability
*12002
HOLDER-THERMOSTAT WCI 08017123 Contact Us For Availability
1
WCI 3016184 WCI 3016184 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3015293 WCI 3015293 Contact Us For Availability
1
WCI 3204149 WCI 3204149 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
WCI 3002459 WCI 3002459 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
CONDENSER SHROUD UPPER WCI 3015305 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
LINK - LOUVER RH WCI 3002162 Contact Us For Availability
3
CABLE - VENT DOOR WCI 3015298 Contact Us For Availability
3
CONDENSER SHROUD LOWER WCI 3015304 Contact Us For Availability
3
WCI 3015457 WCI 3015457 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
FRAME-LOUVER WCI 08017160 Contact Us For Availability
4
NUT-TERMINAL COVER WCI 3002038 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
4A
RETAINER-ACTUATOR WCI 3202999 Contact Us For Availability
4B
WCI 3015299 WCI 3015299 Contact Us For Availability
5
CLIP - LINK WCI 3001844 Contact Us For Availability
5
WCI 3015306 WCI 3015306 Contact Us For Availability
5
NUT-GASKET WCI 3002037 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI A000344903 WCI A000344903 Contact Us For Availability
6
WCI 3016215 WCI 3016215 Contact Us For Availability
6
TERMINAL COVER WCI 3211011 Contact Us For Availability
6
SIDE - ANGLE WCI 3002059 Contact Us For Availability
7
WCI 08017131 WCI 08017131 Contact Us For Availability
7
WCI 08017336 WCI 08017336 Contact Us For Availability
7
WCI 3017959 WCI 3017959 Contact Us For Availability
7
WCI 3002035 WCI 3002035 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI A000462101 WCI A000462101 Contact Us For Availability
8
WCI 08017139 WCI 08017139 Contact Us For Availability
8
WCI 3015309 WCI 3015309 Contact Us For Availability
8
START KIT WCI 3017964 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI A000454403 WCI A000454403 Contact Us For Availability
9
WCI 3016701 WCI 3016701 Contact Us For Availability
9
WCI 3015310 WCI 3015310 Contact Us For Availability
9
WCI 3018220 WCI 3018220 Contact Us For Availability
9A
TUBE-CAPILLARY (CUT TO 43``) (NON-ILLUSTRATED WCI 08017121 Contact Us For Availability
10
DOOR-FRONT WCI 3202693 Contact Us For Availability
10
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
10
WCI 3015311 WCI 3015311 Contact Us For Availability
10
PROTECTOR - OVERLOAD WCI 3017310 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 3017980 WCI 3017980 Contact Us For Availability
11
WCI 3015313 WCI 3015313 Contact Us For Availability
11
WCI 3002036 WCI 3002036 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
12
CORD - ELECTRIC SERVICE WCI 08017363 Contact Us For Availability
12
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
12
GROMMET-COMPRESSOR WCI 3015945 Contact Us For Availability
12B
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
12C
INSULATION-TOP COVER (NON-ILLUSTRATED) WCI 3015314 Contact Us For Availability
13
WCI A000462803 WCI A000462803 Contact Us For Availability
13
CAPACITOR WCI 3015596 Contact Us For Availability
13
WCI 3015946 WCI 3015946 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 08016116 WCI 08016116 Contact Us For Availability
14
WCI 3015323 WCI 3015323 Contact Us For Availability
14
WCI 3015302 WCI 3015302 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
14A
KNOB-FILTER CHECK (NON-ILLUSTRATED) WCI 08017143 Contact Us For Availability
15
WCI 3002189 WCI 3002189 Contact Us For Availability
15
WCI 08010814 WCI 08010814 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
WCI A000464103 WCI A000464103 Contact Us For Availability
16
WCI 3017311 WCI 3017311 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
SEAL - DIAL PLATE WCI 08016088 Contact Us For Availability
17
WCI 3017342 WCI 3017342 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
LINK - LOUVER LH WCI 3002163 Contact Us For Availability
18
WCI 3015425 WCI 3015425 Contact Us For Availability
× ![]()
