Model Electrolux AS182M2K1 ROOM AIR CONDITIONER – Common Parts & Diagrams

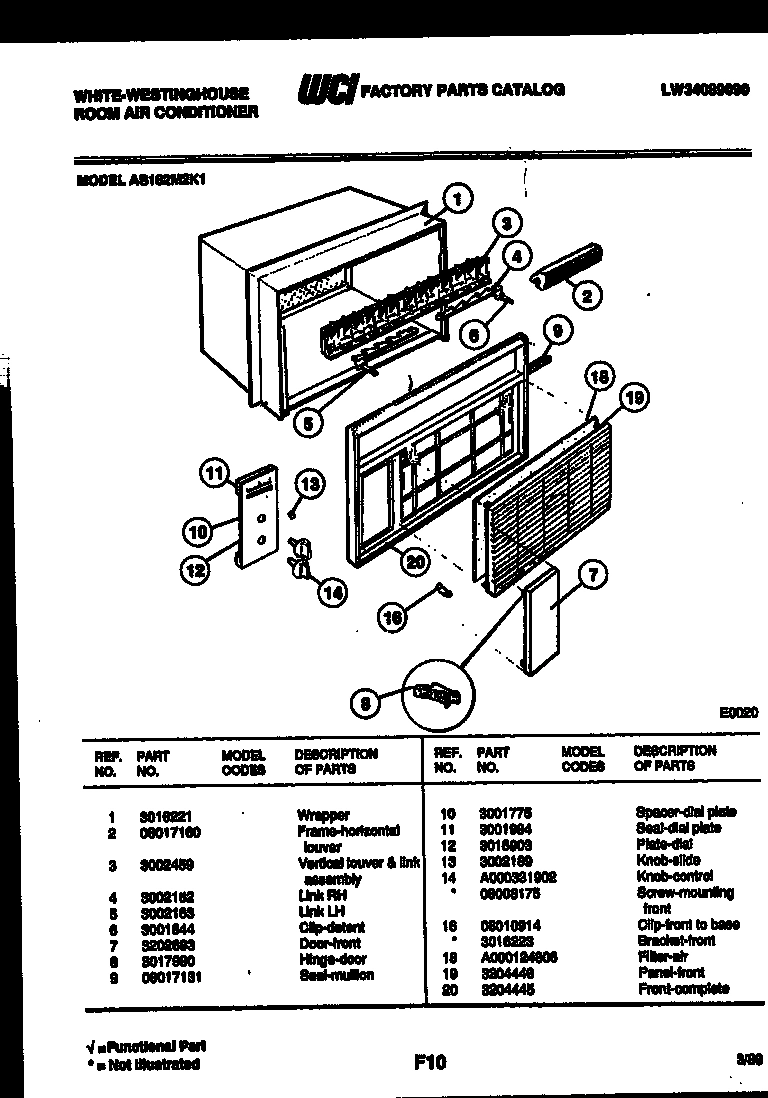

02 - CABINET PARTS

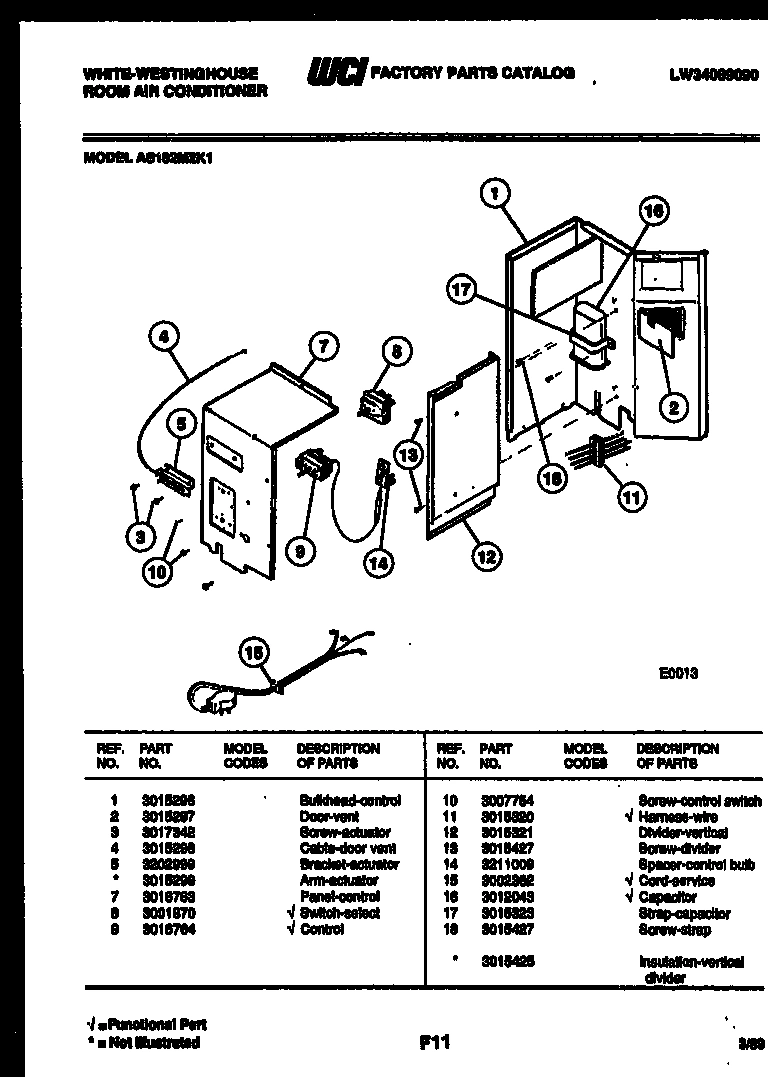

03 - ELECTRICAL PARTS

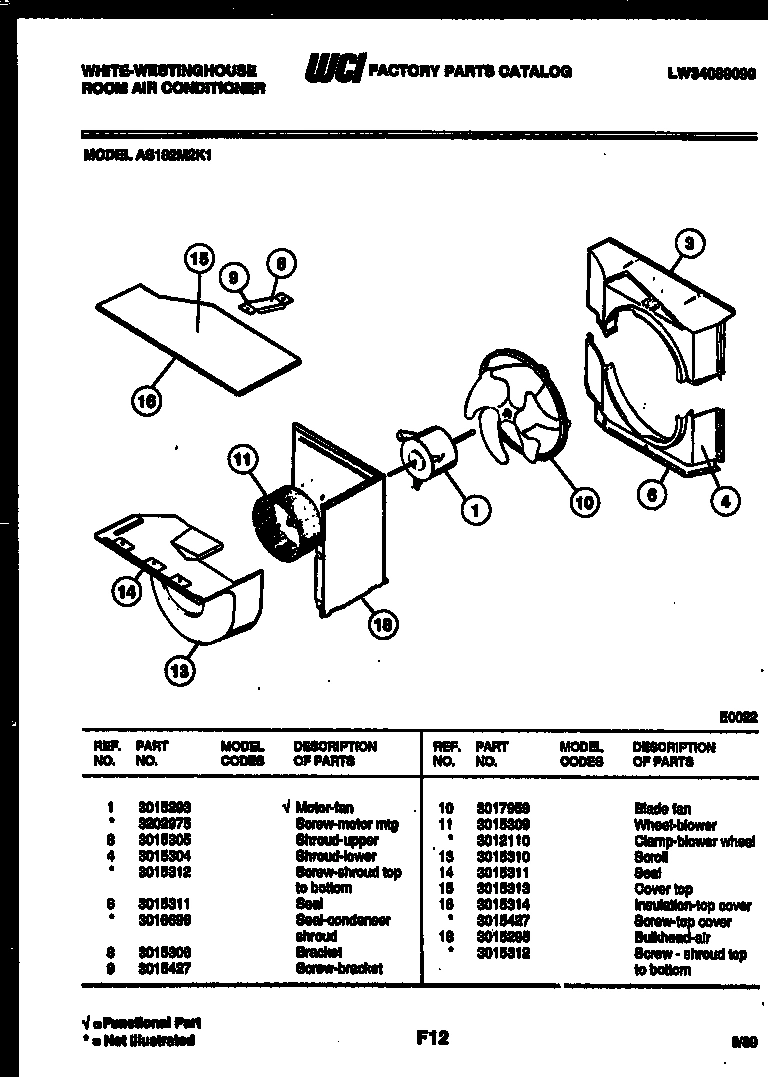

04 - AIR HANDLING PARTS

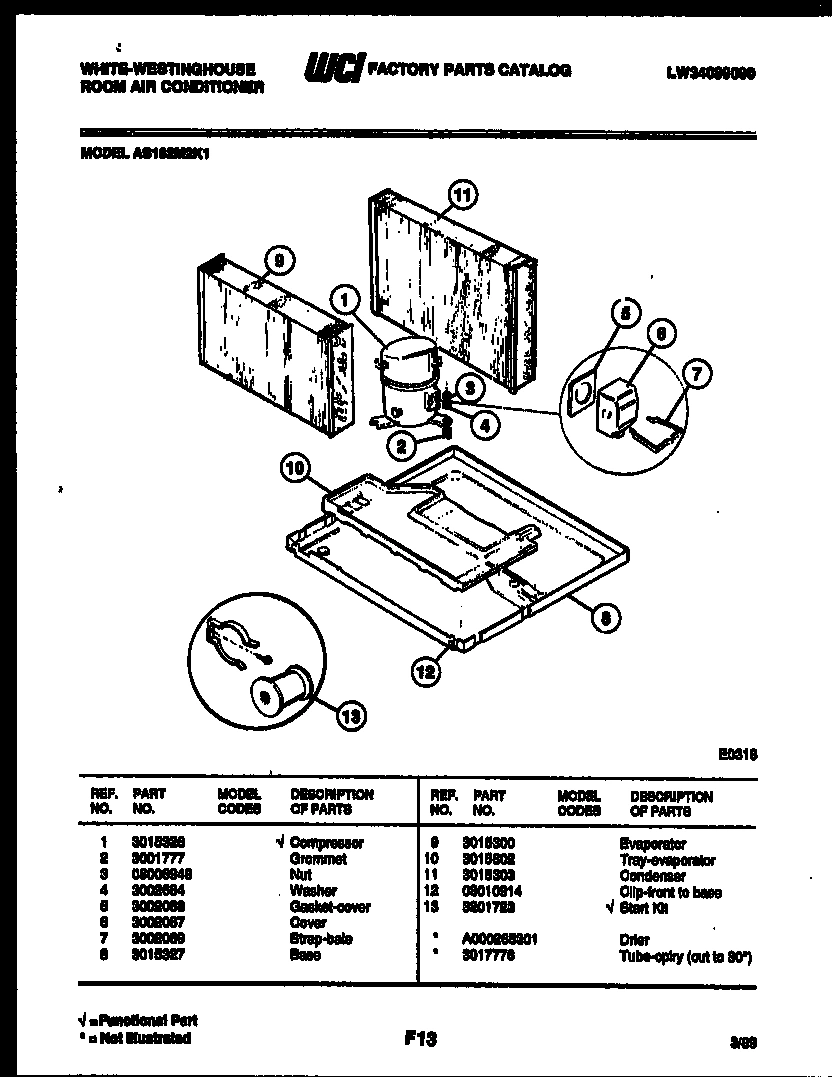

05 - SYSTEM PARTS

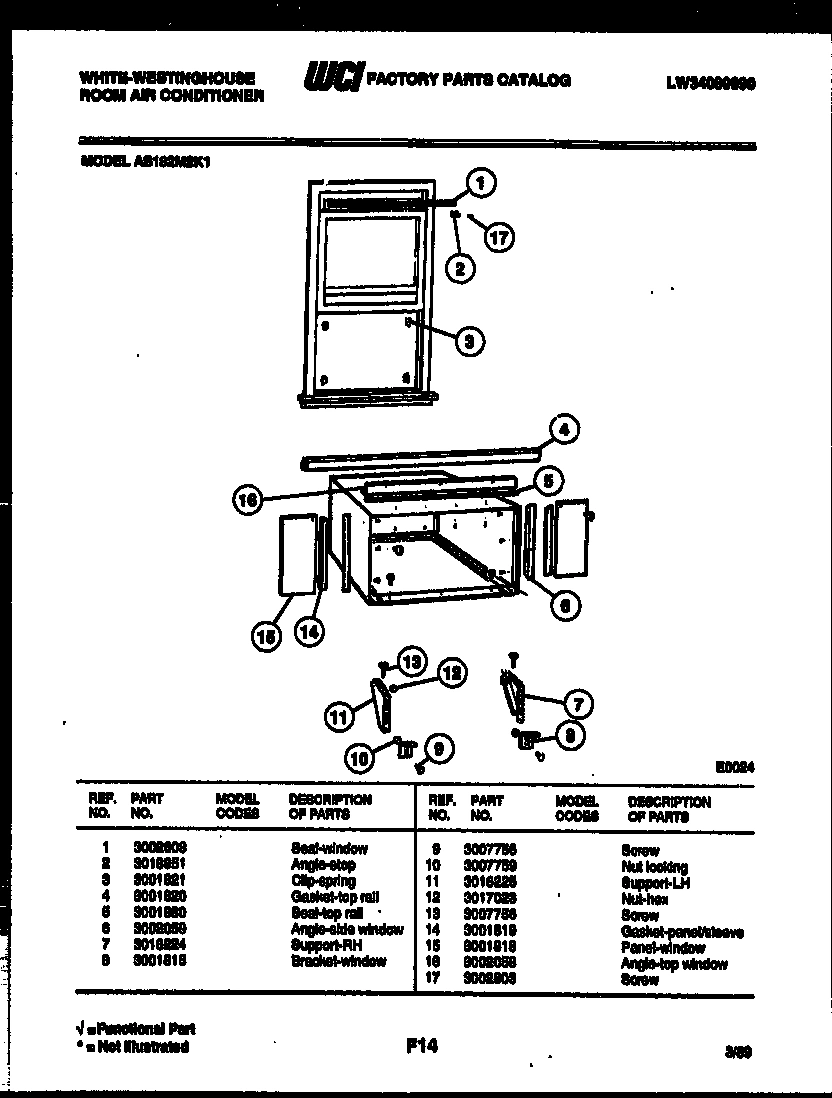

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AS182M2K1 ROOM AIR CONDITIONER
*18736
INSULATION - VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
*18740
TUBE-CPLRY (CUT TO 30``) WCI 3017776 Contact Us For Availability
1
WRAPPER WCI 3016221 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3015293 WCI 3015293 Contact Us For Availability
1
WCI 3015326 WCI 3015326 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
FRAME-HORIZONTAL LOUVER WCI 08017160 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3001777 WCI 3001777 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
VERTICAL-LOUVER & LINK ASSEMBLY WCI 3002459 Contact Us For Availability
3
WCI 3017342 WCI 3017342 Contact Us For Availability
3
SHROUD-UPPER WCI 3015305 Contact Us For Availability
3
WCI 08006948 WCI 08006948 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
LINK RH WCI 3002162 Contact Us For Availability
4
WCI 3015298 WCI 3015298 Contact Us For Availability
4
SHROUD-LOWER WCI 3015304 Contact Us For Availability
4
WCI 3002664 WCI 3002664 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
LINK LH WCI 3002163 Contact Us For Availability
5
WCI 3202999 WCI 3202999 Contact Us For Availability
5
WCI 3002068 WCI 3002068 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
5A
WCI 3015299 WCI 3015299 Contact Us For Availability
6
CLIP-DETENT WCI 3001844 Contact Us For Availability
6
COVER WCI 3002067 Contact Us For Availability
6
ANGLE-SIDE WINDOW WCI 3002059 Contact Us For Availability
6A
SEAL-CONDENSER SHROUD (NON-ILLUSTRATED) WCI 3016696 Contact Us For Availability
7
DOOR-FRONT WCI 3202693 Contact Us For Availability
7
WCI 3016763 WCI 3016763 Contact Us For Availability
7
WCI 3002069 WCI 3002069 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3017980 WCI 3017980 Contact Us For Availability
8
SWITCH-SELECT WCI 3001870 Contact Us For Availability
8
WCI 3015306 WCI 3015306 Contact Us For Availability
8
WCI 3015327 WCI 3015327 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 08017131 WCI 08017131 Contact Us For Availability
9
CONTROL WCI 3016764 Contact Us For Availability
9
WCI 3015300 WCI 3015300 Contact Us For Availability
10
WCI 3001775 WCI 3001775 Contact Us For Availability
10
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
10
WCI 3017959 WCI 3017959 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
11
WCI 3015320 WCI 3015320 Contact Us For Availability
11
WCI 3015309 WCI 3015309 Contact Us For Availability
11
WCI 3015303 WCI 3015303 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
12
WCI 3016903 WCI 3016903 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
13
WCI 3002189 WCI 3002189 Contact Us For Availability
13
WCI 3015310 WCI 3015310 Contact Us For Availability
13
WCI 3201723 WCI 3201723 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI A000331902 WCI A000331902 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3211009 Contact Us For Availability
14
WCI 3015311 WCI 3015311 Contact Us For Availability
14
GASKET-PANEL/SLEEVE WCI 3001819 Contact Us For Availability
14A
SCREW-MOUNTING FRONT (NON-ILLUSTRATED) WCI 08008175 Contact Us For Availability
15
WCI 3002362 WCI 3002362 Contact Us For Availability
15
WCI 3015313 WCI 3015313 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
WCI 3012043 WCI 3012043 Contact Us For Availability
16
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
16
ANGLE-TOP WINDOW WCI 3002058 Contact Us For Availability
16A
BRACKET - FRONT (NON-ILLUSTRATED) WCI 3016223 Contact Us For Availability
17
WCI 3015323 WCI 3015323 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
WCI A000124806 WCI A000124806 Contact Us For Availability
18
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
19
WCI 3204446 WCI 3204446 Contact Us For Availability
20
WCI 3204445 WCI 3204445 Contact Us For Availability
× ![]()
