Model Electrolux AS147M1A7 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET PARTS

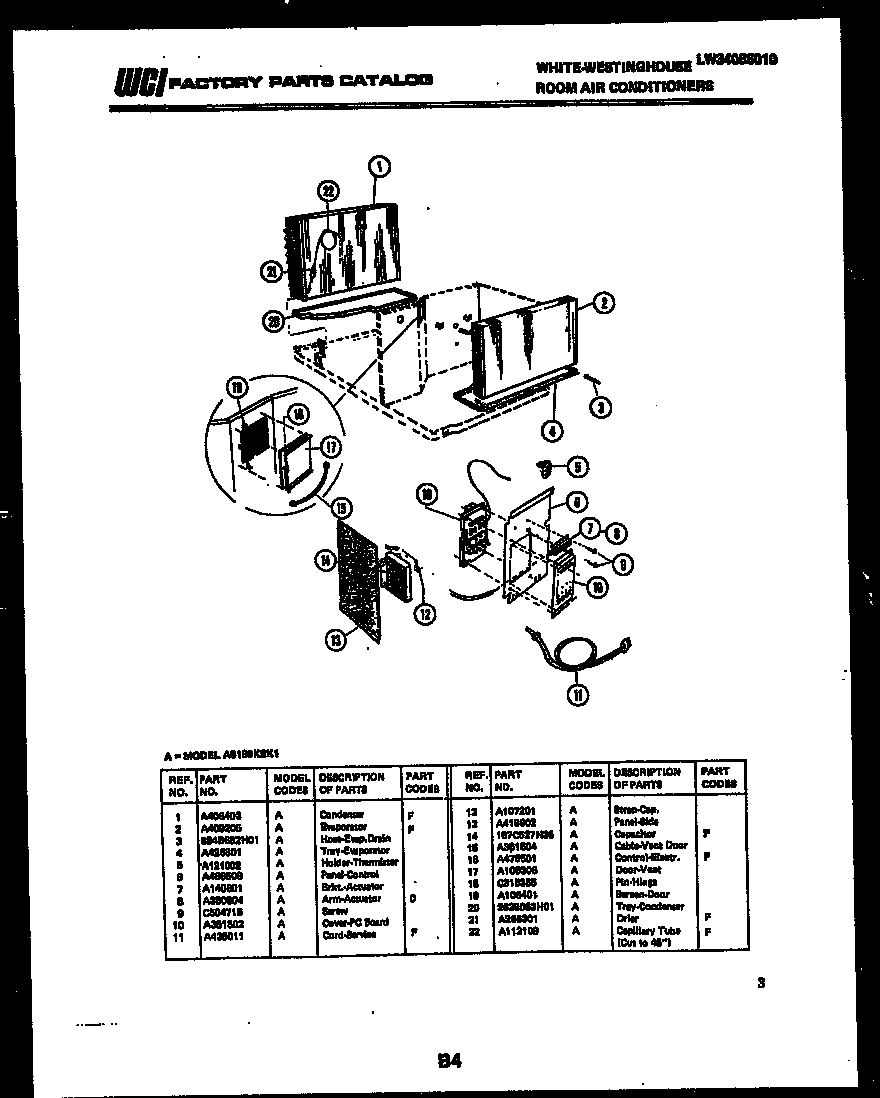

03 - ELECTRICAL PARTS

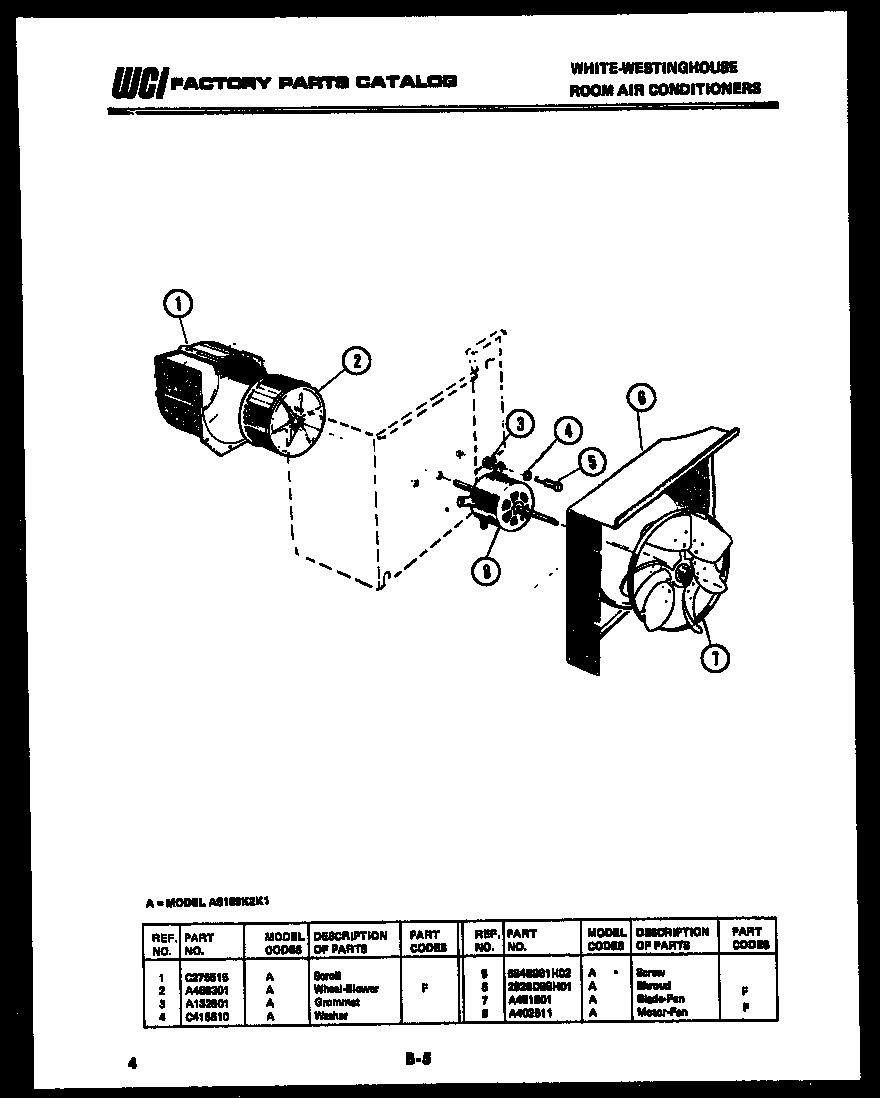

04 - AIR HANDLING PARTS

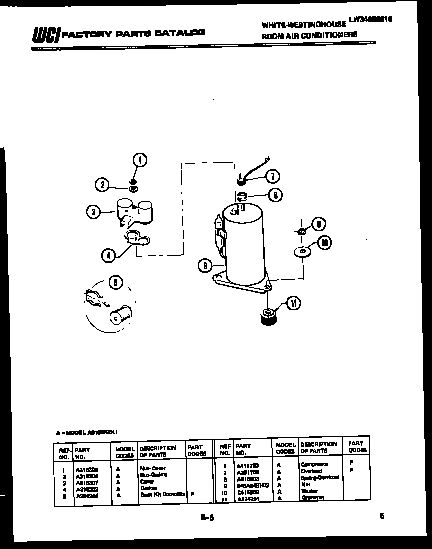

05 - SYSTEM PARTS

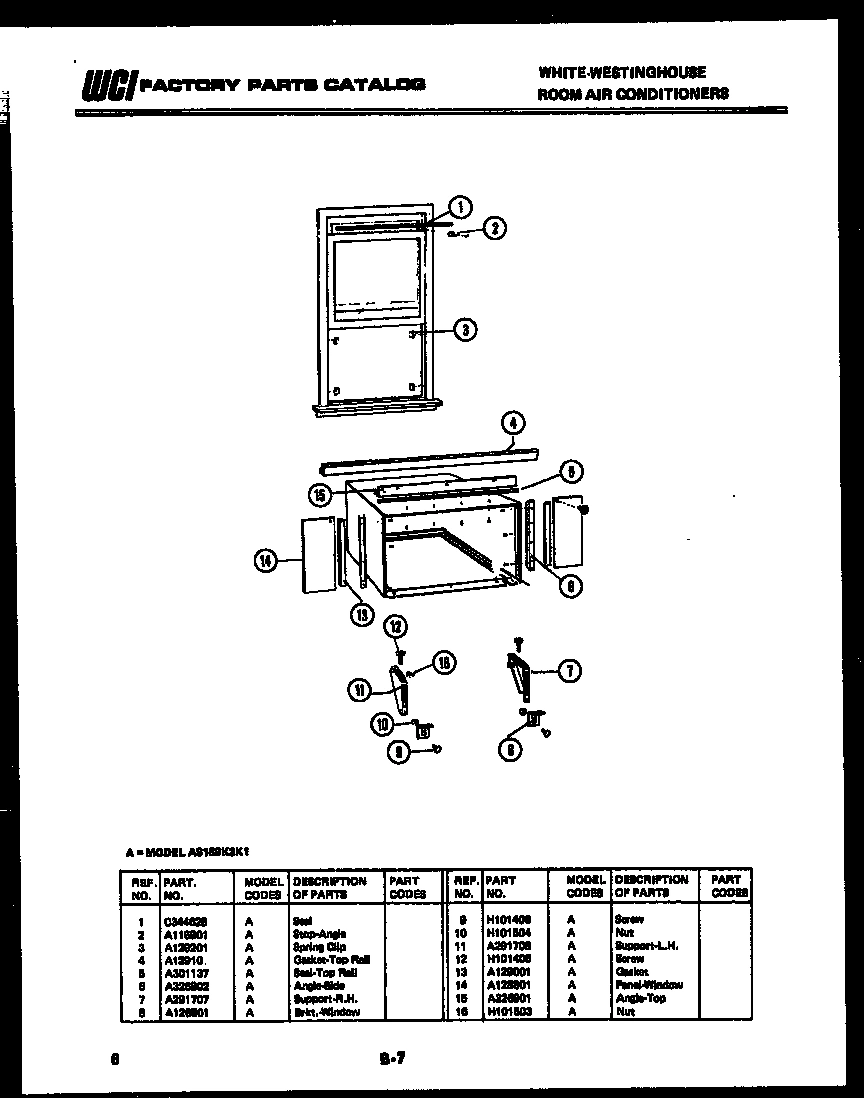

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AS147M1A7 ROOM AIR CONDITIONER
*55278
WCI 08006463 WCI 08006463 Contact Us For Availability
*55588
WCI 3016697 WCI 3016697 Contact Us For Availability
1
WRAPPER WCI 3016221 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3017346 WCI 3017346 Contact Us For Availability
1
WCI 3017343 WCI 3017343 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
WCI 08017160 WCI 08017160 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
NUT WCI 3015946 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
VERTICAL LOUVER & LINK ASSY. WCI 3002459 Contact Us For Availability
3
WCI 08002968 WCI 08002968 Contact Us For Availability
3
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
3
GROMMET WCI 3015945 Contact Us For Availability
4
LINK RH WCI 3002162 Contact Us For Availability
4
WCI 3015298 WCI 3015298 Contact Us For Availability
4
SHOUD-CONDENSER UPPER WCI 3015305 Contact Us For Availability
4
GASKET - TERMINAL CVR WCI 3211018 Contact Us For Availability
4
WCI 3202495 WCI 3202495 Contact Us For Availability
5
LINK LH WCI 3002163 Contact Us For Availability
5
WCI 3202999 WCI 3202999 Contact Us For Availability
5
SHOUD-CONDENSER LOWER WCI 3015304 Contact Us For Availability
5
GASKET-COVER WCI 3211012 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
5A
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
6
CLIP-DETENT WCI 3001844 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
6
WCI 3202498 WCI 3202498 Contact Us For Availability
7
WCI 3202502 WCI 3202502 Contact Us For Availability
7
WCI 3202549 WCI 3202549 Contact Us For Availability
7
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3017980 WCI 3017980 Contact Us For Availability
8
SWITCH-SELECT WCI 3001870 Contact Us For Availability
8
SEAL WCI 3016696 Contact Us For Availability
8
NUT WCI 3211017 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
WCI 08017131 WCI 08017131 Contact Us For Availability
9
CONTROL WCI 3016764 Contact Us For Availability
9
BRACKET-SHROUD TO BULKHEAD WCI 3015306 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
WCI 3001775 WCI 3001775 Contact Us For Availability
10
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
10
WCI 3015595 WCI 3015595 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
11
HARNESS-WIRE WCI 3016900 Contact Us For Availability
11
WCI 3017959 WCI 3017959 Contact Us For Availability
11
WCI 3015302 WCI 3015302 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 3016903 WCI 3016903 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
WCI 3015309 WCI 3015309 Contact Us For Availability
12
WCI 3204149 WCI 3204149 Contact Us For Availability
13
WCI 3002189 WCI 3002189 Contact Us For Availability
13
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
13
WCI 3201723 WCI 3201723 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
WCI A000331902 WCI A000331902 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3211009 Contact Us For Availability
14
WCI 3015311 WCI 3015311 Contact Us For Availability
14
WCI 3016219 WCI 3016219 Contact Us For Availability
14
WCI 3202497 WCI 3202497 Contact Us For Availability
14A
SCREW-MTG FRONT (NON-ILLUSTRATED) WCI 08008175 Contact Us For Availability
15
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
15
SERVICE CORD WCI 08017362 Contact Us For Availability
15
WCI 3015313 WCI 3015313 Contact Us For Availability
15
ACCORDIAN (2) WCI 3202496 Contact Us For Availability
16
CAPACITOR WCI 08013764 Contact Us For Availability
16
INSULATION-COVER WCI 3015314 Contact Us For Availability
16
TUBE-CPLRY (CUT TO 35``) WCI 3017776 Contact Us For Availability
16
ANGLE - TOP WINDOW WCI 3202499 Contact Us For Availability
16A
BRACKET - FRONT (NON-ILLUSTRATED) WCI 3016223 Contact Us For Availability
17
WCI 3015323 WCI 3015323 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WCI A000124806 WCI A000124806 Contact Us For Availability
18
SCREW (10) WCI 08012680 Contact Us For Availability
19
WCI 3016904 WCI 3016904 Contact Us For Availability
19
INSULATION - VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
WCI 3016981 WCI 3016981 Contact Us For Availability
× ![]()
