Model LG ARX5 – Common Parts & Diagrams

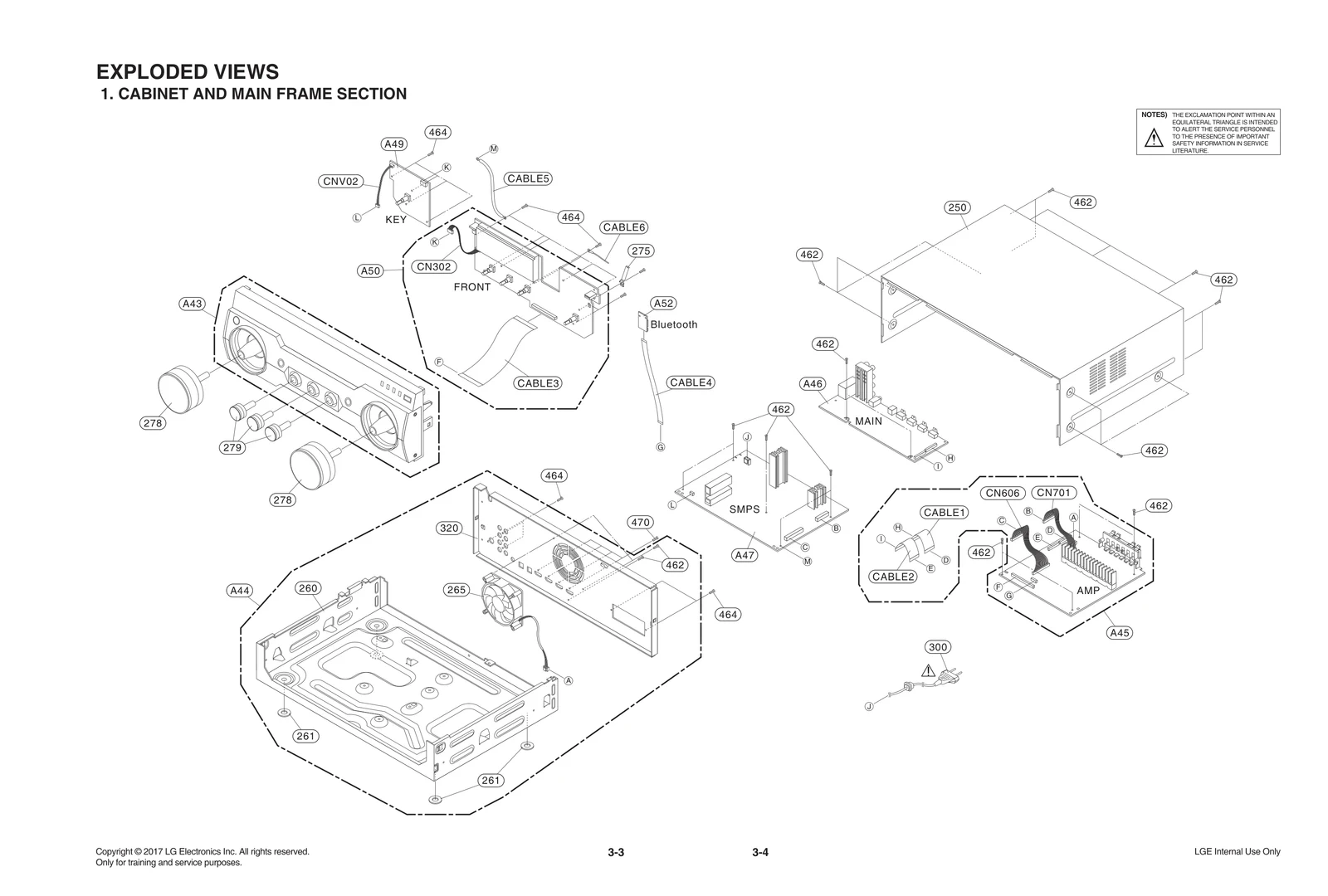

Diagram 0

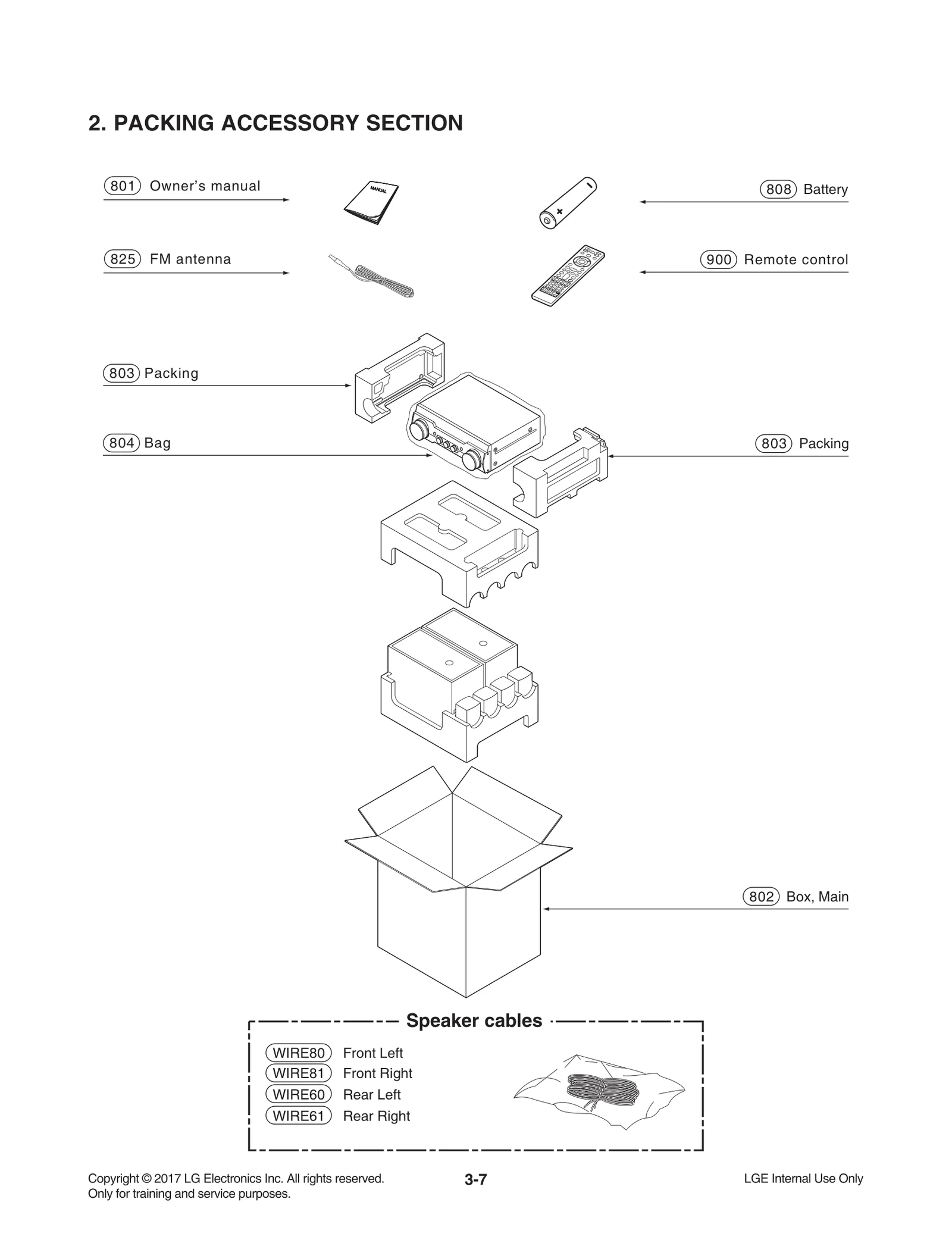

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG ARX5
250
Case LGE MBN63267401 Contact Us For Availability
260
Chassis LGE MBS62845501 Contact Us For Availability
261
Foot LGE MDP39086001 Contact Us For Availability
265
Fan Module LGE EAL60700914 Contact Us For Availability
275
Plate,Ground LGE MGJ63379301 Contact Us For Availability
278
Knob LGE MEY62994301 Contact Us For Availability
279
Knob LGE MEY62994401 Contact Us For Availability
300
Power Cord LGE EAD60816704 Contact Us For Availability
300
Power Cord,Attach LGE EAD60816755 Contact Us For Availability
320
Panel,Rear LGE MGC63341416 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
650
Base LGE MAM62986001 Contact Us For Availability
651
Screw,Machine LGE FAB31919201 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77234555 Contact Us For Availability
802
Box,Master LGE MAY67929001 Contact Us For Availability
803
Packing LGE MFZ65515501 Contact Us For Availability
804
Bag LGE MAF58050935 Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955401 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL74374454 Contact Us For Availability
A44
Frame Assembly LGE ADV74708953 Contact Us For Availability
A45
PCB Assembly LGE EBR84957901 Contact Us For Availability
A46
Option Code Assembly LGE EBR84425901 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR85012401 Contact Us For Availability
A49
PCB Assembly LGE EBR82160801 Contact Us For Availability
A50
PCB Assembly LGE EBR82160301 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A600
Speaker System Total LGE TCG36868101 Contact Us For Availability
A900
Pasive Woofer LGE TCG36148205 Contact Us For Availability
AR60
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
AR61
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61933801 Contact Us For Availability
C7C1
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C312
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C314
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C317
Capacitor,Ceramic,Ch LGE 0CK104DKG6A Contact Us For Availability
C324
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C334
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C441
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C470
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C474
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C476
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C508
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C539
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C540
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C541
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C575
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C601
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C617
Capacitor,Ceramic,Ch LGE 0CK330BK4DA Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C712
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C724
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C729
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C744
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C770
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C793
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C794
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C798
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C837
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C848
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C866
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C868
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C905
Capacitor,AL,Radial LGE EAE60681901 Contact Us For Availability
C910
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C910
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C911
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C912
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C941
Capacitor,AL,Radial LGE 0CE106BK638 Contact Us For Availability
C943
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C951
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C955
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C957
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C958
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C959
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C982
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C984
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C985
CAPACITOR LGE 624-087D Contact Us For Availability
CA803
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD61785802 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62116705 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD43523204 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130015 Contact Us For Availability
CABLE5
Harness,Single LGE EAD60771804 Contact Us For Availability
CABLE6
Harness,Single LGE 562-050Q Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62524901 Contact Us For Availability
CN302
Harness,Single LGE EAD44367603 Contact Us For Availability
CN600
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN601
Connector,FFC/FPC/PIC LGE 6630XF00440 Contact Us For Availability
CN602
Connector,FFC/FPC/PIC LGE EAG00470702 Contact Us For Availability
CN605
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN606
Harness,Single LGE EAD60706603 Contact Us For Availability
CN700
Connector,Wafer LGE 6602T20008B Contact Us For Availability
CN701
Harness,Single LGE EAD60706602 Contact Us For Availability
CN802
Connector,HDMI LGE EAG62611206 Contact Us For Availability
CN902
WAFER LGE 6602T25008J Contact Us For Availability
CN903
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CN904
Connector,Wafer LGE 561-711C Contact Us For Availability
CNV01
Connector,Wafer LGE 561-712F Contact Us For Availability
CNV02
Harness,Single LGE EAD42360604 Contact Us For Availability
CV02
Capacitor,Ceramic,Axial LGE 0CN4730K949 Contact Us For Availability
CV05
Capacitor,Ceramic,Radial,Disc LGE 0CN2230K949 Contact Us For Availability
CV06
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
D301
Diode,Zener LGE 0DZPH00028A Contact Us For Availability
D503
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D504
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D702
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D807
Diode,TVS LGE EAH63292901 Contact Us For Availability
D812
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D932
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D935
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D941
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D951
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D953
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D954
Diode,Rectifier LGE EAH63554701 Contact Us For Availability
D954
Diode,Switching LGE EAH31951401 Contact Us For Availability
D981
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
DIG301
VFD LGE EAJ62312302 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB504
Filter,Bead LGE EAM62230401 Contact Us For Availability
FB611
Filter,Bead LGE EAM62151101 Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB931
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL601
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
FL802
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC301
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC402
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC403
IC,Line Driver LGE EAN62579201 Contact Us For Availability
IC404
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC500
IC,Digital Signal Processors LGE EAN62909503 Contact Us For Availability
IC501A
S/W,System Program LGE SAA39259901 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62746202 Contact Us For Availability
IC503
IC,LDO Voltage Regulator LGE EAN64166901 Contact Us For Availability
IC504
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
IC505
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC506A
S/W,System Program LGE SAA39260001 Contact Us For Availability
IC507
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN63547801 Contact Us For Availability
IC801
IC,LDO Voltage Regulator LGE EAN64166801 Contact Us For Availability
IC802
IC,LDO Voltage Regulator LGE EAN62682301 Contact Us For Availability
IC803
IC,LDO Voltage Regulator LGE EAN62670401 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN63786101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60921401 Contact Us For Availability
IC981
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK301
Connector,USB LGE EAG43134802 Contact Us For Availability
JK401
Jack,RCA LGE EAG63692601 Contact Us For Availability
JK402
Jack,Phone LGE 6612F00091B Contact Us For Availability
JK404
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK404
Jack,Fiber Optic LGE EAG37842010 Contact Us For Availability
L500
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L500
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L703
Filter,Bead LGE EAM42641607 Contact Us For Availability
L716
Coil,Choke LGE EAP62127101 Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF903
Filter,Line Noise LGE EAM62130101 Contact Us For Availability
PC900
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q706
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q707
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q710
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q902
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q932
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q951
FET LGE 0TFFN10008B Contact Us For Availability
Q982
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5A1
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5A2
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R5C3
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R5C4
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R5H4
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R5H6
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R303
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R305
RESISTOR CHIP 24K 1/10W 5 TA LGE 0RH2402D622 Contact Us For Availability
R306
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R310
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R312
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R315
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R336
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R467
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R476
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R519
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R560
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R583
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R584
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R586
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R589
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R630
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R706
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R709
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R716
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R745
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R757
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R766
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R767
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R777
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R808
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R820
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R821
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R844
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R845
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R846
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R847
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R848
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R849
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R851
Resistor,Chip LGE ERHZ0000217 Contact Us For Availability
R852
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R931
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R935
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R937
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R944
Resistor,Wire Wound LGE EBC30416602 Contact Us For Availability
R946
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R956
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R961
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R962
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R963
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R964
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R965
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R966
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R968
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R983
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R984
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R985
RESISTOR (METAL FILM) LGE 0RN1802F409 Contact Us For Availability
R986
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R987
Resistor,Metal Film LGE 0RN3901F409 Contact Us For Availability
RC301
Receiver Module LGE EAV41920401 Contact Us For Availability
SW307
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ61630402 Contact Us For Availability
T903
Transformer,Switching LGE EBJ61490401 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61545702 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374021 Contact Us For Availability
TR600
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
TU400
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VR303
Switch,Encoder LGE EBF61954401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
VRV01
Switch,Encoder LGE EBF61915401 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912705 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912706 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72912701 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72912702 Contact Us For Availability
X400
Crystal LGE EAW62583505 Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X600
Crystal LGE EAW32919901 Contact Us For Availability
X800
Crystal LGE EAW62583501 Contact Us For Availability
ZD914
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD931
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD932
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD961
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
× ![]()
Login and Registration Form
