Model LG ARWB072DAS4.AWGBLUS Air Conditioners – Common Parts & Diagrams
OUTSIDE UNIT
PANEL PART

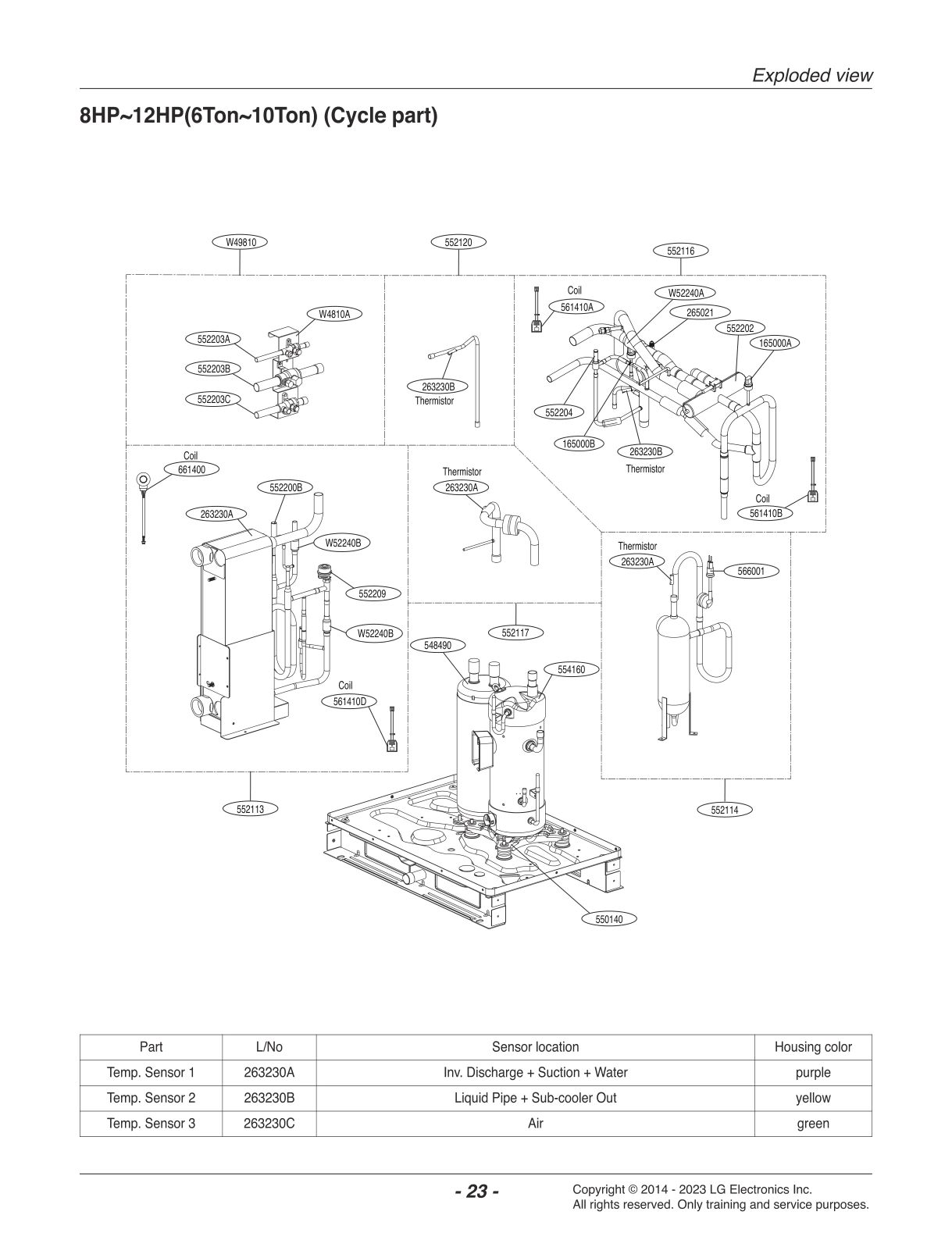

CYCLE PARTS
Common parts from model LG ARWB072DAS4.AWGBLUS Air Conditioners
135501A
Cover Assembly LGE ACQ34723601 Contact Us For Availability
137213A
Panel Assembly,Side LGE AGL73957502 Contact Us For Availability
137214
Panel Assembly,Upper LGE AGL74134401 Contact Us For Availability
165000A
Sensor,Pressure LGE EBD60663824 Contact Us For Availability
165000B
Sensor,Pressure LGE EBD62165606 Contact Us For Availability
237204A
Panel,Side LGE MGC62920304 Contact Us For Availability
237204B
Panel,Side LGE MGC62920402 Contact Us For Availability
237204C
Panel,Side LGE MGC62920502 Contact Us For Availability
237204D
Panel,Side LGE MGC62920602 Contact Us For Availability
261704B
Transformer,Linear LGE EBJ61631002 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61285701 Contact Us For Availability
268711A
PCB Assembly,Sub LGE EBR74363402 Contact Us For Availability
268711B
PCB Assembly,Cycle LGE EBR78277401 Contact Us For Availability
268711C
PCB Assembly,Power LGE EBR74365001 Contact Us For Availability
268711E
PCB Assembly,Main LGE EBR76166007 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN74139503 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL73919703 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL73957601 Contact Us For Availability
548490
Accumulator LGE 4848A20001N Contact Us For Availability
550140
Damper,Compressor LGE MCQ62569601 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR73989902 Contact Us For Availability
552114
Tube Assembly,Discharge(Outdoor) LGE AJR73989602 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR74445001 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR73949101 Contact Us For Availability
552120
Tube Assembly LGE AJR74145402 Contact Us For Availability
552202
Valve,Reverse LGE 5220AP3777C Contact Us For Availability
552203A
Valve,Service LGE MJX62572803 Contact Us For Availability
552203B
Valve,Service LGE 5220A90012W Contact Us For Availability
552203C
Valve,Service LGE MJX62572802 Contact Us For Availability
552204
Valve,Solenoid LGE MJX61841306 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ37955201 Contact Us For Availability
561410A
Solenoid LGE EBE60661401 Contact Us For Availability
561410B
Solenoid LGE 6141A20010W Contact Us For Availability
561410D
Solenoid LGE EBE61441606 Contact Us For Availability
566001
Switch,Pressure LGE EBF40271416 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ74272012 Contact Us For Availability
661400
Coil,Expansion LGE EAP30616911 Contact Us For Availability
W4810A
Bracket LGE MAZ63479601 Contact Us For Availability
W4810B
Bracket LGE MAZ63589504 Contact Us For Availability
W4986A
Sound proof LGE MMC00280102 Contact Us For Availability
W4986B
Sound proof LGE MMC00280202 Contact Us For Availability
W6631A
Harness,Multi LGE EAD62488801 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG63111409 Contact Us For Availability
W49200
Heat Sink LGE MED37293905 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ74578704 Contact Us For Availability
W52240A
Strainer LGE 5224A20002R Contact Us For Availability
W52240B
Strainer LGE 3H03659N Contact Us For Availability
× ![]()
