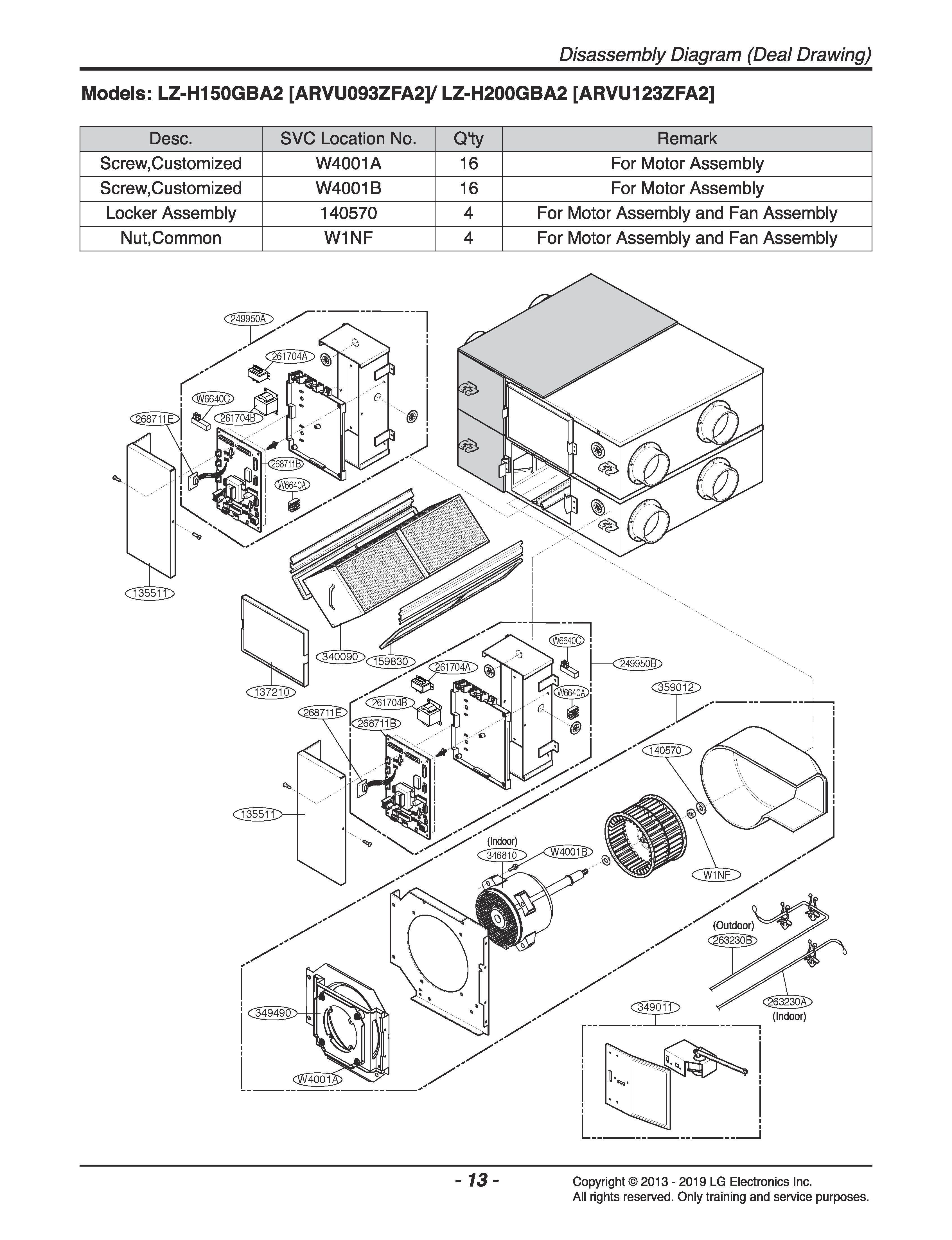

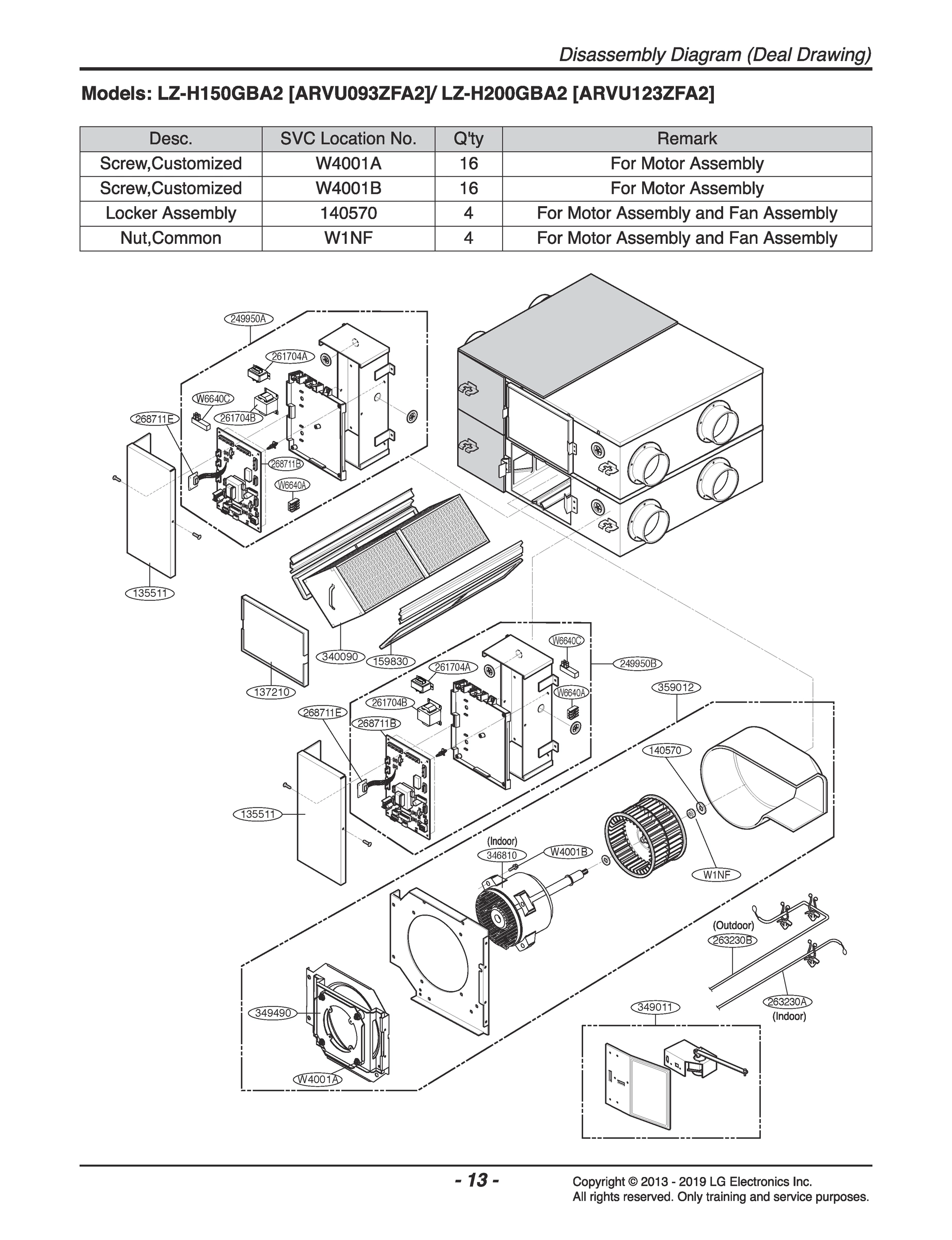

Model LG ARVU123ZFA2.ENWALUS Split rooftop dedicated outdoor air system (DOAS) – Common Parts & Diagrams

135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A20209C Contact Us For Availability
View on Model
137210
Panel Assembly,Front
Panel Assembly,Front LGE 3721A20196D Contact Us For Availability
View on Model
159830
Filter Assembly,Air Cleaner
Filter Assembly,Air Cleaner LGE 5231A30003B Contact Us For Availability
View on Model
249950A
Case Assembly,Control
Case Assembly,Control LGE ABQ30986520 Contact Us For Availability
View on Model
249950B
Case Assembly,Control
Case Assembly,Control LGE ABQ30986516 Contact Us For Availability
View on Model
261704A
Transformer,Reactor
Transformer,Reactor LGE 5874FR2112G Contact Us For Availability
View on Model
263230A
Thermistor,NTC
Thermistor,NTC LGE 6323A30004J Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106811 Contact Us For Availability
View on Model
263230B
Thermistor,NTC
Thermistor,NTC LGE 6323A30004K Contact Us For Availability
View on Model
263230B
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106812 Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR60786404 Contact Us For Availability
View on Model
268711E
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR77031202 Contact Us For Availability
View on Model
340090
Exchanger Assembly
Exchanger Assembly LGE ADM34380910 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE 4681A20169E Contact Us For Availability
View on Model
349011
Damper Assembly
Damper Assembly LGE 4901A20002A Contact Us For Availability
View on Model
349490
Orifice Assembly
Orifice Assembly LGE 4949A20006F Contact Us For Availability
View on Model
359012
Fan Assembly,Blower
Fan Assembly,Blower LGE ADP73674101 Contact Us For Availability
View on Model
W1NF
Nut,Common
Nut,Common LGE 4H00947D Contact Us For Availability
View on Model
W4001A
Screw,Customized
Screw,Customized LGE 4A00637D Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE 6640A90001T Contact Us For Availability
View on Model
